Q: What are the differences between motion sensor or passive infrared sensor in solar sensor street light?

Dimension Microwave Radar Sensing Infrared Sensing (PIR) Detection principle Doppler effect microwave sensingPyroelectric effect infrared detection Typical frequency/components 5.8 GHz ± 75 MHz microwave modulePIR sensor + dedicated sensing IC (e.g., BISS0001) Coverage range Longer range and wider angle, typically up to 8–10 mRelatively shorter range, limited by optical field of view Penetration and occlusion Penetrates glass and thin wood; performance may be affected by multipath; metal can shieldEasily blocked by glass, walls, and heat barriers; requires unobstructed line of sight Environmental adaptability Less sensitive to temperature and dust; stable across day/night and weatherDetection distance may shorten in high ambient temperature (e.g., around 37°C) False triggers Possible from small animals, fluttering leaves, wind/rainMainly targets humans/animals; fewer false triggers from environmental IR sources Cost and integration Slightly higher module/algorithm costMature solution with generally lower overall cost Typical applications Mixed traffic scenarios (people and vehicles), complex environments, occlusion-prone locationsPedestrian-only paths, courtyards, stairwells, and other human-centric scenes Notes: Ranges and behaviors above are typical industry performance; actual results depend on product specifications and on-site tuning. Learn more about Solar street light with motion sensor or passive infrared sensor

Question 1

What are the advantages of solar sensor street light?

Accepted Answer

Energy saving and on-demand lighting: Radar/infrared induction is used to realize "lights on when people/vehicles come and lights off when people/vehicles leave", and the brightness of lamps can be adjusted according to actual needs, with a typical energy saving range of 40%-60%.

Green and low-carbon: photovoltaic power generation during the day and energy storage power supply at nite, reducing dependence on fossil energy; reducing carbon dioxide emissions from the power grid mainly based on thermal power.

Installation and operation and maintenance are more economical: no need to lay cables or excavate roads, modular "pole-mounted and ready to use", greatly shortening the construction period and reducing the overall cost; the system has light control/time control/overcharge and overdischarge protection, etc., the daily maintenance workload is small, and the long-term operation and maintenance costs are lower.

Safety and reliability: 12–24V low-voltage DC power supply is adopted, with low risk of electric shock and fire; the whole machine can reach IP65 waterproof and dustproof level, and the working temperature range is about -30℃ to 50℃, which is more stable in extreme weather such as typhoon, rainstorm, sandstorm and high temperature.

Intelligent management and long life: It can be connected to the Internet of Things platform for remote monitoring and fault alarm; the life of the lamps is usually ≥100,000 hours, and the induction dimming is used to further slow down the light decay and extend the life of the system.

Question 2

What locations are suitable for solar street lights with motion sensors?

Accepted Answer

Solar sensor street light, due to their flexibility and energy-saving characteristics, are very suitable for the following scenarios:

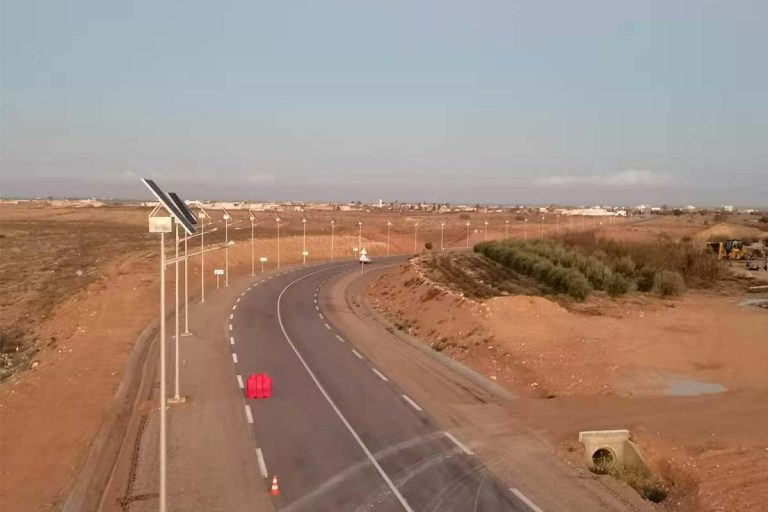

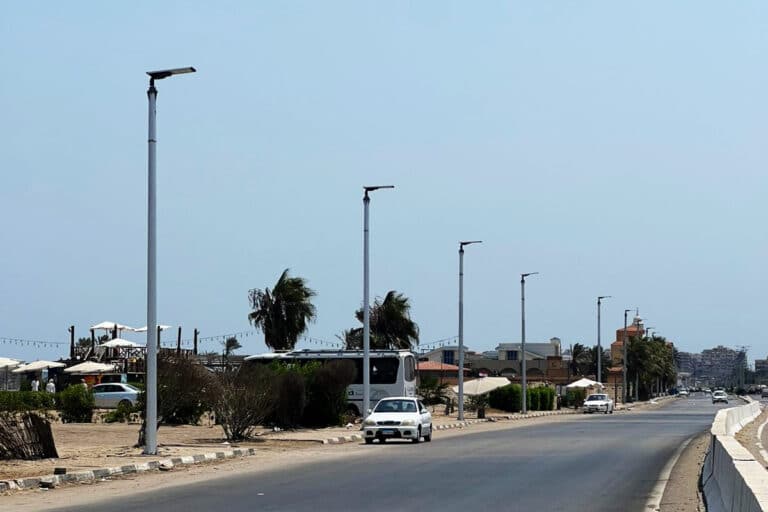

Urban roads and side roads: Automatically adjust brightness according to traffic density, ensuring safety while achieving efficient energy saving.

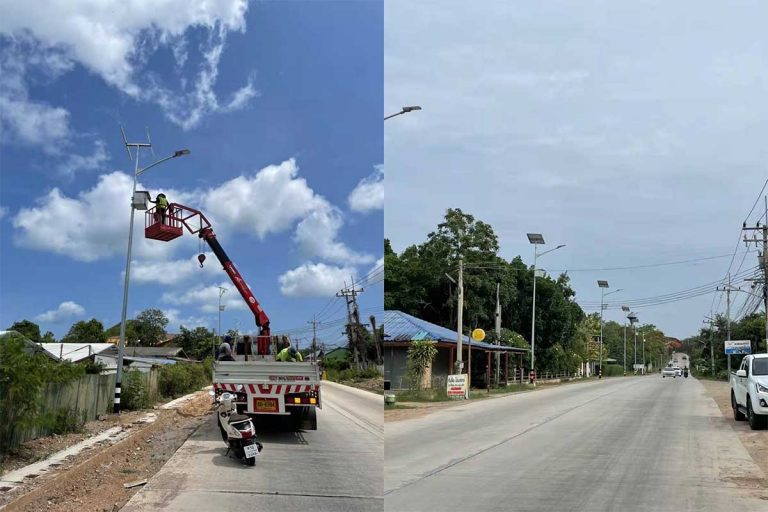

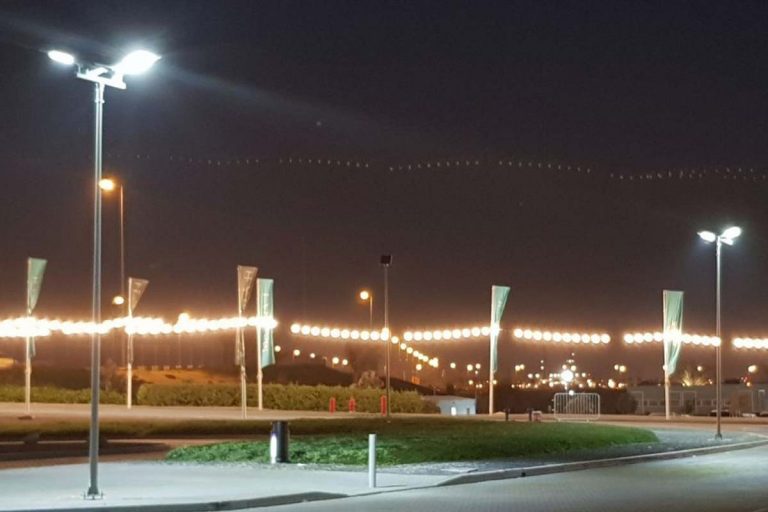

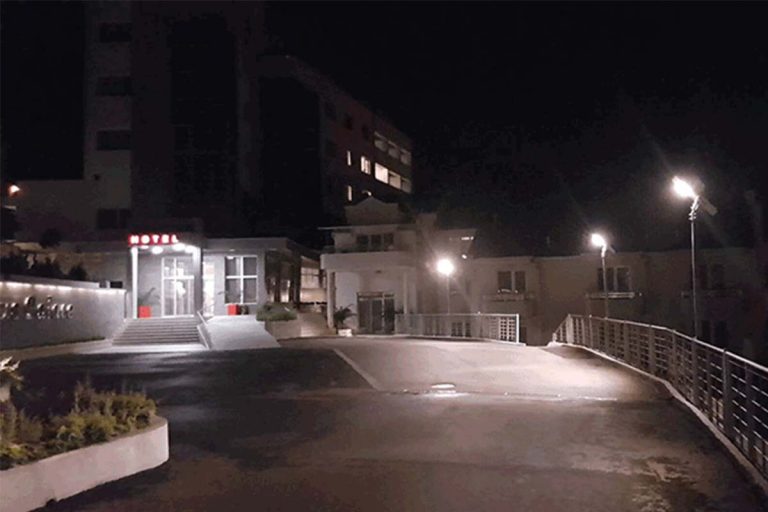

Parks, residential areas, and rural roads: In these areas, pedestrian traffic is sparse late at night. The "lights on when people are present, lights off when people leave" mode meets basic lighting needs while greatly saving energy.

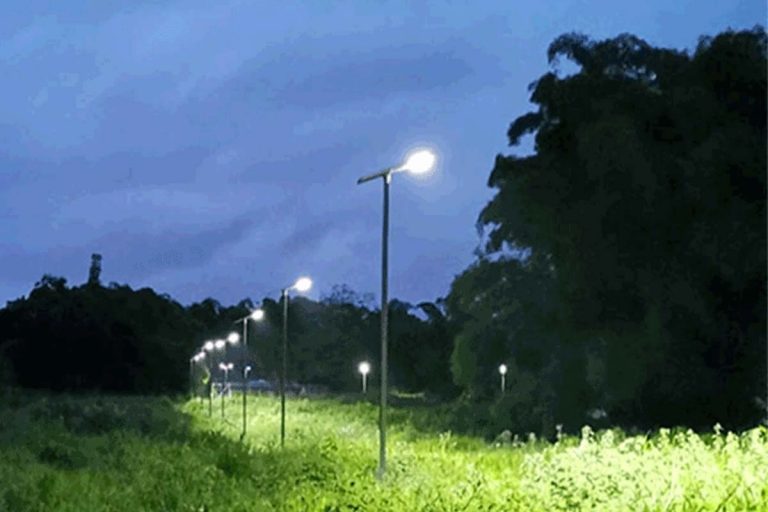

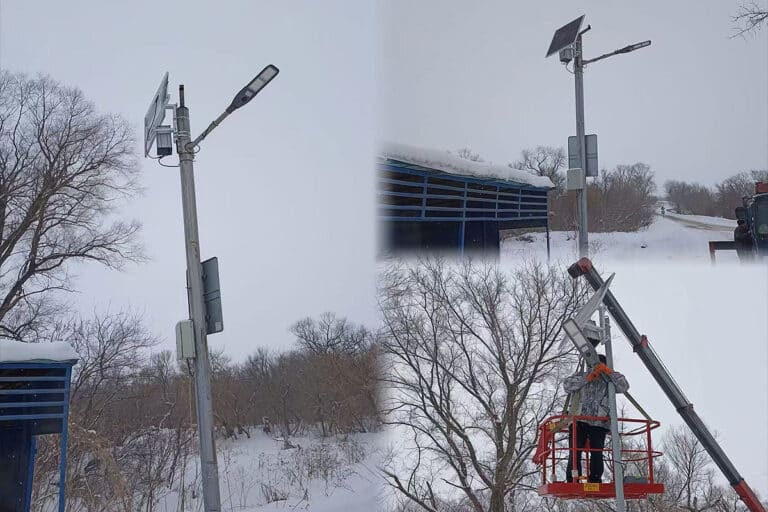

Remote and off-grid areas: Solar power combined with intelligent control completely solves the wiring problem, providing a safe and economical lighting solution for areas with weak power infrastructure.

In the future, with the development of the Internet of Things and artificial intelligence technology, the intelligent control of individual street lights will be further integrated into the management network of smart cities. Through big data analysis, the system can learn the patterns of pedestrian and vehicle flow in different areas and at different times, enabling more refined lighting strategy scheduling, further improving urban energy utilization efficiency and public service levels.

Question 3

What are the differences between motion sensor or passive infrared sensor in solar sensor street light?

Accepted Answer

DimensionMicrowave Radar SensingInfrared Sensing (PIR)Detection principleDoppler effect microwave sensingPyroelectric effect infrared detectionTypical frequency/components5.8 GHz ± 75 MHz microwave modulePIR sensor + dedicated sensing IC (e.g., BISS0001)Coverage rangeLonger range and wider angle, typically up to 8–10 mRelatively shorter range, limited by optical field of viewPenetration and occlusionPenetrates glass and thin wood; performance may be affected by multipath; metal can shieldEasily blocked by glass, walls, and heat barriers; requires unobstructed line of sightEnvironmental adaptabilityLess sensitive to temperature and dust; stable across day/night and weatherDetection distance may shorten in high ambient temperature (e.g., around 37°C)False triggersPossible from small animals, fluttering leaves, wind/rainMainly targets humans/animals; fewer false triggers from environmental IR sourcesCost and integrationSlightly higher module/algorithm costMature solution with generally lower overall costTypical applicationsMixed traffic scenarios (people and vehicles), complex environments, occlusion-prone locationsPedestrian-only paths, courtyards, stairwells, and other human-centric scenes

Notes: Ranges and behaviors above are typical industry performance; actual results depend on product specifications and on-site tuning.
