Home - LED Products - LED High Bay Light

LED High Bay Light

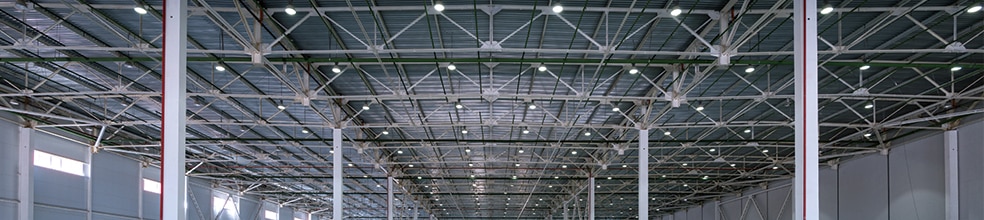

  • led high bay light

A factory is a place of high energy consumption, due to the production needs, the general lighting time is more than 12 hours, some even 24 hours of uninterrupted work, so the lifetime and energy saving rate requirements for industrial lights is very high, ZGSM LED high bay light with high light efficiency brand LED chips, luminaire system efficiency up to 190 lm/w, the use of well-known brand LED driver, the Life span can reach 100,000 hours. ZGSM, as a professional high bay light manufacturer, has helped customers to renovate a large number of workshop lighting in the past 16 years. With the continuous improvement of light efficiency, it can now achieve 100W LED workshop light to replace 400W traditional metal halogen lamp with higher lux value on the floor. High bay LED light can also use in warehouses, garages, commercial facilities, aisles (open & stock), field houses & gymnasiums and etc.

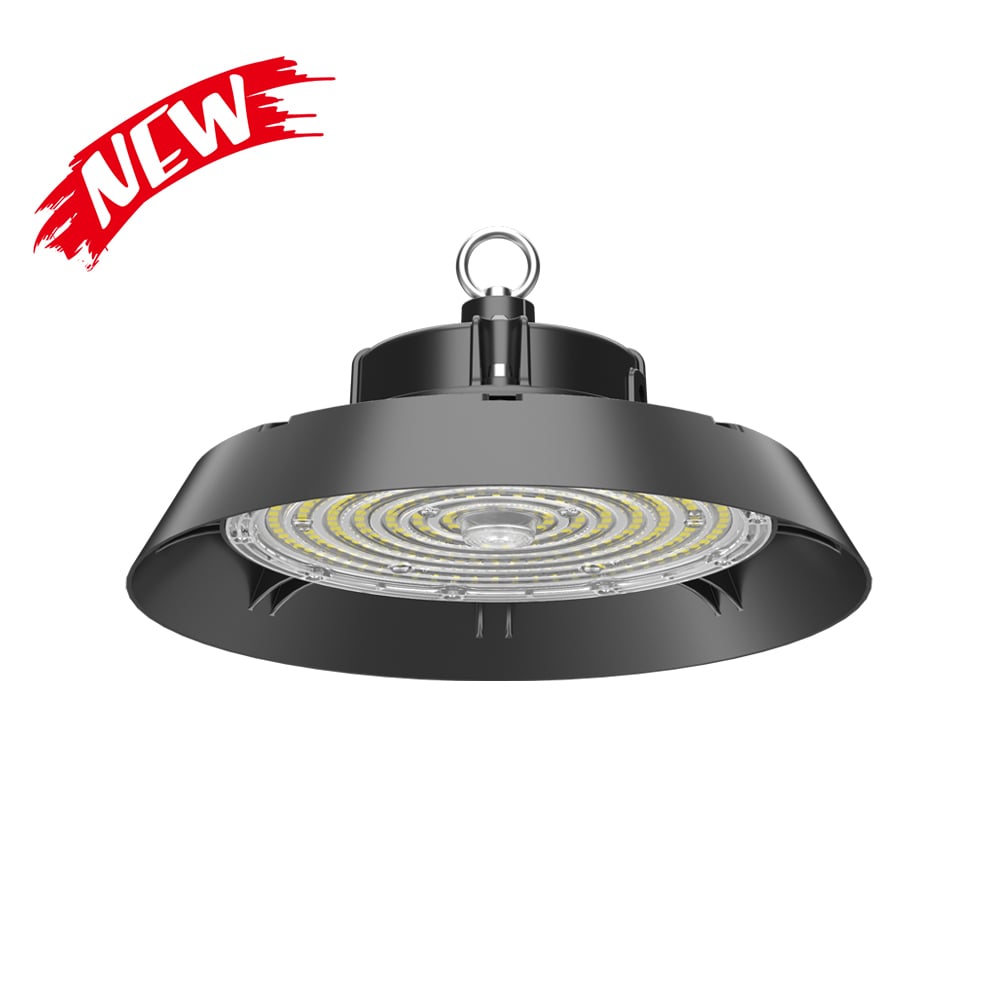

Series HB11 LED UFO High Bay Lights With Adjustable Watts and CCTs

The series HB11 LED UFO high bay lights have excellent efficiency and long-term reliability. With a power range of 100-300W, they can meet the needs of most industrial and commercial application scenarios. Series HB11 uses high-quality Lumileds chips, with low light decay (L70>50,000 hours) and excellent light efficacy. Its sturdy die-cast aluminum housing (ADC12) provides excellent thermal management capabilities, thereby improving the performance and service life of the lamp.

Inquiry now Read More

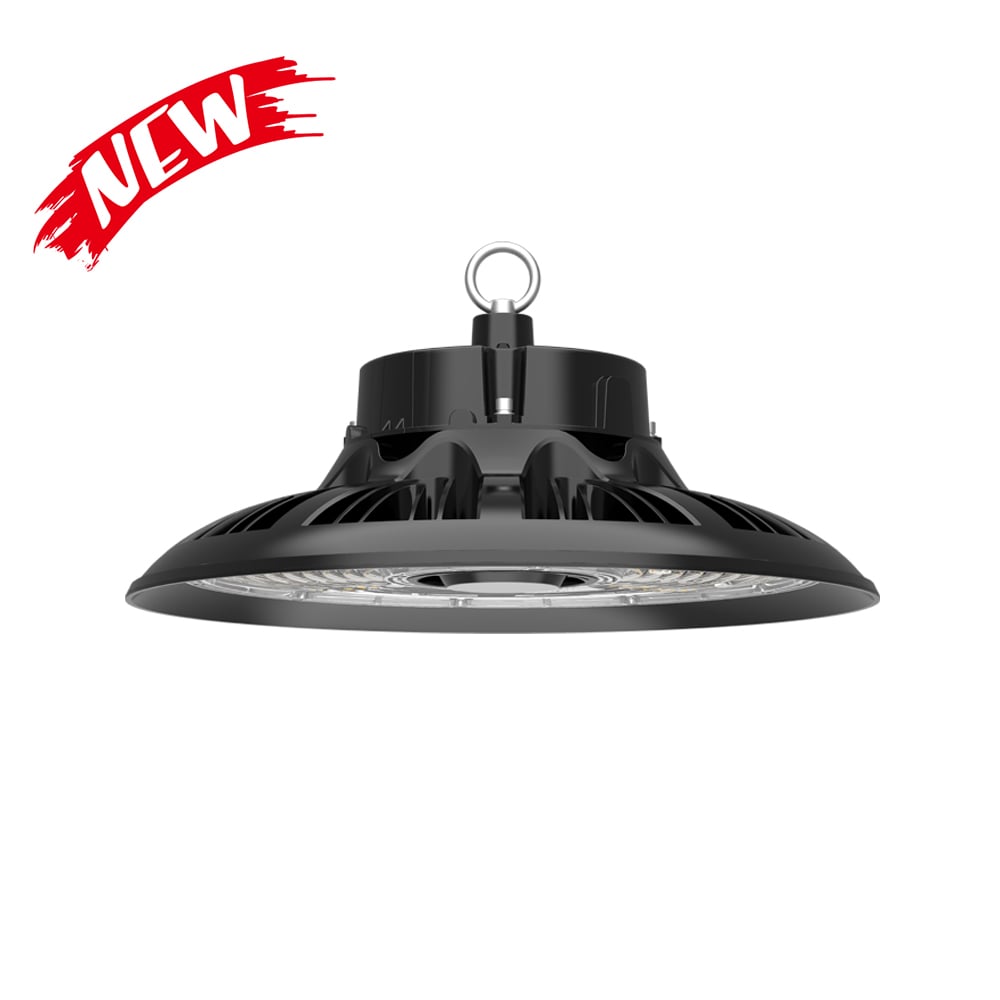

Series HB12 UFO LED High Bay with Tunable White LEDs

Series HB12 UFO LED high bay has a classic UFO design with a power range up to 500W and a luminous efficiency of up to 190lm/w. Its durable black powder coated housing, clear lens and optional multiple beam angles ensure uniform lighting in large spaces. The light fixture is adjustable in both power and color temperature, and is equipped with a high-quality power supply with a 3-position dial switch, providing a dynamic lighting solution. This advanced feature solves the problem of not being able to purchase in stock when users are unsure of the color temperature or power of the high bay lights.

Inquiry now Read More

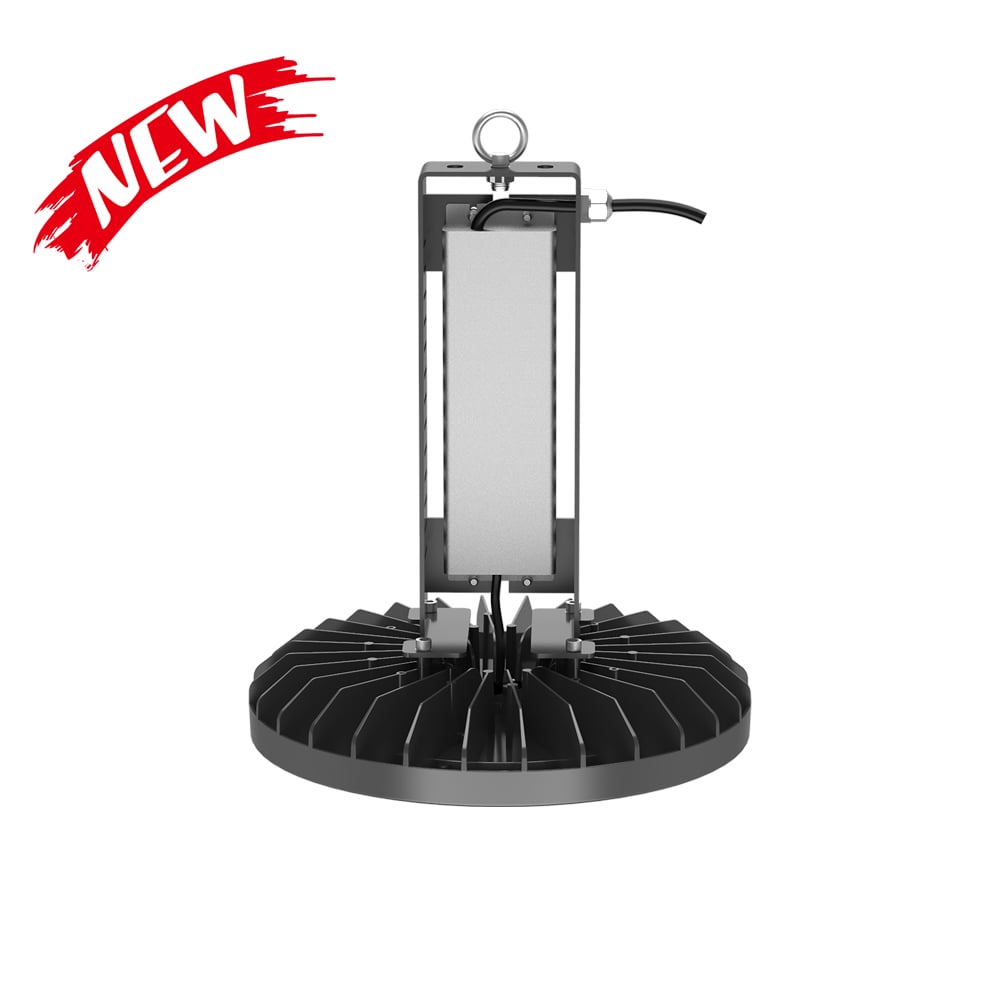

Series HB13 LED Industrial Light Withstand High Temperature Ambient

LED industrial light suitable for high temperature ambient is designed for industrial or warehouse spaces. The luminaire is designed with a vertical placed LED driver and can operate in ambient temperatures up to 65°C. Excellent cooling performance and advanced thermal management systems quickly dissipate heat to ensure long life while minimizing lumen degradation.

Inquiry now Read More
  • high bay light

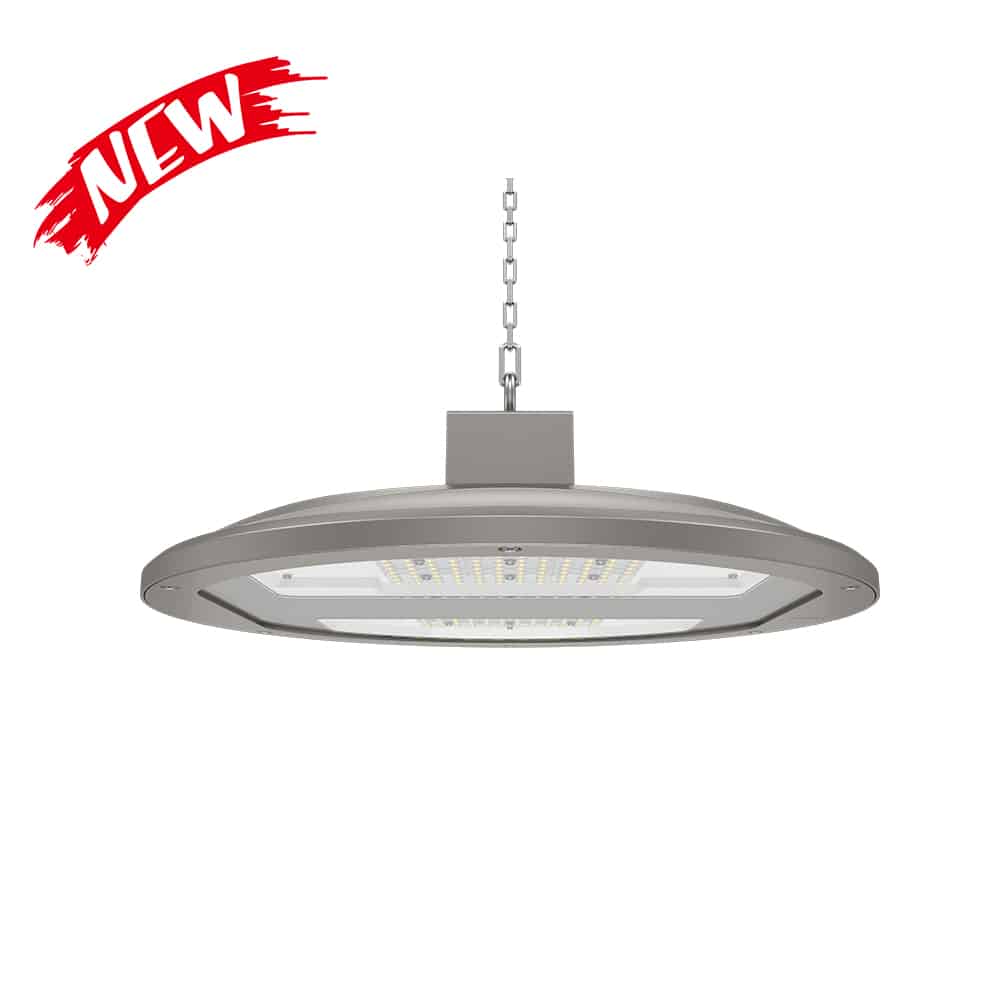

Series Halo LED High Bay Light with Smooth Body for Food Processing

Halo is a breakthrough design in industrial lighting, smooth housing combined with aesthetic taste, and dust-proof features for food processing applications. It allows for easy cleaning and is made of no toxic material to ensure safe for food processing halls. provides excellent illumination performance. Microwave motion sensors are available for more energy savings.

Inquiry now Read More
  • UFO High Bay Light

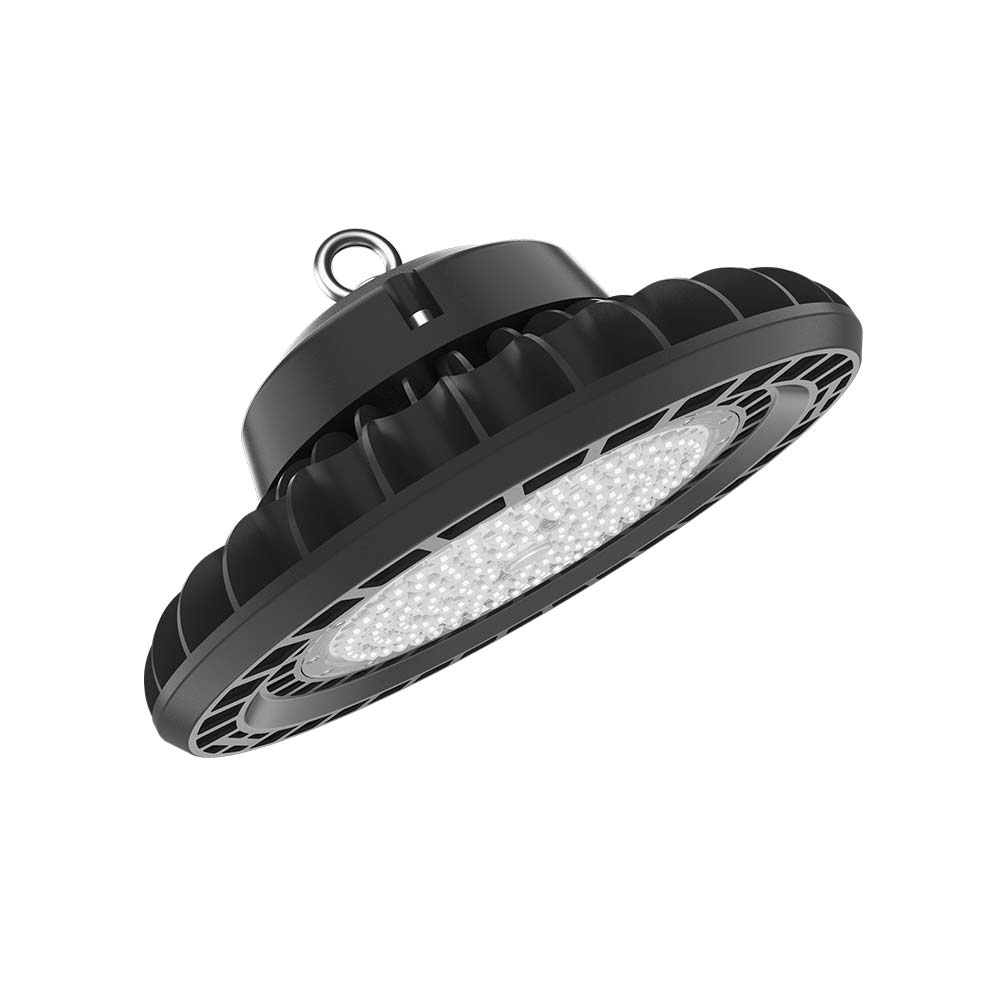

Series Helios 190LM/W UFO High Bay Light

Helios is an economical UFO type LED High Bay Light, the radiator is made of high-quality ADC12 aluminum alloy die-casting, has a very good heat dissipation effect, the use of high luminous efficiency LED chips, the whole fixture efficiency reaches 190lm/W, hey are high lumen high bay lights, as an industrial lighting lamp, it can be combined with motion sensor and daylight sensor to achieve the maximum energy saving.

Inquiry now Read More
  • led high bay lights 200w

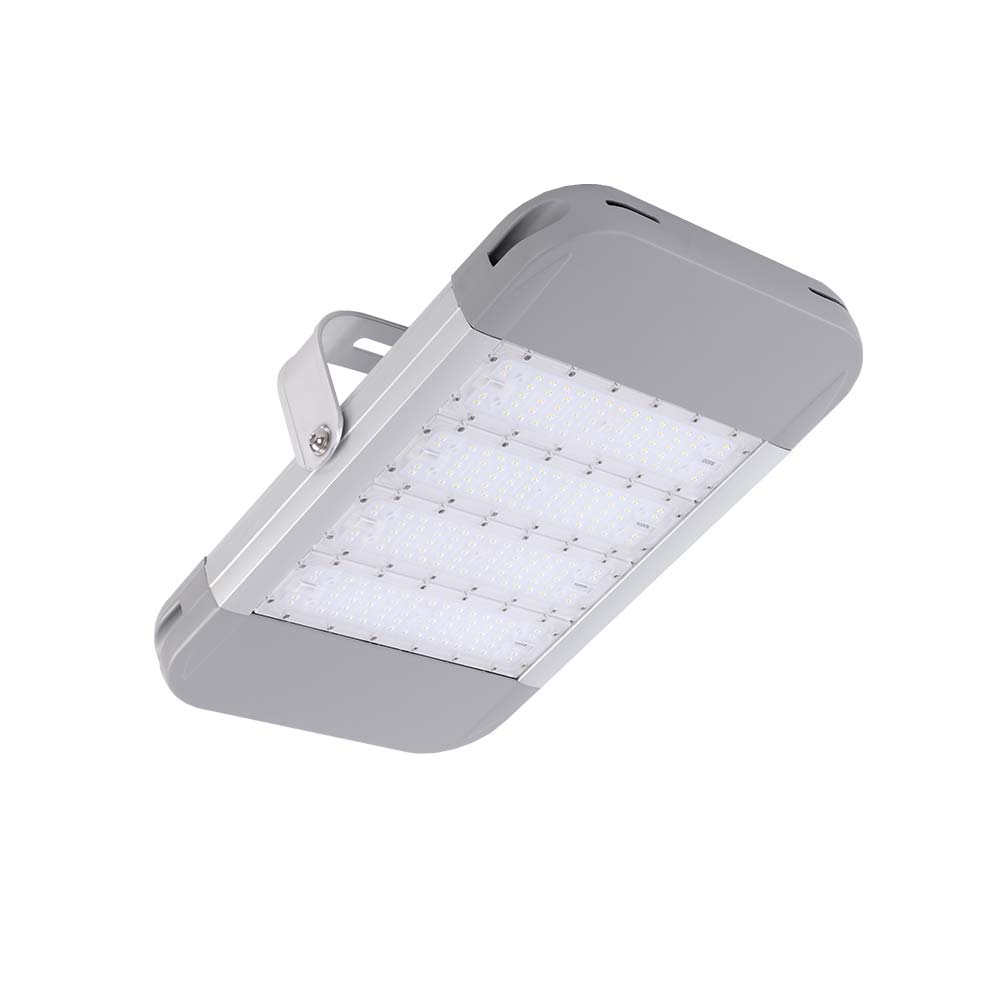

Series H Modular Design High Bay Led Light

Series H is a high-performance, high color rendering index high bay led light, it is very suitable for use in warehouses, production workshops, and other industrial fields. as the sixth generation high bay light, since 2014, it has been deeply loved by users in many countries. With reasonable heat dissipation design, H series led high bay light is not only maintained ventilation, avoids cutting hands, quickly dissipates heat, and can also solve the problem of dust accumulation. H series high bay lights can be equipped with 1-10V or DALI dimming to smart control system Compatible.

Inquiry now Read More

Best LED High Bay Light Factory, Manufacturer, Supplier In China

ZGSM has been the best LED high bay light manufacturer, factory, and supplier in China since 2005. Our commercial and industrial warehouse high bay lights are top quality with 5 and 7 years warranty, and the output lumens up to 190lm/W. Available 100W 150W 200W in wattage, round UFO high bay and square highbay in types. We have rich experience in manufacturing high bay lamps with the following advantages and services:

  • OEM/ODM /SKD Order acceptable.
  • Free IES/LTD files or Dialux lighting desgin.
  • High light efficiency up to 190LM/W.
  • Support different installation methods.
Aging test of UFO Light

Why Choose us as your LED High Bay Light Supplier in China?

OEM/ODM/SKD

Available to do OEM/ODM/SKD for all high bay lights. No MOQ limits for led high bay light retailers, wholesalers, and engineering companies.

FAST DELIVERY TIME

As a reliable high bay light supplier, we have stocks of raw materials for bay lights, regular delivery time is 3 days for samples and 2 weeks for bulk.

BEST QUALITY&PRICE

We use top stable quality led driver and chips like Philips driver and chips for all Industrial lights. Providing 5/7Years warranty at the cheapest price.

CERTIFICATES

Our led high bay lamps are CB, CE, RoHS, SAA, and UL approved, and our factory ISO9001, ISO14001, ISO45001, and ISO50001 certified.

Certification Show

As a professional LED high bay light manufacturer, we have got a lot of certification and test reports for our high bay led light, such as CE, CB, SAA, ROHS, UL, IEC62471, LM80, LM79, and so on.

CE by TUV
N8A 16 04 78142 052
Verification
SAA
SAA150407
Verification
CB by TUV
CB
SG PSB-LE-01050
Verification
UL
UL
E466856
Verification

R & D Team

  • Lighting engineer
    Lighting engineer
  • Electronic engineer
    Electronic engineer
  • Certification engineer
    Certification engineer
  • Industrial engineer
    Industrial Engineer
  • Structural engineer
    Structural Engineer
  • Test engineer
    Test Engineer

Product Testing

  • test room of led lighting
  • In order to ensure the high quality of each product, we will conduct more than 30 different aspects of testing in our own laboratory before the product goes on the market. After all the tests are passed, the product can be approved for marketing. In mass production, for some basic safety and performance tests, we will conduct 100% testing to ensure that every product delivered to the customer is perfect.

    • Test Equipment of LED light-17
    • Test Equipment of LED light-16
    • Test Equipment of LED light-15
    • Test Equipment of LED light-11
    • Test Equipment of LED light-13
    • Test Equipment of LED light-14

    Production Process

    • LED lighting production workshop-6
    • LED lighting production workshop-5
    • LED lighting production workshop-4
    • LED lighting production workshop-3
    • LED lighting production workshop-2
    • LED lighting production workshop-1

    Frequently Asked Questions

    LED high bay lights are the general term for LED lamps used in factory workshops, stations, wharves, warehouses, exhibition halls, large shopping malls, supermarkets, or other high hall lighting places. High bay lights can be round in shape and are now commonly referred to as UFO high bay lights. There are also some elongated or rectangular, commonly known as linear high bay lights. It is usually installed above the worksite or on the sidewall to illuminate the entire work surface, which can not only guide the light to the area but also meet the lighting requirements of 8-20 meters in height. High light efficiency, energy saving, long life, high CRI, environmental protection, and other characteristics make high bay light a perfect substitute for traditional 250W, 400W, 500W, 1000W HID lamps.

    LED high bay lights can be used in factory workshops, warehouses, exhibition halls, large conference rooms, large shopping malls, sports fields, subway stations, and railway stations, and are especially suitable for important places were high-risk, difficult to replace lights, and expensive maintenance costs.
    We can provide high bay light with a wide range of beam angles and sensors for special applications. For example, the beam angle of 60 degrees, 90 degrees, and 110 degrees can be used for large areas and specialized area lighting. 140LM/W, 165LM/W, and 190LM/W are suitable for high and low-grade projects. Model H series and Helios UFO series led factory lights and other different requests of appearance. Please contact us immediately and we will meet your complete solution by making DiaLux stimulus upon receipt of your specific requirements.

    1. Various beam angles are available.
    ZGSM has a professional optical design team to independently design a variety of optical lenses for different applications. our high bay fixtures usually have 60, 90, and 110 degrees of beam angles for optional, made of glass/polycarbonate material with high light transmission, UV resistance, and high flame retardancy.
    2. A variety of efficiency is available.
    Equipped with different LED chips, ZGSM high bay lights have a variety of luminous effects to choose
    from. When using 3030 LEDs, the general luminous efficiency can reach 140lm/w, when using
    customized high-efficiency LEDs, the luminous efficiency is up to 190lm/W
    3. Multiple installation methods are available.
    ZGSM LED industrial lights can easily achieve different installation requirements by changing the
    installation accessories. H series high bay lights can meet both bracket mounting and suspension
    mounting. Helios UFO workshop lights can support both ring and bracket installation at the same time,
    which is convenient for customers’ sales and storage.
    4. Energy-saving, eco-friendly, long life
    Excellent heat dissipation design, coupled with high-quality LED and driver, our high bay light can
    achieve more than 100,000 hours of an ultra-long lifetime; all materials are environmentally friendly and
    recyclable materials, effectively avoiding environmental pollution; ZGSM industrial light provides
    performance comparable to HID lamps with energy-saving benefits classified as A+ or better

    Different places have different lighting standards and needs. Before purchasing a high bay LED light, you must have a deep understanding of the following:

    • Where will these led bay lights be installed? A high bay light is often used for warehouses, gyms, and industries. In these places, the lighting standard is different. For example, the request lux value for a warehouse is 15 to 75 lux, however for workshop, it must be 75 to 300 lux.
    • Make drawings of your place, and confirm how height will you install them.
    • Using the IES file to run DIAlux in accordance with the lighting standard and the building’s dimensions will provide the precise purchase amounts.

    We are the leading manufacturer of LED high bay lights in China, and we can give the IES file as well as ideal solutions for your projects. Contact us if necessary.

    The selection of LED bay lights are different by application place, mostly based on the illuminating needs of each location.
    For example, when partial illumination is required, the led high bay often be provided with a narrow beam angle, so as to narrow the beam and focus on the illumination.
    If a large area of lighting is required, high bay LED lights must be equipped with a larger beam angle lens.
    There are typically three optic lenses that used for UFO high bay LED lights: 60/90° and 120°.

    You can confirm the wattage of the led high bay lights based on the installation height. Various power consumptions depend on various heights as follows:
    16ft-20ft height: 100W (14000-19000 lm)
    25ft-30ft height: 150W (21000-28500 lm)
    40ft-50ft height: 200W (28000-38000 lm)
    There are two types of LED high bay lights for optional:
    Round UFO LED High bay and square high bay lights for various applications.

    The warehouse is a place we are familiar with and unfamiliar with, and it can be seen everywhere around us, but at the same time, it is also a place where the factory pays the most attention to safety hazards, because it is related to the entire factory, and many people do not know that small How many hidden dangers are hidden in a warehouse, such as fires, etc. We can eliminate these hidden dangers, it just depends on whether you are willing or not to do it, a warehouse safety represents the safety of the entire factory. Safety must start from each of us, and the selection of warehouse lighting is no exception. So what are the warehouse lighting standards?

    1. The standard value of illuminance for large warehouse is “50Lx on 1 meter horizontal plane”;
    2. The illuminance standard value of general parts library is “100Lx on 1 meter horizontal plane”;
    3. The standard value of illuminance for semi-finished product warehouse is “150Lx on 1 meter horizontal plane”;
    4. The illumination standard value of the fine parts library is “200Lx on a 1 meter horizontal plane”;

    Factory lighting is very important, which is related to the quality of production, design, packaging, etc., but many people do not understand the lighting standards of factories. So, let me share with you what is the lighting brightness standard of the factory?
    The factory lighting brightness standards are as follows:

    1. The lighting brightness standard of ultra-precision operation, design, drawing, and precision inspection is 3000-1500lux.
    2. The lighting brightness standard for design room, analysis, assembly line and painting is 1500-750lux.
    3. Packaging, measurement, surface treatment, warehouse lighting brightness standard 750-300lux.
    4. Dyeing, casting, electrical room lighting brightness standard 300-150lux.
    5. The lighting brightness standard for entrances and exits, corridors, passages, stairs and toilets is 150-75lux.
    6. The lighting brightness standard of the Taiping ladder and outdoor power equipment is 75-30lux.

    STEP1: Open the packaging and check the product. In case of any damage, contact us.
    STEP2: Fasten the ring or bracket onto high bay light with screws provided.
    STEP3: Adjust the high bay light to direct the light in the desired direction before tightening the screws.
    (Bracket Mounted)
    STEP4: Be sure to connect the cable correctly. Brown-Live, Blue- Neutral, Yellow/Green- -Ground. STEP5: Switch the voltage on and check to see that the high bay light works properly.
    Recommended torque: 12Nm ± 1Nm (Bracket Mounted)

    For more details, Please read our Installation Manual

    Related Projects

    led high bay for warehouse

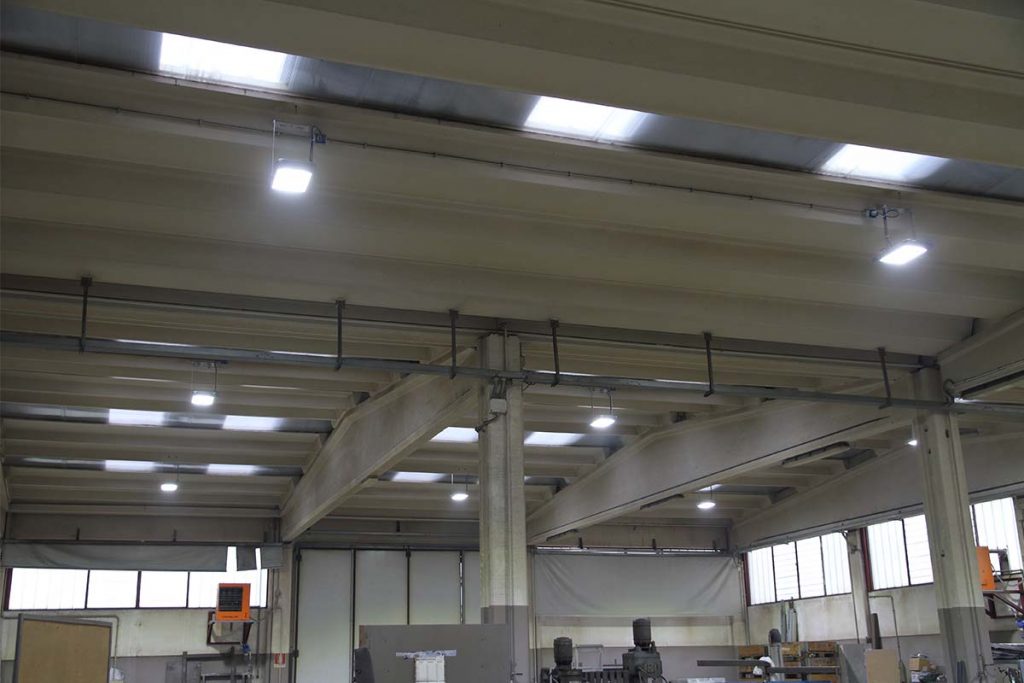

    Series H led high bay for warehouse and workshop lighting in Italy

    led ufo lights

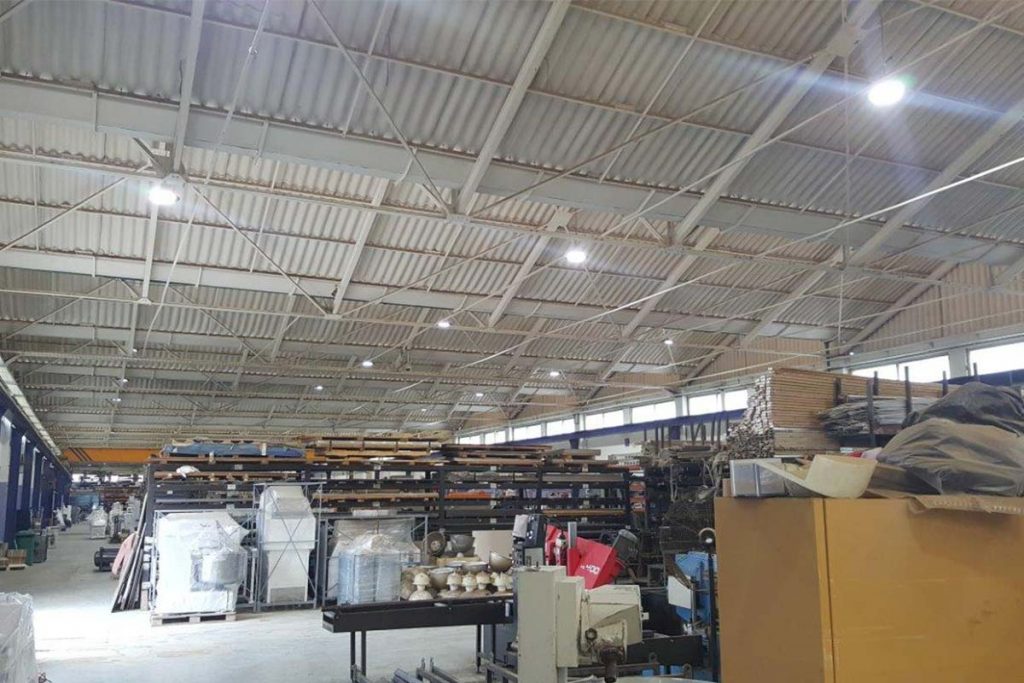

    Series M ufo led high bay light for warehousing lighting in Lebanon

    led high bay 200w

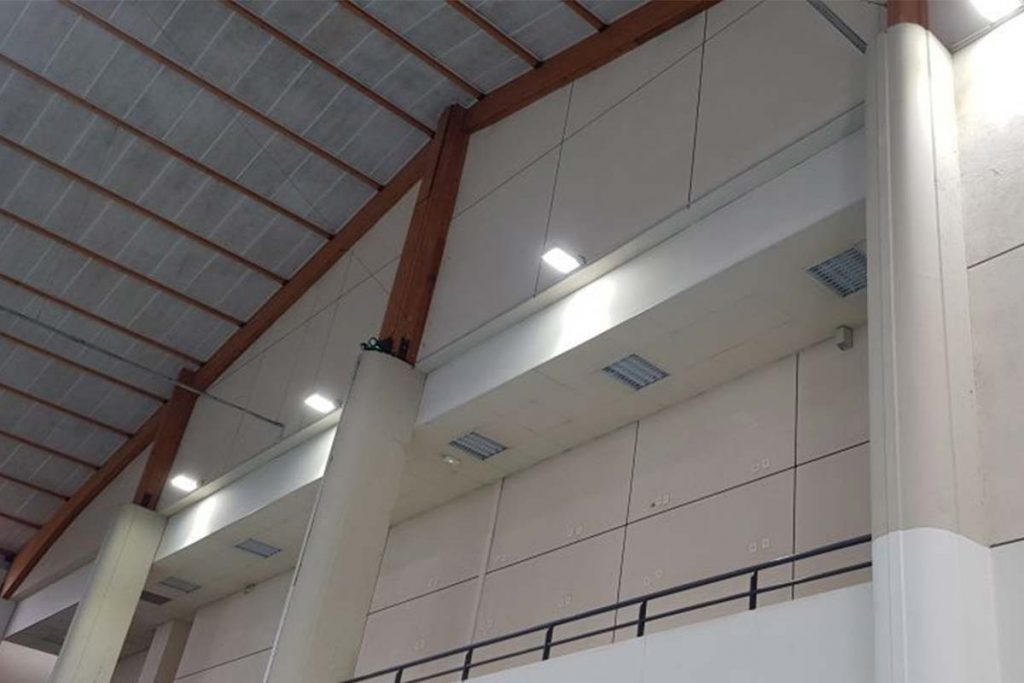

    Series HB high bay light fixtures in a workshop in France
