Home - LED Products - Series HB11 Watts & CCTs Selectable LED UFO High Bay Lights

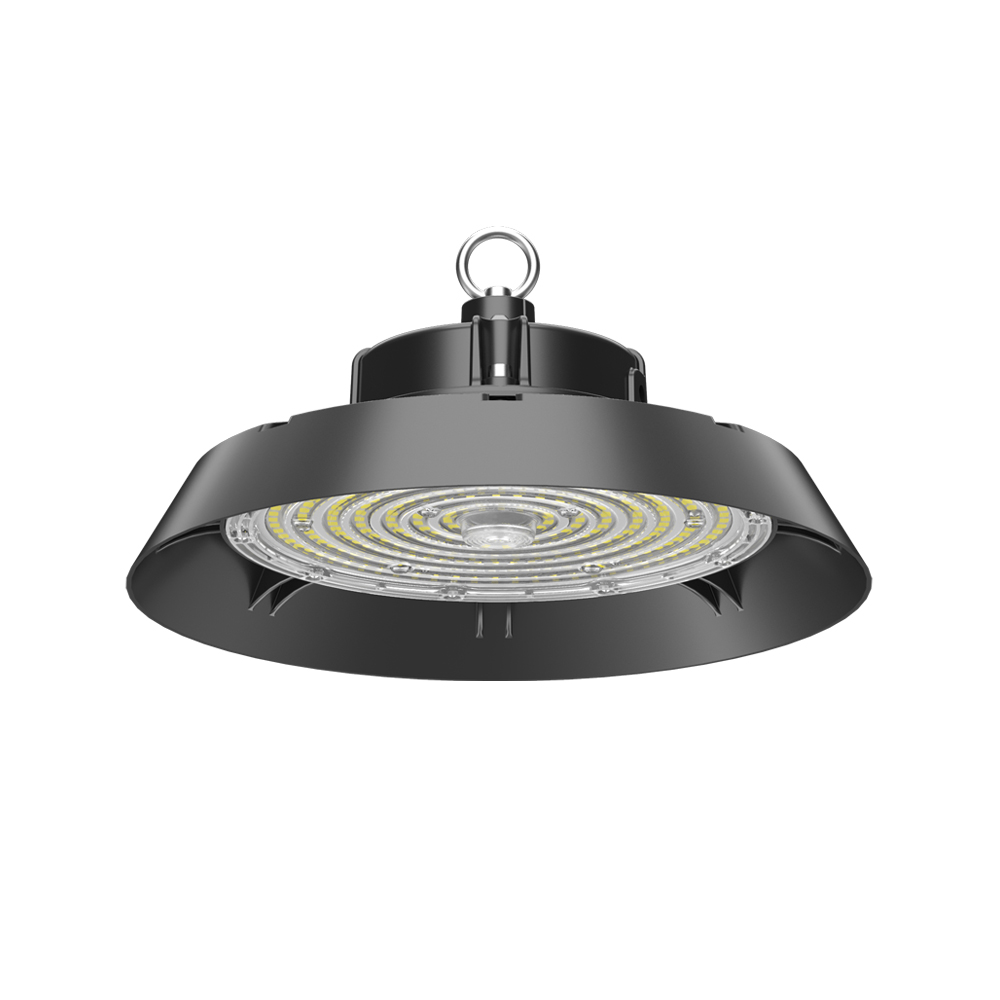

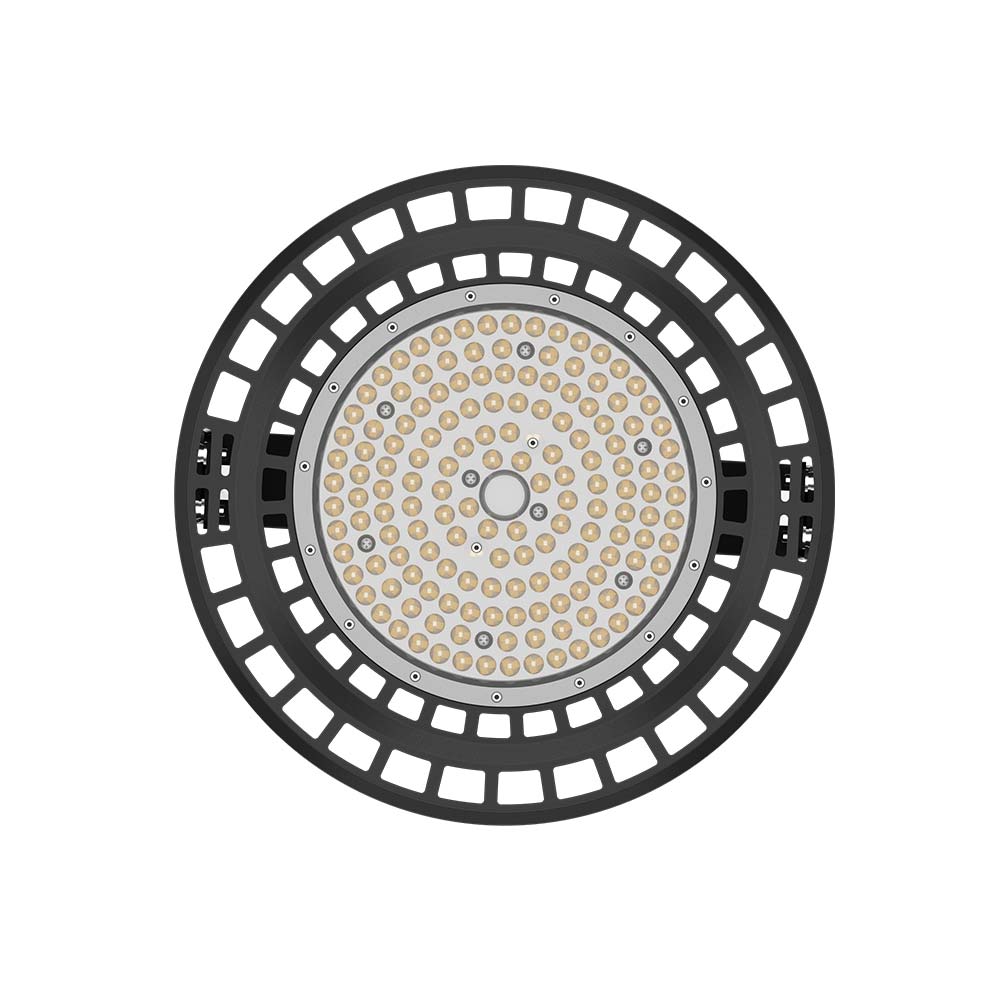

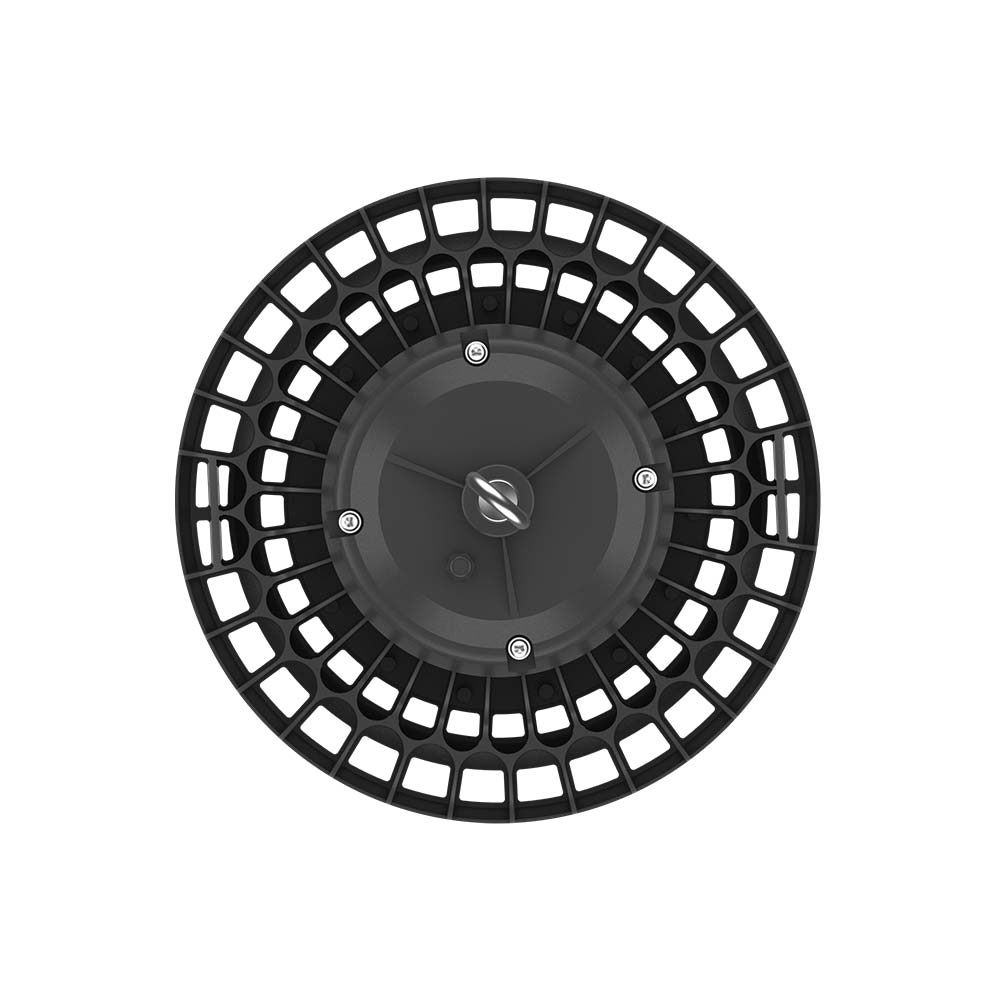

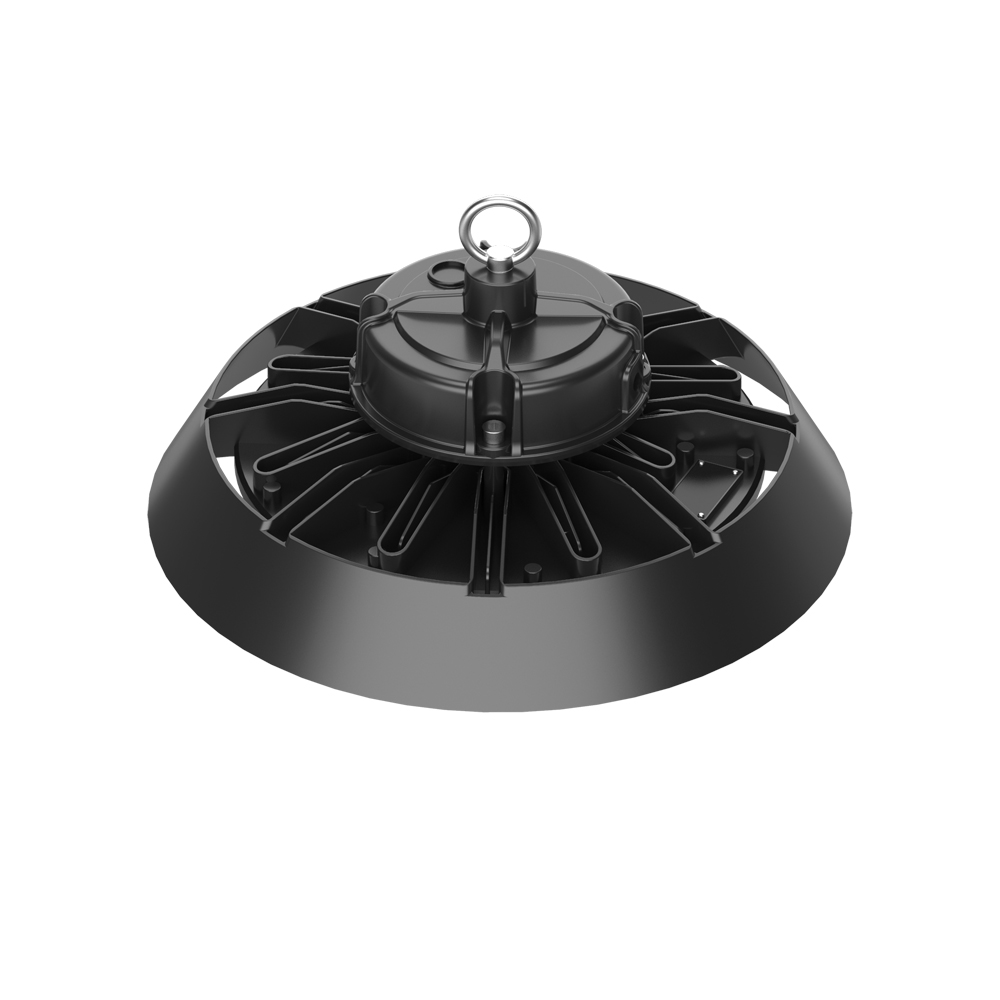

  • Series HB11 LED UFO High Bay Lights With Adjustable Watts and CCTs

    The series HB11 LED UFO high bay lights have excellent efficiency and long-term reliability. With a power range of 100-300W, they can meet the needs of most industrial and commercial application scenarios. Series HB11 LED UFO high bay light uses high-quality Lumileds chips, with low light decay (L70>50,000 hours) and excellent light efficacy. Its sturdy die-cast aluminum housing (ADC12) provides excellent thermal management capabilities, thereby improving the performance and service life of the lamp. The CCT and power adjustable design facilitates customer stocking, which can not only reduce inventory pressure, but also quickly respond to customer needs to promote sales. In addition, optional accessories such as aluminum reflectors, brackets, emergency batteries and steel cables can better meet the personalized needs of the project. These features make the series HB11 LED UFO high bay light ( View more of the ZGSM high bay light series. ) an ideal lighting solution for warehouses, factories and other large industrial environments.

    Product Features

    • Power options: 100W, 150W, 200W, 240W, 300W
    • High luminous efficacy: Up to 190lm/W
    • IK08 rating ( What is an IK rating? ), IP65 waterproof ( What are IP ratings? )
    • CCT and power adjustable
    • Dimming Support: 1-10V and DALI-2 dimming
    • Long lifespan with L70 >50,000 hours
    • High transmittance PC lens with 60/90/110° beam angles

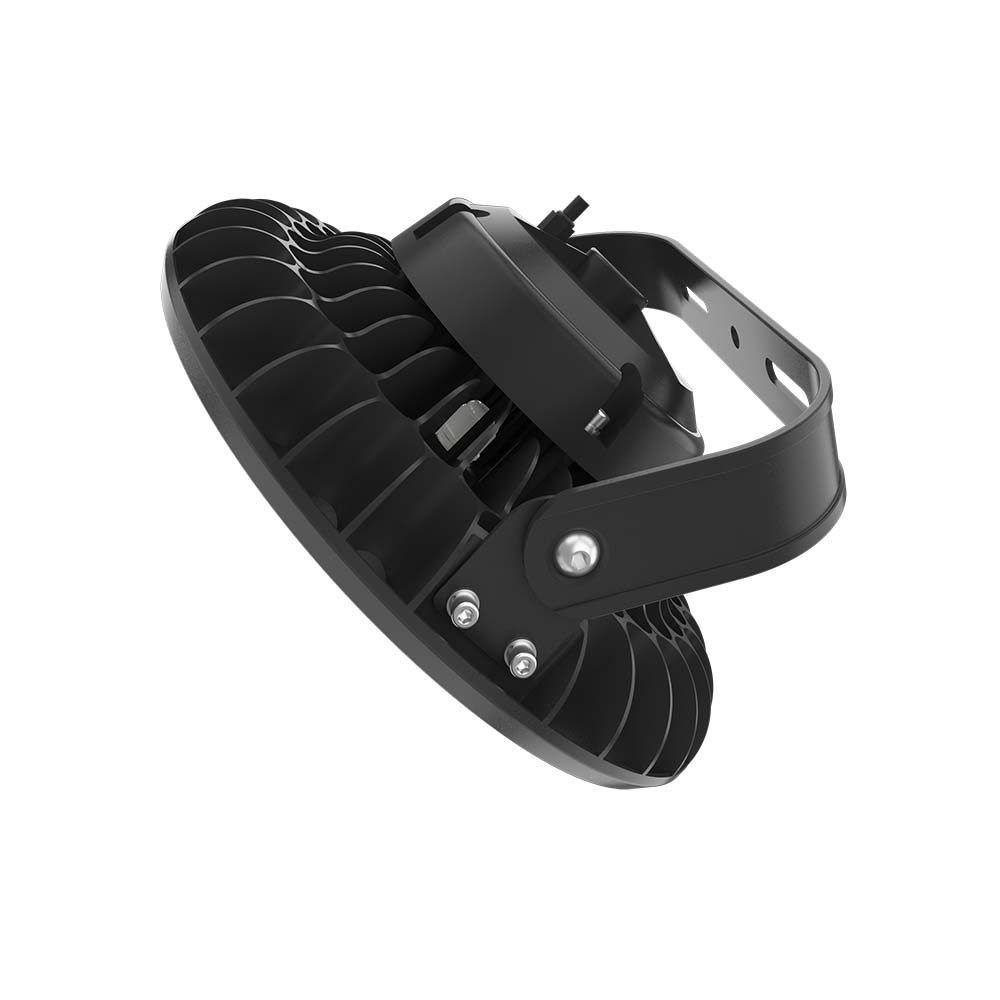

    • Optional accessories: Alu reflector, U bracket, Emergency battery, Steel rope, Plugs
    Contact Us
    • Facebook
    • Twitter
    • YouTube
    • Instagram
    • LinkedIn
    • Pinterest

    • ZGSM products are designed for the global market. Please contact our sales team for certification details.
    • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
    • Description
    • datasheet
    • Optics
    • Videos
    • Download
    • application
    • FAQ
    LED UFO high bay light
    LED UFO high bay light
    Model No. ZGSM-HB11-100 ZGSM-HB11-150 ZGSM-HB11-200 ZGSM-HB11-240 ZGSM-HB11-300
    Power (10±%) 100W 150W 200W 240W 300W
    Power Selectable 120W-100W-80W ADJ 150W-120W-100W ADJ 200W-150W-100W ADJ 240W-200W-150W ADJ 300W-240W-200W ADJ
    Input Voltage AC100-277V 50/60Hz
    Efffciency(5±%) 150lm/w / 170lm/w / 190lm/w
    Lumen (5±%) 15000lm / 17000lm / 19000lm 22500lm / 25500lm / 28500lm 30000lm / 34000lm / 38000lm 36000lm / 40800lm / 45600lm 45000lm / 51000lm / 57000lm
    Power Factor >0.95
    CRI Ra>70 / Ra>80 / Ra>90
    CCT 3000K-6500K
    Beam Angle 60°/90°/110°
    IK Rating IK08
    IP Rating IP65
    Lifetime 50000Hrs@L70
    Product Size Φ237*109mm Φ260*111mm Φ306*122mm Φ362*127mm Φ408*132mm
    N.W 1.50kg 1.70kg 2.20kg 2.70kg 4.50kg
    G.W 1.80kg 2.20kg 2.70kg 3.20kg 4.80kg
    Packing Size 260*260*135mm 280*280*135mm 336*336*150mm 390*390*160mm 425*425*170mm
    HB11 LED UFO high bay light optics
    DS_HB11_LED UFO high bay light Manual_HB11_LED UFO high bay light
    led high bay for warehouse

    Series H led high bay for warehouse and workshop lighting in Italy

    led ufo lights

    Series M ufo led high bay light for warehousing lighting in Lebanon

    200W LED High Bay Light

    Series H led high bay light in a workshop in Canada

    led high bay

    Series H led high bay in a Gym in the Netherlands

    high bay flood light in a factory in Bulgaria

    Series HB high bay flood light in a factory in Bulgaria

    commercial led high bay lights

    Series H High Bay Lights In Garage In Spain

    what is a ufo light? The answer is already there in the question. The LED UFO light is a UFO disc-shaped LED luminaire system with a flat monolithic aluminum housing and specially configured optics that optimize light distribution in a given area without relying on bulky reflectors.

    We have a lot of these questions and are happy to help. Some of them consider the color and height of the light, and some of them consider fixture spacing for their lighting projects.
    A quick rule of thumb.
    Brightness;
    14k lumens at 120 degrees from 10-15ft.
    21k lumens at 120 degrees from 14-20 ft.
    35k lumens at 120 degrees from 20-30 ft.
    42k+ lumens at 60, 90, or 120 degrees above 30 ft.
    Spacing;
    Place them at the same height as they hang; so 10 ft. off the ground, 10 ft. in space. 15 ft. every 15 ft. apart. Beyond 25 ft. we need to get closer or use a different lens, contact a lighting specialist.
    If you want to know the exact answer, please tell us the situation of your place, for example, warehouse, workshop, and other fields where need lighting, our engineers will provide you with a professional lighting simulation solution to tell you the exact answer.

    The Series M Led UFO Lights can be dimmed from 10% to 100% using conventional 1-10V or 0-10V dimmers, with specially specified dimmer pairs connected to compatible low-voltage LED dimmer switches. M series are dimmable led ufo lights.

    Yes, UFO LED lights are energy-efficient, durable, and ideal for warehouses, factories, and large indoor spaces. They offer high brightness, excellent heat dissipation, a long lifespan (50,000+ hours), and low maintenance, making them a cost-effective lighting solution.

    Not all high bay lights are waterproof. Because there are normally design for indoor lighting. But now most high bay lights are with IP65 or higher ratings which are dust- and water-resistant, suitable for humid or outdoor environments. The ZGSM HB11 series LED UFO high bay light features an IP65 rating, adjustable wattage and CCT, and 60° to 110° beam angle, making them suitable for most applications.

    High-quality LED high bay lights last 50,000 to 100,000 hours, depending on usage and environmental conditions. Good heat dissipation and a stable power supply help maximize lifespan and minimize maintenance.

    Related Products

    Series HB13 LED Industrial Light Withstand High Ta

    Series HB12 UFO LED High Bay With Tunable White LEDs

    UFO High Bay Light

    Series Helios 190LM/W UFO High Bay Light

    led high bay light

    Series Halo LED High Bay Light for Food Processing

    Related Blogs

    something about leds

    Something you should know about different types of LEDs – SMD vs COB

    TagsLEDs
    How to Buy LED High Bay Lights

    How to Buy LED High Bay Lights – A Complete Buyer’s Guide

    TagsHigh bay lighting
    led driver

    How to choose the right LED driver for your LED light?

    TagsLED Driver

    How Long do Led Lights Last ?

    TagsLifetime

    Certification Show

    As a professional manufacturer of LED high bay Lights, our LED UFO high bay light have rich certification and test reports, such as CE, ROHS, LM80, TM-21, and so on.

    COMPONENT STANDARDS TEST REPORT CERTIFICATIONS
    LED LM80 √
    LUMINAIRES EN/IEC 60598-1 y 60598-2-3 √ √
    EN/IEC 60529 √
    EN/IEC 62262 √
    EN/IEC 55015 √ √
    EN/IEC 61000-3-2 √ √
    EN 61547 √ √
    EN 61000-3-3 √ √
    TM-21 √
    LED MODULE EN/IEC 62031 √
    LED DRIVER IEC 62384,IEC 61347-1,IEC 61347-2-13 √ √
    FACTORY ISO9001,ISO14001,ISO50001,ISO45001   √
