Home - LED Products - Series Helios 190LM/W UFO High Bay Light

  • Series Helios 190LM/W UFO High Bay Light

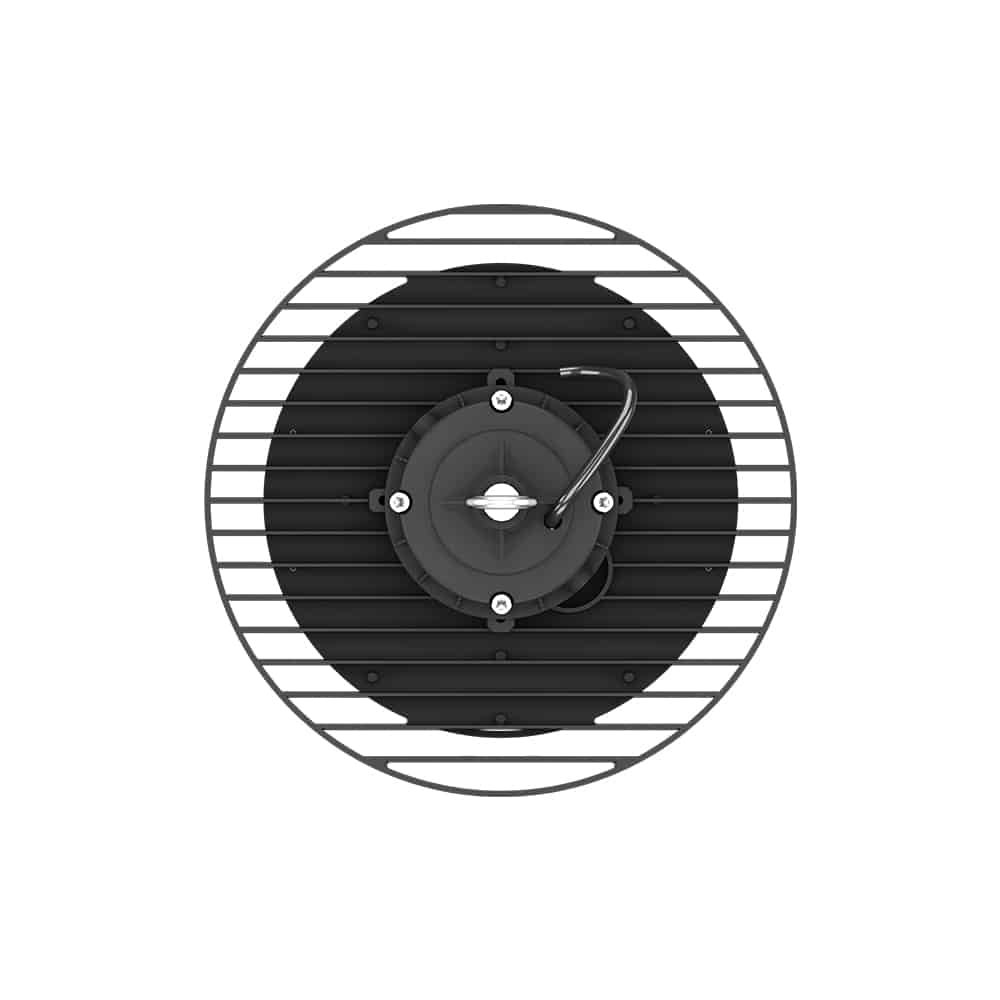

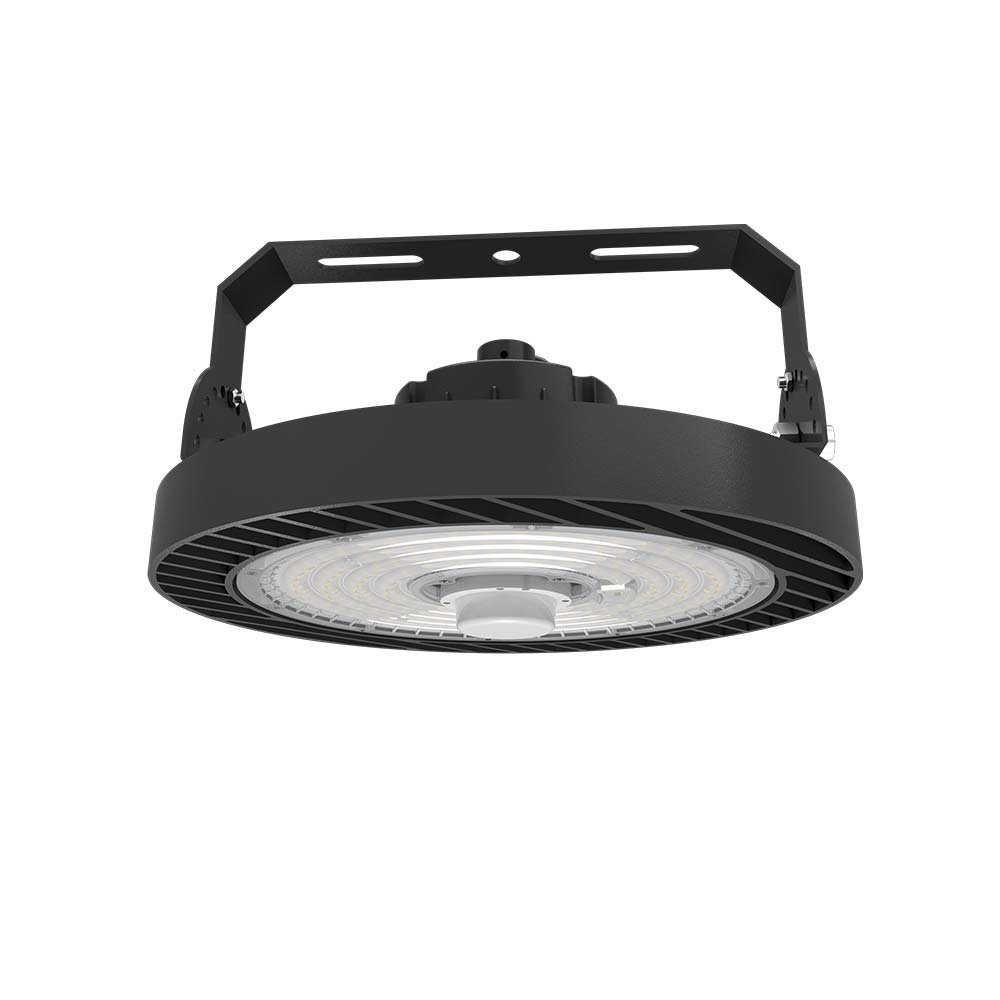

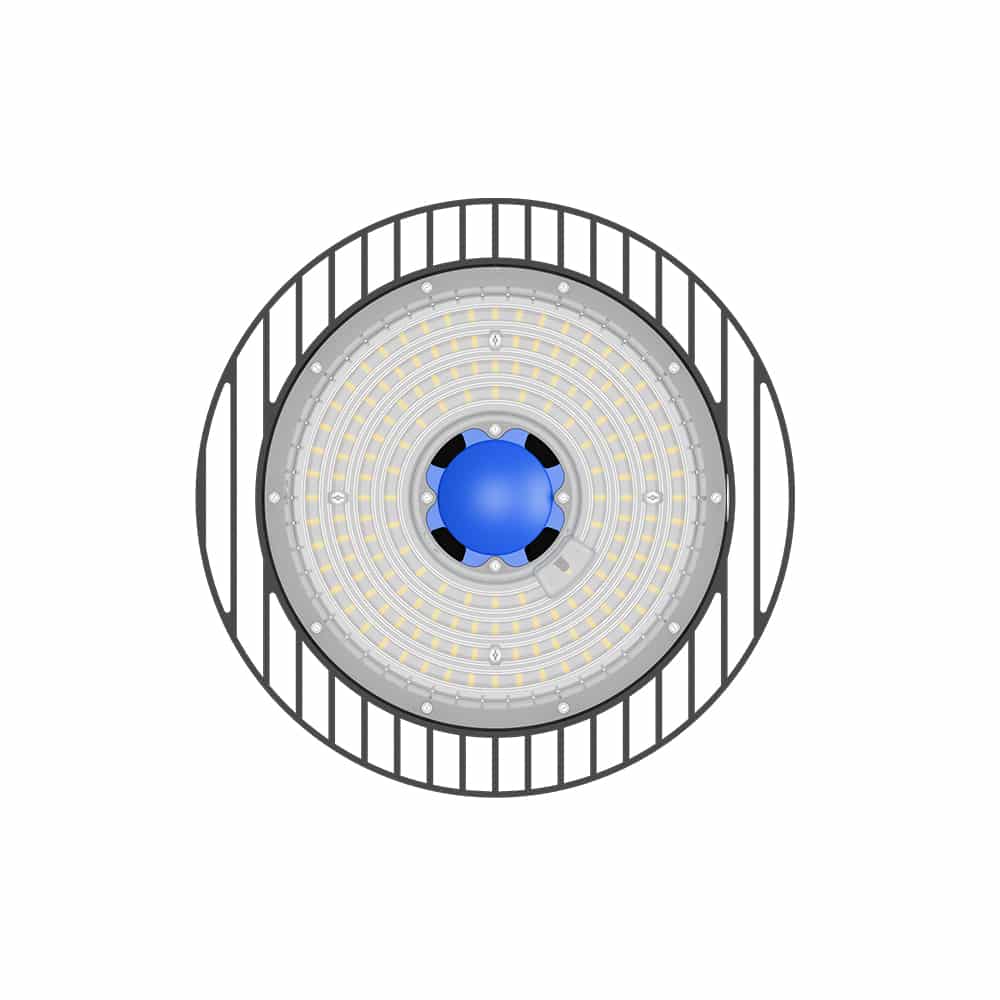

    Helios is an economical UFO High Bay Light, the radiator is made of high-quality ADC12 aluminum alloy die-casting, has a very good heat dissipation effect, use high luminous efficiency LED chips, and the whole fixture efficiency reaches 190lm/W, as an industrial lighting lamp, it can be combined with motion sensor and daylight sensor to achieve the maximum energy saving. Can also achieve a dimming function, Helios series are dimmable led ufo lights.

    Product Features

    • Watts: 100W,150W,200W
    • Light Efficiency up to 190lm/w
    • IK08, IP65 waterproof
    • 70% energy saving, short ROI period
    • Wide choice of optics for different lighting arrangements
    • Hook Loop or Bracket mounting
    • CE, ROHS certified
    • Plug-in sensor
    • Smart Control: 1-10V dimming, DALI control, Photocell, Motion/PIR sensor
    Contact Us
    Facebook
    Facebook
    fb-share-icon
    Twitter
    Visit Us
    Tweet
    LinkedIn
    LinkedIn
    Share
    Pinterest
    Pinterest
    fb-share-icon
    Instagram
    YouTube

    • ZGSM products are designed for the global market. Please contact our sales team for certification details.
    • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
    • Description
    • datasheet
    • Optics
    • Videos
    • Download
    • application
    • FAQ
    Helios Series UFO High Bay Light

    Series NoSeries Helios
    Power100W,150W, 200W
    Efficacy140-190lm/W
    Input Voltage100-240/277 VAC, 50 / 60 Hz
    Power Factor>0.95
    Surge Protection4KV line-line, 6KV line-earth
    IP RatingIP65
    IK RatingIK10
    CCT3000K, 4000K, 5000K, 5700K
    CRIRa>70 (Default) / Ra>80
    Operating Temperature-40°C to + 50°C
    Beam Angle60°, 90° or 110°
    Mounting OptionHook Loop, Various Brackets
    Warranty5 Years
    CertificationCE, ROHS, LM80, TM-21
    ControlDALI Dimmable, Motion/PIR Sensor, Non-Dimmable, 1-10V Dimmable
    optic: Series Helios 190LM/W UFO High Bay Light
    Specification_Helios_BayLight
    Installation Manual_HighBayLight_Helios

    led ufo lights

    Series M ufo led high bay light for warehousing lighting in Lebanon

    led high bay for warehouse

    Series H led high bay for warehouse and workshop lighting in Italy

    led high bay 200w

    Series HB high bay light fixtures in a workshop in France

    high bay flood light in a factory in Bulgaria

    Series HB high bay flood light in a factory in Bulgaria

    high bay led lights

    Series H led high bay light in the workshop in UAE

    commercial led high bay lights

    Series H High Bay Lights In Garage In Spain

    UFO High Bay Light is a LED light shaped like UFOs, mainly used for commercial or industrial lighting, such as warehouses, factories, garages, shopping malls, etc. They can illuminate large areas.

    Wattage and Lumens – How to choose the right amount
    10-15 feet — this height is ideal for 10,000 to 15,000 lumens.
    15-20 feet — this height is ideal for lights of 16,000 to 20,000 lumens.
    25-35 feet — 33,000 lumens is ideal for this height.

    High bay lighting uses deep reflectors for directing light downwards from high ceilings. High bay luminaires also produce diffused light, which helps to reduce glare. Low bay lighting has shallower reflectors and lenses that diffuse light outwards from lower ceilings.

    Usually, you need to select the lighting with the correct power depending on the lighting required for the scene and the height of the suspension. In different scenes, the required light level varies and the relevant parameters are required to differ. It is advisable to check the IES file supplied with the LED UFO high bays work light before purchasing it and to make calculations using specialist lighting software such as DIALux, AGI32, etc. When calculating the number of lights, you need to provide some basic parameters, such as the size of the room, the length, width and height, the illuminance required for the premises, etc. The IES file is entered into the software and the required lighting layout is planned. You can also view the lighting effects after installation, quickly and accurately.
