Home - LED Products - Series HB12 UFO LED High Bay With Tunable White LEDs

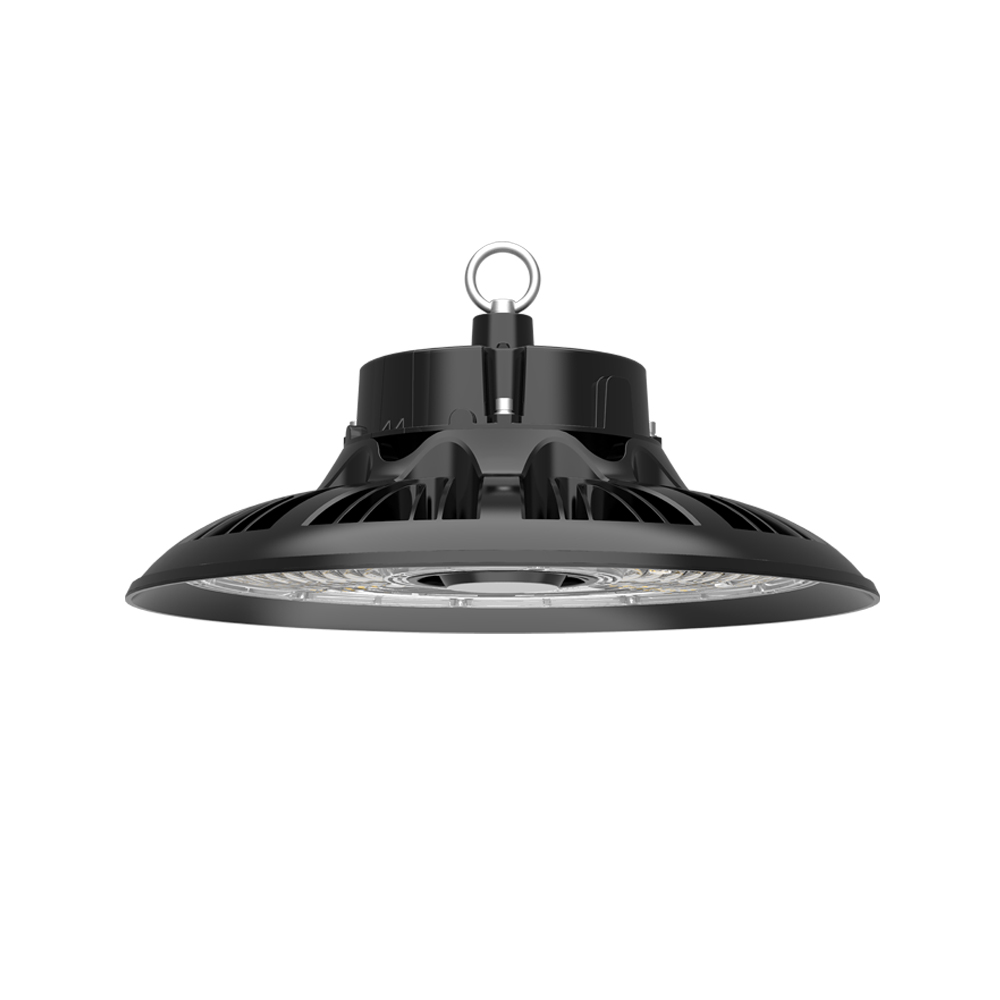

Series HB12 UFO LED High Bay With Tunable White LEDs

Series HB12 UFO LED high bay has a classic UFO design with a power range up to 500W and a luminous efficiency of up to 190lm/w ( Benefits of high luminous efficacy ). Its durable black powder coated housing, clear lens and optional multiple beam angles ensure uniform lighting in large spaces. The light fixture is adjustable in both power and color temperature, and is equipped with a high-quality power supply with a 3-position dial switch, providing a dynamic lighting solution. This advanced feature solves the problem of not being able to purchase in stock when users are unsure of the color temperature or power of the high bay lights.

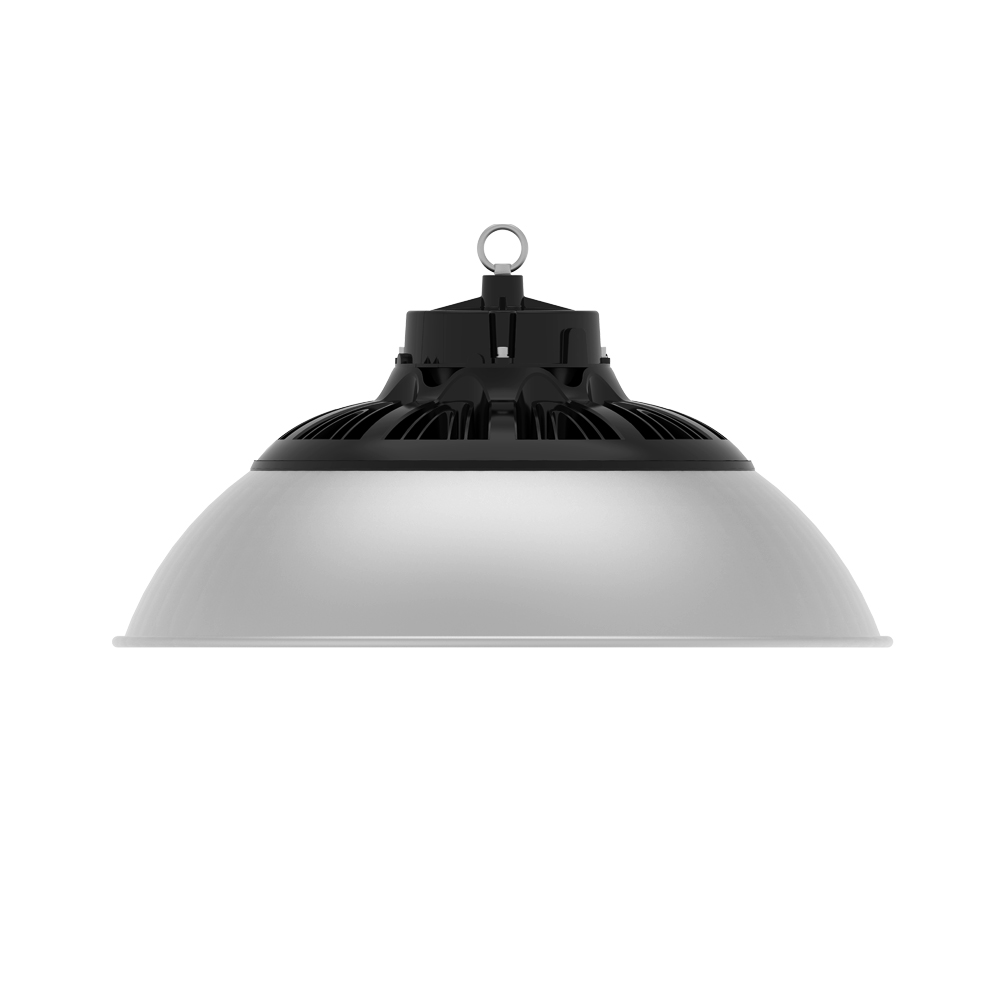

In addition, this UFO LED high bay supports 0-10V dimming ( DALI-2 1-10V Dimmable LED Driver for LED Lights ), and the optional motion sensor can be used to achieve efficient operation and optimal energy saving, as well as precise brightness control. Alu reflector and emergency battery are optional accessories, and multiple installation methods can be achieved to meet different lighting scenarios.

Product Features

  • Power can reach up to 500W
  • High luminous efficacy: Up to 190lm/W
  • Full die-casting aluminum housing
  • CCT & Power Selectable
  • Wide options for symmetry optics 40°, 60°, 90°, and 110°
  • Long lifespan with L70 >50,000 hours
  • Optional accessories: Alu reflector, U bracket, Emergency battery, Steel rope
  • ENEC, CE, CB certified ( Different certification standards for LED lighting )
  • Smart Control: 1-10V/ DALI dimming ( What’s 0-10V dimming? ), Motion sensor, Zhaga socket
Contact Us
  • Facebook
  • Twitter
  • YouTube
  • Instagram
  • LinkedIn
  • Pinterest

  • ZGSM products are designed for the global market. Please contact our sales team for certification details.
  • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
  • Description
  • datasheet
  • Optics
  • Videos
  • Download
  • application
  • FAQ
LED UFO high bay light
LED UFO high bay light
Model No ZGSM-HB12-60 ZGSM-HB12-100 ZGSM-HB12-150 ZGSM-HB12-200 ZGSM-HB12-240 ZGSM-HB12-300 ZGSM-HB12-400 ZGSM-HB12-500
Power 60W 100W 150W 200W 240W 300W 400W 500W
Input Voltage AC100-277V, 50/60Hz
Lumen EFF. 150lm/W,170lm/W,190lm/W
Lumen Flux(+5%) 9,000LM 15,000LM 22,500LM 30,000LM 36,000LM 45,000LM 60,000LM 75,000LM
10,200LM 17,000LM 25,500LM 34,000LM 40,800LM 51,000LM 68,000LM 85,000LM
11,400LM 19,000LM 28,500LM 38,000LM 45,600LM 57,000LM 76,000LM 95,000LM
QTY Of LEDS(PCS) 130/172 208/300 300/450 420/680 420/680 616/935 1100/1530 1100/1530
LED Brand LUMILEDS 2835 /SAN'AN 2835
Driver Brand SOSEN Or PHILIPS MOSO
CCT 3000K,4000K,5000K,5700K,6500K and 3CCT ADJ
CRI >70/80
PF 0.95
Beam Angle 60°/90°/110° 40°/60°/90°
IP Rating IP65
IK Rating IK08
Warranty 5-year@SOSEN & MOSO, 7-year@PHILIPS
Dimension(mm) 233*145 260*145 287*147 305*149 305*149 342*168 447*178 447*178
HB12 UFO LED High Bay optics
DS_HB12_UFO LED High Bay Manual_HB12_UFO LED High Bay
led high bay for warehouse

Series H led high bay for warehouse and workshop lighting in Italy

led ufo lights

Series M ufo led high bay light for warehousing lighting in Lebanon

200W LED High Bay Light

Series H led high bay light in a workshop in Canada

led high bay

Series H led high bay in a Gym in the Netherlands

high bay flood light in a factory in Bulgaria

Series HB high bay flood light in a factory in Bulgaria

commercial led high bay lights

Series H High Bay Lights In Garage In Spain

Tunable white refers to a lighting technology that allows users to adjust the color temperature of white light emitted by a light fixture. This adjustment can range from warm white (around 2700K) to cool white (up to 6500K or higher). Tunable white lighting allows for dynamic adjustments to suit various activities, moods, and times of day, providing a high degree of flexibility and customization.

Selectable power and CCT (color correlated temperature) in LED lighting offer flexibility and customization, allowing users to adjust light output and color temperature to suit specific needs and environments, ultimately saving time, money, and improving the overall lighting experience.

UFO LED High Bay Lights are advanced lighting solutions designed to illuminate floor spaces from high ceiling heights. These fixtures are named for their rounded "UFO" appearance, which resembles a circular compact shape to maximize the durability and illumination of the fixture, and are typically located at heights of 20 to 45 feet.

Related Products

Series HB13 LED Industrial Light Withstand High Ta

Series HB11 Watts & CCTs Selectable LED UFO High Bay Lights

UFO High Bay Light

Series Helios 190LM/W UFO High Bay Light

led high bay light

Series Halo LED High Bay Light for Food Processing

Related Blogs

something about leds

Something you should know about LEDs

TagsLEDs
How to Buy LED High Bay Lights

How to Buy LED High Bay Lights – A Complete Buyer’s Guide

TagsHigh bay lighting
led driver

How to choose the right LED driver for your LED light?

TagsLED Driver

How Long do Led Lights Last ?

TagsLifetime

Certification Show

As a professional manufacturer of LED high bay Lights, our UFO LED High Bay have rich certification and test reports, such as CE, ROHS, LM80, TM-21, and so on.

COMPONENT STANDARDS TEST REPORT CERTIFICATIONS
LED LM80 √
LUMINAIRES EN/IEC 60598-1 y 60598-2-3 √ √
EN/IEC 60529 √
EN/IEC 62262 √
EN/IEC 55015 √ √
EN/IEC 61000-3-2 √ √
EN 61547 √ √
EN 61000-3-3 √ √
TM-21 √
LED MODULE EN/IEC 62031 √
LED DRIVER IEC 62384,IEC 61347-1,IEC 61347-2-13 √ √
FACTORY ISO9001,ISO14001,ISO50001,ISO45001   √
