0-10V dimming and its application in street lighting

0-10V dimming and its application in street lighting

table of Contents
  1. Introduction
  2. What's 0-10V dimming?
    1. Color of 0-10V dimming cables and their connections
    2. 0-10V control type(Sink or Source)
  3. How does 0-10V dimming work?
  4. How to use 0-10V dimming in street lighting?
    1. With motion sensor
    2. With NEMA socket (e.g., Zigbee system)
    3. With daylight sensor/control panel (indoor lighting)
  5. ZGSM lighting solutions with 0-10V dimming
  6. Summary
  7. Rated Products
  8. Related Blogs
  9. Related Cases
  10. People also ask
  11. Author introduction

Introduction

The 0-10V topology is a common and popular control method in the entire lighting industry. It was originally developed for controlling fluorescent ballasts, hence the name “fluorescent dimming” or “5-wire dimming.” With the continuous growth of the LED market, it has become one of the most common control topologies in the LED industry. The 0-10V dimming system controls the brightness of lighting fixtures by using a 0-10V DC voltage signal. In this system, a 0V signal indicates that the fixture is off (sometimes it’s 1-10V, which means the lamps cannot be completely turned off), while a 10V signal represents full power operation of the fixture. By changing the voltage of the control signal, the lighting fixture can be dimmed or brightened. The International Electrotechnical Commission (IEC) has described 0-10V dimming in Appendix E of the IEC standard 60929, which is one of the reasons why this system is widely accepted and highly matured. Currently, it is embraced by the majority of electrical companies and engineers in the industry.

What’s 0-10V dimming?

0-10V dimming is a common method used to control the brightness of lighting fixtures, especially in LED lighting systems. It involves adjusting the light output by varying the voltage signal supplied to dimmable fixtures (equipped with 0-10V dimmable drivers) within the range of 0 to 10 volts (hence called “0-10V dimming”). The principle of 0-10V dimming is relatively simple: when the control signal is set to 0V, the lighting output dims or turns off completely, and as the control signal increases towards 10V, the brightness of the light increases proportionally.

Color of 0-10V dimming cables and their connections

Before 2021, the 0-10V control wiring was traditionally identified by purple and gray colors. However, starting from January 1, 2022, there was a modification that prohibited using gray color for control lines to avoid confusion with the gray neutral wire. To adapt to this change, 0-10V signal lines are now designated with purple and pink sheathed wires. As a result, the 0-10V control wiring may be either purple/pink or purple/gray. Below is the wiring diagram for the connection between the 0-10V dimming power supply and the controller:

0-10V dimming connection
0-10V dimming connection

0-10V control type(Sink or Source)

Sink Type: In a sink type 0-10V dimming system, the dimming control device (such as a dimmer or lighting controller) acts as a current sink. It connects to the lighting fixture’s dimming input and draws current from the 0-10V control circuit. By varying the amount of current drawn, the sink control device regulates the brightness of the fixture. In this configuration, the control device sinks current to control the dimming level.

Source Type: In a source type 0-10V dimming system, the dimming control device acts as a voltage source. It generates a variable voltage between 0V and 10V on the control circuit. The lighting fixture’s dimming input receives this voltage signal, and the fixture’s internal circuitry adjusts the brightness based on the voltage level. In this configuration, the control device provides the voltage source for controlling the dimming level.

0-10V dimming sink or source type
0-10V dimming sink or source type

Generally speaking, in a sinking System the control voltage is produced by the light(with 0-10V LED driver) and not by the controller. The light produces the voltage, typically 10 volts DC, which is then sent to a controller, which uses a resistor to ground the voltage. This grounding of the voltage allows the 10vdc to be lowered (grounding), which causes the voltage to go down to as low as 0 volts DC. In source system, 0-10 volt DC is produced by a controller which then sends the voltage to a light which is turned brighter or dimmer based upon the amount of voltage applied from the controller. Typically, 0 volts is off and the higher the voltage, the brighter the light becomes and the lower the voltage the dimmer the street light(for 0-10V streetlights) becomes.

How does 0-10V dimming work?

0-10V is a low-voltage dimming system. The dimming driver typically consists of two wires in the circuit. One is gray, representing the standard signal, and the other is purple, representing 10V. When these two wires are open and not in contact with each other (when 0-10V dimming is not applicable, the two wires remain unconnected), the signal will stay at 10V, and the light output will be at 100% level. When the wires are shorted or come into contact with each other, the dimming driver will set the brightness to the minimum value or 0V.

In simple terms, the controller/LED driver primarily operates based on voltage as a reference parameter. We can envision the controller as a water valve that can precisely control the flow of water through a pipe. The controller (dimmer) connected to the 0-10VDC driver pulls down or “sinks” the 10VDC to a lower voltage corresponding to the desired dimming level. For example, when a microwave sensor is set to 50% (the signal voltage drops to 5VDC), the connected driver reads this voltage on its signal input and responds by reducing the output (LED module) to the corresponding level, completing the entire dimming process.

How to use 0-10V dimming in street lighting?

0-10V dimming power supply is a common method used to control the brightness of lighting fixtures, enabling the adjustment of light intensity. In road lighting, this dimming power supply can be paired with various controllers. Firstly, microwave sensors automatically adjust the brightness of road lighting based on occupancy, achieving energy efficiency and energy-saving goals. Secondly, controllers installed on NEMA bases of streetlights enable remote dimming, facilitating real-time adjustments of the lighting effect. Additionally, this system allows centralized control and intelligent management. Moreover, light sensors and timers are sometimes used to transmit signals as 0-10V to achieve dimming in indoor lighting. In daylight applications, microwave sensors and control panels are more commonly used in 0-10V systems. These methods enable energy conservation and promote the sustainable development of urban lighting.

0-10V dimming in highbay, floodlight and streetlight
0-10V dimming in highbay, floodlight and streetlight

With motion sensor

Connect the microwave(motion) sensor to the 0-10V dimming power supply and configure the trigger conditions (detection range, delay time, and photosensitivity). When the microwave sensor detects motion, it sends a 10V signal to the power supply, causing the light fixtures to be at 100% brightness. If no motion is detected within a certain time, the controller will send a 5V (within the 0-10V range) signal to the LED driver, enabling dimming of the light fixtures with motion sensor. Microwave sensors are suitable for scenarios where automatic adjustment of street light fixture brightness based on motion detection is required.

0-10V dimming High bay light with motion sensor
0-10V dimming High bay light with motion sensor

With NEMA socket (e.g., Zigbee system)

Use a Zigbee smart control system to connect the central controller with individual light controllers. The central controller sends instructions to the individual light controllers, and the light controllers convert the instructions into 0-10V dimming signals, which are then transmitted to the power supply. Similar control systems include LoRa, but in this case, the power supply may choose Dali. Zigbee and LoRa are methods for remote and centralized adjustment of light fixture brightness through a smart control system. To achieve the final dimming of the fixtures, it is essential to ensure that the fixtures are equipped with LED drivers that support 0-10V or Dali dimming.

0-10V dimming with NEMA or 5 core cables
0-10V dimming with NEMA or 5 core cables

With daylight sensor/control panel (indoor lighting)

Use a standard 0-10V dimmer to connect the power supply and the light fixtures. The dimmer can change the output voltage by manual control or an external control signal, achieving dimming of the light fixtures. This method is suitable for indoor lighting fixtures that require manual or periodic dimming but may not be ideal for scenarios like street lighting that demand automatic or remote control. Similar to daylight sensor, street light with dimmable photocell needs 0-10V dimming LED driver. With this solution, the street light can automatically change the output as per ambient brightness.

ZGSM lighting solutions with 0-10V dimming

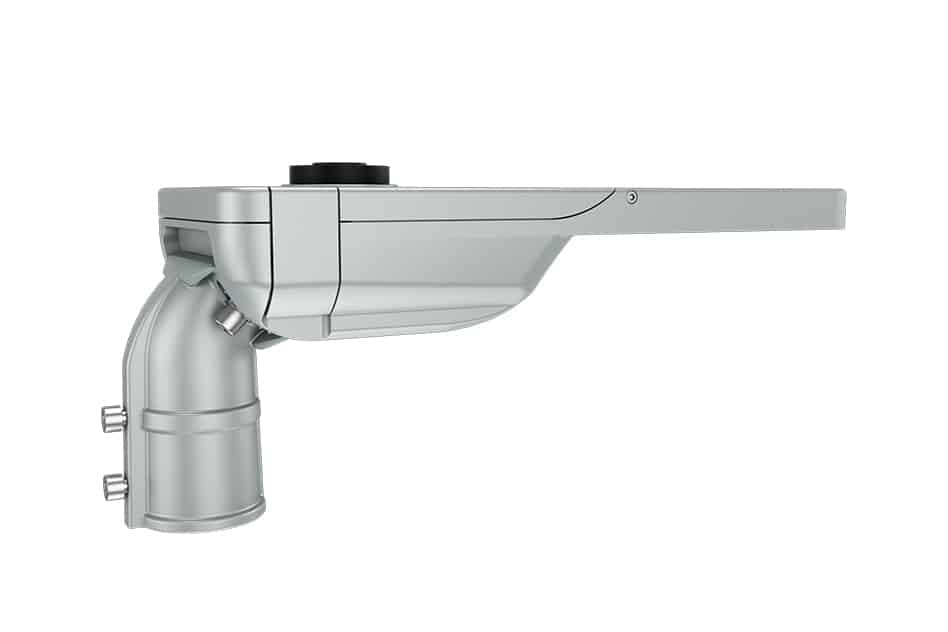

0-10V dimming Rifle street light with NEMA

0-10V dimming Rifle street light with NEMA

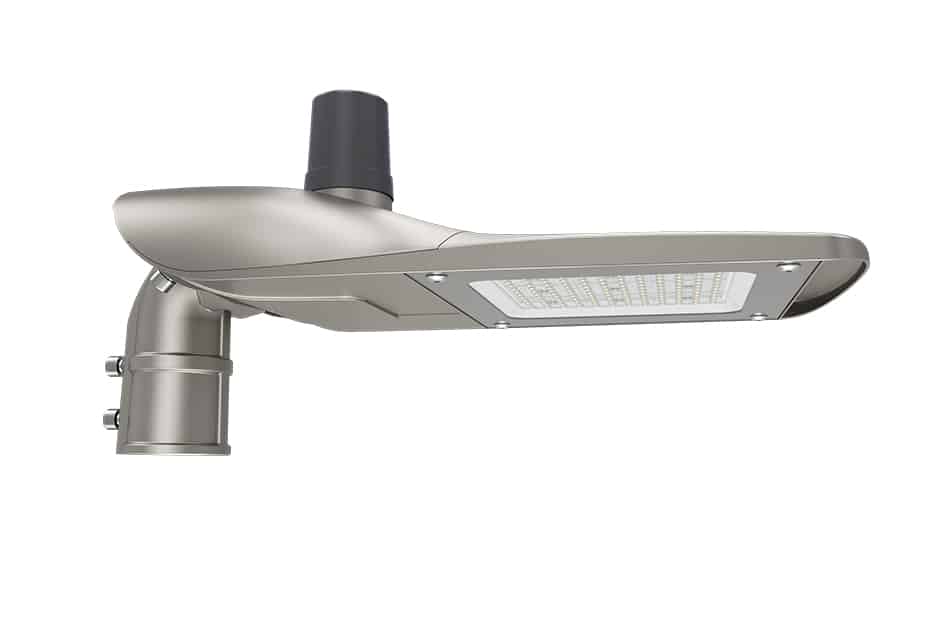

0-10V dimming smart Falcon street light

0-10V dimming smart Falcon street light

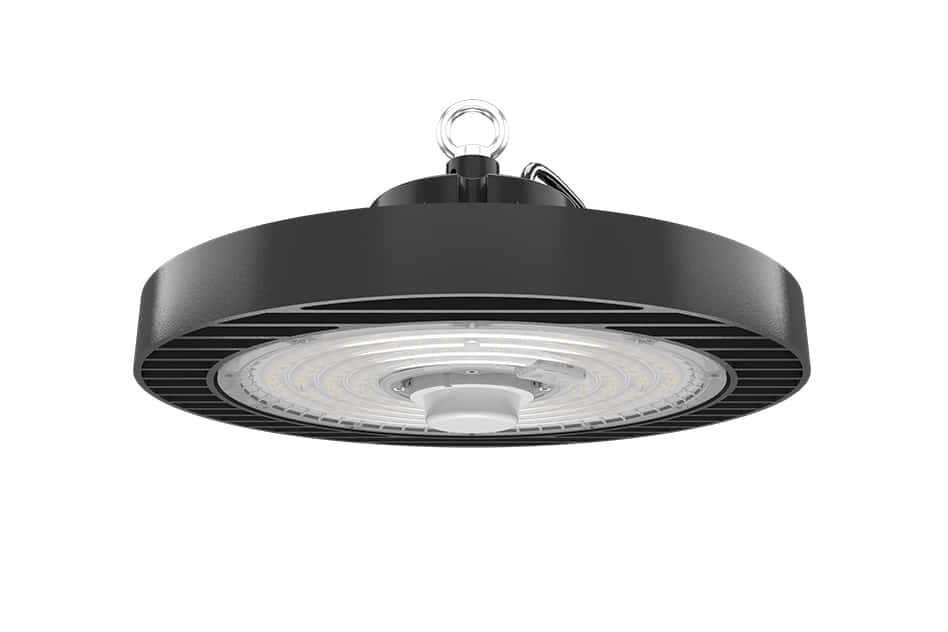

0-10V dimming high bay light with motion sensor

0-10V dimming high bay light with motion sensor

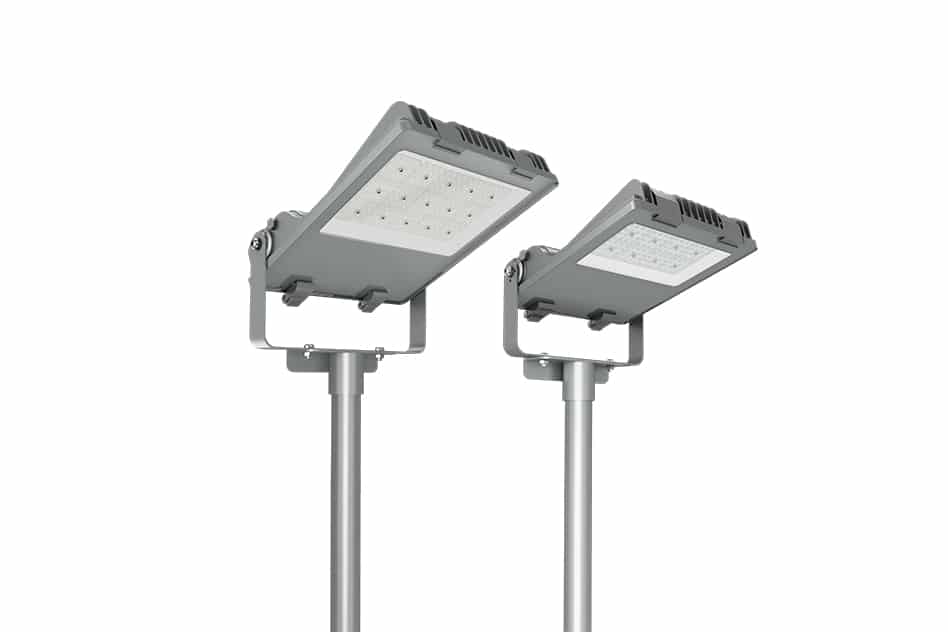

0-10V dimming Zoom series flood light

0-10V dimming Zoom series flood light

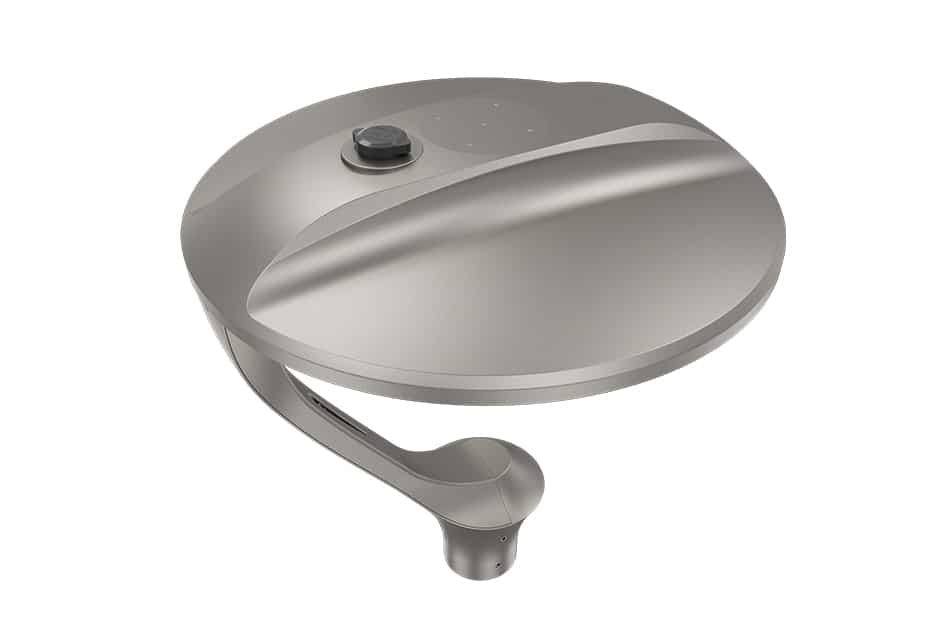

Dali post top light with Zhaga

Dali post top light with Zhaga

Summary

Despite the emergence of new control methods and technologies in the lighting industry, 0-10V dimming remains a reliable, cost-effective, and efficient way to adjust light fixture brightness. It has been in existence for a long time and is widely used in various applications. With the introduction of new technologies such as Dali, Bluetooth, and wireless control, lighting engineers and users have started paying attention to these alternatives. However, these new technologies may not always be well-suited for practical implementation, either due to their high cost or the immaturity of the solutions.

Currently, many dimming solutions still rely on 0-10V dimming. Many lighting companies continue to use it because it is a simple and reliable method to control light intensity, and it comes with relatively low costs. As we have seen in this article, 0-10V dimming finds numerous applications when combined with microwave sensors, NEMA bases, and other smart control systems. Understanding these applications can greatly assist in finding suitable lighting solutions for your needs. Stay in touch with us to get more details.

Rated Products

led street light with enec+

Series Rifle Class I/II Street Lamp

smart street light

Series Falcon Smart Street Light with NEMA or ZHAGA

led flood

Series ZOOM Tool-less Led Flood Light

street lighting led

Series Nova Competitive Led Road Light

single arm post top light-06

Series Halo Single Arm & Double Arm Post Top LED Lights

UFO High Bay Light

Series Helios 190LM/W UFO High Bay Light

ATEX Led Canopy Light

Series Primo ATEX Led Canopy Light

led high bay light

Series Halo LED High Bay Light for Food Processing

Related Blogs

What are the common quality problems of LED street light?

TagsLED Street Light
Watts to Lumens, Lumens to Lux

Watts to Lumens, Lumens to Lux

TagsLumens to Lux, Watts to Lumens
Light output degradation

Light output of LED solution and its degradation – 62717 and LM80

TagsLight output
road lighting design

Key Factors to Consider in the Street Lighting Design

TagsStreet Lighting
Photometric testing

Photometric testing – symmetric or asymmetric lighting distribution

TagsPhotometric testing
Energy preformance contract

Energy performance contract of street lighting solution

TagsEnergy performance contract of street lighting solution
Maintenance factor

Maintenance factor in illumination/lighting

TagsMaintenance factor
Different types of street lights

Different types of street lights and their applications

TagsTypes of street lights
Energy saving lighting

Shining Brighter, Saving Smarter – Energy saving lighting

TagsEnergy saving lighting
Understanding luminous efficacy and strategies for improvement

Understanding luminous efficacy and strategies for improvement

TagsLuminous efficacy

Related Cases

City Street Lighting On Main Roads In Croatia

Series H City Street Lighting On Main Roads In Croatia

smart street light in a zoo park in Slovakia

Series K smart street light in a zoo park in Slovakia

decorative street lighting fixtures

Series K motion sensor led street light on a mountain road in Norway

L Series Pendant Road Light

Series L modern street lamp in City road in Italy

Kmini led solar street lamp

Series Kmini led solar street lamp on Suburban highway in Tunisia

50w led street light

Series Kmini 50w led street light in Residential road in Mexico

Street light fitting

Series H street light fitting in Petron merchant square

City street light

Series H city street light on the main road to university

Municipal street lighting

Series H municipal street lighting in commerical center

Street light LED

Series H street light LED 100w near golf club

People also ask

Philips: As a renowned lighting solutions provider, Philips offers a variety of 0-10V dimming power supply options suitable for different types of lighting applications. For example, the Philips Xitanium LP series driver.

Mean Well: Mean Well is a company specialized in power supply solutions, and they provide several reliable 0-10V dimming power supply products for various applications like LED lighting. For instance, Meanwell’s XLG AB series power supplies.

Inventronics: Inventronics is a leading manufacturer focused on LED drivers and power supply solutions. They offer multiple 0-10V dimming power supply products known for their efficiency and reliability. For example, Inventronics’ EUM MG and EBS DTE series power supplies are specifically designed for outdoor road lighting fixtures.

In the 1-10V dimming system, the direct current voltage varies between 1V and 10V to determine the intensity of the lighting. Below 1V, the fixture will output the minimum brightness, but the LED driver cannot completely turn off the light. If the LED fixture cannot be fully turned off at voltages below 1V, additional methods are required to cut off the power supply and turn off the lights. However, for LED fixtures with 0-10V dimming, when the LED driver sends a 0V signal to the fixture, the light can be completely turned off without the need for extra measures to fully cut off the fixture’s output.

In the context of the 0-10V system, “sink” and “source” refer to the direction of current flow used to drive the circuit and induce changes in the DC voltage. In this system, the controller and drivers can operate in either “sourcing” mode, where they provide the current, or “sinking” mode, where they dissipate the current. Sink type 0-10V LED driver act as a current sink, while source type controller acts as a voltage source and 0-10V LED driver receives this voltage signal to dim the lighting fixture.
