Home - LED Products - Series Halo Single Arm & Double Arm Post Top LED Lights

led post top light
led post top light
post top lights outdoor
post top lights outdoor
led post top light fixture
led post top light fixture
parking lot lamp posts
parking lot lamp posts
  • led post top light
  • post top lights outdoor
  • led post top light fixture
  • parking lot lamp posts

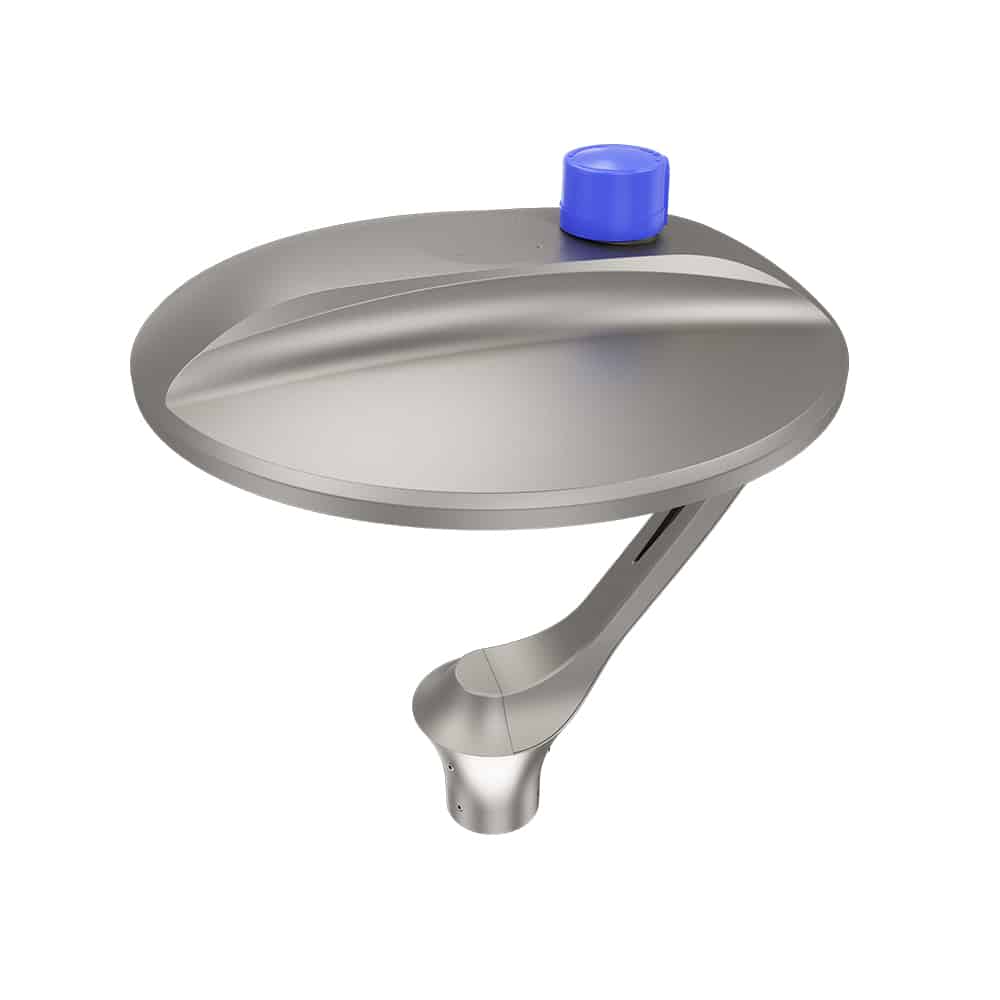

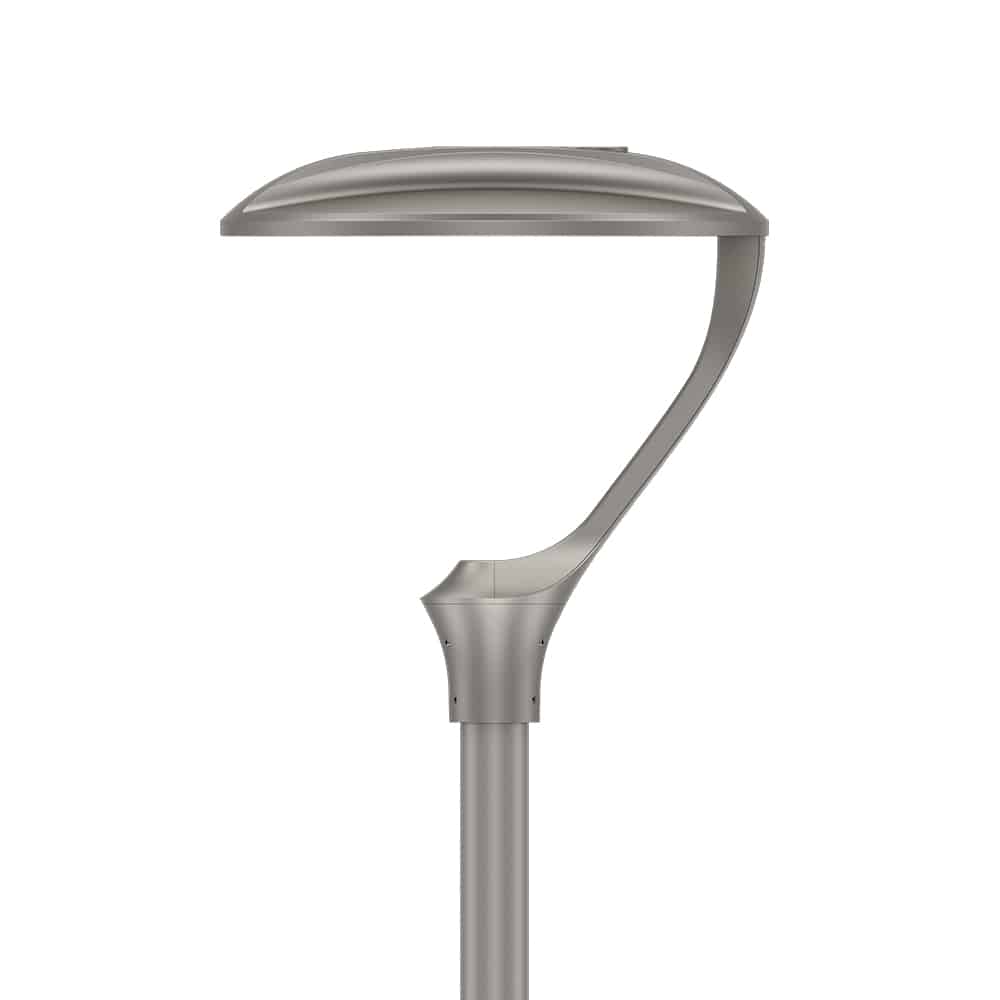

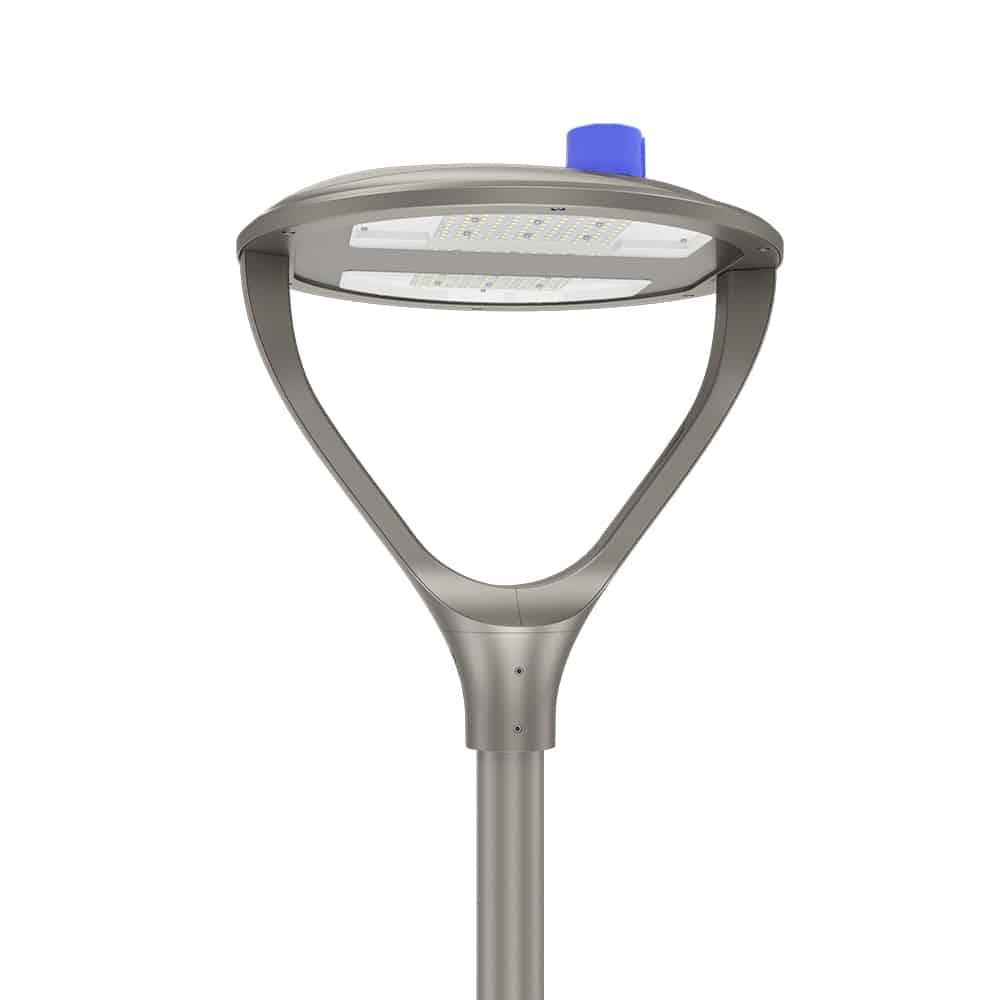

  • Series Halo Single Arm & Double Arm Post Top LED Lights

    The aesthetics of the city is inseparable from lighting, Halo satisfied the trend of urban differentiation with smooth curvature, which effectively prevents the accumulation of dust and leaves, not only creating a neat atmosphere but also providing excellent heat dissipation.

    Series Halo post top LED Lights to support single arm or double arm mounted to meet the different aesthetic needs of customers, they are available in Type II, III, or V distributions designed to replace HID lighting systems up to 250 watt MH or HPS.

    Typical area lighting applications include parking areas, walkways, and street lighting applications. With replacement accessories, the Halo can be installed in six different mounting types, such as side entry, pole pendant, single arm post top, and double arm post top.

    Product Features

    • Power range 20W up to 150W
    • Super smooth body design
    • Full die-casting aluminum housing
    • Efficiency up to 170 lm / W
    • 10 /20KV surge protection, IP66&IK10
    • Supports multiple installation modes
    • Class I, and Class II are optional.
    • ENEC, CE, CB certified
    • Anti-corrosion, low glare, no flicker, Protect your eyes.
    • Kinds of asymmetrical optical lens provide professional light distribution
    • Smart Control: 1-10V/ DALI dimming, NEMA, Zhaga, Photocell, Motion sensor, Zigbee /Lora control
    Contact Us
    Facebook
    Facebook
    fb-share-icon
    Twitter
    Visit Us
    Tweet
    LinkedIn
    LinkedIn
    Share
    Pinterest
    Pinterest
    fb-share-icon
    Instagram
    YouTube

    • ZGSM products are designed for the global market. Please contact our sales team for certification details.
    • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
    • Description
    • datasheet
    • Optics
    • Videos
    • Download
    • application
    • FAQ
    Halo Series Post Top LED Lights
    Series NoSeries Halo
    Power20W, 30W, 50W, 80W, 100W,120W, 150W
    Efficacy130-170lm/W
    Input Voltage100-240/277 VAC, 50 / 60 Hz
    Power Factor>0.95
    Surge Protection10KV (Default) / 20KV (available on request)
    IP RatingIP66
    IK RatingIK10
    CCT3000K, 4000K, 5000K, 5700K
    CRIRa>70 (Default) / Ra>80
    Operating Temperature-40°C to + 50°C
    Beam AngleType II, Medium; Type III, Medium;
    Mounting OptionPost Top | Pole Pendant | Wire Suspension | Side Entry
    Warranty5 Years
    CertificationENEC, CE, CB, ROHS, LM79, LM80, TM-21, ISTMT, IEC62471/62788
    ControlPhotocell, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control
    DS_Halo_StreetLight
    Manual_Street Light_Halo
    led light street

    Series L post top light fixture in the parking lot of art Museum in Italy

    street lighting posts

    Series L outdoor post top lights in a parking lot in Saudi Arabia

    post top lamp

    Series L post top lamp in the parking lot of D'Tempat Club House in Malaysia

    L Series Pendant Road Light

    Series L modern street lamp in City road in Italy

    residential street lights

    Series L led post top light in House side in Peru

    Garden & Yard Lighting

    Series L post top lights on a Community road in Malaysia

    Frequently Asked Questions

    Post top lighting is a term to describe the outdoor lighting that is commonly mounted on poles and located in roadways, pathways, parking lots, and commercial and educational campuses.

    Outdoor LED lights, such as led post top lights, provide several advantages for illuminating sidewalks and pathways due to the manner in which they produce and distribute light. Different from HID lights, light emitting diodes create light using a semiconductor, as opposed to using a "fuel source." In order to "distribute" light, LED lights often use "multi-point" sources, which consist of numerous diodes with separate lenses. When compared to how typical HID lights disperse light (with a single bulb and reflectors inside the fixture), this results in light that is more EVENLY "spread" across a given area.
    Energy Savings
    Common LED post top light wattages vary from 30 to 120 watts, often resulting in a 35%-80% decrease in energy use. This is due to the remarks made about GENERATION, and it may result in power cost savings of up to $800 per fixture each year.
    Cost of Maintenance Reduction
    Again, owing to the manner in which LEDs create light, their useful lives evolve quite differently. LED-generated light output decreases VERY SLOWLY over time, as opposed to ceasing to operate after a fuel supply has been considerably depleted. Consequently, the functional life (typically more than 100,000 hours) of an LED product may be substantially longer than that of an HID bulb, which greatly saves the expenses associated with servicing post top lights over a longer period of time.
    Lighting Efficiency
    In terms of how LED fixtures DISTRIBUTE light, LED post top lighting applications often give a highly EVENLY spread light pattern due to the multi-point architecture. This indicates that the variation in light levels over a given area will decrease as the distance from the pole or fixture increases. This is in contrast to HID lamps, which often produce a "bright spot" immediately below the bulb, with light levels diminishing dramatically as the distance from the pole rises. The LED conversion results in a more uniform foot-candle distribution as compared to HID. In addition to providing an equal dispersion of light, LEDs are available in a variety of color temperatures, providing a variety of possibilities for enhancing the visual experience of "brightness."

    The energy efficiency difference between cooler and warmer color temperatures is relatively small, especially as compared to the significant efficiency gained by transitioning from conventional lighting to LED lighting

    When the Halo Series Post Top street light works with photocell, the luminaire will automatically light up at dusk and turn off during the day.

    The motion sensor is also available on the Halo led post top light, when no one passes by, the luminaire will work on energy-saving mode at 30% brightness, when someone passes by, the luminaire will immediately switch to 100% brightness.

    In addition, the Halo led post top light can be matched with Zigbee or LORA and other control systems to achieve remote intelligent control, the user can adjust the state of the light through the computer and mobile phone, can achieve fault monitoring, dimming, turn on and off, time-of-day control and other different functions.

    As a professional LED Post Top Light Manufacturers manufacturer, ZGSM has a strong R&D team and provides OEM customization services. We offer a 5-10 year limited warranty.

    Related Products

    LED post top lights

    Series L Flexible Mounted LED post top lights

    Related Blogs

    City street lighting

    Guidelines and award criteria of city street lighting project

    TagsCity street lighting
    Different types of street lights

    Different types of street lights and their applications

    TagsTypes of street lights
    Street light light distribution

    Light distribution of outdoor luminaire and their applications

    TagsLight distribution
    road lighting design

    Key Factors to Consider in the Street Lighting Design

    TagsStreet Lighting
    parking lot light

    Guide to Choose Proper Outdoor LED Parking Lot Lights

    TagsParking Lot Light
    street light cost

    How much does a street light cost?

    TagsLED Street Light
    smart control street light

    Some Things about Street Light Control System

    TagsLED Street Light
    things about led street light

    Several things you need to know about LED Street Light

    TagsLED Street Light
    street light with photocell

    11 Things You Need Know About LED Street Light with Photocell

    TagsLED Street Light

    What are the common quality problems of LED street light?

    TagsLED Street Light

    Best LED Post Top Light Manufacturer, Factory, and Supplier In China

    As China's top manufacturer, factory and supplier of outdoor lights, ZGSM factory has passed ISO9001, ISO14001, ISO45001, and ISO50001 approved, we have a professional design, R&D and testing team, provide customized services, free lighting design, rich experience on bidding technology support. The advantages of our post top light are as follows:

    • Appearance adopts European style design.
    • Various installation methods are available.
    • OEM/ODM /SKD Order acceptable.
    • CE, ENEC, CB, IP66, IK10, IEC62471, LM79 are available.
    Aging test for post top lights

    Why Choose us as your LED Garden Light Supplier in China?

    OEM/ODM/SKD

    Available to do OEM/ODM/SKD for all garden light. No MOQ for led post top light retailers, wholesalers, and engineering companies.

    FAST DELIVERY TIME

    As a reliable garden light supplier, we have stocks of raw materials for post top lamps, regular delivery time is 3 days for samples and 2 weeks for bulk.

    BEST QUALITY&PRICE

    We use top stable quality led driver and chips like Philips driver and chips for all post top led lights. Providing 5/7Years warranty at the cheapest price.

    CERTIFICATES

    Our led post top lights are ENEC, CB, CE, RoHS, approved, and our factory ISO9001, ISO14001, ISO45001, and ISO50001 certified.

    Certification Show

    ENEC by TUV
    ENEC
    U6 078142 0096
    Verification
    CE by TUV
    CE
    N8A 078142 0097
    Verification
    CB by TUV
    CB
    SG PSB-LE-04609
    Verification
    ROHS by TUV
    ROHS
    ROHS by TUV
    Verification

    COMPONENT STANDARDS TEST REPORT CERTIFICATIONS
    LED LM80 √
    LUMINAIRES EN/IEC 60598-1 y 60598-2-3 √ √
    IEC 62471 √
    EN/IEC 60529 √
    EN/IEC 62262 √
    EN/IEC 60068-2-75 √
    EN/IEC 55015 √ √
    EN/IEC 61000-3-2 √ √
    EN 61547 √ √
    EN 61000-3-3 √ √
    LM79 √
    ISTMT √
    TM-21 √
    LM82 √
    LM84 √
    ISO9007 /ASTM B117 √
    IEC 60068-2-6/ANSI C136.31 √
    LED MODULE EN/IEC 62031 √
    LED DRIVER IEC 62384,IEC 61347-1,IEC 61347-2-13 √ √
    SPD EN/IEC 61643-11 √ √
    FACTORY ISO9001,ISO14001,ISO50001,ISO45001   √
