Home - LED Products - ZG-1022 High Efficiency Post Top Light Fixture

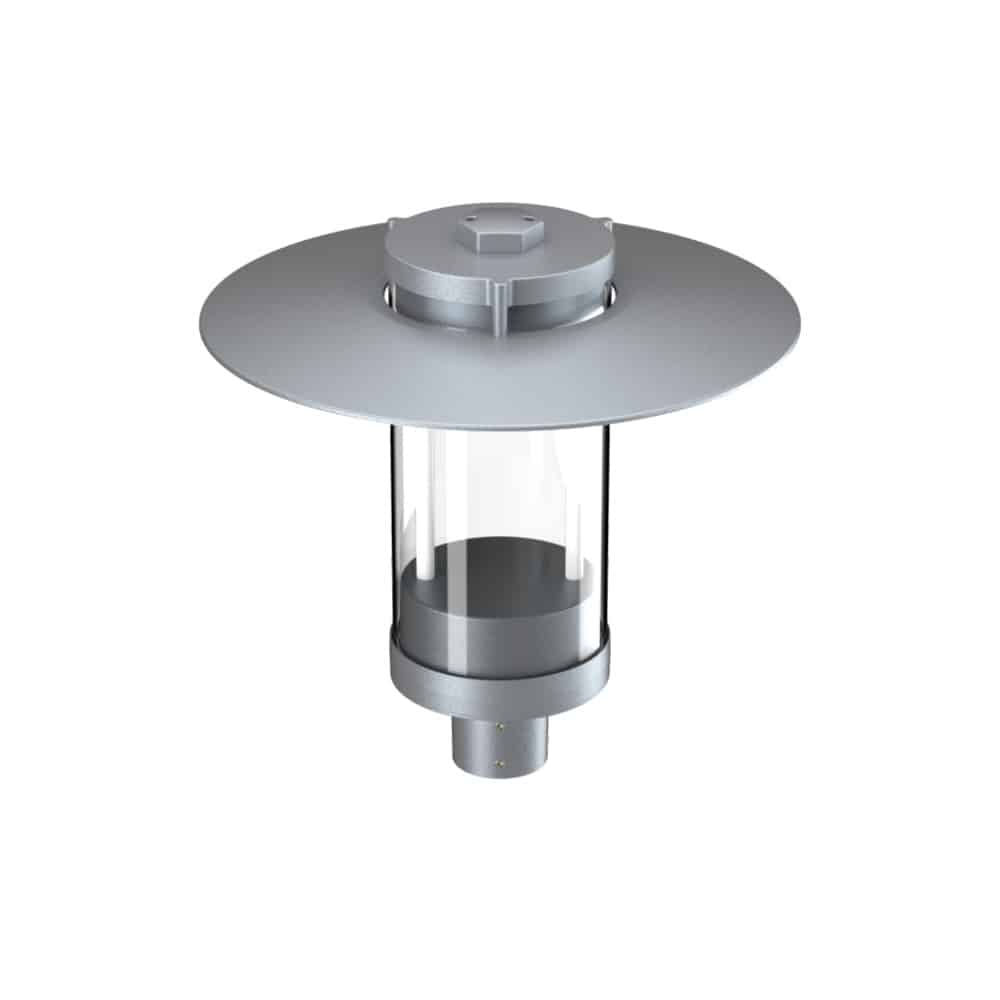

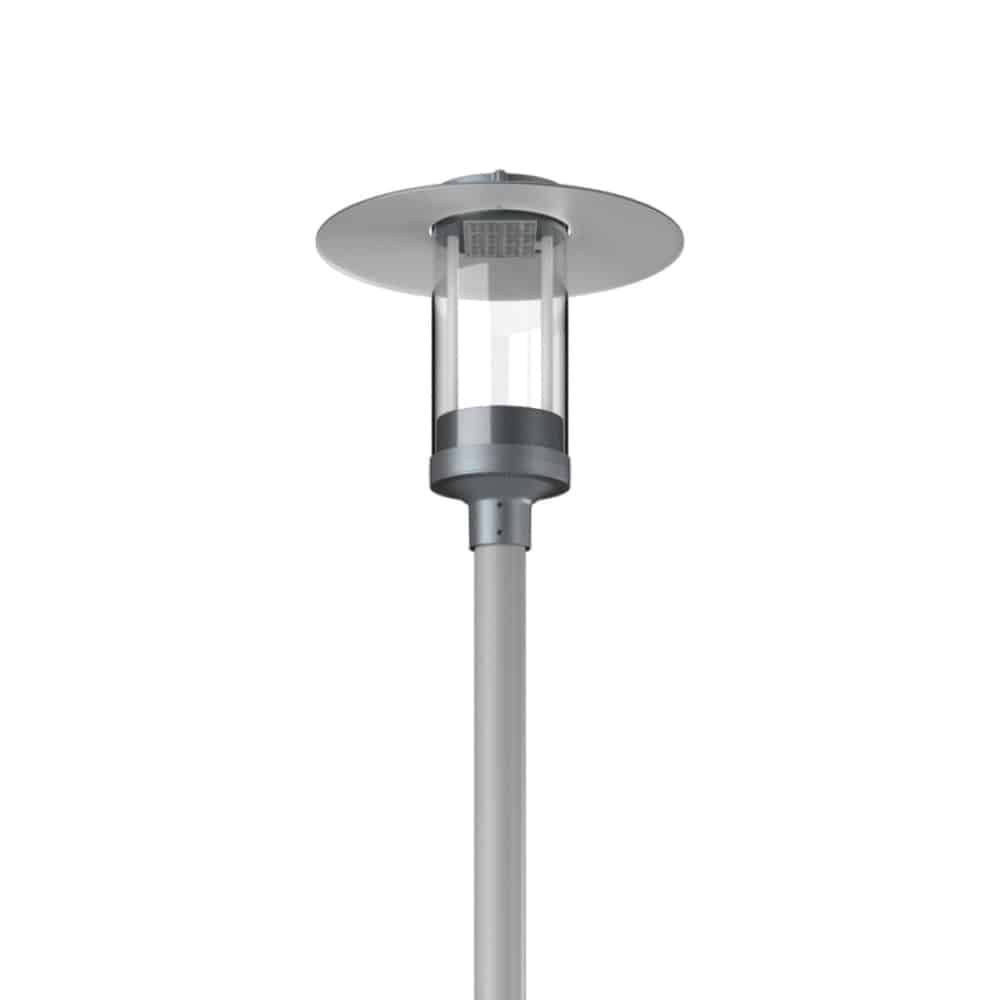

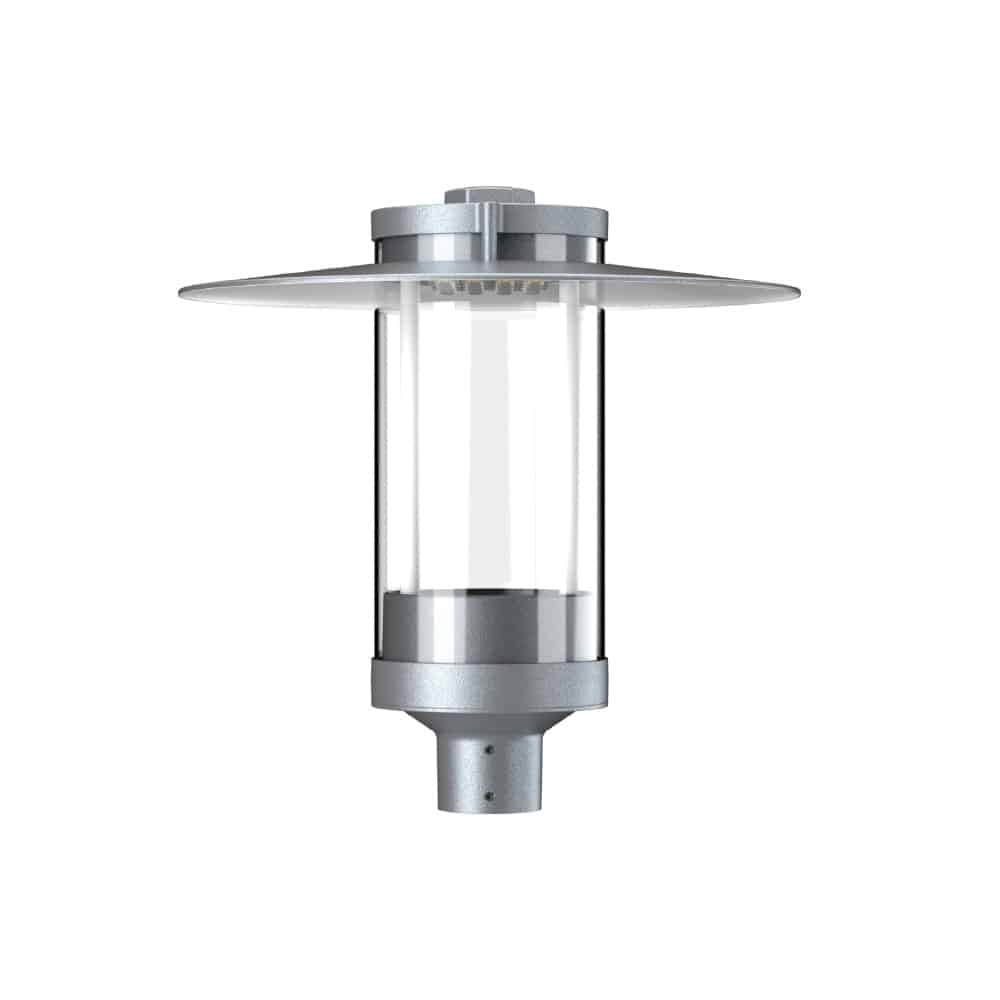

  • ZG-1022 High Efficiency Post Top Light Fixture

    ZG-1022 best post top light fixture is an affordable, high-quality solution to meet the street lighting needs of municipalities or private organizations. You can consider them for parking lot lighting, security lighting, and area lighting. At the same time, we have equipped these LED post top luminaire with various dimming methods to choose from, such as photocells, timer dimming and intelligent control. And NEMA or Zhaga can be installed for these fixtures in preparation for future upgrades.

    Product Features

    • Power range: 40W~60W
    • High luminaire efficiency up to 150lm/w ( What’s luminous efficacy? )
    • Full die-casting aluminum housing(ADC12)
    • Class I, and Class II are optional
    • IP66&IK08
    • A variety of asymmetrical or symmetrical light distributions
    • Driver and SPD are easy to take off for replacement
    • 1-10V Dimming (Default) /Timer Dimming
    • Surge Protection: Differential mode 6 kV, Common mode 10 kV
    Contact Us
    • Facebook
    • Twitter
    • YouTube
    • Instagram
    • LinkedIn
    • Pinterest

    • ZGSM products are designed for the global market. Please contact our sales team for certification details.
    • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
    • Description
    • datasheet
    • Optics
    • Videos
    • Download
    • application
    • FAQ
    ZG-1022 Post Top Light Fixture
    ZG-1022 Post Top Light Fixture
    Series No Series ZG-1022 Post Top Light Fixture
    Power 40W, 60W
    Efficacy 135-150lm/W
    Input Voltage 100-240/277 VAC, 50 / 60 Hz
    Power Factor >0.95
    Surge Protection 10KV (Default) / 20KV (available on request)
    IP Rating IP66
    IK Rating IK08
    Beam Angle Type I, II, III, V or customized
    Mounting Option Post Top
    Warranty 5 Years
    Certification CE, ROHS, IP66, IK10, LM80, TM-21, IEC62471
    DS_ZG-1022 Post Top Light Fixture Installation Manual_ZG-1022 Post Top Light Fixture
    led light street

    Series L post top light fixture in the parking lot of art Museum in Italy

    street lighting posts

    Series L outdoor post top lights in a parking lot in Saudi Arabia

    post top lamp

    Series L post top lamp in the parking lot of D’Tempat Club House in Malaysia

    L Series Pendant Road Light

    Series L modern street lamp in City road in Italy

    residential street lights

    Series L led post top light in House side in Peru

    Garden & Yard Lighting

    Series L post top lights on a Community road in Malaysia

    Frequently Asked Questions

    A photocell is a device that can automatically control LED lights to turn on or off based on ambient light. In outdoor lighting, photovoltaic cells have a wide range of applications. When the ambient illumination is lower than the threshold set by the photocell, the circuit will be turned on and finally turning on the lamp; Conversely, when the ambient illumination is higher than the threshold set by the photocell, the circuit will no longer be conductive and the lamp will be turned off.

    Photocells and motion sensors both fall into the category of sensors. The difference between them is the way they trigger the light fixture to light up. Photocells detect changes in light levels and react accordingly, while motion sensors react to any movement within their range. Some manufacturers currently integrate the two sensors, such as daylight sensors on indoor lighting fixtures. Even if motion is detected during the day, the lamp will not light up. At night, the lamp will automatically turn on, and when an object is approaching, the brightness of the lamp will be brighter than when no one is around.

    Photocell is a device that can automatically control LED light switches based on ambient light and is widely used in outdoor lighting. Photocells usually need to be installed on the outside of the lamp to sense changes in ambient light. Generally, it is connected to the light fixture through a NEMA socket or Photocell receptacle, which is similar to a standard interface. In outdoor lighting fixtures, Zhaga sockets are also included in the interface standards.

    Related Products

    ZG-900 Craftsman Post Top Light

    ZG-1058 Decorative Pole Mounted Street Light

    ZG-1088 Smart Post Top Light Fitting

    ZG-1094 Classic Post Top LED Lights

    ZG-6116 Anti-glare LED Post Top Luminaire

    single arm post top light-06

    Series Halo Single Arm & Double Arm Post Top LED Lights

    LED post top lights

    Series L Flexible Mounted LED post top lights

    Related Blogs

    Guidelines and award criteria of city street lighting project

    TagsCity street lighting
    Different types of street lights

    Different types of street lights and their applications

    TagsTypes of street lights
    Street light light distribution

    Light distribution of outdoor luminaire and their applications

    TagsLight distribution
    road lighting design

    Key Factors to Consider in the Street Lighting Design

    TagsStreet Lighting
    parking lot light

    Guide to Choose Proper Outdoor LED Parking Lot Lights

    TagsParking Lot Light
    street light cost

    How much does a street light cost?

    TagsLED Street Light
    smart control street light

    Some Things about Street Light Control System

    TagsLED Street Light
    things about led street light

    Several things you need to know about LED Street Light

    TagsLED Street Light
    street light with photocell

    11 Things You Need Know About LED Street Light with Photocell

    TagsLED Street Light

    What are the common quality problems of LED street light?

    TagsLED Street Light

    Best LED Post Top Light Manufacturer, Factory, and Supplier In China

    As China's top manufacturer, factory and supplier of post top light fitting, ZGSM factory has passed ISO9001, ISO14001, ISO45001, and ISO50001 approved, we have a professional design, R&D and testing team, provide customized services, free lighting design, rich experience on bidding technology support. The advantages of our post top light are as follows:

    • Appearance adopts European style design.
    • Various installation methods are available.
    • OEM/ODM /SKD Order acceptable.
    • CE, ENEC, CB, IP66, IK10, IEC62471, LM79 are available.
    Aging test for post top lights

    Why Choose us as your LED Garden Light Supplier in China?

    OEM/ODM/SKD

    Available to do OEM/ODM/SKD for all garden light. No MOQ for led post top light retailers, wholesalers, and engineering companies.

    FAST DELIVERY TIME

    As a reliable garden light supplier, we have stocks of raw materials for post top lamps, regular delivery time is 3 days for samples and 2 weeks for bulk.

    BEST QUALITY&PRICE

    We use top stable quality led driver and chips like Philips driver and chips for all post top led lights. Providing 5/7Years warranty at the cheapest price.

    CERTIFICATES

    Our led post top lights are ENEC, CB, CE, RoHS, approved, and our factory ISO9001, ISO14001, ISO45001, and ISO50001 certified.

    Certification Show

    ENEC by TUV
    ENEC
    U6 078142 0096
    Verification
    CE by TUV
    CE
    N8A 078142 0097
    Verification
    CB by TUV
    CB
    SG PSB-LE-04609
    Verification
    ROHS by TUV
    ROHS
    ROHS by TUV
    Verification

    COMPONENT STANDARDS TEST REPORT CERTIFICATIONS
    LED LM80 √
    LUMINAIRES EN/IEC 60598-1 y 60598-2-3 √ √
    IEC 62471 √
    EN/IEC 60529 √
    EN/IEC 62262 √
    EN/IEC 60068-2-75 √
    EN/IEC 55015 √ √
    EN/IEC 61000-3-2 √ √
    EN 61547 √ √
    EN 61000-3-3 √ √
    LM79 √
    ISTMT √
    TM-21 √
    LM82 √
    LM84 √
    ISO9007 /ASTM B117 √
    IEC 60068-2-6/ANSI C136.31 √
    LED MODULE EN/IEC 62031 √
    LED DRIVER IEC 62384,IEC 61347-1,IEC 61347-2-13 √ √
    SPD EN/IEC 61643-11 √ √
    FACTORY ISO9001,ISO14001,ISO50001,ISO45001   √

    R & D Team

    • Lighting engineer
      Lighting engineer
    • Electronic engineer
      Electronic engineer
    • Certification engineer
      Certification engineer
    • Industrial engineer
      Industrial Engineer
    • Structural engineer
      Structural Engineer
    • Test engineer
      Test Engineer

    Product Testing

  • test room of led lighting
  • In order to ensure the high quality of each product, we will conduct more than 30 different aspects of testing in our own laboratory before the product goes on the market. After all the tests are passed, the product can be approved for marketing. In mass production, for some basic safety and performance tests, we will conduct 100% testing to ensure that every product delivered to the customer is perfect.
