LED Post Top Lights | Street Light Manufacturer

Q: What is a <a href="https://www.zgsm-china.com/case-study/series-l-post-top-lights-on-a-community-road-in-malaysia.html" target="_blank" rel="noreferrer noopener"><strong>Post Top Lighting</strong></a> Application?

Pole top lighting is a term used to describe outdoor lighting that is typically mounted on poles and located on roads, trails, car parks , and commercial and educational campuses. Decorative post top luminaire is typically used to provide lighting for pedestrian and vehicular use areas and safety zones, with the most common attribute being that the luminaire is mounted vertically on a pole between 7 and 20 feet high. It is not uncommon for multiple fixtures to be mounted on a single pole and the exact method of installation varies greatly.

Q: How many installation methods do you have for this light?

Series L Post Top Garden lights support 4 installation methods, Post Top Mounted, Pendant Mounted, Side Entry Mounted, and Suspended Mounted.

Q: What is the power range of this post top street light?

The power of L series post top street lights ranges from 27W to 120W, and the lumens range from 3000-20000lm, suitable for 3-10m light poles.

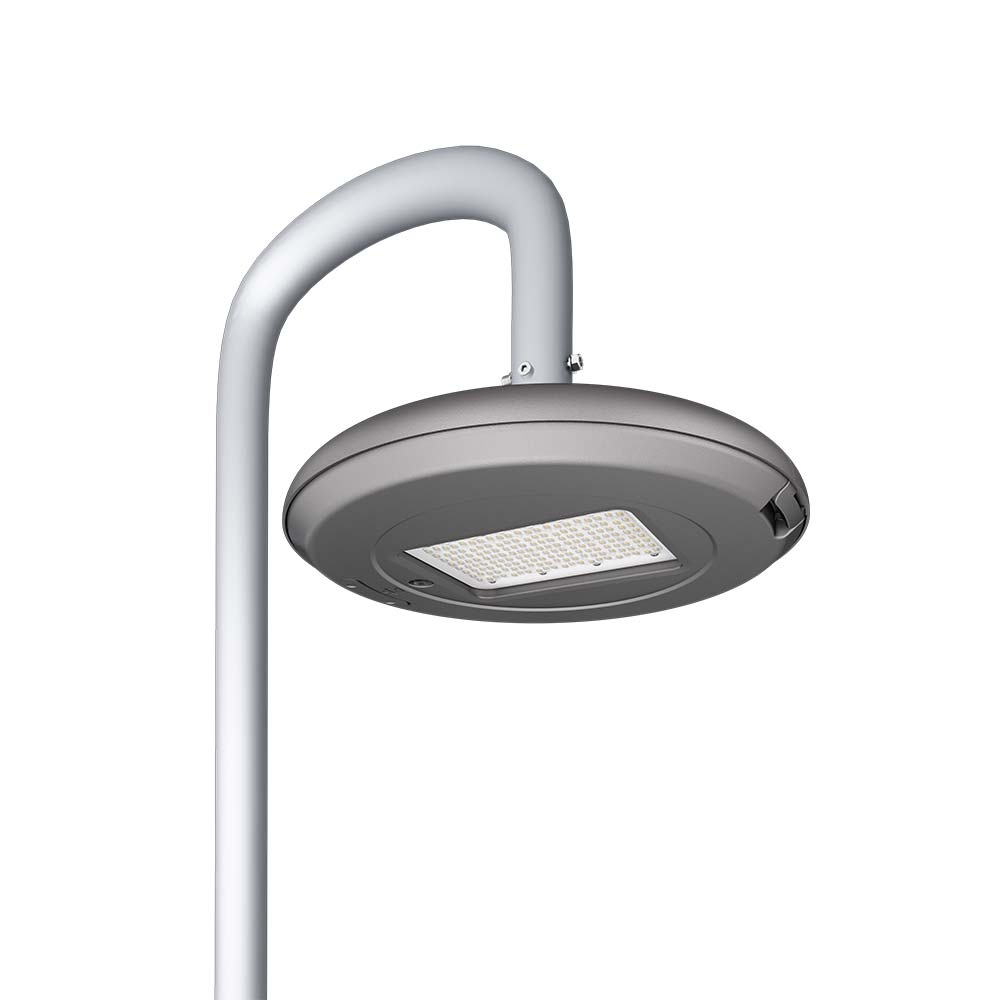

Series L Flexible Mounted LED Post Top Lights

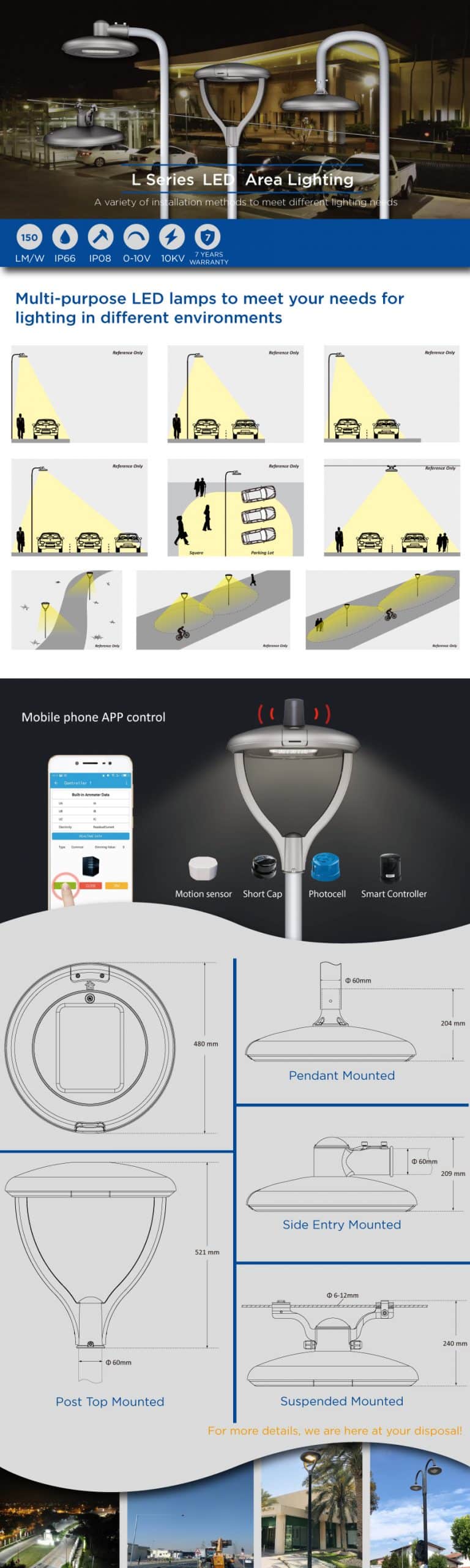

Series L Post Top Garden lights are designed with European elements and can support 4 installation methods, Post Top Mounted, Pendant Mounted, Side Entry Mounted, and Suspended Mounted. More than 6 different optic lenses can be selected for different applications, tool-less opening design, convenient for maintenance and future upgrades.

Product Features

Watts: 27-120w
Light Efficiency up to 155lm/w
Protection class I or II
IP66&IK08
Toolless opening design
Die-casting housing and Tempered glass
Wide choice of optics for different applications
Post Top, Pendant, Side Entry, and Suspended Mounted
ENEC, CE, CB, ROHS certified.
Smart Control: 1-10V dimming, DALI control, Photocell, Motion sensor, NEMA, Zhaga socket, Zigbee or Lora Control

ZGSM LED post top lights are designed for the global market. Please contact our sales team for certification details.
Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

Series No	Series L
Power	27W, 37W, 56W, 70W, 90W, 120W
Efficacy	125-155lm/W
Input Voltage	100-240/277 VAC, 50 / 60 Hz
Power Factor	>0.95
Surge Protection	10KV (Default) / 20KV (available on request)
IP Rating	IP66
IK Rating	IK08
CCT	3000K, 4000K, 5000K, 5700K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	Type I, Medium; Type II, Medium; Type III, Medium; Type V, Short
Mounting Option	Post-Top Mounted /Pendant Mounted /Side Entry Mounted /Suspended Mounted
Warranty	5 Years
Certification	ENEC, CE, CB, ROHS, LM79, LM80, LM82, LM84, TM-21, ISTMT, IEC62471/62788
Control	Photocell, DALI Dimmable, Motion Sensor, Non-Dimmable, 1-10V Dimmable, Zigbee or Lora Control

Specification_L_StreetLight

Installation Manual_StreetLight_L

Series L post top light fixture in the parking lot of art Museum in Italy

Series L outdoor post top lights in a parking lot in Saudi Arabia

Series L led post top light in House side in Peru

Series L post top lamp in the parking lot of D’Tempat Club House in Malaysia

Series L post top lights on a Community road in Malaysia

Series K smart street light in a zoo park in Slovakia

Pole top lighting is a term used to describe outdoor lighting that is typically mounted on poles and located on roads, trails, car parks, and commercial and educational campuses. Decorative post top luminaire is typically used to provide lighting for pedestrian and vehicular use areas and safety zones, with the most common attribute being that the luminaire is mounted vertically on a pole between 7 and 20 feet high. It is not uncommon for multiple fixtures to be mounted on a single pole and the exact method of installation varies greatly.

Series L Post Top Garden lights support 4 installation methods, Post Top Mounted, Pendant Mounted, Side Entry Mounted, and Suspended Mounted.

The power of L series post top street lights ranges from 27W to 120W, and the lumens range from 3000-20000lm, suitable for 3-10m light poles.

1. First of all, when we buy LED top post lights, we must choose lamps with reasonable light distribution. Such lamps can be adjusted appropriately according to the lighting place. If it is a high-efficiency luminaire, it can not only meet our visual lighting, but also far exceeds our needs, and is suitable for open-type luminaires.
2. Secondly, for ordinary users, we can choose some lamps that are easy to install and maintain, and the cost is relatively low. If it is used in a place with special requirements, such as an environment prone to fire or corrosion, we must choose a lamp suitable for the environment.
3. Finally, there are many types of courtyard lights, but for users with different needs, it is most suitable to choose them according to their own conditions. When choosing courtyard lights, we must take into account the characteristics of the light source and the characteristics of our building decoration, so that it will be more convenient to use, and it will be more coordinated with the environment.
ZGSM is a manufacturer and courtyard&garden post light all made in own factory, our post light has high color rendering index, no flicker, sufficient light（130-150lm/W）, supports a variety of installation methods, and has high protection performance (IP66 and IK10) which is an ideal choice.

Related Products

Series Halo Single Arm & Double Arm Post Top LED Lights

Series Halo LED High Bay Light for Food Processing

Related Blogs

Guidelines and award criteria of city street lighting project

Different types of street lights and their applications

Light distribution of outdoor luminaire and their applications

Key Factors to Consider in the Street Lighting Design

Guide to Choose Proper Outdoor LED Parking Lot Lights

How much does a street light cost?

Some Things about Street Light Control System

Several things you need to know about LED Street Light

11 Things You Need Know About LED Street Light with Photocell

What are the common quality problems of LED street light?

Best LED Post Top Light Manufacturer, Factory, and Supplier In China

As China’s top manufacturer, factory and supplier of outdoor lights, ZGSM factory has passed ISO9001, ISO14001, ISO45001, and ISO50001 approved, we have a professional design, R&D and testing team, provide customized services, free lighting design, rich experience on bidding technology support. The advantages of our post top light are as follows:

Appearance adopts European style design.
Various installation methods are available.
OEM/ODM /SKD Order acceptable.
CE, ENEC, CB, IP66, IK10, IEC62471, LM79 are available.

Why Choose us as your LED Garden Light Supplier in China？

OEM/ODM/SKD

Available to do OEM/ODM/SKD for all garden light. No MOQ for led post top light retailers, wholesalers, and engineering companies.

FAST DELIVERY TIME

As a reliable garden light supplier, we have stocks of raw materials for post top lamps, regular delivery time is 3 days for samples and 2 weeks for bulk.

BEST QUALITY&PRICE

We use top stable quality led driver and chips like Philips driver and chips for all post top led lights. Providing 5/7Years warranty at the cheapest price.

CERTIFICATES

Our led post top lights are ENEC, CB, CE, RoHS, approved, and our factory ISO9001, ISO14001, ISO45001, and ISO50001 certified.

Certification Show

As a professional manufacturer of LED post top garden lights, our LED garden lights have rich certification and test reports, such as ENEC, CE, CB, ROHS, IEC62471, LM80, LM79, and so on

Compliance with Standards for Municipal Street Lighting Tenders

COMPONENT	STANDARDS	TEST REPORT	CERTIFICATIONS
LED	LM80	√
LUMINAIRES	EN/IEC 60598-1 and 60598-2-3	√	√
	IEC 62471	√
	EN/IEC 60529	√
	EN/IEC 62262	√
	EN/IEC 60068-2-75	√
	EN/IEC 55015	√	√
	EN/IEC 61000-3-2	√	√
	EN 61547	√	√
	EN 61000-3-3	√	√
	LM79	√
	ISTMT	√
	TM-21	√
	LM82	√
	LM84	√
	ISO9007 /ASTM B117	√
	IEC 60068-2-6/ANSI C136.31	√
LED MODULE	EN/IEC 62031	√
LED DRIVER	IEC 62384,IEC 61347-1,IEC 61347-2-13	√	√
SPD	EN/IEC 61643-11	√	√
FACTORY	ISO9001,ISO14001,ISO50001,ISO45001		√

R & D Team

Product Testing

test room of led lighting

In order to ensure the high quality of each product, we will conduct more than 30 different aspects of testing in our own laboratory before the product goes on the market. After all the tests are passed, the product can be approved for marketing. In mass production, for some basic safety and performance tests, we will conduct 100% testing to ensure that every product delivered to the customer is perfect.
