Home - LED Products - ZG-1058 Decorative Pole Mounted Street Light

  • Pole Mounted Street Light
  • Pole Mounted Street Light

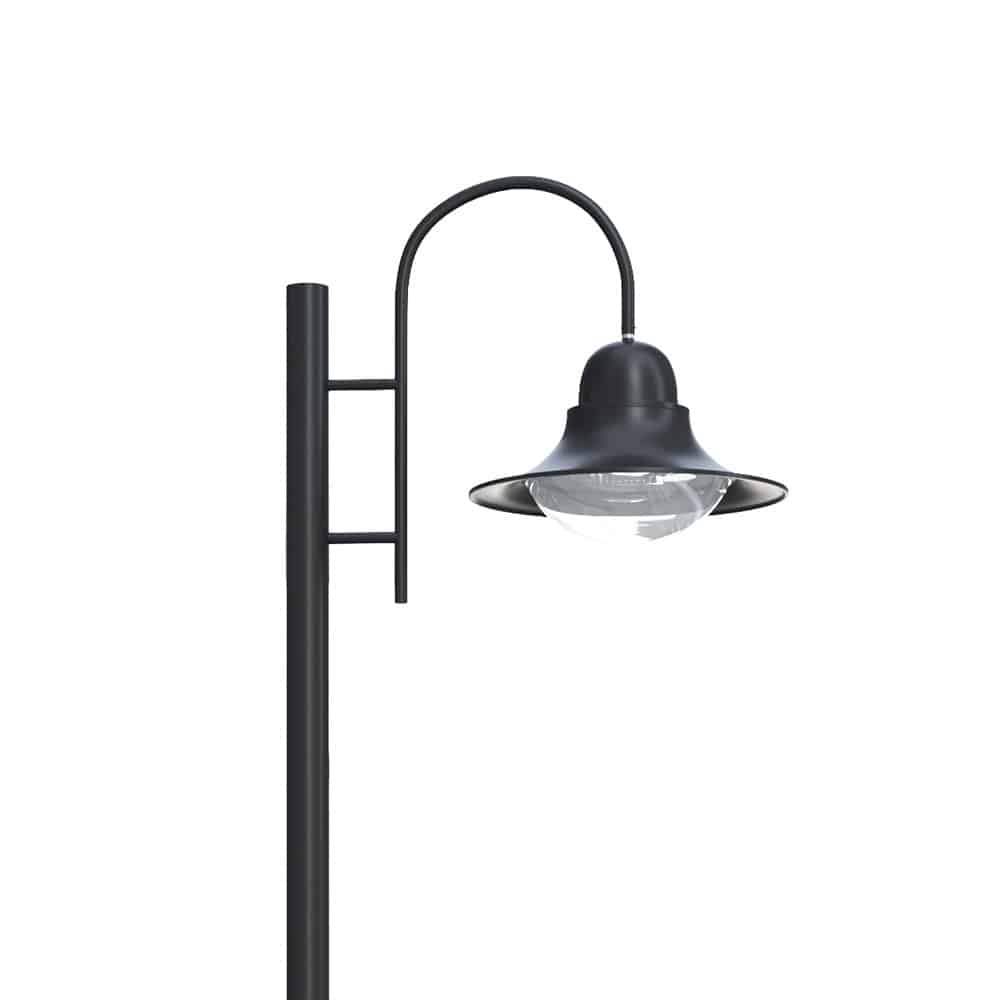

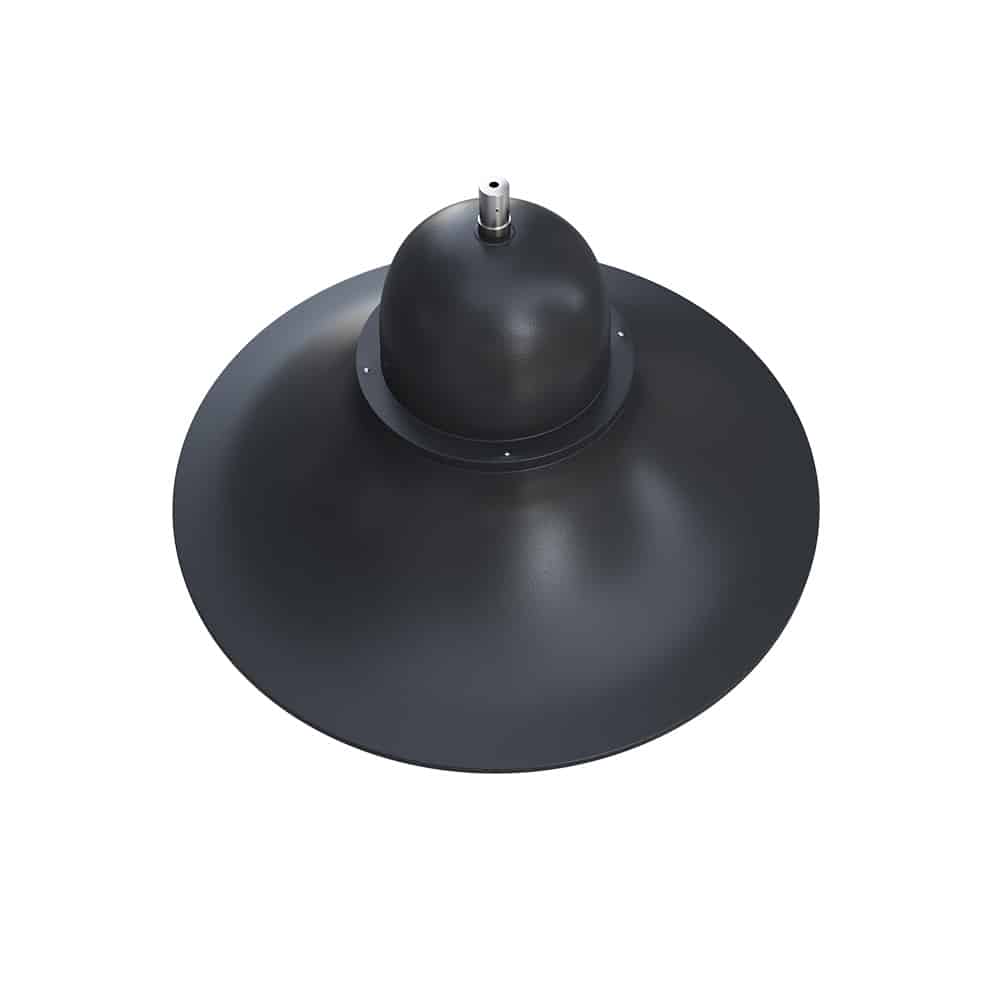

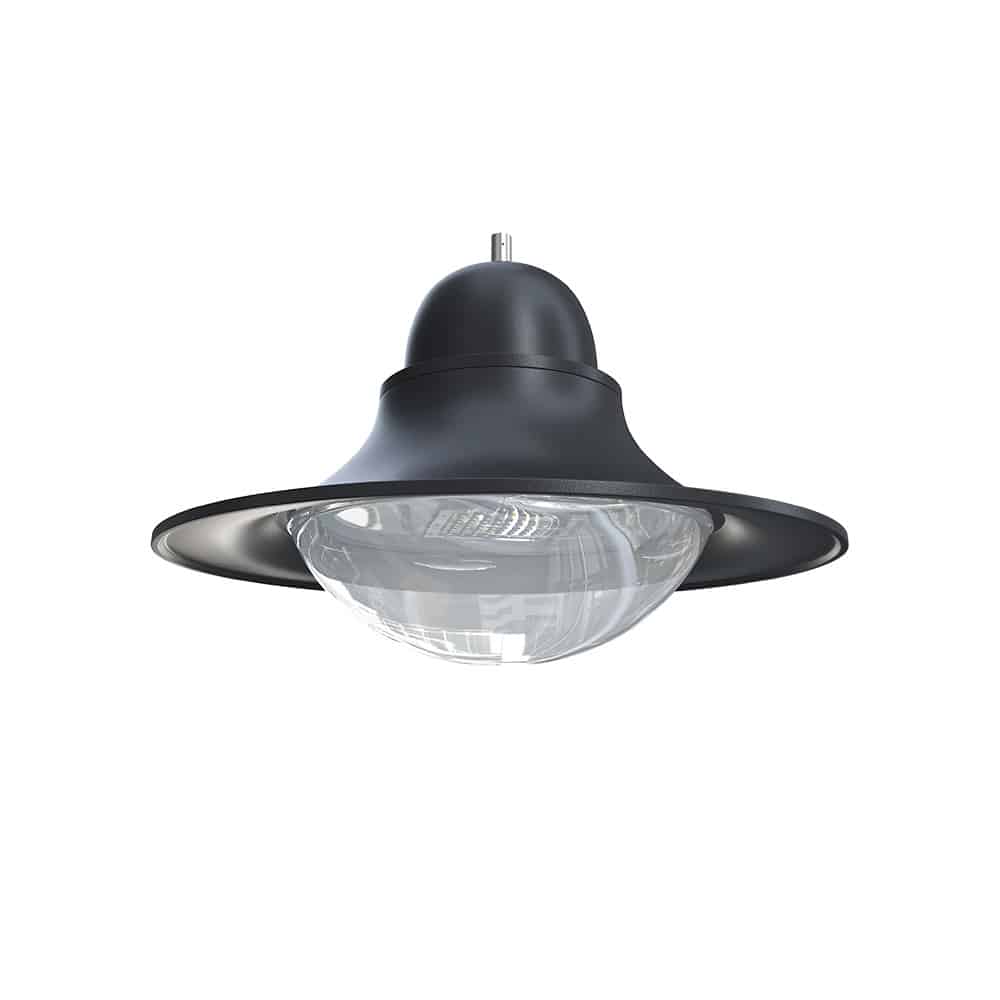

  • ZG-1058 Decorative Pole Mounted Street Light

    ZG-1058 is a pendant LED decorative pole mounted street light with a variety of lens options designed to replace MH or HPS or HID lighting systems. Typical lighting applications include urban roads, parking lots, sidewalks and pedestrian public spaces. The installation height is 3 to 8 meters and can be used according to the light level and uniformity requirements. The stretched aluminum heat sink equipped with the lamps can provide good heat dissipation for the lamps to extend the life of the lamps, and we provide a five-year warranty for these lamps.

    Product Features

    • Wide power range: 30W~60W
    • High luminaire efficiency up to 130lm/w
    • Full die-casting aluminum housing(ADC12)
    • Class I, and Class II are optional
    • IP66&IK08
    • A variety of asymmetrical or symmetrical light distributions

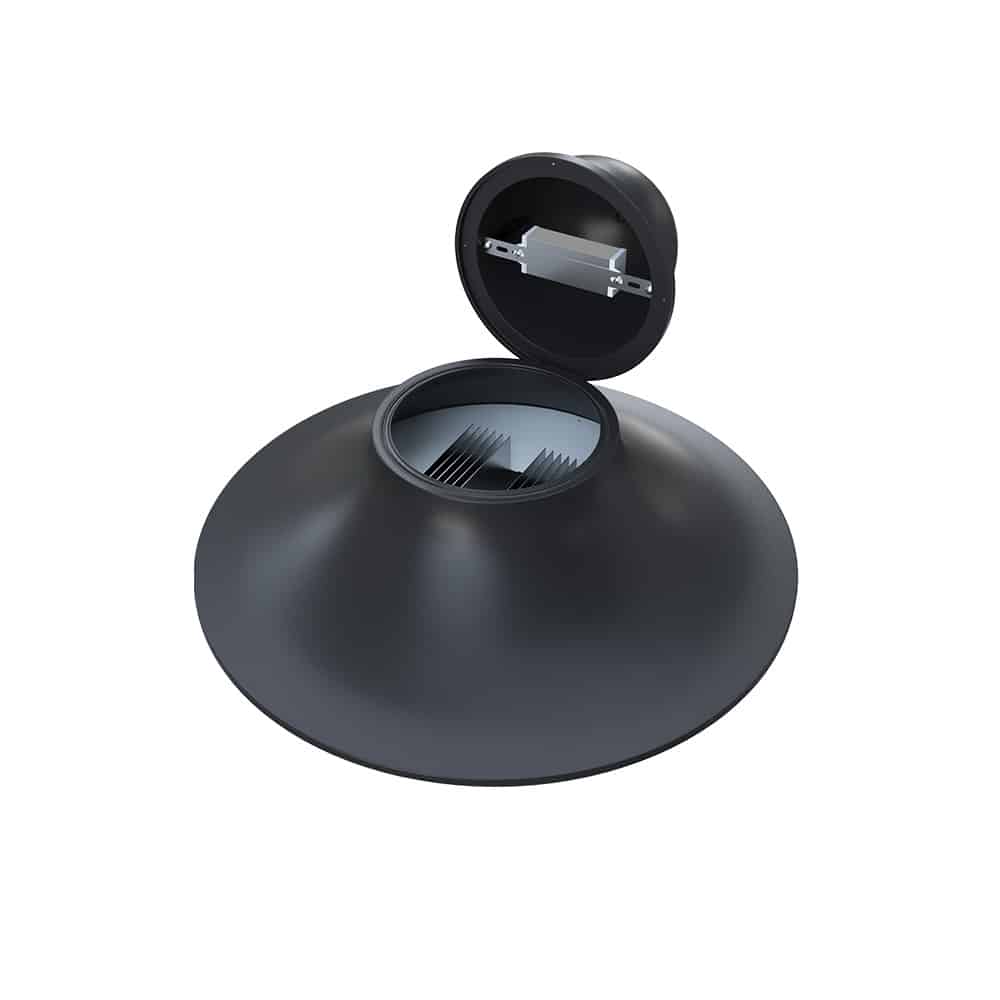

    • Driver and SPD are easy to take off for replacement
    • 1-10V Dimming (Default) /Timer Dimming
    • Surge Protection: Differential mode 6 kV, Common mode 10 kV
    Contact Us
    • Facebook
    • Twitter
    • YouTube
    • Instagram
    • LinkedIn
    • Pinterest

    • ZGSM products are designed for the global market. Please contact our sales team for certification details.
    • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
    • Description
    • datasheet
    • Optics
    • Videos
    • Download
    • application
    • FAQ
    Series No Series ZG-1058 Pole Mounted Street Light
    Power 30W, 40W, 50, 60W
    Efficacy 130lm/W
    Input Voltage 100-240/277 VAC, 50 / 60 Hz
    Power Factor >0.95
    Surge Protection 10KV (Default) / 20KV (available on request)
    IP Rating IP66
    IK Rating IK08
    Beam Angle Type II Medium
    Mounting Option Post Top
    Warranty 5 Years
    Certification CE, ROHS, IP66, IK10, LM80, TM-21, IEC62471
    DS_ZG-1058 Pole Mounted Street Light Installation Manual_ZG-1058 Pole Mounted Street Light
    led light street

    Series L post top light fixture in the parking lot of art Museum in Italy

    street lighting posts

    Series L outdoor post top lights in a parking lot in Saudi Arabia

    post top lamp

    Series L post top lamp in the parking lot of D’Tempat Club House in Malaysia

    L Series Pendant Road Light

    Series L modern street lamp in City road in Italy

    residential street lights

    Series L led post top light in House side in Peru

    Garden & Yard Lighting

    Series L post top lights on a Community road in Malaysia

    Frequently Asked Questions

    A metal halide (MH) lamp is an electric lamp or bulb that produces light using an electric arc, which combines a gaseous mixture of vaporized mercury and various metal compounds, such as bromine or iodine. Its working principle is to excite the metal atoms in the filler (metal halide) through the arc generated by gas discharge, causing it to jump to a high energy level. When the electrons return to the ground state, energy is released, which is released in the form of visible light to achieve the lighting effect.

    Yes, but we need to replace the light source and power supply of the lamp at the same time. Because LEDs cannot withstand the starting voltage and ignition pulses from ballast of lamps, the ballasts in old metal halide lamps must be bypassed or removed, and an LED driver is added to supply DC power to the LED module, and finally realize lighting.

    5 Year Warranty. As a well-known LED lighting manufacturer, ZGSM provides a 5-year warranty for our pole mounted street light. This means that within 5 years of purchase, if the LED lamps malfunction due to manufacturing defects or product quality issues, our customers can enjoy corresponding repair or replacement services.

    Related Products

    ZG-900 Craftsman Post Top Light

    ZG-1022 High Efficiency Post Top Light Fixture

    ZG-1088 Smart Post Top Light Fitting

    ZG-1094 Classic Post Top LED Lights

    ZG-6116 Anti-glare LED Post Top Luminaire

    single arm post top light-06

    Series Halo Single Arm & Double Arm Post Top LED Lights

    LED post top lights

    Series L Flexible Mounted LED post top lights

    Related Blogs

    Guidelines and award criteria of city street lighting project

    TagsCity street lighting
    Different types of street lights

    Different types of street lights and their applications

    TagsTypes of street lights
    Street light light distribution

    Light distribution of outdoor luminaire and their applications

    TagsLight distribution
    road lighting design

    Key Factors to Consider in the Street Lighting Design

    TagsStreet Lighting
    parking lot light

    Guide to Choose Proper Outdoor LED Parking Lot Lights

    TagsParking Lot Light
    street light cost

    How much does a street light cost?

    TagsLED Street Light
    smart control street light

    Some Things about Street Light Control System

    TagsLED Street Light
    things about led street light

    Several things you need to know about LED Street Light

    TagsLED Street Light
    street light with photocell

    11 Things You Need Know About LED Street Light with Photocell

    TagsLED Street Light

    What are the common quality problems of LED street light?

    TagsLED Street Light

    Best LED Post Top Light Manufacturer, Factory, and Supplier In China

    As China's top manufacturer, factory and supplier of post top light fitting, ZGSM factory has passed ISO9001, ISO14001, ISO45001, and ISO50001 approved, we have a professional design, R&D and testing team, provide customized services, free lighting design, rich experience on bidding technology support. The advantages of our post top light are as follows:

    • Appearance adopts European style design.
    • Various installation methods are available.
    • OEM/ODM /SKD Order acceptable.
    • CE, ENEC, CB, IP66, IK10, IEC62471, LM79 are available.
    Aging test for post top lights

    Why Choose us as your LED Garden Light Supplier in China?

    OEM/ODM/SKD

    Available to do OEM/ODM/SKD for all garden light. No MOQ for led post top light retailers, wholesalers, and engineering companies.

    FAST DELIVERY TIME

    As a reliable garden light supplier, we have stocks of raw materials for post top lamps, regular delivery time is 3 days for samples and 2 weeks for bulk.

    BEST QUALITY&PRICE

    We use top stable quality led driver and chips like Philips driver and chips for all post top led lights. Providing 5/7Years warranty at the cheapest price.

    CERTIFICATES

    Our led post top lights are ENEC, CB, CE, RoHS, approved, and our factory ISO9001, ISO14001, ISO45001, and ISO50001 certified.

    Certification Show

    ENEC by TUV
    ENEC
    U6 078142 0096
    Verification
    CE by TUV
    CE
    N8A 078142 0097
    Verification
    CB by TUV
    CB
    SG PSB-LE-04609
    Verification
    ROHS by TUV
    ROHS
    ROHS by TUV
    Verification

    COMPONENT STANDARDS TEST REPORT CERTIFICATIONS
    LED LM80 √
    LUMINAIRES EN/IEC 60598-1 y 60598-2-3 √ √
    IEC 62471 √
    EN/IEC 60529 √
    EN/IEC 62262 √
    EN/IEC 60068-2-75 √
    EN/IEC 55015 √ √
    EN/IEC 61000-3-2 √ √
    EN 61547 √ √
    EN 61000-3-3 √ √
    LM79 √
    ISTMT √
    TM-21 √
    LM82 √
    LM84 √
    ISO9007 /ASTM B117 √
    IEC 60068-2-6/ANSI C136.31 √
    LED MODULE EN/IEC 62031 √
    LED DRIVER IEC 62384,IEC 61347-1,IEC 61347-2-13 √ √
    SPD EN/IEC 61643-11 √ √
    FACTORY ISO9001,ISO14001,ISO50001,ISO45001   √

    R & D Team

    • Lighting engineer
      Lighting engineer
    • Electronic engineer
      Electronic engineer
    • Certification engineer
      Certification engineer
    • Industrial engineer
      Industrial Engineer
    • Structural engineer
      Structural Engineer
    • Test engineer
      Test Engineer

    Product Testing

  • test room of led lighting
  • In order to ensure the high quality of each product, we will conduct more than 30 different aspects of testing in our own laboratory before the product goes on the market. After all the tests are passed, the product can be approved for marketing. In mass production, for some basic safety and performance tests, we will conduct 100% testing to ensure that every product delivered to the customer is perfect.
