Home - LED Products - ZG-900 Craftsman Post Top Light

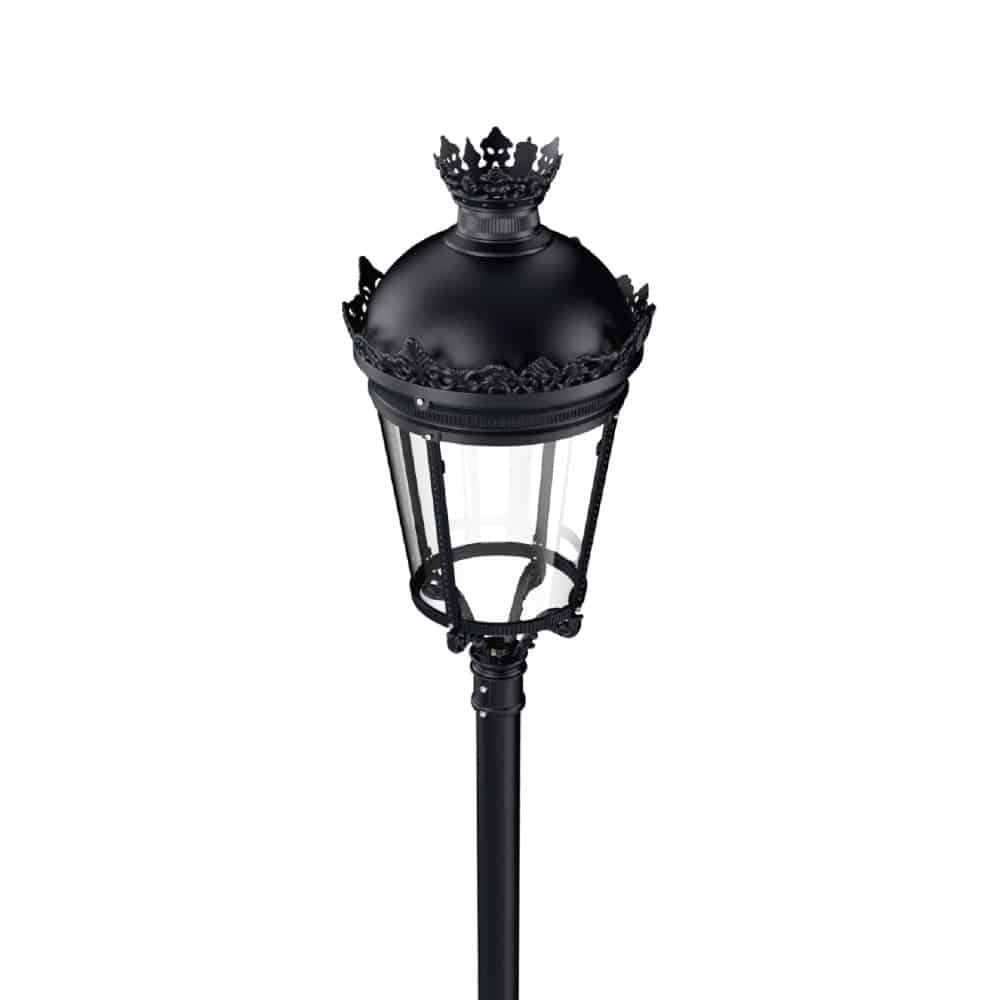

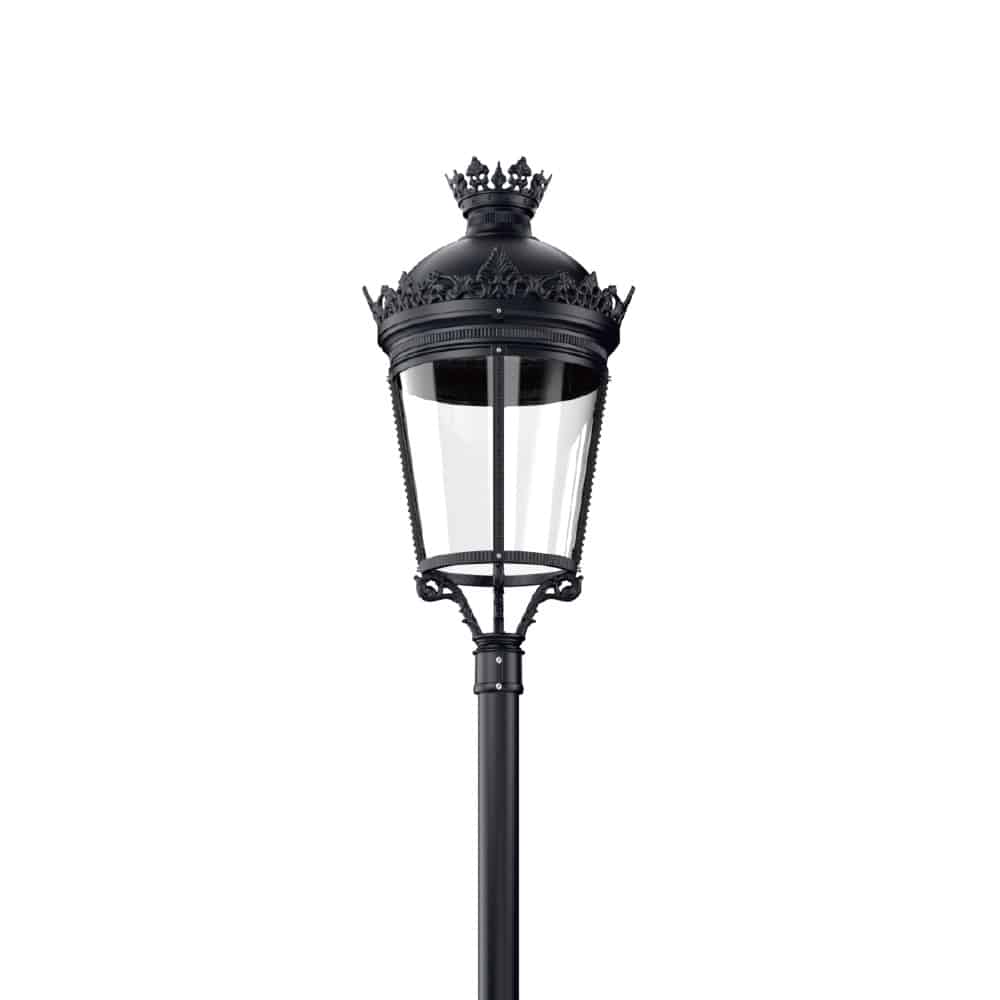

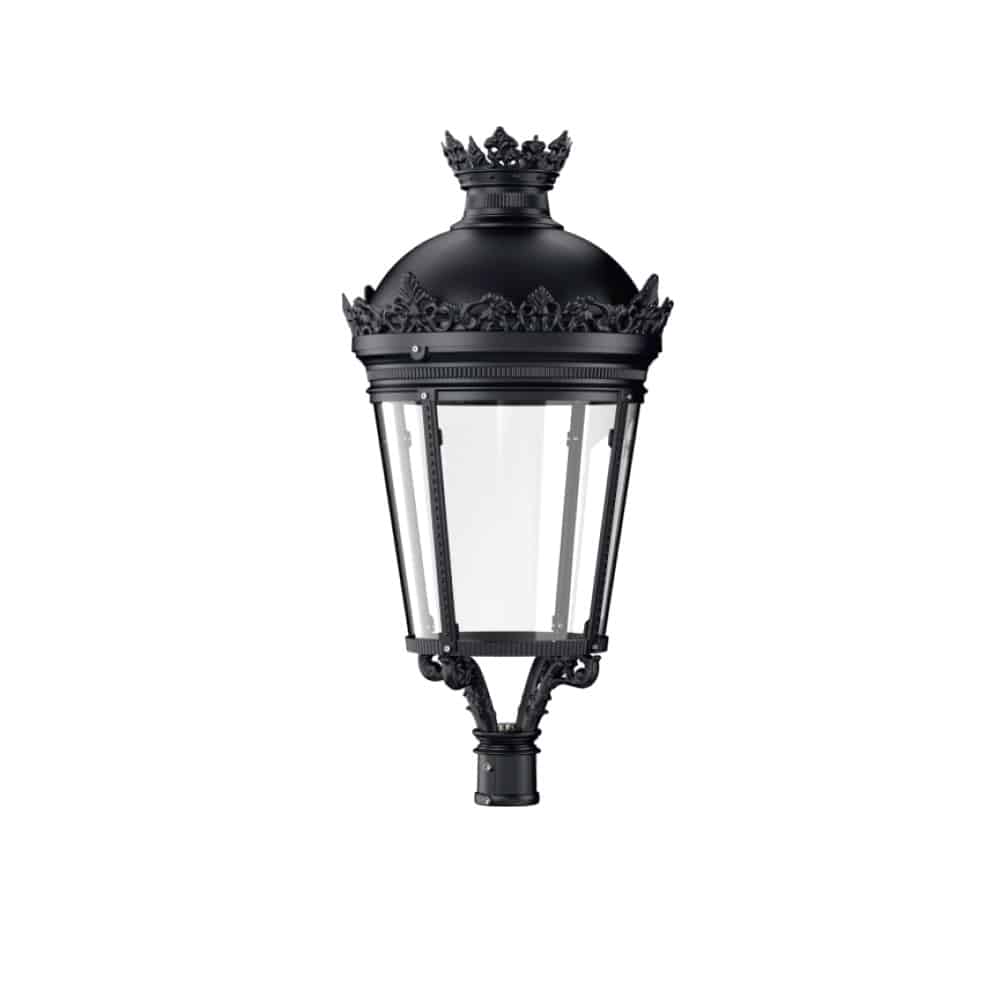

ZG-900 Craftsman Post Top Light

ZG-900 outdoor post top light inherits the classic appearance and style of traditional lamps, while ZGSM has improved the system efficiency, lens and heat dissipation functions. The light efficiency is 150lm/W and equipped with different lenses, making this series of lamps very suitable for lighting parking lots, pedestrian streets, parks and residential roads. The efficient heat dissipation system design ensures maximum heat dissipation and extends the life of the lamp. It offers a life expectancy of over 20 years (based on a 100,000 hour rated life and 12 hours per day operation), reducing maintenance frequency and costs.

Product Features

  • Wide power range: 40W~100W
  • High luminaire efficiency up to 150lm/w
  • Full die-casting aluminum housing(ADC12)
  • Class I, and Class II are optional
  • IP66&IK08
  • A variety of asymmetrical or symmetrical light distributions

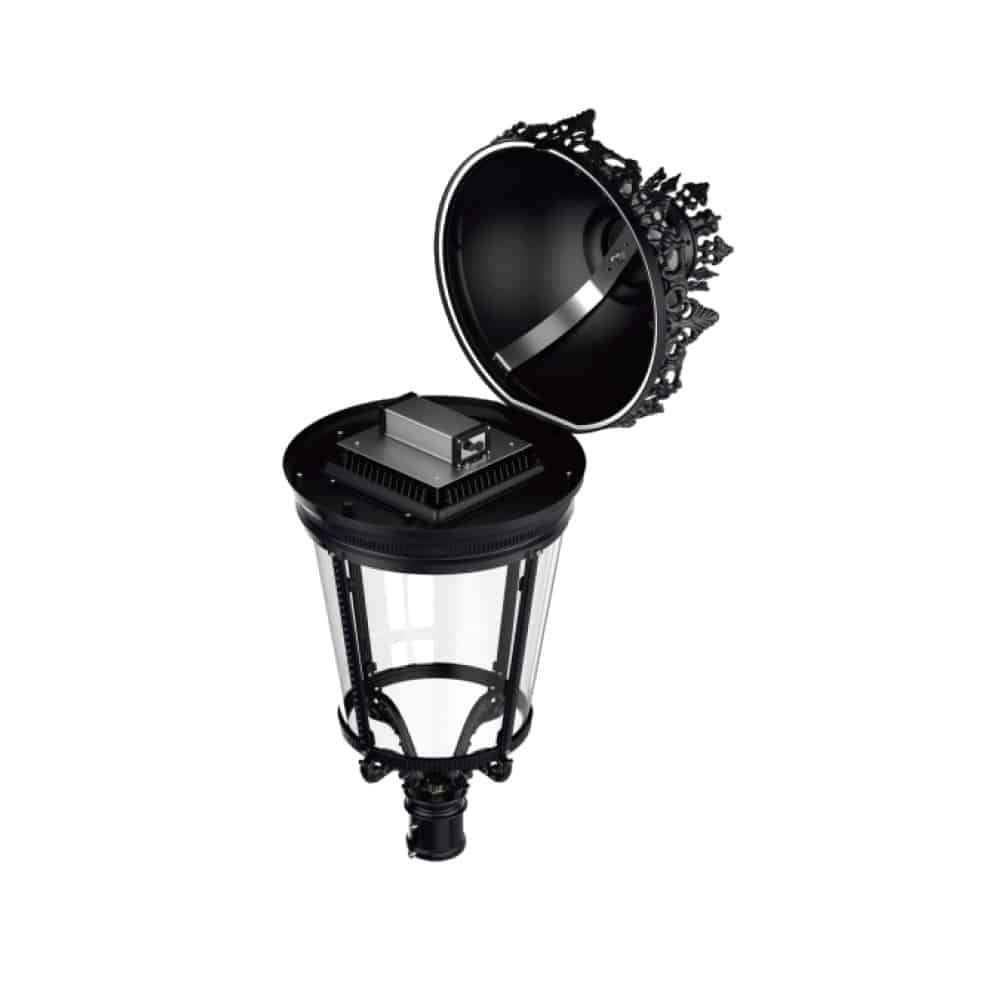

  • Driver and SPD are easy to take off for replacement
  • 1-10V Dimming (Default) /Timer Dimming
  • Surge Protection: Differential mode 6 kV, Common mode 10 kV
Contact Us
  • Facebook
  • Twitter
  • YouTube
  • Instagram
  • LinkedIn
  • Pinterest

  • ZGSM products are designed for the global market. Please contact our sales team for certification details.
  • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
  • Description
  • datasheet
  • Optics
  • Videos
  • Download
  • application
  • FAQ
Post Top Light
Post Top Light
Series No Series ZG-900
Power 40W, 60W, 80W, 100W
Efficacy 135-150lm/W
Input Voltage 100-240/277 VAC, 50 / 60 Hz
Power Factor >0.95
Surge Protection 10KV (Default) / 20KV (available on request)
IP Rating IP66
IK Rating IK08
Beam Angle Type I, II, III, V or customized
Mounting Option Post Top
Warranty 5 Years
Certification CE, ROHS, IP66, IK10, LM80, TM-21, IEC62471
DS_ZG-900 Post Top Light Installation Manual_ZG-900 Post Top Light
led light street

Series L post top light fixture in the parking lot of art Museum in Italy

street lighting posts

Series L outdoor post top lights in a parking lot in Saudi Arabia

post top lamp

Series L post top lamp in the parking lot of D’Tempat Club House in Malaysia

L Series Pendant Road Light

Series L modern street lamp in City road in Italy

residential street lights

Series L led post top light in House side in Peru

Garden & Yard Lighting

Series L post top lights on a Community road in Malaysia

Frequently Asked Questions

This is a very common question. The expected life of LED lighting is usually estimated based on the LM80 report of the lamp, combined with the ISTMT and TM21 reports, and is generally between 50,000 and 100,000 hours. Of course, this value may vary between different manufacturers. If LED lighting is used for 12 hours a day, this means its lifespan is approximately 23 years. This life span far exceeds that of traditional lamps, reaching more than 10 times the life span of traditional lamps. Long life and high energy efficiency make LED lighting very popular.

The life expectancy of LED lighting fixtures typically ranges from 50,000 to 100,000 hours. Assuming 12 hours of use per day, based on 100,000 hours, this means the fixtures can last approximately 23 years without needing to be replaced. After this period, LED fixtures can continue to be used as long as the lighting still meets demand. However, during use, if a power supply failure occurs or the LED module fails in a large area, we may need to replace the lamp in time, although the probability of these two situations occurring is low.

LED fixtures generally have a longer life than other types of fixtures. We often hear about broken LED lamps, mainly because more and more places are beginning to adopt LED solutions. There are many reasons why LED lamps are damaged, one of the main reasons is LED power supply failure. The design of LED lamps usually has the LED driver built into the lamp, and the LED driver itself generates a certain amount of heat. In addition, poor radiator effect will also exacerbate the LED power supply's operation in high-temperature environments, leading to premature failure.

Related Products

ZG-1022 High Efficiency Post Top Light Fixture

ZG-1058 Decorative Pole Mounted Street Light

ZG-1088 Smart Post Top Light Fitting

ZG-1094 Classic Post Top LED Lights

ZG-6116 Anti-glare LED Post Top Luminaire

single arm post top light-06

Series Halo Single Arm & Double Arm Post Top LED Lights

LED post top lights

Series L Flexible Mounted LED post top lights

Related Blogs

Guidelines and award criteria of city street lighting project

TagsCity street lighting
Different types of street lights

Different types of street lights and their applications

TagsTypes of street lights
Street light light distribution

Light distribution of outdoor luminaire and their applications

TagsLight distribution
road lighting design

Key Factors to Consider in the Street Lighting Design

TagsStreet Lighting
parking lot light

Guide to Choose Proper Outdoor LED Parking Lot Lights

TagsParking Lot Light
street light cost

How much does a street light cost?

TagsLED Street Light
smart control street light

Some Things about Street Light Control System

TagsLED Street Light
things about led street light

Several things you need to know about LED Street Light

TagsLED Street Light
street light with photocell

11 Things You Need Know About LED Street Light with Photocell

TagsLED Street Light

What are the common quality problems of LED street light?

TagsLED Street Light

Best LED Post Top Light Manufacturer, Factory, and Supplier In China

As China's top manufacturer, factory and supplier of post top light fitting, ZGSM factory has passed ISO9001, ISO14001, ISO45001, and ISO50001 approved, we have a professional design, R&D and testing team, provide customized services, free lighting design, rich experience on bidding technology support. The advantages of our post top light are as follows:

  • Appearance adopts European style design.
  • Various installation methods are available.
  • OEM/ODM /SKD Order acceptable.
  • CE, ENEC, CB, IP66, IK10, IEC62471, LM79 are available.
Aging test for post top lights

Why Choose us as your LED Garden Light Supplier in China?

OEM/ODM/SKD

Available to do OEM/ODM/SKD for all garden light. No MOQ for led post top light retailers, wholesalers, and engineering companies.

FAST DELIVERY TIME

As a reliable garden light supplier, we have stocks of raw materials for post top lamps, regular delivery time is 3 days for samples and 2 weeks for bulk.

BEST QUALITY&PRICE

We use top stable quality led driver and chips like Philips driver and chips for all post top led lights. Providing 5/7Years warranty at the cheapest price.

CERTIFICATES

Our led post top lights are ENEC, CB, CE, RoHS, approved, and our factory ISO9001, ISO14001, ISO45001, and ISO50001 certified.

Certification Show

ENEC by TUV
ENEC
U6 078142 0096
Verification
CE by TUV
CE
N8A 078142 0097
Verification
CB by TUV
CB
SG PSB-LE-04609
Verification
ROHS by TUV
ROHS
ROHS by TUV
Verification

COMPONENT STANDARDS TEST REPORT CERTIFICATIONS
LED LM80 √
LUMINAIRES EN/IEC 60598-1 y 60598-2-3 √ √
IEC 62471 √
EN/IEC 60529 √
EN/IEC 62262 √
EN/IEC 60068-2-75 √
EN/IEC 55015 √ √
EN/IEC 61000-3-2 √ √
EN 61547 √ √
EN 61000-3-3 √ √
LM79 √
ISTMT √
TM-21 √
LM82 √
LM84 √
ISO9007 /ASTM B117 √
IEC 60068-2-6/ANSI C136.31 √
LED MODULE EN/IEC 62031 √
LED DRIVER IEC 62384,IEC 61347-1,IEC 61347-2-13 √ √
SPD EN/IEC 61643-11 √ √
FACTORY ISO9001,ISO14001,ISO50001,ISO45001   √

R & D Team

  • Lighting engineer
    Lighting engineer
  • Electronic engineer
    Electronic engineer
  • Certification engineer
    Certification engineer
  • Industrial engineer
    Industrial Engineer
  • Structural engineer
    Structural Engineer
  • Test engineer
    Test Engineer

Product Testing

test room of led lighting

In order to ensure the high quality of each product, we will conduct more than 30 different aspects of testing in our own laboratory before the product goes on the market. After all the tests are passed, the product can be approved for marketing. In mass production, for some basic safety and performance tests, we will conduct 100% testing to ensure that every product delivered to the customer is perfect.
