Home - LED Products - ZG-6116 Anti-glare LED Post Top Luminaire

  • Anti-glare LED post top luminaires with poles

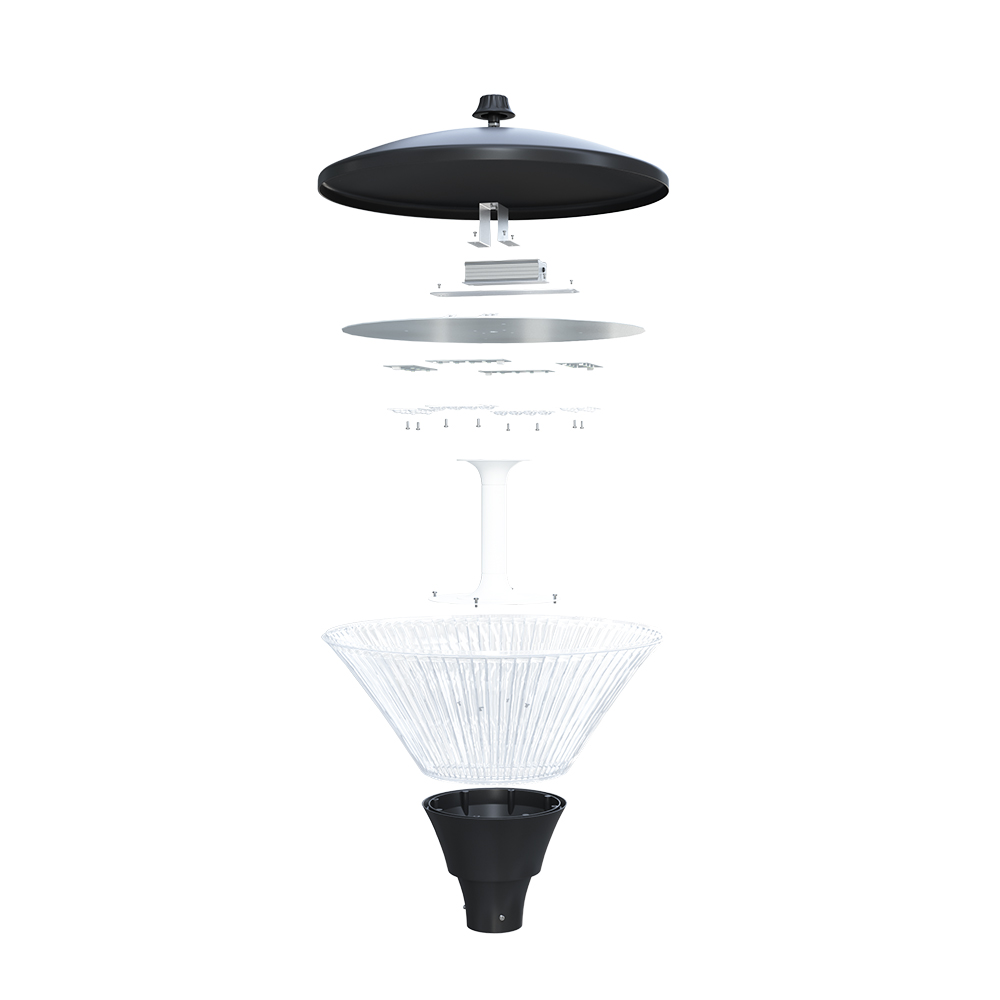

  • Anti-glare LED post top luminaires - explosive view

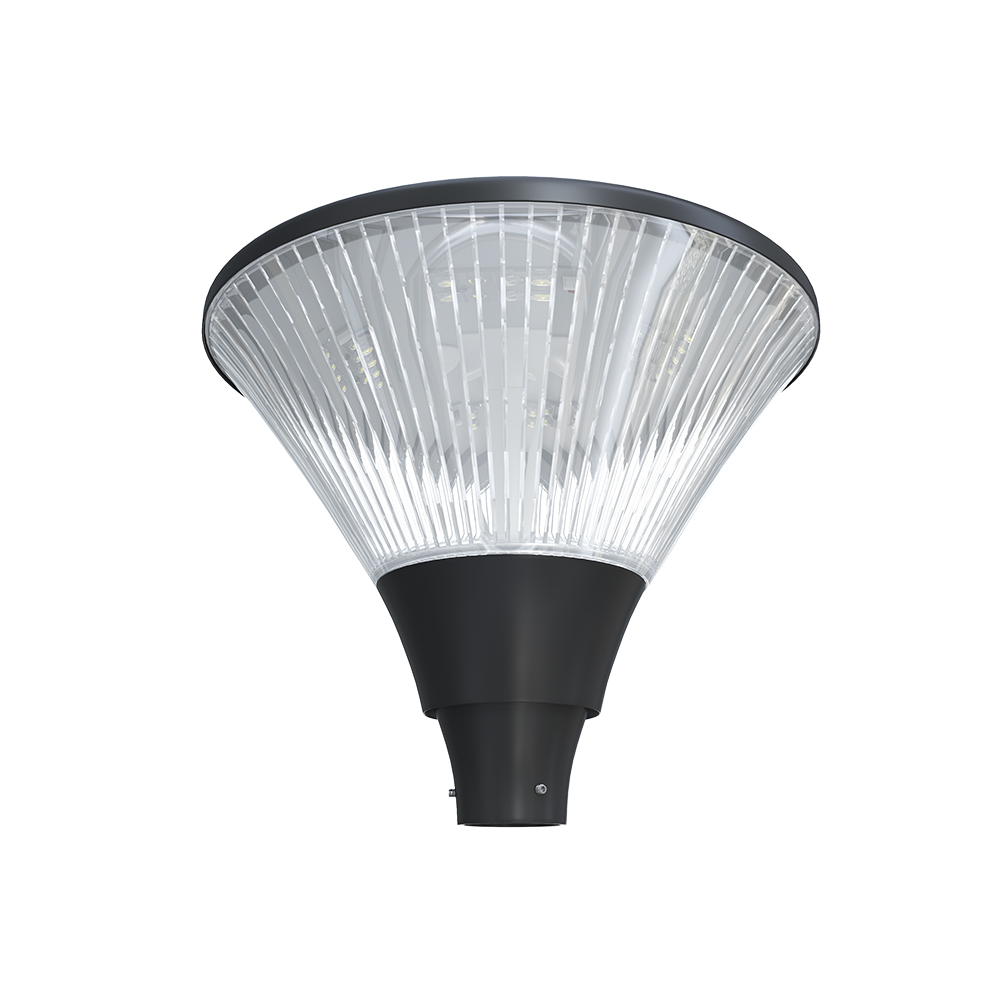

  • Anti-glare post top luminaires

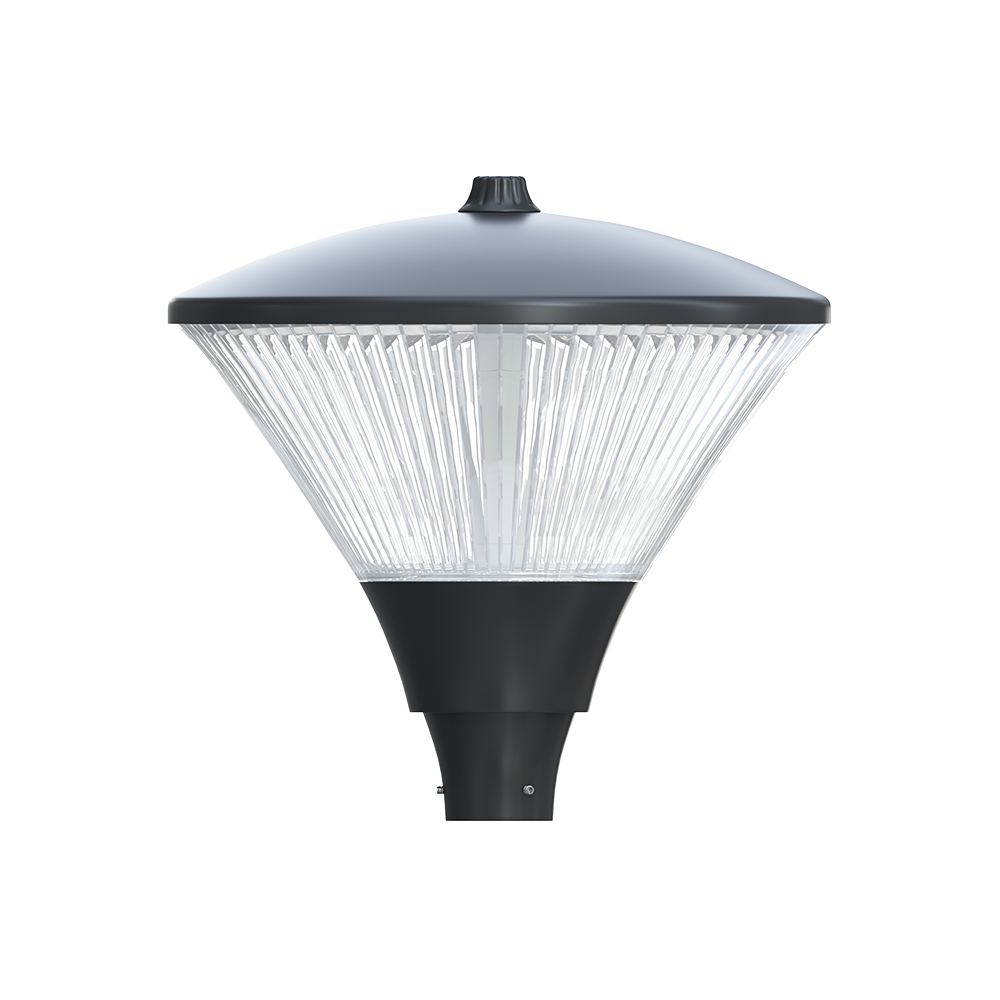

  • Anti-glare LED post top luminaires

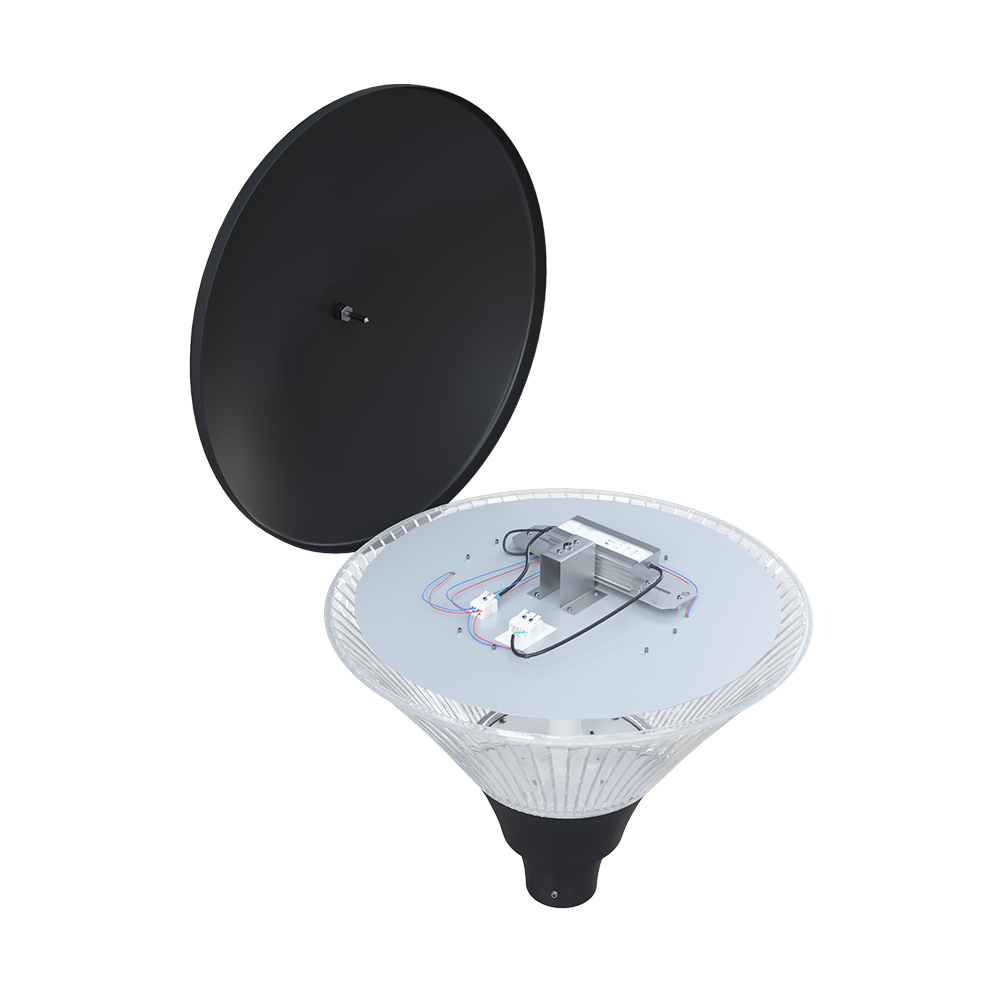

  • Anti-glare LED post top luminaires - LED driver

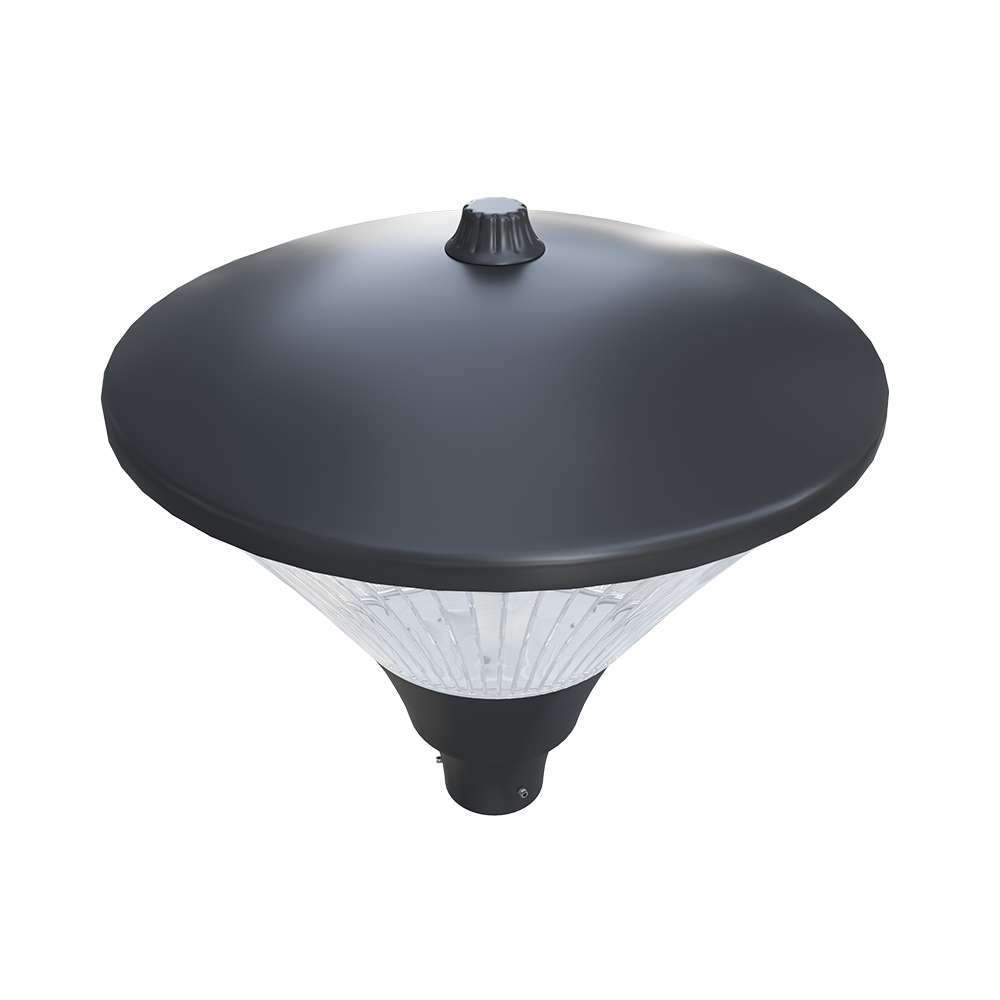

  • Anti-glare LED post top luminaires - top view

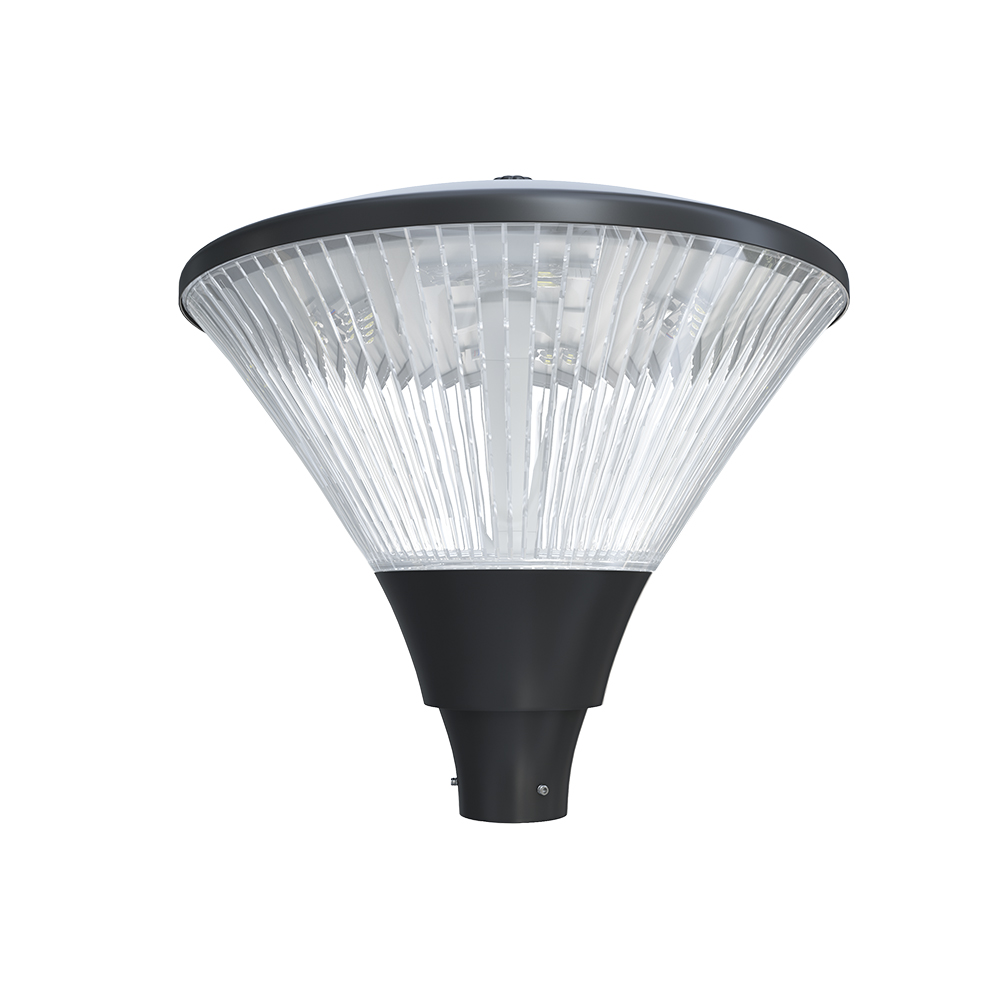

  • Anti-glare LED post top luminaires lens
  • Anti-glare LED post top luminaires with poles
  • Anti-glare LED post top luminaires - explosive view
  • Anti-glare post top luminaires
  • Anti-glare LED post top luminaires
  • Anti-glare LED post top luminaires - LED driver
  • Anti-glare LED post top luminaires - top view
  • Anti-glare LED post top luminaires lens

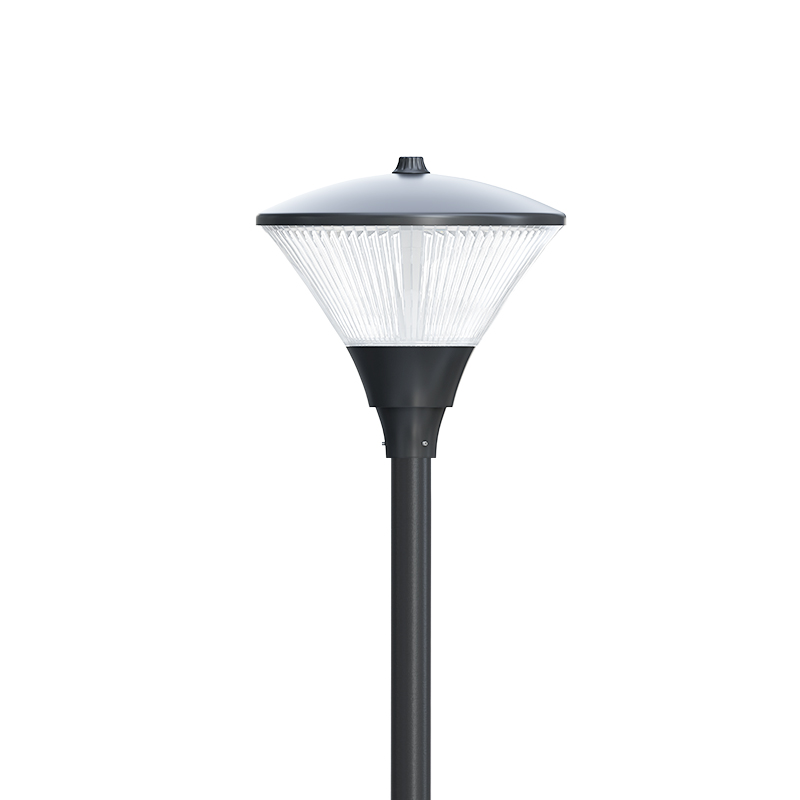

  • ZG-6116 Anti-glare LED Post Top Luminaire

    ZG-6116 LED Post Top Luminaire brings architectural style to regional, site and pedestrian scale lighting applications. Its professional optical distribution provides a high level of visibility and uniformity, and the use of PC lenses can effectively reduce the impact of lamp glare on pedestrians. This series of pole mounted street light are made of high-quality and durable materials and can be installed directly on Ø60mm light poles. At the same time, we also provide customers with Ø76mm light pole installation solutions. In addition, Class I and Class II LED drivers are available for customers to choose from. Equipped with timer dimming, it is very suitable for parking lots, parks and residential road lighting.

    Product Features

    • Wide power range: 30W~70W
    • High luminaire efficiency up to 120lm/w
    • Full die-casting aluminum housing(ADC12)
    • Class I, and Class II are optional
    • IP66&IK08
    • Type V Short
    • Driver and SPD are easy to take off for replacement
    • 1-10V Dimming (Default) /Timer Dimming
    • Surge Protection: Differential mode 6 kV, Common mode 10 kV
    Contact Us
    • Facebook
    • Twitter
    • YouTube
    • Instagram
    • LinkedIn
    • Pinterest

    • ZGSM products are designed for the global market. Please contact our sales team for certification details.
    • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
    • Description
    • datasheet
    • Optics
    • Videos
    • Download
    • application
    • FAQ
    ZG-6116 LED post top luminaires
    ZG-6116 LED post top luminaires
    Series No Series ZG-6116 Anti-glare LED Post Top Luminaire
    Power 30W, 40W, 50W, 60W, 70W
    Efficacy 120lm/W
    Input Voltage 100-240/277 VAC, 50 / 60 Hz
    Power Factor >0.95
    Surge Protection 10KV (Default) / 20KV (available on request)
    IP Rating IP66
    IK Rating IK08
    Beam Angle Type V
    Mounting Option Post Top
    Warranty 5 Years
    Certification CE, ROHS, IP66, IK08, LM80, TM-21, IEC62471
    DS_ZG-6116 LED Post Top Luminaire Installation Manual_ZG-6116 LED Post Top Luminaire
    led light street

    Series L post top light fixture in the parking lot of art Museum in Italy

    street lighting posts

    Series L outdoor post top lights in a parking lot in Saudi Arabia

    post top lamp

    Series L post top lamp in the parking lot of D’Tempat Club House in Malaysia

    L Series Pendant Road Light

    Series L modern street lamp in City road in Italy

    residential street lights

    Series L led post top light in House side in Peru

    Garden & Yard Lighting

    Series L post top lights on a Community road in Malaysia

    Frequently Asked Questions

    "Class I" and "Class II" are used to describe the safety level of electrical equipment (including LED lamps) or the protection level of the product.

    Class I: This refers to equipment with a grounding function. Class I equipment is designed to include a ground wire that effectively connects the equipment's metal enclosure to the ground for additional safety.

    Class II: This refers to double insulated equipment. Class II equipment does not rely on a ground wire for safety, but instead uses two layers of insulation to protect the user from the risk of electric shock. Even if one layer of insulation fails, the second layer of insulation will provide protection.

    Timer dimming is a commonly used lighting control technology, usually used in outdoor lighting systems such as road lighting, parking lot lighting, and billboard lighting. It adjusts the brightness of the lamp according to a predetermined schedule or a specific time, so that the lighting intensity of the lamp meets the requirements of the specific time period. For example, in the latter half of the night, when there are fewer pedestrians and vehicles on the road, the lights can be dimmed appropriately to save energy.

    Post top lights (also known as "post lights") are typically affixed to street light poles or other fixtures to provide lighting to the surrounding area. ZGSM's post top lights come with a standard 60 mm sleeve. If the diameter of the light pole used by the customer exceeds 60 mm, we can complete the installation of the light fixture by installing an adapter. For example, in the UK and Germany some light poles are 76mm in diameter and we can use a 76mm adapter to make our fixtures suitable for this 76mm diameter pole.

    Related Products

    ZG-900 Craftsman Post Top Light

    ZG-1058 Decorative Pole Mounted Street Light

    ZG-1088 Smart Post Top Light Fitting

    ZG-1094 Classic Post Top LED Lights

    Related Blogs

    Different types of street lights

    Different types of street lights and their applications

    TagsTypes of street lights
    road lighting design

    Key Factors to Consider in the Street Lighting Design

    TagsStreet Lighting
    street light cost

    How much does a street light cost?

    TagsLED Street Light

    What are the common quality problems of LED street light?

    TagsLED Street Light

    Certification Show

    COMPONENT STANDARDS TEST REPORT CERTIFICATIONS
    LED LM80 √
    LUMINAIRES EN/IEC 60598-1 and 60598-2-1 √ √
    IEC 62471 √ √
    EN/ 60529 √ √
    IEC 62262 √
    EN/IEC 55015 √ √
    EN/IEC 61000-3-2 √ √
    EN 61547 √ √
    EN/IEC 61000-3-3 √ √
    IEC 62321 √ √
    TM-21 √
    LED DRIVER IEC 62384,IEC 61347-1,IEC 61347-2-13 √ √
    SPD EN/IEC 61643-11 √ √
    FACTORY ISO9001,ISO14001,ISO50001,ISO45001   √
