Home - LED Products - ZG-1094 Classic Post Top LED Lights

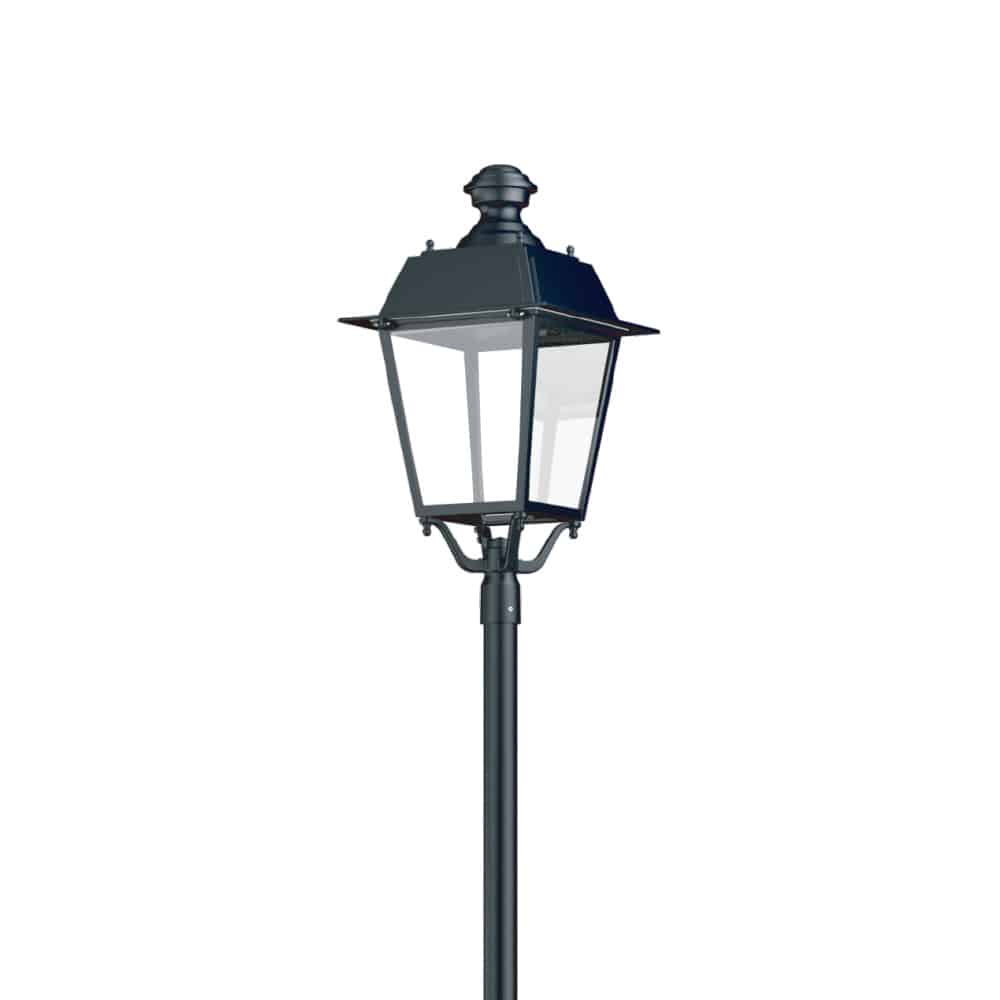

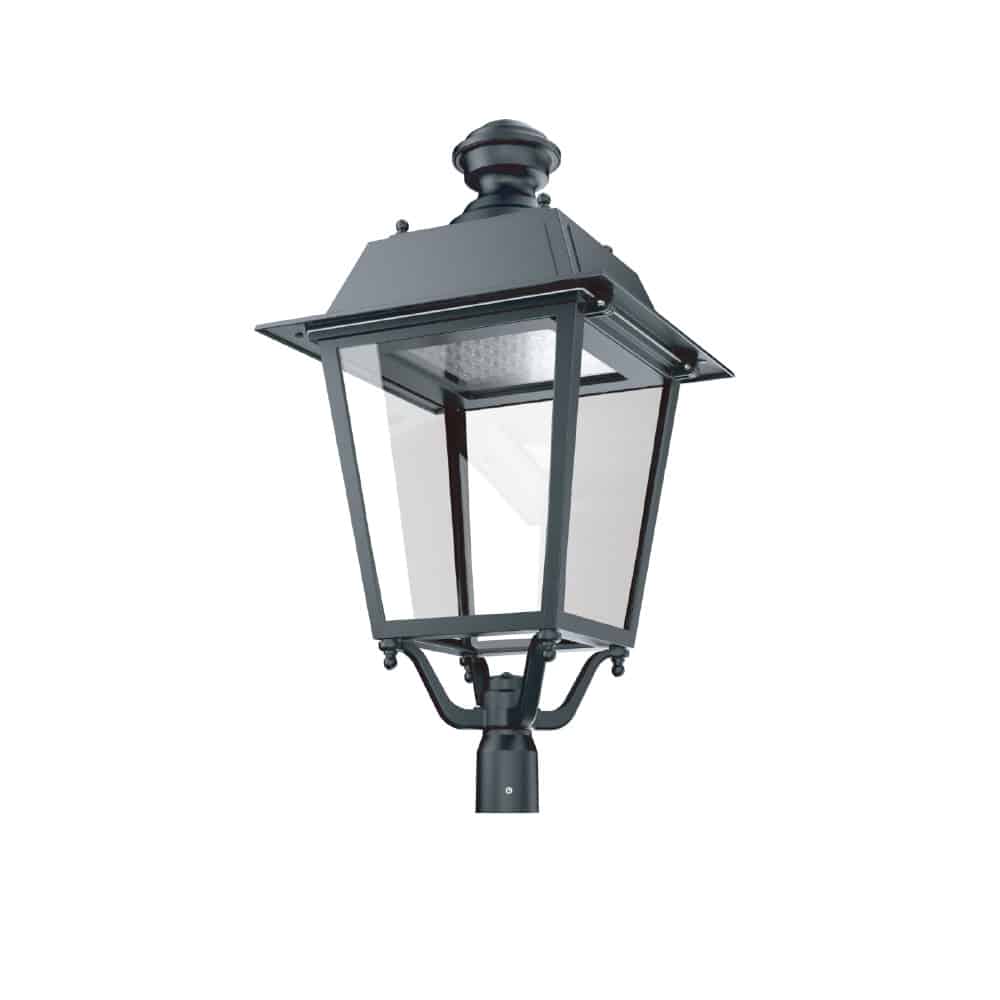

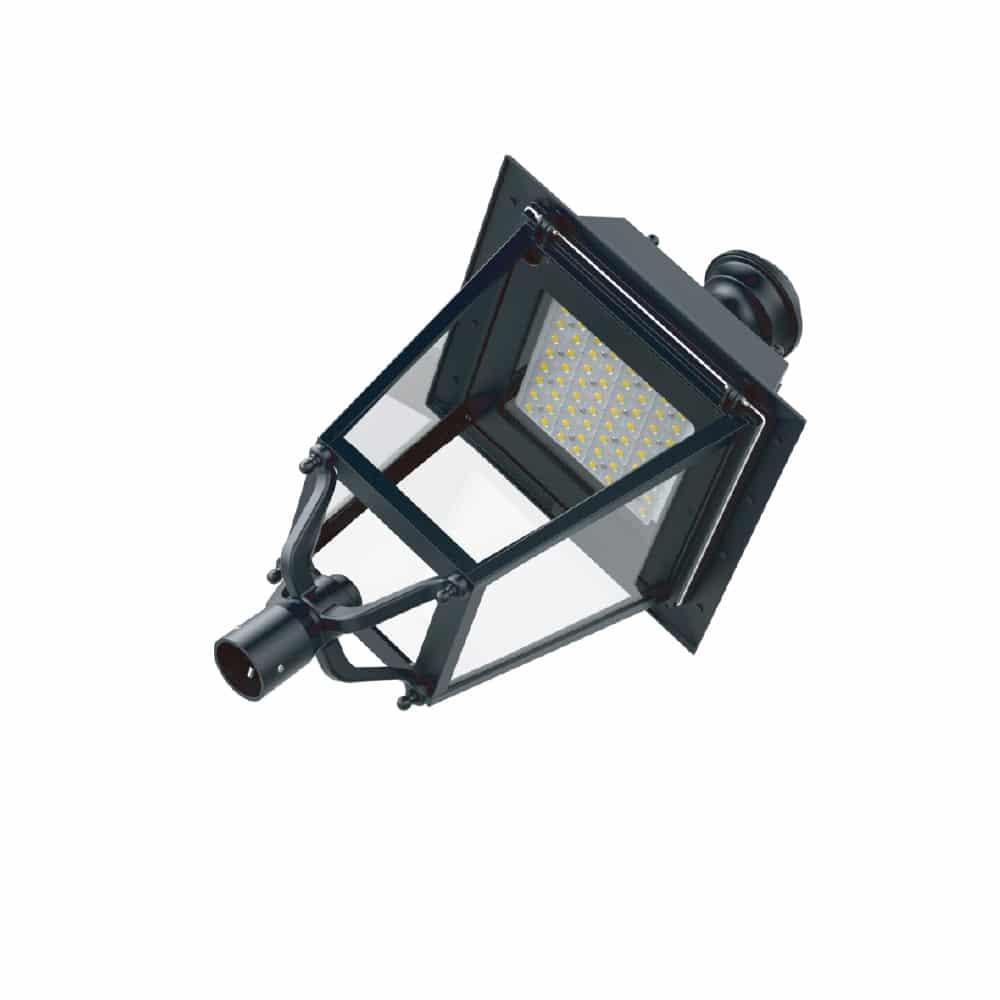

  • ZG-1094 Classic Post Top LED Lights

    ZG-1094 is a classic post top LED lights used to illuminate courtyards, parks, parking lots, sidewalks and other public outdoor spaces. The LED post top luminaire has a die-cast aluminum housing and a die-cast aluminum heat sink to increase heat dissipation performance. The tempered glass diffuser ensures IK rating and high light transmittance. This series of lamps adopts a variety of symmetrical and asymmetrical light distributions for customers to choose from, so that the light is evenly distributed on the road, with superior visibility and safety. The wattage selection of 40W, 60W, 80W and 100W can also help with the choice of different road conditions.

    Product Features

    • Wide power range: 40W~100W
    • High luminaire efficiency up to 150lm/w
    • Full die-casting aluminum housing(ADC12)
    • Class I, and Class II are optional
    • IP66&IK08
    • A variety of asymmetrical or symmetrical light distributions

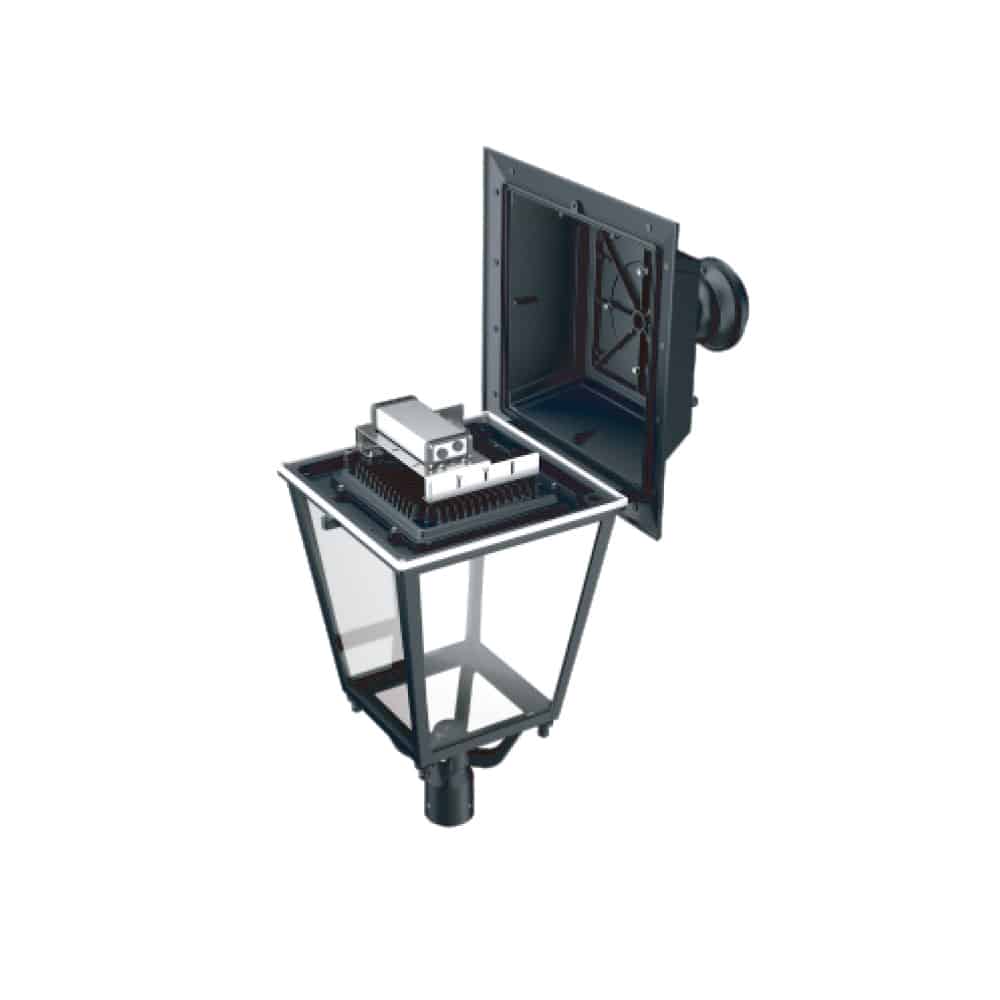

    • Driver and SPD are easy to take off for replacement
    • 1-10V Dimming (Default) /Timer Dimming
    • Surge Protection: Differential mode 6 kV, Common mode 10 kV
    Contact Us
    • Facebook
    • Twitter
    • YouTube
    • Instagram
    • LinkedIn
    • Pinterest

    • ZGSM products are designed for the global market. Please contact our sales team for certification details.
    • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
    • Description
    • datasheet
    • Optics
    • Videos
    • Download
    • application
    • FAQ
    Post Top LED Lights
    Post Top LED Lights
    Series No Series ZG-1094 Post Top LED Lights
    Power 40W, 60W, 80W, 100W
    Efficacy 135-150lm/W
    Input Voltage 100-240/277 VAC, 50 / 60 Hz
    Power Factor >0.95
    Surge Protection 10KV (Default) / 20KV (available on request)
    IP Rating IP66
    IK Rating IK08
    Beam Angle Type I, II, III, V or customized
    Mounting Option Post Top
    Warranty 5 Years
    Certification CE, ROHS, IP66, IK10, LM80, TM-21, IEC62471
    DS_ZG-1094 Post Top LED Lights Installation Manual_ZG-1094 Post Top LED Lights
    led light street

    Series L post top light fixture in the parking lot of art Museum in Italy

    street lighting posts

    Series L outdoor post top lights in a parking lot in Saudi Arabia

    post top lamp

    Series L post top lamp in the parking lot of D’Tempat Club House in Malaysia

    L Series Pendant Road Light

    Series L modern street lamp in City road in Italy

    residential street lights

    Series L led post top light in House side in Peru

    Garden & Yard Lighting

    Series L post top lights on a Community road in Malaysia

    Frequently Asked Questions

    In the photometric test report or LM79 report of the lamp, if the arcs in different C sections in the intensity distribution diagram of the lamp are the same, it is called a symmetric light distribution, otherwise it is called an asymmetric light distribution. Normally, the light distribution of street lights is asymmetric, and the light distribution of floodlights is symmetrical. Of course, there are also some floodlights that use asymmetric light distribution to achieve better and more uniform lighting.

    Usually, street lights with different wattages are suitable for installation on light poles of different heights. Generally speaking, the higher the wattage of the lamp, the higher the height of the light pole is recommended, but this is not absolute. This recommendation is also influenced by factors such as lighting requirements, road width, pole spacing and pole location.

    The following are the recommended installation heights for street lights with different wattage:
    20w, suitable for pole height 4m-5m
    40w, suitable for pole height 6m-7m
    60w, suitable for pole height 7m-8m
    80w, suitable for pole height 8-10 meters
    100w or over, suitable for pole heights above 10 meters

    Suitable lighting equipment: Choose appropriate lamp lenses. Road lighting generally requires asymmetric light distribution to improve uniformity.

    Suitable light pole height: Generally, the higher the light pole, the more uniform the illumination. Of course, we must also avoid the extra costs and light waste caused by too high light poles.

    Optimize lighting layout: Reasonably arrange the position and wattage of street lights to ensure that light covers the entire area.
