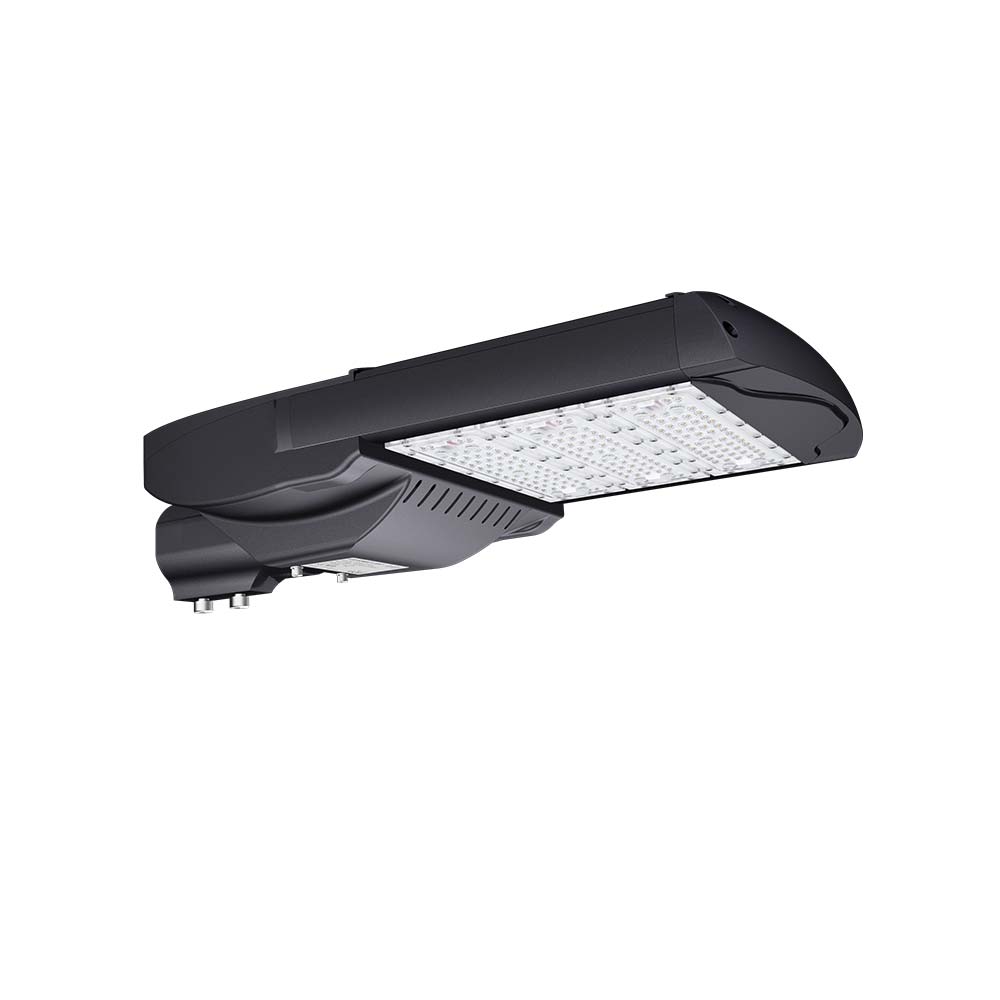

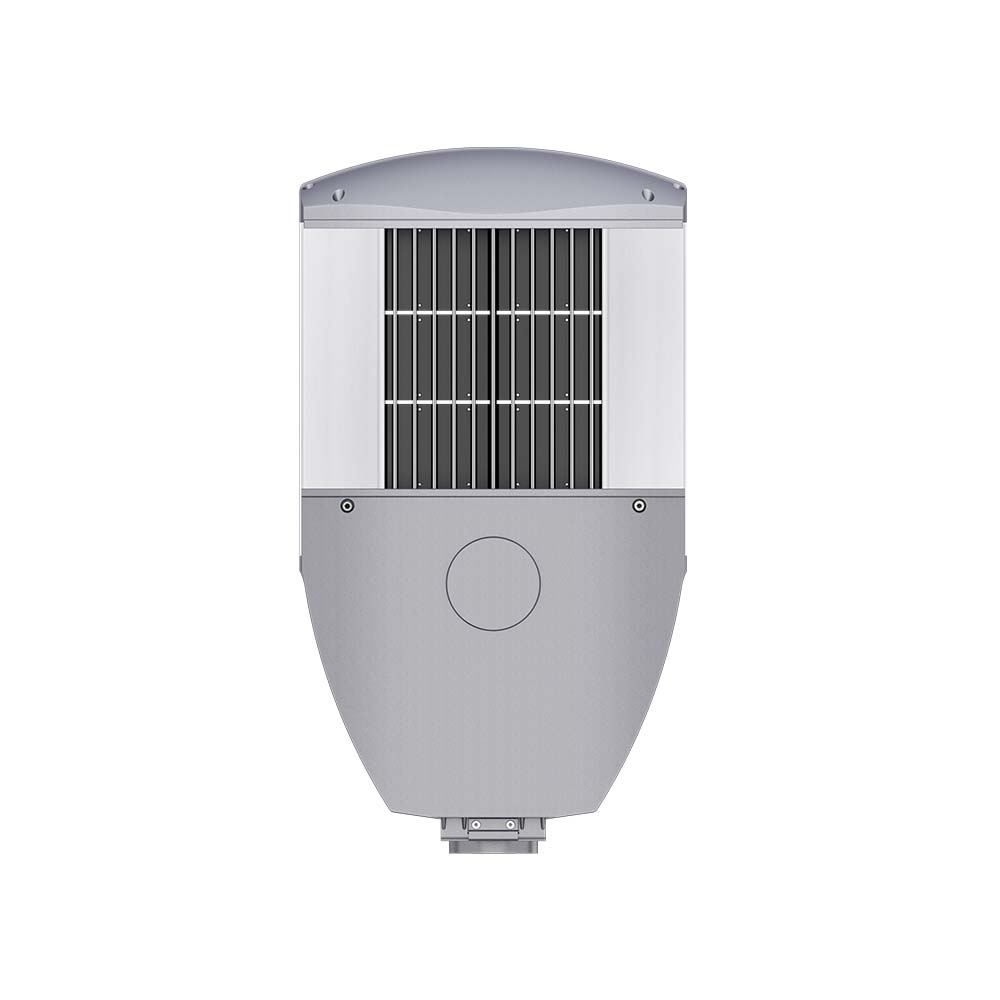

Series H Modular Design LED Street Light

Series H LED Street Light is the first generation modular design Street Lamp. So far, it has sold more than 500,000 pieces, exported to more than 100 countries and regions, and has been widely praised. As the earliest modular design street lamp, Series H LED Street Light has the advantages of convenient maintenance and upgrade, and the ultra-high luminous efficiency of up to 165lm/w is also far ahead of the market level.

Product Features

  • Watts: 30-320w
  • Modular design, easy for maintenance
  • Light Efficiency up to 165lm/w
  • Protection class I or II.
  • 10 /20KV surge protection, IP66&IK08/IK10
  • Wide choice of optics for different applications
  • Side entry or Vertical pole mounted
  • ENEC, CE, CB, SAA, UL certified.
  • Smart Control: 1-10V dimming, DALI control, Photocell, Motion sensor, NEMA/Zhaga, Zigbee /Lora socket for smart control system or future updating
  • Street Lighting Design Guide
Contact Us

  • ZGSM products are designed for the global market. Please contact our sales team for certification details.
  • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
H Series LED Street Light
Series No Series H
Power 40W, 50W, 60W, 80W, 100W,120W, 150W, 160W, 180W, 200W, 240W, 300W
Efficacy 125-165lm/W
Input Voltage 100-240/277 VAC, 50 / 60 Hz
Power Factor >0.95
Surge Protection 10KV (Default) / 20KV (available on request)
IP Rating IP66
IK Rating IK08 / IK10
CCT 3000K, 4000K, 5000K, 5700K
CRI Ra>70 (Default) / Ra>80
Operating Temperature -40°C to + 50°C
Beam Angle Type I, Medium; Type II, Medium; Type III, Medium; Type V, Short;
Mounting Option Side entry or Vertical pole mounted
Warranty 5 Years
Certification ENEC, CE, CB, Zhaga-D4i, ROHS, SAA, UL, IP66, IK08/IK10, LM79, LM80, LM82, LM84, TM-21, ISTMT, IEC62471/62778, IEC60068-2-6, IEC61643-11, ISO9227
Control Photocell, DALI Dimmable, NEMA /Zhaga Socket, Motion Sensor, Non-Dimmable, 1-10V Dimmable, Zigbee or LORA control
Specification_H_StreetLight Installation Manual_StreetLight_H

More than 500,000 sets of H series led road light has been successfully installed, with an extremely low failure rate and very good customer satisfaction.

1. Modular design, convenient for future maintenance and replacement.
2. The maximum light efficiency is up to 165 lm/W.
3. Impact resistance rating is IK10, the waterproof rating is IP66
4. The certificates are complete, most of the certificates and reports required by the bidding are available, such as CE, ROHS, ENEC, UL, SAA, CB, IEC 62471, LM79, etc.

Please confirm the below requirements with sales before purchase.
1. Which color temperature do you want? We have 3000K, 4000K, 5000K, and 5700K for optional.
2. Which color of the fixture body? We have silver and black.
3. Do you have a preferred LED drive brand? Usually, we use INVENTRONICS EUM series LED driver
4. How is your request on efficiency? We have 3030 and 5050 chips for optional, with 3030 chips, price is better but efficiency is 125-140lm/w, with 5050 chips, price is higher but efficiency can reach 165 lm/w.
5. We have 5 kinds of optics lenses to choose from. In order to find the most suitable one for your road condition, you can tell us the road width, lamp post spacing, lamp layout, lamp pole height, and illumination requirements you will install. We have a professional design team to make lighting simulations for you, and then recommend the most suitable lens model to you

We generally prepare a certain amount of materials for the main promote lamps, so the delivery time for small batch orders is about 3-5 days, and the delivery time for large batch orders is  10-15 days if materials stocks are enough.
