Series Halo Round Street Light Luminaire In Flexible Mount, Zhaga-D4i

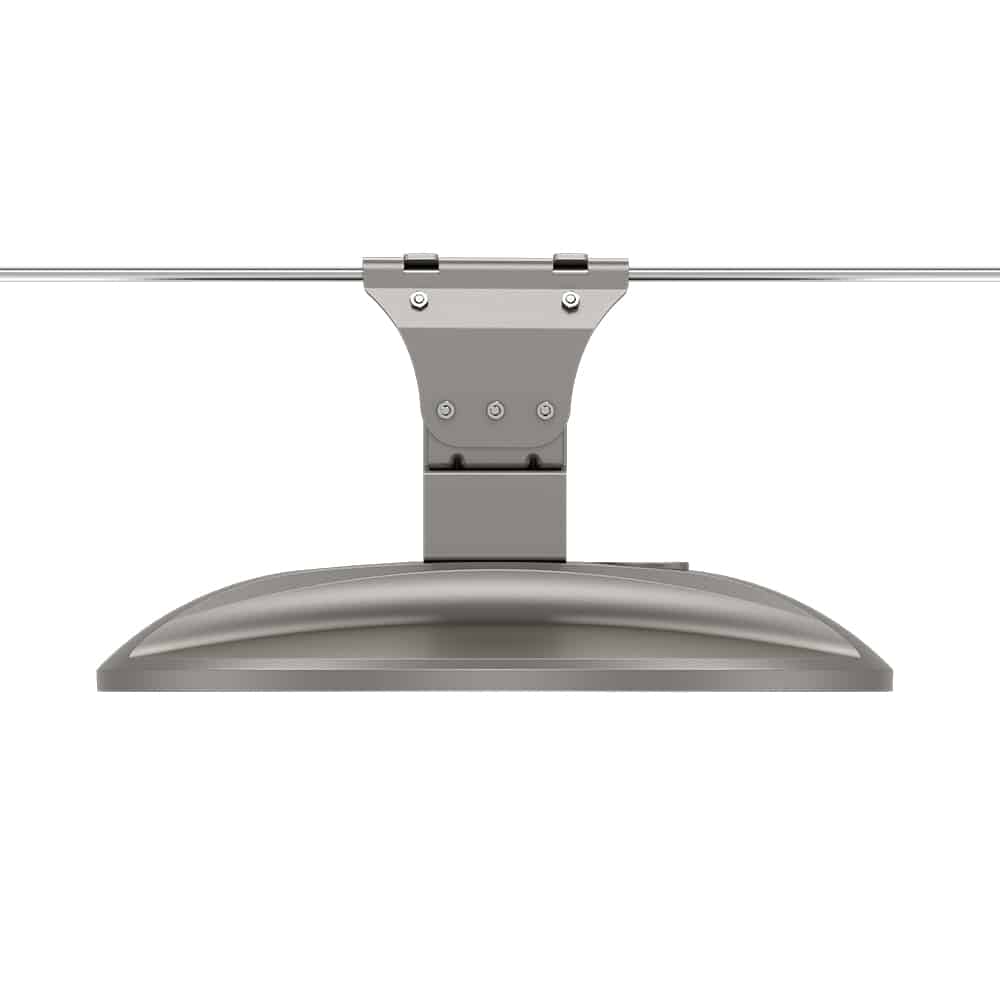

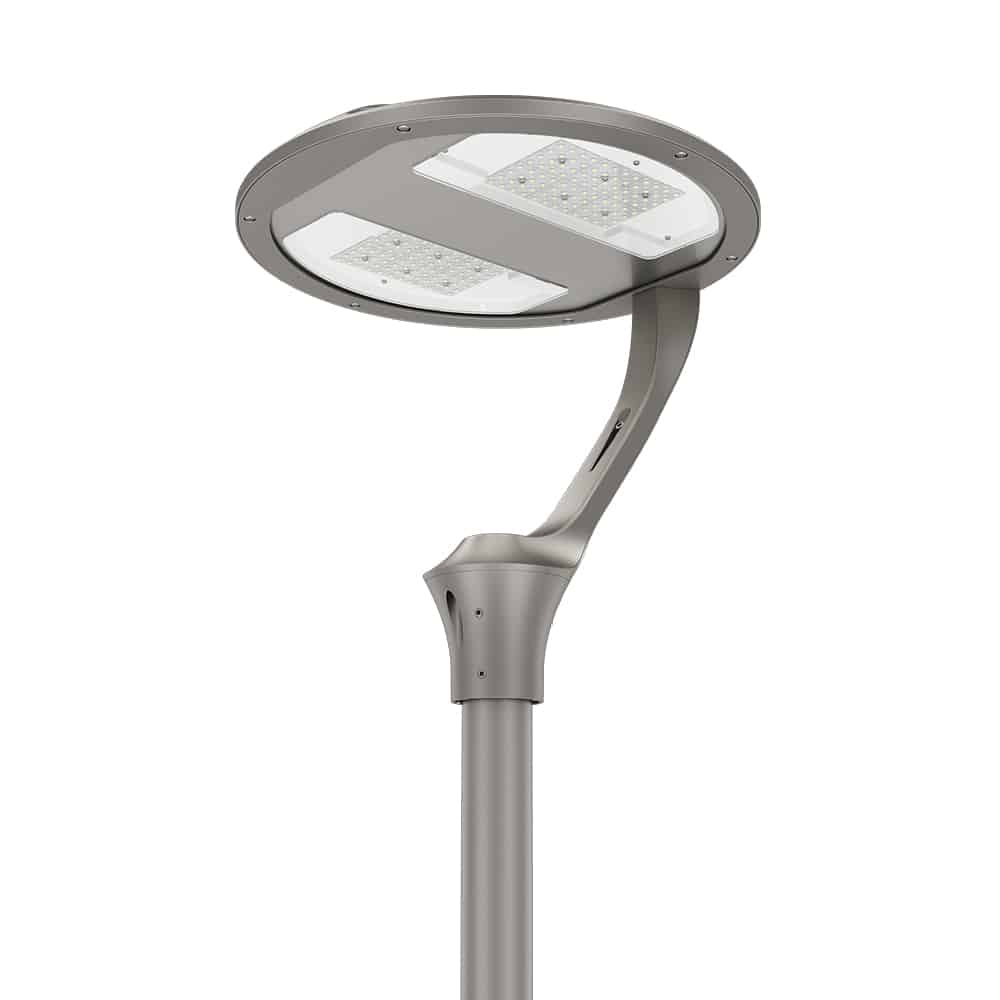

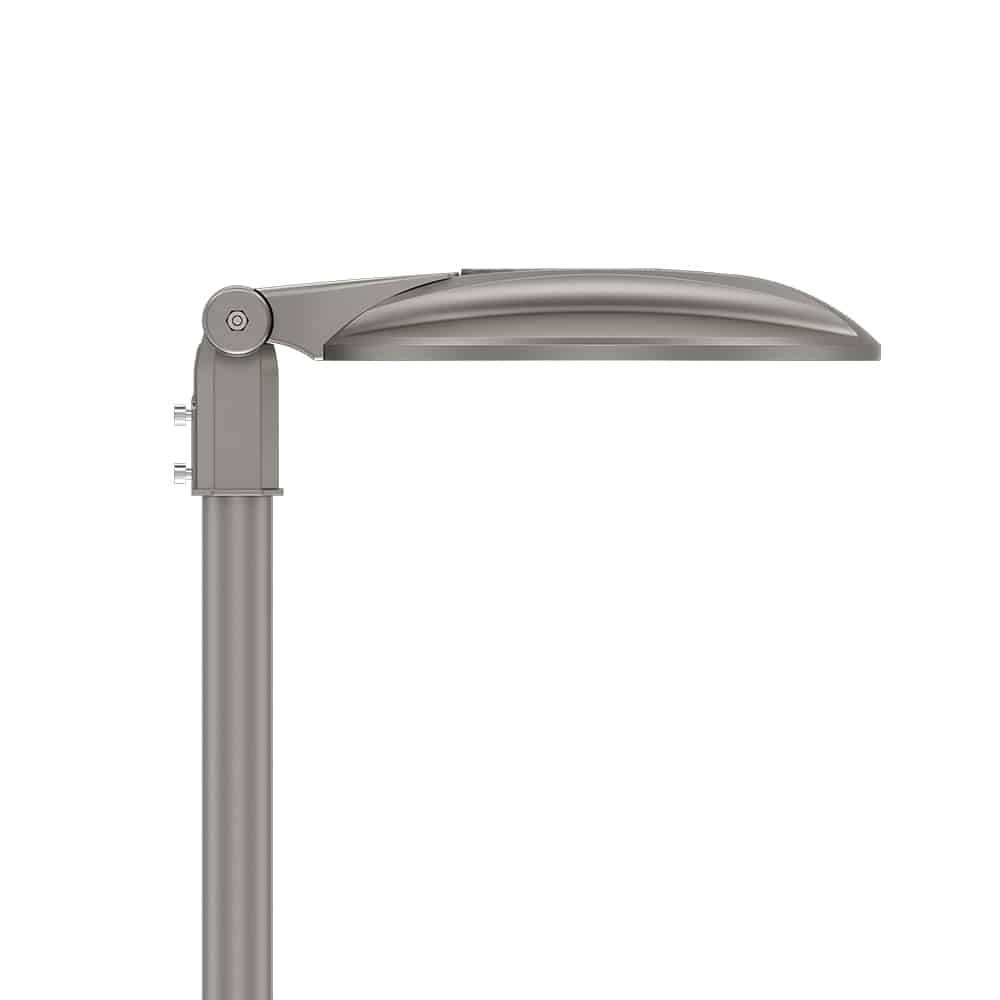

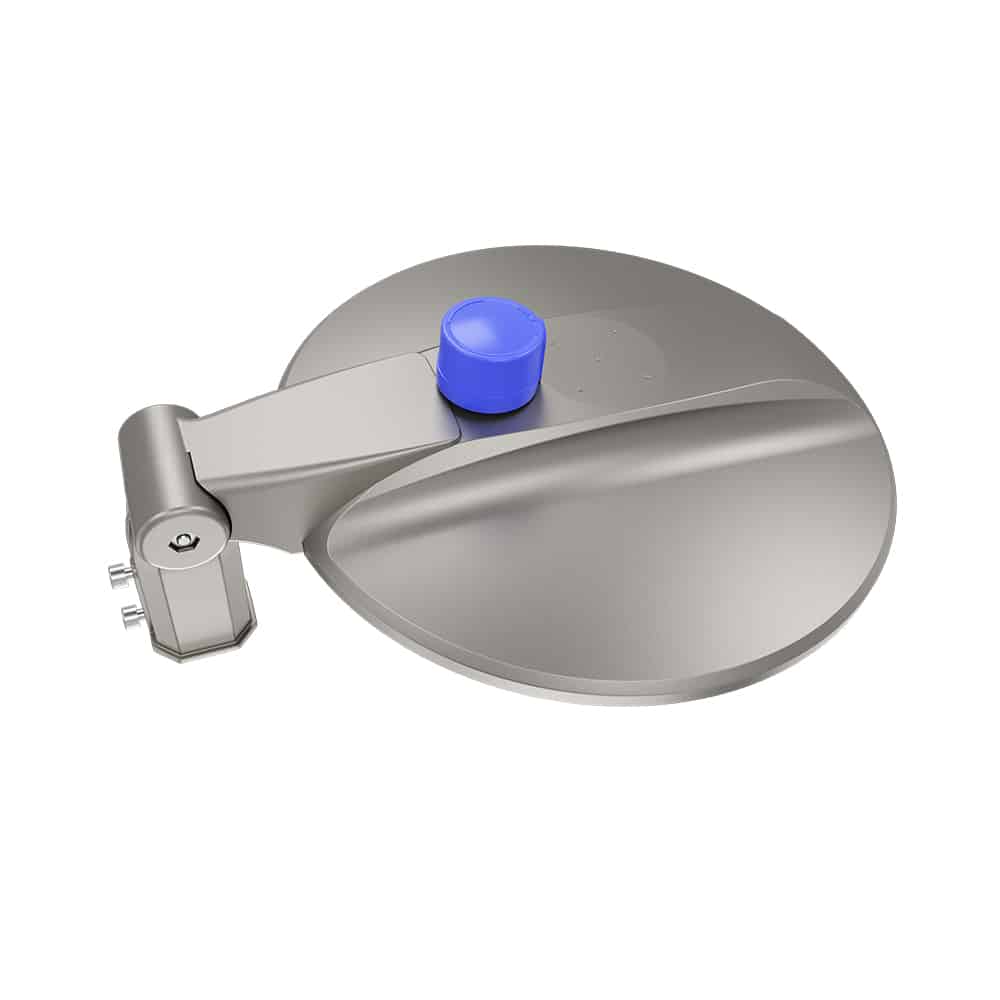

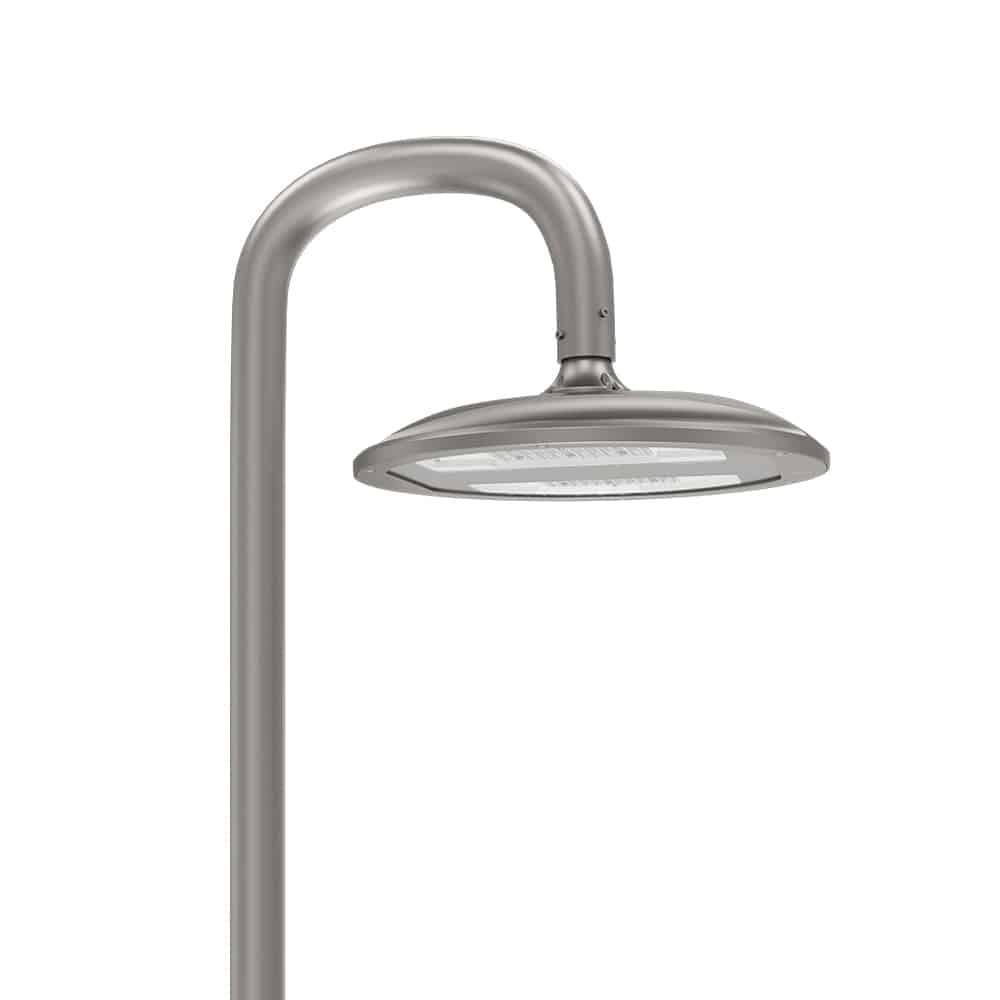

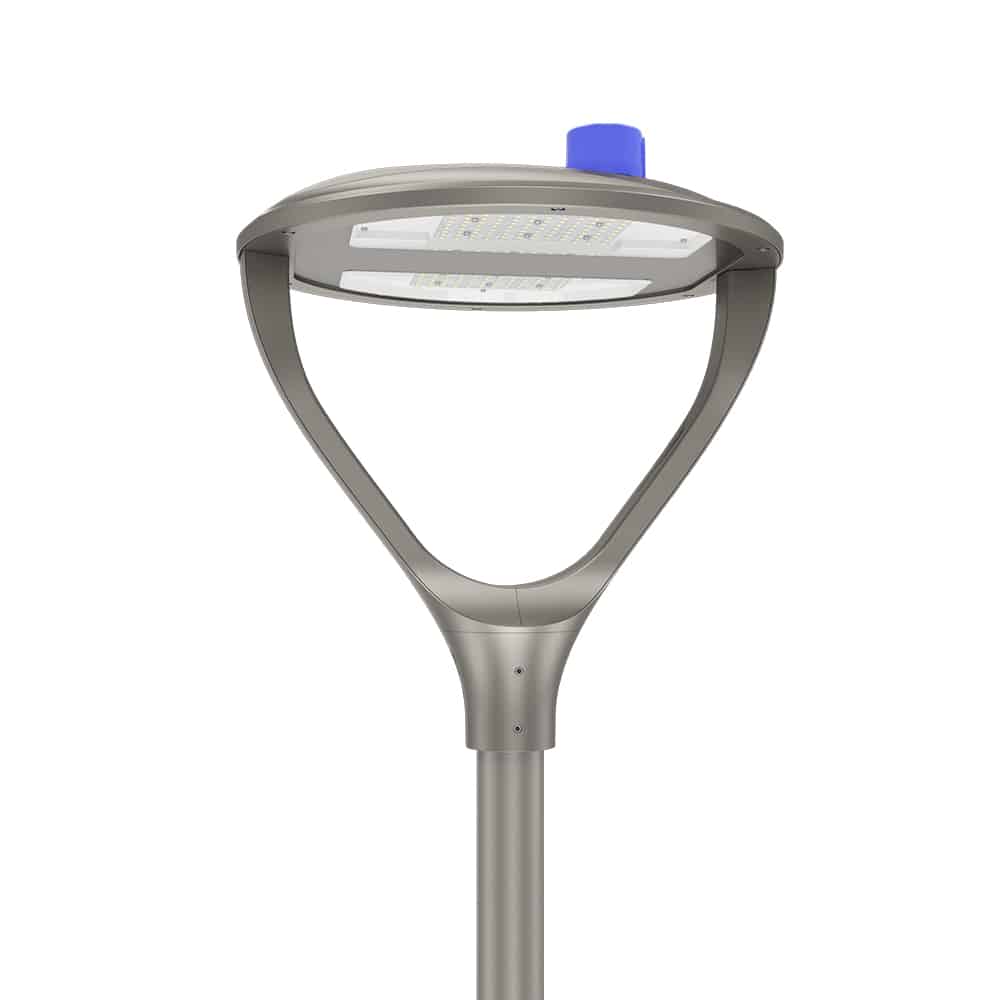

Series Halo round street light luminaire with flexible mount, single or double arm post top mounted as garden street light, wire suspension mounted as urban light, pole pendant mounted as an urban street light or parking lot light, side entry mounted as street road lights, it can also be used for high bay with a hook loop, six mounting options.

Product Features

  • Power range 20W up to 150W
  • Super smooth body design
  • Full die-casting aluminum housing
  • Efficiency up to 170 lm / W
  • 10 /20KV surge protection, IP66&IK08/IK10
  • Supports multiple installation modes
  • Class I and Class II are optional.
  • ENEC, CE, CB certified
  • Kinds of asymmetrical optical lens provide professional light distribution
  • Smart Control: 1-10V/ DALI dimming, NEMA, Zhaga, Photocell, Motion sensor, Zigbee /Lora socket for smart control system or future updating
Contact Us

  • ZGSM products are designed for the global market. Please contact our sales team for certification details.
  • Product information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
Halo Series Round Street Light
Series No Series Halo
Power 20W, 30W, 50W, 80W, 100W,120W, 150W
Efficacy 130-170lm/W
Input Voltage 100-240/277 VAC, 50 / 60 Hz
Power Factor >0.95
Surge Protection 10KV (Default) / 20KV (available on request)
IP Rating IP66
IK Rating IK08 / IK10
CCT 3000K, 4000K, 5000K, 5700K
CRI Ra>70 (Default) / Ra>80
Operating Temperature -40°C to + 50°C
Beam Angle Type II, Medium; Type III, Medium;
Mounting Option Post Top | Pole Pendant | Wire Suspension | Side Entry
Warranty 5 Years
Certification ENEC, CE, CB, Zhaga-D4i, ROHS, LM79, IP66, IK08/IK10, LM80, TM-21, ISTMT, IEC62471/62778, IEC60068-2-6, IEC61643-11, ISO 9227, CISPR15:2018
Control Photocell, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control
Specification_Halo_Streetlight Manual_Street Light_Halo

Frequently Asked Questions

Round street lights refer to street lights whose shape is close to a circle. Others are the same as regular street lights, such as Series Halo Round LED street lights. Except for the round shape of the lamps, other functions are the same as conventional LED street lights, high light efficiency, longevity, and environmental protection, in addition, the same is true for materials, LEDs, LED drivers, housings, surge protectors, etc.

The General Product Safety Directive 2001/95/EC and the Low Voltage Directive 2014/35/EU requires as safety principles that with light sources and luminaires no danger from radiation can occur. In Europe, EN 62471 is the product safety standard for lamps and lamp systems and is harmonized under the European safety directives EN 62471, which is based on the international IEC 62471 standard, classifies light sources into Risk Groups 0, 1, 2, and 3 (from 0 = no risk through to 3 = high risk) and provides for cautions and warnings for consumers if needed. Typical consumer products are in the lowest risk categories and are safe for use.

LED street lighting is available in all color temperatures, from warm white light to neutral white light and cool white light. Depending on the previous illumination (with conventional lighting) people might be used to a certain color temperature and thus notice a difference when LED lighting of another color temperature is installed. You can keep the existing atmosphere by choosing a similar CCT. The atmosphere can be further improved by a proper lighting design.
