Home - LED Products - Series K Toolless Open Street Led Light

  • Series K Toolless Open Street Led Light

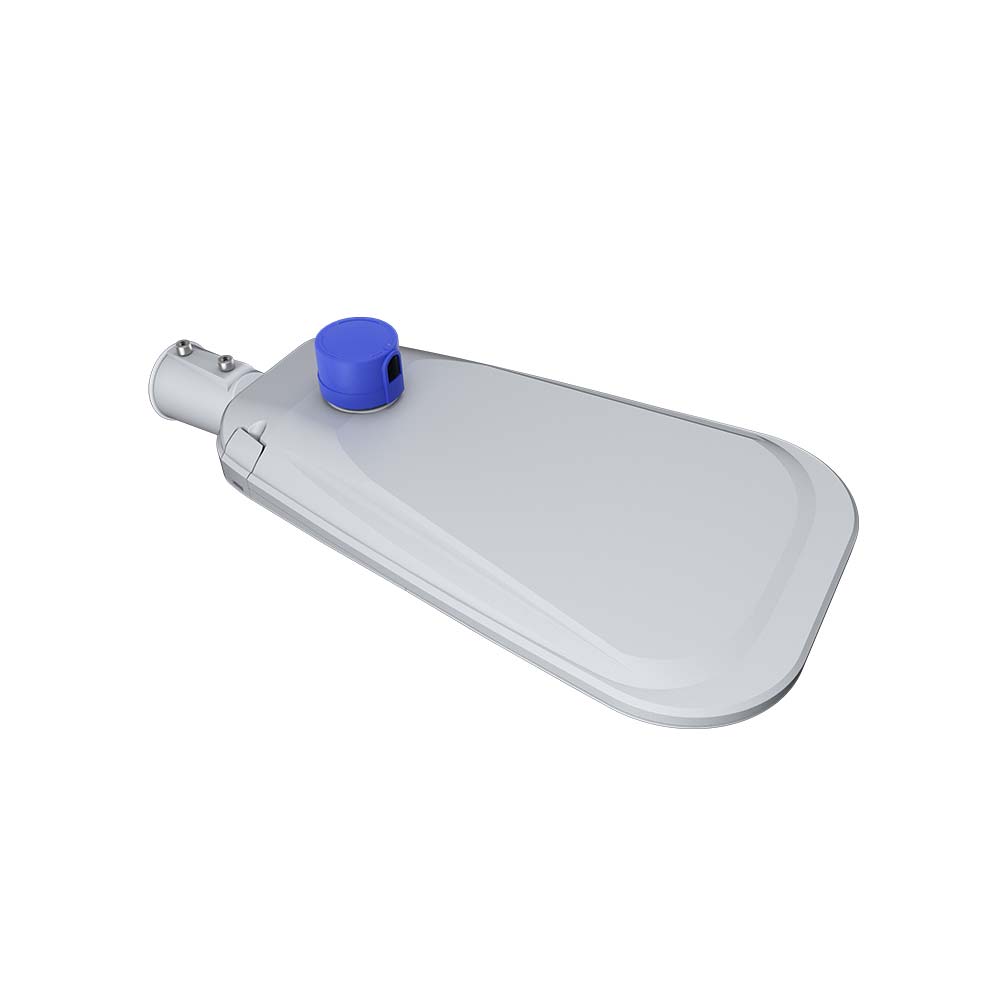

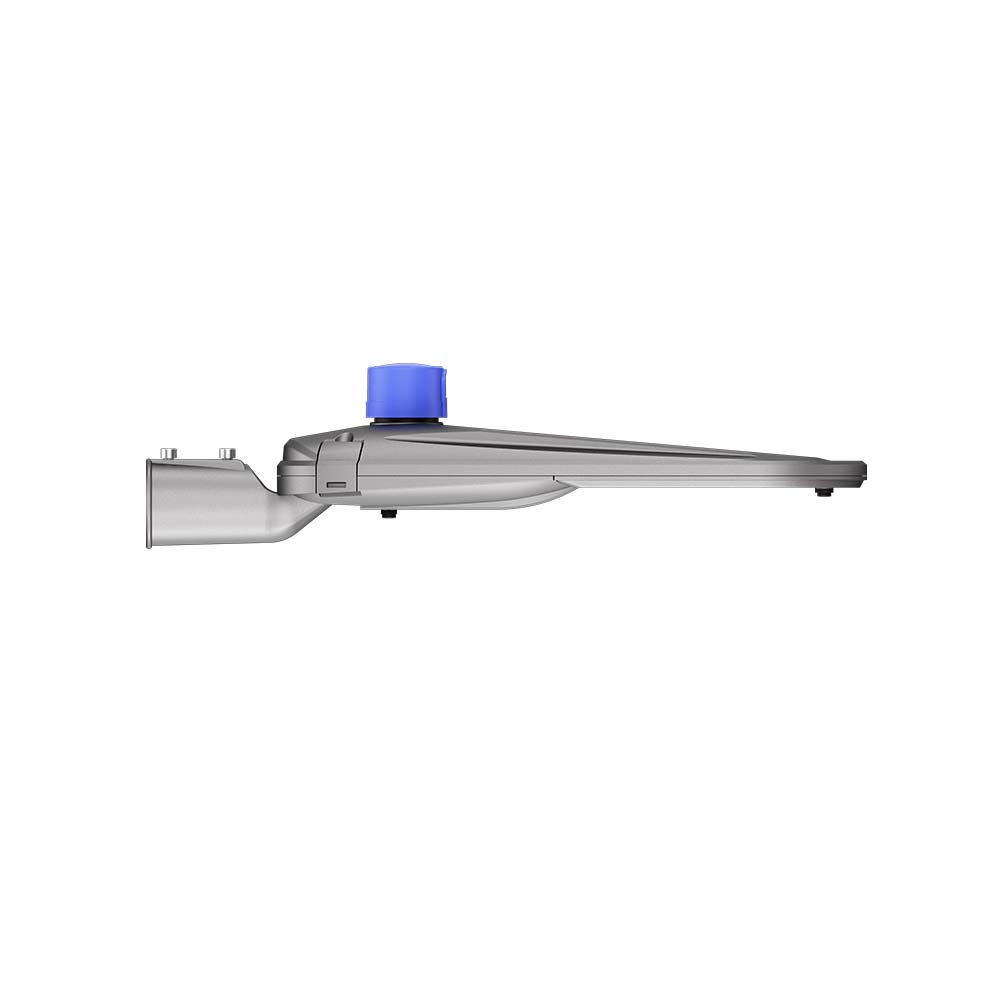

    K series street led light adopts a full die-casting aluminum design, which makes it elegant and modern. Many of our client’s projects will give priority to this street light. K series has three different sizes, with wattages ranging from 25 to 200W to meet different project requirements. The buckle design allows the lamp to be opened without tools, which facilitates the replacement of the LED driver. Its circuit breaker is a convenient design for installers which also protects their safety. With respirators whose function is protecting the lamp from the damage of moisture to its components and prolonging the service life of the lamp. It also has some other small detailed designs, such as terminal block and level bubble. All of these make the K street led light an ideal road lighting fixture.

    • Wide power range: 25W~200W
    • Elegant design with smooth body
    • Tool-less open for easy maintenance
    • Equipped with level bubble and knife switch, convenient for installer
    • Cut-off, Dark Sky Friendly Lighting
    • 1000 hours salt spray test report
    • Side entry or Post top mounted are both available with ±15°
    • More than 5 lighting distributions are optional
    • L70>100000hrs, TM80, LxxByy report are available
    • Smart Control: 1-10V dimming, DALI, daylight sensor, motion sensor, timer, Zigbee
    Contact Us
    Facebook
    Facebook
    fb-share-icon
    Twitter
    Visit Us
    Tweet
    LinkedIn
    LinkedIn
    Share
    Pinterest
    Pinterest
    fb-share-icon
    Instagram
    YouTube

    • ZGSM products are designed for the global market. Please contact our sales team for certification details.
    • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
    • Description
    • datasheet
    • Optics
    • Videos
    • Download
    • application
    • FAQ

    Series NoSeries K
    Power 25W, 35W, 55W, 60W, 90W,120W, 150W, 180W, 200W
    Efficacy125-150lm/W
    Input Voltage100-240/277 VAC, 50 / 60 Hz
    Power Factor>0.95
    Surge Protection10KV (Default) / 20KV (available on request)
    IP RatingIP66
    IK RatingIK08
    CCT3000K, 4000K, 5000K, 5700K
    CRIRa>70 (Default) / Ra>80
    Operating Temperature-40°C to + 50°C
    Beam Angle Type I, Medium; Type II, Medium; Type III, Medium;
    Mounting OptionSide entry or Vertical pole mounted
    Warrantys5 Years
    CertificationENEC, CE, CB, ROHS, LM79, LM80, LM82, LM84, TM-21, ISTMT, IEC62471/62788
    ControlPhotocell, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control
    DS_K_StreetLight
    Manual_Street Light_K

    led light street light

    Series K smart street lighting on a city road in Vietnam

    outdoor street lamp

    Series K commercial led street lights on urban roads in Italy

    waterproof street light

    Series K street lighting lamps in Residential areas in Greece

    pedestrian street lighting

    Series K road street light on the expressway in Ukraine

    street light heads

    Series K street lighting led on the urban roads in Saudi Arabia

    decorative street lighting fixtures

    Series K motion sensor led street light on a mountain road in Norway

    Does K series street led light have LED chip over-temperature protection?

    Yes, it is an optional function. An NTC thermistor will be placed on our K series street lamp PCB board, and an LED driver with an external temperature protection function is selected. The thermistor and LED driver output heat conduction are connected, then the LED driver can detect the temperature of the PCB board. If the temperature is too high, the LED driver can change the output to make the LED lights darker than before, thereby lowering the temperature of the LED chips and thus protecting them from damage.

    How to choose the protection class of K series?

    Our K series street lights can be produced in accordance with CLASS I standards, and can also be produced in accordance with CLASS II standards. For your project, it mainly depends on the requirements of your customers. For example, our customers from some European countries require more CLASS II, especially most customers in Italy require Class II because this is a common requirement for Italian street lighting projects.
    Difference between CLASSI and CLASS II:
    1. CLASS I luminaires: These luminaires refer to protection against electric shock through the use of basic insulation, and also provide protective grounding impedance connected to the building. When the basic insulation fails, this ground impedance will withstand dangerous voltages to the ground. In other words, the CLASS I switching power supply will provide a pair of ground connection terminals.
    2. CLASS II luminaires: Such lamps not only rely on basic insulation to prevent electric shock protection, but also must provide additional safety protection measures such as double insulation or reinforced insulation, and they do not rely on grounding protection. That is to say, the CLASS II switching power supply does not provide a pair of ground connection terminals.

    What’s virtual midnight and how to realize this function?

    Some of our clients ask for streetlights with virtual midnight dimming.
    1. Virtual midnight dimming is a dimming function that can change the output of LED light during the night. Normally the lights are with the lowest brightness from 0:00 to 2:00 when there is less traffic on road. This can save energy consumption which is eco-friendly.
    2. With the special LED driver, the K series automatically adjusts the dimming curve based on the on-time of the past two days (if the difference is <15 minutes), assuming that the center point of the dimming curve is midnight local time. By this dimming curve, we can save up to 30% to 50% energy.

    How to choose the right wattage and optics lens for the K series?

    Please let us know below so we can do the lighting design and help you choose the right wattage and optic lens.
    1. What type of road do you need to light up? Or what’s your lux request?
    2. What’s the layout of the poles?
    3. Distance of each pole, the height of poles, and width of the road?

    How many watts should a street led light be?

    With the continuous improvement of LED efficiency, it is obviously not suitable to confirm the product model based on watts anymore.
    more and more road lighting bids have no longer required how many watts must be reached, but limit the maximum wattage while putting forward the minimum requirements for luminous flux, so the efficiency is higher, the watts will lower, this will make the cost of lamps lower and the energy-saving rate is higher. so now power is not the most important parameter.

    How many lumens is a street led light?

    If you’re still used to measuring light output in watts, don’t worry, because there are still plenty of people doing so. So, to help you get used to specifying the lumens needed for LED outdoor lighting, here’s a memo list for your reference.
    1. Post Top Light: 2,600-7,800 lm
    2. Floodlights: 6,000-40,000 lm
    3. Street Lights for residential areas: 3,000-5,000 lm
    4. Street Lights for roadways: 5,000-15,000 lm
    5. High mast for highways: 40,000-150,000 lm

    WHAT LED is equivalent to a 250 watt HPS?

    Metal Halide / High-Pressure Sodium to LED Wattages Conversion
    Original Lamp→LED Lamp
    70 Watt Metal Halide→30 Watt LED
    100 Watt Metal Halide→40-50 Watt LED
    150 Watt Metal Halide→60-70 Watt LED
    175 Watt Metal Halide→80-90 Watt LED
    70 Watt High-Pressure Sodium→40 Watt LED
    100 Watt High-Pressure Sodium→50-60 Watt LED
    150 Watt High-Pressure Sodium→80-90 Watt LED
    250 Watt High-Pressure Sodium→90-125 Watt LED
