Home - LED Products - Series Rifle Class I/II Street Lamp

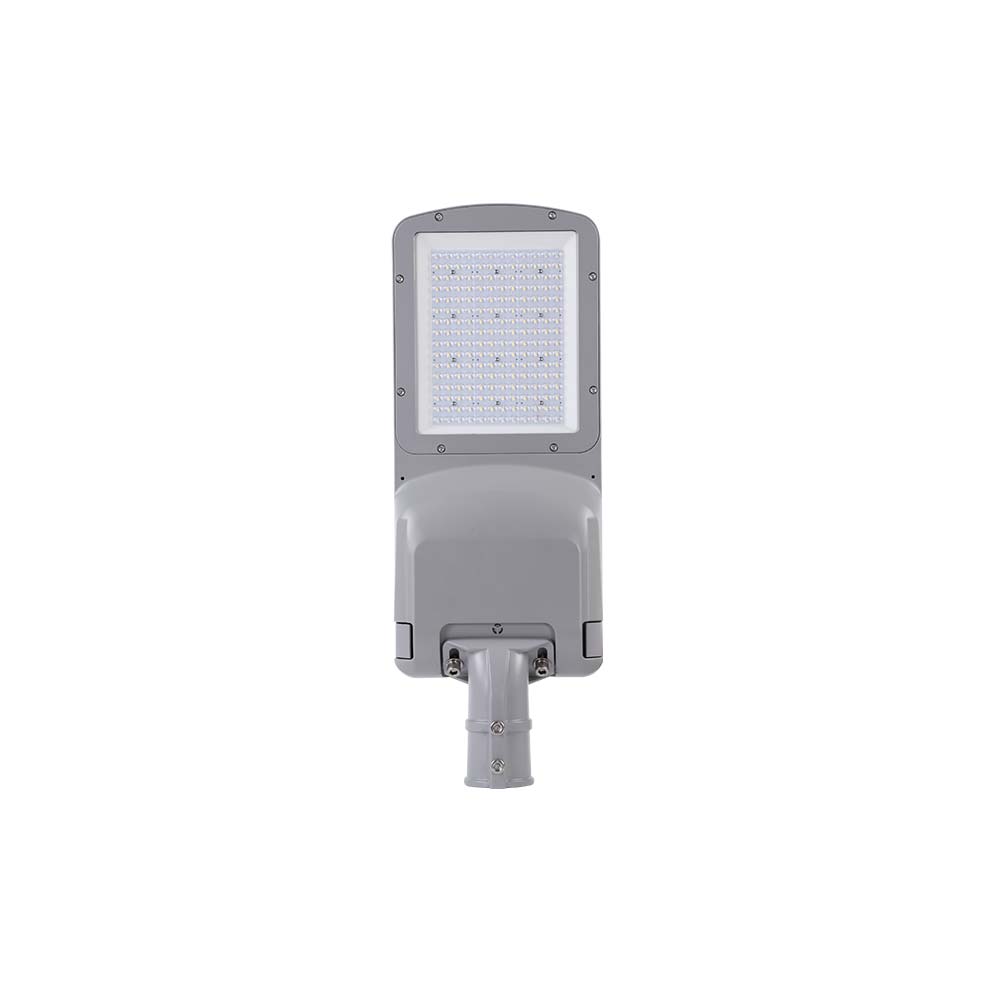

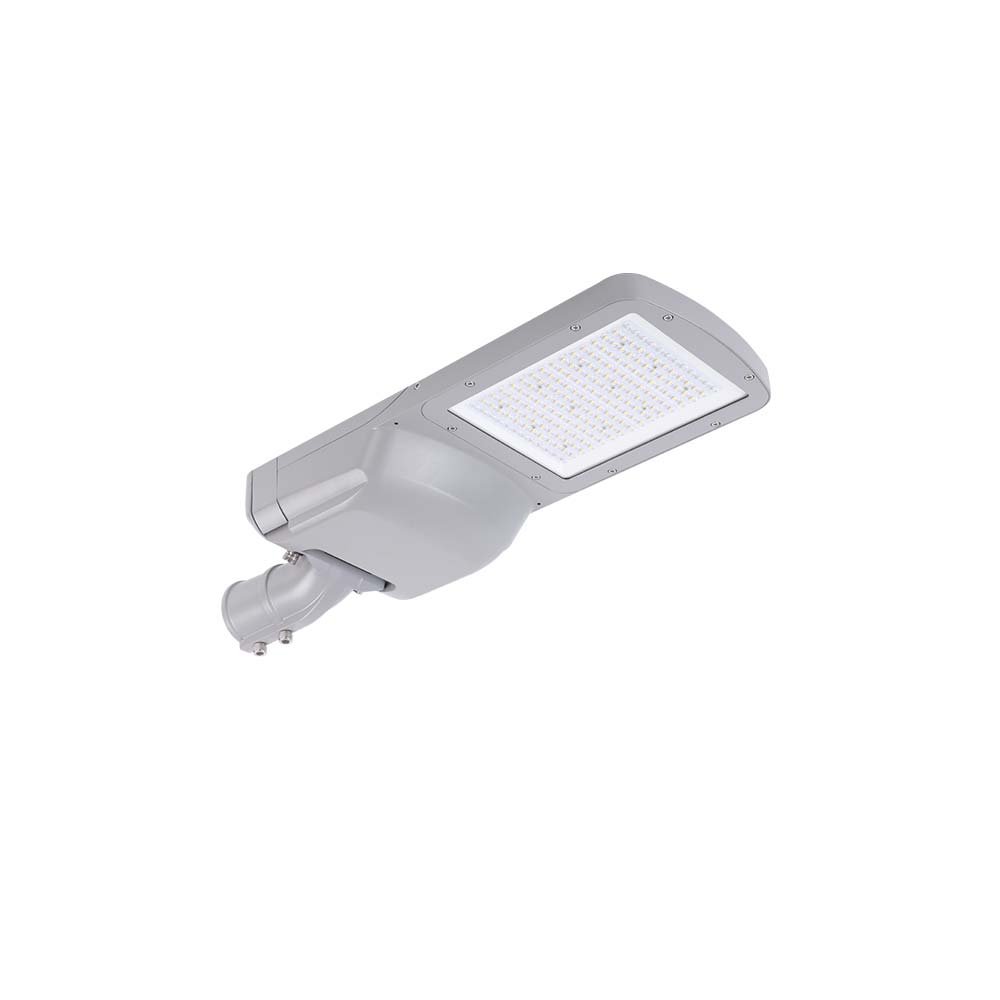

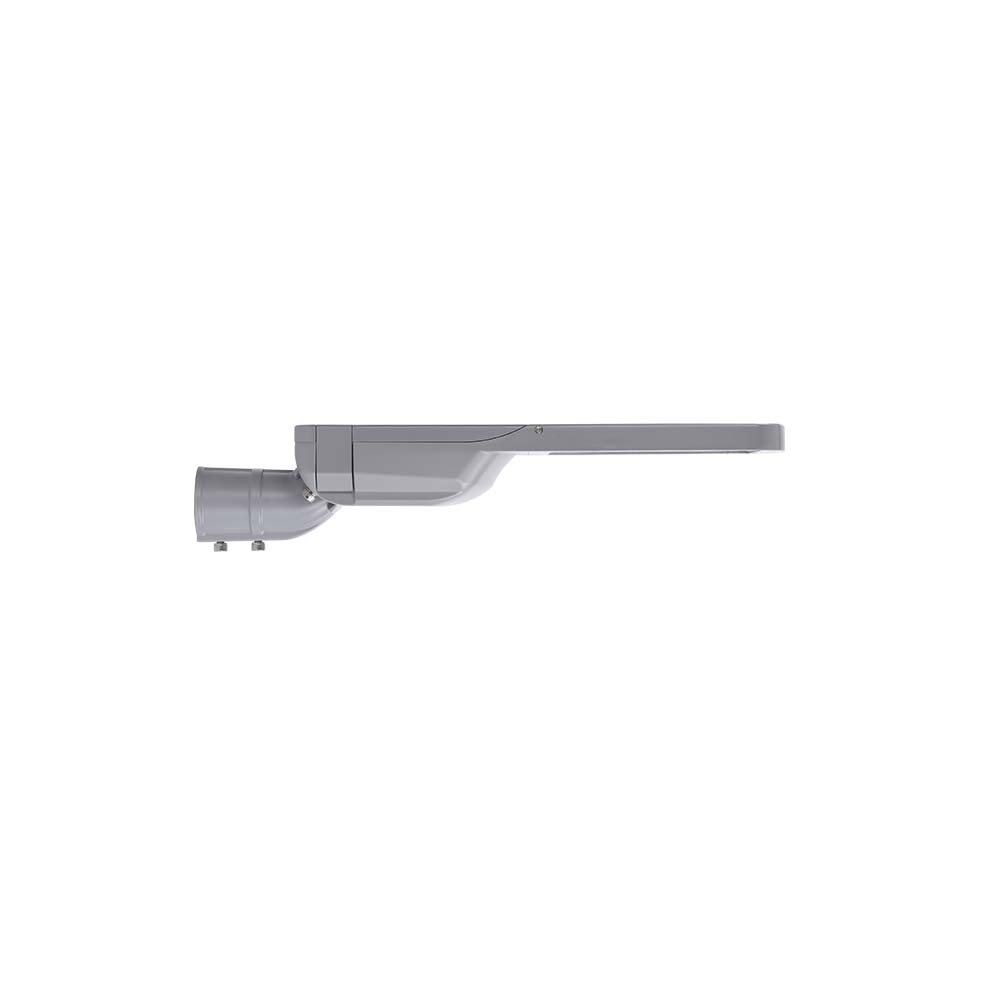

  • Series Rifle Class I/II Street Lamp

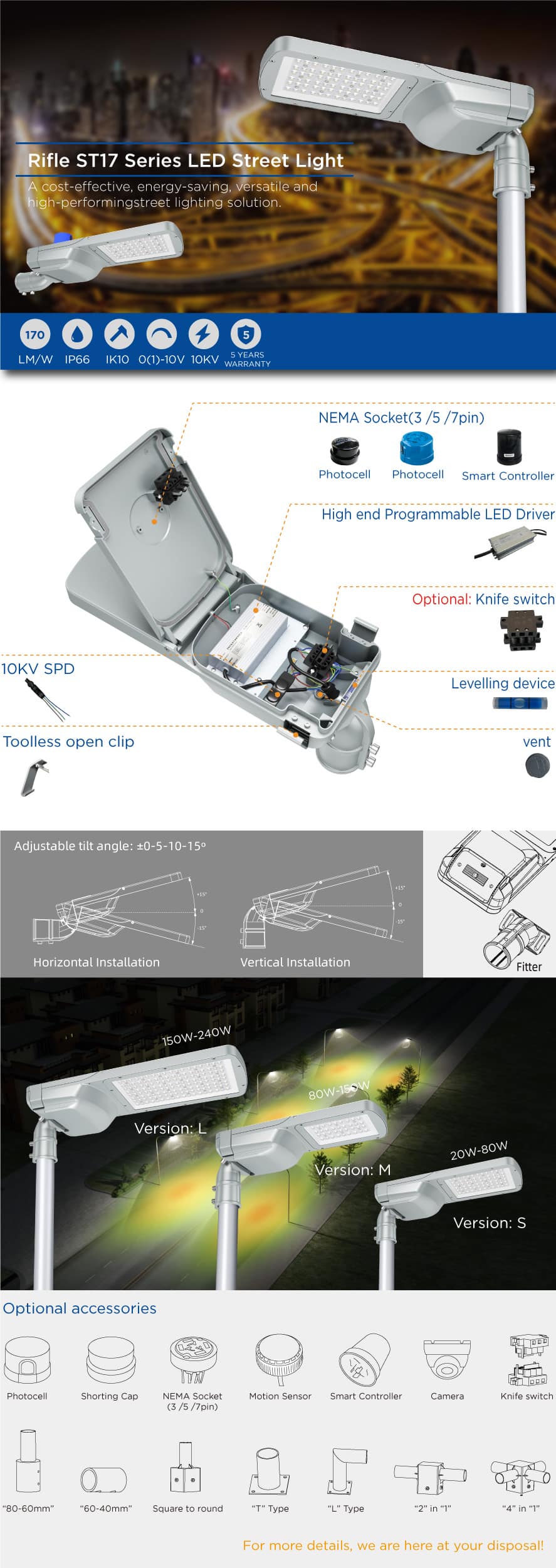

    Series Rifle street lamp is the new generation of street lighting, designed with high-efficiency LEDs and low glare, combined with the latest management and smart lighting control systems. It is one of the hottest models with superior admired design and very competitive price, becoming one of the most popular models in the ZGSM street lights.
    Series Rifle LED street light has different optics proposed for the entire range which can best meet the needs imposed by urban lighting. Full die-cast aluminum design not only minimizes wind restitution but also can be installed in critical climatic conditions.

    • Power range 20W up to 240W
    • Tool-less opening design
    • Full die-casting aluminum housing
    • Luminaire efficiency up to 170 lm / W.
    • 10 /20KV surge protection, IP66&IK10
    • knife switch to protect installer safety
    • More than 10 optics lens for options
    • Side entry or Vertical mounted
    • ENEC, CE, CB certified.
    • Smart Control: 1-10V/ DALI dimming, NEMA, Zhaga, Photocell, Motion sensor, Zigbee /Lora control
    Contact Us
    Facebook
    Facebook
    fb-share-icon
    Twitter
    Visit Us
    Tweet
    LinkedIn
    LinkedIn
    Share
    Pinterest
    Pinterest
    fb-share-icon
    Instagram
    YouTube

    • ZGSM products are designed for the global market. Please contact our sales team for certification details.
    • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
    • Description
    • datasheet
    • Optics
    • Videos
    • Download
    • application
    • FAQ

    Series NoSeries Rifle
    Power20W, 40W, 60W, 80W, 100W,120W, 150W, 160W, 180W, 200W, 240W
    Efficacy140-170lm/W
    Input Voltage100-240/277 VAC, 50 / 60 Hz
    Power Factor>0.95
    Surge Protection10KV (Default) / 20KV (available on request)
    IP RatingIP66
    IK RatingIK10
    CCT3000K, 4000K, 5000K, 5700K
    CRIRa>70 (Default) / Ra>80
    Operating Temperature-40°C to + 50°C
    Beam AngleType II, Medium; Type III, Medium;
    Mounting OptionSide entry or Vertical pole mounted
    Warranty5 Years
    CertificationENEC, CE, CB, ROHS, LM79, LM80, LM82, LM84, TM-21, ISTMT, IEC62471/62788
    ControlPhotocell, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control
    DS_Rifle_StreetLight
    Manual_Street Light_Rifle

    Garden & Yard Lighting

    Series L post top lights on a Community road in Malaysia

    cost of led street lights

    Series L modern street lamp in City road in Italy

    decorative street lighting fixtures

    Series K motion sensor led street light on a mountain road in Norway

    street lighting photocell

    Series H 80w Led Street Light in Parking Lot in the United Kingdom

    Streetlight Led On The Seaside Urban Road

    Series H Streetlight Led On The Seaside Urban Road In Qingdao of China

    led street light wholesale

    Series H Streetlight Lamps In City Roads In DUBAI

    Why choose series Rifle street lamp for the municipal tender project?

    1. Tool-less opening, knife switch, level bubble, NTC possibility, Driver OLC function, adjustable adapter, respirator, full die-casting aluminum housing, smooth body, and tempered glass with UV-resistant polycarbonate cover, these designs can meet most requirements in tenders. The Rifle street lamp can meet all points.
    2. Rifle street lamps have complete certificates and reports, including ENEC, CB, CE, ROHS, LM80, LM79, TM-21, LM82, LM84, ISTMT, Salt spray test, 3G Vibration test, IEC62471/62778, IP66, IK10, etc. ZGSM as the professional led street light manufacturer has these certifications and reports for both Class I and Class II.
    3. ZGSM has not only a competitive price and excellent after-sale service but also enough stock and stable supply to catch up with deadlines on some urgent projects.

    Which optic lens shall I choose for the project?

    ZGSM has more than 16 years of street lamp optical design experience, professional optical design engineers, and more than 100 kinds of patented optical lenses. The Rifle street light has more than 10 types of optical lenses to choose from, which can be applied to different road conditions.
    1. Rifle street lights are available in two versions, regular efficiency, and high efficiency. They are realized by different LEDs chips. Each version has 5 types of optic lenses to choose from, mainly including TypeII, Short, TypeII Medium, Type III, Short, Type III Medium, etc. So first, you need to tell us which efficient version you want?
    2. We have a team that can provide professional lighting design. You only need to tell us the basic conditions of the road, such as road width, pole distance, pole height, pole arrangement, arm length, angle of the luminaire, road type, etc. Our team will issue a lighting simulation report according to the data provided by you, then we can see which optic lens is the most suitable one for your project.
    3. If you can run the lighting design by yourself, we will provide you with IES and LDT, and all our lights have corresponding IES or LDT files for request.

    What should I pay attention to when buying Rifle street lamp?

    Please confirm the below requirements with sales before purchase.
    1. Which color temperature do you want? We have 3000K, 4000K, 5000K, and 5700K for optional.
    2. Do you have a preferred LED driver brand? Usually, we use INVENTRONICS EUM series LED driver
    3. How is your request on efficiency? We have 3030 and 5050 chips for optional, with 3030 chips, price is better but efficiency is 140-150lm/w, with 5050 chips, price is higher but efficiency can reach 150-170 lm/w.
    4. Refer to our order reference of lighting distribution and tell us which lens you want. if you have no idea, we will give you the best one based on the road conditions you provide.
    5. Do you need the knife switch inside the luminaire? it is an optional device and has an extra cost.

    How long is your delivery time in general?

    We generally prepare a certain amount of materials for the main promote lamps, so the delivery time for small batch orders is about 3-5 days, and the delivery time for large batch orders is  10-15 days if materials stocks are enough.
