Home - LED Products - Series Nova Competitive Led Road Light

  • Series Nova Competitive Led Road Light

    Nova series LED road light is the latest generation. It is a modern and beautiful outdoor lighting that provides the ultimate solution for local roads, residential streets, public places, sidewalks, parking lots, tennis courts, sidewalks, bicycle lanes, and other lighting places. Nova series LED street light has a unique visual appearance, reliable performance, attractive, cost-effective, and its lifetime is more than 100,000 hours. Small and lightweight design reduces a lot of costs for transportation. It brings out all the elements that lighting designers, contractors, and end-users dream of. We believe it will be a hot product in the next few years.

    Product Features

    • Power covers 30W~150W
    • Easy to install and maintain
    • Full die-casting aluminum housing
    • Efficiency up to 140 lm / W.
    • 10 /20KV SPD, IP66&IK09
    • Variety of optics lenses are available
    • Horizontal bubble Convenient for installers to work accurately.
    • Smart Control: 1-10V/ DALI dimming, NEMA, Zhaga, Photocell, Motion sensor, Zigbee /Lora socket for smart control system or future updating
    Contact Us
    Facebook
    Facebook
    fb-share-icon
    Twitter
    Visit Us
    Tweet
    LinkedIn
    LinkedIn
    Share
    Pinterest
    Pinterest
    fb-share-icon
    Instagram
    YouTube

    • ZGSM products are designed for the global market. Please contact our sales team for certification details.
    • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
    • Description
    • datasheet
    • Optics
    • Videos
    • Download
    • application
    • FAQ

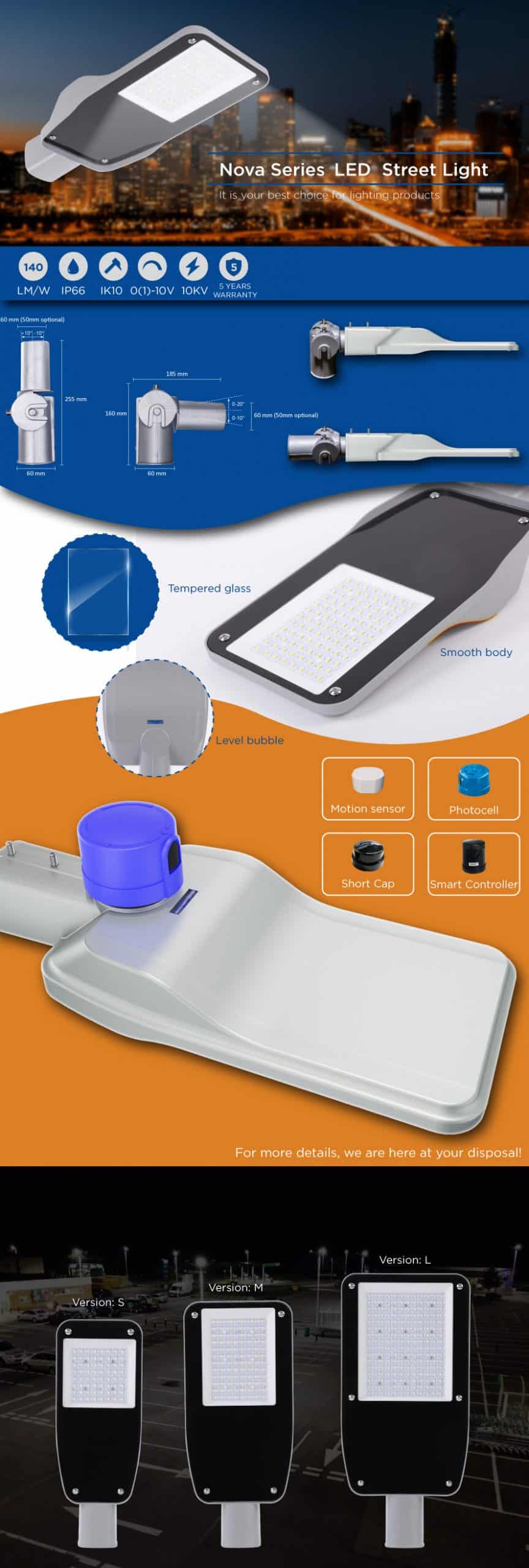

    Nova series Led Road Light

    Series NoSeries Nova
    Power30W, 40W, 50W, 60W, 80W, 100W,120W, 150W
    Efficacy130-140lm/W
    Input Voltage100-240/277 VAC, 50 / 60 Hz
    Power Factor>0.95
    Surge Protection10KV (Default) / 20KV (available on request)
    IP RatingIP66
    IK RatingIK09
    CCT3000K, 4000K, 5000K, 5700K
    CRIRa>70 (Default) / Ra>80
    Operating Temperature-40°C to + 50°C
    Beam AngleType II, Medium; Type III, Medium;
    Mounting OptionSide entry or Vertical pole mounted( with extra adapter)
    Warranty5 Years
    CertificationCE, ROHS, LM79, LM80, TM-21, ISTMT, IEC62471
    ControlPhotocell, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control

    Specification_Nova_StreetLight
    Installation Manual_StreetLight_Nova

    led streetlight manufacturers

    Series D 120w led street light on a farm in Uruguay

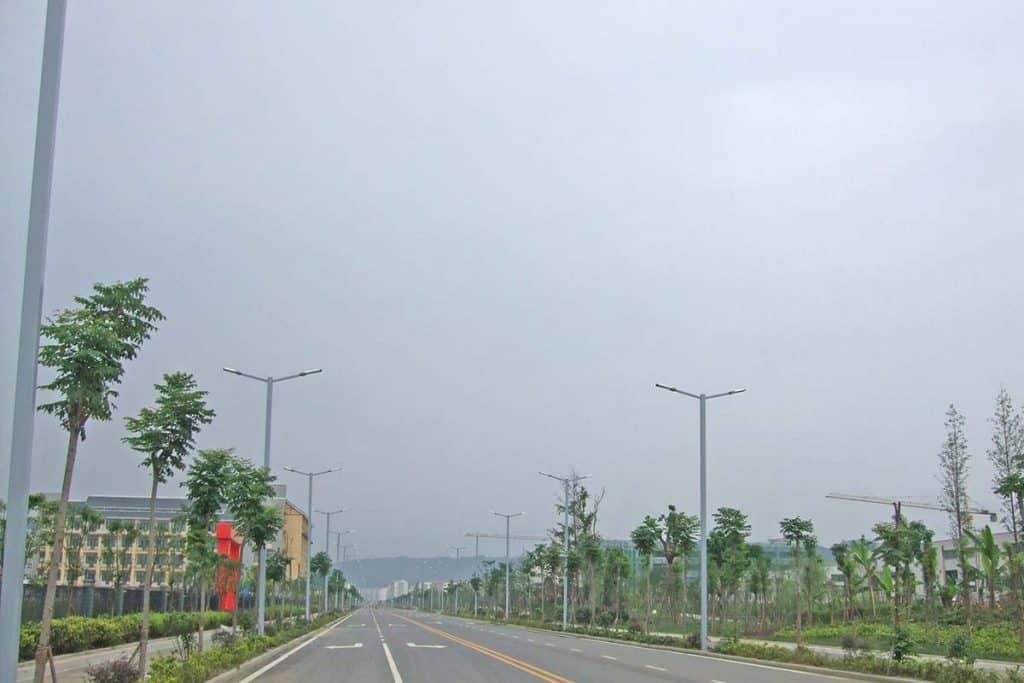

    streetlight LED on a new city road in Wenchuang of China1

    Series D streetlight LED on a new city road in Wenchuang of China

    cobra head led street light in a garden in Czech republic

    Series K cobra head led street light in a garden in Czech republic

    Streetlight Led

    Series H Streetlight Led On The Seaside Urban Road In Qingdao of China

    Residential Led Street Lights

    Series H Residential Led Street Lights On Community Road In Malaysia

    led street light 150w

    Series H Street Lighting On Main Roads in JKR Kayu Ara of Malaysia

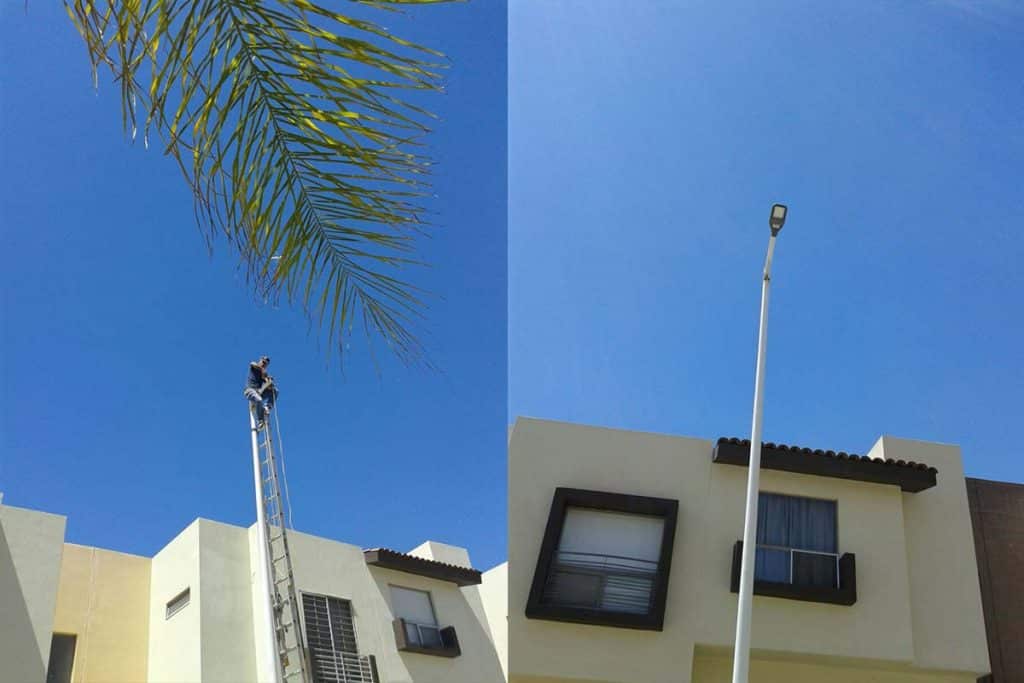

    50w led street light

    Series Kmini 50w led street light in Residential road in Mexico

    Frequently Asked Questions

    Nova led road light is the latest generation of LED street lights, specially designed and developed for developing countries. In order to achieve the highest cost performance, we have invested a variety of molds, small size, medium size, and large size. power of small size is from 20-50w, power of medium-size is 60-100w, and power of large-size is 120-150w, Considering the heat dissipation problem, We can currently accept a maximum of 160W, but not 200W. If you need 200W street lights, you can consider our Rifle series street lamp. It has a wider power range, has multiple certifications and reports, and is a Class I and Class II product.

    Yes, ZGSM as a professional street light led manufacturer has a professional lighting design team, as long as you provide the requirements, we can provide you with a complete lighting design report within 1 hour.
    1. We have IES and LDT files for each light, each model, each color temperature, and each optic lens. If you have special power requirements, our laboratory can also complete the test and get the IES file in the shortest time.
    2. Before the simulation, we need to know the basic conditions of your project road, including road width, pole height, pole distance, pole layout situation (single-sided, bilaterally symmetrical, bilateral cross layout or pole in medium), the distance between the pole and the roadside, the length of pole’s arm, the elevation angle of the arm, the road surface illumination requirement, the uniformity requirement, etc. If you don’t know, you can tell us the road type. We can do the lighting simulation design according to the road standard EN 13201-2:2015.

    Yes, all our street lights can be used in solar systems, there are two solutions. First one, LED street lights are not installed with LED drivers, solar controllers with built-in constant current led driver is used in solar systems, Second one, our LED street lights use DC12/24V LED Driver then directly connected to 12V or 24V solar systems.
    Normally, we recommend that the solar street light does not exceed 150W, mainly considering the safety aspect, because if the load is big, the configuration of solar panels and batteries will be very large, which will lead to weight-bearing problems for the pole, especially the large area solar panels, wind resistance is very large, once the typhoon comes, the pole is easy to fall down. ZGSM generally recommends our customers choose our high luminous efficacy street lights to achieve the same brightness situation, by reducing the power, thus reducing the solar system configuration.
    Due to each city having its own sunshine condition, customers have different working hours and rainy days on request. If you want to know the more exact configuration, please contact us for below questions:
    1. What is the geographical location your solar LED street lighting system will be installed?
    2. How many hours per night do the LED street light work?
    3. How many days to backup in case of continuous rainy days?
    4. Do you need to dim the LED street light (during the off-peak hours)?

    We generally prepare a certain amount of materials for the main promote lamps, so the delivery time for small batch orders is about 3-5 days, and the delivery time for large batch orders is  10-15 days if materials stocks are enough.

    The most common streetlight operating voltage is 220 volts, followed by 240 volts. Most streetlights use a separate photocell to control the on/off function of the streetlight.

    The spacing between two light poles should be about 2.5-3 times the height of the pole. Shorter light poles should be installed at closer intervals. The density, speed of travel, and type of light source along the corridor will also determine the ideal height and spacing. Check more details about road lighting design consideration here.

    Related Products

    side entry led street light

    Series Halo Round Street Light Luminaire In Flexible Mount

    Road Lamp

    Series H EVO Modular Design Road Lamp

    Toolless Open Street Led Light

    Series K Toolless Open Street Led Light

    Catenary Street Light-5

    Series Halo Catenary Street Light & Suspended  Mounted

    led street light

    Series H Modular Design LED Street Light

    residential led street lights

    Series Kmini2 Eco But Quality Ensured Led Light Street

    street lights

    Series Rifle Class I/II Street Lamp

    commercial street lights

    Series Kmini Smooth Body Street Light Led

    Related Blogs

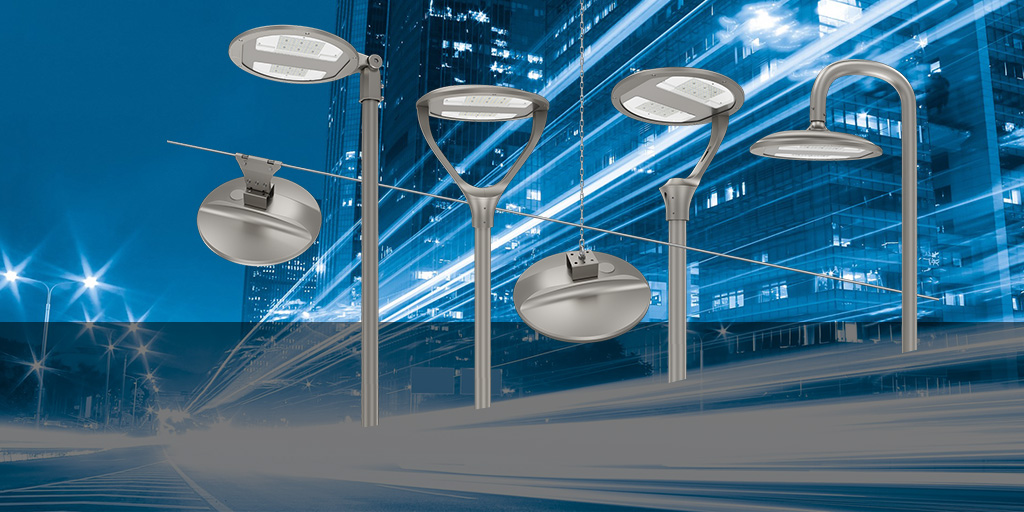

    City street lighting
