Home - LED Products - Series PV Split Type Solar Street Led Light

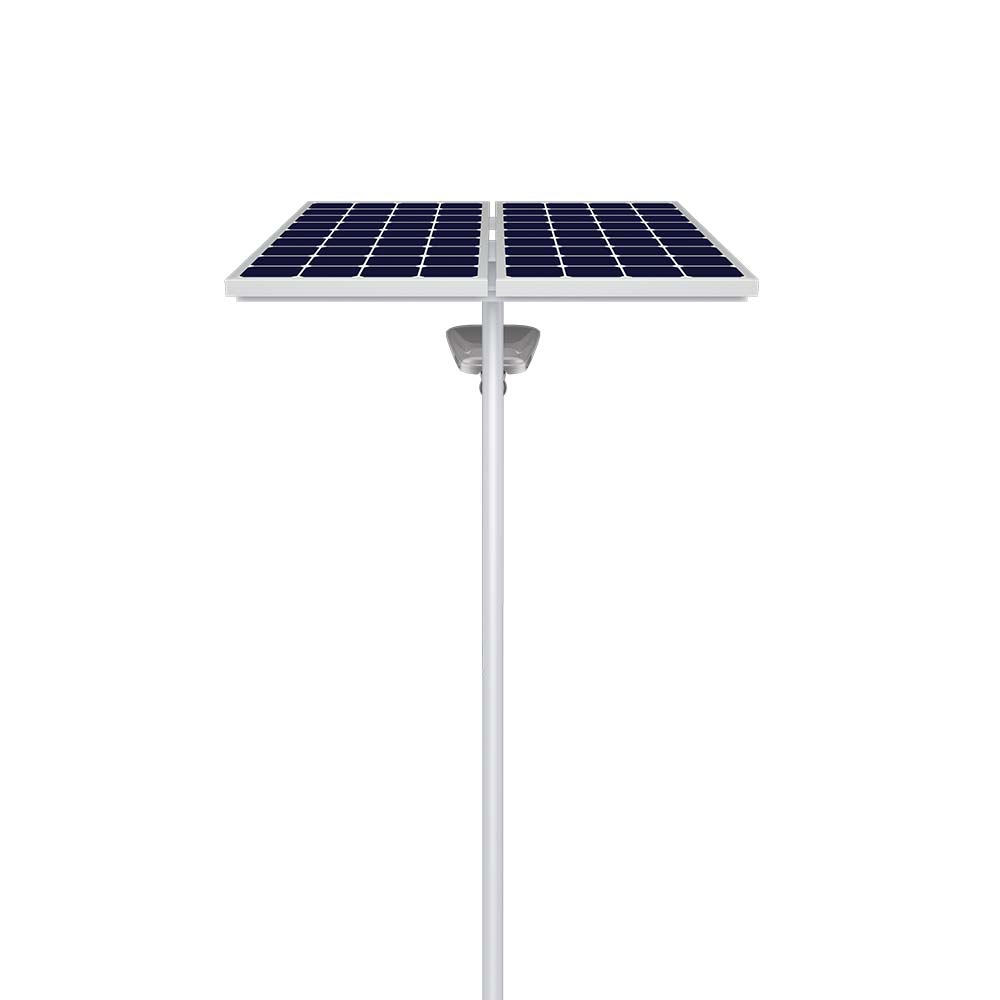

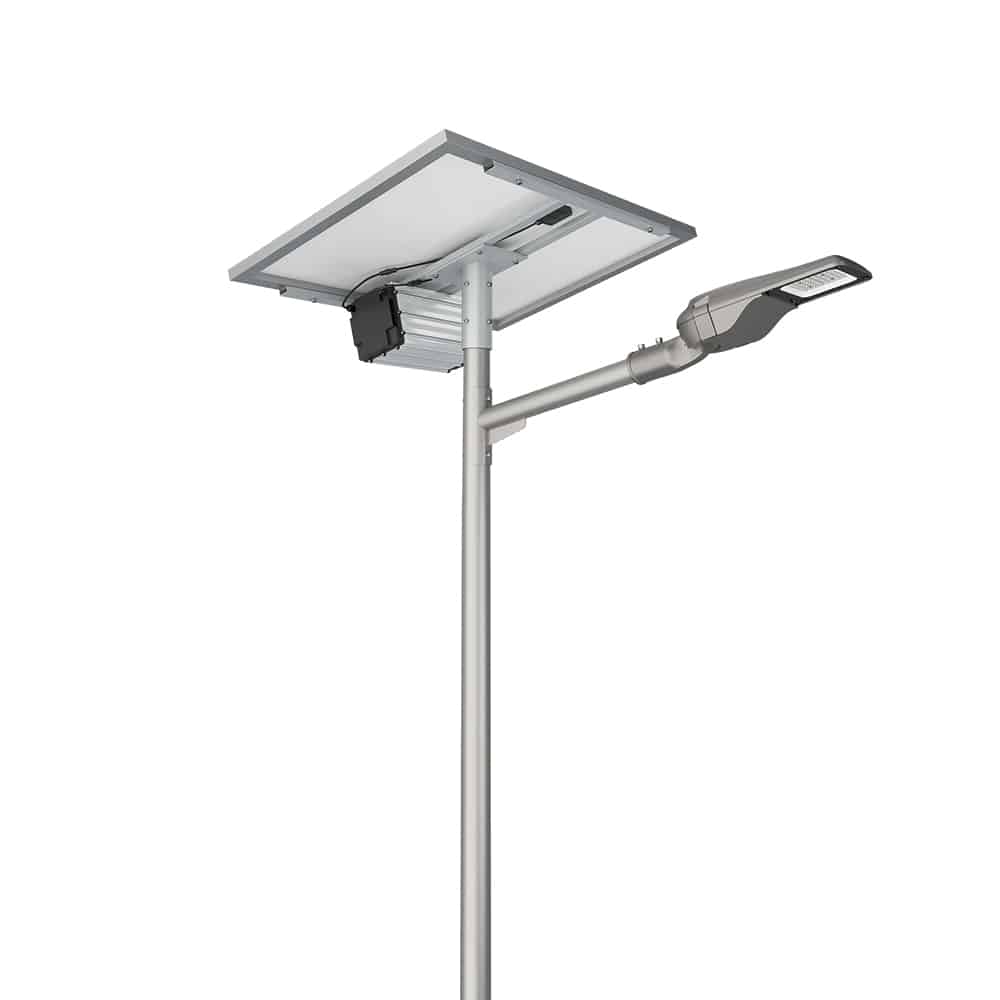

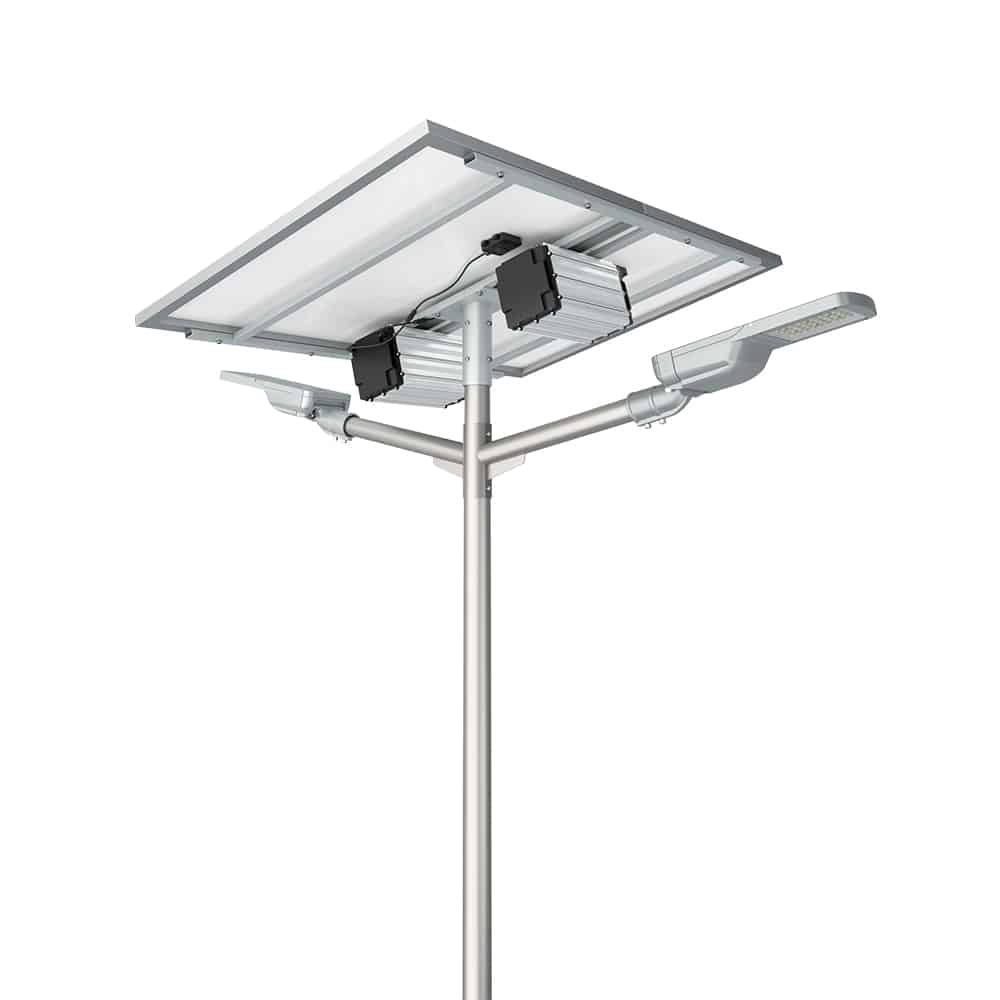

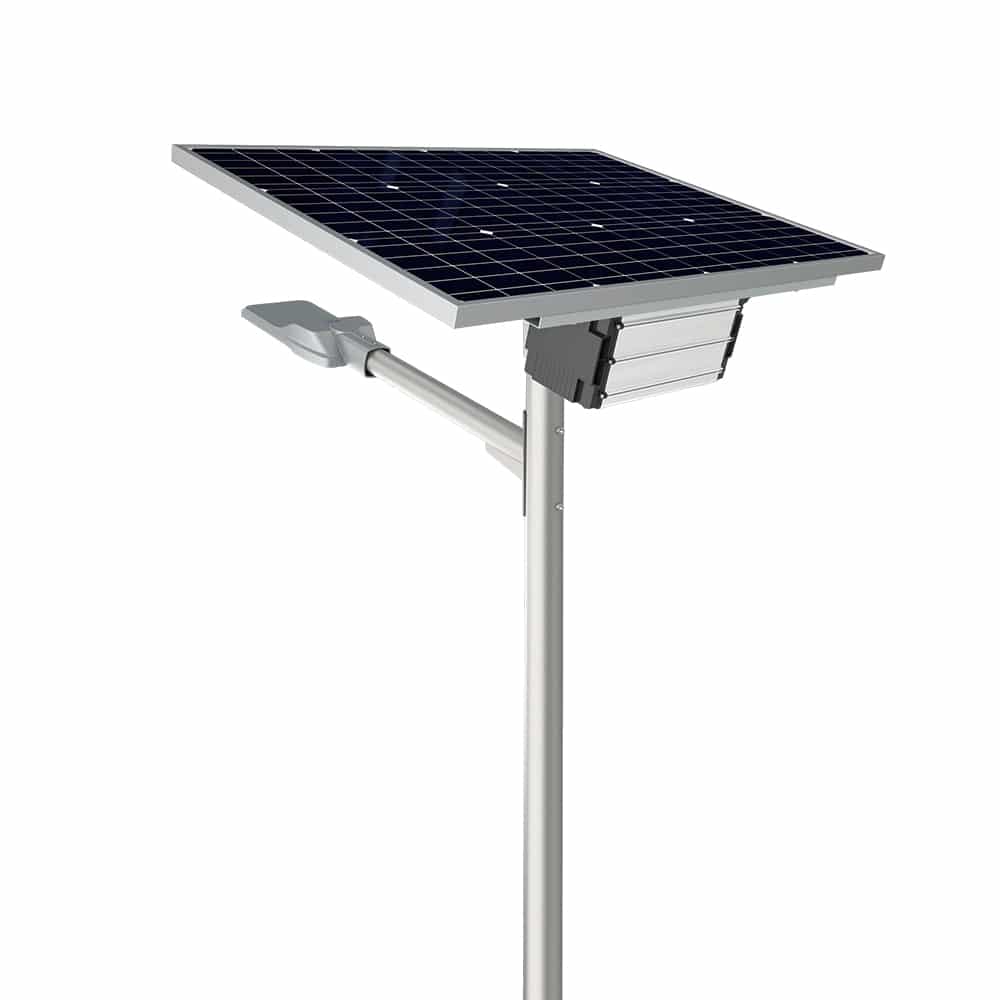

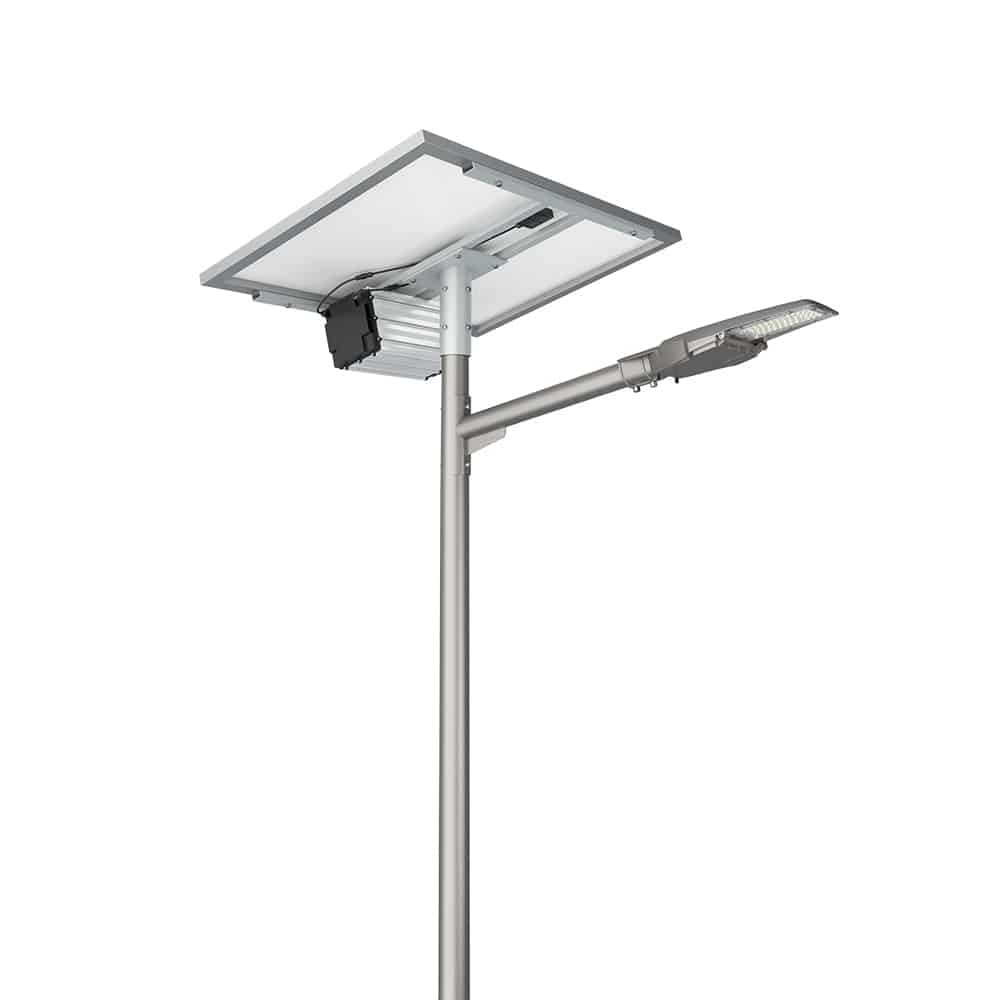

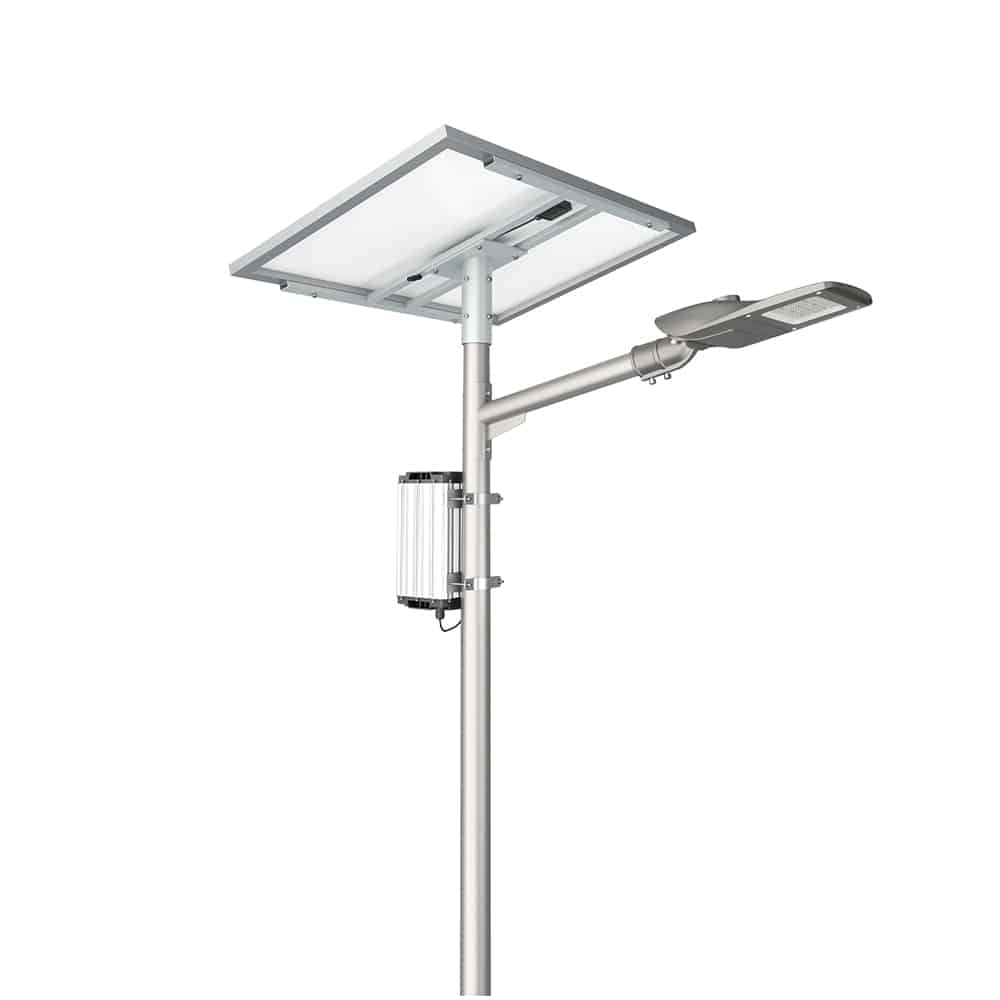

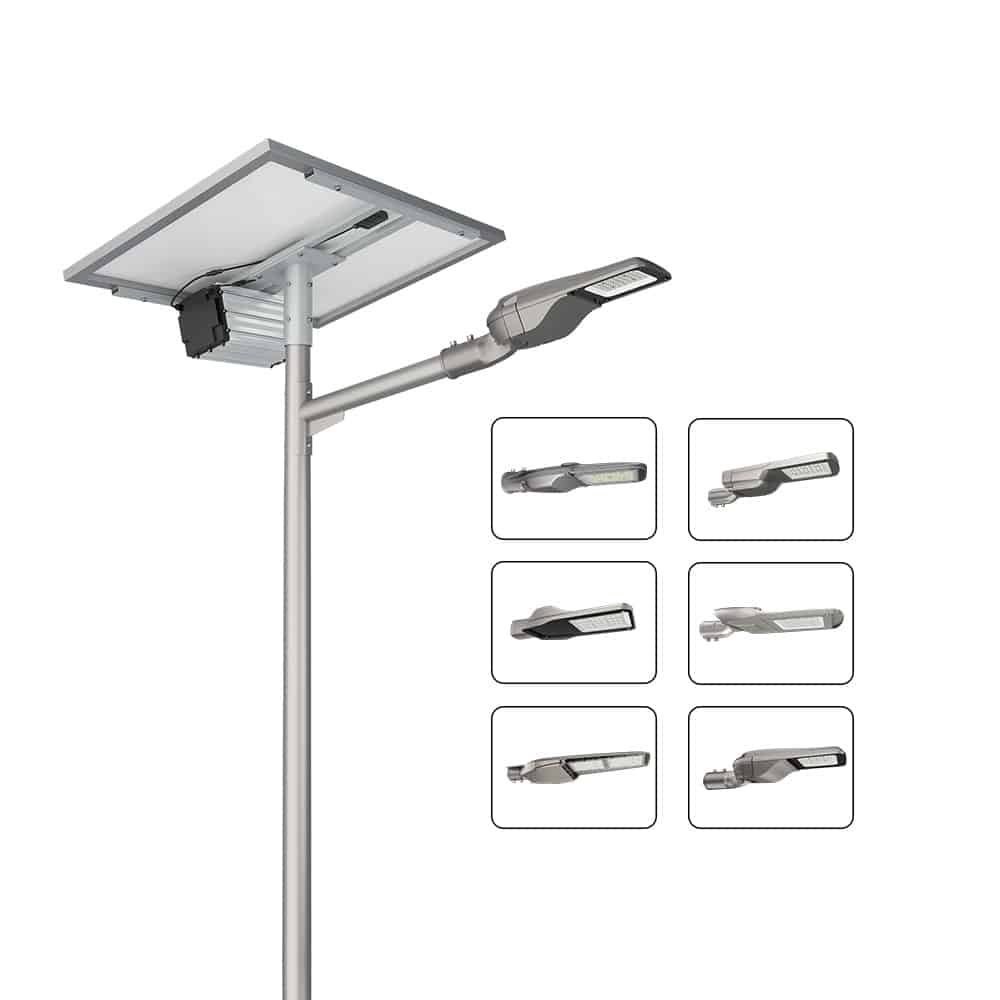

  • Series PV Split Type Solar Street Led Light

    PV solar street led light is the general name of split solar street light, which can use any existing street light head of ZGSM. PV series solar panel street light adopts high quality and efficiency solar panels (more than 20%) and combines the stable performance and long-life battery and high-efficiency MPPT solar charge controller which built-in LED driver. Excellent Philips chips make the lamp efficacy up to 165lm/w. as the solar street light manufacturer, ZGSM has more than 16 years of professional in the configuration of the solar street lighting system.

    Product Features

    • Wide power range: 20W~200W
    • High Lumen output up to 165lm/w
    • Monocrystalline silicon solar panels
    • Smart MPPT controller realizes intelligent control of lamps
    • High end battery improves the reliability of the luminaire
    • More than 8 types of Street Lamps for optional
    • Supports large capacity configuration of panels and batteries
    • More than 10 types of light distributions can be choosed
    • Multiple lighting control options are available, e.g. photocell, timer dimming.
    Contact Us
    Facebook
    Facebook
    fb-share-icon
    Twitter
    Visit Us
    Tweet
    LinkedIn
    LinkedIn
    Share
    Pinterest
    Pinterest
    fb-share-icon
    Instagram
    YouTube

    • ZGSM products are designed for the global market. Please contact our sales team for certification details.
    • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
    • Description
    • datasheet
    • optics
    • Videos
    • Download
    • application
    • FAQ

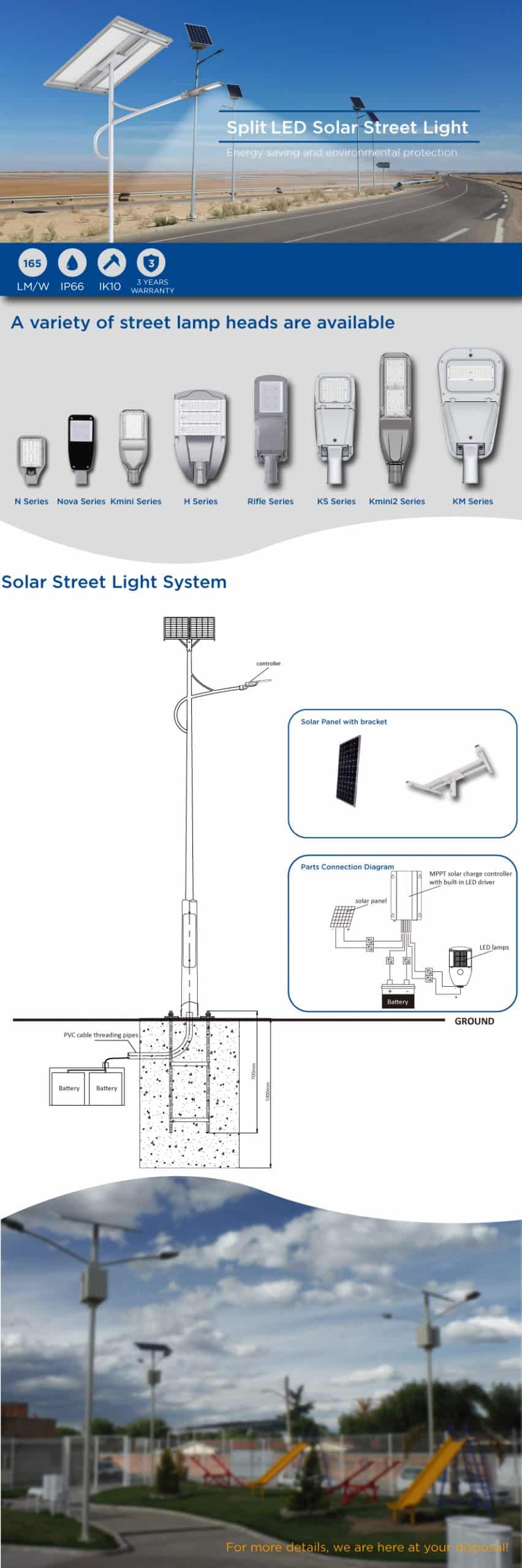

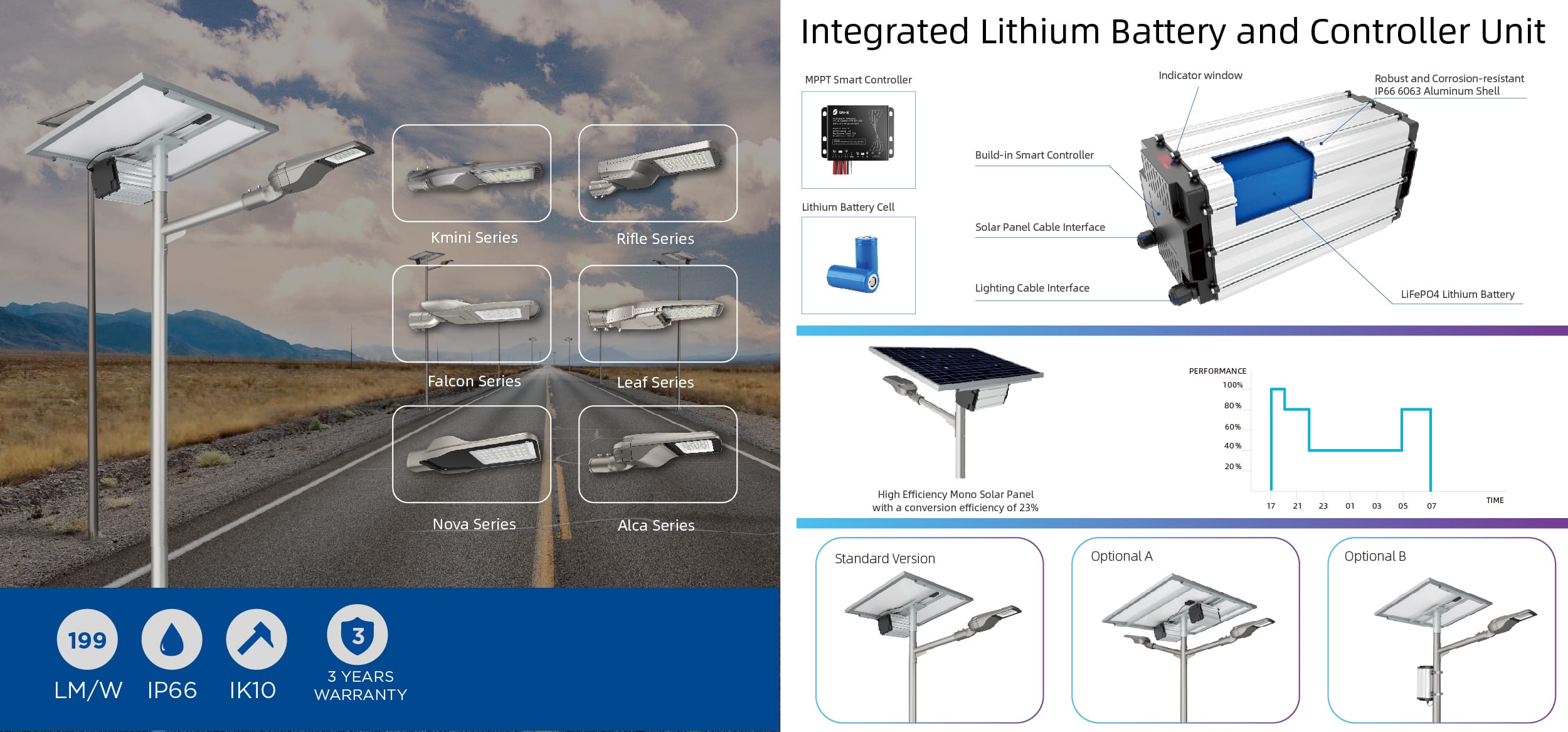

    Spilt Solar Street LED Light
    Series NoSeries PV
    Power20W, 30W,40W,50W,60W,80W,100W,120W,150W,200W
    Efficacy165lm/W
    System VoltageDC 12/24V
    Battery Speccustomizable
    Solar Panel Speccustomizable
    IP RatingIP66
    IK RatingIK10
    CCT3000K, 4000K, 5000K, 5700K
    CRIRa>70 (Default) / Ra>80
    Operating Temperature-40°C to + 50°C
    Beam AngleType I, Type II, Type III, Type V
    Mounting OptionPost Top, Side Entry
    Warranty3 Years
    CertificationCE, ROHS, LM80, TM-21
    ControlMotion sensor, PIR sensor, Timer dimming, Daylight sensor
    Specification_SolarStreetLight_PV

    Series PV2 all in one led solar street light in the mountain in Costa Rica

    Series PV2 all in one LED solar street light in the mountain in Costa Rica

    Series PV2 All in one solar powered street lights for park lighting in UAE

    Series PV2 All in one solar powered street lights for park lighting in UAE

    solar street light with battery and panel in Uruguay

    Series H solar street light with battery and panel for perimetral fence security of air force airport in Uruguay

    60 watt solar street light for highway lighting in Tunisia

    Series H 60 watt solar street light for highway lighting in Tunisia

    Kmini led solar street lamp

    Series Kmini led solar street lamp on Suburban highway in Tunisia

    solar street light project in Nigeria

    Series H 35w solar light for street in Nigeria

    One of the most crucial components of solar powered street lights is the solar panel, which can transform solar energy into electrical energy that the lighting can consume. Solar street lighting typically uses either monocrystalline or polycrystalline solar panels. Compared to poly-crystalline panels, mono-crystalline solar panels have a much higher conversion rate. Wattage of solar panel panels can also differ which depends on requirement of solar street light system.

    The more sunlight energy solar lights receive during the day, the longer they will run at night. Normally they need direct sunlight for around 4 to 12 hours to get the battery fully charged. So for a small battery with a big solar panel, we need less time to get the solar light fully prepared for lighting during night, and vice versa.

    1. Off-Grid split type solar street light system. This is the standard one with a solar panel on top, a battery either buried underground or installed on a pole, and a street light installed on an arm from poles.
    2. Grid-Tied Solar Street Light System which includes solar street light with single Inverter or solar street light with Micro-Inverter, also solar and wind hybrid solar street light.
    3. All-in-one led solar street light(Also known as an integrated solar street light) with a solar panel, light controller, motion sensor, and lithium battery integrated in LED street light.

    Related Products

    pv4-solar street light

    Series PV4 Integrated Solar Street Light

    bajaj led street light

    Series N Solar Powered Street Lights

    Related Blogs

    Advantages and Disadvantages of Solar Power and Solar Street Lights

    TagsSolar Street Light
    ik rating

    IK rating-important factor of LED light

    TagsIK
    IP rating

    IP rating-important factor of LED lights

    TagsIP rating
    something about leds

    Something you should know about LEDs

    TagsLEDs

    Best Solar Street Light Manufacturer Factory, Supplier In China

    ZGSM is the top manufacturer, factory, supplier of solar street lights in china since 2005. We can help you win the bidding or markets by the following point:

    Highest quality
    All of the materials will be top quality such as Longlife time LiFePo4 battery, high efficiency MPPT Controller, high conversion Mono solar panel, etc.

    Custionized service
    According to the sunshine conditions of your city, working time, regular weather, our technical team will customize a solar street light system that meets the local for you.

    aging test for led lights
    Aging test

    Why Choose us as your Solar Powered Street Light Supplier in China?

    OEM/ODM/SKD

    Available to do OEM/ODM/SKD for all solar street light. No MOQ limits for solar lights retailers, wholesalers, and engineering companies.

    FAST DELIVERY TIME

    As a reliable solar power street light supplier, we have materials stocks for solar street lamp, regular delivery time is 3 days for samples and 2 weeks for bulk.

    BEST QUALITY&PRICE

    We use top stable quality solar panels and lithium battery and MPPT controller for all solar led street light. Providing 3 Years warranty at the cheapest price.

    CUSTOMIZATION

    We can customize power of LED street lamp and solar panel, battery capacity, controller, cables, pole, mounted bracket according to customers' needs.

    Things you need to know about Solar Street Lights

    As a professional solar street light manufacturer, we can provide different types and functions of solar street lights or solar powered parking lot lights, such as wind solar hybrid street light, AC/DC hybrid solar street light, motion sensor solar street lights, human body induction control solar street lights, timer dimming solar street lights, etc. . Additional accessories for solar street lighting systems such as foundation cages, street lighting poles, cables, etc. are available. These solar street lights can be widely used as garden lighting, road lighting, school campus, etc.

    • Types
    • Power
    • Battery
    • Solar Panel
    • Solar Controller
    • Installation
    • Application
    • Customization
    solar street light

    All in one solar street light

    All in one solar street lights also called “Integrated solar street lights”, is a combination of high-efficiency solar panel, lithium battery, LED modules and smart controller, PIR or Motion sensor, etc. Easy to install and transport

    solar street light

    Split solar street lights

    Split solar street light is divided into complete split and All in two types.
    Complete split: Each parts are seperately.
    All in two: Lithium battery and controller is build-in the LED street lamp body, the solar panels are seperately.

    Power (W)Lumens (LM)Replacement (W)Install height (M)
    10W2000LM35W HPS or MH3-4m
    20W4000LM60W HPS or MH4-5m
    30W4800LM100W HPS or MH5-6m
    40W6400LM150W HPS or MH6-7m
    50W9000LM150W HPS or MH7-8m
    60W9600LM200W HPS or MH8-10m
    80W12800LM250W HPS or MH9-11m
    100W16000LM250W HPS or MH10-12m
    120W19200LM400W HPS or MH11-14m
    Lead-acid Battery

    Lead-acid Battery

    Lead-acid batteries include electrolyte-type lead-acid batteries (VRLA) and colloidal lead-acid batteries (Gel). They are mainly used in split-type solar street lamp systems and are usually buried underground. They're bigger and cheaper, but they use fewer cycles than lithium-ion batteries.Most lead-acid batteries are 12V or 24V systems.

    Lithium batteries

    Lithium Battery

    Majority of lithium batteries used in solar street lighting systems are ternary lithium batteries and lithium iron phosphate batteries ( LiFePo4). Lithium batteries are more costly and have a longer lifespan than lead-acid batteries.
    Ternary lithium batteries provide superior cold resistance compared to lithium iron phosphate batteries. The high-temperature resistance of lithium iron phosphate batteries is better than that of ternary lithium batteries. Consequently, solar street lighting systems in high-temperature regions often use lithium iron phosphate batteries.
    Available Li battery voltages for the solar street light system include 3.7V, 3.2V, 6.4V, 11.1V, and 12.8V.

    MONO SOLAR PANELS

    Monocrystalline Solar Panel

    The photoelectric conversion efficiency of monocrystalline silicon solar panels is between 18 and 24 percent, with an average of 18 percent. This kind of solar cell has the greatest photoelectric conversion efficiency of all sorts and a lifespan of up to 25 years. However, manufacturing costs are more than for other types.

    POLY SOLAR PANELS

    Polycrystalline Solar Panel

    The manufacturing method of polycrystalline silicon solar panels is same as monocrystalline silicon solar panels, however the photoelectric conversion efficiency of polycrystalline silicon solar panels is lower than monocrystalline silicon solar panels, it is around 16%. But it is cheaper than the monocrystalline silicon solar panels.

    pwm solar controller

    PWM Solar Controller

    PWM solar controller is the second-generation technology, and the most on the market now. The working method is PWM control. Compared with ordinary solar controllers, it has improved a lot and can solve the problem of battery dissatisfaction. The charging conversion efficiency is 70%, But the solar panels are not fully utilized.

    MPPT solar controller

    MPPT Solar Controller

    MPPT solar controller is a technology of the third generation. It relates to the feature "Maximum PowerPoint Tracking."It is an upgraded product of the PWM solar controller. The MPPT solar controller can detect and maintain track of the voltage and current of the solar panel in real time. Maximum power (P=U*I), ensuring that the battery is always charged with maximum power. The MPPT tracking efficiency is 99%, the system's overall power production efficiency is 97%, and the battery will have a good management.

    Let's take PV4 series solar powered street light as a example

    side entry

    Side Entry Mounted

    STEP 1: Loosen the four screws on the bracket, and put the hoop anchor on the top of the bracket, fix with screws but do not screw them all, as shown above.
    STEP 2: Insert the lamp into the pole according to the arrow direction, as shown above.
    STEP 3: Tighten the four screws of the bracket, The installation is completed.

    post top mounted

    Post Top Mounted

    STEP 1: Loosen the four screws on the bracket, but do not unscrew them all, as shown above.
    STEP 2: Insert the lamp into the pole according to the arrow direction, as shown above.
    STEP 3: Tighten the four screws of the bracket, The installation is completed.

    wall mounted

    Wall Mounted

    STEP 1: Loosen the four screws on the bracket, remove the hoop anchor.
    STEP 2: Drill four M8 holes on the wall refer to mounted bracket holes.
    STEP 3: Fix the lamp to the wall using fours M8*60 expansion screws, the installation is completed.

    Application

    Roadway lighting
    Paths way lighting
    Garden lighting
    Driveway lighting
    Parking lots lighting

    Do you want to customize a solar street light system? Use the form to reach out and we will be in touch with you as quickly as possible.

    Why Choose Solar Led Street Lights?

    The solar street light is a new type of road lighting fixture. During the day, monocrystalline or polycrystalline silicon solar panels convert solar sun energy into electricity, which is stored in maintenance-free valve-sealed batteries or lithium batteries through the solar controller, and at night, the solar controller controls the discharge of the batteries for the LED lights to work. It will bring many benefits.

    • Energy saving

    Convert solar energy into electricity to drive LED street lamps to work. Solar energy is inexhaustible.

    • Safety

    Solar street lights are powered by 12-36V solar panels, which are within the safe voltage range and will not cause electric shock accidents to people, making them safer to use.

    • Flexible application

    Off-grid solar street lights do not require a grid power supply and can operate autonomously as long as there is sunlight, which is very flexible, so they can use even in remote power-deficient areas.

    • Less investment

    The solar street light system does not need power supply equipment and can be completely automated operation, with no need for personnel management, so low operation and maintenance costs.

    Structure of Integrated Solar Streetlight

    Structure of all in one solar led street light

    1. LED Module

    Using high-efficiency Philips Lumileds LED chips, the luminous efficiency is up to 205LM/W, the same luminous flux, the power can be reduced by 50%, which greatly reduces the overall cost.

    2. Lithium Battery

    Integrated solar street light usually use lithium battery as energy storage. Lithium battery are divided into ternary lithium batteries and lithium iron phosphate batteries (LiFePo4 batteries), Lithium battery is a key component in solar street lights, and the cost is also the highest.

    3. Solar Controller

    At present, most of the solar street lights on the market use PWM controllers, which are relatively cheap. With the continuous development of technology, more and more solar street lights use high-efficiency MPPT controllers, which are relatively expensive.

    4. Sensor device

    For integrated solar street lights, sensor devices generally include motion sensors, also known as microwave sensors, human body sensors, also known as infrared sensors, and radar sensors.

    5. Solar Panels

    Solar panels are divided into monocrystalline and polycrystalline solar panels. the conversion efficiency of monocrystalline is higher and the price is higher, polycrystalline solar panels are a little cheaper but with low efficiency, now most integrated solar street lights use mono solar panels.

    R & D Team

    • Lighting engineer
    • Electronic engineer
    • Certification engineer
    • Industrial Engineer
    • Structural Engineer
    • Test Engineer
