Home - LED Products - Series Leaf High Efficacy Solar Powered Street Lamp

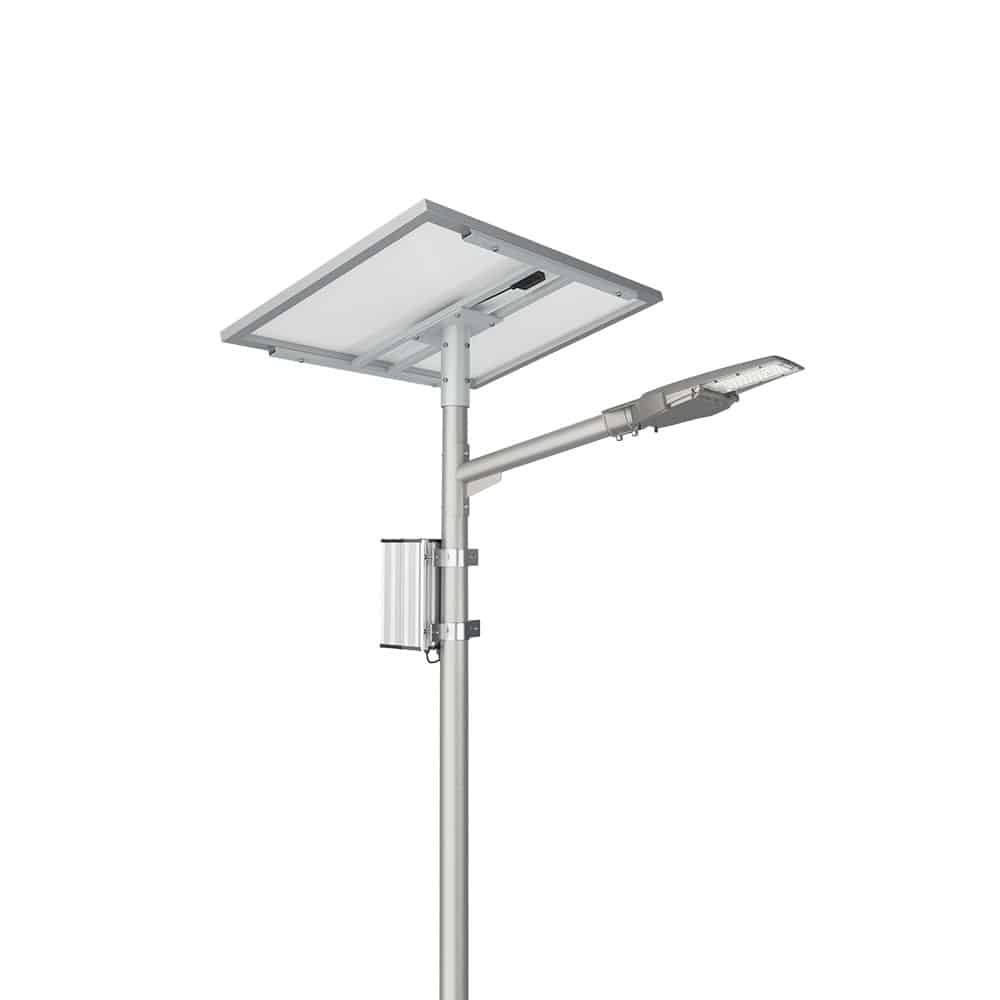

Leaf Integrated Solar Street Lamp

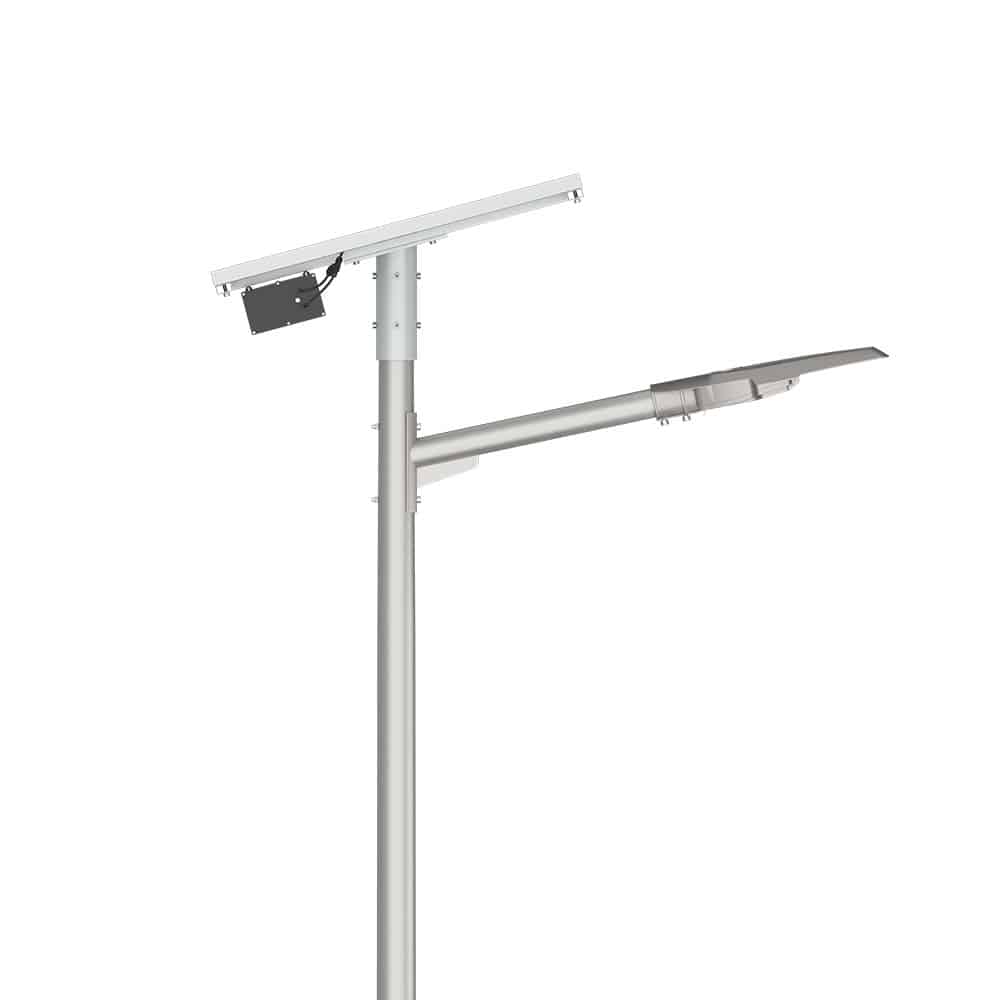

Integrated Solar Powered Street Lamp

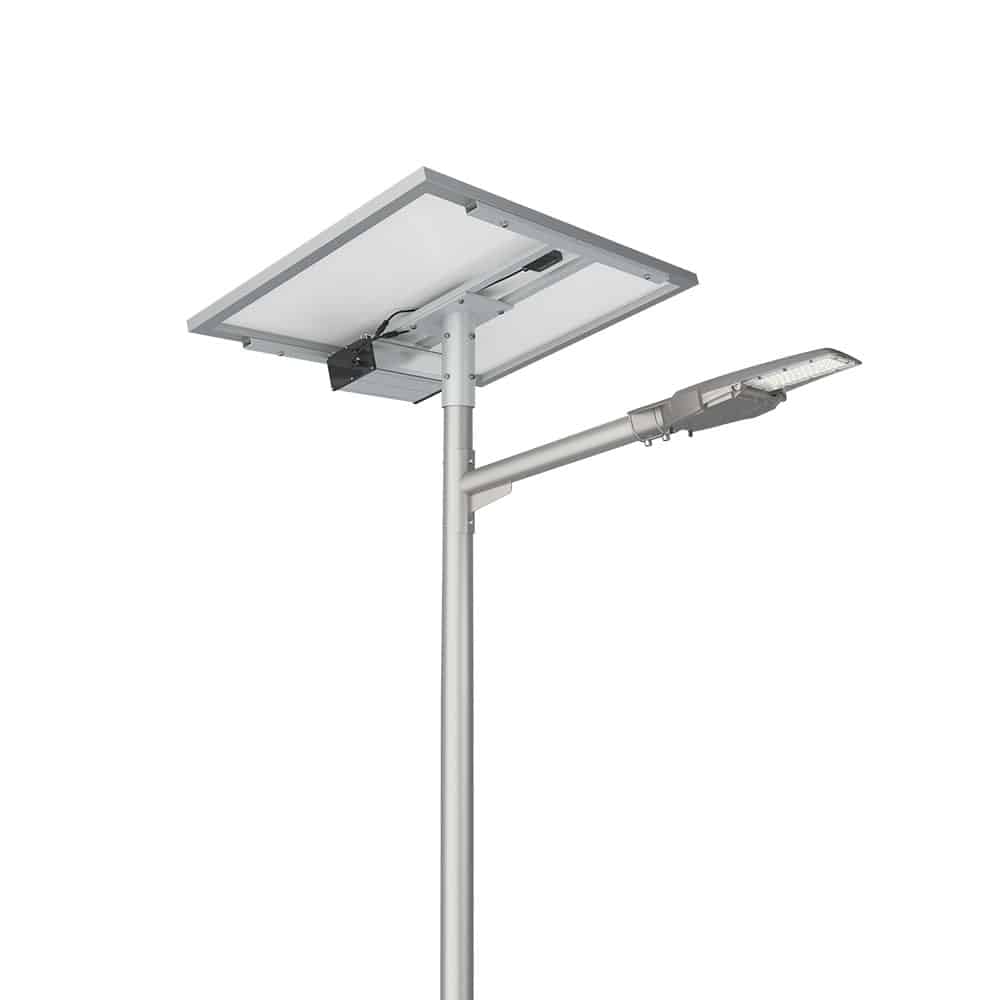

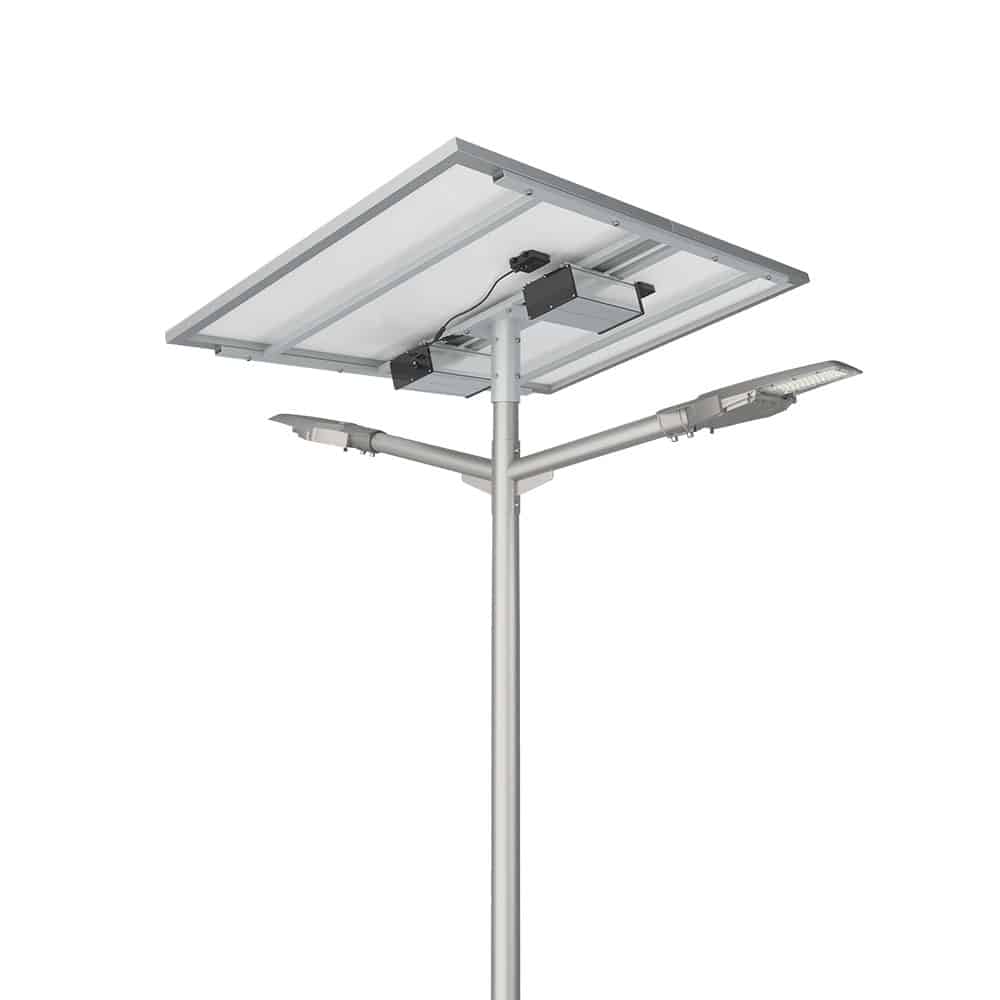

Leaf Integrated Solar Powered Street Light
Leaf Integrated Solar Powered Street Lamp

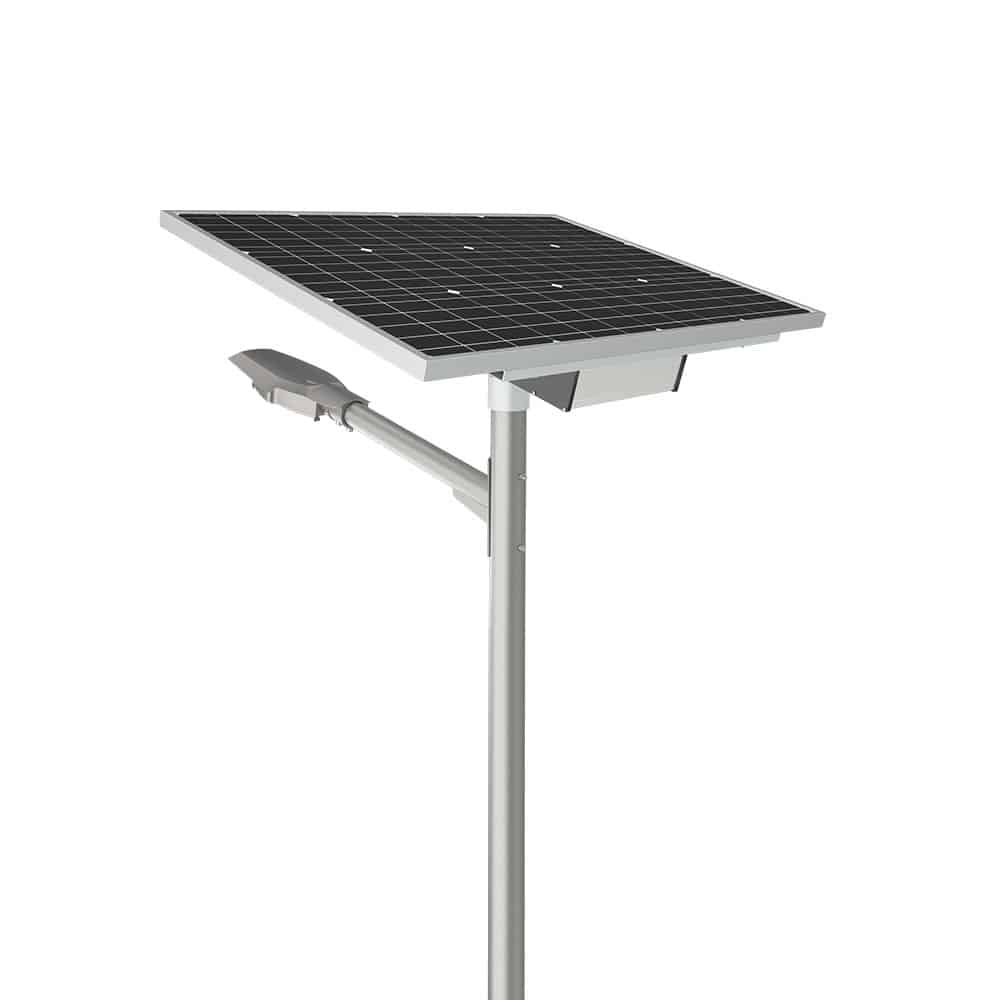

Solar Powered Street Lamp

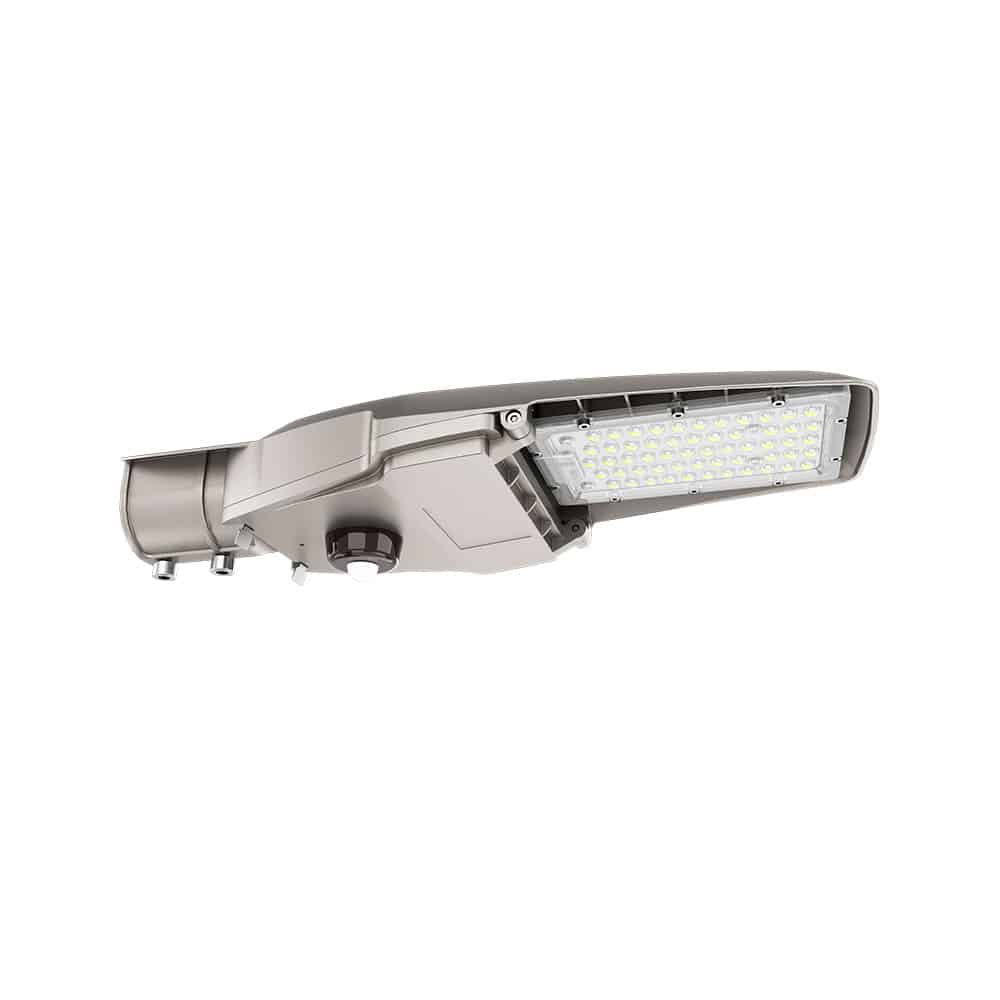

Integrated Solar Powered Street Light
Leaf Integrated Solar Street Lamp
Integrated Solar Powered Street Lamp
Leaf Integrated Solar Powered Street Light
Leaf Integrated Solar Powered Street Lamp
Solar Powered Street Lamp
Integrated Solar Powered Street Light

Series Leaf High Efficacy Solar Powered Street Lamp

Leaf series solar powered street lamp use high conversion efficiency monocrystalline solar panels, paired with deep-cycle batteries and integrated lithium battery / controller unit to ensure stable operation of the entire system. Leaf series street lights use excellent Lumileds chips with a luminous efficiency of up to 180lm/w. This is the lamp with the highest light efficiency among all ZGSM lamps currently, and can be perfectly combined with the use of solar energy.

In order to meet the needs of nighttime traffic flow changes on the road, ZGSM recommends dimming profile and also allows customers to customize the dimming curve. In addition, customers can also choose ZGSM’s light poles to install these solar street lights. These light poles include all accessories, such as cantilever arms, battery boxes, and solar panel brackets. We also support customized light pole heights and cantilever arm lengths to meet the project need. To sum up, ZGSM’s Leaf system solar powered street lamp are very suitable for use in areas with underdeveloped power grids and abundant sunshine.

Product Features

  • Wide power range: 20W~150W
  • High Lumen output up to 180lm/w
  • Monocrystalline silicon solar panels
  • Smart MPPT controller realizes intelligent control of lamps
  • High end battery improves the reliability of the luminaire
  • Capacity of panels and batteries can be customized
  • Long lifespan with L70>100000hrs
  • Multiple lighting control options are available, e.g. photocell, timer dimming, motion sensor.
Contact Us
  • Facebook
  • Twitter
  • YouTube
  • Instagram
  • LinkedIn
  • Pinterest

  • ZGSM products are designed for the global market. Please contact our sales team for certification details.
  • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
  • Description
  • datasheet
  • optics
  • Videos
  • Download
  • application
  • FAQ
Series No Series Leaf solar
Power 20W, 30W, 40W, 50W, 60W, 70W, 80W, 90W, 100W, 110W, 120W, 130W, 140W, 150W
Efficacy 155-180lm/W
Input Voltage DC 12/24V
Battery Spec 230WH-1843WH or customized
Solar Panel Spec 50-400W or customized
IP Rating IP66
IK Rating IK10
Beam Angle Type II
Mounting Option Side Entry
Lens of all in one solar street lamp
Specification_Leaf Solar Powered Street Lamp Installation Manual_Leaf Solar Powered Street Lamp
solar powered led street lights

Series H solar powered led street lights in the amusement park in Mexico

solar powered street lamp

Series Rifle solar powered street lamp for crossroads lighting in Bulgaria

Series PV solar powered parking lot lights in amusement park in Thailand

Series PV solar powered parking lot lights in an amusement park in Thailand

Series PV2 solar street light with motion sensor for bus stop lighting in Serbia

Series PV2 solar street light with motion sensor for bus stop lighting in Serbia

Series PV2 all in one led solar street light in the mountain in Costa Rica

Series PV2 all in one LED solar street light in the mountain in Costa Rica

Series PV2 All in one solar powered street lights for park lighting in UAE

Series PV2 All in one solar powered street lights for park lighting in UAE

A typical solar powered street lamp consumes about 20 to 150 watts of electricity. If you need to determine how many wattages are suitable for your solar street lights, we recommend confirming with a lighting simulation. For example, for a 7-meter-wide, 8-meter-high light pole and a road with a 35-meter spacing between light poles, 50W lighting power is usually sufficient. If the road is wider and the light poles are taller or more widely spaced, a correspondingly higher wattage of light fixtures will be required. At the same time, the wattage of solar powered street lamp should also be adjusted accordingly according to the capacity of solar panels and batteries.

1. Determine the wattage of your street light

Wattage determines whether the road can be reasonably lit, we recommend running a lighting simulation to confirm

2. Calculate total watt-hours per day for street light

Total watt-hours per day = Power consumption 1 (W) × Number of working hours in the first time period + Power consumption 2 (W) × Number of working hours in the second time period + Power consumption 3 (W) × Number of working hours in the third time period + … + Power consumption x (Watts) × Number of working hours in the xth time period.

3. Calculate battery capacity

Formula: Required battery capacity (Wh) = Total Watt-hours (per day) x Days of autonomy / 0.9 / Depth of discharge of deep cycle battery

4. Panel power = total daily watt-hours * 1.333 / sunshine coefficient

Monocrystalline solar panels are recommended for solar street lighting projects. In strong light environments, monocrystalline panels are more efficient than polycrystalline panels because the crystal structure of monocrystalline silicon allows it to better absorb and convert light energy. Polycrystalline panels are more efficient at converting solar energy in low-light environments. Considering that the place where solar street lights are installed is usually sunny, it is recommended to use monocrystalline solar panels, although its price is relatively high.

Related Products

pv4-solar street light

Series PV4 Integrated Solar Street Light

Series Falcon Outdoor Solar Powered Street Lights

solar street led light

Series PV Split Type Solar Street Led Light

Series PV5 All in One Solar Street Light

Series Nova Long Lifespan Split Solar Street Light

Series Rifle Solar Powered Street Lights With Sensor

Series Kmini Split Type Solar Street LED Light

Related Blogs

Advantages and Disadvantages of Solar Power and Solar Street Lights

TagsSolar Street Light
ik rating

IK rating-important factor of LED light

TagsIK
IP rating

IP rating-important factor of LED lights

TagsIP rating
something about leds

Something you should know about LEDs

TagsLEDs

Best Solar Street Light Manufacturer Factory, Supplier In China

ZGSM is the top manufacturer, factory, supplier of solar powered street lamp in china since 2005. We can help you win the bidding or markets by the following point:

Highest quality
All of the materials will be top quality such as Longlife time LiFePo4 battery, high efficiency MPPT Controller, high conversion Mono solar panel, etc.

Custionized service
According to the sunshine conditions of your city, working time, regular weather, our technical team will customize a solar street light system that meets the local for you.

aging test for led lights
Aging test

Why Choose us as your Solar Powered Street Light Supplier in China?

OEM/ODM/SKD

Available to do OEM/ODM/SKD for all solar street light. No MOQ limits for solar lights retailers, wholesalers, and engineering companies.

FAST DELIVERY TIME

As a reliable solar power street light supplier, we have materials stocks for solar street lamp, regular delivery time is 3 days for samples and 2 weeks for bulk.

BEST QUALITY&PRICE

We use top stable quality solar panels and lithium battery and MPPT controller for all solar led street light. Providing 3 Years warranty at the cheapest price.

CUSTOMIZATION

We can customize power of LED street lamp and solar panel, battery capacity, controller, cables, pole, mounted bracket according to customers' needs.

Things you need to know about Solar Street Lights

As a professional solar street light manufacturer, we can provide different types and functions of solar street lights or solar powered parking lot lights, such as wind solar hybrid street light, AC/DC hybrid solar street light, motion sensor solar street lights, human body induction control solar powered street lamp, timer dimming solar street lights, etc. . Additional accessories for solar street lighting systems such as foundation cages, street lighting poles, cables, etc. are available. These solar street lights can be widely used as garden lighting, road lighting, school campus, etc.

  • Types
  • Power
  • Battery
  • Solar Panel
  • Solar Controller
  • Installation
  • Application
  • Customization
solar street light

All in one solar street light

All in one solar street lights also called “Integrated solar street lights”, is a combination of high-efficiency solar panel, lithium battery, LED modules and smart controller, PIR or Motion sensor, etc. Easy to install and transport

solar street light

Split solar street lights

Split solar street light is divided into complete split and All in two types.
Complete split: Each parts are seperately.
All in two: Lithium battery and controller is build-in the LED street lamp body, the solar panels are seperately.

Power (W)Lumens (LM)Replacement (W)Install height (M)
10W2000LM35W HPS or MH3-4m
20W4000LM60W HPS or MH4-5m
30W4800LM100W HPS or MH5-6m
40W6400LM150W HPS or MH6-7m
50W9000LM150W HPS or MH7-8m
60W9600LM200W HPS or MH8-10m
80W12800LM250W HPS or MH9-11m
100W16000LM250W HPS or MH10-12m
120W19200LM400W HPS or MH11-14m
Lead-acid Battery

Lead-acid Battery

Lead-acid batteries include electrolyte-type lead-acid batteries (VRLA) and colloidal lead-acid batteries (Gel). They are mainly used in split-type solar street lamp systems and are usually buried underground. They're bigger and cheaper, but they use fewer cycles than lithium-ion batteries.Most lead-acid batteries are 12V or 24V systems.

Lithium batteries

Lithium Battery

Majority of lithium batteries used in solar street lighting systems are ternary lithium batteries and lithium iron phosphate batteries ( LiFePo4). Lithium batteries are more costly and have a longer lifespan than lead-acid batteries.
Ternary lithium batteries provide superior cold resistance compared to lithium iron phosphate batteries. The high-temperature resistance of lithium iron phosphate batteries is better than that of ternary lithium batteries. Consequently, solar street lighting systems in high-temperature regions often use lithium iron phosphate batteries.
Available Li battery voltages for the solar street light system include 3.7V, 3.2V, 6.4V, 11.1V, and 12.8V.

MONO SOLAR PANELS

Monocrystalline Solar Panel

The photoelectric conversion efficiency of monocrystalline silicon solar panels is between 18 and 24 percent, with an average of 18 percent. This kind of solar cell has the greatest photoelectric conversion efficiency of all sorts and a lifespan of up to 25 years. However, manufacturing costs are more than for other types.

POLY SOLAR PANELS

Polycrystalline Solar Panel

The manufacturing method of polycrystalline silicon solar panels is same as monocrystalline silicon solar panels, however the photoelectric conversion efficiency of polycrystalline silicon solar panels is lower than monocrystalline silicon solar panels, it is around 16%. But it is cheaper than the monocrystalline silicon solar panels.

pwm solar controller

PWM Solar Controller

PWM solar controller is the second-generation technology, and the most on the market now. The working method is PWM control. Compared with ordinary solar controllers, it has improved a lot and can solve the problem of battery dissatisfaction. The charging conversion efficiency is 70%, But the solar panels are not fully utilized.

MPPT solar controller

MPPT Solar Controller

MPPT solar controller is a technology of the third generation. It relates to the feature "Maximum PowerPoint Tracking."It is an upgraded product of the PWM solar controller. The MPPT solar controller can detect and maintain track of the voltage and current of the solar panel in real time. Maximum power (P=U*I), ensuring that the battery is always charged with maximum power. The MPPT tracking efficiency is 99%, the system's overall power production efficiency is 97%, and the battery will have a good management.

Let's take PV4 series solar powered street light as a example

side entry

Side Entry Mounted

STEP 1: Loosen the four screws on the bracket, and put the hoop anchor on the top of the bracket, fix with screws but do not screw them all, as shown above.
STEP 2: Insert the lamp into the pole according to the arrow direction, as shown above.
STEP 3: Tighten the four screws of the bracket, The installation is completed.

post top mounted

Post Top Mounted

STEP 1: Loosen the four screws on the bracket, but do not unscrew them all, as shown above.
STEP 2: Insert the lamp into the pole according to the arrow direction, as shown above.
STEP 3: Tighten the four screws of the bracket, The installation is completed.

wall mounted

Wall Mounted

STEP 1: Loosen the four screws on the bracket, remove the hoop anchor.
STEP 2: Drill four M8 holes on the wall refer to mounted bracket holes.
STEP 3: Fix the lamp to the wall using fours M8*60 expansion screws, the installation is completed.

Application

Roadway lighting
Paths way lighting
Garden lighting
Driveway lighting
Parking lots lighting

Do you want to customize a solar street light system? Use the form to reach out and we will be in touch with you as quickly as possible.

Why Choose Solar Led Street Lights?

The solar street light is a new type of road lighting fixture. During the day, monocrystalline or polycrystalline silicon solar panels convert solar sun energy into electricity, which is stored in maintenance-free valve-sealed batteries or lithium batteries through the solar controller, and at night, the solar controller controls the discharge of the batteries for the LED lights to work. It will bring many benefits.

  • Energy saving

Convert solar energy into electricity to drive LED street lamps to work. Solar energy is inexhaustible.

  • Safety

Solar street lights are powered by 12-36V solar panels, which are within the safe voltage range and will not cause electric shock accidents to people, making them safer to use.

  • Flexible application

Off-grid solar street lights do not require a grid power supply and can operate autonomously as long as there is sunlight, which is very flexible, so they can use even in remote power-deficient areas.

  • Less investment

The solar street light system does not need power supply equipment and can be completely automated operation, with no need for personnel management, so low operation and maintenance costs.

Structure of Integrated Solar Streetlight

Structure of all in one solar led street light

1. LED Module

Using high-efficiency Lumileds LED chips, the luminous efficiency is up to 205LM/W, the same luminous flux, the power can be reduced by 50%, which greatly reduces the overall cost.

2. Lithium Battery

Integrated solar street light usually use lithium battery as energy storage. Lithium battery are divided into ternary lithium batteries and lithium iron phosphate batteries (LiFePo4 batteries), Lithium battery is a key component in solar street lights, and the cost is also the highest.

3. Solar Controller

At present, most of the solar street lights on the market use PWM controllers, which are relatively cheap. With the continuous development of technology, more and more solar street lights use high-efficiency MPPT controllers, which are relatively expensive.

4. Sensor device

For integrated solar street lights, sensor devices generally include motion sensors, also known as microwave sensors, human body sensors, also known as infrared sensors, and radar sensors.

5. Solar Panels

Solar panels are divided into monocrystalline and polycrystalline solar panels. the conversion efficiency of monocrystalline is higher and the price is higher, polycrystalline solar panels are a little cheaper but with low efficiency, now most integrated solar street lights use mono solar panels.
