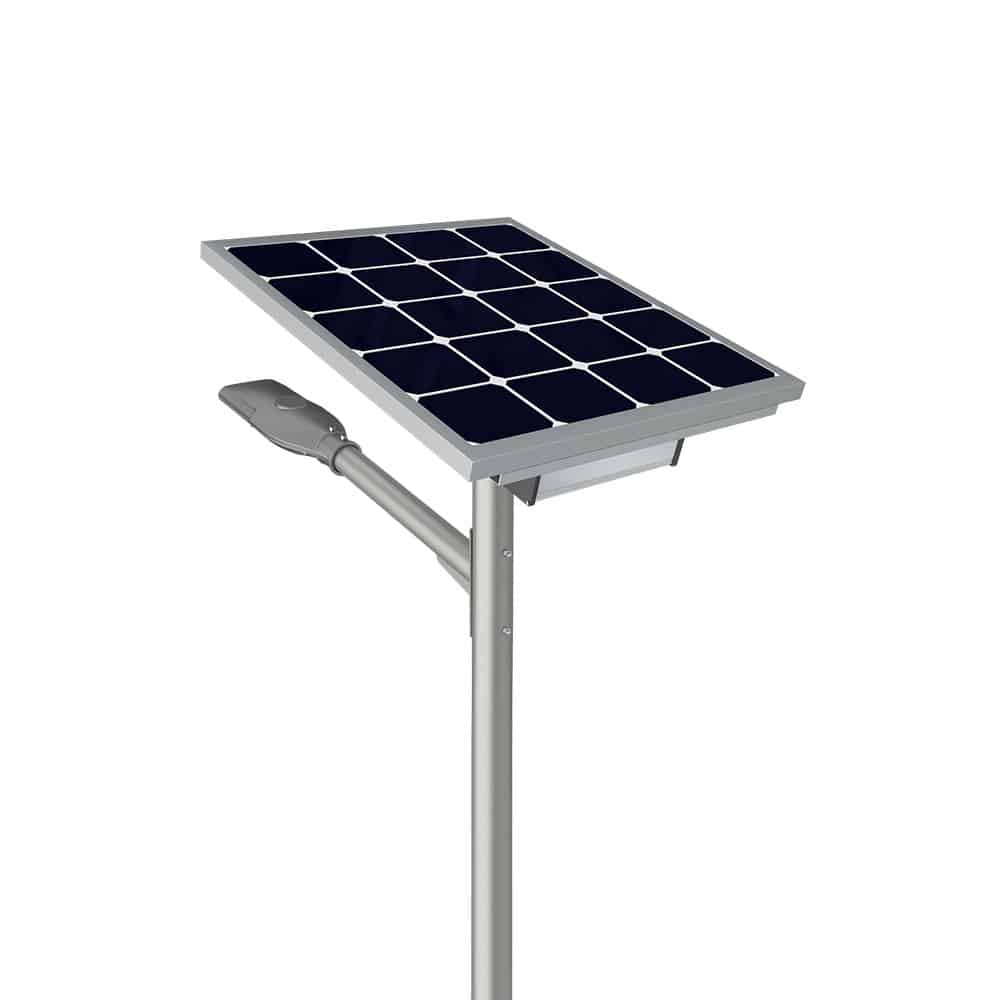

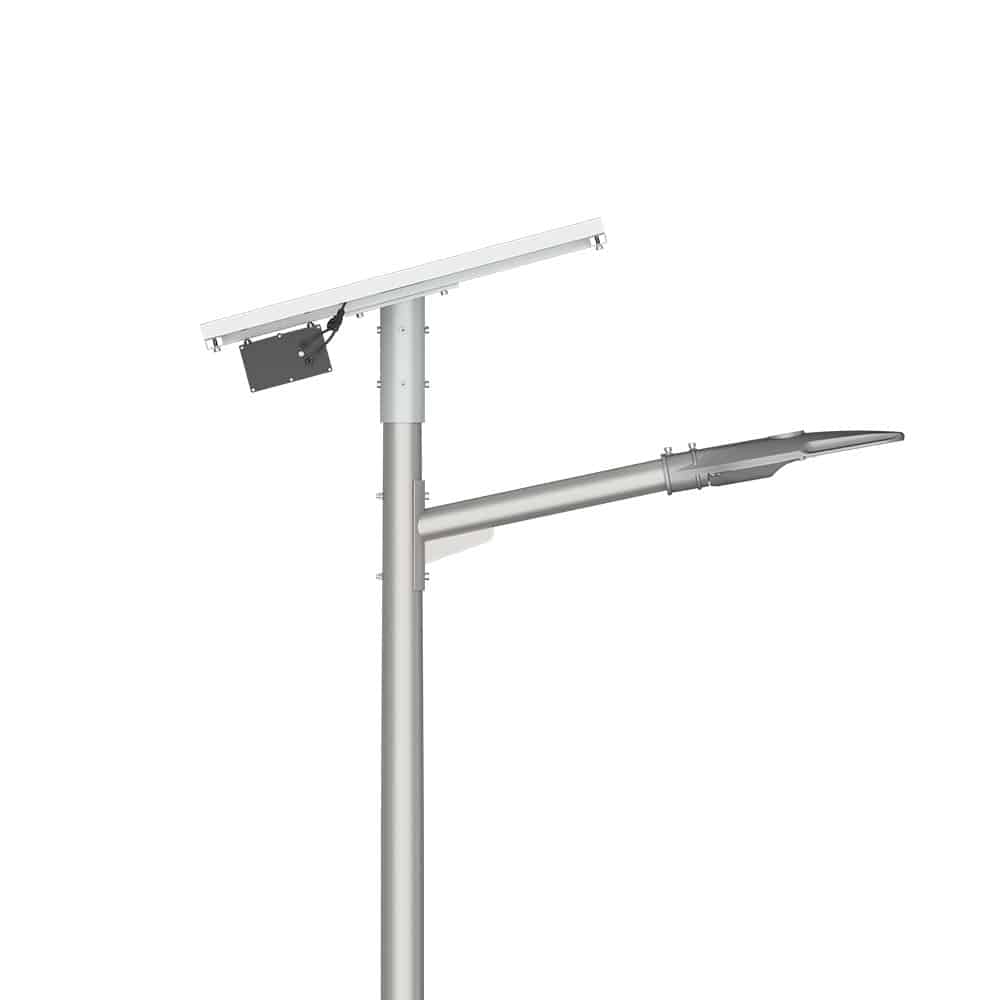

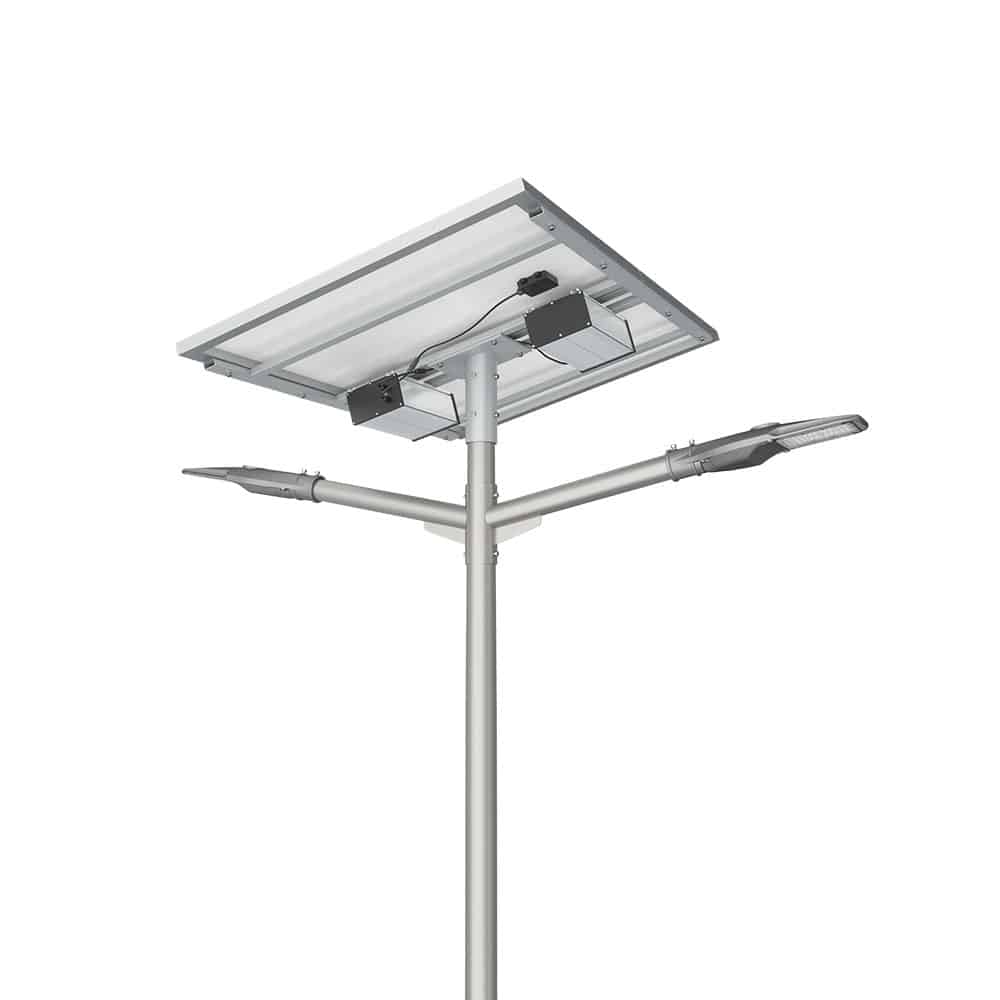

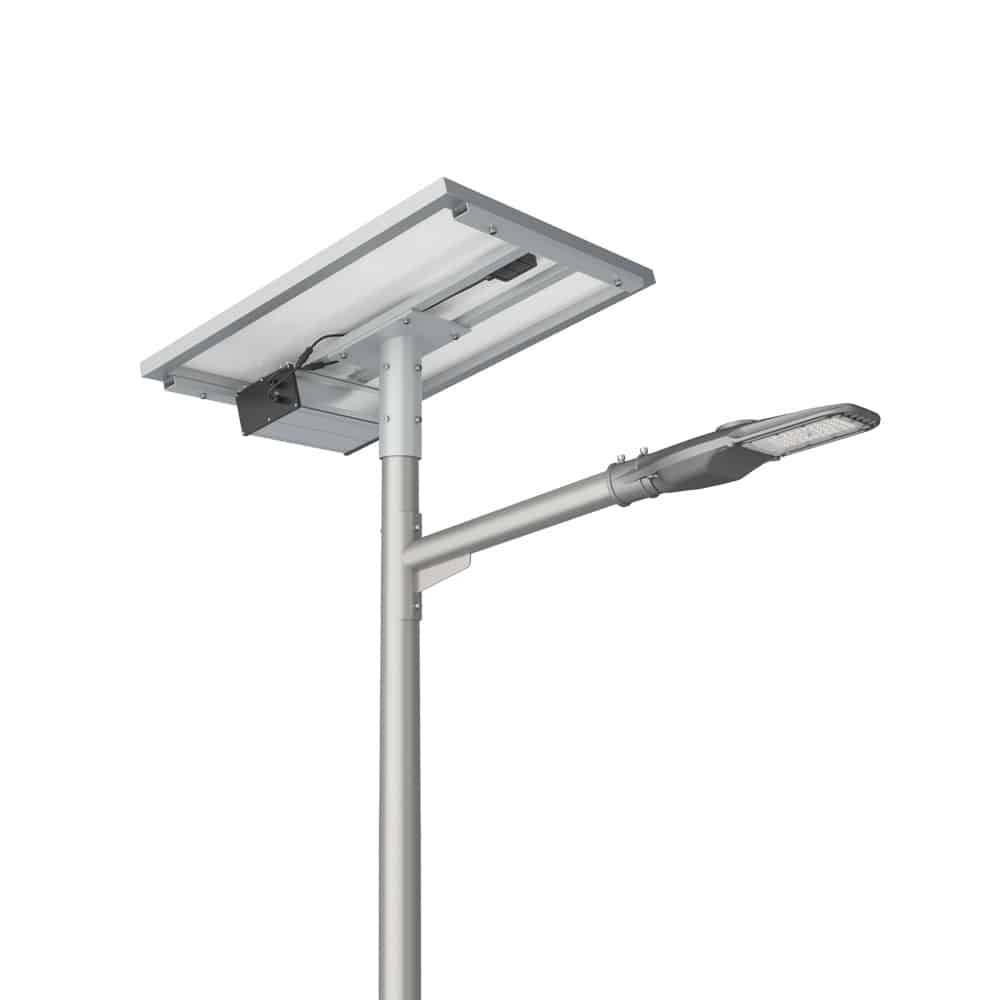

Series Kmini Split Type Solar Street LED Light
Kmini series solar street led light use high-efficiency solar panels (23% or above), long-life lithium batteries and efficient MPPT solar charge and discharge controller to ensure the stable operation of the entire system for 3-5 continuous overcast or rainy days (12hrs per day). The lamp uses excellent Lumileds chips, with a luminous efficiency of up to 156lm/w. In addition, the intelligent controller can customize the dimming curve and use microwave and other functions to maximize energy saving. Kmini solar street led light are ideal for use in cities and suburbs, and are particularly useful in areas where the main grid is non-existent or unreliable.
Product Features
- Wide power range: 20W~150W
- High Lumen output up to 156lm/w
- Monocrystalline silicon solar panels
- Smart MPPT controller realizes intelligent control of lamps
- High end battery improves the reliability of the luminaire
- Capacity of panels and batteries can be customized
- Long lifespan with L70>100000hrs
- Multiple lighting control options are available, e.g. photocell, timer dimming.
| Series No | Series Kmini/Kmini2 |
| Power | 20W, 30W, 40W, 50W, 60W, 70W, 80W, 90W, 100W, 110W, 120W, 130W, 140W, 150W |
| Efficacy | 130-156lm/W |
| Input Voltage | DC 12/24V |
| Battery Spec | 230WH-1843WH or customized |
| Solar Panel Spec | Monocrystalline silicon 50-400W or customized |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Beam Angle | Type II |
| Mounting Option | Side Entry |
Related Products
Series ALCA High-Efficiency Split Type Solar Street Light
Series Falcon Outdoor Solar Powered Street Lights
Series PV Split Type Solar Street Led Light
Series PV5 All in One Solar Street Light
Series Nova Long Lifespan Split Solar Street Light
Series Rifle Solar Powered Street Lights With Sensor
Series Leaf High Efficacy Solar Powered Street Lamp
Related Blogs
Advantages and Disadvantages of Solar Power and Solar Street Lights
IK rating-important factor of LED light
IP rating-important factor of LED lights
Something you should know about different types of LEDs – SMD vs COB
Best Solar Street Light Manufacturer Factory, Supplier In China
ZGSM is the top manufacturer, factory, supplier of solar street lights in china since 2005. We can help you win the bidding or markets by the following point:
Highest quality
All of the materials will be top quality such as Longlife time LiFePo4 battery, high efficiency MPPT Controller, high conversion Mono solar panel, etc.
Custionized service
According to the sunshine conditions of your city, working time, regular weather, our technical team will customize a solar street light system that meets the local for you.
Why Choose us as your Solar Powered Street Light Supplier in China?
OEM/ODM/SKD
Available to do OEM/ODM/SKD for all solar street light. No MOQ limits for solar lights retailers, wholesalers, and engineering companies.
FAST DELIVERY TIME
As a reliable solar power street light supplier, we have materials stocks for solar street lamp, regular delivery time is 3 days for samples and 2 weeks for bulk.
BEST QUALITY&PRICE
We use top stable quality solar panels and lithium battery and MPPT controller for all solar led street light. Providing 3 Years warranty at the cheapest price.
CUSTOMIZATION
We can customize power of LED street lamp and solar panel, battery capacity, controller, cables, pole, mounted bracket according to customers' needs.
Things you need to know about Solar Street Lights
As a professional solar street light manufacturer, we can provide different types and functions of solar street lights or solar powered parking lot lights, such as wind solar hybrid street light, AC/DC hybrid solar street light, motion sensor solar street lights, human body induction control solar street lights, timer dimming solar street lights, etc. . Additional accessories for solar street lighting systems such as foundation cages, street lighting poles, cables, etc. are available. These solar street lights can be widely used as garden lighting, road lighting, school campus, etc.
All in one solar street light
All in one solar street lights also called “Integrated solar street lights”, is a combination of high-efficiency solar panel, lithium battery, LED modules and smart controller, PIR or Motion sensor, etc. Easy to install and transport
Split solar street lights
Split solar street light is divided into complete split and All in two types.
Complete split: Each parts are seperately.
All in two: Lithium battery and controller is build-in the LED street lamp body, the solar panels are seperately.
| Power (W) | Lumens (LM) | Replacement (W) | Install height (M) |
| 10W | 2000LM | 35W HPS or MH | 3-4m |
| 20W | 4000LM | 60W HPS or MH | 4-5m |
| 30W | 4800LM | 100W HPS or MH | 5-6m |
| 40W | 6400LM | 150W HPS or MH | 6-7m |
| 50W | 9000LM | 150W HPS or MH | 7-8m |
| 60W | 9600LM | 200W HPS or MH | 8-10m |
| 80W | 12800LM | 250W HPS or MH | 9-11m |
| 100W | 16000LM | 250W HPS or MH | 10-12m |
| 120W | 19200LM | 400W HPS or MH | 11-14m |
Lead-acid Battery
Lead-acid batteries include electrolyte-type lead-acid batteries (VRLA) and colloidal lead-acid batteries (Gel). They are mainly used in split-type solar street lamp systems and are usually buried underground. They're bigger and cheaper, but they use fewer cycles than lithium-ion batteries.Most lead-acid batteries are 12V or 24V systems.
Lithium Battery
Majority of lithium batteries used in solar street lighting systems are ternary lithium batteries and lithium iron phosphate batteries ( LiFePo4). Lithium batteries are more costly and have a longer lifespan than lead-acid batteries.
Ternary lithium batteries provide superior cold resistance compared to lithium iron phosphate batteries. The high-temperature resistance of lithium iron phosphate batteries is better than that of ternary lithium batteries. Consequently, solar street lighting systems in high-temperature regions often use lithium iron phosphate batteries.
Available Li battery voltages for the solar street light system include 3.7V, 3.2V, 6.4V, 11.1V, and 12.8V.
Monocrystalline Solar Panel
The photoelectric conversion efficiency of monocrystalline silicon solar panels is between 18 and 24 percent, with an average of 18 percent. This kind of solar cell has the greatest photoelectric conversion efficiency of all sorts and a lifespan of up to 25 years. However, manufacturing costs are more than for other types.
Polycrystalline Solar Panel
The manufacturing method of polycrystalline silicon solar panels is same as monocrystalline silicon solar panels, however the photoelectric conversion efficiency of polycrystalline silicon solar panels is lower than monocrystalline silicon solar panels, it is around 16%. But it is cheaper than the monocrystalline silicon solar panels.
PWM Solar Controller
PWM solar controller is the second-generation technology, and the most on the market now. The working method is PWM control. Compared with ordinary solar controllers, it has improved a lot and can solve the problem of battery dissatisfaction. The charging conversion efficiency is 70%, But the solar panels are not fully utilized.
MPPT Solar Controller
MPPT solar controller is a technology of the third generation. It relates to the feature "Maximum PowerPoint Tracking."It is an upgraded product of the PWM solar controller. The MPPT solar controller can detect and maintain track of the voltage and current of the solar panel in real time. Maximum power (P=U*I), ensuring that the battery is always charged with maximum power. The MPPT tracking efficiency is 99%, the system's overall power production efficiency is 97%, and the battery will have a good management.
Let's take the PV series solar street LED light as an example.
Installation steps for split type solar street light
I. Solar Panel Installation
1. Fix the solar panel onto the solar panel bracket using four M6x35 bolts.
2. Attach the spigot to the solar panel bracket with four M8x 40 bolts (Note: The outlet direction of the solar panel junction box is downwards).

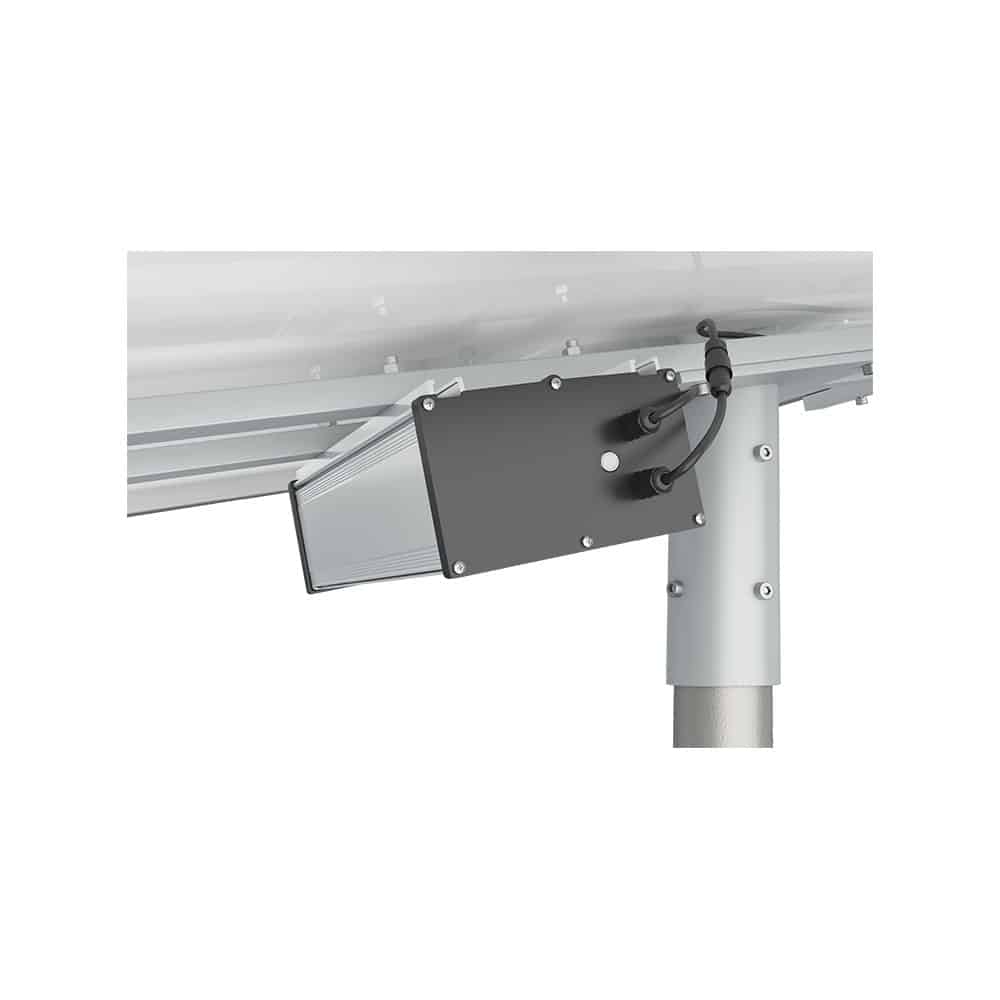

3. Secure the integrated lithium control battery on the solar panel bracket with four M6x35 bolts.
4. Connect the bare wire end of the 1000mm waterproof plug wire to the solar panel (photovoltaic module) junction box. Note that the red /brown wire should be connected to the positive terminal and the black /blue wire to the negative terminal (skip this step if the solar panel comes with pre-attached wires).
II. Street Light Installation
1. Thread the bare wire end of the 2500mm waterproof plug wire from the boƩom hole to the top end of the mounting arm.
2. Route the threaded wire through a PG connector into the street lamp head, and connect it to the terminal block, noting that the red/brown wire is the positive and the black/blue wire is the negative. After completing the wiring, tighten the PG waterproof gland and secure the street lamp head on the mounting arm, ensuring that the street light is parallel to the ground for optimal illumination.
III. Final Assembly
1. Mount the assembled solar panel with the spigot onto the light pole. Note: The solar panel should face towards the sun and not be installed near trees or other obstructions.
2. Fix the assembled street light arm at the corresponding position on the lamp pole.
3. First, connect the waterproof connector wire from the street light to the female connector of the integrated lithium control battery. Turn on the switch of the integrated lithium control battery, wait for approximately 20 seconds until the street light lights up, then connect the solar panel wire (female connector) to the male connector of the integrated lithium control battery (if using multiple solar panels, any male connector can be used for this connection). After completing the connections, the street light should turn off after about 20 seconds, indicating successful wiring.
IV. Additional Notes
The above wiring process is for customers who have their own light poles. If the entire set is provided by ZGSM, we recommend routing the cables through the lamp pole for a neater installation.
Application
Roadway lighting
Paths way lighting
Garden lighting
Driveway lighting
Parking lots lighting
Do you want to customize a solar street light system? Use the form to reach out and we will be in touch with you as quickly as possible.
Why Choose Solar Led Street Lights?
The solar street light is a new type of road lighting fixture. During the day, monocrystalline or polycrystalline silicon solar panels convert solar sun energy into electricity, which is stored in maintenance-free valve-sealed batteries or lithium batteries through the solar controller, and at night, the solar controller controls the discharge of the batteries for the LED lights to work. It will bring many benefits.
Convert solar energy into electricity to drive LED street lamps to work. Solar energy is inexhaustible.
Solar street lights are powered by 12-36V solar panels, which are within the safe voltage range and will not cause electric shock accidents to people, making them safer to use.
Off-grid solar street lights do not require a grid power supply and can operate autonomously as long as there is sunlight, which is very flexible, so they can use even in remote power-deficient areas.
The solar street light system does not need power supply equipment and can be completely automated operation, with no need for personnel management, so low operation and maintenance costs.
Structure of Integrated Solar Streetlight
1. LED Module
Using high-efficiency Lumileds LED chips, the luminous efficiency is up to 205LM/W, the same luminous flux, the power can be reduced by 50%, which greatly reduces the overall cost.
2. Lithium Battery
Integrated solar street light usually use lithium battery as energy storage. Lithium battery are divided into ternary lithium batteries and lithium iron phosphate batteries (LiFePo4 batteries), Lithium battery is a key component in solar street lights, and the cost is also the highest.
3. Solar Controller
At present, most of the solar street lights on the market use PWM controllers, which are relatively cheap. With the continuous development of technology, more and more solar street lights use high-efficiency MPPT controllers, which are relatively expensive.
4. Sensor device
For integrated solar street lights, sensor devices generally include motion sensors, also known as microwave sensors, human body sensors, also known as infrared sensors, and radar sensors.
5. Solar Panels
Solar panels are divided into monocrystalline and polycrystalline solar panels. the conversion efficiency of monocrystalline is higher and the price is higher, polycrystalline solar panels are a little cheaper but with low efficiency, now most integrated solar street lights use mono solar panels.
