Home - LED Products - Series PV4 Integrated Solar Street Light

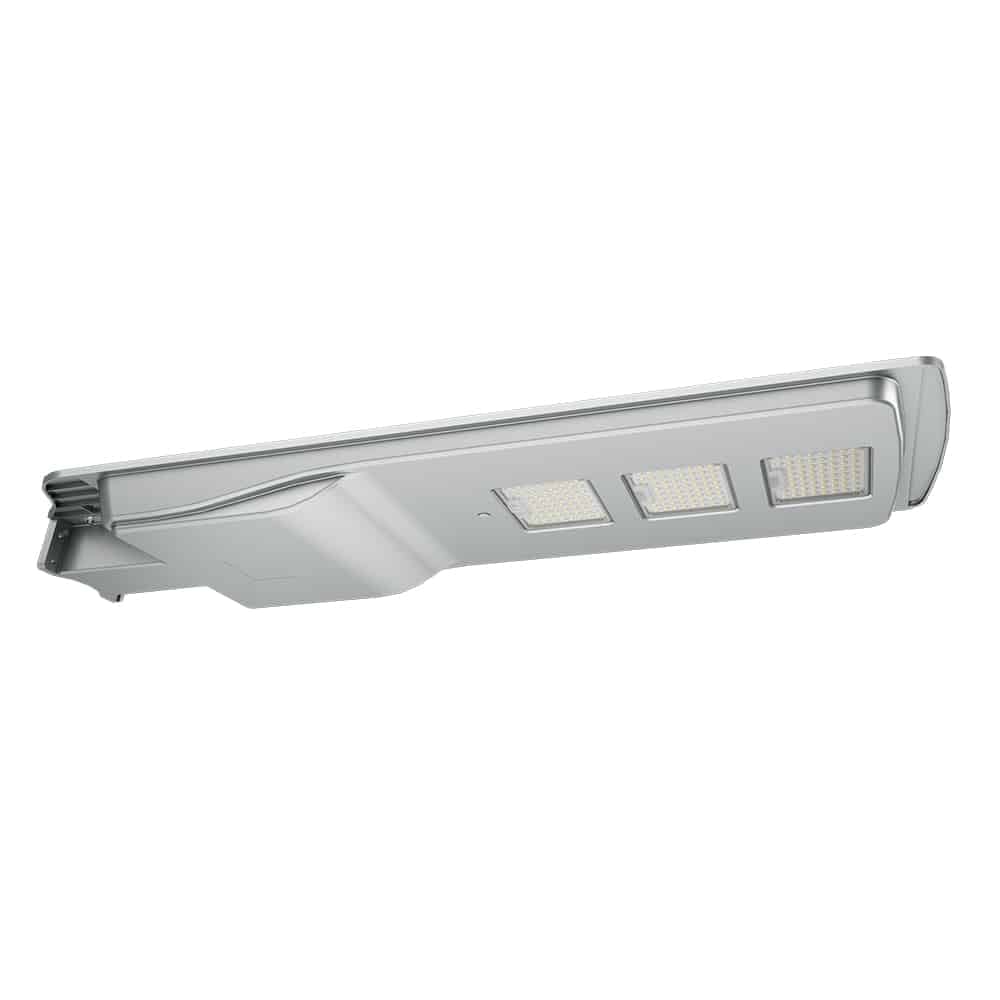

solar street light

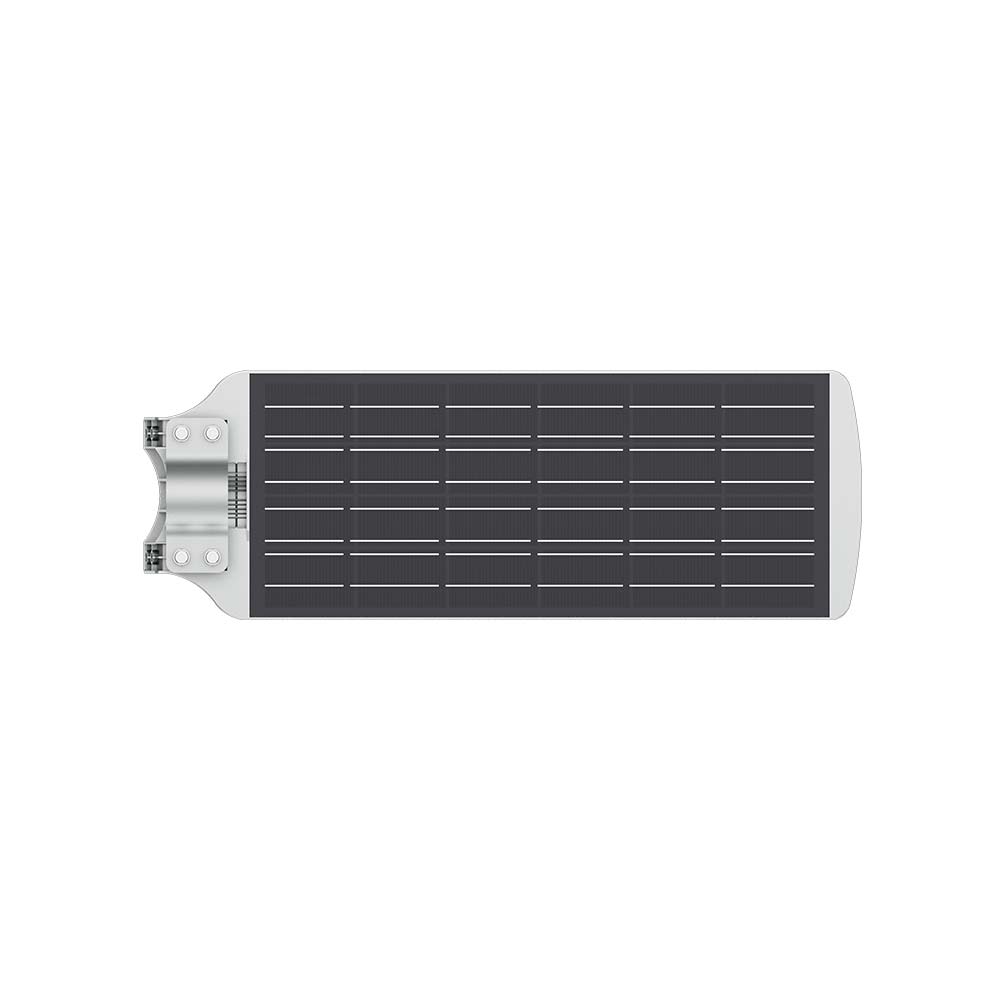

integrated solar street light-3

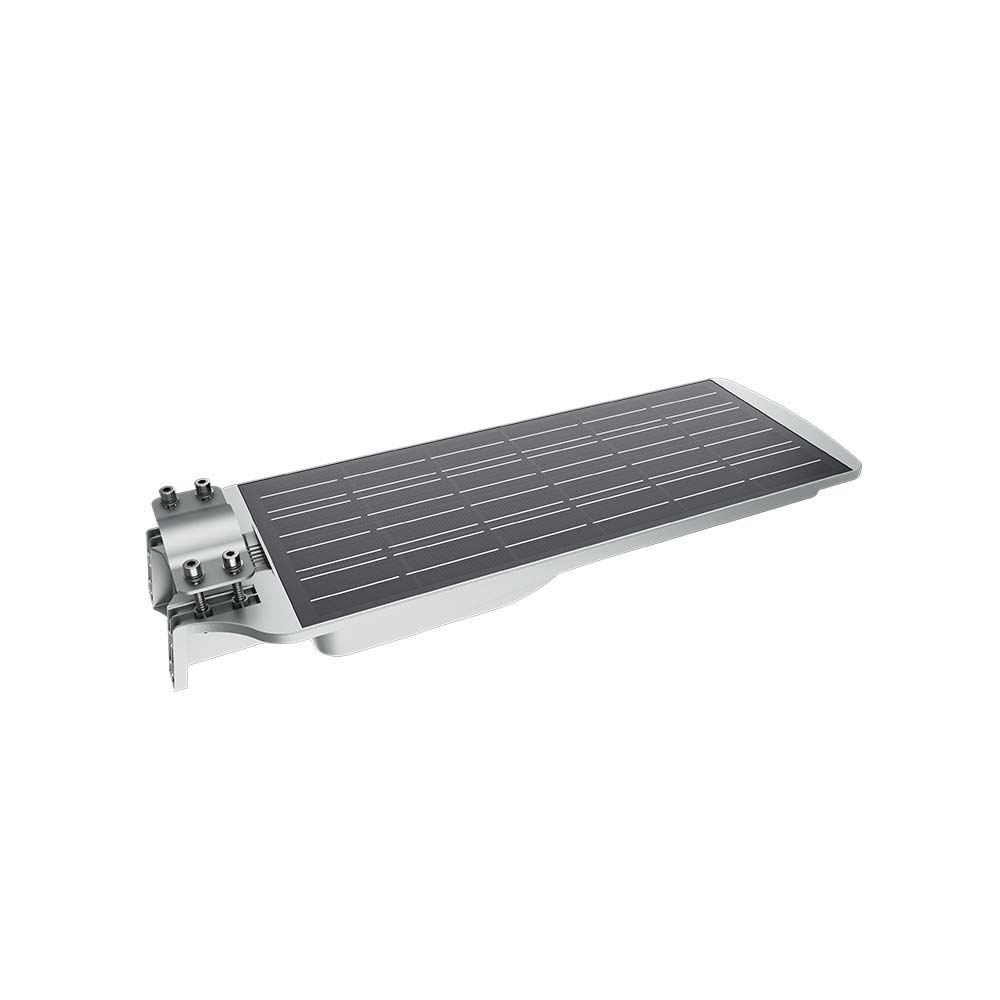

integrated solar street light-4

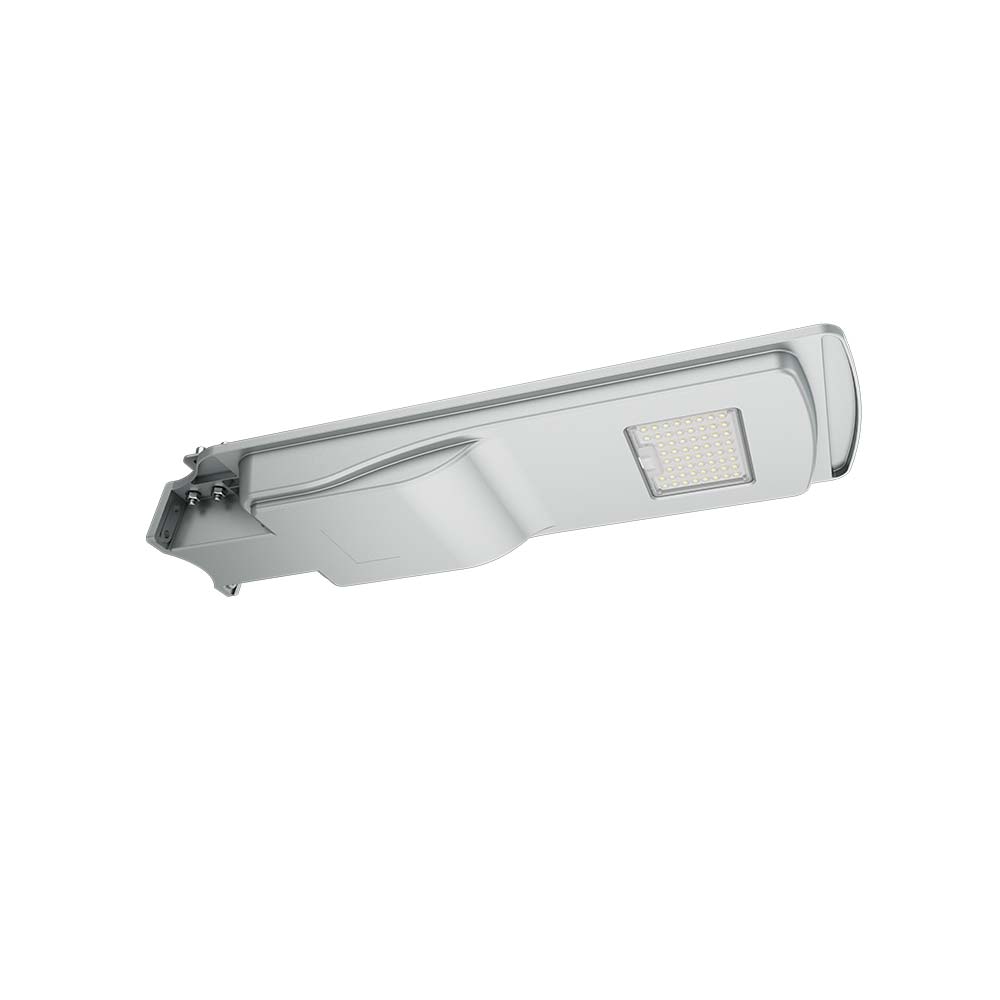

integrated solar street light-2
  • solar street light
  • integrated solar street light-3
  • integrated solar street light-4
  • integrated solar street light-2

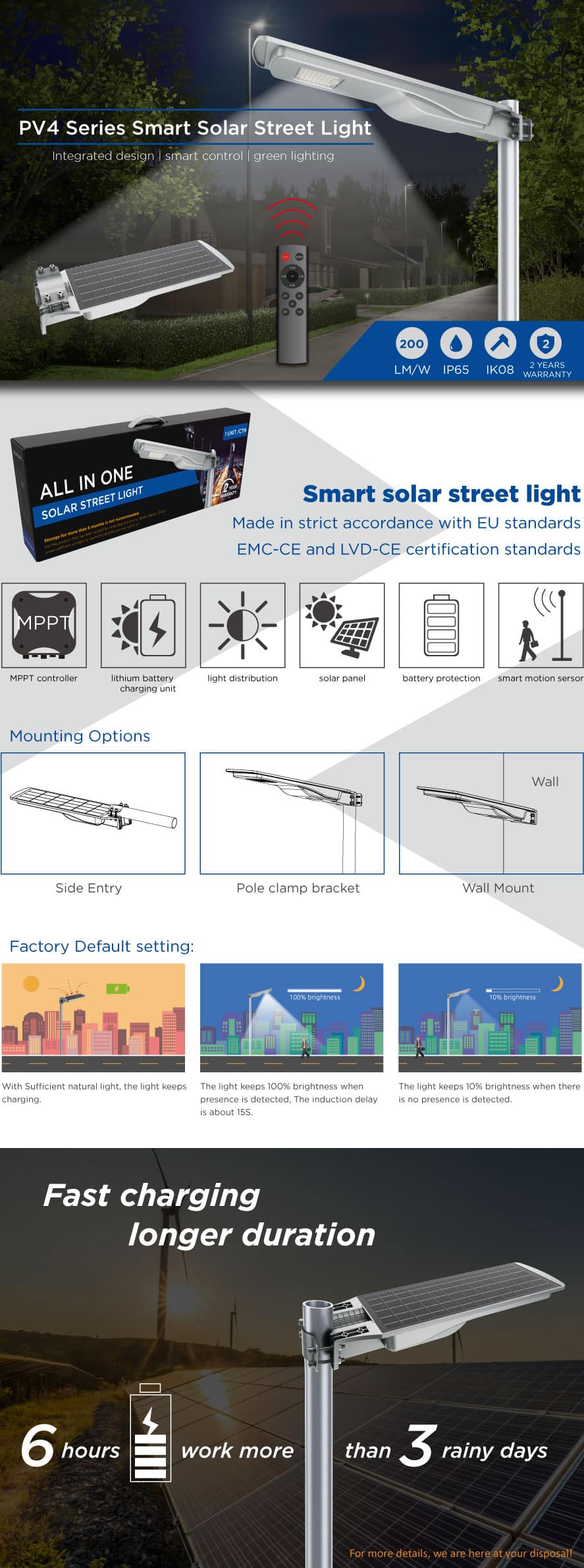

  • Series PV4 Integrated Solar Street Light

    PV4 is a new private design Integrated LED solar street light with a very competitive price, with a slim design and higher conversion efficiency Mono-crystalline Photovoltaic Solar panel, 200lm/w efficiency to make the products with better advantages to meet different requirements from customers, support vertical, horizontal or wall mounted.

    • Power: 10W, 20W
    • All-in-one design
    • Multiple installation modes are supported
    • High efficiency MPPT controller, charging efficiency up to 92%
    • Intelligent battery management, prolong the service life of lithium battery
    • Microwave induction control, realize intelligent power saving mode
    • Perfect protection function, Undervoltage, overcharge protection
    • Infrared wireless remote control, adjust the working mode easily
    Contact Us
    Facebook
    Facebook
    fb-share-icon
    Twitter
    Visit Us
    Tweet
    LinkedIn
    LinkedIn
    Share
    Pinterest
    Pinterest
    fb-share-icon
    Instagram
    YouTube

    • ZGSM products are designed for the global market. Please contact our sales team for certification details.
    • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
    • Description
    • datasheet
    • optics
    • Videos
    • Download
    • application
    • FAQ
    PV4 Integrated Solar Street Light
    Series NoSeries PV4
    Power10W, 20W
    Efficacy200lm/W
    System VoltageDC 12V
    Battery SpecLiFePO4 64WH/128WH
    Solar Panel SpecMonocrystalline 12W/22W
    IP RatingIP65
    IK RatingIK08
    CCT3000K, 4000K, 5000K, 5700K
    CRIRa>70 (Default) / Ra>80
    Operating Temperature-40°C to + 50°C
    Beam AngleType I
    Mounting OptionPost Top, Side Entry, Wall mounted
    Warranty2 Years
    CertificationCE, ROHS, LM80, TM-21
    ControlPIR sensor, Timer dimming, Daylight sensor

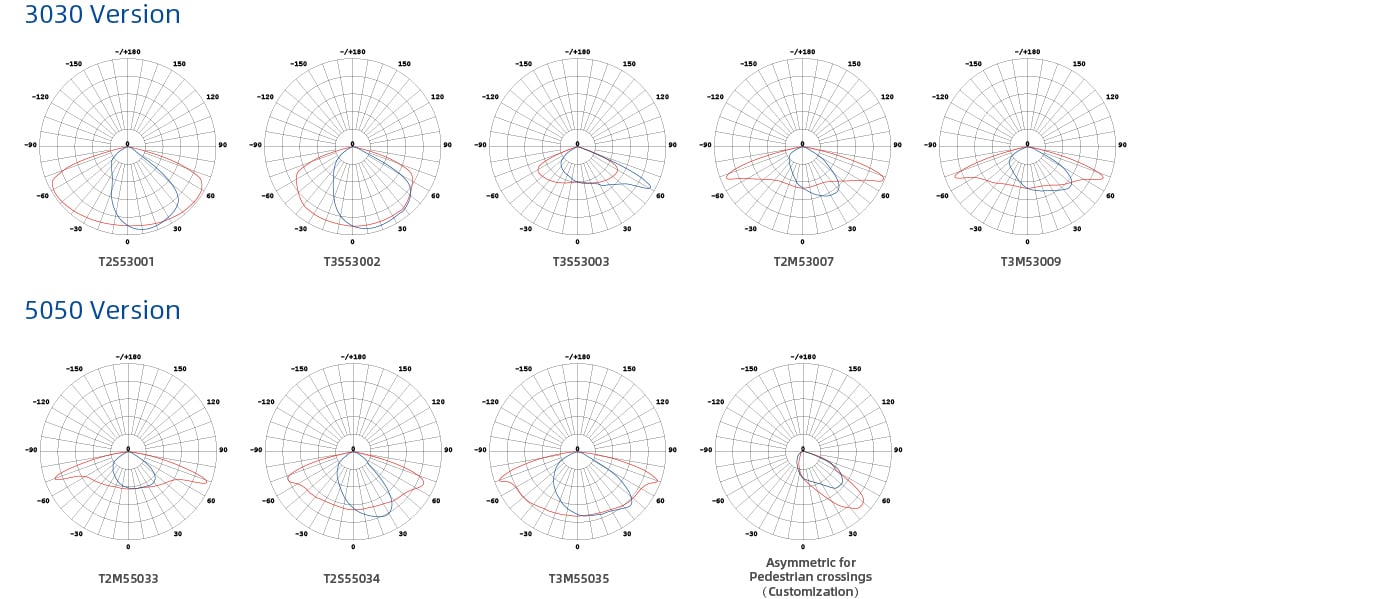

    optic: Series PV4 Integrated Solar Street Light
    Specification_SolarStreetLight_PV4
    installation Manual_SolarStreetLight_PV4
    Series PV3 integrated solar street light in the farm in Malaysia

    Series PV3 integrated solar street light for a farm in Malaysia

    Series PV solar powered parking lot lights in amusement park in Thailand

    Series PV solar powered parking lot lights in an amusement park in Thailand

    Series PV2 solar street light with motion sensor for bus stop lighting in Serbia

    Series PV2 solar street light with motion sensor for bus stop lighting in Serbia

    Series PV2 all in one led solar street light in the mountain in Costa Rica

    Series PV2 all in one LED solar street light in the mountain in Costa Rica

    Series PV2 All in one solar powered street lights for park lighting in UAE

    Series PV2 All in one solar powered street lights for park lighting in UAE

    led solar street light

    Series H led solar street light in the park of Mexico

    The integrated solar street light combined high-efficiency solar panels, 8-year long-life lithium batteries, high-efficiency LEDs and smart controllers, and PIR human body detection modules.
    The advantage of the integrated solar street light is that it is easy to install and light in weight. In most cases, two employees can install the device in five minutes using just a specific wrench and no heavy equipment or tools.
    The operating concept of an integrated solar street light is essentially identical to that of conventional solar lights. The sole distinction is that the integrated solar street light consists of a luminaire, solar panel, battery, and controller. If everything is incorporated into a single luminaire, the lead-acid battery will be replaced with an easy-to-install and lightweight lithium battery.
    Financial benefits of integrated solar street lighting:
    The greatest benefit of integrated solar street lights is that they save money on installation, construction, and commissioning, as well as product shipping costs. If sold overseas, it costs just one-tenth as much as a conventional split solar street light.
    The integrated solar street light has an eight-year lifespan. It employs the first lithium battery management and control technology in the world. Future after-sales service and component replacement expenses for integrated solar street lights may be significantly lowered compared to those for conventional battery products that must be changed every two years. There is often no need to replace the battery or perform maintenance within 8 years, even if it must be changed beyond 8 years. Due to the one-of-a-kind structure of the product, consumers may perform the replacement in a matter of minutes without requiring technical support or the assistance of experts.

    The integrated solar street light converts solar energy to electricity using solar panels and stores the power in a lithium battery. During the day, even on rainy days, this solar generator (solar panel) absorbs and stores the necessary energy, and at night it automatically provides power to the LED lights of the all-in-one integrated solar street light in order to accomplish night illumination. In addition, the integrated solar street light's PIR human body detecting function enables the intelligent human body's nighttime infrared sensing control light work mode to be realized. It is 100 percent bright while there are people in the sensor area and automatically dims to one-third brightness after a predetermined interval when there are no people in the detecting region, therefore smartly conserving more energy. At the same time, solar energy as a kind of "inexhaustible" safe, environmentally beneficial new energy has played a big part in all-in-one integrated solar street lighting.

    In recent years, solar street lighting has acquired significant appeal. It not only reduces your current power costs but also protects the environment and promotes the usage of solar energy. Solar street lights consist primarily of a solar panel, luminaire, rechargeable battery, and pole. As technology progressed, solar panels and LED lights became more economical, secure, and small.
    All in one solar street light uses environment friendly Lithium Battery which provides long life with enhanced product life by trouble free performance. Installing an all in one solar street lamp is much easier. Only three steps are required to install one.
    1. Dig the hole
    2. Screw the lamp to the pole
    3. Finally, put the light pole upright and fixed
    The package contains an easier-to-install solar panel, battery, smart sensor, LED bulb, and controller that can be mounted on even aged poles and buildings.
    These infrared-sensitive lights can automatically turn off throughout the day and turn on once at night after being recharged.
    Additionally, they can detect motion from 7 to 10 meters away and automatically alter their brightness.
    As they are wireless, these lights may be installed at entrances, perimeters, walkways, car parks, playgrounds, courtyards, and even distant regions.
    Always choose an integrated system since they are rustproof, waterproof, maintenance-free, shockproof, and energy efficient.

    Related Products

    bajaj led street light

    Series N Solar Powered Street Lights

    solar street led light

    Series PV Split Type Solar Street Led Light

    Solar Street Light

    Series PV3 All in One Solar Street Light

    Related Blogs

    Advantages and Disadvantages of Solar Power and Solar Street Lights

    TagsSolar Street Light
    ik rating

    IK rating-important factor of LED light

    TagsIK
    IP rating

    IP rating-important factor of LED lights

    TagsIP rating
    something about leds

    Something you should know about LEDs

    TagsLEDs

    Best Solar Street Light Manufacturer Factory, Supplier In China

    ZGSM is the top manufacturer, factory, supplier of solar street lights in china since 2005. We can help you win the bidding or markets by the following point:

    Highest quality
    All of the materials will be top quality such as Longlife time LiFePo4 battery, high efficiency MPPT Controller, high conversion Mono solar panel, etc.

    Custionized service
    According to the sunshine conditions of your city, working time, regular weather, our technical team will customize a solar street light system that meets the local for you.

    aging test for led lights
    Aging test

    Why Choose us as your Solar Powered Street Light Supplier in China?

    OEM/ODM/SKD

    Available to do OEM/ODM/SKD for all solar street light. No MOQ limits for solar lights retailers, wholesalers, and engineering companies.

    FAST DELIVERY TIME

    As a reliable solar power street light supplier, we have materials stocks for solar street lamp, regular delivery time is 3 days for samples and 2 weeks for bulk.

    BEST QUALITY&PRICE

    We use top stable quality solar panels and lithium battery and MPPT controller for all solar led street light. Providing 3 Years warranty at the cheapest price.

    CUSTOMIZATION

    We can customize power of LED street lamp and solar panel, battery capacity, controller, cables, pole, mounted bracket according to customers' needs.

    Things you need to know about Solar Street Lights

    As a professional solar street light manufacturer, we can provide different types and functions of solar street lights or solar powered parking lot lights, such as wind solar hybrid street light, AC/DC hybrid solar street light, motion sensor solar street lights, human body induction control solar street lights, timer dimming solar street lights, etc. . Additional accessories for solar street lighting systems such as foundation cages, street lighting poles, cables, etc. are available. These solar street lights can be widely used as garden lighting, road lighting, school campus, etc.

    • Types
    • Power
    • Battery
    • Solar Panel
    • Solar Controller
    • Installation
    • Application
    • Customization
    solar street light

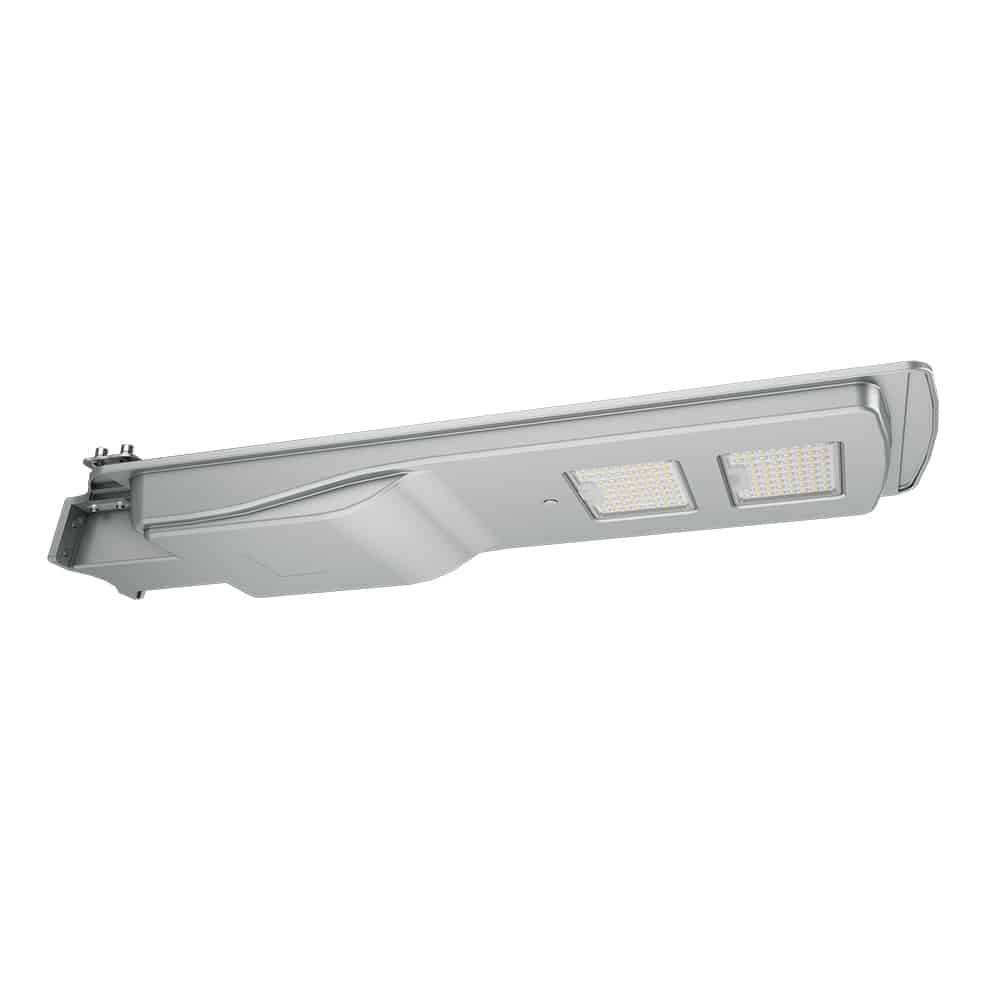

    All in one solar street light

    All in one solar street lights also called “Integrated solar street lights”, is a combination of high-efficiency solar panel, lithium battery, LED modules and smart controller, PIR or Motion sensor, etc. Easy to install and transport

    solar street light

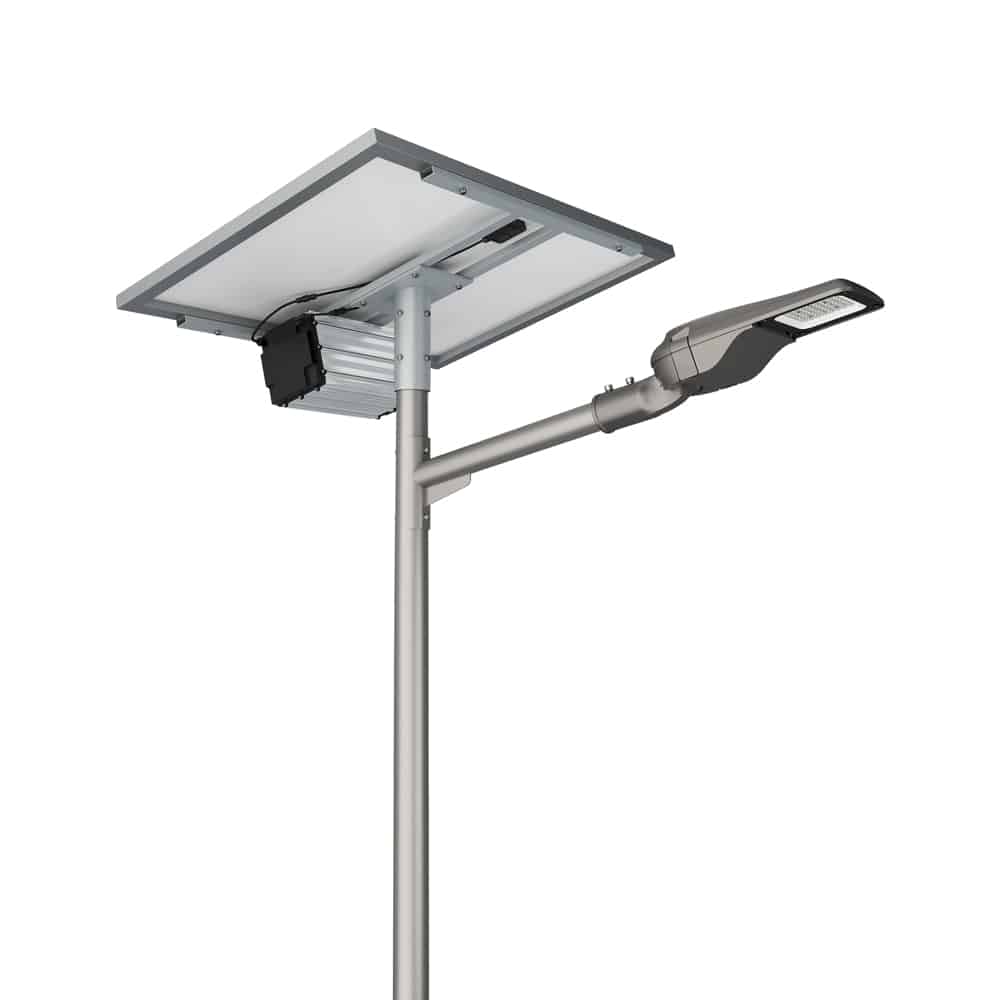

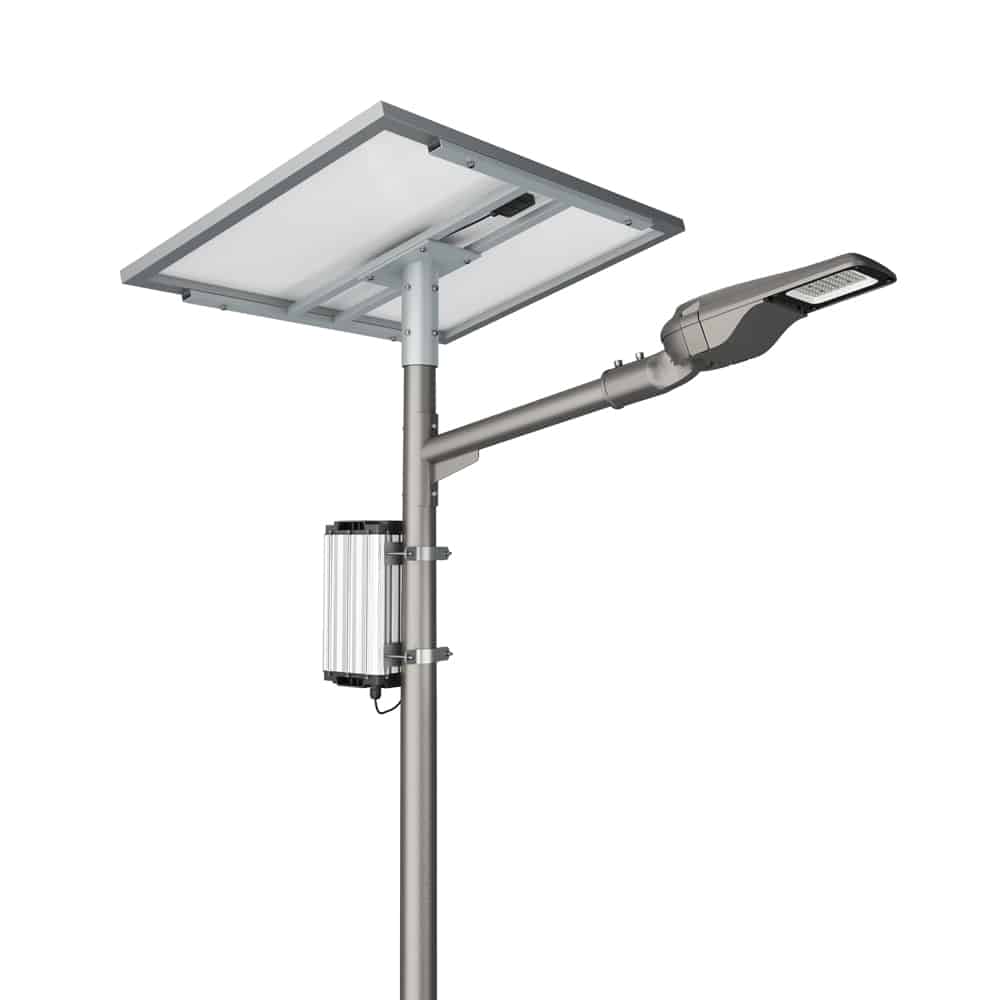

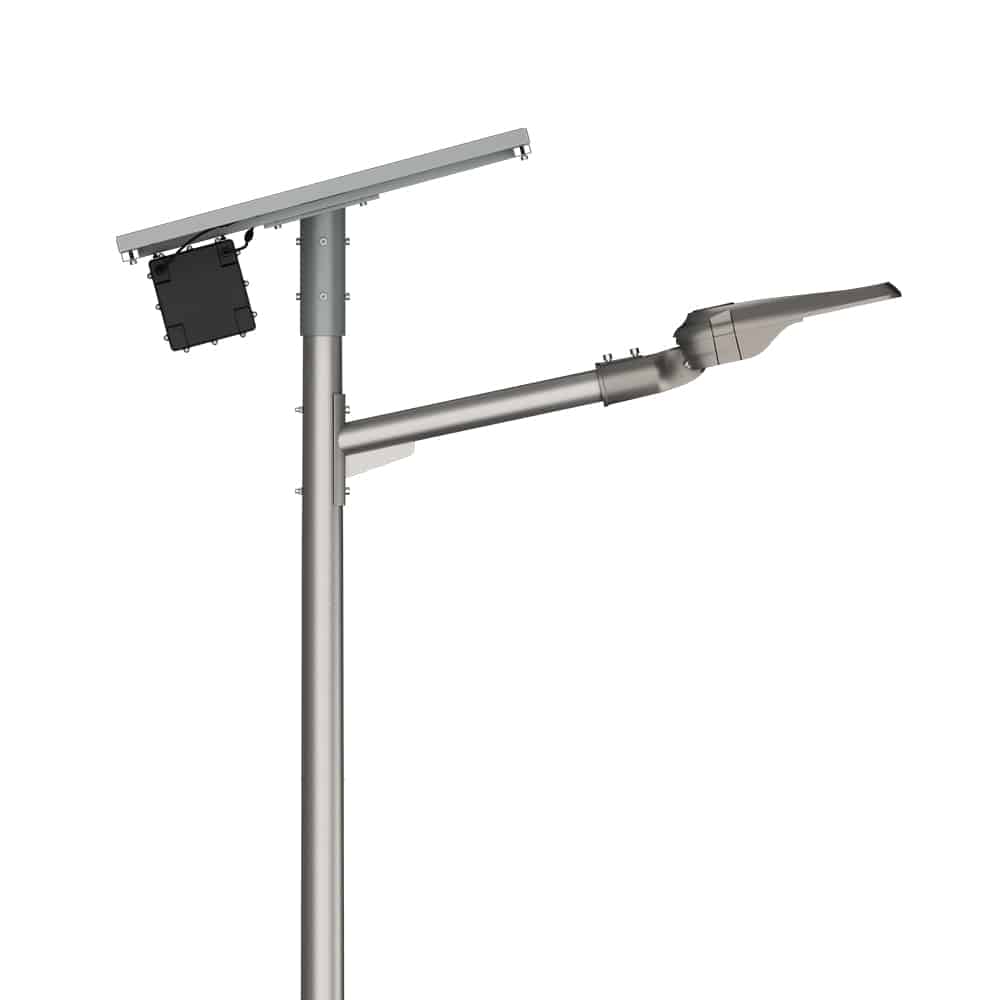

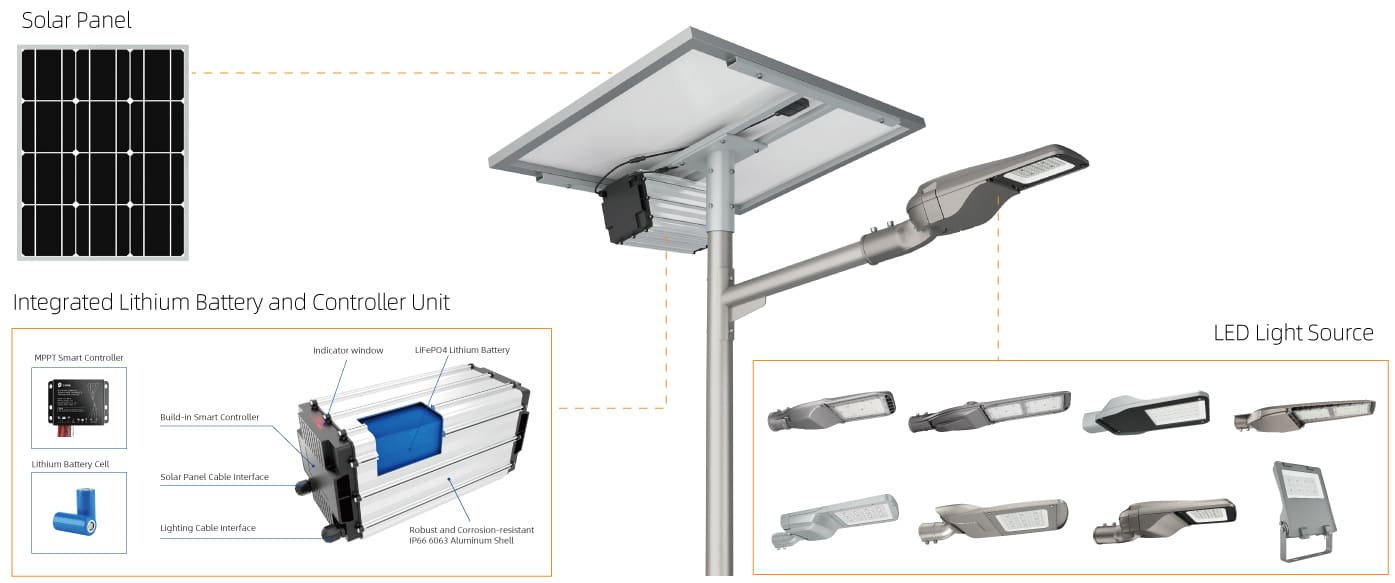

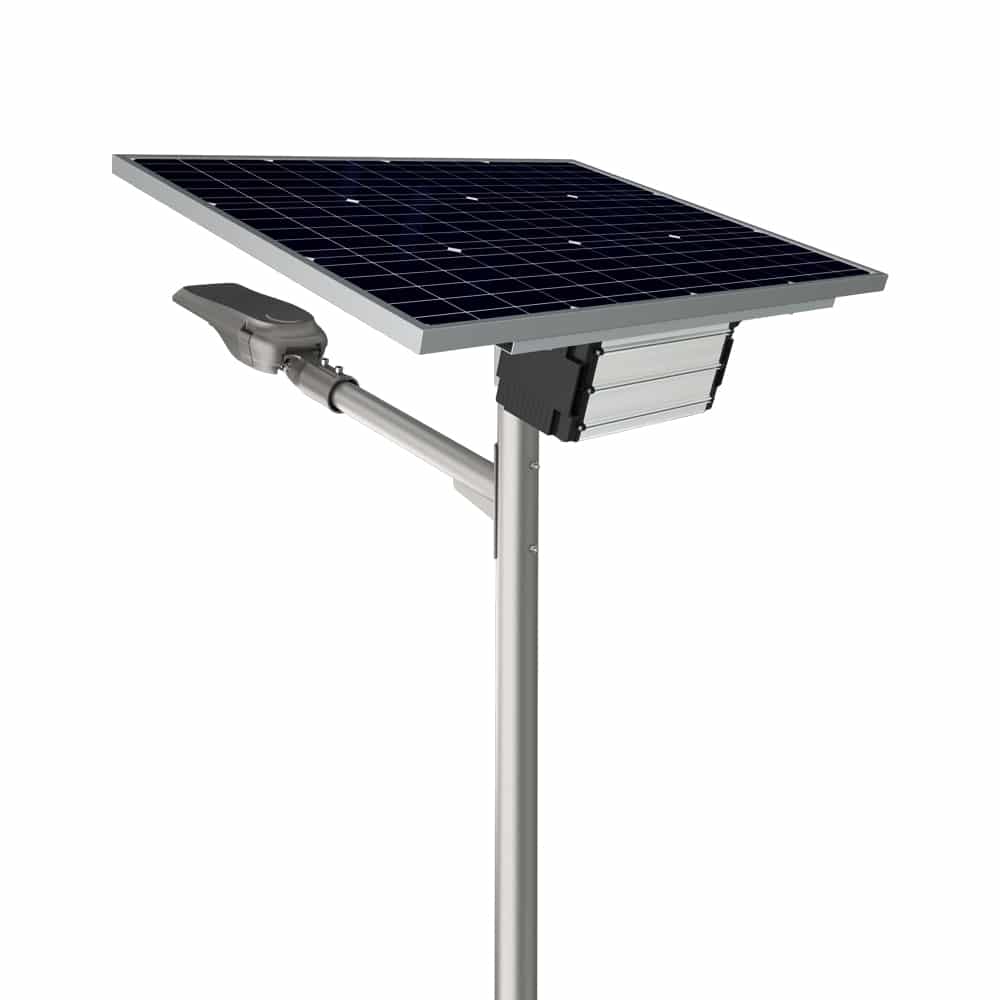

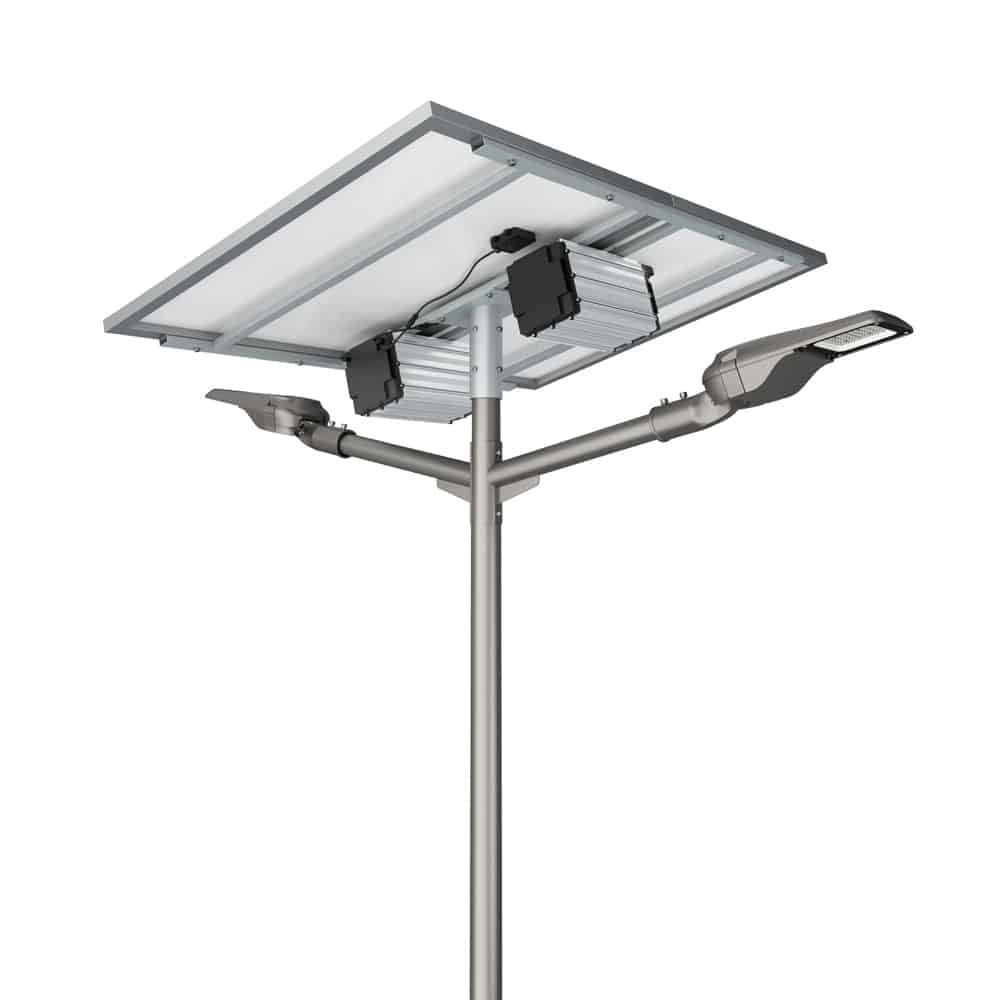

    Split solar street lights

    Split solar street light is divided into complete split and All in two types.
    Complete split: Each parts are seperately.
    All in two: Lithium battery and controller is build-in the LED street lamp body, the solar panels are seperately.

    Power (W)Lumens (LM)Replacement (W)Install height (M)
    10W2000LM35W HPS or MH3-4m
    20W4000LM60W HPS or MH4-5m
    30W4800LM100W HPS or MH5-6m
    40W6400LM150W HPS or MH6-7m
    50W9000LM150W HPS or MH7-8m
    60W9600LM200W HPS or MH8-10m
    80W12800LM250W HPS or MH9-11m
    100W16000LM250W HPS or MH10-12m
    120W19200LM400W HPS or MH11-14m
    Lead-acid Battery

    Lead-acid Battery

    Lead-acid batteries include electrolyte-type lead-acid batteries (VRLA) and colloidal lead-acid batteries (Gel). They are mainly used in split-type solar street lamp systems and are usually buried underground. They're bigger and cheaper, but they use fewer cycles than lithium-ion batteries.Most lead-acid batteries are 12V or 24V systems.

    Lithium batteries

    Lithium Battery

    Majority of lithium batteries used in solar street lighting systems are ternary lithium batteries and lithium iron phosphate batteries ( LiFePo4). Lithium batteries are more costly and have a longer lifespan than lead-acid batteries.
    Ternary lithium batteries provide superior cold resistance compared to lithium iron phosphate batteries. The high-temperature resistance of lithium iron phosphate batteries is better than that of ternary lithium batteries. Consequently, solar street lighting systems in high-temperature regions often use lithium iron phosphate batteries.
    Available Li battery voltages for the solar street light system include 3.7V, 3.2V, 6.4V, 11.1V, and 12.8V.

    MONO SOLAR PANELS

    Monocrystalline Solar Panel

    The photoelectric conversion efficiency of monocrystalline silicon solar panels is between 18 and 24 percent, with an average of 18 percent. This kind of solar cell has the greatest photoelectric conversion efficiency of all sorts and a lifespan of up to 25 years. However, manufacturing costs are more than for other types.

    POLY SOLAR PANELS

    Polycrystalline Solar Panel

    The manufacturing method of polycrystalline silicon solar panels is same as monocrystalline silicon solar panels, however the photoelectric conversion efficiency of polycrystalline silicon solar panels is lower than monocrystalline silicon solar panels, it is around 16%. But it is cheaper than the monocrystalline silicon solar panels.

    pwm solar controller

    PWM Solar Controller

    PWM solar controller is the second-generation technology, and the most on the market now. The working method is PWM control. Compared with ordinary solar controllers, it has improved a lot and can solve the problem of battery dissatisfaction. The charging conversion efficiency is 70%, But the solar panels are not fully utilized.

    MPPT solar controller

    MPPT Solar Controller

    MPPT solar controller is a technology of the third generation. It relates to the feature "Maximum PowerPoint Tracking."It is an upgraded product of the PWM solar controller. The MPPT solar controller can detect and maintain track of the voltage and current of the solar panel in real time. Maximum power (P=U*I), ensuring that the battery is always charged with maximum power. The MPPT tracking efficiency is 99%, the system's overall power production efficiency is 97%, and the battery will have a good management.

    Let's take PV4 series solar powered street light as a example

    side entry

    Side Entry Mounted

    STEP 1: Loosen the four screws on the bracket, and put the hoop anchor on the top of the bracket, fix with screws but do not screw them all, as shown above.
    STEP 2: Insert the lamp into the pole according to the arrow direction, as shown above.
    STEP 3: Tighten the four screws of the bracket, The installation is completed.

    post top mounted

    Post Top Mounted

    STEP 1: Loosen the four screws on the bracket, but do not unscrew them all, as shown above.
    STEP 2: Insert the lamp into the pole according to the arrow direction, as shown above.
    STEP 3: Tighten the four screws of the bracket, The installation is completed.

    wall mounted

    Wall Mounted

    STEP 1: Loosen the four screws on the bracket, remove the hoop anchor.
    STEP 2: Drill four M8 holes on the wall refer to mounted bracket holes.
    STEP 3: Fix the lamp to the wall using fours M8*60 expansion screws, the installation is completed.

    Application

    Roadway lighting
    Paths way lighting
    Garden lighting
    Driveway lighting
    Parking lots lighting

    Do you want to customize a solar street light system? Use the form to reach out and we will be in touch with you as quickly as possible.

    Why Choose Solar Led Street Lights?

    The solar street light is a new type of road lighting fixture. During the day, monocrystalline or polycrystalline silicon solar panels convert solar sun energy into electricity, which is stored in maintenance-free valve-sealed batteries or lithium batteries through the solar controller, and at night, the solar controller controls the discharge of the batteries for the LED lights to work. It will bring many benefits.

    • Energy saving

    Convert solar energy into electricity to drive LED street lamps to work. Solar energy is inexhaustible.

    • Safety

    Solar street lights are powered by 12-36V solar panels, which are within the safe voltage range and will not cause electric shock accidents to people, making them safer to use.

    • Flexible application

    Off-grid solar street lights do not require a grid power supply and can operate autonomously as long as there is sunlight, which is very flexible, so they can use even in remote power-deficient areas.

    • Less investment

    The solar street light system does not need power supply equipment and can be completely automated operation, with no need for personnel management, so low operation and maintenance costs.

    Structure of Integrated Solar Streetlight

    Structure of all in one solar led street light

    1. LED Module

    Using high-efficiency Philips Lumileds LED chips, the luminous efficiency is up to 205LM/W, the same luminous flux, the power can be reduced by 50%, which greatly reduces the overall cost.

    2. Lithium Battery

    Integrated solar street light usually use lithium battery as energy storage. Lithium battery are divided into ternary lithium batteries and lithium iron phosphate batteries (LiFePo4 batteries), Lithium battery is a key component in solar street lights, and the cost is also the highest.

    3. Solar Controller

    At present, most of the solar street lights on the market use PWM controllers, which are relatively cheap. With the continuous development of technology, more and more solar street lights use high-efficiency MPPT controllers, which are relatively expensive.

    4. Sensor device

    For integrated solar street lights, sensor devices generally include motion sensors, also known as microwave sensors, human body sensors, also known as infrared sensors, and radar sensors.

    5. Solar Panels

    Solar panels are divided into monocrystalline and polycrystalline solar panels. the conversion efficiency of monocrystalline is higher and the price is higher, polycrystalline solar panels are a little cheaper but with low efficiency, now most integrated solar street lights use mono solar panels.
