Smart solar street lighting With Zhaga Socket and LoRaWAN

Smart solar street lighting With Zhaga Socket and LoRaWAN

table of Contents
  1. Introduction
  2. Case Study of Smart Solar Street Light with Zhaga in Tunisia
  3. Tunisia Project Requirements
  4. How does it come up with Zhaga (book18) socket for IoT receptacle in Smart solar street lighting?
  5. How to select the solar panel and battery specifications for smart solar street lighting?
    1. Solar panels
    2. Battery(Lithium)
  6. Related Products
  7. Related Blogs
  8. Related Cases
  9. People also ask
  10. Author introduction

Introduction

Along with the smart control system used in public street lighting (Powered by utility 220V-240VAC 50/60Hz) which I mentioned in the last blog, it has recently got increasingly prevalent in smart solar street lighting. Solar energy is green, eco-friendly, limitless and most importantly, it largely helps you minimize the amount on your monthly bills. Likewise, governments of municipalities are now putting forward this strategy into public infrastructure constructions including road lighting with smart solar control system.

Case Study of Smart Solar Street Light with Zhaga in Tunisia

One of such a successful project I have done is located in the south of the country of The Republic of Tunisia (In French: La République Tunisienne).

Smart Solar Street Lighting Project Completed In The Republic of Tunisia

Tunisia is located at the very north of African continent that owns tremendous resources of tourism industry. Its capital Tunis, is located also at the northern tip of Africa, bordering Algeria to the west, Libya to the southeast, the Mediterranean Sea to the north and east, and Italy across the Strait of Tunisia. It has a total area of ​​162,000 square kilometers and a coastline of 1,300 kilometers.

The northern part has a Mediterranean climate, while the southern part has a tropical desert climate. Mild and rainy winters, hot and dry summers; tropical continental desert climate in the south. Thus makes it adequate for solar energy in the south area where our smart solar street lighting projects with smart control system based on. These projects are assembled with Zhaga socket and LoRaWAN system. There are now more than 2,000 solar LED street lights equipped with this Smart Control in Tunisia.

LED solar street lights with intelligent control systems.
LED solar street lights with intelligent control systems.

However, the first time I knew the concept of smart control with especially new request Zhaga socket was when Bangladesh governments put solar smart control system with Zhaga socket in their local bidding documents. Let’s have a look at it. The project name is PURBACHAL NEW TOWN PROJECT with it’s name as Supply and Installation of LED Solar Street Light ( Watch the video of the All-in-One Solar Street Lamp ) at Partial Road 111, 114 up to CBD in Purbachal New Town project (Lot-6). please see below screenshot of the bidding website information:

Tunisia Project Requirements

Supply, fitting & fixing of 60W Solar LED Street light Shade with Battery ( Please review case studies of street light fitting. ), MPPT Controller & IoT as follows

  • Lamp Power: 60W
  • Brand: Any internationally reputed brand
  • LED Chip: 2 Modules of LED Type SMD(Surface Mounted Device)Philips/Osram/Cree/Tridonic/Bridgelux/Nichia
  • Luminous Flux: Minimum 10,250 lumens
  • Color Temperature: 4000~4500 K as per EU standard
  • Operating Temperature: -40°C~60°C
  • Color Rendering Index:>70
  • Operating Humidity: 10%~90%
  • Materials: High-Pressure Die-Casting Aluminum, Corrosion Resistant
  • Lifetime: >50,000 hours (LM80 test report must be submitted)
  • Dimension: (645×295×144) mm (+/-10%)
  • IP Rating(What’s IP rating):IP66
  • IK Rating: IK08
  • IoT Receptacle: 4-pin Zhaga (book 18) socket
  • Constant Current LED Driver Wattage: 60W
  • Dimming: 0-10V/DALI dimmable
  • Input Voltage: 24V DC, Input Current: < 3.2A,Output Voltage: 30-40V DC, Output Current: 1.5A
  • Protection: Short-Circuit and Overload Protection, Efficiency: >90%
  • Certifications and/or Test Reports must be submitted

How does it come up with Zhaga (book18) socket for IoT receptacle in Smart solar street lighting?

Zhaga socket with lamp controller

That’s the thing we must learn from our clients and the market! There are always new solutions and concepts emerges out there. As one of the leading top companies in China, ZGSM engineering team never stops study and find new solutions. The controlling parts of this system is somehow similar or same as the regular ones.

A complete set of “smart control” specified solar led street light contains the following parts

COMPONENTS PHOTO

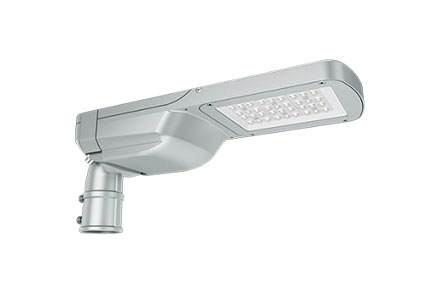

Lamp head – LED street light
Wattage: 15W~150W
Optic Lens: Type II, III
CCT: 3000K, 4000K, 5000K, 5700K
CRI: >70/80/90
Dimming: Yes
Rating: IP66 IK10
Lifetime: L70 > 100,000hrs

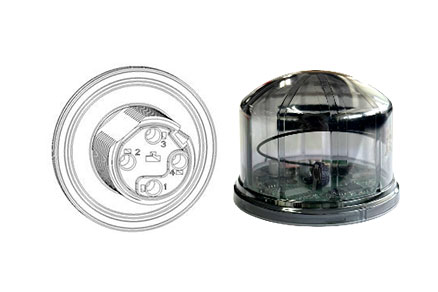

Lamp Controller with Zhaga socket(book 18)

It helps largely reduce work load of street lamp management department, and improve working efficiency, therefore significantly improve energy-saving benefit of all society.

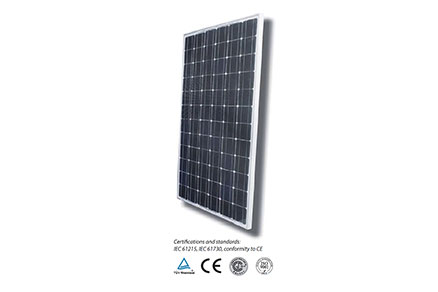

Solar Panels
As per customers'project specifications, High Conversion Efficiency of Module (from19% to 20%), with superior cell technology and leading manufacturing capability Power Tolerance Guaranteed power tolerance from -3% / +5% ensures power output reliability Excellent performance under low light environments (mornings, evenings, and cloudy days) ZGSM Current Sorting Process All ZGSM modules sorted and packaged by amperage, maximizing system output by reducing mismatch losses by up to 2%

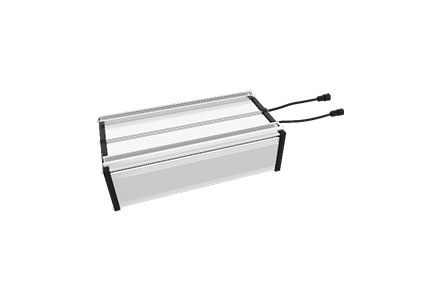

Lithium Battery Pack with MPPT charge controller – RS485 version
The casing of the pack is aluminum. MPPT - With IoT remote control (RS485 interface, external communication module is required). Meanwhile the battery capacity is defined by the specific project.

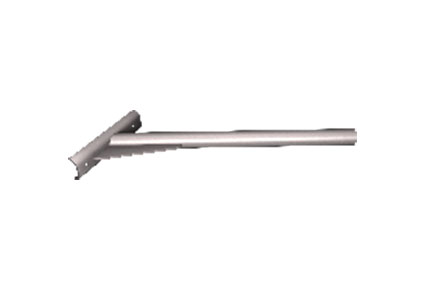

Arm support 1 Meter
Hot-dip galvanizing spray treatment

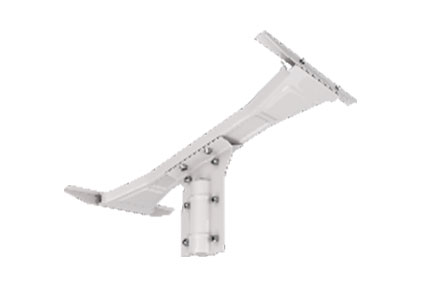

Mounting bracket for solar panel
Carbon steel Q235, Hot-dip galvanizing spray

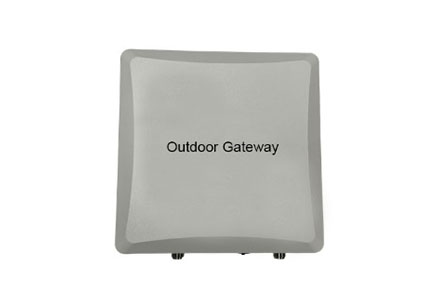

Gateway– LoRa WAN

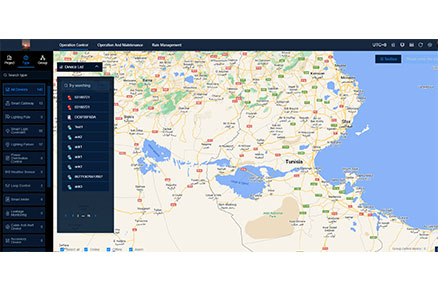

IoT Platform Interface (Free of Charge)
with map function, monitoring, dimming

How to select the solar panel and battery specifications for smart solar street lighting?

It depends on what the client want the dimming mode and the local environment such as sunshine hours per day on average and if there are too many rainy days all the way. While people often asks for working time at 12 hours, here we have a common dimming program is 4 hours 100% power + 4 hours 50% power +4 hours 30% power. Certainly you can change this program to what you want. Then we set the rainy days as 1 day and sunshine hours as 5 hours. In the end we calculate the system specifications for solar panels and battery capacity.

Solar panels

We’re recommending monocrystalline type because it has not only high efficiency to convert solar energy into battery energy but somewhat competitive prices compared to polycrystalline type. Quality comes first. Even type of polycrystalline is little bit cheap. There are options from 50W/18V to 200W/36V.

Battery(Lithium)

We prepared models from 18AH 12.8V to 78AH 25.6V for any kinds of projects upcoming.

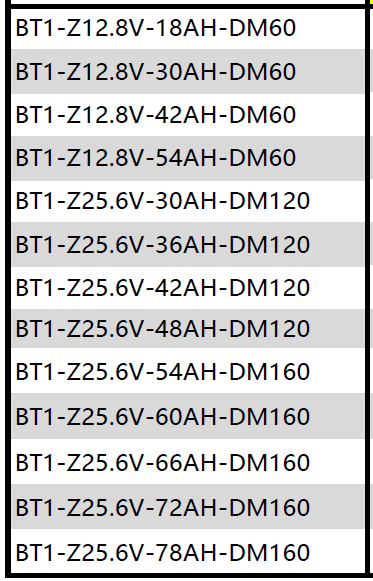

Models of battery packs Remarks

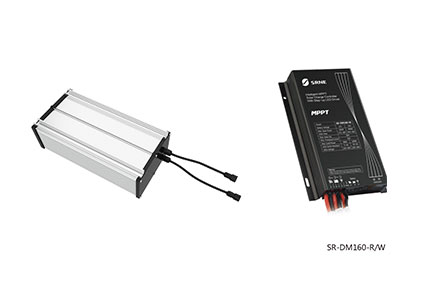

SRNE brand is selected as our option of MPPT charge controller in our battery pack
– BMS (Battery Management System) because of its reliability and endurance.
With aluminum material for its housing, the heat can be largely diffused, which keeps the battery and MPPT charge controller in fine working environment and allow them longer lifespan.

Software-interface
Software interface

IIt is so rarely used with Zhaga socket in solar LED street lighting that when it comes to such different and special requests from customers sometimes.

Moreover, we have a complete set of LED solar street light with such a smart control system (With Zhaga socket) in our showroom like the photo. It would be better for you and me to hold a meeting online so that I can well explain everything to your team. Only in this way we can understand each other better and it helps us get the tenders more smoothly in the future.

Have you found any issues or doubts after reading my blog? Anyway it shall be more and more popular in African markets and other places where there are much enough solar energy to equip their solar street lighting with “Smart Control System” in the next decades.

Related Products

Series Nova Long Lifespan Split Solar Street Light

Series Rifle Solar Powered Street Lights With Sensor

Series Kmini Split Type Solar Street LED Light

Series Leaf High Efficacy Solar Powered Street Lamp

Series PV5 All in One Solar Street Light

Related Blogs

ZGSM solar street lighting system

Important parameters and calculations of solar street lighting systems

Tagssolar street light systems
Solar street light price

Solar street light price and component cost breakdown

TagsSolar street light price

Advantages and Disadvantages of Solar Power and Solar Street Lights

TagsSolar Street Light
Energy preformance contract

Energy performance contract of street lighting solution

TagsEnergy performance contract of street lighting solution
Safety and structural requirements of street lighting

Safety and structural requirements of street lighting

TagsSafety and structural requirements of street lighting

Related Cases

K series street light head for Solar street lamp system in Mexico-1

Series K street light head for Solar street light system in Mexico

Series Rifle solar street lamp for country road lighting in Thailand-2

Series Rifle solar street lamp for country road lighting in Thailand

traffic light systems-2

Solar-powered Traffic Light Systems in Portugal

60 watt solar street light for highway lighting in Tunisia

Series H 60 watt solar street light for highway lighting in Tunisia

Kmini led solar street lamp

Series Kmini led solar street lamp on Suburban highway in Tunisia

People also ask

Before purchasing, you need to know how you plan to use your solar lights ( Please review videos about Solar Powered Street Lights. ). Generally speaking, split solar street lights or high-quality integrated solar street lights are used for projects; Cost-effective integrated or commercial integrated solar street lights are used for household use.

  • Wattage or brightness of the lamp: generally measured in lumens which is subject to lighting simulation.
  • Solar panel type and capacity: monocrystalline panels are preferred, and the capacity should be enough to fully charge the battery in one day.
  • Battery type and capacity: lithium batteries are preferred. The battery capacity is generally 2-3 times the power consumed by the lamp in a day.
  • Type and quality of controller, MPPT and brand manufacturer are preferred.
  • Functions and other accessories, as appropriate to meet project and installation requirements

Author introduction

Author

Hello Customers,

Hi I am Zuck and I’ven been focused on LED lighting since 2016. I feel enthusiastic to work together with people and provide positive proposals and tendering/bidding supports for you including works not only customized requests and parameters required in documents but also even production, installation advices and shipment tracking of your cargos. Looking forward to hear from you soon.
