Series H 60 watt solar street light for highway lighting in Tunisia

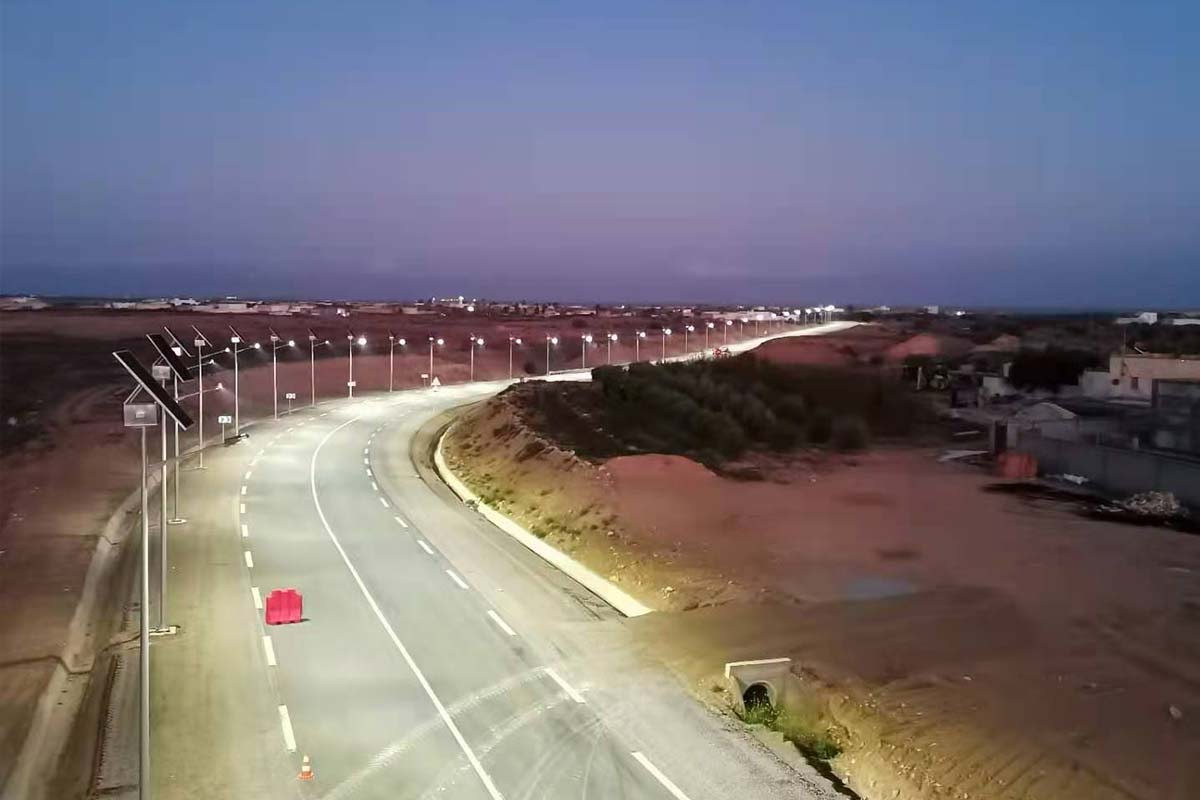

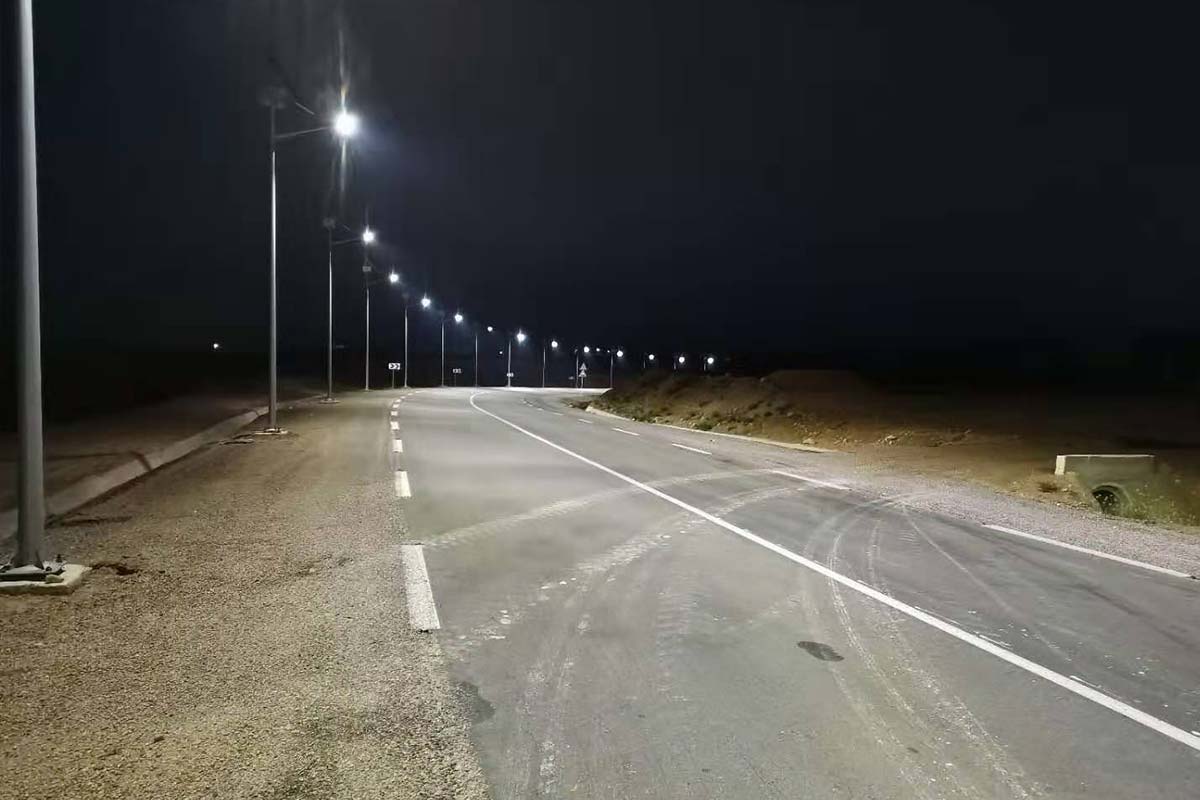

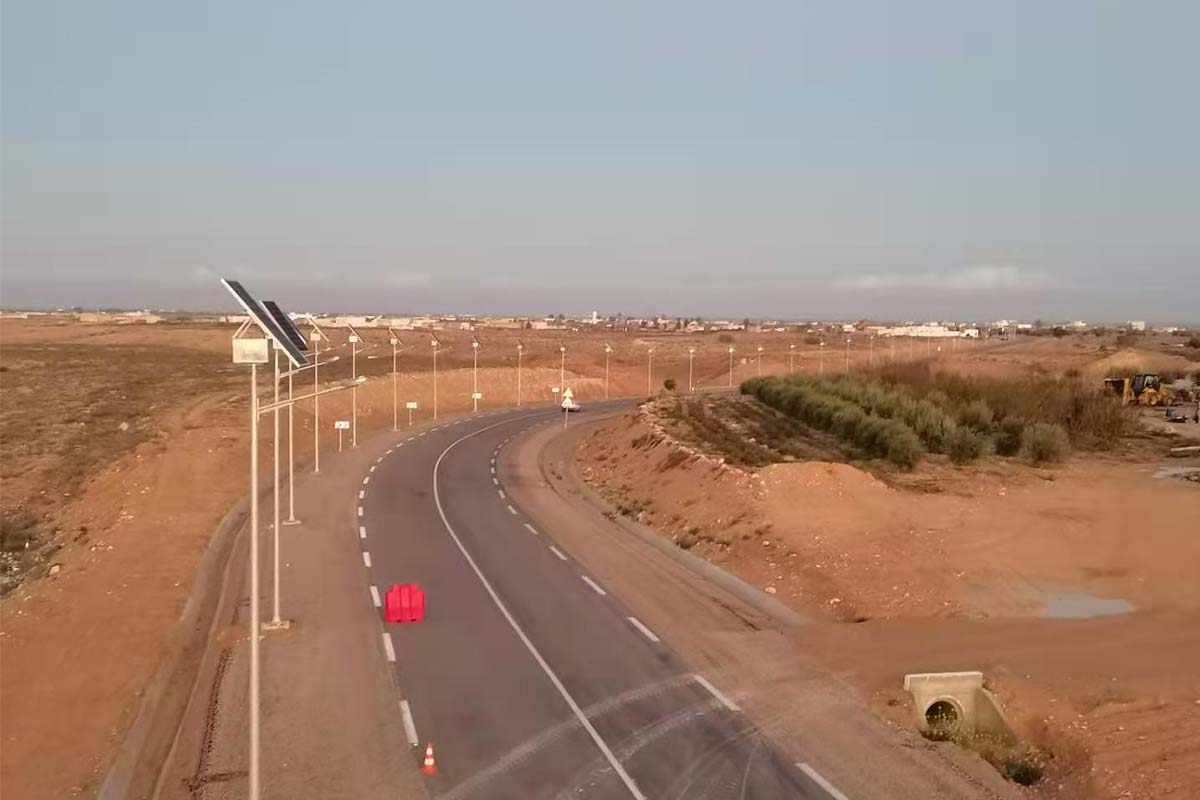

60 watt solar street light project for highway lighting in Tunisia. This is a new roadway lighting project, selected is ZGSM‘s best classic Series H modular 60w LED street light with MPPT solar controller built-in LED driver, uses timer dimming function, 100% brightness for the first period of 4 hours, 50% brightness for the second period of 4 hours, and the remaining period 30% brightness until dawn and turn off the lights; there are many local thieves, so the battery is installed in the battery box on the top of the light pole to prevent theft; the solar panel adopts high-efficiency monocrystalline silicon; the project is very successful with high lux value and perfect uniformity.

Project details:

ProductModelCCT/ OpticsQuantity
60 watt solar street light with MPPT build-in controllerZGSM‐LD60H65700K/ 2M445pcs
Monocrystalline silicon solar panel200W/445pcs
Deep cycle maintenance lead-acid battery100AH/890pcs
Customer Feedback
These lights were very easy to install.This light is super bright. It lights up a very large area.I will purchase more in the future.
Ali
Import Manager of Company

.

    • Download

    datasheet
    installation Manual

    Products Used

    Video

    Related Products

    Related Projects

    Related Blogs

    People also ask

    What Light Fixture Are You Recommending With The Solar Assembly?
    Many solar street light manufacturers do lighting, but there are only a select few that actually are the best in the business. For example; ZGSM, which uses its street light fixtures with its solar assembly, There are also integrated all-in-one led solar street lights, which is one of the biggest in this industry. This is a light fixture you can rely on because it comes from a LED LED street lighting company with experience. Almost all the ZGSM fixtures have a 100K lifespan, which translates to around 22 years for dusk to dawn operation, and longer for other operation schedules.

    Solar street lights are those that are powered by the sun. Solar panels are used to power solar lights. Solar panels utilize sunlight as an alternative energy source. Solar panels are mounted on a pole or a lighting fixture. The solar panels will charge rechargeable batteries, which will power the street lights at night.
    Solar street lights are now well-designed to operate continuously with minimum intervention. These lights are powered by built-in batteries. Solar lights are thought to be cost-effective. They will also not hurt the environment. These lights will illuminate streets and other public areas without depending on the power infrastructure. Solar lights are popular because of their sophisticated features. These are suitable for both business and home use. They look great and last a long time with little upkeep.

    LEDs and solar go hand in hand. Solar may be utilized for most applications because of the reduced power requirements of LEDs to provide more and better light for task-specific lighting, making it a green alternative to conventional lighting projects. In order to meet the needs of the business and customers, there are currently split led solar powered street lights, two-in-one led solar street lights, and all-in-one led solar street lights.
    When motion is recognized, the popularity of motion-sensing adds another step down in power needs, allowing for either smaller solar power assembly or considerably larger wattages when motion is detected. This improvement makes solar lighting systems more competitive, allowing them to be used in more situations where grid-tied lighting systems can't.
    With the introduction of LEDs on the market, HPS lamps are gradually being phased out in new installations. These long-term advantages are outweighing the short-term savings of sticking with outdated technology, according to cities and municipalities. Solar lighting system makers can observe how these developments are impacting the solar lighting industry by enabling additional installations since solar lights can achieve the same light levels as traditional lamping solutions.
    There is an increase in solar street lighting projects now that solar is becoming even more competitive, as well as the availability of tax rebates and other state and municipal government incentives. This rise will simply encourage further market innovation and developments, making solar lighting systems even more competitive with standard grid lighting. Perhaps one day soon, the whole planet will be illuminated by solar lighting systems.
