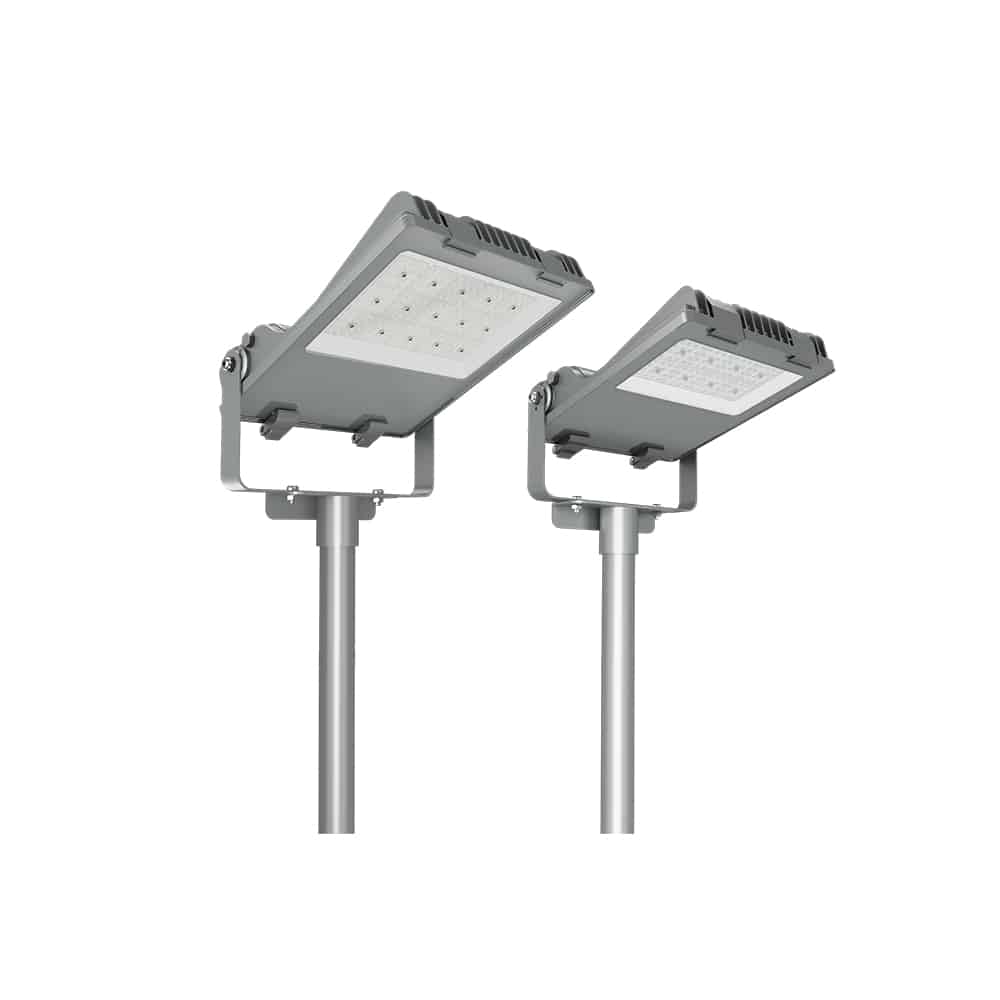

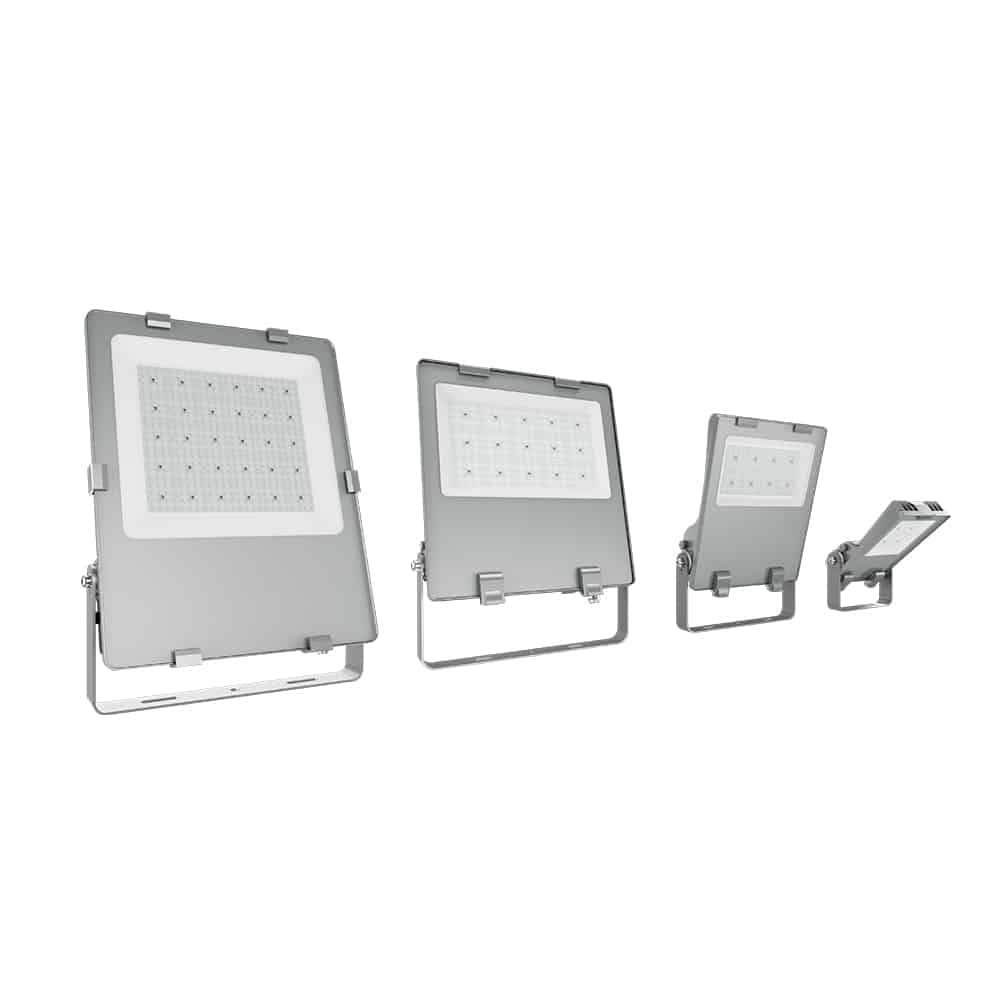

Series ZOOM Tool-less Led Flood Light

ZOOM series LED floodlight is a cost-effective floodlight developed for small sports venues and squares. It uses high-end LED chips and LED drivers, coupled with a good heat dissipation design, the service life of Zoom flood lights can reach more than 100,000 hours. The tool-less opening design provides convenience for future maintenance and upgrade of the flood light, and the whole flood lamp efficiency reaches 170lm/w and gets ENEC certification from the TUV laboratory.

Product Features

Watts: 20-400w
Light Efficiency up to 170lm/w
Protection class I or II
Toolless buckle design, easy maintenance
IP66&IK10
Die-casting housing and Tempered glass
Wide choice of optics, 25,30,60,90,120° or Asymmetry
Equip with vent to avoid internal fogging and frosting
ENEC, CE, CB, ROHS certified.
Smart Control: 1-10V dimming, DALI control, Photocell, Motion sensor

ZGSM products are designed for the global market. Please contact our sales team for certification details.
Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

Series No	Series Zoom
Power	20W,30W, 50W,60W,80W, 100W,120W,150W, 180W,200W,240W,320W,400W
Efficacy	140-170lm/W
Input Voltage	100-240/277 VAC, 50 / 60 Hz
Power Factor	>0.95
Surge Protection	10KV (Build-in Driver) /Extra 10KV SPD (order on request except XL version)
IP Rating	IP66
IK Rating	IK10
CCT	3000K, 4000K, 5000K, 5700K
CRI	Ra>70 (Default) / Ra>80
Operating Temperature	-40°C to + 50°C
Beam Angle	25°, 60°, 90°, 120° or Asymmetrical
Mounting Option	Bracket mounted
Warranty	5 Years
Certification	ENEC, CE, CB, ROHS, LM79, LM80, LM82, LM84, TM-21, ISTMT, IEC62471/62788
Control	Photocell, DALI Dimmable, Motion Sensor, Non-Dimmable, 1-10V Dimmable, Zigbee or Lora Control

Specification__Zoom_LED-Flood-Light

Installation Manual_Flood-Light_Zoom

Series Zoom outdoor LED flood lights in Volkswagen 4S shop parking lot in Spain

Series Zoom marine flood light on the ship in USA

Series H best outdoor flood lights for Football field lighting in Indonesia

Series H floodlight and street lighting luminaires for road and building lighting in Indonesia

Series HB 50 watt led flood light for building lighting in The Czech republic

Series H led outdoor flood light in the bus station in Ecuador

First, let us understand some basics:
√ LED spot light projects a narrow beam of light, normally no more than 45 degrees. This kind of beam angle is more concentrated and easier to control and point.
√ While LED flood light can spread a light whose beam angle can reach 120 degrees. When its output power and lumens are the same as the spotlight, it can illuminate a larger space.
Application of LED spot light and LED flood lights:
1. When specific points such as display objects, wall art, architectural details, or landscape features should be lighted, you can choose outdoor led flood lights with a small beam angle.
2. When larger areas, such as driveways, stages, warehouses, parking lots, tunnels or any other areas should be illuminated, you can use LED floodlight with a wide beam angle which is with wide and even light coverage.
In our opinion when an area should be lighted, the LED light with narrow beam angle(spotlight) or wide beam angle(floodlight) can be used together so this area can be lighted with good uniformity. For example, when doing lighting design for the football pitch, a stadium, or a port, we can use both LED flood light and LED spot light (We call LED stadium light).

When people choose LED lamps to replace existing lamps, they believe that the wattage of the new and old lamps should be the same. In fact, this view is wrong. They mistakenly associate the wattage with the brightness, but the wattage does not represent the brightness of the lamp. Wattage refers to the energy consumed by LED lamps, and lumens represent brightness. Because different types of lamps have different luminous effects, when replacing traditional lighting with LEDs, the lumens of the old and new lamps should match, not the wattage.
Below are the examples to replace different kinds of light fixtures.
√ For metal halide lamps, their luminous efficacy is 50lm/w. So can we can use a 15 watts LED light to replace the 50-watt metal halide lamp give 2500 lumens.
√ For high-pressure sodium lamps, their luminous efficiency is about 80 to 90lm/w. so we can use 25 to 30 watt LED light to replace 50-watt Compact fluorescent lamp gives 4000 lumens.
√ For compact fluorescent lamps, its luminous efficiency is about 60 to 70lm/w. so we can use a 20 watts LED light to replace the 50-watt Compact fluorescent lamp give 3000 lumens.
So for your 100W flood light with CFL bulbs, it’s ok to use our 40W LED flood light to replace it.

Yes, of course. Can you please let us know below so we can make the lighting design and select the right solution for you?
√ What kind of area do you need to light up? Football, basketball, baseball, tennis? Is this a new stadium? Or do we need to use new LED lights to replace the old lights?
√ If you need to replace the old light fixtures, what is your current lamp(type, wattage, and quantity)?
√ What’s the dimension of the lighting field? How are many Poles? What’s the position and the height of these poles?
√ What’s your requirement for lux on the ground?

Types of lights mentioned in the question can not be used one in place of another, because each type is designed for a specific purpose.
High bay and Low bay are meant for indoor use, whereas flood light and street light are meant to be used for outdoor lighting.
In general High bay lights are used for 8 to 10m mounting height and Low bay lights are used for 6 to 8m mounting height.
Flood lights are intended to illuminate a wider open area, such as open parking lot or open sports field etc.
And as the name suggest Street lights are used for road lighting.

Related Products

Series HB modular design Outdoor Flood Lights

Series Stellar Driverless Led Floodlight

Series Primo ATEX approved LED Flood Light

Related Blogs

LED Sports Lighting as per EN12193 Standard

Find solutions for your basketball court lighting

Guide for LED football pitch lighting – Stadium lights

Floodlight or spotlight?

Find a solution for your sports field – Tennis court lighting

How to Calculate Lighting Uniformity?

Guide to get billboard illuminated correctly

Guide to LED Baseball Field Lighting

Best LED Flood Light Manufacturer & Factory & Supplier in China

ZGSM as the best commercial, industrial outdoor LED flood light manufacturer, factory, supplier, and exporter in China since 2005, The factory is ISO9001, ISO14001, ISO45001, and ISO50001 certified. We have rich experience in manufacturing flood lamps with the following advantages and services:

OEM/ODM /SKD Order acceptable.
Free IES/LTD files or Dialux lighting design.
Both symmetric and asymmetric distributions are available.
CE, ENEC, CB, IP66, IK10, IEC62471, and LM79 are available.
Lots of stable material suppliers, high quality and cost well.

Why Choose us as your LED Floodlight Supplier in China？

OEM/ODM/SKD

Available to do OEM/ODM/SKD for all floodlight. No MOQ limits for led flood light retailers, wholesalers, and engineering companies.

FAST DELIVERY TIME

As a reliable flood light supplier, we have stocks of raw materials for floodlights, regular delivery time is 3 days for samples and 2 weeks for bulk.

BEST QUALITY&PRICE

We use top stable quality led driver and chips like Philips driver and chips for all flood lights. Providing 5/7 Years warranty at the cheapest price.

CERTIFICATES

Our led flood lamps are ENEC, CB, CE, RoHS, IECEE, and SAA approved, and our factory ISO9001, ISO14001, ISO45001, and ISO50001 certified.

Certification Show

As the top manufacturer of LED flood lights in China, our LED flood lamps have complete certification and test reporting, such as ENEC, CE, CB, IECEE, SAA, ROHS, UL, IEC62471, LM80, LM79, and so on.

Compliance with Standards for Flood Lighting Tenders

COMPONENT	STANDARDS	TEST REPORT	CERTIFICATIONS
LED	LM80	√
LUMINAIRES	EN/IEC 60598-1 and 60598-2-5	√	√
	IEC 62471	√
	EN/IEC 60529	√
	EN/IEC 62262	√
	EN/IEC 60068-2-75	√
	EN/IEC 55015	√	√
	EN/IEC 61000-3-2	√	√
	EN 61547	√	√
	EN 61000-3-3	√	√
	LM79	√
	ISTMT	√
	TM-21	√
	ISO9007 /ASTM B117	√
LED MODULE	EN/IEC 62031	√
LED DRIVER	IEC 62384,IEC 61347-1,IEC 61347-2-13	√	√
SPD	EN/IEC 61643-11	√	√
FACTORY	ISO9001,ISO14001,ISO50001,ISO45001		√

R & D Team

Product Testing

test room of led lighting

In order to ensure the high quality of each product, we will conduct more than 30 different aspects of testing in our own laboratory before the product goes on the market. After all the tests are passed, the product can be approved for marketing. In mass production, for some basic safety and performance tests, we will conduct 100% testing to ensure that every product delivered to the customer is perfect.
