Home - LED Products - Series HB modular design Outdoor Flood Lights

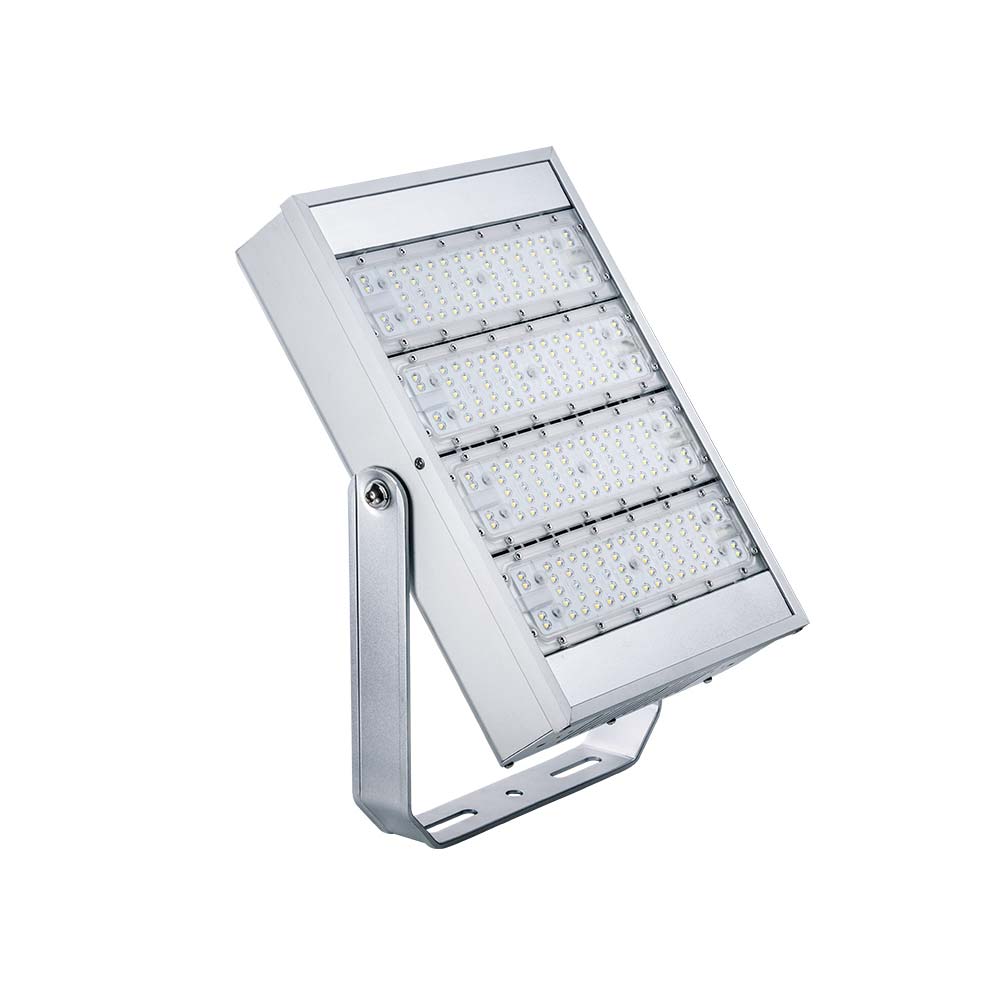

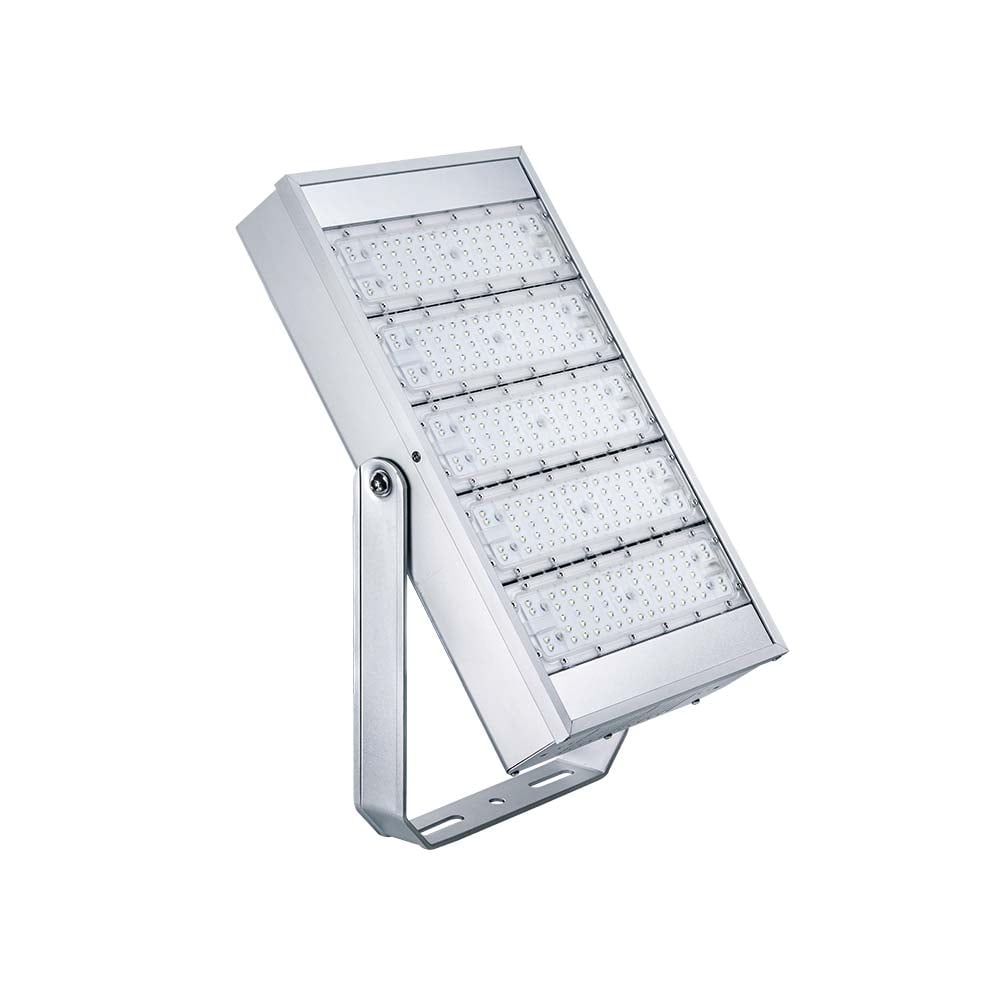

  • Series HB modular design Outdoor Flood Lights

    As one of ZGSM's innovative modular design product lines, HB Series outdoor flood lights not only have attractive appearance design, but also excellent performance. The High-end Meanwell/Inventronics drivers could guarantee the working stability of the LED floodlight; the high-efficacy Lumileds LED chips to make lamp efficiency up to 165lm/W. The classical modular design not only provides a great heat dissipation performance but also makes maintenance more convenient. The 360-degree adjustable bracket allows it to be used as outdoor LED flood lights, high bay lights, and LED tunnel lights. Depending on the location installing flood lights, can be applied for floodlighting, sports area lighting, warehouse lighting, workshop lighting, tunnel lighting, etc. ZGSM provides a 5 to 7 years warranty for the whole lamp of the HB Series flood light.

    • Power range 40W-360W
    • Light Efficiency up to 165lm/w
    • Beam angle 60°, 90° and 110°
    • IP66&IK10 for outdoor applications
    • Die-casting housing and UV resistant PC lens
    • Different standard plug are available
    • Both short or long bracket mounted for different applications
    • No flicker with Meanwell or Inventronics driver
    • Smart Control: 1-10V dimming, DALI control, Motion sensor
    Contact Us
    Facebook
    Facebook
    fb-share-icon
    Twitter
    Visit Us
    Tweet
    LinkedIn
    LinkedIn
    Share
    Pinterest
    Pinterest
    fb-share-icon
    Instagram
    YouTube

    • ZGSM products are designed for the global market. Please contact our sales team for certification details.
    • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
    • Description
    • datasheet
    • Optics
    • Videos
    • Download
    • application
    • FAQ
    Outdoor Flood Lights

    Series NoSeries HB
    Power40W,50W, 60W,80W,100W,120W,150W,160W, 180W,200W,240W,300W,360W
    Efficacy125-165lm/W
    Input Voltage100-240/277 VAC, 50 / 60 Hz
    Power Factor>0.95
    Surge Protection10KV (Build-in Driver) /Extra 10KV SPD (Available on request)
    IP RatingIP66
    IK RatingIK10
    CCT3000K, 4000K, 5000K, 5700K
    CRIRa>70 (Default) / Ra>80
    Operating Temperature-40°C to + 50°C
    Beam Angle60°, 90°, 110° or Asymmetrical
    Mounting OptionBracket mounted
    Warranty5 Years
    CertificationUL, CE, CB, ROHS, LM79, LM80,TM-21, ISTMT, IEC62471/62788
    ControlDALI Dimmable, Motion Sensor, Non-Dimmable, 1-10V Dimmable, Zigbee Control
    Specification__Zoom_LED-Flood-Light
    Installation Manual_Flood-Light_Zoom

    floodlight for lighting Highway bridge

    Best 60W Outdoor Floodlight Supplier for Highway Bridge in Slovakia

    LED Flood Light

    Series HB LED flood light in a shipyard of Croatia

    50 watt led flood light for building lighting in The Czech republic

    Series HB 50 watt led flood light for building lighting in The Czech republic

    led sensor flood lights

    Series HB led floodlight for roadway lighting in the Czech Republic

    best outdoor flood lights

    Series H best outdoor flood lights for Football field lighting in Indonesia

    street lighting luminaires for road

    Series H floodlight and street lighting luminaires for road and building lighting in Indonesia

    Spotlight - The LED spotlight will project a beam of light, on a narrower side (45 degrees or less). This beam spread is focused on a more specific area and can be directed more simply.
    Floodlights - the LED bulbs in this category produce a large beam of light that can throw 50 to 120 degrees of light. As this is a much larger beam, this lamp covers a large space compared to a spotlight without affecting energy efficiency (wattage) or luminosity (lumens).
    For more details, please check floodlight or spotlight.

    To withstand harsh weather, contact with water, or changes in temperature, the IP protection index is one of the most important figures when choosing an outdoor LED floodlight. For these situations, the IP65 and IP66 indices are recommended, as they ensure optimum protection against dust or rain. But there is also a higher index: IP67 and IP68, which are the highest protection ratings. Floodlights with this index can even be submerged in water; for a floodlight with an IP67 protection rating, it should be able to withstand submersion in one meter of water for at least 30 minutes, although it is always the manufacturer who confirms these figures accurately.

    Typically, a 100-watt LED is equivalent to a 1000-watt halogen lamp—providing the same light output, but burning far less energy, so it costs much less to run.

    40 to 80 watts are perfect for lighting up areas such as driveways, smaller yards, and homes. If you are placing them outdoors, it is best to use them with caution. Anything 80 watts and above is too bright for most domestic landscape lighting. This is the floodlight range.

    Related Products

    led flood

    Series ZOOM Tool-less Led Flood Light

    ATEX approved LED Flood Light

    Series Primo ATEX approved LED Flood Light

    Driverless Led Floodlight

    Series Stellar Driverless Led Floodlight

    Related Blogs

    LED Sports lighting

    LED Sports Lighting as per EN12193 Standard

    TagsLED Sports Lighting
    Basketball court lighting

    Find solutions for your basketball court lighting

    TagsBasketball court lighting
    footbal stadium

    Guide for LED football pitch lighting - Stadium lights

    TagsFootball field lighting

    Floodlight or spotlight?

    TagsFlood Light
    Tennis court lighting

    Find a solution for your sports field – Tennis court lighting

    TagsSports Field Lighting

    How to Calculate Lighting Uniformity?

    TagsFlood Light

    Guide to get billboard illuminated correctly

    TagsAdvertising lighting
    LED baseball field lighting

    Guide to LED Baseball Field Lighting

    TagsLED Baseball Field Lighting

    Best Outdoor Flood Lights Manufacturer & Factory & Supplier in China

    ZGSM as the best commercial, industrial outdoor LED flood light manufacturer, factory, supplier, and exporter in China since 2005, The factory is ISO9001, ISO14001, ISO45001, and ISO50001 certified. We have rich experience in manufacturing flood lamps with the following advantages and services:

    • OEM/ODM /SKD Order acceptable.
    • Free IES/LTD files or Dialux lighting design.
    • Both symmetric and asymmetric distributions are available.
    • CE, ENEC, CB, IP66, IK10, IEC62471, and LM79 are available.
    • Lots of stable material suppliers, high quality and cost well.
    Inspection of LED Modules

    Why Choose us as your LED Floodlight Supplier in China?

    OEM/ODM/SKD

    Available to do OEM/ODM/SKD for all floodlight. No MOQ limits for led flood light retailers, wholesalers, and engineering companies.

    FAST DELIVERY TIME

    As a reliable flood light supplier, we have stocks of raw materials for floodlights, regular delivery time is 3 days for samples and 2 weeks for bulk.

    BEST QUALITY&PRICE

    We use top stable quality led drivers and chips like Philips drivers and chips for all flood lights. Providing 5/7 Years warranty at the cheapest price.

    CERTIFICATES

    Our led flood lamps are ENEC, CB, CE, RoHS, IECEE, and SAA approved, and our factory ISO9001, ISO14001, ISO45001, and ISO50001 certified.

    Certification Show

    As top manufacturer of LED flood lights in China, our LED flood lamps have complete certification and test reporting, such as ENEC, CE, CB, IECEE, SAA, ROHS, UL, IEC62471, LM80, LM79, and so on.

    ENEC by TUV
    ENEC
    ENEC by TUV
    Verification
    CE by TUV
    CE
    N8A 16 04 78142 052
    Verification
    CB by TUV
    CB
    SG PSB-LE-01050
    Verification
    UL
    UL
    E466856
    Verification
    SAA
    SAA
    SAA150407
    Verification
    COMPONENT STANDARDS TEST REPORT CERTIFICATIONS
    LED LM80 √
    LUMINAIRES EN/IEC 60598-1 and 60598-2-5 √ √
    IEC 62471 √
    EN/IEC 60529 √
    EN/IEC 62262 √
    EN/IEC 60068-2-75 √
    EN/IEC 55015 √ √
    EN/IEC 61000-3-2 √ √
    EN 61547 √ √
    EN 61000-3-3 √ √
    LM79 √
    ISTMT √
    TM-21 √
    ISO9007 /ASTM B117 √
    LED MODULE EN/IEC 62031 √
    LED DRIVER IEC 62384,IEC 61347-1,IEC 61347-2-13 √ √
    SPD EN/IEC 61643-11 √ √
    FACTORY ISO9001,ISO14001,ISO50001,ISO45001   √

    R & D Team

    • Lighting engineer
    • Electronic engineer
    • Certification engineer
    • Industrial Engineer
    • Structural Engineer
    • Test Engineer

    Product Testing

    test room of led lighting
    test room of led lighting

    In order to ensure the high quality of each product, we will conduct more than 30 different aspects of testing in our own laboratory before the product goes on the market. After all the tests are passed, the product can be approved for marketing. In mass production, for some basic safety and performance tests, we will conduct 100% testing to ensure that every product delivered to the customer is perfect.

    • Test Equipment of LED light-17
      Test Equipment of LED light-17
    • Test Equipment of LED light-16
      Test Equipment of LED light-16
    • Test Equipment of LED light-15
      Test Equipment of LED light-15
    • Test Equipment of LED light-11
      Test Equipment of LED light-11
    • Test Equipment of LED light-13
      Test Equipment of LED light-13
    • Test Equipment of LED light-14
      Test Equipment of LED light-14

    Production Process

    • LED lighting production workshop-6
      LED lighting production workshop-6
    • LED lighting production workshop-5
      LED lighting production workshop-5
    • LED lighting production workshop-4
      LED lighting production workshop-4
    • LED lighting production workshop-3
      LED lighting production workshop-3
    • LED lighting production workshop-2
      LED lighting production workshop-2
    • LED lighting production workshop-1
      LED lighting production workshop-1
