Maintenance factor in illumination/lighting

Maintenance factor in illumination/lighting

table of Contents
  1. Introduction
  2. Why do we need to check maintenance factor?
  3. How to check maintenance factor for lighting design?
    1. LLMF – Lamp Lumen Maintenance Factor or luminous flux maintenance factor
    2. LSF – Lamp survival factor
    3. LMF – Luminaire maintenance factor
    4. RSMF – Room surface maintenance factor
  4. Examples to check maintenance factor for lighting design
  5. Tables for checking every factor refers to the maintenance factor
  6. ZGSM different lighting solutions with different maintenance factors
    1. For high bay lighting
    2. For street lighting
  7. Summary
  8. Rated Products
  9. Related Blogs
  10. Related Cases
  11. People also ask
  12. Author introduction

Introduction

Maintenance Factors (MF) are applied to lighting design to account for the reduction in output of luminaires used in any lighting fixture and to ensure that the correct light levels are provided at “end of life”. The MF calculation takes into account the depreciation of the luminaire and the impact of the environment on the installation, which is also applied to LED lighting. The method of calculating the maintenance factor is clearly specified in the lighting SLL specification. Since the structure and performance data of LED lamps are different from those of traditional lamps, the standard ISO_CIE 22012-2019 Light and lighting — Maintenance factor determination gives a detailed introduction to the calculation of the maintenance factor of LED lamps and the factors that affect the calculation of the maintenance factor.

This document is intended to help lighting designers apply reasonable MF values during the lighting design process to maximize the performance of LED luminaires. This will ensure that the provided solution will still provide the correct lighting level at the end of its useful life. At the same time, it will also be of great help to project parties and lighting designers, including implementing lighting projects in different places, better developing lighting, and better answering related questions, all of which will promote the vigorous development of the LED industry.

Why do we need to check maintenance factor?

Why is a maintenance factor required? Because in the process of use, due to the light decay of the light source, the decrease of the light transmittance of the reflector/refractor/light-emitting surface of the lamp, the pollution of the environment to the lamp and other factors, the light output of the lamp will definitely attenuate, and the lighting result will become worse. Br this we can know that the maintenance factor is in the range of 0-1, and when we design, we should appropriately increase the design value (increase the luminous flux of the lamp) to balance the overall light decay of the lamp in the future, so that the lighting result can meet the standard requirements. Because the standard stipulates the maintenance value instead of the initial value (design value), we need to determine the maintenance factor in advance according to the particularity of the lamp, the use environment, project time and daily maintenance, etc. The coefficient by which the design value is increased is the reciprocal of the maintenance factor. Therefore, the maintenance factor is an economic index, and the larger the value, the better, because under certain technical conditions, the efficiency of lamps (light sources) is generally close, and a certain increase in luminous flux also means a certain increase in investment costs. Reasonable determination of the maintenance factor is of practical help to the correct implementation of the project and project investment, so we must take the maintenance factor of LED products in the project seriously.

Maintenance factor - maintenance cycle
Maintenance factor – maintenance cycle

How to check maintenance factor for lighting design?

The actual maintenance factor of lamps in lighting simulation is affected by many factors, and its result is determined by lamp lumen maintenance factor, lamp survival factor, luminaire maintenance factor and room surface maintenance factor. The formula for calculating the maintenance factor for indoor lighting design is as follows. The calculation formula for outdoor lighting (except tunnels and underpasses) is similar, except that the room surface maintenance factor is not considered.

MF = LLMF (Lamp Lumen Maintenance Factor) x LSF (Lamp Survival Factor) x LMF (Luminaire Maintenance Factor) x RSMF (Room Surface Maintenance Factor)

LLMF – Lamp Lumen Maintenance Factor or luminous flux maintenance factor

Lamp lumen maintenance factor (LLMF) represents the depreciation of luminous flux over time due to the aging of a light source or luminaire during normal operation (excluding external factors). This is defined as the ratio of the decayed luminous flux to the initial luminous flux.

For luminaires with integrated light sources, the luminous flux maintenance factor LLMF for the entire luminaire shall be determined. For lamps with non-integrated light sources, the luminous flux factor LLMF should be determined as the luminous flux maintenance factor of the light source (ie LED module). The luminous flux factor LLMF determined at the luminaire level will better reflect reality as it includes all components and operating conditions. Therefore, this is the default method for all types of fixtures. For LED luminaires, the luminous flux factor LLMF should be jointly confirmed according to the light source or luminaire replacement interval and the luminaire supplier’s IEC 62722-2-1.

Example for checking luminous flux factor: When installation lifetime is 10 years with 4 000 burning hours per year, this results in a total of 40 000 burning hours for the full project. As the provide specifications only provide the depreciation for 50 000 h, the depreciation after 40 000 h can be estimated based on below formula. Using the reference specification of L80 = 50 000 h, the estimated luminous flux factor LLMF = 0.84

Luminous flux factor, LLMF = 1 – 40000 / 50000 * (1-0.8) = 0.84

Lamp Lumen Maintenance Factor
Lamp Lumen Maintenance Factor

LSF – Lamp survival factor

Survival factor (LSF), which represents the probability that a light source and/or luminaire will continue to function at a given time. This factor should be based on the type of replacement regime (spot replacement regime and group replacement regime). In practice, the point replacement system is the default system to ensure safety. However, point replacement needs to track each luminaire in the project, which is bound to be a huge waste of resources. If it is a group replacement, we need to share the life of each component of the lamp to determine the LSF. Due to the performance of LEDs, some projects will consider the chances of LED damage to be low, so will default this factor to 1.

Example for checking survival Factors: When a project uses group substitution, individual components need to be checked. During the service life of the luminaire, the failure rate of the light source is 1%, which corresponds to 0.8% within 40000 hours of installation life (probability of failure Pf = 0.8/100 = 0.008), which corresponds to a probability of survival Ps of 0.992 (Ps = 1.0 – Pf = 100 – 0.008). The LED driver has a failure rate of 1% every 5000 hours, which corresponds to an overall failure rate of 8% at 40000 hours (probability of failure Pf = 8/100 = 0.08). This corresponds to a survival probability Ps of 0.92 (Pa = 1.00 – 0.08) over the lifetime of the installation. Since the driver has the lowest probability of survival, the survival factor LSF = Ps = 0.92.

Smart control for reporting faulty street light
Smart control for reporting faulty street light

LMF – Luminaire maintenance factor

Since LEDs typically have no upward-facing surfaces and are typically enclosed, this reduces the surface area for dirt to deposit on LEDs. For example, IP Class: IP66, Pollution category: Low, Luminaire cleaning interval: 3 years, by consulting the corresponding table, we get that the maintenance factor of the lamp should be 0.9.

Luminaire maintenance factor for outdoor luminaire
Luminaire maintenance factor for outdoor luminaire

Luminaire maintenance factor (LMF) expresses the relative output of a luminaire due to the deposition of dirt on the light source, optics, or other components that affect the luminaire’s output. The luminaire maintenance factor(LMF) should be determined based on the three main factors of luminaire IP rating, environmental conditions and cleaning intervals as described in CIE 097:2005 (indoor luminaires) and CIE 154:2003 (outdoor luminaires). Here we mainly discuss how to confirm the maintenance factor of outdoor lamps (LED street lamps, floodlights) through the corresponding table. The structure and composition of LED lamps are different from standard lamps. The effect of dirt deposits is not as pronounced as with conventional light sources.

RSMF – Room surface maintenance factor

Room surface maintenance factor (RLSM) takes into account the depreciation of surface reflections. For indoor applications this refers to all relevant reflective surfaces such as walls and ceilings, while for outdoor applications this refers only to tunnel and underpass applications (this document does not cover, more information on tunnels and underpasses can be found in CIE 088:2004). For outdoor lighting (except tunnels and underpasses), the surface maintenance factor LSM is set to 1.00. Indoor surface maintenance factor LSF should be confirmed based on the principles described in CIE 097:2005. This factor is based on luminaire distribution, reflectivity of major surfaces (ceiling/wall/floor), environmental pollution category and surface cleaning interval. The confirmation of its maintenance factor can refer to the attached table CIE 097:2005, and we will not expand it here due to space limitations.

Examples to check maintenance factor for lighting design

A maintenance factor shall be used in the lighting design to ensure that the luminaire will meet the corresponding lighting requirements throughout the agreed lifetime of the installation when the installation is maintained in accordance with the prescribed maintenance schedule. In the previous chapter, we introduced in detail the various factors that affect the maintenance factor. Here, we will give an example of the determination of the maintenance factor in practical applications, hoping to deepen the understanding of the calculation of the maintenance factor.

Maintenance factor determination in lighting design

Tables for checking every factor refers to the maintenance factor

Tables C.1, C.2, C.3 and C.4 of indoor Luminaire maintenance factor are shown below, and outdoors are shown in table 1. Indoor Surface maintenance factor, see CIE 097:2005 or contact ZGSM for more details.

Luminaire maintenance factor determination tables(example)

ZGSM different lighting solutions with different maintenance factors

Because maintenance factor is very important, we listed below the different street lamps and highbay lights with different MF in practical application, and how to optimally achieve the required lighting results with less energy consumption or fewer lamps.

For high bay lighting

Example 1 – High bay light Example 2 – High bay light
MF, standard L85@50,000 hrs rated luminaire:
LLMF = 0.85
LSF = 1
LMF clean environment = 0.94
RSMF clean environment = 0.95
MF = 0.85 x 1 x 0.94 x 0.95 = 0.76
MF, standard L90@50,000 hrs rated luminaire:
LLMF = 0.90
LSF = 1
LMF clean environment = 0.94
RSMF clean environment = 0.95
MF = 0.9 x 1 x 0.94 x 0.95 = 0.80

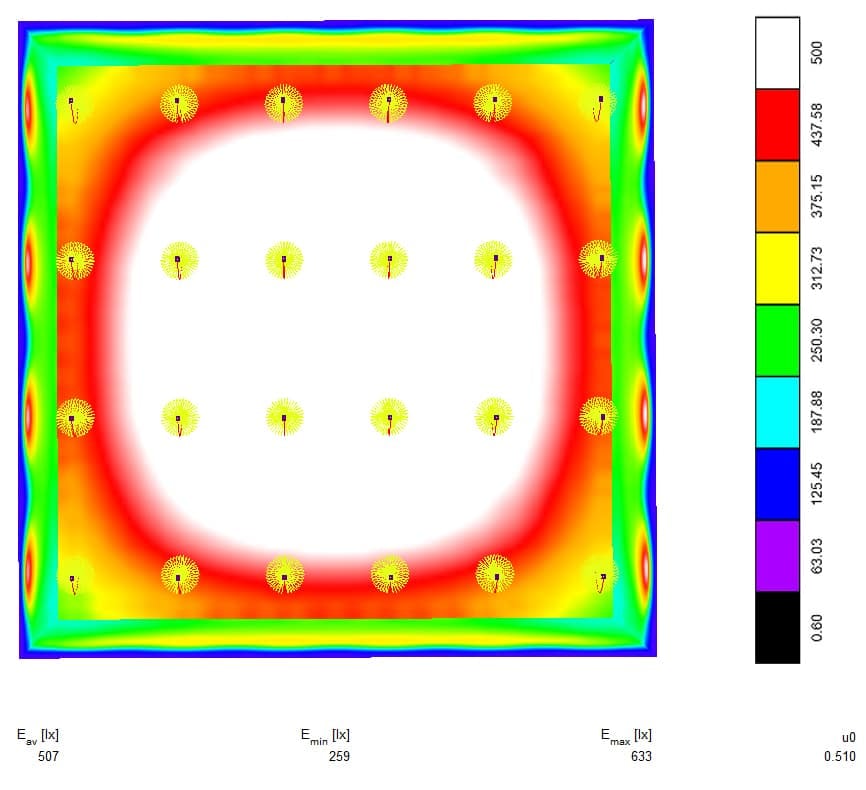

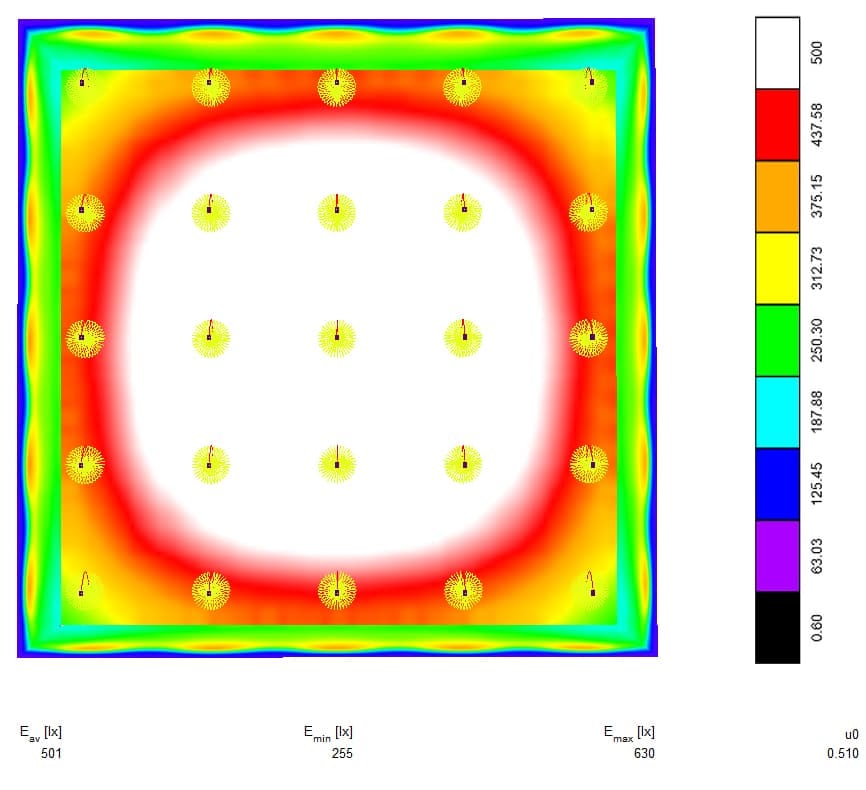

Dialux results: 25 pieces 100W highbay, 501lux, U0=0.51 Dialux results: 24 pieces 100W highbay, 507lux, U0=0.51

For street lighting

Example 1 – Street light Example 2 – Street light
MF, standard L70@100,000 hrs rated and 0.5 % per 5 000 h driver failure rated IP66 luminaire at low pollution environment and 2 year cleaning interval:
LLMF = 0.82 at 60,000 hrs
LSF = 0.95
LMF low pollution environment = 0.88
MF = 0.82 x 0.95 x 0.88 x 1.00 = 0.69
MF, standard L90@100,000 hrs rated and 0.5 % per 5 000 h driver failure rated IP66 luminaire at low pollution environment and 2 year cleaning interval:
LLMF = 0.94 at 60,000 hrs
LSF = 0.95
LMF low pollution environment = 0.90
MF = 0.94 x 0.95 x 0.91 x 1.00 = 0.81

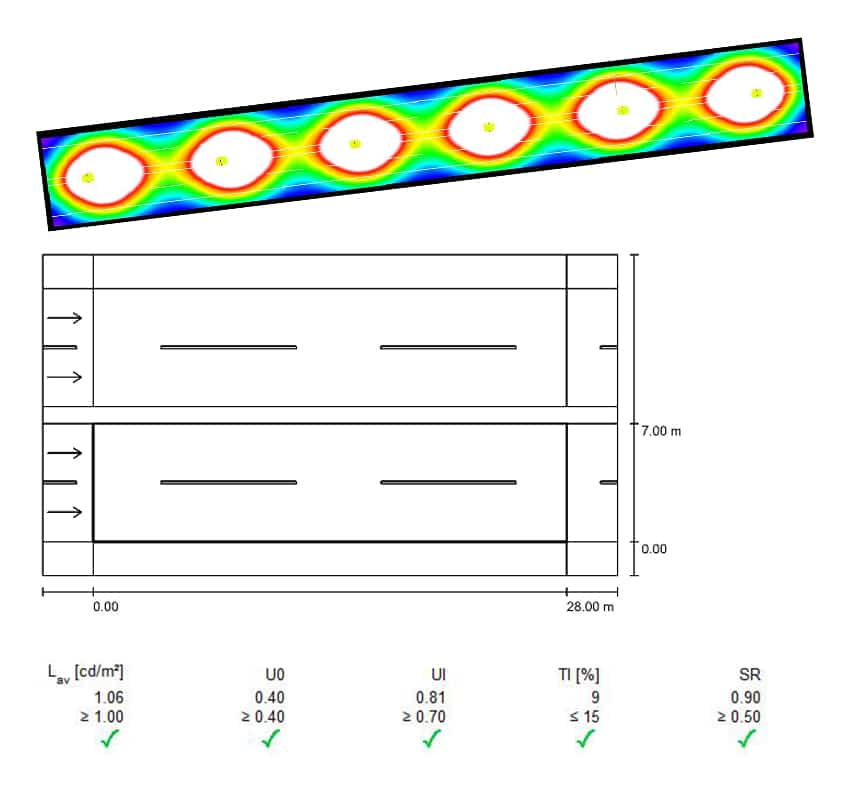

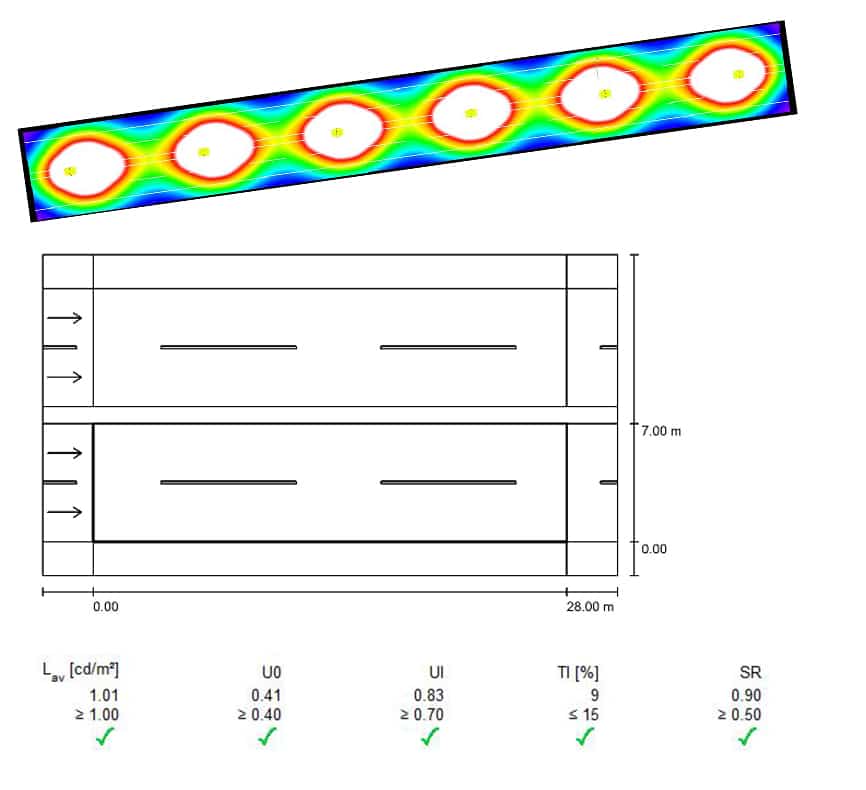

Dialux results: 50W street light, 1.07cd/m2, U0=0.40 Dialux results: 40W street light, 1.01cd/m2, U0=0.40

Summary

This article mainly describes the meaning of maintenance factor, its purpose, and the meaning of the four factors related to maintenance factor confirmation: Lamp lumen maintenance factor, lamp survival factor, luminaire maintenance factor and room surface maintenance factor, and how we should go to confirm these factors. From these aspects, we know that these are factors that affect the maintenance factor which cause the light decay of the lamp, as well as the IP level of the lamp structure, the degree of environmental pollution, the lifetime of the light source and the power supply. Generally speaking, lamps with high IP level and relatively clean environment which cause slower lamp pollution, good quality of LEDs and power supply. The higher maintenance coefficient, the less illuminance (brightness) that needs pre-compensation, and better economic benefits.

From this, we also know that when the same lamp is used in different installations, its input parameters are different, resulting in a large difference in the maintenance factor. Here maintenance factor and lumen maintenance factor are not the same concepts, we also need to consider other three factors, so that accurate maintenance factors can be obtained and implemented accordingly in the lighting design. If you want to know more, you can contact us at any time.

Rated Products

led street light with enec+

Series Rifle Class I/II Street Lamp

led street light

Series H Modular Design LED Street Light

street lighting led

Series Nova Competitive Led Road Light

led flood

Series ZOOM Tool-less Led Flood Light

Series Falcon Outdoor Solar Powered Street Lights

solar street led light

Series PV Split Type Solar Street Led Light

single arm post top light-06

Series Halo Single Arm & Double Arm Post Top LED Lights

side entry led street light

Series Halo Round Street Light Luminaire In Flexible Mount

Related Blogs

led driver

How to choose the right LED driver for your LED light?

TagsLED Driver

Class I vs Class II vs Class III, or Class 1 vs Class 2

TagsClass rating

What are the common quality problems of LED street light?

TagsLED Street Light
Different types of street lights

Different types of street lights and their applications

TagsTypes of street lights
smart control street light

Some Things about Street Light Control System

TagsLED Street Light
Street light light distribution

Light distribution of outdoor luminaire and their applications

TagsLight distribution
ZGSM street light with less lighting pollution

Reduce lighting pollution with street light design

TagsStreet lighting with less lighting pollution
Watts to Lumens, Lumens to Lux

Watts to Lumens, Lumens to Lux

TagsLumens to Lux, Watts to Lumens
Industrial lighting design

Industrial lighting design – workshop or warehouse complex

TagsIndustrial lighting design
Smart street lighting

Smart street lighting system – Zigbee and LoRa

TagsSmart street lighting system – Zigbee and LoRa

Related Cases

smart street light in a zoo park in Slovakia

Series K smart street light in a zoo park in Slovakia

post top lamp

Series L post top lamp in the parking lot of D’Tempat Club House in Malaysia

Streetlight On Main Road In Kota Seriemas Of Malaysia

Series H and L Streetlight with 20KV Surge Protector for Main Road Lighting

led street light waterproof

Series H Outside Street Lights in Outdoor Warehouse in Austria

high street light

Series H Residential Street Lights In Urban Street in Mocoa of COLOMBIA

led lighting street light 50 watt price

Series H Lighting Street In the main Street In Thailand

residential street lights

Series L led post top light in House side in Peru

highway road lighting

Series H solar street lighting system for highway road lighting in Mexico

Series Rifle solar street lamp for country road lighting in Thailand-2

Series Rifle solar street lamp for country road lighting in Thailand

Series H outdoor led flood light Fixtures

Series H outdoor flood light fixtures In Asian Terminal Block 143 Container Warehouse Expansion in the Philippines

People also ask

Lamp Lumen Maintenance Factor LLMF, which describes the reduction in luminous flux of a light source over the duration of use.

Luminaire Life Factor LSF, which describes the failure of a light source or power supply over the duration of use.

Luminaire maintenance factor LMF, which describes the effect of fouling of the luminaire optics between cleaning processes.

The room surface maintenance factor RSMF, which describes the deterioration of the utilization factor due to the reduction of the reflectance value of the room boundary surface.

The maintenance factor in the lighting simulation is the product of the room surface maintenance factor and the lamp maintenance factor, the lamp lumen maintenance factor and the lamp survival factor, that is, MF = RSMF * LMF * LLMF * LSF. Approximate values over time can be, outdoors, the maintenance factor of lights is 0.9 (sports court), 0.8 (road) or 0.7; indoors, a very clean room, is 0.9, and a too dirty environment, is 0.8 or lower. If you need accurate values, you need to know the exact values of these 4 factors.

LLF is short for light loss factor, which is the loss of all light output after a certain time. Combined with the previous concept of maintenance factor, we can know that they are two identical concepts, which are now generally called maintenance factor. The cost of equipment maintenance and repair is greatly affected by this factor, so in order to reduce the overall equipment maintenance and repair costs, we need to pay attention to this factor.
