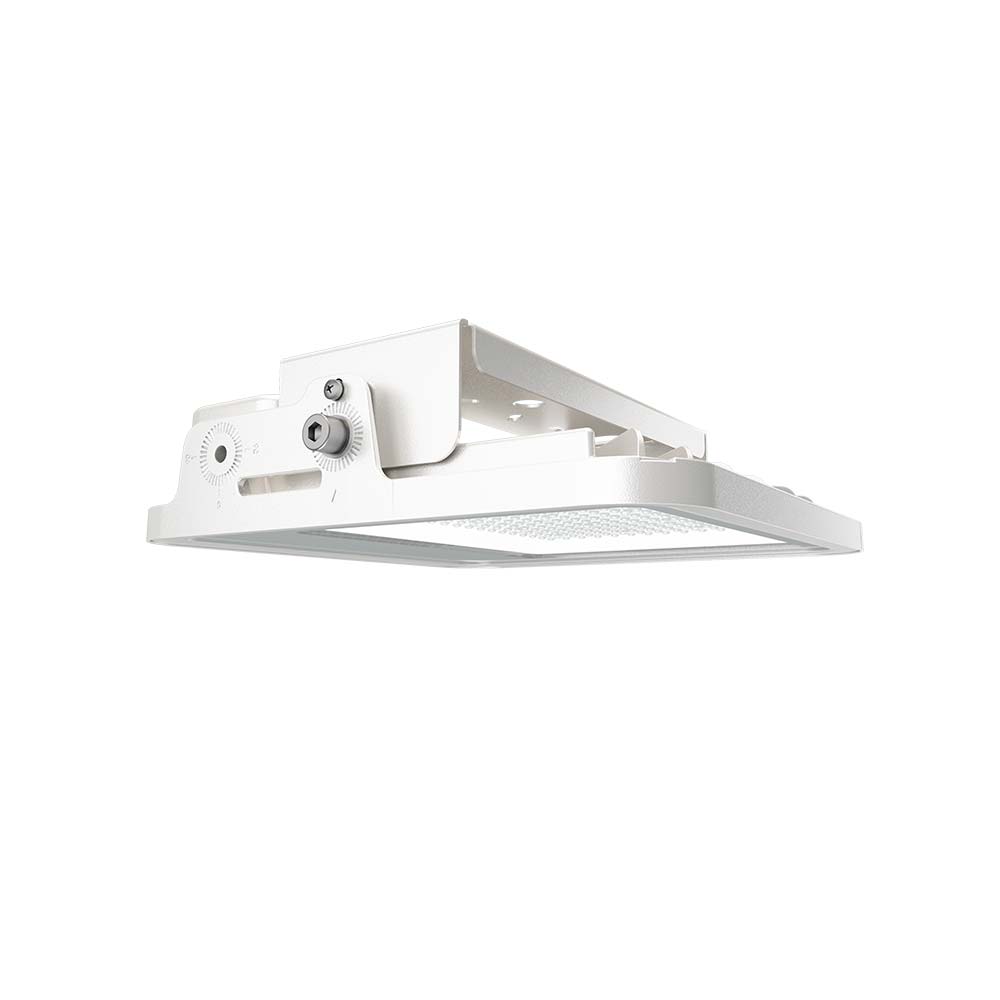

Series Primo ATEX Led Canopy Light

Series Primo ATEX LED Canopy Light has a compact die-cast structure, solid mechanism, and reliable quality. ATEX certified can be safely used in different flammable and explosive areas. canopy light fixture is equipped with LUMILEDS LEDs and INVENTRONICS/MEANWELL LED drivers which lead to a long lifespan of 100,000 hours and 5 years warranty. By replacing optional installation accessories, Primo gas station lights can be installed in gas station lighting, small stadium lighting, billboard lighting, architectural lighting, and other area lighting places.

  • Watts: 80-150w
  • Light Efficiency up to 165lm/w
  • Protection class I or II
  • IP66&IK08/IK10
  • Die-casting housing and Tempered glass
  • Wide choice of optics for different lighting arrangements
  • Surface mounting /Recessed mounting /Bracket mounting
  • CE, CB, ATEX, ROHS certified.
  • Smart Control: 1-10V dimming, DALI control, Photocell, Motion sensor
Contact Us

  • ZGSM products are designed for the global market. Please contact our sales team for certification details.
  • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
ATEX Led Canopy Light
Series No Series Primo
Power  80W, 100W,120W, 150W
Efficacy 155-165lm/W
Input Voltage 100-240/277 VAC, 50 / 60 Hz
Power Factor >0.95
Surge Protection 10KV (Build-in Driver) /Extra 10KV SPD (Available on request)
IP Rating IP66
IK Rating IK08 / IK10
CCT 3000K, 4000K, 5000K, 5700K
CRI Ra>70 (Default) / Ra>80
Operating Temperature -40°C to + 50°C
Beam Angle 60°, 90° or 120°
Mounting Option Surface mounting /Recessed mounting /Bracket mounting
Warranty 5 Years
Certification CCE, CB, ROHS, ATEX, LM79, IP66, IK08/IK10, LM80, TM-21, IEC62471/62788
Control Photocell, DALI Dimmable, Motion Sensor, Non-Dimmable, 1-10V Dimmable

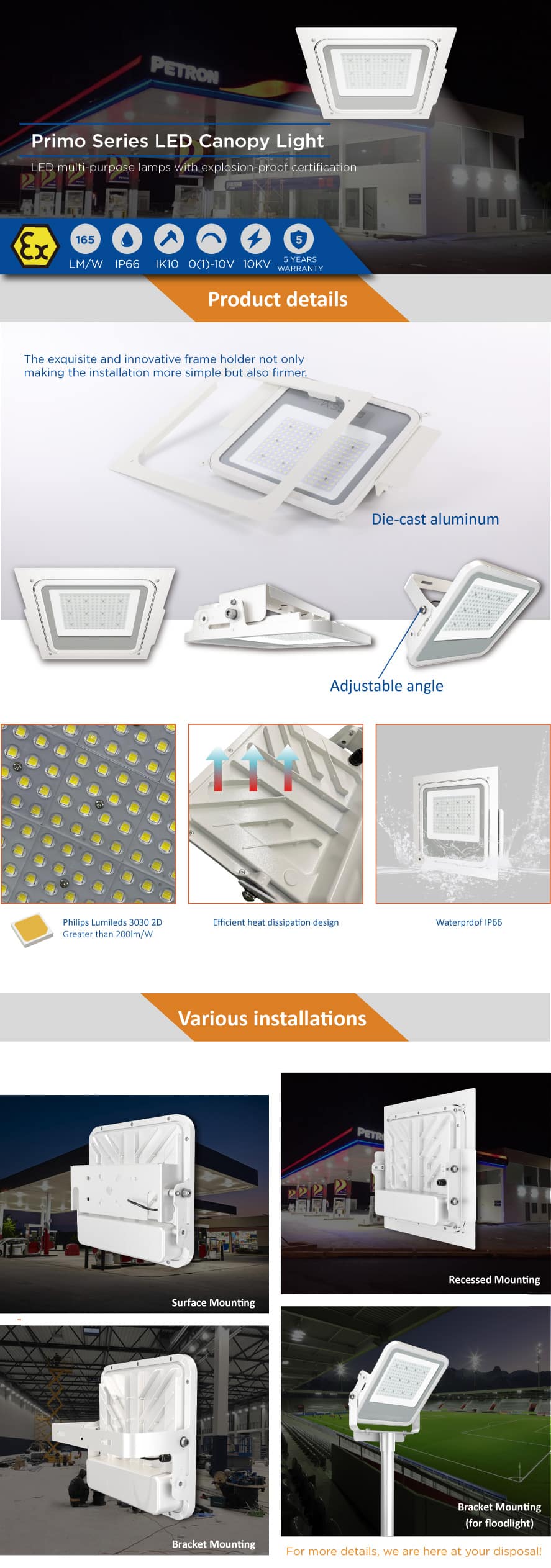

OPTIC: Series Primo ATEX Led Canopy Light

Specification__Primo_CanopyLight Installation Manual_CanopyLight_Primo

Car park lighting and canopy lighting are terms used to describe exterior lighting and interior lighting, usually surface, pendant, or recessed mounted on the ceiling, soffit, or overhang of a structure. This type of lighting is typically used to provide illumination for areas used by vehicles and pedestrians.

Lighting can make or break a petrol station. If the lighting is not bright and pleasing to the customer, they may drive past the location and reach a competitor. That's why it's important to have the right petrol station canopy lighting.
Many petrol station owners have made the transition from HID, Pulse Start, and fluorescent lighting to LED lighting, which is more popular, more energy-efficient, and more cost-effective. However, there are still many petrol station owners who are hesitant to switch their canopy lighting from conventional to LED technology. Their main concern is that they may end up undervaluing important areas. This misconception is often driven by the significant energy reduction typically involved in LED conversions.
The truth of the matter is that this is simply a misguided belief. An LED-lit gas station looks much brighter than one lit by conventional lights. There is no lack of light from LED lighting, which is obvious at night. LEDs also provide consistent light color and brightness.

LED overhead lights benefit your petrol station in five ways.
1. They help to attract more customers
LED canopy lights are bright and make your petrol station look more attractive. This, in turn, helps to attract more customers.
2. They help to improve operational safety
A well-lit forecourt keeps criminals off your property and gives potential customers the confidence that they can safely refuel their vehicles at your petrol station.
3. They help to increase revenue
When more customers are tempted to drive into your petrol station and feel safer, you generate more sales. Ultimately, you can make more profit.
4. They help to save energy
LED lamps are more energy-efficient than metal halide lamps and produce brighter light with less power. This helps you to save energy and reduce your electricity bills.
5. They help to save on replacement costs
LED roof lights are not only more energy-efficient than conventional roof lights, but they also last longer. This way, you don't have to worry about spending money on regular fuse bulb replacements.
6. LED canopy lights are easy to install
One of the best things about LED canopy lights is that they are easy to retrofit into existing canopy systems. You don't have to tear off the canopy seals or access the panels of the petrol station canopy; the whole installation process can be done easily.

Since gas stations are flammable and explosive places, the installation of ATEX Led Canopy Lights in gas stations is an indispensable part of a safe environment.

If used as recommended by the manufacturer, ATEX certification ensures that the device works safely in an explosive environment without causing any accidents. Equipment used in explosive atmospheres in the European Union (EU) and the European Economic Area (EEA) must be ATEX certified. View ZGSM ATEX lighting units to discover high-quality explosion-proof lighting solutions!
