Home - LED Products - Series H Modular Design Canopy Light Fixture

outdoor canopy light fixtures
gas station light fixtures
recessed led canopy light
under canopy led lights
outdoor canopy light fixtures
gas station light fixtures
recessed led canopy light
under canopy led lights

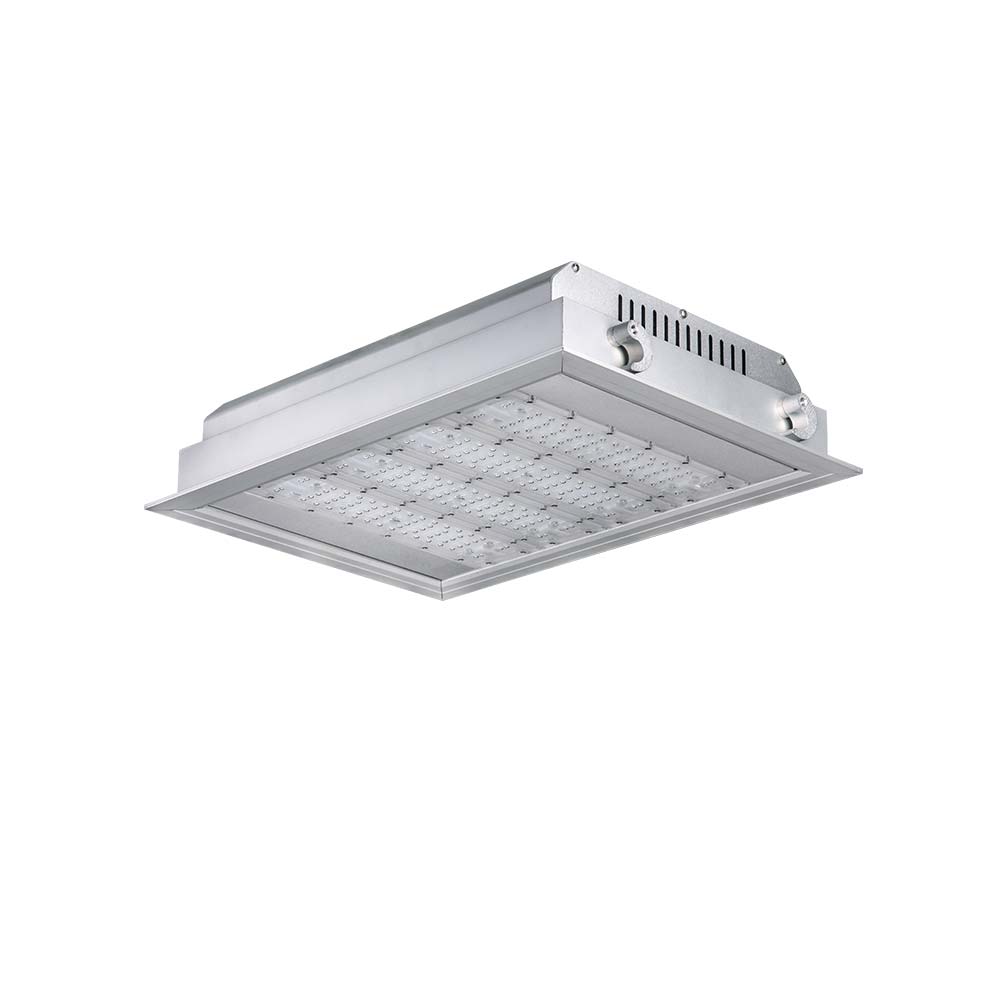

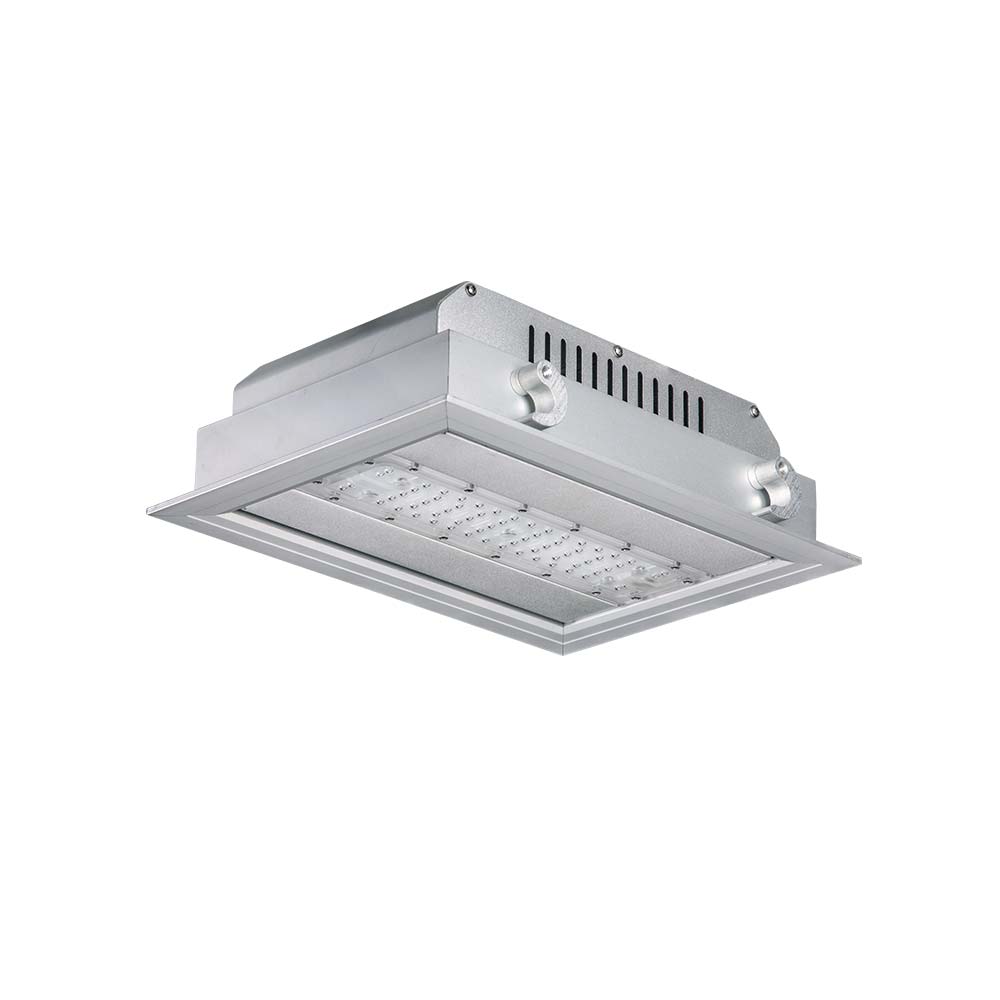

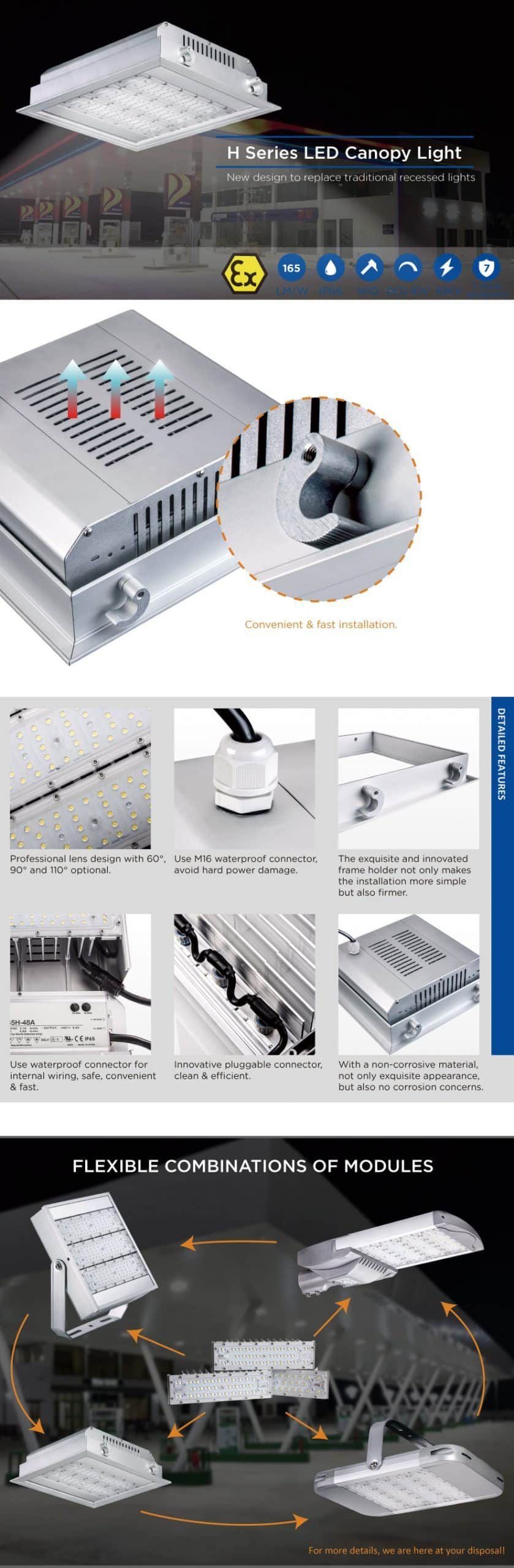

Series H Modular Design Canopy Light Fixture

Series H canopy light fixture uses a high-efficiency led light source to reach 165lm/W, it is 2-2.5 times brighter than metal halide lamps, which is a perfect substitute for halogen lamps, high-pressure sodium lamps, etc. The entire gas station canopy lights adopt a modular design, the module has excellent heat dissipation performance, which helps to extend the life of the canopy light. In addition, the modular design makes the led gas station light easy to maintain. If one module is damaged, the rest of the LED modules can still work. The user can replace the damaged module with a new module, saving the cost of replacing the entire lamp. In addition, the circuit design is unique, when a single LED is damaged, it will not affect the normal operation of other LEDs.

  • Whole series cover from 40-200W
  • Light Efficiency up to 165lm/w
  • Beam angle 60°, 90°,110°
  • IP66&IK10
  • Match with different cut hole sizes of canopy ceiling
  • Customized frame is available
  • Recessed mounting
  • ATEX certified
  • Available with Motion sensor
Contact Us
  • Facebook
  • Twitter
  • YouTube
  • Instagram
  • LinkedIn
  • Pinterest

  • ZGSM products are designed for the global market. Please contact our sales team for certification details.
  • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
  • Description
  • datasheet
  • Optics
  • Videos
  • Download
  • application
  • FAQ

Related Products

Series NoSeries H
Power40W,50W,60W,80W,100W,120W,150W,180W,200W,240W
Efficacy125-165lm/W
Input Voltage100-240/277 VAC, 50 / 60 Hz
Power Factor>0.95
Surge Protection10KV (Build-in Driver)
IP RatingIP66
IK RatingIK10
CCT3000K, 4000K, 5000K, 5700K
CRIRa>70 (Default) / Ra>80
Operating Temperature-40°C to + 50°C
Beam Angle60, 90,110°
Mounting OptionRecessed mounting
Warranty5 Years
CertificationCE, CB, ROHS, ATEX, LM79, IP66, IK10, LM80, TM-21
ControlDALI Dimmable, Non-Dimmable, 1-10V Dimmable, Motion sensor/Daylight sensor

Specification_H_CanopyLight Manual_CanopyLight_H

LED Canopy Light

Series H LED Canopy Light for gas station in South Africa

gas station canopy lights

Series H ATEX certified gas station canopy lights in Uruguay

Primo ATEX gas station lights for canopy lighting in Ghana

Series Primo ATEX gas station lights for canopy lighting in Ghana

80W LED Gas Station Canopy Lights

Series H led gas station canopy lights for gas station lighting in Ghana

led canopy lights in Indonesia

Series H recessed led canopy lights in a hotel lobby in Indonesia

led light for petrol station

Series Primo led gas station light for petrol station in Malaysia

Where are Canopy lights used?

canopy light fixtures can be found in many applications. They can be installed at gas stations, parking lots, bus stops, auto stores, and other locations that require a rugged light source and may be exposed to harsh environments. Smaller Canopy lights can be used in residential environments including overhead, decks, porches, and carports.

What are LED canopy lights?

What is a canopy light? Canopy lights are usually installed outdoors under an overhang. These lights illuminate the area below them. They can be equipped with clear lenses that focus the light or frosted lenses that diffuse the light, thereby reducing glare and illuminating a wider area.

What kind of lights do gas stations use?

The primary type of LED lighting often used in gas station lighting is canopy light. LED gas station canopy lights are typically installed in the canopy covering the gas pumps.

What is the purpose of a luminaire canopy?

Parking lot lighting and canopy lighting are terms used to describe exterior lighting and interior lighting that is typically surface, pendant, or recessed mounted on the ceiling, soffit, or overhang of a structure. This type of lighting is typically used to provide illumination for areas used by vehicles and pedestrians.

gas station lights factory

Series A Classic Gas Station Canopy Light

ATEX Led Canopy Light

Series Primo ATEX Led Canopy Light

Related Blogs

Mounted way of canopy light

Different Mounted Ways of Canopy Lights-Recessed, Surface, Suspended or Bracket

Tagscanopy lighting
led canopy light

Guide for gas station lighting – LED canopy lights

TagsGas station lighting

Best Gas Station light Manufacturer & Factory & Supplier in China

As a professional manufacturer, factory and supplier of gas station lights, ZGSM factory has passed ISO9001, ISO14001, ISO45001, and ISO50001 certification, and focus on lighting fixture manufacturing for more than 17 years. ZGSM LED canopy lights have been successfully used in more than 1000 gas stations in over 50 countries.
Our petrol station lights have the following advantages:

  • OEM/ODM /SKD Order acceptable.
  • Different mounted methods, such as recessed, surface mount.
  • Passed ATEX certification, suitable for Zone1, Zone2.
  • Provide free gas station Dialux lighting design.
  • Support customize frame size, like 600x600mm.
Aging test of LED Canopy Light

Why Choose us as your LED Canopy Light Supplier in China?

OEM/ODM/SKD

Accept OEM/ODM/SKD for all canopy recessed lights. No MOQ for gas station canopy light retailers, wholesalers, and engineering companies.

FAST DELIVERY TIME

As a reliable gas station light supplier, we have lots of raw materials for canopy lights, regular delivery time is 3 days for samples and 2 weeks for bulk.

BEST QUALITY&PRICE

We use top stable quality led driver and chips like Philips driver and chips for all canopy lights. Providing 5 Years warranty at the cheapest price.

CERTIFICATES

Our led canopy light are CE, CB, RoHS, ATEX , SAA approved, and our factory is ISO9001, ISO14001, ISO45001, and ISO50001 certified.

Certification Show

ATEX
3B170802.HZTDQ71
Verification
CE by TUV
CE
N8A 16 04 78142 054
Verification
CB by TUV
CB
SG PSB-LE-01017
Verification
SAA
SAA
SAA150404
Verification

R & D Team

  • Lighting engineer
    Lighting engineer
  • Electronic engineer
    Electronic engineer
  • Certification engineer
    Certification engineer
  • Industrial engineer
    Industrial Engineer
  • Structural engineer
    Structural Engineer
  • Test engineer
    Test Engineer

Product Testing

test room of led lighting

In order to ensure the high quality of each product, we will conduct more than 30 different aspects of testing in our own laboratory before the product goes on the market. After all the tests are passed, the product can be approved for marketing. In mass production, for some basic safety and performance tests, we will conduct 100% testing to ensure that every product delivered to the customer is perfect.
