Series H led gas station canopy lights for gas station lighting in Ghana

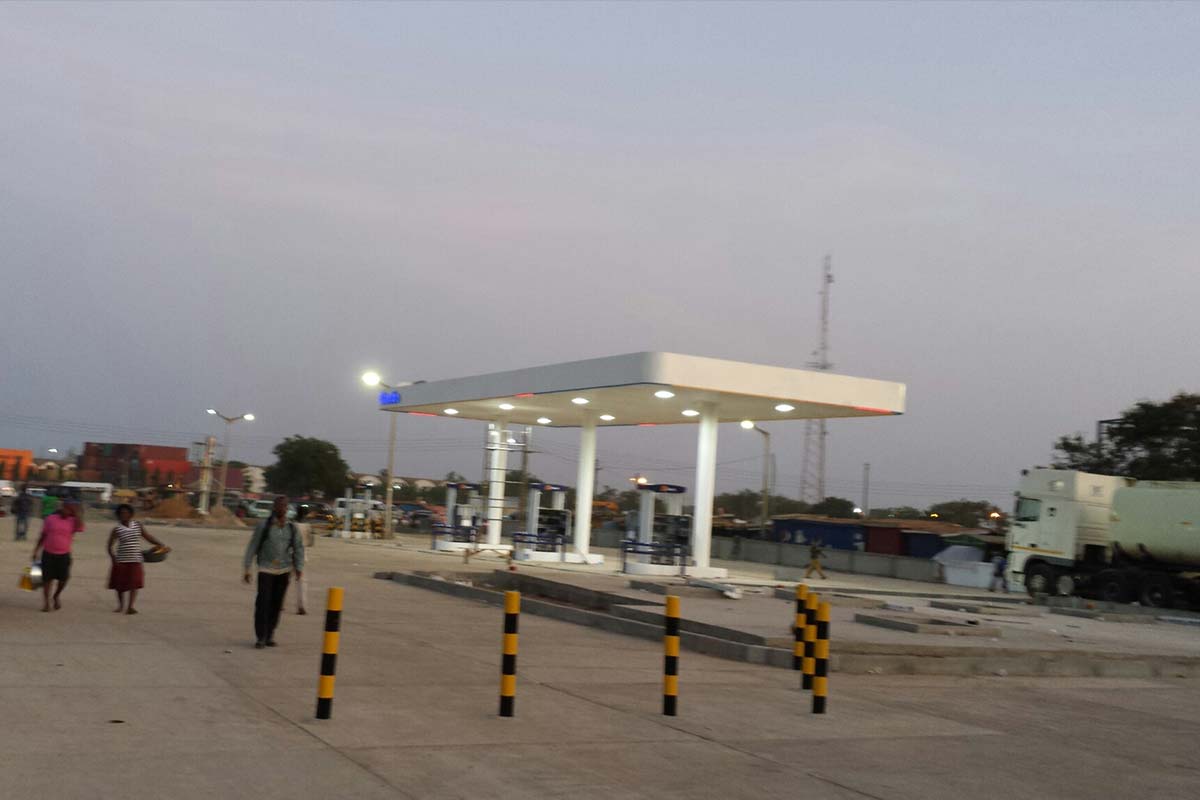

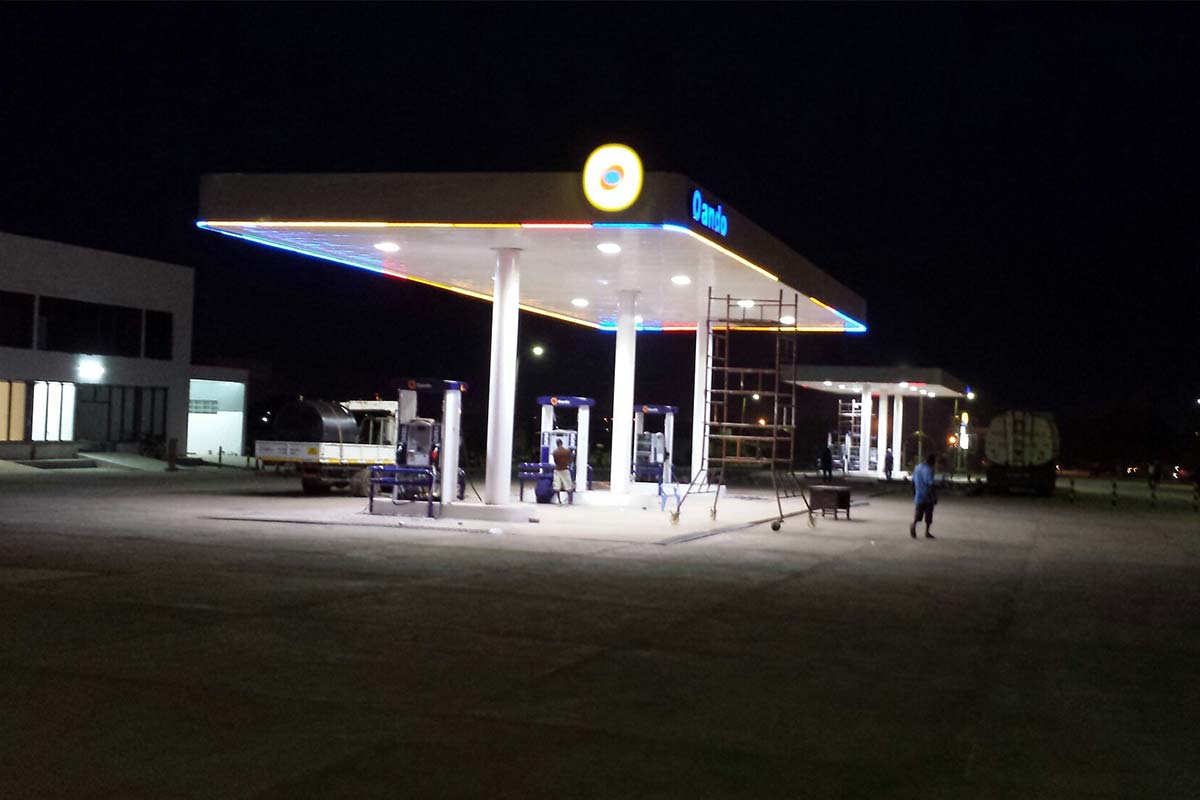

Gas station lighting project in Ghana, done in 2016, Series H led canopy lights are recessed installation, specially designed for gas station lights, the whole light adopts modular design, single module 40W, flexible power, easy maintenance and upgrade, using Philips LEDs and Meanwell Driver, the light efficiency can reach 165LM/W, and have passed the ATEX explosion-proof certification, customers can use it inflammable and explosive places with confidence, and the frame can accept customized sizes.

Project details:

ProductsModelCCT /Beam angleQuantity
80W led gas station canopy lightsZGSM-QD80H45000K，110degrees80pcs

.

Customer Feedback
Installed under the canopy of gas station. Worked great and had excellent light output, customer was very happy.
Elolo Avisseh
Purchase Manager
gas station lighting in Ghana
80W LED Gas Station Canopy Lights
Modular Design LED Gas Station Canopy Lights
Modular Design LED Gas Station Canopy Lights

Download

datasheet
installation Manual

Products Used

Video

Related Products

Related Projects

Related Blogs

People also ask

Proper illumination enhances the security of gas stations and creates an appealing atmosphere for vehicles. According to certain research, illumination has a significant effect on drivers’ choice of the gas station throughout their route.

Lighting should be addressed holistically at the gas station, including canopy lighting, convenience store lighting, and environmental lighting.
At ground level, 400 lux of light is adequate under the canopy. Additionally, gas pumps should have a vertical illuminance of 150 lux.

Gas station entrances and exits should have a minimum illumination level of 10 lux. In the crossing area between canopy and shop, a light intensity of 150 lux is acceptable.

Maintaining a light intensity of 30 lux or above in gas stations and shop environments would be an excellent option.

While the most apparent advantage of LED lights is decreased energy costs, there are several additional reasons to switch to LED lighting. Among these advantages are the following:

  • Long lifetime, with bulbs lasting up to 100,000 hours, or 11 years when used continuously, and 22 years when operated at 50%.
  • Environmental friendliness, since LED lights do not contain the hazardous compounds contained in traditional bulbs.
  • Durability via robust components that can survive extreme weather conditions.
  • There are no UV emissions and very little infrared light.
  • Flexibility in design, with the ability to mix and dim forms to provide effective lighting
  • Functionality in extremes of heat or cold.
  • Sufficient light distribution with the ability to concentrate on certain locations.
  • Switching on and off often and immediate illumination.
  • Low-voltage power supply enables them to be used in outdoor environments when connected to an external energy source.

These advantages make LED lights important for gas stations and a variety of other venues that may otherwise spend more on lighting systems than necessary. As a reputable LED gas station light provider, we’ll ensure that each product has all of the features described above.

The main type of LED lighting that gas stations often utilize is canopy lighting. LED gas station canopy lights are often installed in canopies that cover the gas pumps.

We provide a variety of LED canopy lights for different lighting applications with different requirements and budgets. From canopy LED lights to outside area lighting, building perimeter lighting, convenience store lighting, and more, we’ve got you covered.
These goods range from low-cost to high-end specifications. The price varies depending on how many products you need and which product versions you choose.
View our range of products and contact us for more information regarding price.
We also could help to make a lighting simulation and send you a proposed solution with a quotation.
