Introduction

When providing lighting for a sports venue, if your scope is limited solely to supplying the sports lights (ZGSM high mast lights) themselves, then your primary focus need only be on the cost of those specific fixtures. Generally speaking, the larger the size (or surface area) of the venue—and the higher the competitive level of the events it hosts—the greater the quantity or wattage of sports lights required to adequately illuminate the space; consequently, the corresponding stadium lighting cost will be higher. A different scenario arises when, in addition to the light fixtures, you are required to provide a comprehensive, turnkey lighting solution for the venue—including light poles, power distribution cabinets, cabling, installation, and commissioning services. Since these supplementary services typically account for a significant portion of the total budget, they warrant particular attention. This article explores the differences in lighting design requirements across various types of sports venues, with a specific focus on analyzing the cost disparities between standard recreational facilities and professional-grade stadiums, as well as the associated costs generated by these ancillary services. Through this comparative analysis, we aim to provide you with a deeper understanding of the various components that constitute the overall stadium lighting cost, thereby empowering our clients to secure projects more successfully. Let’s dive into the main text to learn more.

Differences in stadium lighting design

Variations in lighting design constitute the pivotal factor determining the overall sports lighting cost or stadium lighting cost; different design schemes can result in significant cost disparities across various aspects, including luminaire selection, lighting layout (What’s sports lighting layout?), and lighting control systems.

Stadium lighting design for standard sports fields

Standard sports fields are primarily utilized for daily training, community fitness, and amateur competitions; consequently, their lighting design need only satisfy basic requirements for nighttime activities. Taking the EN12193 lighting standard as an example, its requirements for parameters such as glare control and color rendering are relatively lenient, allowing designers to focus primarily on metrics such as horizontal illuminance and illuminance uniformity. Under these circumstances, we typically prioritize the wattage of the luminaires—which, in this context, tends to be relatively low. Furthermore, given the less stringent requirements regarding uniformity, there are no overly rigorous demands placed on the selection of luminaire lenses/light distributions (More about light distribution) or their layout. As a result, the overall design scheme remains simple and pragmatic, effectively controlling both the cost of the luminaires and construction expenses—thereby optimizing the overall stadium lighting cost.

Stadium lighting design for professional sports stadiums

The lighting design for professional sports stadiums entails requirements that extend far beyond mere illuminance levels and uniformity; it must strictly adhere to the lighting standards mandated by national—and even international—competitions. These rigorous standards encompass superior color rendering, specific vertical illuminance levels and corresponding uniformity, TLCI ratings (What’s TLCI?), and effective glare control, among other criteria. For instance, achieving higher color rendering fidelity often necessitates a slight compromise in luminous efficacy, which, in turn, increases the total number of luminaires required. To satisfy the vertical illuminance requirements for television broadcasting, it becomes necessary to deploy a greater number of luminaires and high masts—utilizing configurations such as “roof ring” arrangements or “catwalk” layouts—to ensure adequate vertical illuminance and uniformity. Furthermore, television broadcasting standards impose specific requirements regarding luminaire attributes such as TLCI, flicker factor, and uniformity gradient (Lighting uniformity vs uniformity gradient), factors that inevitably drive up the unit cost of individual luminaires. Moreover, requirements concerning glare control and uniformity gradient place additional demands on both the photometric distribution of the luminaires and their physical layout within the stadium. In certain instances, professional stadiums are also required to host amateur competitions, training sessions, and recreational activities, each demanding distinct lighting classifications; this necessitates the use of luminaires capable of facilitating tiered lighting schemes or intelligent control systems—features that inevitably incur additional sports lighting costs. Fundamentally, the price disparity observed in stadium lighting projects serves as a direct reflection of underlying differences in design standards, functional requirements, and technical specifications; the more professional the design scheme and the higher the operational classification the venue is intended to support, the correspondingly higher the overall stadium lighting cost (i.e., the cost of the sports lighting system) will be.

Stadium lighting cost difference

Since stadium lighting is categorized into amateur and professional grades, the associated costs vary accordingly. Similarly, the cost of installing lighting for outdoor courts is relatively low, whereas the cost for indoor stadiums is significantly higher. Taking a small venue like a basketball court as an example: if only the lighting fixtures themselves are installed, the cost is approximately $1,000; conversely, for large venues such as soccer fields, implementing a comprehensive lighting solution can cost up to $300,000. According to ZGSM, the primary components contributing to stadium lighting costs are light poles, fixtures, power distribution cabinets, and various auxiliary materials. For most courts, if the supplier provides only the fixtures and poles, the overall cost is reduced; however, newly constructed stadiums typically require the supplier to provide power distribution cabinets and cabling as well. Furthermore, labor is a significant factor, and its cost is heavily influenced by regional variations.

Stadium lighting cost for standard sports field

In the following section, we analyze and compare the stadium lighting cost associated with various sports fields, differing in both size and required illumination levels—specifically focusing on professional-grade facilities. Scenario 1 features a standard tennis court with a Class II lighting class; Scenario 2 involves an identical standard tennis court, but with the lighting class upgraded to Class I; Scenario 3 covers a 7-a-side football pitch, adhering to the EN12193 Class I lighting standard (More about EN12193); and Scenario 4 addresses a standard full-size football stadium, also requiring a Class I lighting class. It is important to note that for professional football stadiums, a comprehensive lighting solution—encompassing installation services, auxiliary materials, and intelligent control systems—is required; the specific details of this package will be elaborated upon in the subsequent section. The accompanying table lists the required wattage and quantity of luminaires, the number and height of light poles, as well as the resulting illumination levels and lighting uniformity (What’s lighting uniformity and how to improve it?) for each of the four scenarios. As is evident from the data, regarding tennis court lighting, achieving a higher lighting class necessitates either an increase in the total wattage of the luminaires or an increase in their overall quantity. Conversely, for football stadiums—assuming a consistent lighting classification—significant variations arise in the required number of luminaires, total wattage, and light pole heights depending on the specific dimensions of the pitch (i.e., 7-a-side versus 11-a-side configurations).

Application	Tennis court	Tennis court	Football pitch – 7 side	Football pitch
Size of sports fields	36*18 meters	36*18 meter	55*36.5 meters	105*68 meters
Lighting class	Class I, 500 lux	Class II, 300 lux	Class I, 500lux	Class I, 500lux
Sports lights wattage and quantity	12 x 320W	12 x 200W	30 x 400W	30 x 1500W
Cost of lamps	12 x 130	12 x 60	30 x 150	30 x 550
Poles	4 x 8 meters	4 x 8 meters	4 x 12 meters	4 x 18 meters
Cost of poles	4 x 200 USD	4 x 200 USD	4 x 600 USD	4 x 1200 USD
Total cost	2160 USD	1520 USD	6900 USD	21300 USD

The aforementioned differences result in significant cost variations across these different types of sports fields. As an illustration, a standard outdoor tennis court (ZGSM tennis court lighting) designed to meet Class I lighting standards requires 12 light fixtures and 4 poles; the total stadium lighting cost with poles (excluding auxiliary materials and installation) amounts to $2,160. If the lighting class is lowered to Class II—while maintaining the same number of poles but reducing the fixture wattage to 200W—the cost drops to $1,520. For soccer fields, however, the costs are substantially higher. For instance, a 7-a-side soccer field requires four 12-meter poles and thirty 400W sports lights, bringing the total cost to $6,900. For a standard-sized soccer field (105 x 68 meters), the cost is even higher—totaling $21,300—as it necessitates taller poles and significantly higher-wattage fixtures; please refer to the table above for further details.

Stadium lighting cost for professional sports venues or stadiums

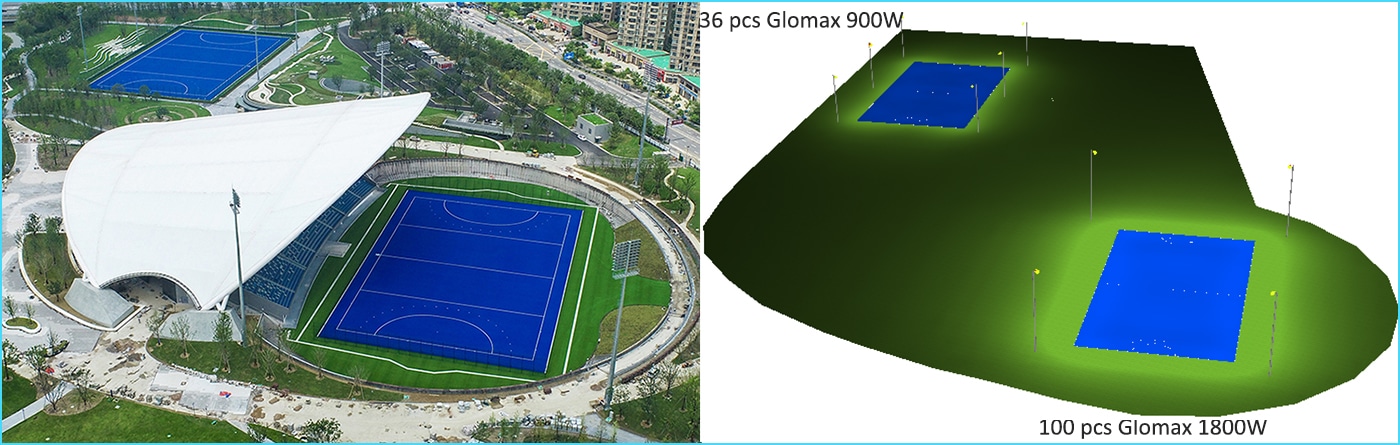

Presented below is a comparison of two lighting designs for a hockey field (More about hockey lighting design): the former utilizes a design based on lighting Class I standards, while the latter adheres to FIH standards—which impose specific requirements regarding vertical illuminance and the illuminance levels required for primary camera positions. Based on lighting simulations, we determined that the former design requires 36 ZGSM Glomax 900W high mast lights, whereas the latter requires 100 Glomax 1800W high mast lights (ZGSM Glomax series high mast lights). The resulting horizontal illuminance levels are 650 lux and 2350 lux, respectively—yielding an illuminance ratio of 1:3—yet the wattage ratio of the fixtures employed stands at 1:5.5. This disparity demonstrates that, in order to satisfy the vertical illuminance requirements necessary for television broadcasting, a significantly greater number of fixtures is required. We have listed the cost differences for the fixtures below; however, these figures do not yet account for factors such as the fixtures' Color Rendering Index (CRI), TLCI, or flicker factor (Why do LED lights flicker or flashing?). Consequently, the actual cost differential would be even higher.

The total cost of a sports field lighting project includes not only the stadium light price themselves but also a wide range of other parts that are needed to make the lights work. These parts include light poles, base materials, power distribution systems, and smart control systems. As for light poles, specifications usually call for them to be taller to fit certain layout needs. They also need to have climbing ladders or lift mechanisms to make maintenance easier. For electrical extras and wiring, the project needs to buy different types of PVC conduits, which are used to protect and organize cables, as well as different types of power cables, which make sure that power flows smoothly from the distribution cabinets to the lights. When it comes to specialized lighting, high-quality LED sports lights are chosen (they have optimized light distribution, a high TLCI, and a low flicker factor) to provide the right amount of light and uniformity across the field. This improves energy efficiency (What's luminous efficacy and how to improve it?) while also making the space more comfortable to look at. To make sure that the fixtures work properly and make future maintenance easier, complementary driver cabinets are used. Last but not least, custom-made power distribution cabinets and smart control systems make it possible to distribute power from one central location, control each circuit separately, and manage the entire lighting infrastructure smartly. These systems can handle time-based and zone-specific lighting strategies, making them perfect for a wide range of situations, from professional sports broadcasting to regular training sessions. The cost breakdown below shows the main parts of the sports lighting system, such as the lights themselves, the installation tools, the power distribution systems, and the smart control modules. The number of items, the cost per item, and the total cost for each category are all clearly listed. This gives a general idea of how much money is needed for a professional sports lighting project. However, it's important to remember that the actual costs may be different in real life because of a number of reasons.

Item	Poles/high mast	Sports lights	Cabinet	Cable, PVC tube and others	Intelligent control system
Cost	27000 USD	160000 USD	5000 USD	50000 USD	8000 USD

ZGSM stadium lighting solutions

Summary

Through the main text, we have learned that the price of sports lighting is influenced by many factors. Generally speaking, the larger the field, the higher the stadium lighting cost. The higher the lighting class, the higher the stadium lighting cost. Through comparative analysis, the article clearly points out that lighting designs for standard fields (such as community tennis courts and seven-a-side soccer fields) aim to meet basic illuminance requirements (e.g., 300–500 lux) and horizontal uniformity, with solutions that are simple and practical. Taking tennis courts as an example, when the lighting class is upgraded from Class II (300 lux) to Class I (500 lux), the cost of lighting fixtures increases from $12 × 60 to $12 × 130, representing a significant cost difference. For a 7-a-side soccer field (500 lux), the base cost for fixtures and poles is approximately $6,900—significantly higher than for a tennis court—due to the much larger field size. For professional sports fields, design complexity increases substantially to meet the stringent requirements of international broadcast standards regarding vertical illuminance, high color rendering (TLCI), flicker-free operation, and glare control (What's glare in sports lighting and how to reduce it?), resulting in significant variations in sports lighting prices. Take a hockey field as an example: a professional solution designed to FIH standards requires three times the number of fixtures (100 sets of 1,800W) and 5.5 times the power compared to a standard solution (36 sets of 900W), resulting in an exponential increase in fixture costs alone. Furthermore, professional projects must include a full suite of supporting services such as ultra-high light poles (with ladders/lifts), custom power distribution cabinets, intelligent control systems (supporting dimming), and installation and commissioning, which further drive up the overall investment. Therefore, sports lighting is not merely a simple transaction involving luminaires, but a comprehensive “design + product + service” solution. The sprots light price tier directly reflects the leap in design standards from “meeting basic functional requirements” to “delivering exceptional broadcast quality.” A deep understanding of this sports lighting cost structure helps clients make precise decisions during project planning to maximize returns on investment.
