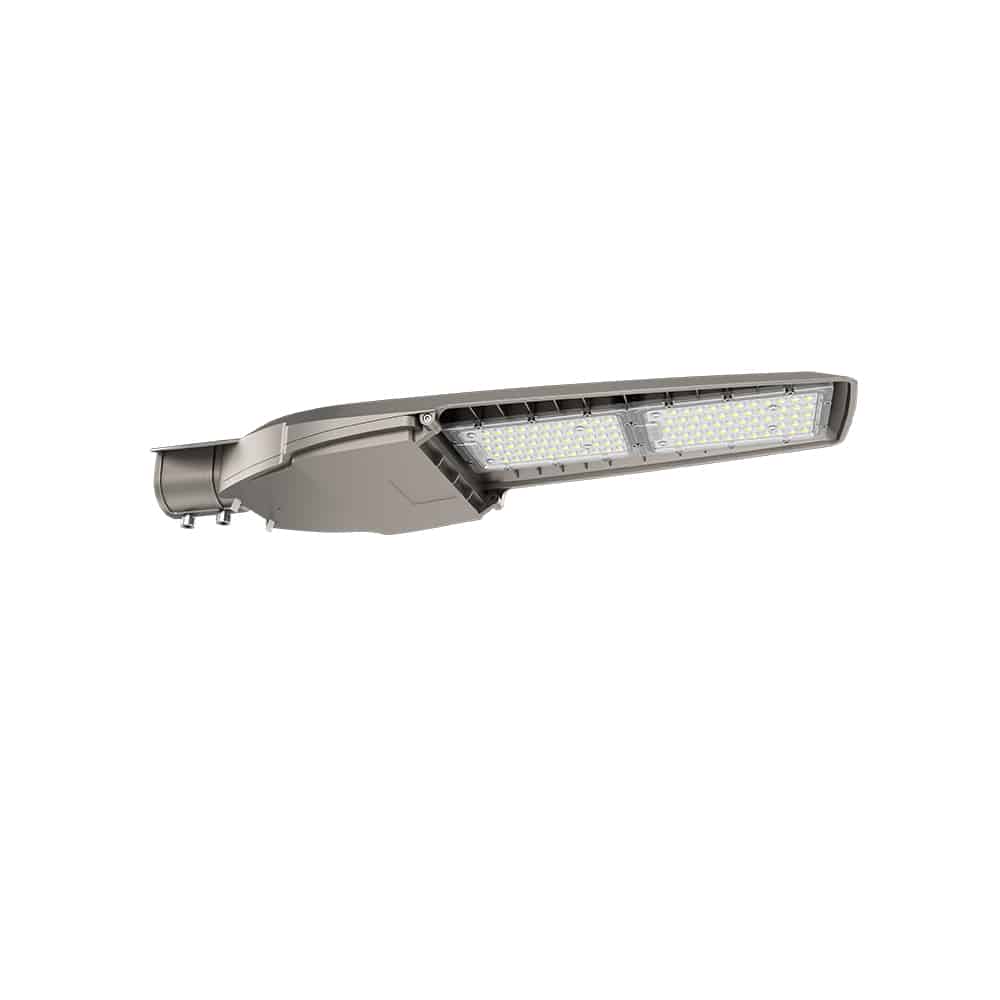

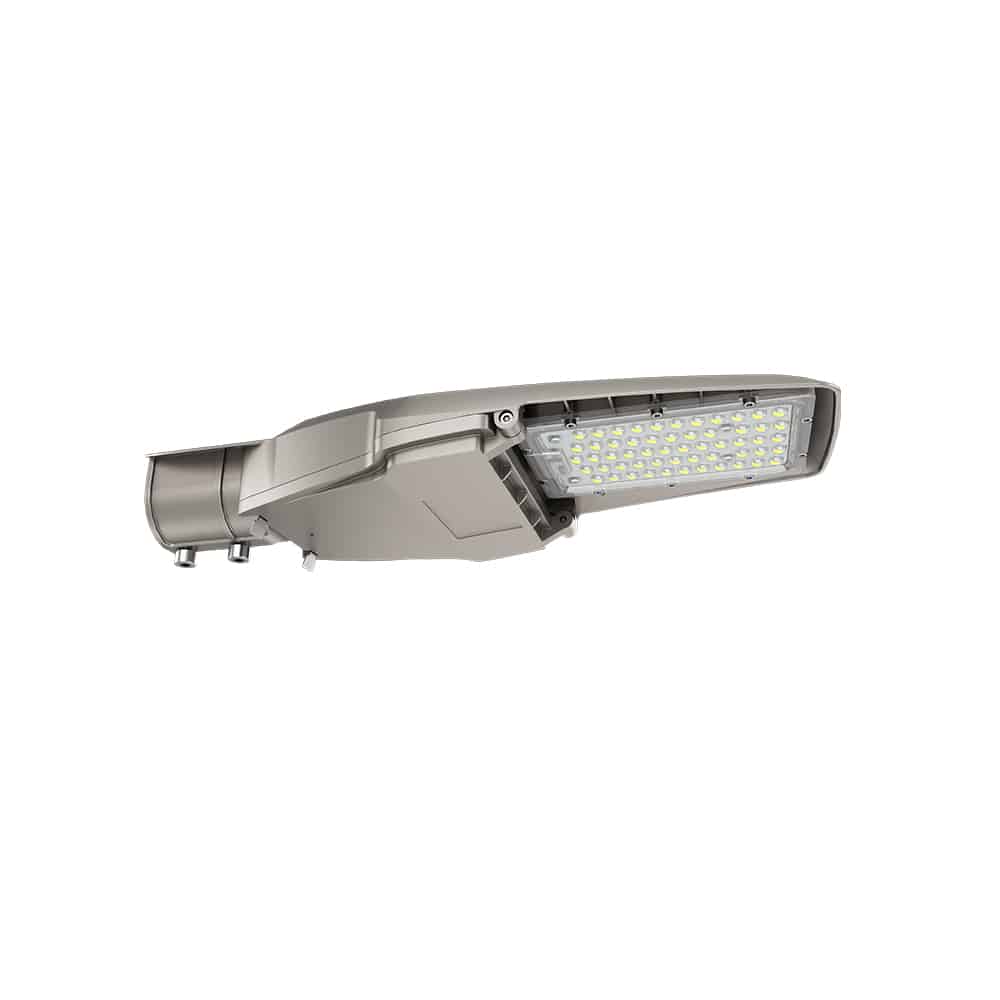

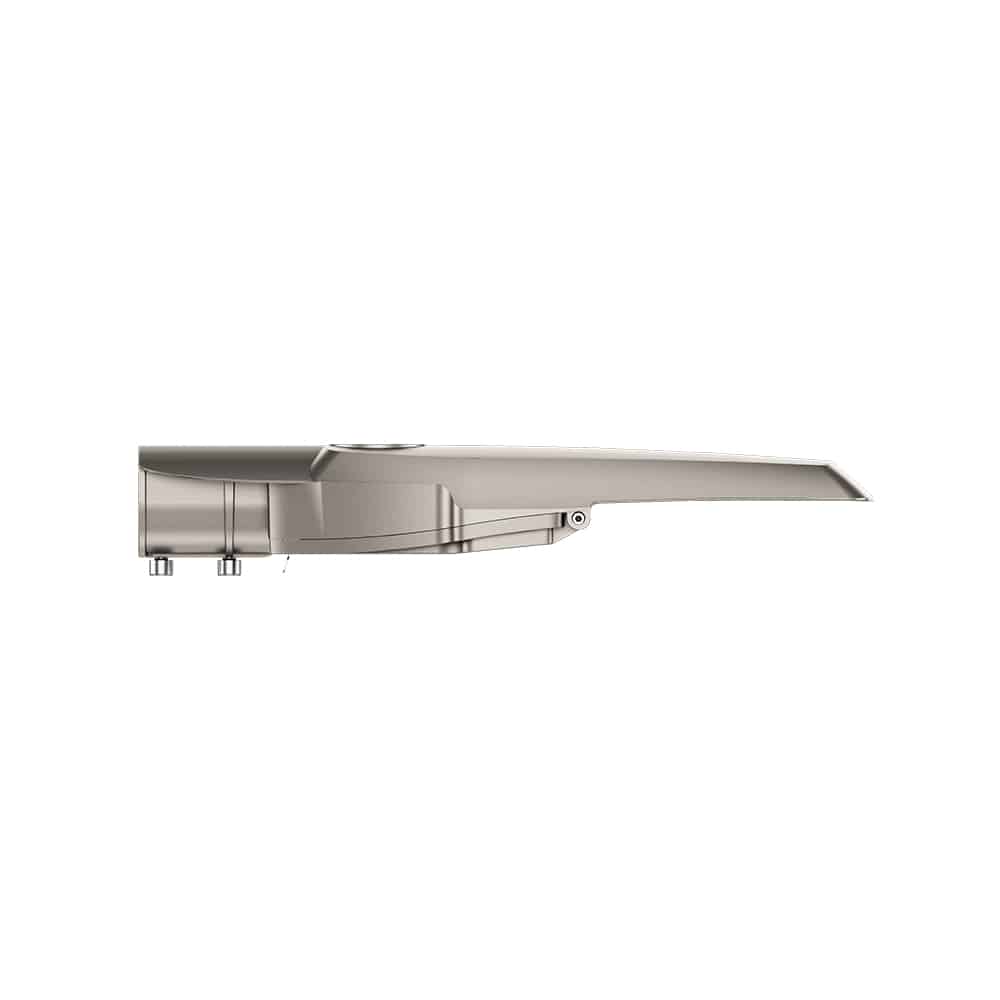

Series Leaf Modern LED Street Light Fixtures With Free-tool Design

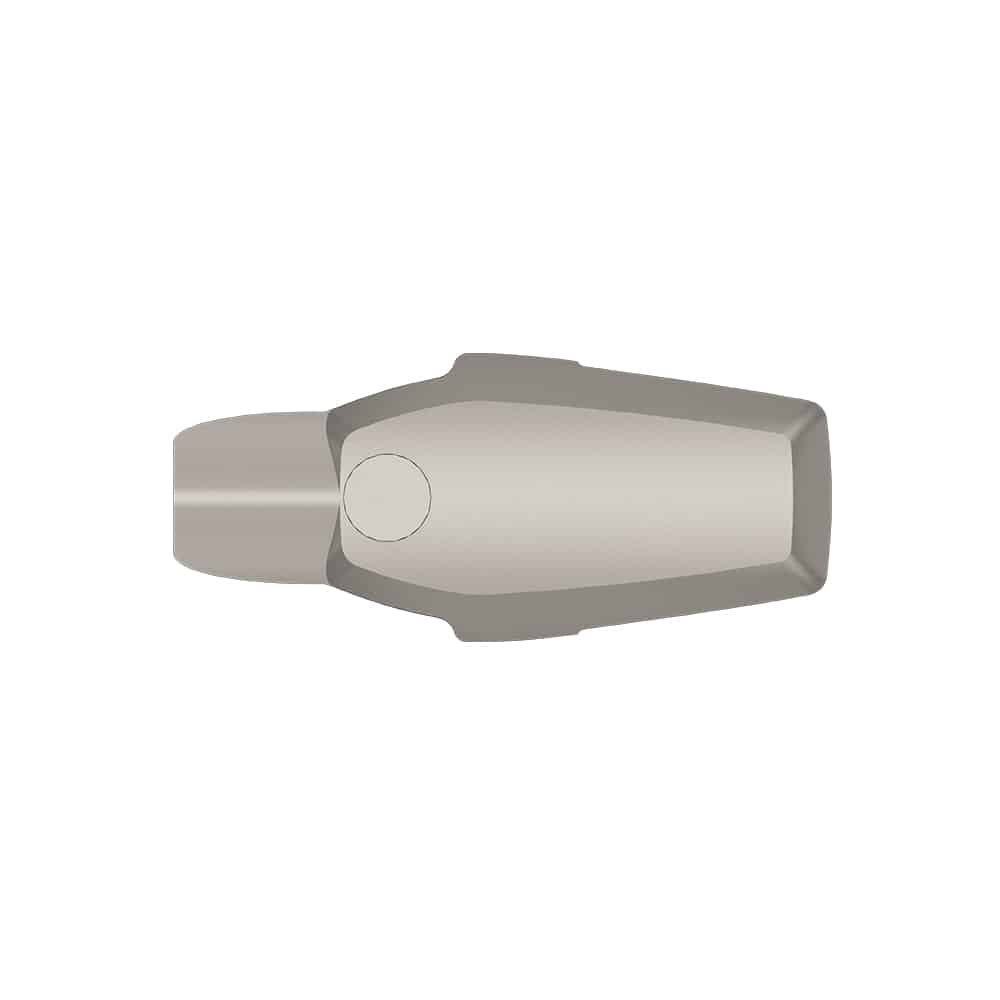

Leaf series modern LED street light fixtures are a new series launched by ZGSM in 2023. It offers many benefits, such as tool-free opening, a sleek casing, and a modern design ( View modern street lamp project case ). ZGSM gave this series the name “Leaf”, aiming to allow these street lights to be seamlessly integrated into urban infrastructure. Just like leaves covering the sides or middle of roads, providing lighting to the city.
The Leaf series symbolizes green lighting because of its main advantages: First, cost-effectiveness – these street lights have high luminous efficiency and are low-priced per watt. Secondly, it has a scheduled dimming function – customized dimming profile can be set at the factory, allowing it to greatly save energy. Third, easy maintenance and upgrades – these street lights can be equipped with NEMA sockets and can be opened without tools, which facilitates future upgrades and maintenance. Finally, they have a long lifespan, over 100,000 hours for the L70, which means the light decays very slowly and remains bright for many years. Therefore, we named it Leaf, which means environmentally friendly lighting.
Product Features
- Power range 20W-160W
- Free-tool maintenance

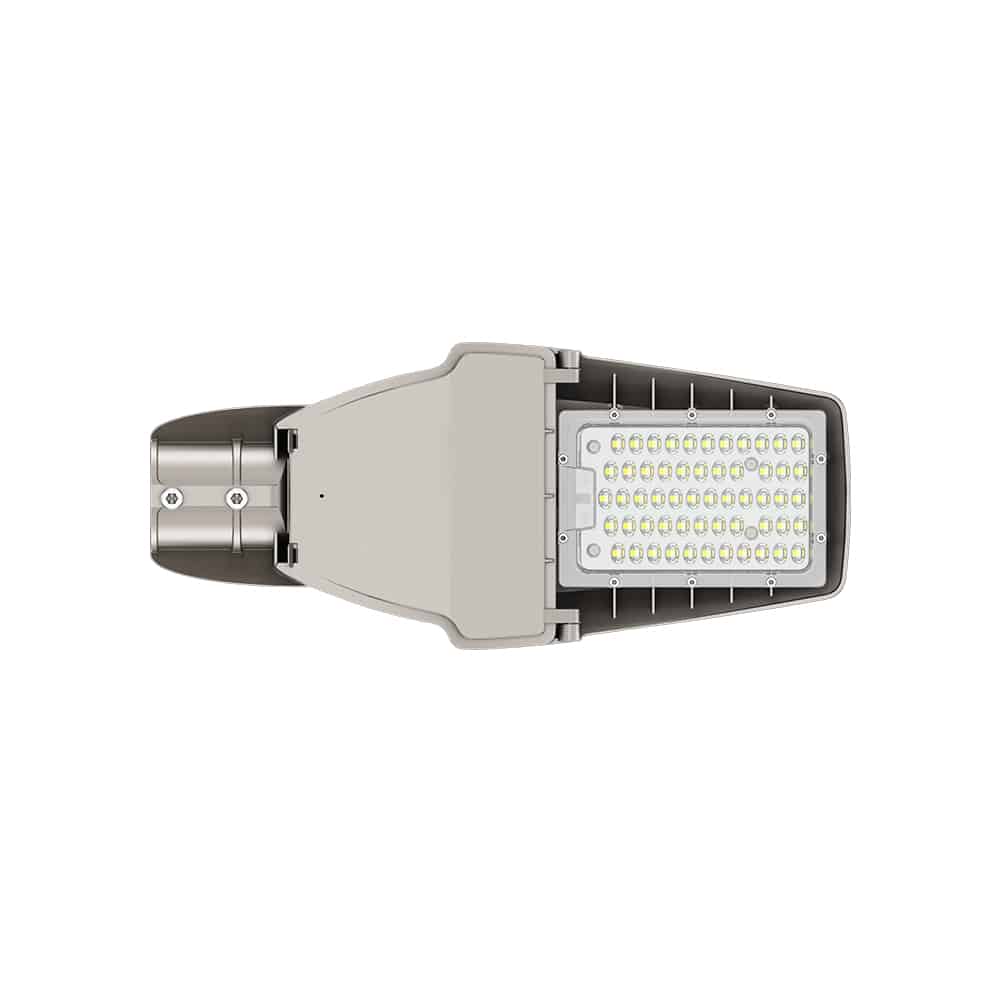

- High performance with Lumileds chips
- Luminaire efficiency up to 199 lm/W
- Build-in 10KV surge protection device ( Surge Protection Devices (SPD) for LED lighting )
- Two light distributions
- Customized dimming profile as per request
- ENEC certified for both Class I and II
- Available on request: NEMA socket (3/5/7pins), ZHAGA socket, Short cap, Daylight sensor, Motion sensor, NTC, OLC, Solar Compatible, DALI Dimming
| Series No | Series Leaf |
| Power | 20W, 30W, 40W, 50W, 60W, 70W, 80W, 90W, 100W, 110W, 120W, 130W, 140W, 150W, 160W |
| Efficacy | 155-199lm/W |
| Input Voltage | 100-240/277 VAC, 50 / 60 Hz |
| Power Factor | >0.95 |
| Surge Protection | 10KV (Default) / 20KV (available on request) with IEC61643-11 |
| IP Rating | IP66 |
| IK Rating | IK09 |
| CCT | 2200K, 3000K, 4000K, 5000K, 5700K, 6500K |
| CRI | Ra>70 (Default) / Ra>80 |
| Operating Temperature | -40°C to + 50°C |
| Beam Angle | Type II, Medium |

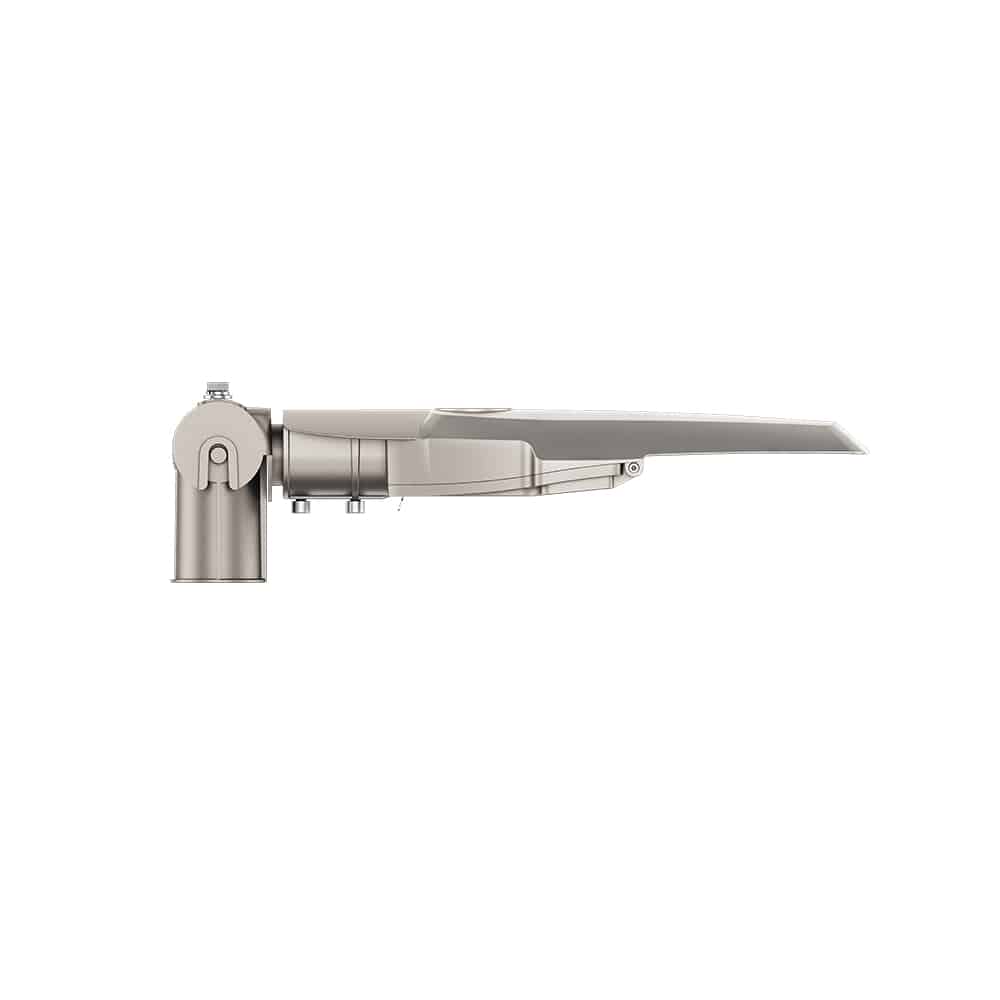

| Mounting Option | Side entry, or vertical pole mounted with adapters |
| Warranty | 5 Years |
| Certification | CE, RoHS, ENEC, CB, Zhaga-D4i, LM79, LM80, TM-21, IP66, IK09/IK10, IEC62471/62778, IEC60068-2-6, IEC61643-11, ISO9227, CISPR15:2018 |
| Control | Daylightsensor, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control |
