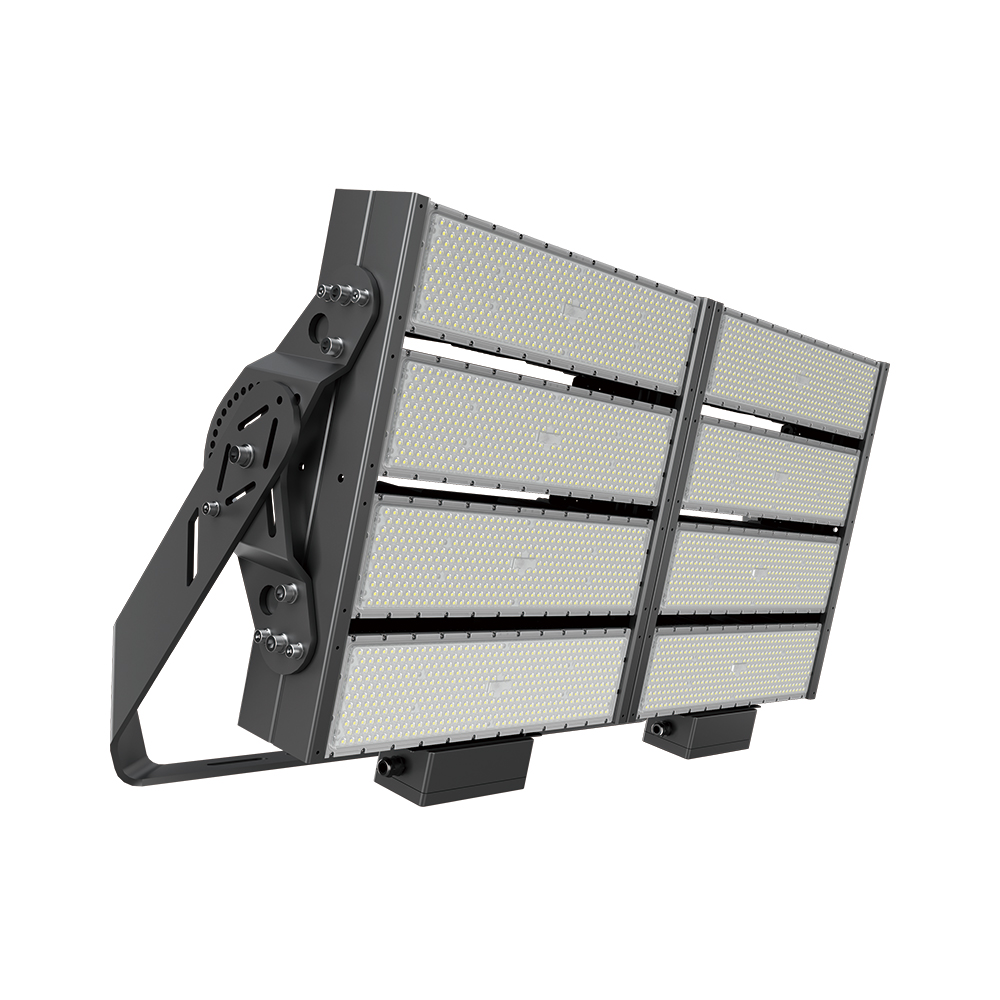

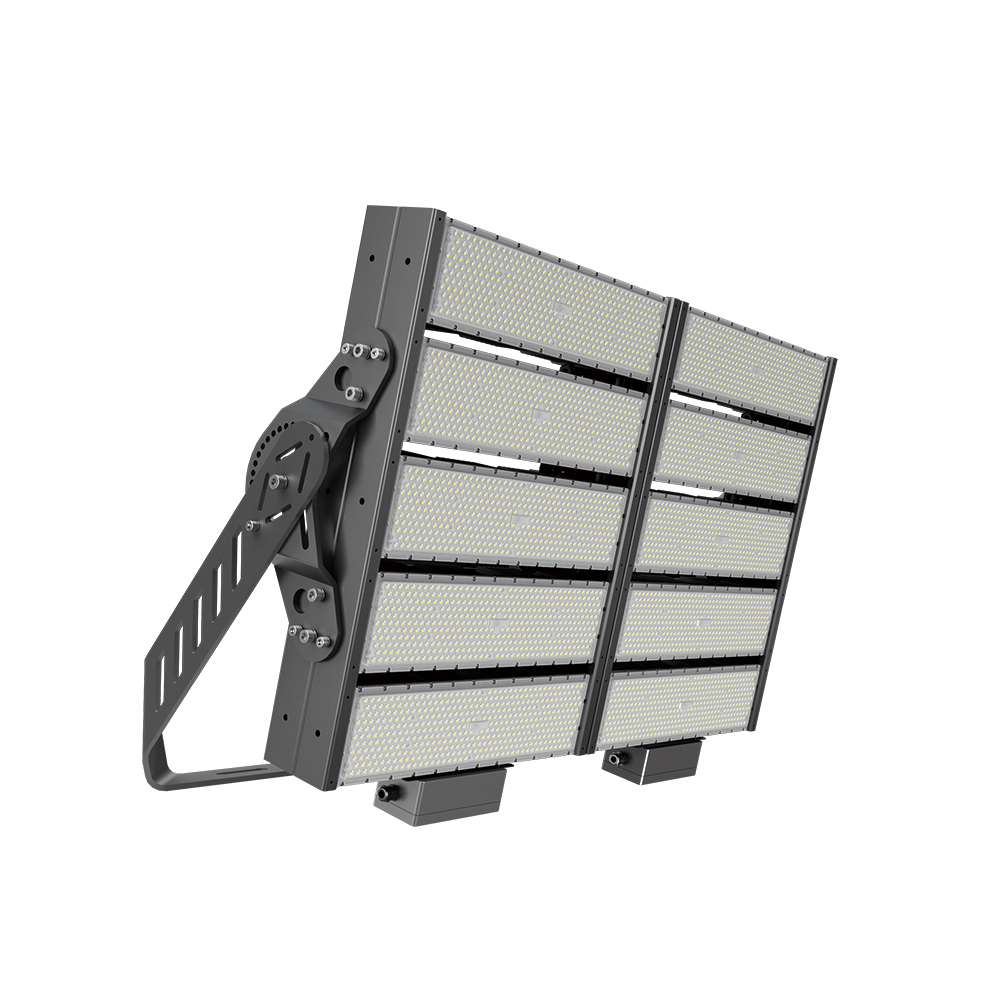

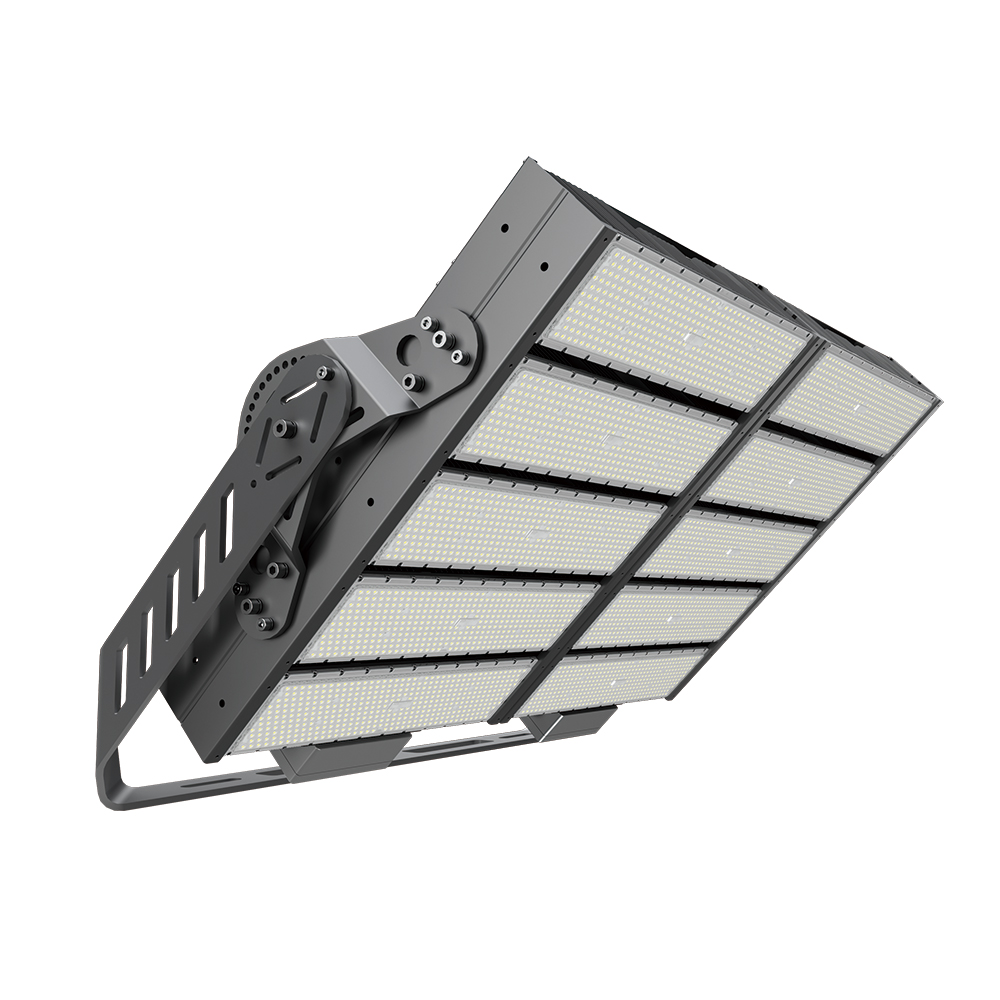

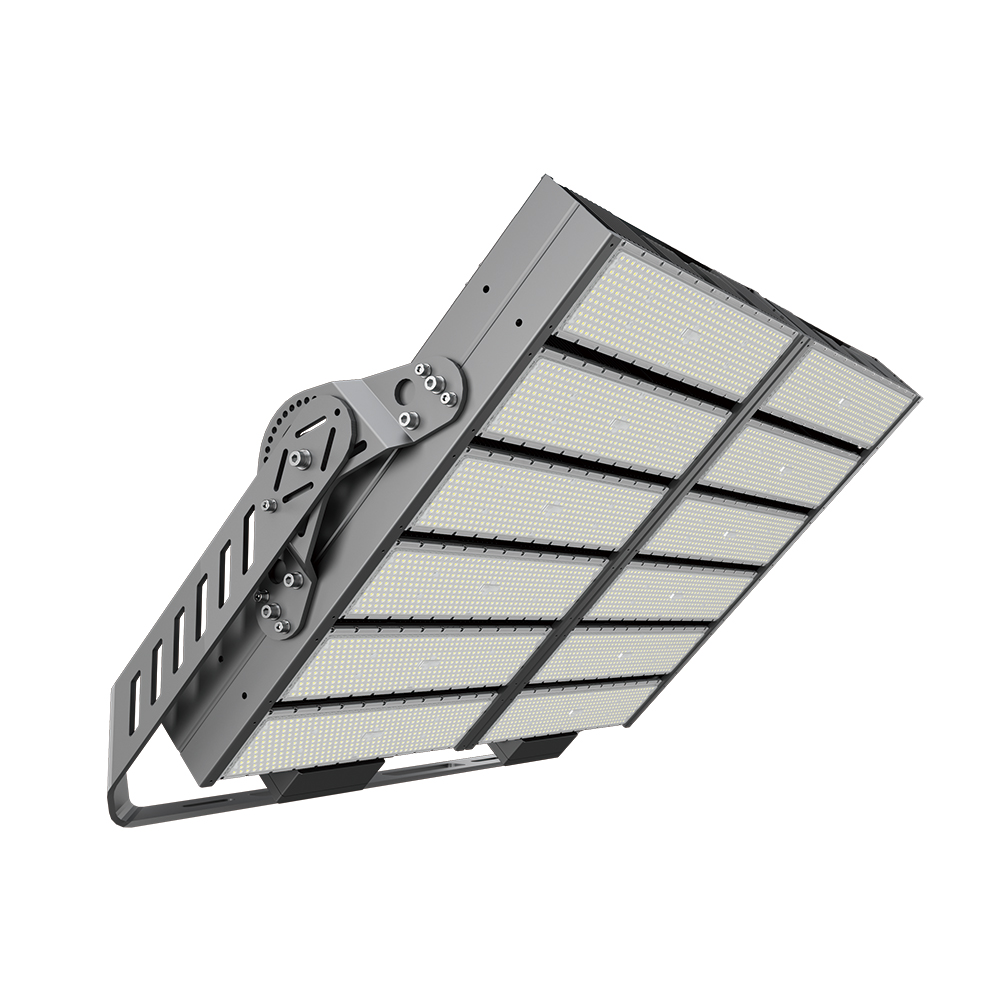

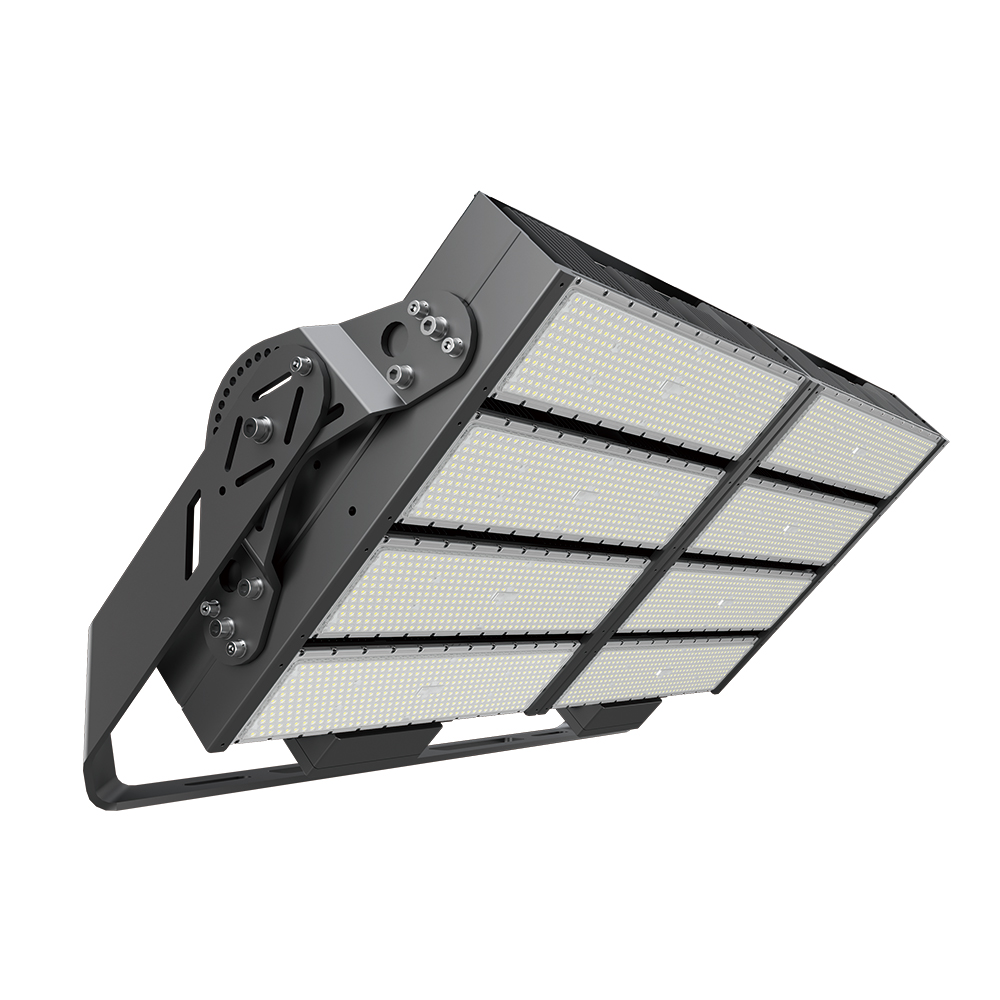

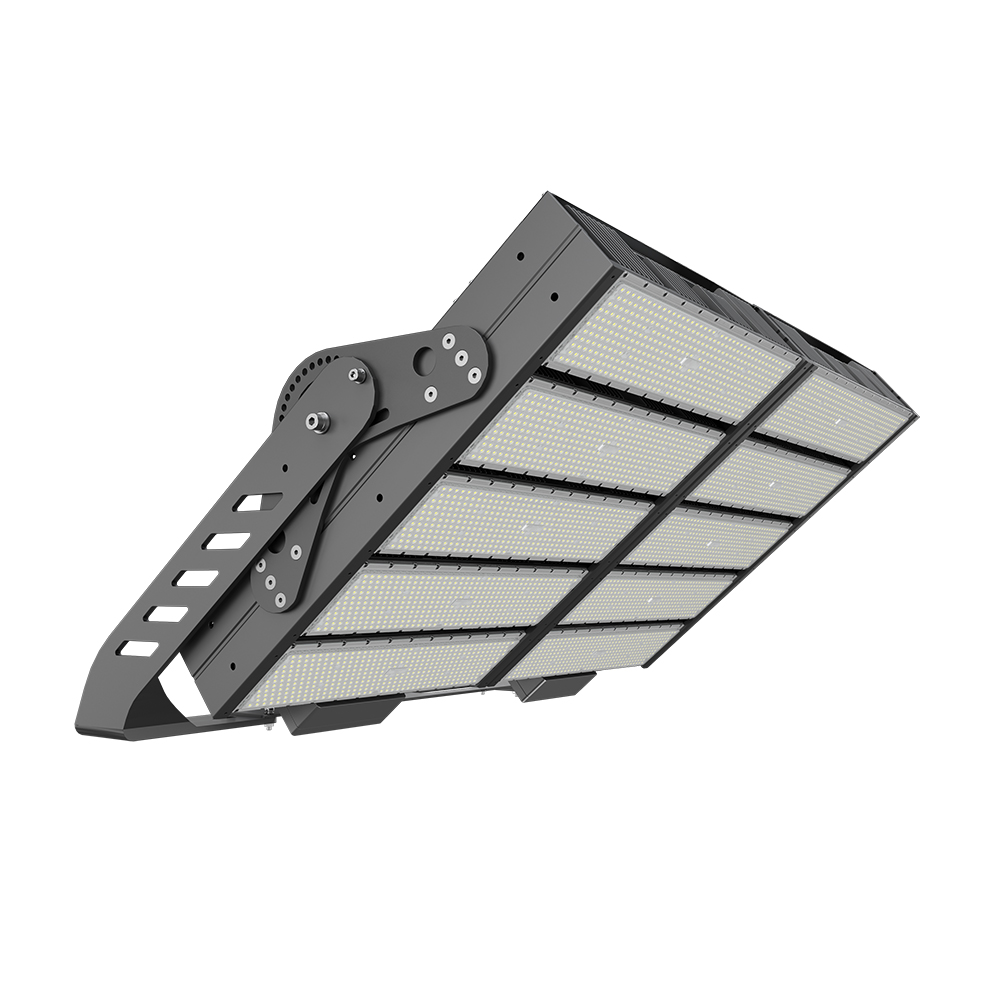

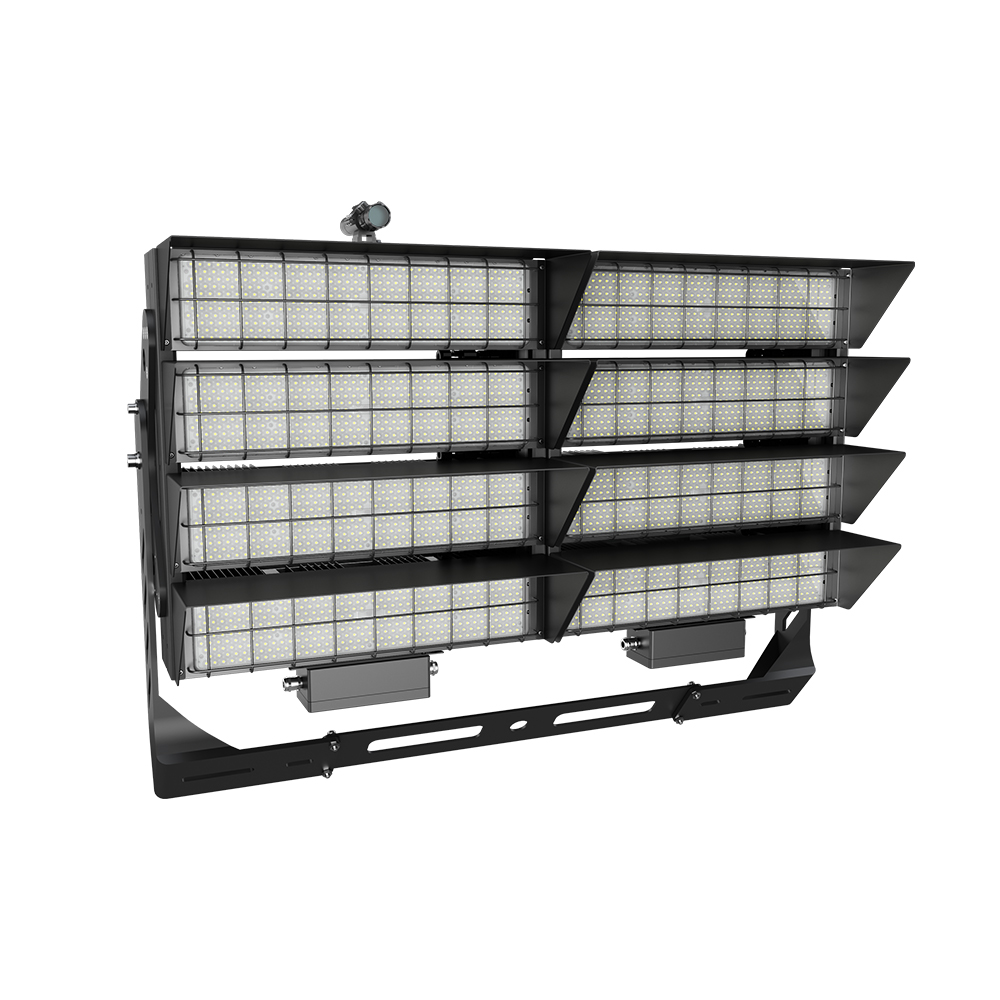

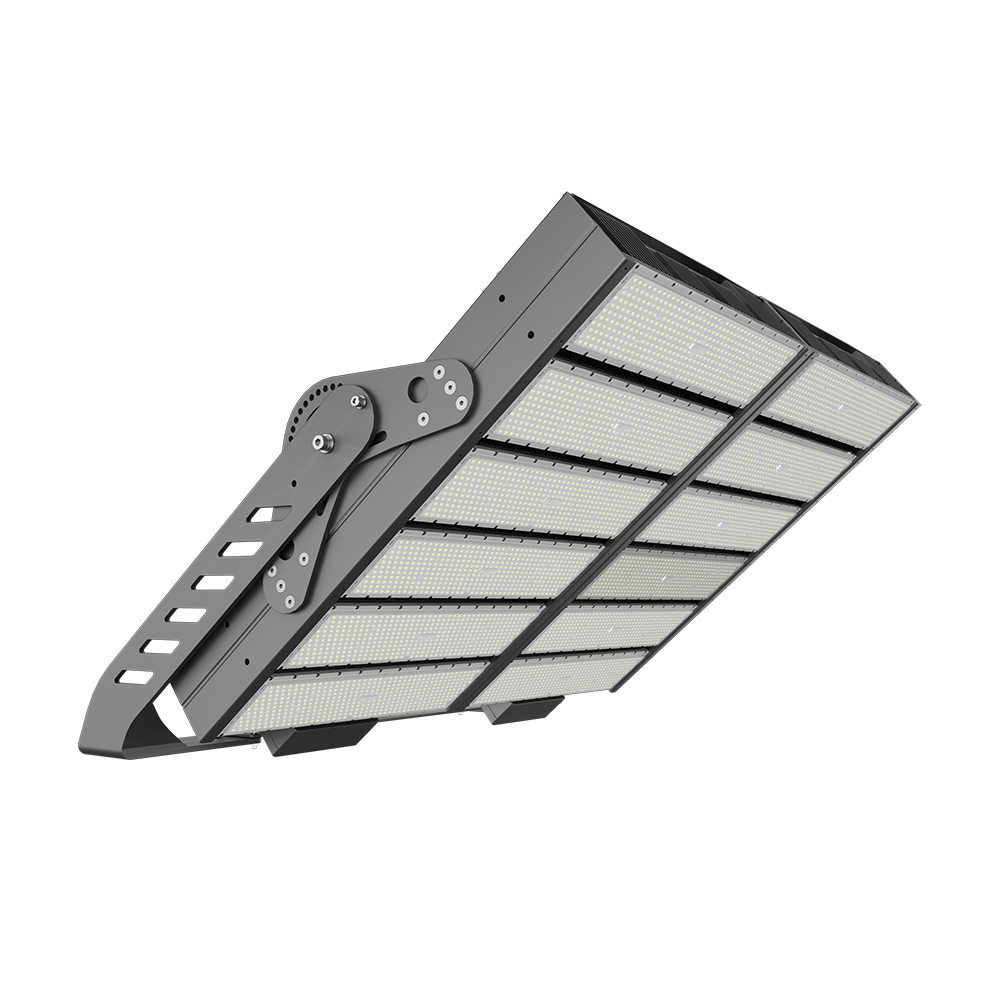

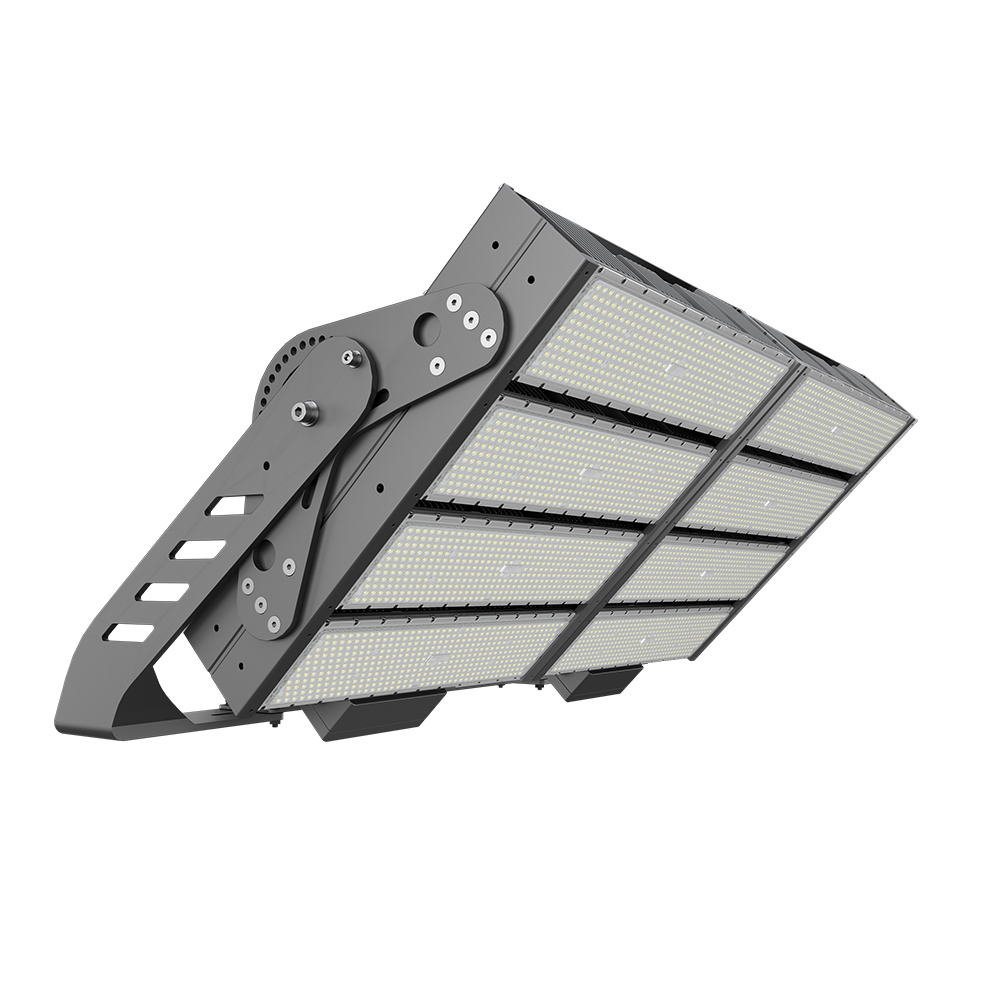

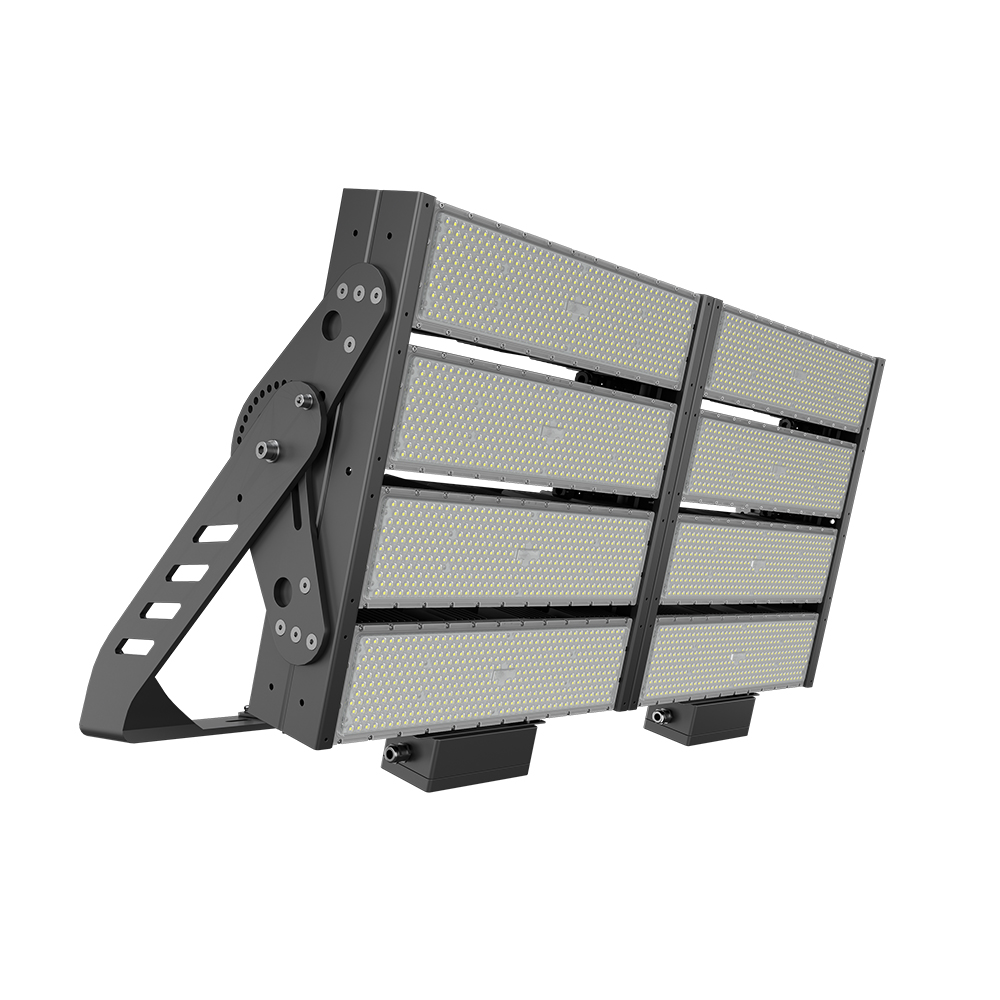

Series Glomax Pro High Power 2000-3600W Sport Court Lighting

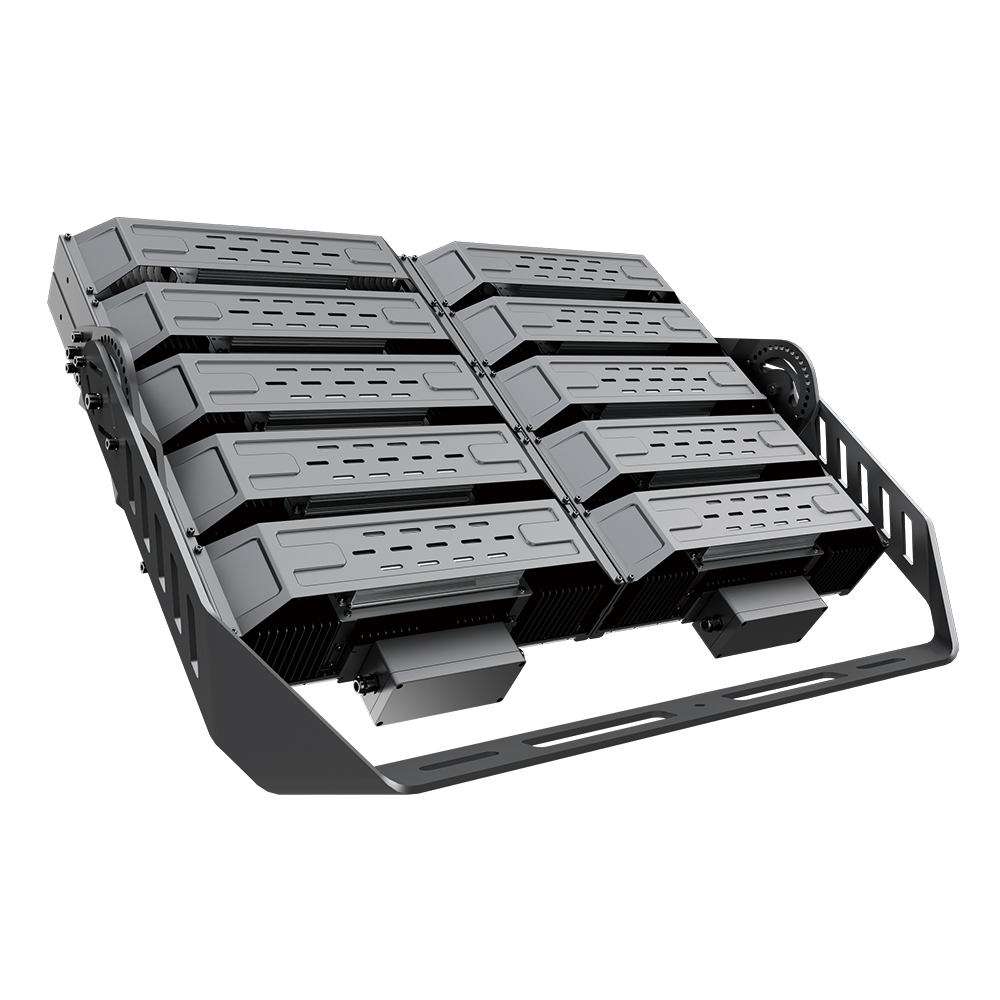

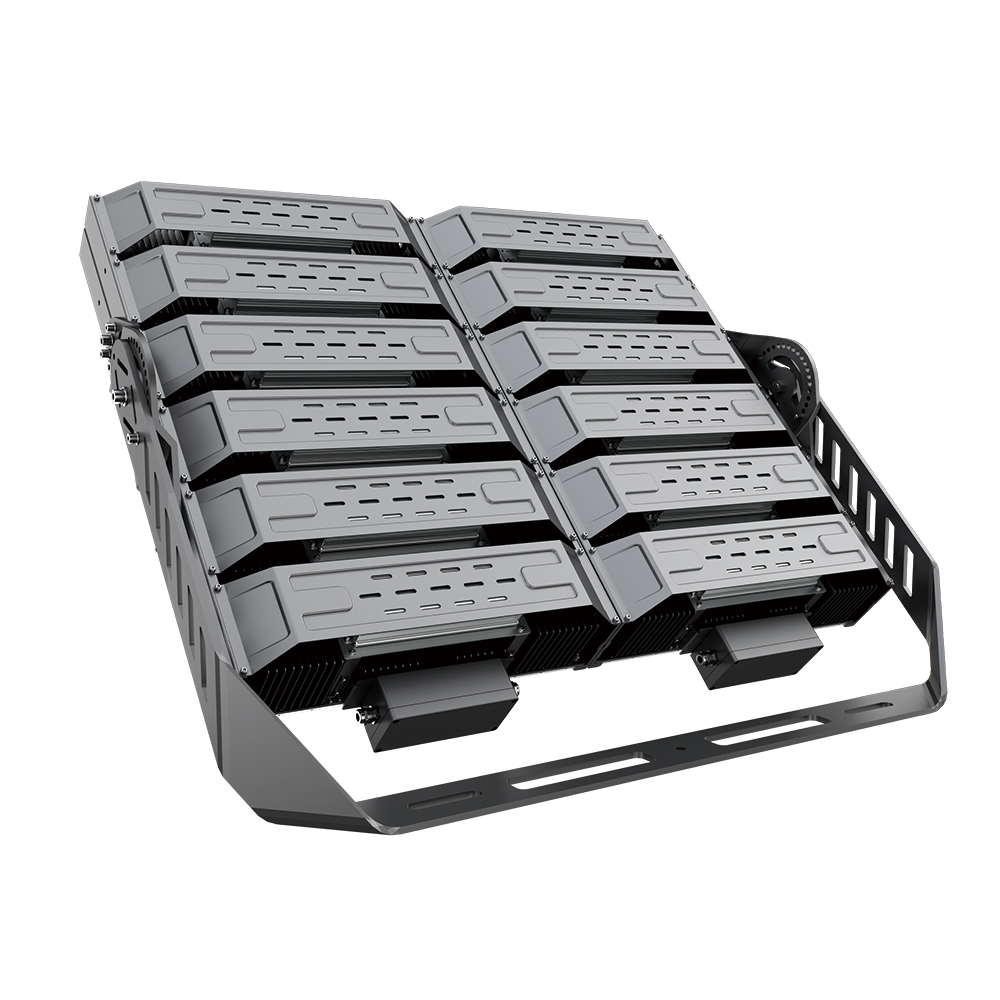

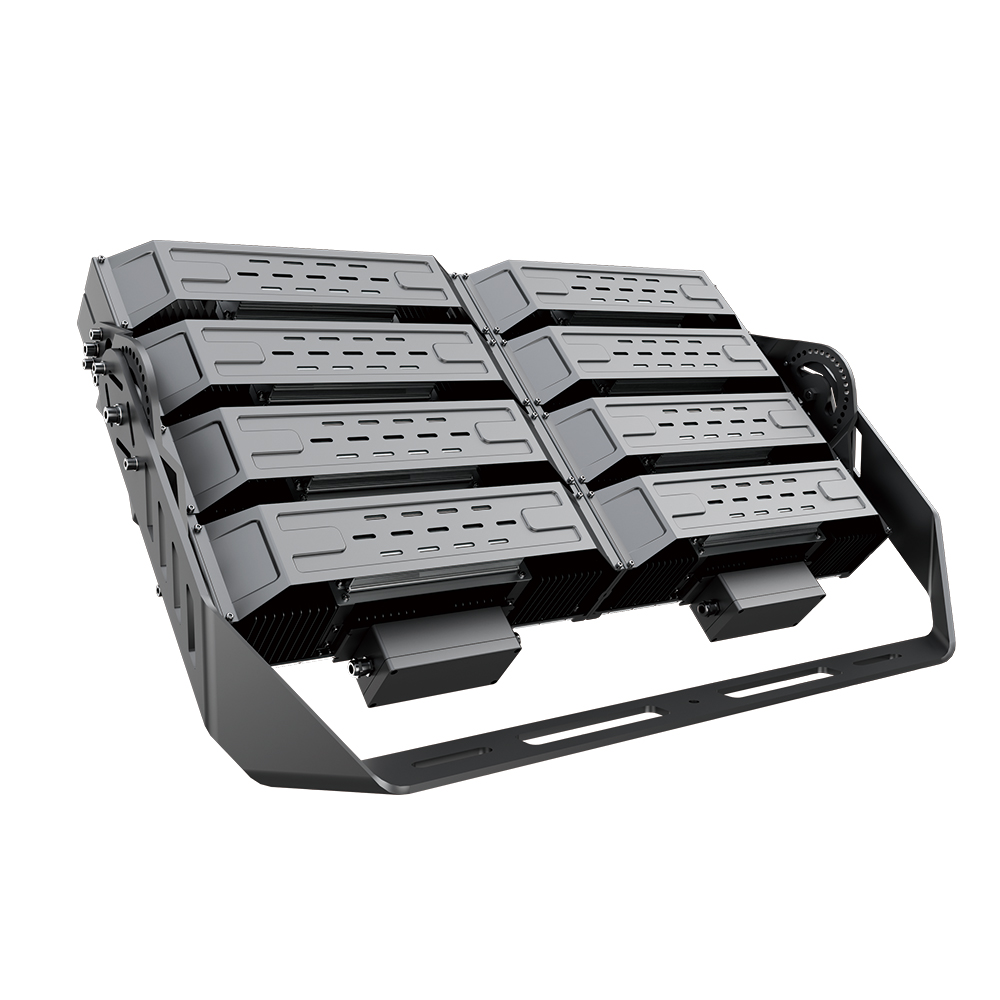

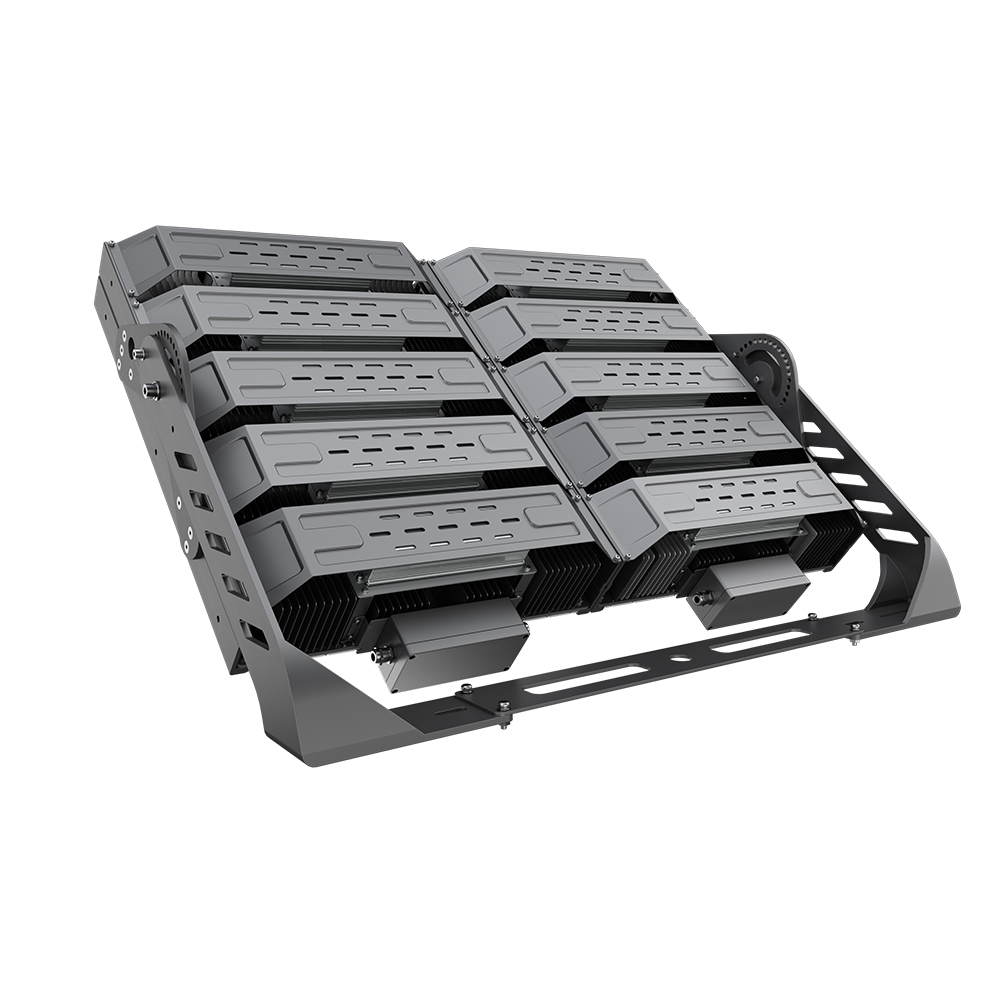

Glomax Pro Series sports court lighting is an upgraded version of the Glomax with higher power ratings such as 2000W, 2500W, 3000W and 3600W. They delivery an ultra-high luminous flux of 330,000 to 558,000 lumens for the lighting of large sports fields, docks, airports and other large areas. Up to five different beam angles ensure uniformity of court lighting and reduce glare. Its unique finned aluminium heat sink effectively increases the heat dissipation area and airflow channels, lowering the operating temperature (Ts) of the LED chips and thus slowing down light decay. In addition, accessory options such as wire guard, visor, protective cover make it an ideal sports court lighting fixture ( View more stadium lighting fixtures ).

Product Features

  • Watts: 2000W, 2500W, 3000W, 2400W, 3000W, 3600W ( View watts to lumens for LED lights. )
  • Light Efficiency up to 165lm/w
  • IP66 and IK10 rated ( What does IP rating mean? )
  • 10KV surge protection device, 20KV SPD is optional
  • Asymmetrical or symmetrical light distribution for sports court lighting

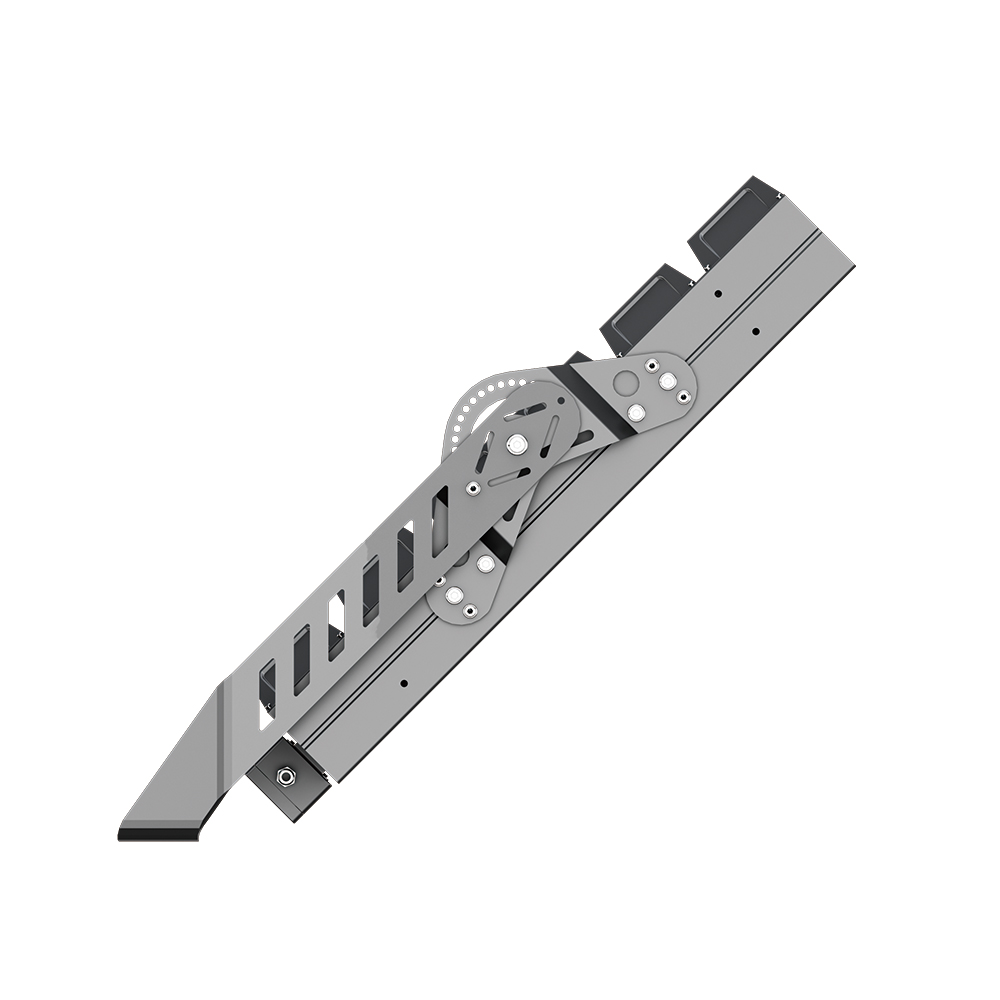

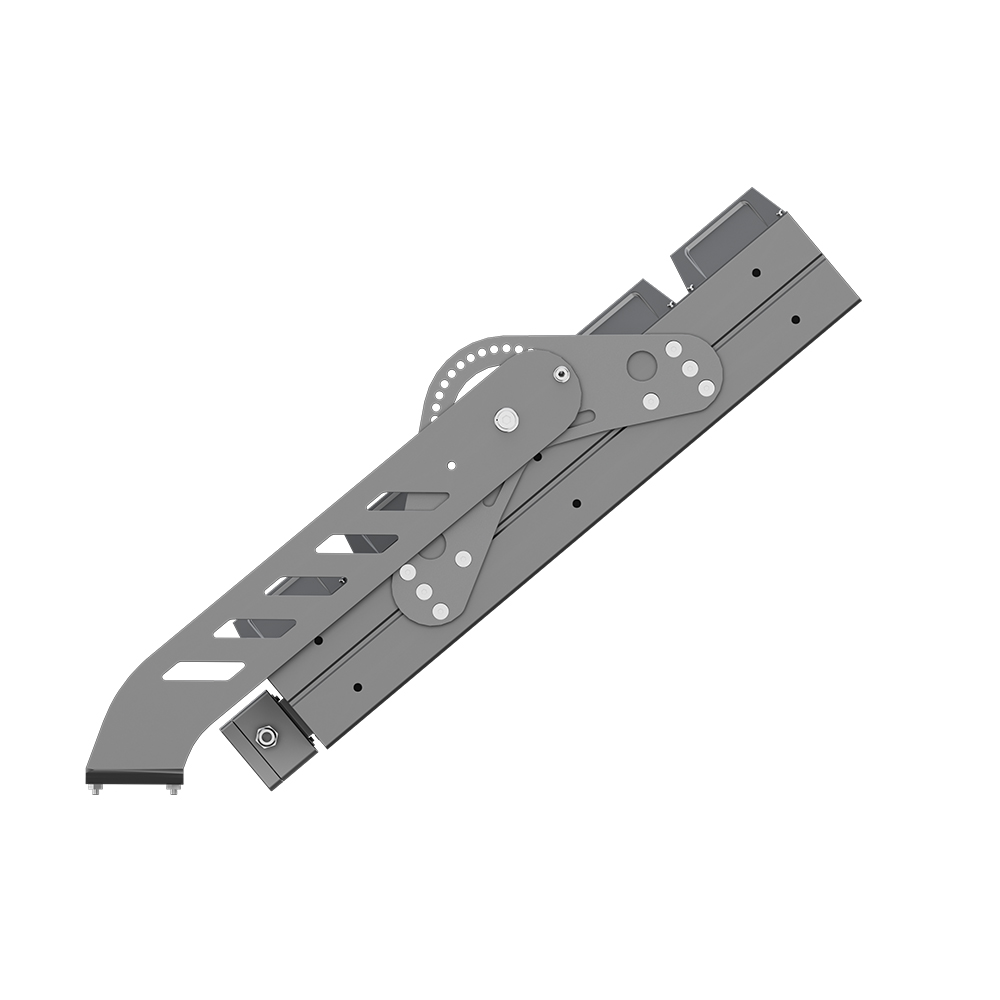

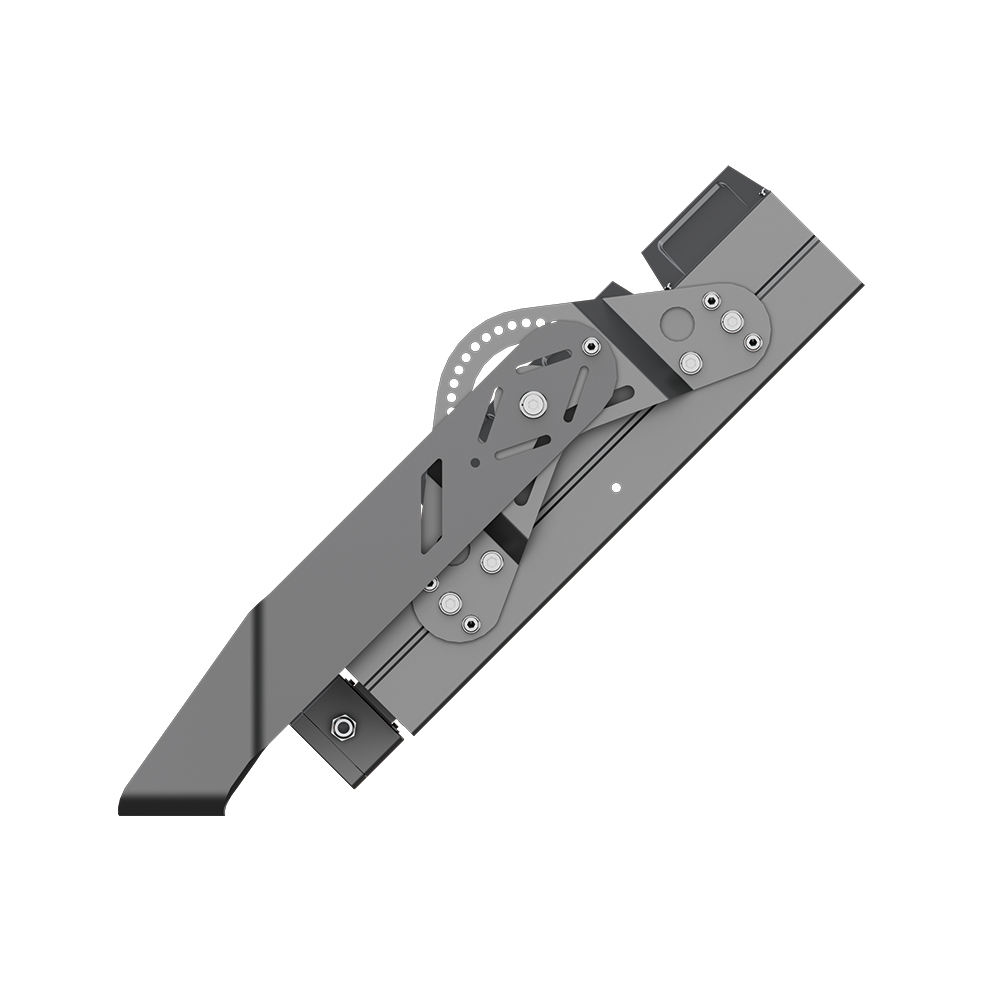

  • Installation adjustment of 270° with each step 10°
  • Laser pen is optional for creating a rational layout plan for luminaires
  • CE, ROHS, IP66, IK10, LM80, TM-21, IEC62471
  • Smart Control: Photocell, NTC, OLC, DALI Dimming ( What’s street light dimming system? ), DMX512, Zigbee, LoRa

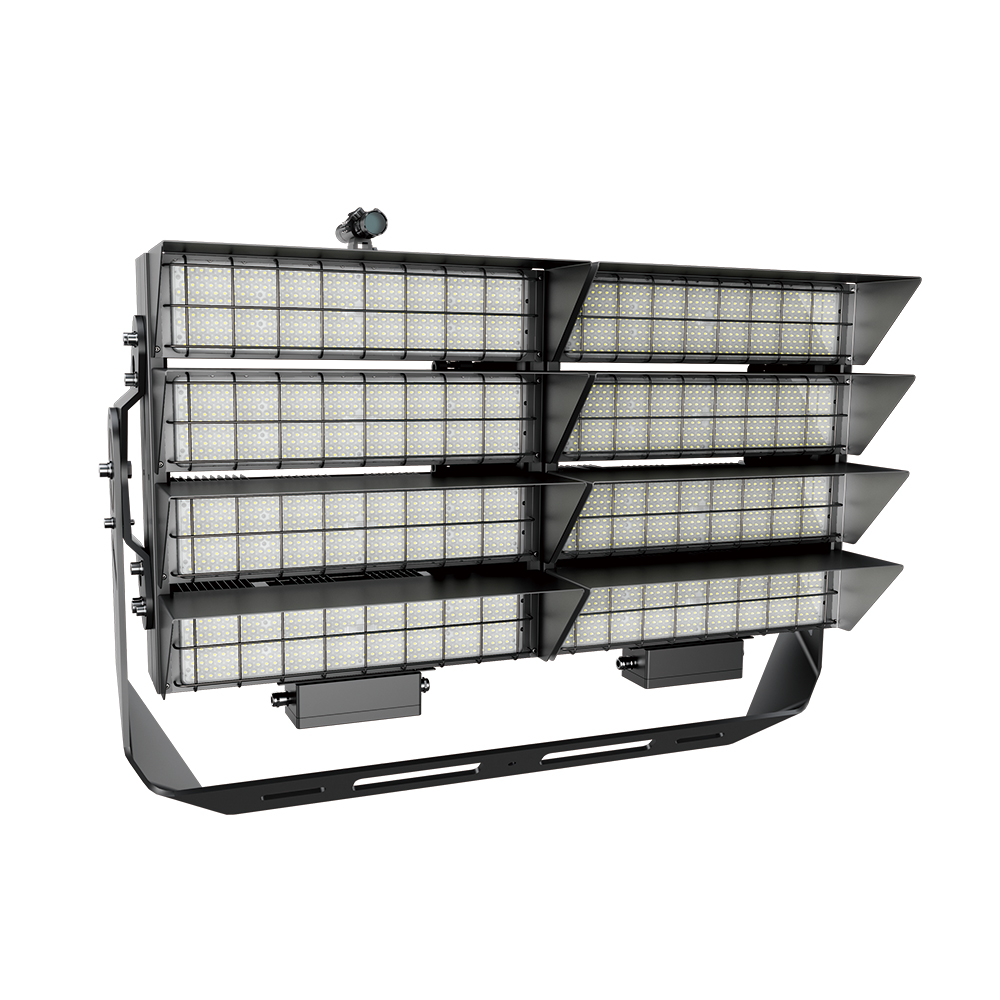

  • Accessories: Glass cover, Safety chain, Laser pen, Visor, 304 conduit, Protective cover
Contact Us

  • ZGSM products are designed for the global market. Please contact our sales team for certification details.
  • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
Sport Court Lighting
Glomax Pro Sport Court Lighting
Series No Series Glomax Pro High Power 2000-3600W Sport Court Lighting
Power 2000W, 2500W, 3000W, 2400W, 3000W, 3600W
Efficacy 155-165lm/W
Input Voltage 100-240/277 VAC, 50 / 60 Hz
Power Factor >0.95
Surge Protection 10KV (Default) / 20KV (available on request)
IP Rating IP66
IK Rating IK10
CCT 3000K, 4000K, 5000K, 5700K, 6500K
CRI Ra>70 (Default) / Ra>80
Operating Temperature -40°C to + 50°C
Beam Angle 15°, 30°, 45°, 60°, Asymmetrical
Installation 0-270º adjustable
Warranty 5 Years
Certification CE, ROHS, IP66, IK10, LM80, TM-21, IEC62471
Control Photocell, NTC, OLC, DALI Dimming, DMX512, Zigbee, LoRa
Light distribution of Glomax sports court lighting
Specification_Glomax_Pro_Sport Court Lighting Installation Manual_Glomax_Pro_Sport Court Lighting

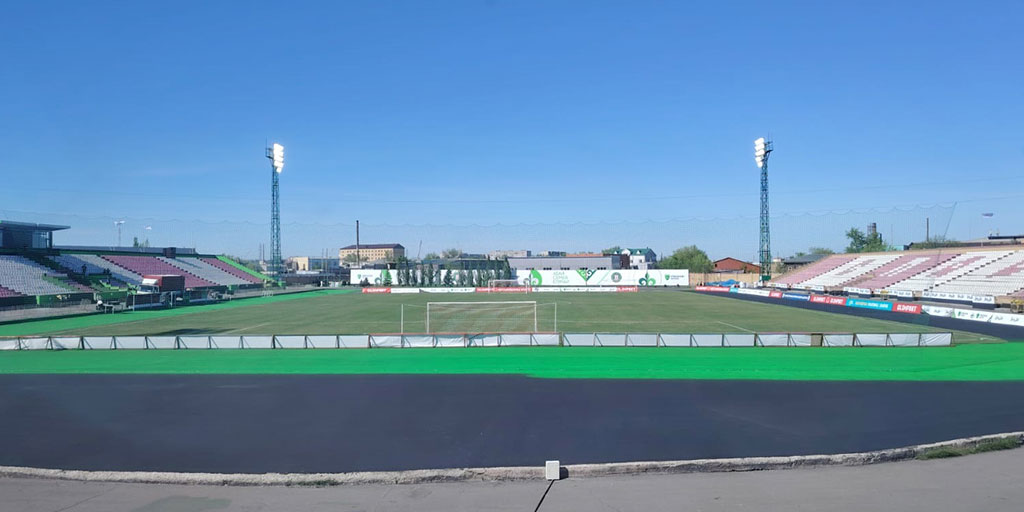

Normally the flood lights are arranged symmetrically on both sides or the corners of the court. Depending on the lighting design ( ZGSM's Simulation Design Solutions ), each luminaire will have an angle of illumination that will project light to all corners of the sports court. ZGSM will often provide a layout plan and coordinates list of lumnaires, which will contain detailed information on the installation of the luminaire, including mounting height, location and angle of illumination.

In order to comply with sports lighting regulations, you first need to have an in-depth understanding of the lighting standards and regulations applicable to your own stadium, including key parameters such as illuminance, colour temperature and colour rendering index. Next, we need to select appropriate lighting equipment, such as energy-efficient LED luminaires and intelligent control systems, based on the stadium information and lighting requirements. At the same time, we should carry out lighting design to ensure that the results of the lighting simulation meet the lighting standards. Meanwhile, during the installation and maintenance of lighting equipment, we should strictly follow the instructions of professionals and the lighting design report for the installation of luminaires (including the installation position, angle and height, etc.), as well as regular inspection and maintenance of the lighting equipment in order to maintain its performance and prolong its service life.

ZGSM's sports court lights have a corresponding installation manual with detailed information on luminaire installation, angle adjustment, wiring, power supply installation and accessory installation. Together with the Dialux report provided by ZGSM, the customer can complete the installation of the luminaire. If necessary, ZGSM can also provide our customers with online or video instruction. Contact us to ensure that the fixtures are installed correctly and that the project is completed successfully.

Related Products

Series Glomax Professional LED Sports Field Lights

Series FL10 LED Mast Light with High-Power Luminaires

led flood

Series ZOOM Tool-less Led Flood Light

landscape flood light

Series HB modular design Outdoor Flood Lights

Related Blogs

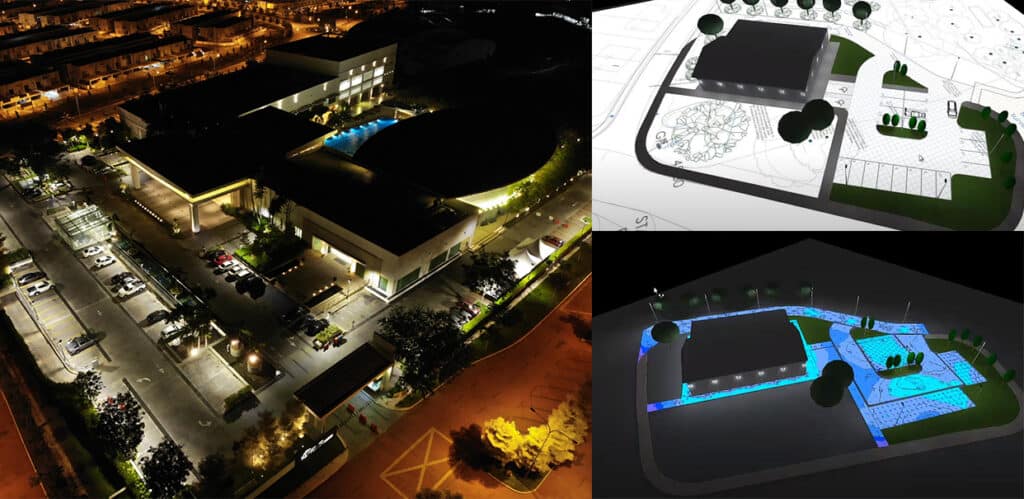

Lighting calculation ZGSM

Lighting calculation – street lighting, sports lighting and other exterior lightings

Certification Show

As a professional manufacturer of sport court lighting, our stadium lighting fixtures have rich certification and test reports, such as CE, ROHS, IP66, IK08, LM80, TM-21, IEC62471, and so on.

COMPONENT STANDARDS TEST REPORT CERTIFICATIONS
LED LM80 √
LUMINAIRES EN/IEC 60598-1 and 60598-2-1 √ √
IEC 62471 √ √
EN/ 60529 √ √
IEC 62262 √
EN/IEC 55015 √ √
EN/IEC 61000-3-2 √ √
EN 61547 √ √
EN/IEC 61000-3-3 √ √
IEC 62321 √ √
TM-21 √
LED DRIVER IEC 62384,IEC 61347-1,IEC 61347-2-13 √ √
SPD EN/IEC 61643-11 √ √
FACTORY ISO9001,ISO14001,ISO50001,ISO45001   √
