Series M high mast lighting for railway station in the Philippines

Railway station lighting project in the Philippines, completed in 2019 with our M series led high mast light and H series floodlight. The pole and installation heights are around 12.5m and 11.5m. When negotiating this project, we made a lot of Dialux simulations for our customers until they were satisfied and finally the installation proved the good result of our proposal. High-quality and energy-saving high mast lighting not only lower maintenance costs but also lower electricity costs.

Project details:

ProductModelCCT/ Beam angleQuantity
840w high mast tower light ZGSM-TGD840M5700K, 30°84pcs
240w floodlightZGSM-FGD240H65700K, 60°80pcs

.

LED High Mast Lighting For Railway Station
Customer Feedback
5 star rating
5 star rating
5 star rating
5 star rating
5 star rating
I couldn’t be more pleased with how well these lights illuminate our area. The whole area is as bright as in the daytime.
Chato Vicencio
Project Manager

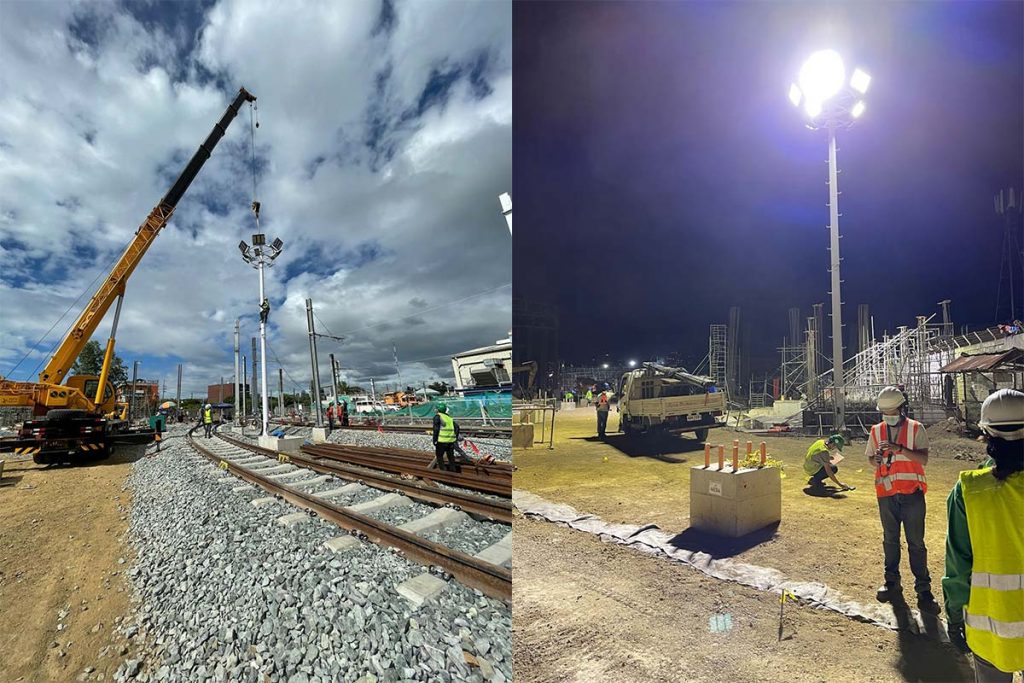

high mast lighting for railway station

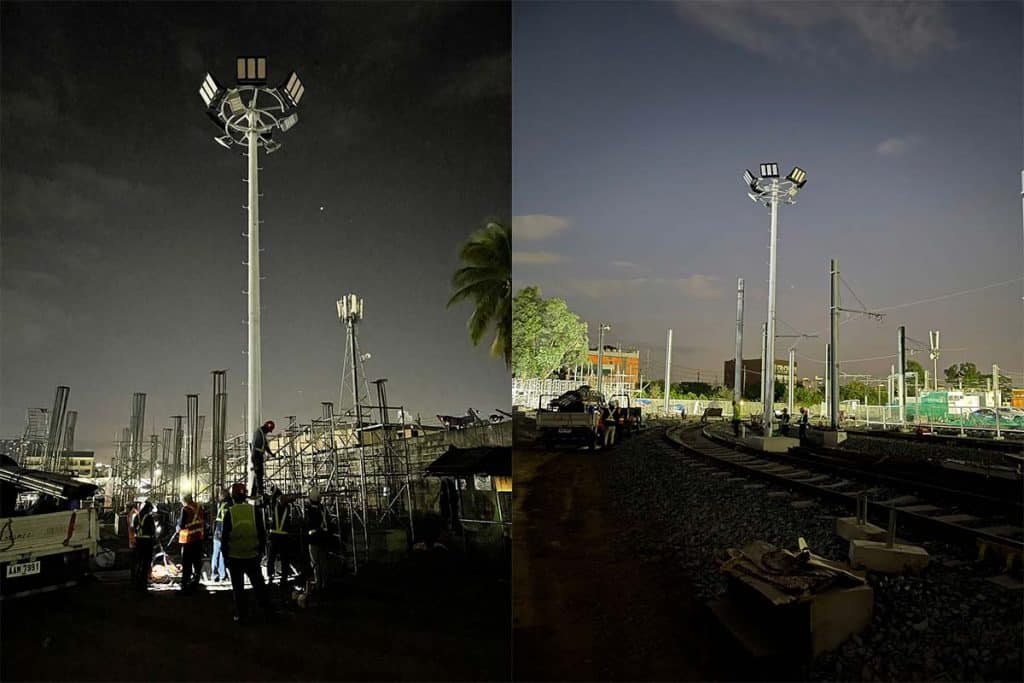

high mast lighting for railway station2
high mast lighting for railway station3

Download

datasheet installation Manual

Products used

Video

Related Products

Related Projects

Related Blogs

People also ask

The high mast lighting system consists of a tall pole with the top lamp facing downward. The lighting system consists of a ring of lights encircling the light pole, with one or more of the lamps surrounded by numerous independent lighting devices. The majority of devices have four, six, or eight lights on the ring, with three, five, ten, twelve, or sixteen lights being utilized in a few instances.

The high mast is around 50ft-150ft in height. Due to the increased illumination provided by the high mast light, it is presently the most effective method of illuminating vast outdoor areas (such as highways, railway yards, parking lots, airports, seaports, stadiums, etc.) And the most cost-effective option is to employ LED high mast lights, which are the best high mast luminaires due to their cheap cost, high lumen output, ease of adjustment, and durability. If equipped with intelligent control system, they could also be used as remote control flood lights.

Performance is the most critical factor to consider when making a buying choice for any high mast lighting installation. LED is always preferable to halogen and high-intensity discharge (HID) lighting for HML. The following are some of the primary reasons why LEDs are a better option than other types of lighting:

They deliver more efficient and effective illumination.
They do not emit heat or infrared (IR). As a result, they use less energy and improve energy efficiency.
They have a higher life expectancy, lasting up to 100,000 hours.

Along with lighting performance, it is essential to choose a pole that is a suitable height and of the greatest quality. The high pole is made up of a variety of components, including ropes, pulleys, and winches, and is erected outside. As a result, they are susceptible to failure, damage, and corrosion. Outdoor luminaires should also consider the light IP rating and IK rating. As a result, you should always choose items made of high-quality, non-corrosive materials.

Large commercial facilities demand a greater amount of light to illuminate the area evenly. Due to the fact that light output is related to wattage (W), a greater area demands a lamp with a higher wattage. Historically, outdoor high-pole lighting solutions have relied on high-wattage high-intensity discharge (HID) or halogen lights, which result in higher utility expenditures. However, the development of LEDs resulted in significant advancements and successfully resolved this issue. Although the initial cost of installing HID or halogen is relatively cheap, the cost and energy efficiency of LEDs is greater in the long term, according to prominent commercial lighting manufacturers.

High mast lighting is a kind of field lighting fixture that is often used to illuminate a wider area from a height above the ground for storage, transit, and pedestrian usage and safety. High mast tower light is often put on poles between 40 and 150 feet in height, with four to sixteen lights per pole. Outdoor lighting of this sort is often used in municipal parking lots, ports, and big events such as stadiums and sports complexes.
