Series K waterproof led street light for residential area in Malaysia

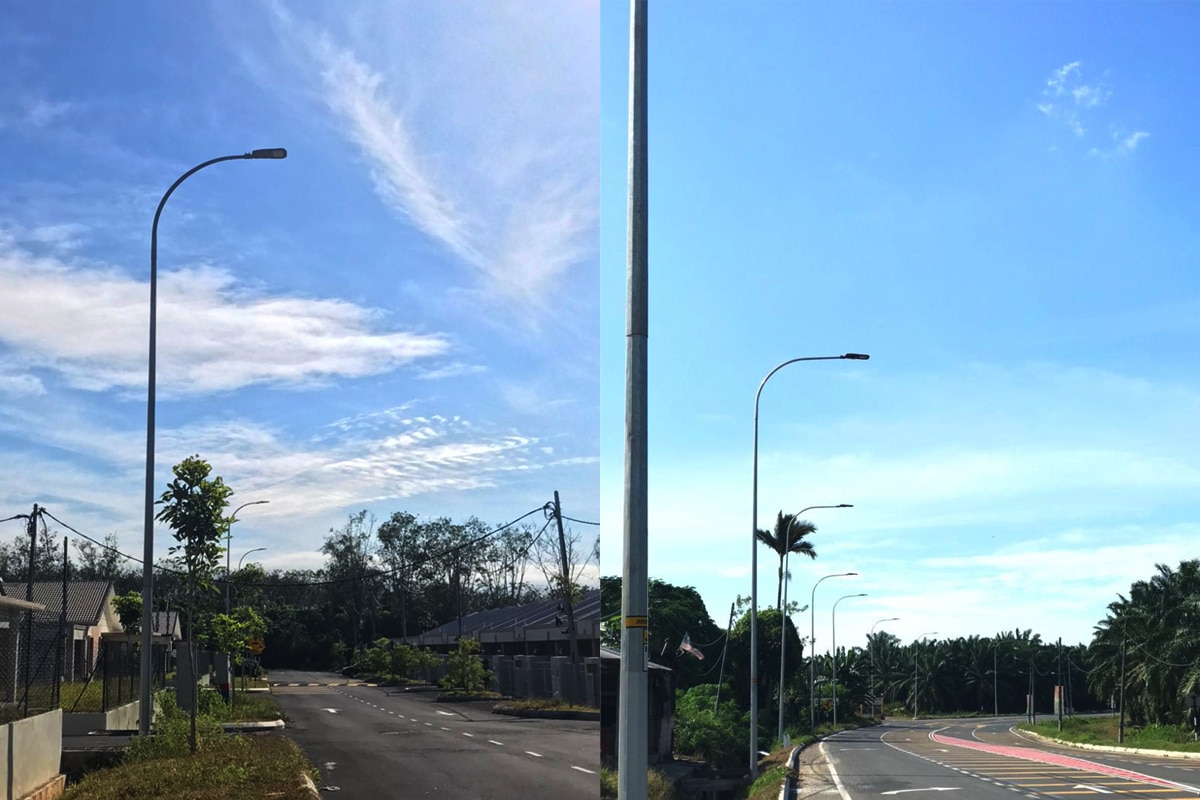

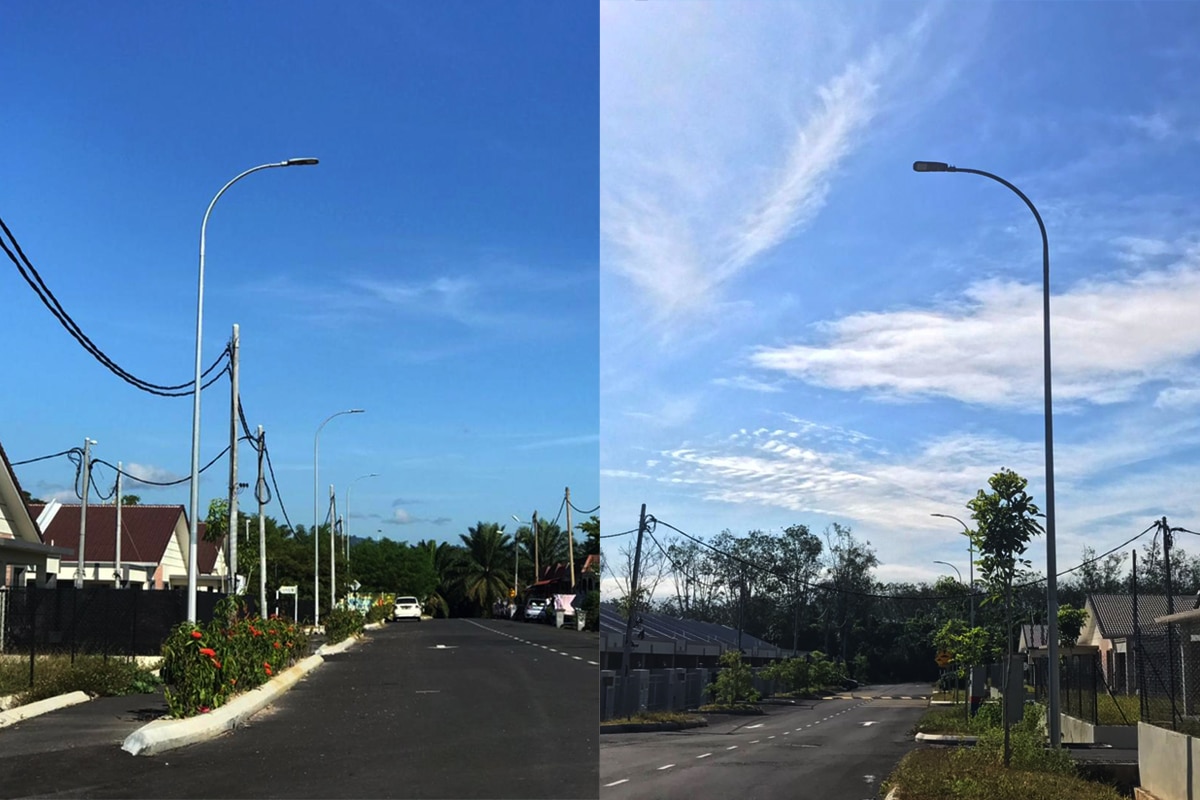

This waterproof led street light project is located in the Nada Seruni residential development area in Juasseh, Negeri Sembilan, Malaysia. There are both winding residential roads and relatively wide main roads in the community, which need to meet the lighting uniformity and brightness requirements of different road sections (Key Factors to Consider in the Street Lighting Design). Main roads and major intersections (conflict areas) use ZGSM-LD180KL (180W) high-power waterproof led street light heads to ensure high brightness and wide-area lighting, and improve night driving and pedestrian safety. In residential branch roads and curved areas, ZGSM-LD120KM (120W) medium-power waterproof LED street lights are used to provide sufficient lighting while taking into account energy saving effects.

Why choose ZGSM’s waterproof led street light?

Malaysia is located in the tropics, with year-round high temperatures, rainy weather and strong sunshine. Lighting equipment must have excellent waterproof, anti-corrosion and heat dissipation properties. ZGSM K series outdoor waterproof led street light adopt an integrated die-cast aluminum shell, have a 1000-hour salt spray test report, and are suitable for tropical high temperature and high humidity environments. The tool-free design is even more convenient for installation and future maintenance (Why is the tool-free design of LED street lights easy for maintenance?). More than 5 light distributions are available, and it is equipped with selected optical lenses to maximize the uniformity of road lighting, reduce dark areas and glare, and improve driving and walking comfort.

The Nada Seruni waterproof led street light project is not only a lighting project, but also an important part of the construction of smart communities. By selecting high-performance, high-reliability ZGSM LED products, the project successfully achieved the lighting goals of “safety, energy saving, beauty”.

Download

datasheet installation Manual

Project details:

ProductModelCCT/ OpticsQuantity
K Series Waterproof led street lightZGSM-LD180KL5700K,2M128pcs
K Series Waterproof led street lightZGSM-LD120KM5700K,2M96pcs

.

Products Used

Video

Related Products

Related Projects

Related Blogs

People also ask

The biggest threat to streetlights isn't rain, but rather the combined effect of water ingress and high temperatures, leading to lamp failure. Therefore, the fixtures must employ a physical isolation design, separating the LED light source module and the power driver into separate chambers. Even if the driver fails due to overheating or aging, it won't affect the light source; maintenance only requires replacing the driver, without disassembling the entire lamp. The junction between the lampshade and the housing must use a high-temperature resistant, anti-aging silicone sealing ring. The driver power supply should be potted (with waterproof sealant) to prevent internal components from short-circuiting due to moisture. Many people believe the tighter the seal, the better, but this leads to poor heat dissipation (LEDs are heat-sensitive). Use a breather (explosion-proof valve) or a nano-waterproof breathable membrane. This allows hot air to escape while preventing water molecules and dust from entering, achieving "breathable but waterproof."

Electric shock protection rating: Must be Class I (Class I protection against electric shock), and grounding must be reliable.
Waterproof connectors: Cable entry points must use waterproof glands (cable sealing connectors), and a waterproof bend (U-bend) must be made after wiring to prevent rainwater from flowing into the cable.
Surge Protection (Lightning Protection): The power supply driver must have a built-in surge protector (SPD) of ≥20kA to prevent damage to the luminaire from lightning-induced current.
Salt Spray Corrosion Resistance: Anodizing or electrostatic powder coating is recommended for the surface treatment of the luminaires. 304 stainless steel is recommended for the screws.
Weathering Resistance Testing: The supplier must provide an aging test report for the luminaires (e.g., a 1000-hour high-temperature and high-humidity test) to ensure that light decay is controllable under long-term humid and hot conditions.

LED streetlight layout involves a comprehensive consideration of safety, energy efficiency, and maintenance.

Geometric Layout: The "Golden Ratio" of Height and Spacing

Height (H) determines visibility: typically 10-12m for main roads, 8-10m for secondary roads, and 6-8m for side roads. Principle: Higher height results in less glare, but higher maintenance costs.
Spacing (S) determines continuity: a rule of thumb is S ≈ 3H (for high uniformity requirements) to 5H (for economical use). For example, for a 10m pole, a spacing of 30-50m is recommended.

Lighting Arrangements:

Single-sided arrangement: Road width < 12m.
Staggered arrangement: Road width 12-24m (most common).
Symmetrical arrangement: Two-way four lanes and above.
Optical Control: Illuminate the road, not the eyes.
Cantilever Length: Recommended 1-2m, strictly prohibited from exceeding 1/4 of the light's height. Too long and it's prone to swaying; too short and it's easily blocked by trees.
Elevation Angle Control: Strictly controlled between 10°-15°. Excessive elevation angle not only causes light pollution (skylight) but also severe glare for drivers at a distance.
Brightness Cutoff Design: Prioritize brightness cutoff or semi-brightness lamps to ensure the light only hits the road surface and does not intrude into surrounding buildings or the sky.
