Applications of Roadway Lighting and Area Lighting for residential area in Malaysia

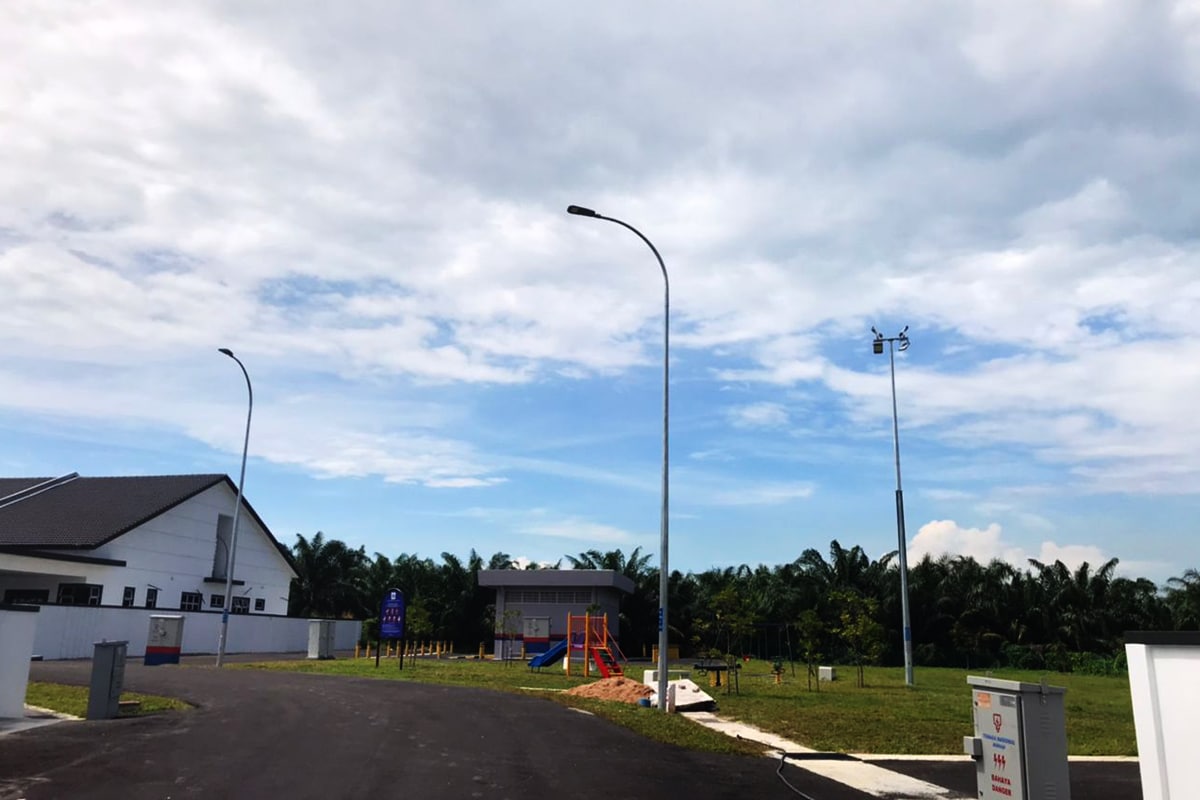

Taman PD Era is located in a prime residential area of Port Dickson, Negeri Sembilan, Malaysia, where lighting is essential for the safety of vehicles and pedestrians at night. After assessing the client’s requirements, the ZGSM technical team proposed a professional roadway lighting solution combining ZGSM’s K-series LED street lights and H-series LED floodlights, effectively meeting both roadway lighting and area lighting needs.

Advantages of the Combined LED Street Light and Floodlight Solution

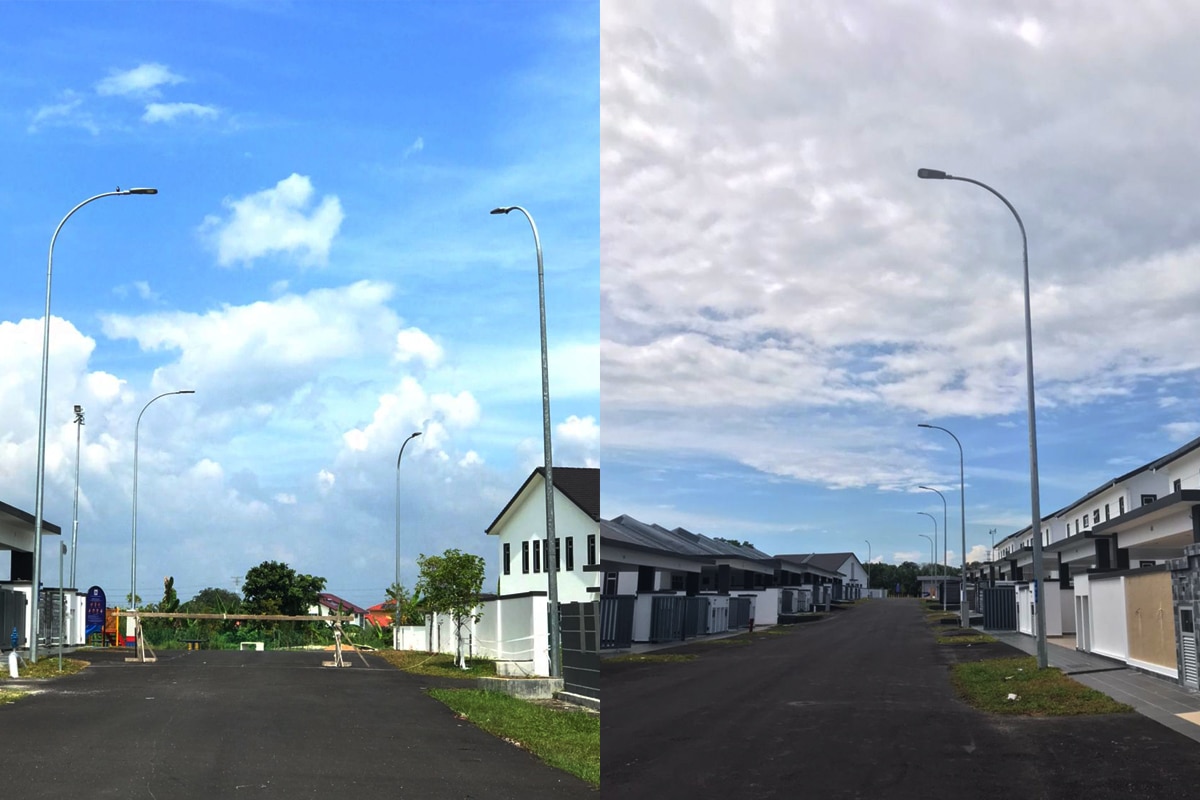

The 120W LED street lights are installed symmetrically along both sides of the community roads. They feature a “batwing” light distribution pattern (asymmetric distribution) to ensure uniform lateral illumination across the roadway (roadway lighting design standards). With an IP66 rating (weatherproof and corrosion-resistant), they are well-suited to Port Dickson’s hot, rainy tropical climate.

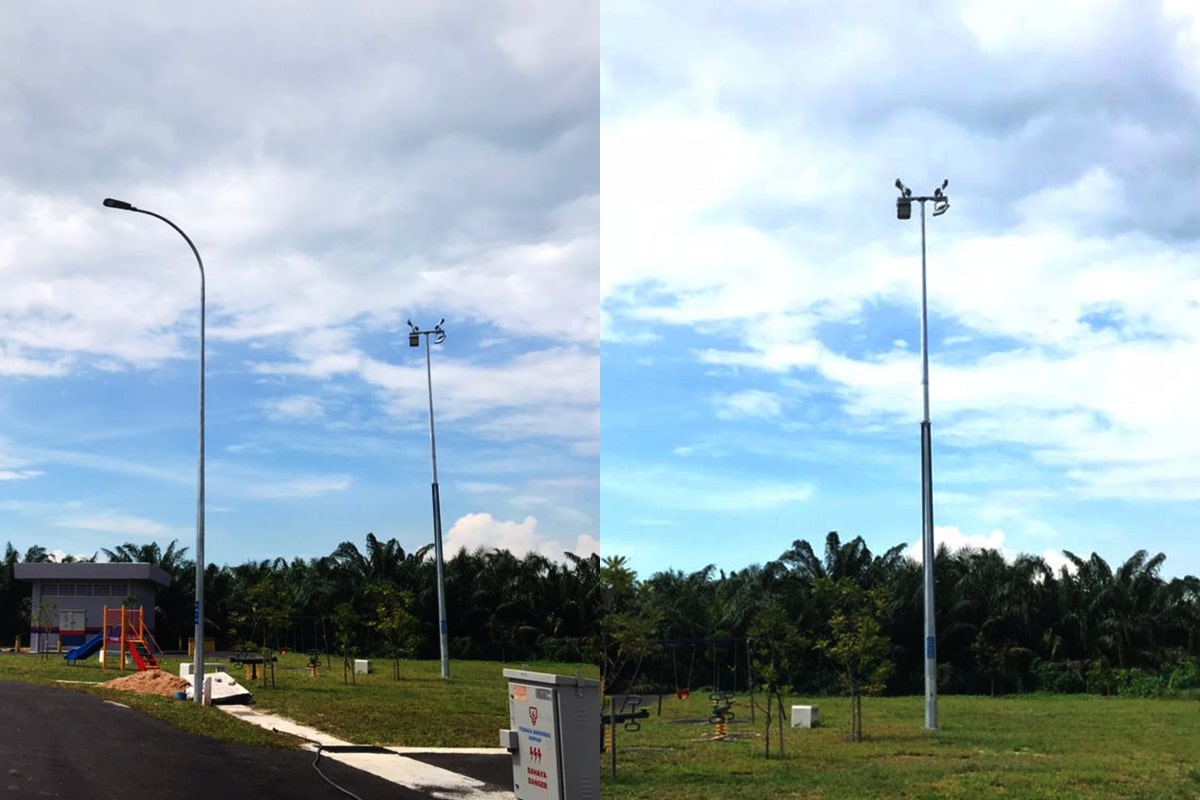

The 120W LED floodlights feature a 110° beam angle and adjustable bracket mounts; four floodlights are installed per pole to provide comprehensive 360-degree illumination. Positioned around lawns, children’s playgrounds, and trees, they highlight the layered landscaping and activity zones, adding depth and visual appeal to the space.

While the street lights illuminate the roadways, the floodlights compensate for lighting gaps in surrounding areas, avoiding the monotony of a single lighting source. This combination of roadway lighting and area lighting not only ensures safety but also enhances comfort for nighttime activities and boosts the community’s vitality.

The high-quality roadway lighting elevates the community’s image and fosters a sense of belonging among residents, creating a nighttime environment that is both safe and orderly, as well as warm and aesthetically pleasing.

Download

datasheet installation Manual

Project details:

ProductModelCCT/ OpticsQuantity
K Series Roadway LightingZGSM-LD120KM5700K,2M56pcs
H Series Area LightingZGSM-GCD120H45700K, 110degrees8pcs

.

Products Used

Video

Related Products

Related Projects

Related Blogs

People also ask

Comparison DimensionRoadway LightingArea Lighting
Spatial Form​Linear, belt-shapedPlanar, block-shaped
Key Metrics​Average road surface illuminance, longitudinal uniformity, glare controlHorizontal/vertical illuminance, semi-cylindrical illuminance, color rendering
Fixture Types​Street lights (high/medium mast, arm-type)Garden lights, lawn lights, floodlights, high-mast plaza lights
Focus Area​Dynamic traffic visionComfort of static activities & spatial recognition

Different regions reference different documents, but the engineering principles are largely aligned:

ANSI/IES RP-8​ — the primary U.S./North American recommended practice for roadway lighting. Defines illuminance targets, uniformity ratios, and veiling luminance limits by road classification.

IES TM-15-20​ — the technical memorandum that defines the BUG (Backlight‑Uplight‑Glare) rating system, replacing the deprecated "cutoff" classification for outdoor luminaires.

EN 13201​ — the European standard. Uses rigid performance classes: ME​ (motorized traffic, luminance-based), CE​ (conflict areas like intersections), and S​ (pedestrian/cycle paths).

AASHTO Roadway Lighting Design Guide​ — used by U.S. state DOTs; many state manuals (e.g., TxDOT) adopt its tables directly.

CJJ 45-2015​ — China's urban road lighting design standard. Evaluates roadways by average maintained illuminance, overall & longitudinal uniformity, glare (threshold increment), and environment ratio (SR).

For residential streets, the standards shift priority away from raw brightness and toward glare control and neighbor-friendliness:

Lower illuminance is acceptable​ — 4–8 lux average maintained is sufficient because vehicle speeds are low and conflict probability is modest.

Strict uniformity (6:1)​ — counter-intuitively tighterthan arterials, to avoid pools of light/dark that disturb residents.

BUG rating B2‑U0‑G1 or below​ — U0 (zero uplight) is essentially mandatory for dark-sky compliance; B2 limits backlight into bedroom windows; G1 keeps glare off drivers.

Mounting height​ — typically 7.5 m (25 ft)​ for residential roads, with pole spacing 3–4× the mounting height as a starting point.

Optics​ — Type II​ distribution is typical for residential streets (moderate width, roadside placement); Type III for slightly wider lanes.

Color temperature​ — 3000 K warm white is preferred in residential contexts to reduce perceived harshness and limit blue-light sky glow.
