Industrial Warehouse Lighting Solution for Indoor Factory & Logistics Area in Ecuador

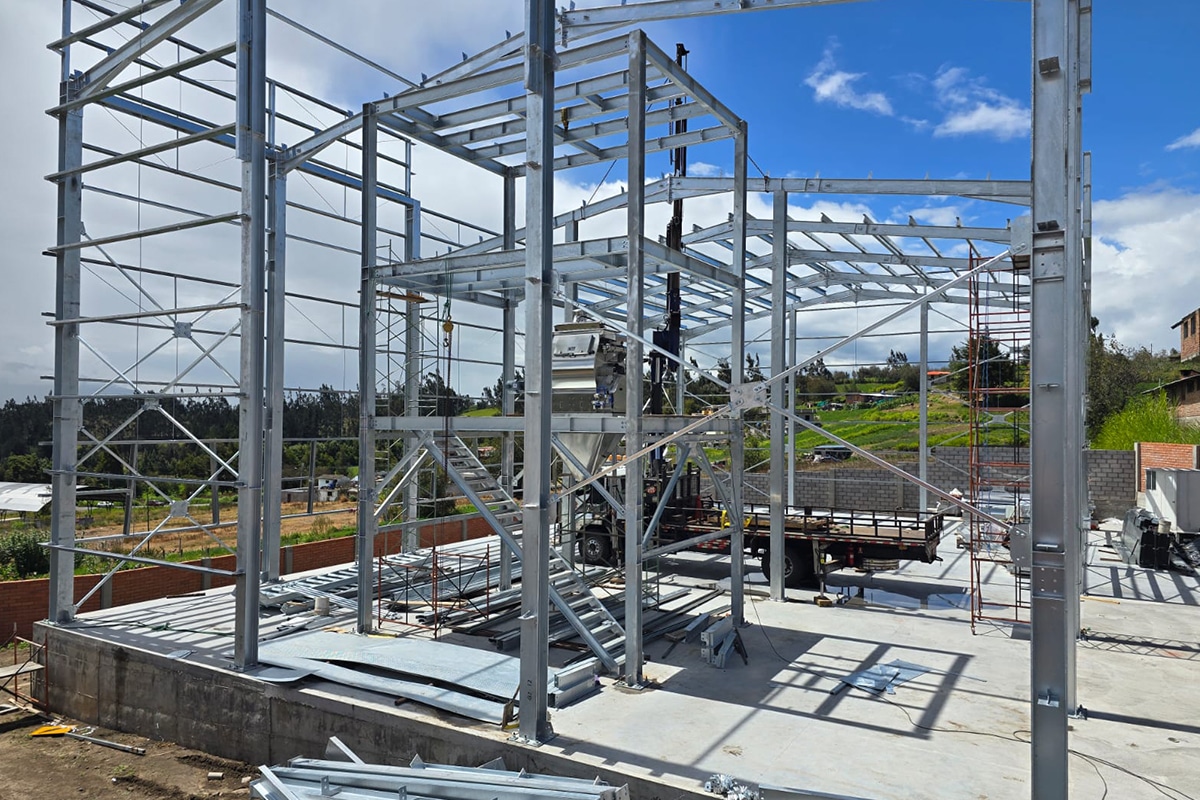

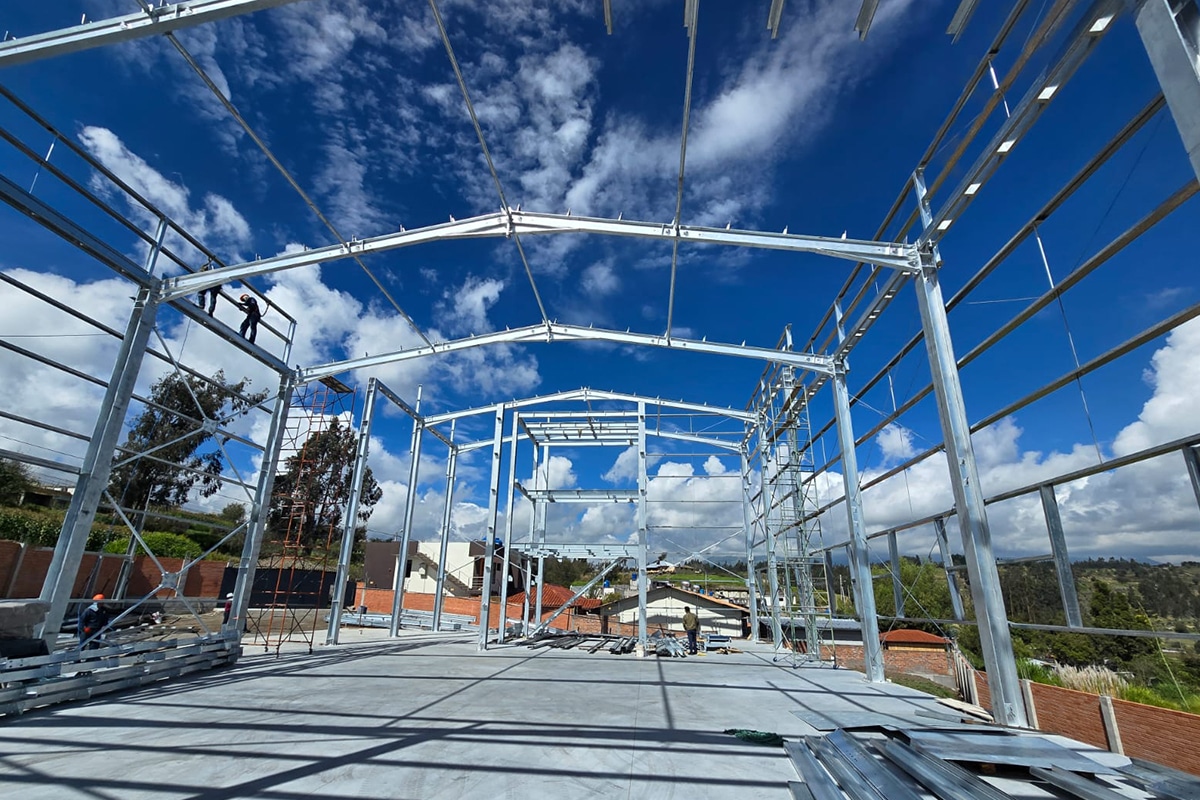

This industrial warehouse lighting ( How to choose the right LED light for warehouse lighting? ) project is located in an indoor factory warehouse and logistics area （ DALI Dimming in Indoor and Outdoor Lighting Systems ） in Ecuador, with a total lighting area of approximately 550 m². The warehouse features a height of around 11 meters on both sides and 12.5 meters in the central area. The overall dimensions are 30 m × 18 m, and the storage racks reach a height of approximately 7 meters. After detailed discussions with the client, an average illuminance level of 300 lux was specified for the working areas, ensuring the industrial warehouse lighting system met the daily operational requirements of warehouse and logistics activities.

At the initial stage of the project, a conventional industrial warehouse lighting solution using ZGSM-HB11 /ZGSM- HB12 UFO high bay was proposed. However, after further evaluation of the on-site conditions, it was identified that the tall and densely arranged storage racks, combined with a high mounting height, could cause partial light obstruction when using traditional optical solutions, thereby affecting overall lighting uniformity.

In response to this challenge, the ZGSM technical team carried out multiple lighting simulations and solution assessments, comparing different luminaire types, optical distributions, and installation methods. Ultimately, while balancing lighting performance and aesthetic design, the client selected the ZGSM-ST20HB-150 high bay lighting solution as the final industrial warehouse lighting ( Commercial Lighting Control for Warehouse Lighting ) system. The luminaires feature a 5000K color temperature and a combined optical configuration (6 units with 120° distribution + 15 units with T2S optics), which effectively improved overall illuminance and uniformity across the warehouse area, while also meeting the client’s expectations for a modern industrial appearance.

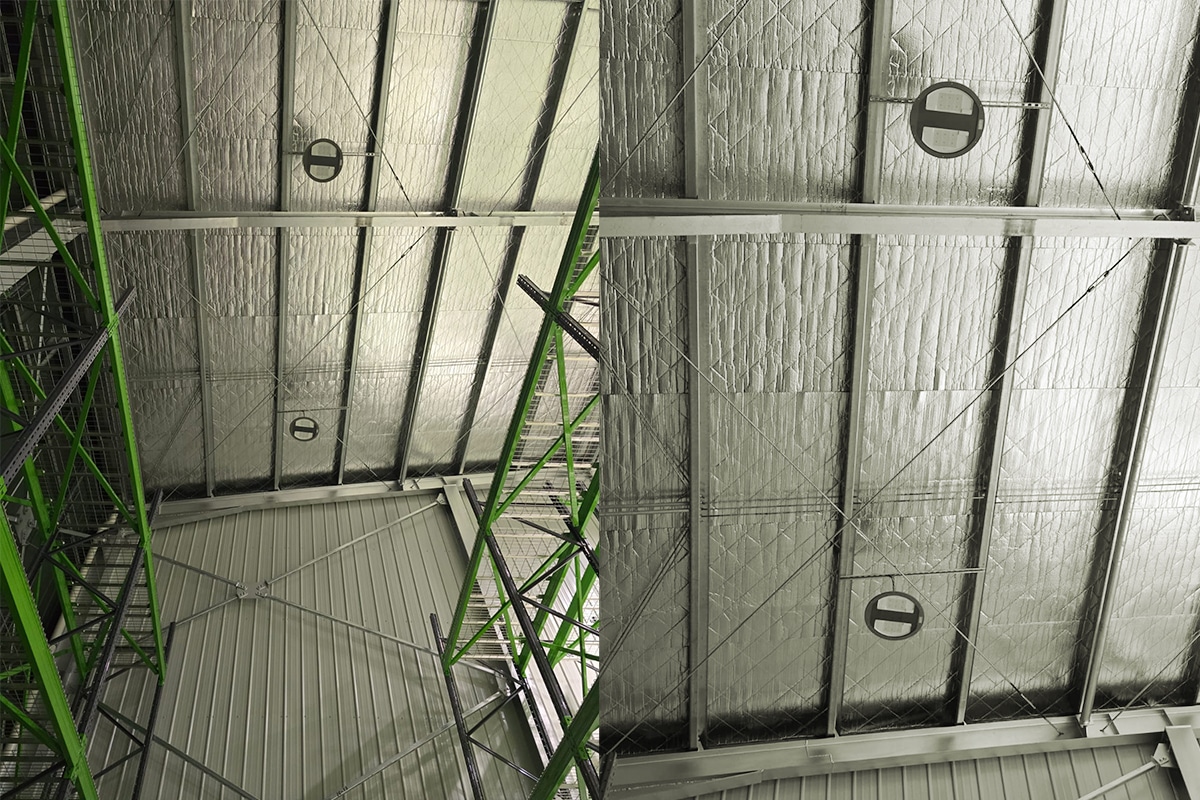

During the installation process, the client shared on-site installation photos with us. Further communication revealed that some luminaires were not initially installed in full accordance with the lighting simulation in terms of positioning and aiming angles, resulting in suboptimal lighting performance. ZGSM promptly provided professional recommendations for adjusting luminaire positions and aiming angles. After the client implemented these adjustments, the overall lighting effect was significantly improved, with both illuminance and uniformity meeting the design targets.

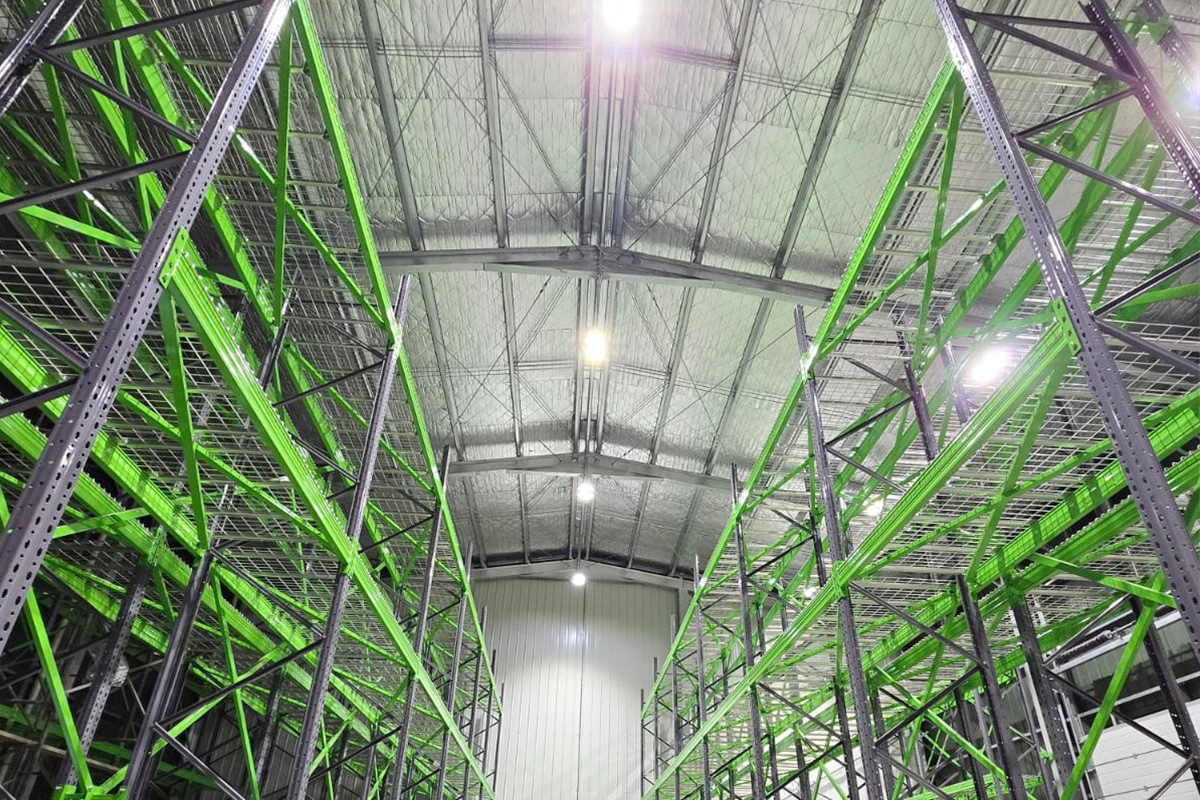

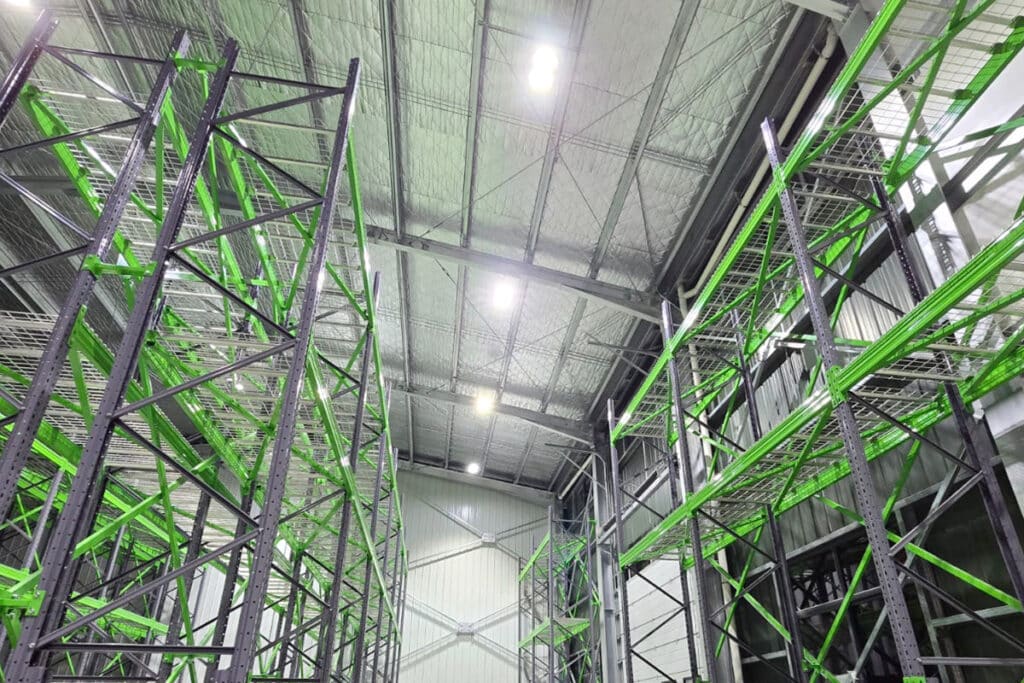

After upgrading to the ZGSM high bay lighting solution, the warehouse and logistics area became brighter and more organized, with clear visibility around the storage racks. The optimized lighting layout and stable light output have effectively enhanced operational safety and working efficiency, providing reliable lighting support for daily factory operations.

Download

datasheet installation Manual

Project details:

ProductModelCCT/ OpticsQuantity
150W Industrial Warehouse Lighting FixturesZGSM-ST20HB-1505000K /120°6pcs
150W Industrial Warehouse Lighting FixturesZGSM-ST20HB-1505000K /T2S light distribution15pcs

.

Products Used

Video

Related Products

Related Projects

Related Blogs

People also ask

First of all, factories often have greater area, and therefore it is difficult for regular lights to provide the lighting requirement. As the name indicates, LED factory lights are applicable to the lighting of rooms with higher ceilings, producing light at high efficiency, and capable of generating a greater light quantity.
Second of all, factories’ environmental circumstances differ. LED high bay lights are built of strong materials, can withstand prolonged usage, and are straightforward to install. They may operate as usual even in difficult situations. Moreover, they have a long service life and may significantly decrease light switching expenses.
Once again, LED high bay lights are incredibly secure. On the one hand, they will not generate matter that is damaging to the environment; on the other hand, LED high bay lights to disperse heat efficiently. It is very acceptable for manufacturers to employ LED high bay lighting out of respect for safety.
Overall, if you are searching for lights that are well-suited to lighting factories, then LED high bay lights are a really excellent option.

Depending on the application requirements, high bay lights can be hung or mounted in a variety of ways. Suspending the fixtures from the ceiling by a cable, chain, or other mechanism is the most popular and easiest installation option. A v-hook or pendant hook is usually linked to the backside of the fixture, to which the chain or cable is connected.
Direct mounting, which can be done with either a surface mount or a yoke mount, is another popular method. Surface mounting has the smallest profile and is popular for level ceilings that do not require the fixture to be adjusted in any way. Yoke mounting is similar to yoke mounting, however it allows for adjustments for angled ceilings.

High bay lights are used to illuminate areas with ceilings that exceed 20ft above the floor and are around 40ft in height such as wareshouse and workshop. Additionally, these lights need specifically constructed reflectors in the case of HPS / MH bulbs and lens angles in the case of LED high bays in order to perform properly from this height.
