Series H LED High Mast Flood Light for Area Security Lighting

Broadhills Precinct 3A is a modern architectural complex. The project required an outdoor lighting solution that provided essential illumination for roadways, surrounding green belts, and pedestrian walkways, while also harmonizing with the site’s modern, minimalist architectural style and offering high energy efficiency and low maintenance costs. To meet these specific needs, ZGSM provided an outdoor lighting solution centered on LED high mast flood light.

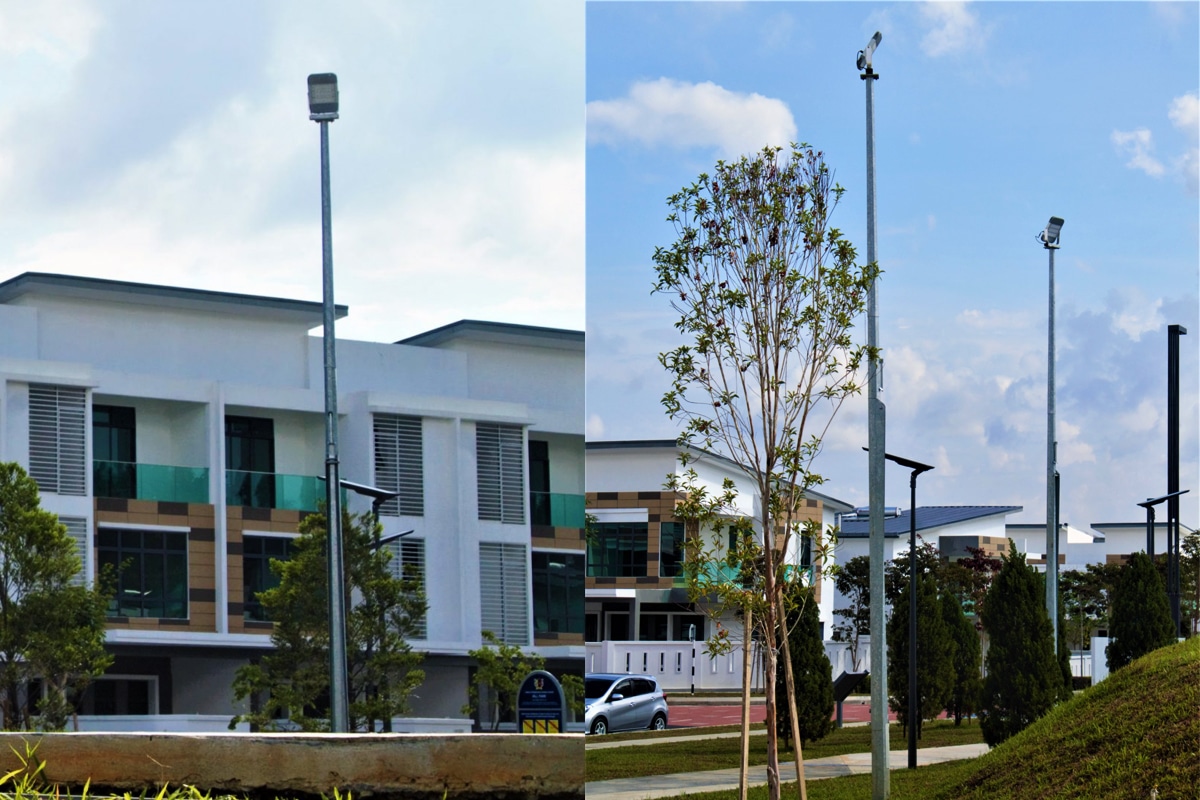

To supplement the existing street lighting, multiple LED high mast flood lights were installed at strategic intervals—staggered relative to the street lights—around the site’s perimeter. Featuring a minimalist, modern design with a grey housing, these fixtures provide broad, uniform illumination while blending seamlessly with the white modern architecture (What Is Light Uniformity?). A carefully planned layout of staggered pole heights and multi-point coverage eliminated lighting blind spots, ensuring safety for both vehicular traffic and pedestrians at night.

The modular design of the LED high mast flood lights have effectively reduced the frequency of maintenance and replacement costs. The minimalist aesthetic of the fixtures complements the modern architecture, enhancing the visual appeal of the complex at night.

Download

datasheet installation Manual

Project details:

ProductModelCCT/ Beam angleQuantity
120W LED High Mast Flood LightZGSM-GCD120H45700K, 110degrees24pcs

.

Products Used

Video

Related Products

Related Projects

Related Blogs

People also ask

Compared to HID lamps, LED high mast lights offer:

Energy savings of 50%–70%​ in power consumption
Instant-on​ with no warm-up time
Longer lifespan​ (50,000–100,000 hours vs. 10,000–20,000 hours)
Uniform light distribution​ with no dark spots
Lower maintenance costs​ due to reduced lamp replacement frequency
Eco-friendly​ with no mercury or hazardous materials

Clean the lens​ every 6–12 months to remove dust and salt buildup
Inspect brackets and fasteners​ annually for corrosion or loosening
Check electrical connections​ during routine pole inspections
Replace the entire fixture only when light output drops significantly (L70 rating)

For high-mast, stadium, storage yard, or terminal applications, multiple luminaires often illuminate the same target area:

First, obtain the isolux diagram for a single luminaire at the intended mounting height to determine the coverage diameter for specific illuminance (lux) levels; rotationally symmetric luminaires produce concentric circles, while asymmetric floodlights produce ellipses or elongated shapes (What’s isolux diagram and how to use it in lighting projects?).

Group the luminaires around the high mast so that the isolux lines of adjacent lights overlap in the center of the site, while using the lowest target illuminance line to define the boundaries (e.g., minimum illuminance, or E_min, for walkways or storage yards).

For stadiums or airport aprons, evaluate the uniformity of the playing surface or ground, as well as the vertical illuminance relative to camera angles. For facade floodlighting, examine the isolux diagram on the wall surface; note that projecting light onto a facade from the ground typically yields only a fraction of the theoretical free-field value, requiring adjustments for reflection and projection angles.

Prevent overexposure: If the central isolux lines are too densely packed or the central illuminance far exceeds standards, switch to a wider beam angle, reduce power, or adjust the tilt angle—rather than simply adding more luminaires.

It depends on the mounting height and coverage area:
Narrow beam (15°–30°): For very high poles (40m+) or long-distance projection
Medium beam (60°–90°): For general high mast coverage
Wide beam (120°): For lower poles or broader area spread
