Home - LED Products - Lane Control Lights

Arrow traffic light-10
Arrow traffic light-11

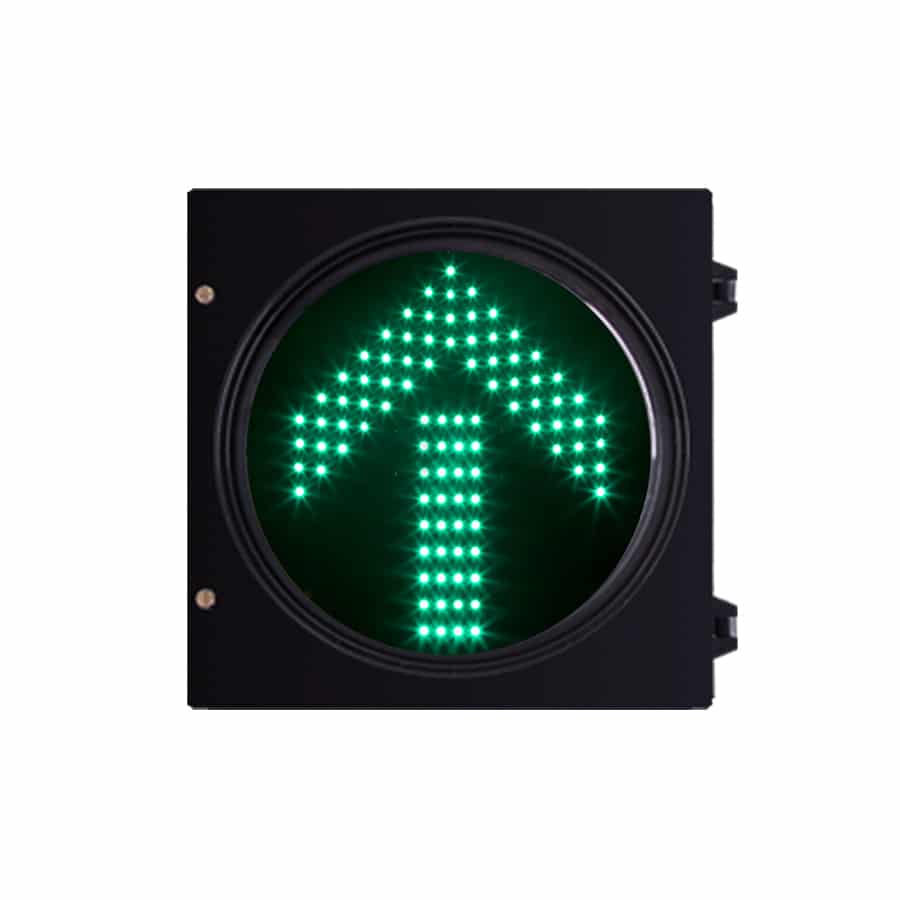

lane control light green arrow

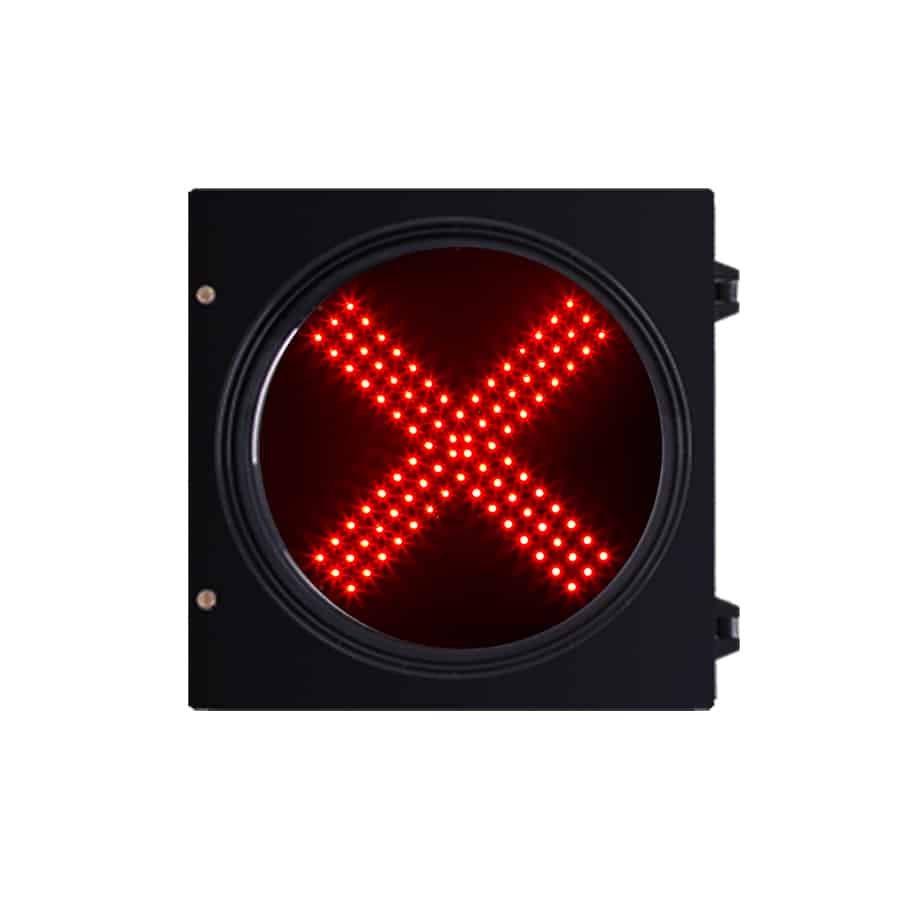

lane control light red frok
Arrow traffic light-10
Arrow traffic light-11
lane control light green arrow
lane control light red frok

Lane Control Lights, Red Fork and Green Arrow

Lane control lights are usually composed of red forks and green arrows, common diameters are 200mm, 300mm, 400mm, 600mm, etc. Lane control lights are a specific type of traffic light used to manage traffic on a multi-way road or highway. Typically they allow or forbid traffic to use one or more of the available lanes by the use of Green lights or arrow traffic lights (to permit) or by red lights or forks (to prohibit).

Product Features

  • Working humidity: ≤95%
  • Utilizing imported LED chips, long lifespan
  • Using constant current driver
  • Low power consumption
  • Multi-ply sealed water-resistant, IP rating:>IP54
  • Visible distance: >500M
  • Long visible distance, symmetrical light distribution.
  • Novel structure and beautiful appearance, using inflaming retarding and UV-proof housing material.
Contact Us
  • Facebook
  • Twitter
  • YouTube
  • Instagram
  • LinkedIn
  • Pinterest

  • ZGSM products are designed for the global market. Please contact our sales team for certification details.
  • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
  • Description
  • datasheet
  • Download
  • Video
  • application
  • FAQ
Lane Control Lights
Series NoLane Control Lights
ProductsRed fork lights, Green arrow lights
Apply DiameterФ200 mm, Ф300 mm, Ф400 mm, Ф600 mm
WavelengthRed: 625±5nm; Green: 500±5nm; Yellow: 590±5nm
Light Intensity5000~13000mcd
Input Voltage100-240/277 VAC, 50 / 60 Hz
Power Factor>0.90
Visual Angle<30°
IP RatingIP54
Standard(s)GB14887-2006, EN50293:2000 & EN12368:2006
Visible Range200m (656ft)
CRI/
Operating Temperature-40°C to + 75°C
Warranty1 Year
CertificationCE, ROHS
ControlSmart control, remote control
Specification_TrafficLight Installation Manual_TrafficLights
Lane Control Signals
ZGSM Different Type of Traffic Lights
Arrow traffic light

200mm Arrow traffic light in Colombia

Crossing light and road traffic light in Dominica

200mm LED Crossing Light in Colombia

traffic light systems-2

Solar-powered Traffic Light Systems in Portugal

Traffic Signs Light

Traffic Signs Light for Motorways in Pakistan

traffic signal-1

300mm Traffic Signal Light in Peru

Lane control lights are a kind of LED traffic lights used to regulate traffic on multi-lane roads and highways. Typically, they authorize or restrict the use of one or more available lanes by means of green lights or arrows (to permit) or red lights or crosses (to prevent) (to prohibit). They are often repeated at regular intervals to give drivers with a constant reminder of the lane status.
One or more lanes on some multilane roadways may be marked as counterflow lanes, indicating that the direction of traffic in such lanes may be reversed at any moment (see also reversible lane). This is sometimes done to manage rush-hour traffic (one or more middle lanes may flow inbound in the morning and outbound in the evening); in other situations, the lanes are reversed only under exceptional conditions (such as a traffic accident or road construction closing one or more of the lanes).
As established by the Vienna Convention on Road Signs and Signs, lane control signals across the globe adhere to a standardized pattern. Typical traffic light signals include a green downward arrow that indicates a lane is open to traffic facing the signal, a red cross that indicates a lane is reserved for opposing traffic or closed to traffic in both directions, and a flashing amber circle, arrow, or cross that instructs traffic facing the signal to clear the lane immediately.
Unlike conventional traffic signals, lane control signals feature either a single face to show all lane conditions (the so-called “searchlight” design) or separate faces for each lane situation (as illustrated). This form of lane control signal is often positioned horizontally. There are other signals that indicate various situations for highways without counterflow lanes, such as varying speed restrictions for distinct lanes.
Find out information about traffic signal and how traffic signals work.

They are used to indicate whether traffic lanes are open and closed and if toll booths are open or closed. When a green arrow appears on a lane control signal, cars may go normally in the specified lane.

Any flashing yellow light requires automobiles to slow down and proceed cautiously through the junction.

Green traffic signals indicate “go” But before you enjoy that delicious, sweet acceleration, double-check that your route is indeed clear in both directions. Sometimes bad drivers want to run red lights. Always drive with caution and keep an eye out for other drivers who make mistakes.

A green arrow showing with a red traffic light indicates a protected turning phase. This means that vehicles turning in the direction of the arrow are permitted to proceed through the intersection while other traffic is stopped by the red light. The green arrow signal is used to give drivers a clear indication of when it is safe to turn, without causing conflicts with oncoming traffic or pedestrians. The red light applies to all other traffic, which must stop until the green arrow signal changes to a green light or turn signal. It is important to obey the signals, as failure to do so could result in a ticket or even an accident.

Traffic lights often contain a red light(ball) and green arrow. When red light is on and with green light on, the green arrow indicates that the arrows pointing left and right allow you to make a protected left or right turn because of oncoming vehicles, cyclists and pedestrians will be stopped by a red light.

You can only move forward in the direction of an arrow when approaching a red light or a light with a solid green arrow after giving way to any other cars and pedestrians. You may move in the direction of the green arrow when you’re close to a red or green light with a flashing green (left turn) arrow.
