200mm LED Traffic Light | China Manufacturer & Supplier

Q: How to choose the diameter of the LED Traffic Light?

Generally, 300/400mm diameter traffic lights LEDs are selected for urban arterial roads and highway toll stations, and 200mm diameter is selected for branch roads.

Q: Do traffic lights use LEDs?

Instead of incandescent halogen bulbs, the new arrow traffic lights employ Light Emitting Diodes (LED). Individual traffic lights LEDs are little electrical lights made by applying electricity to a semiconductor chip and reflector inside a small colored lens or outer shell.

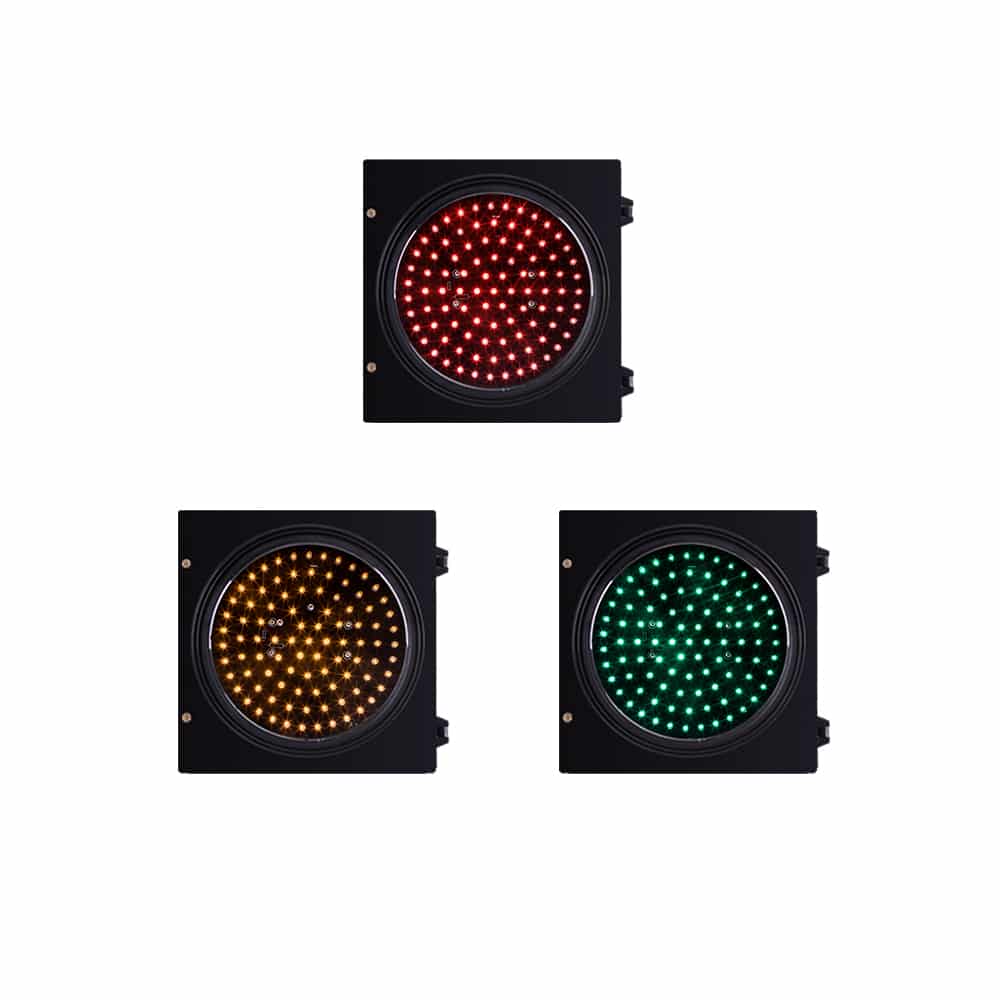

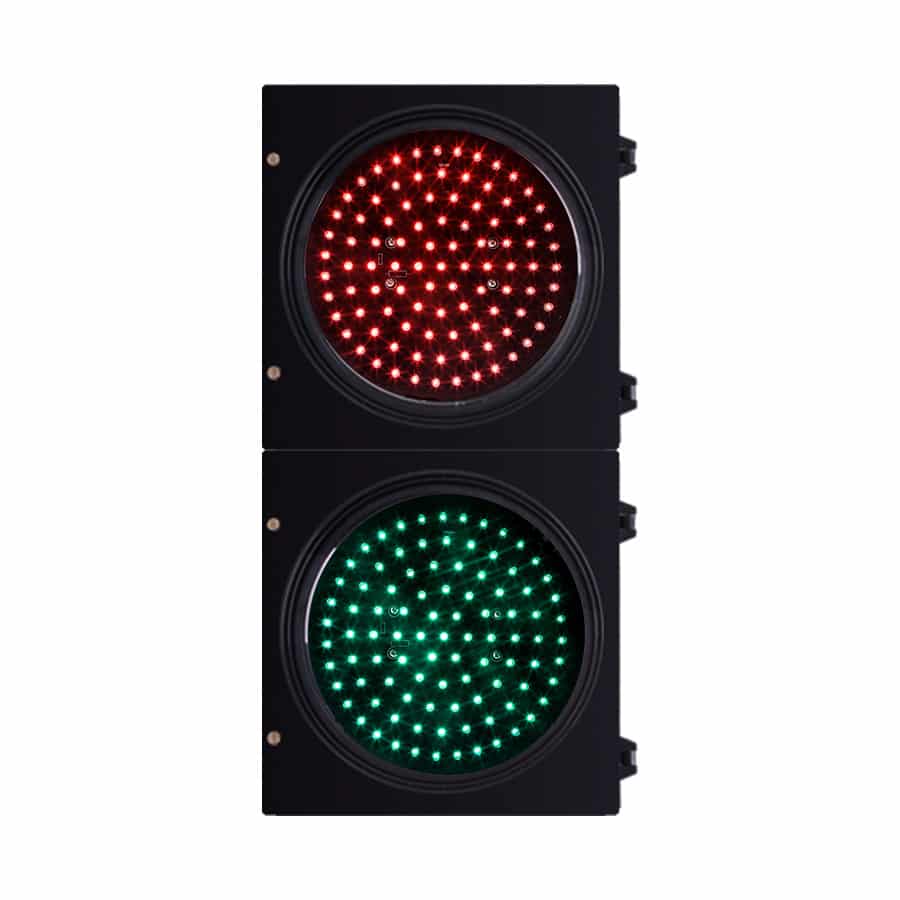

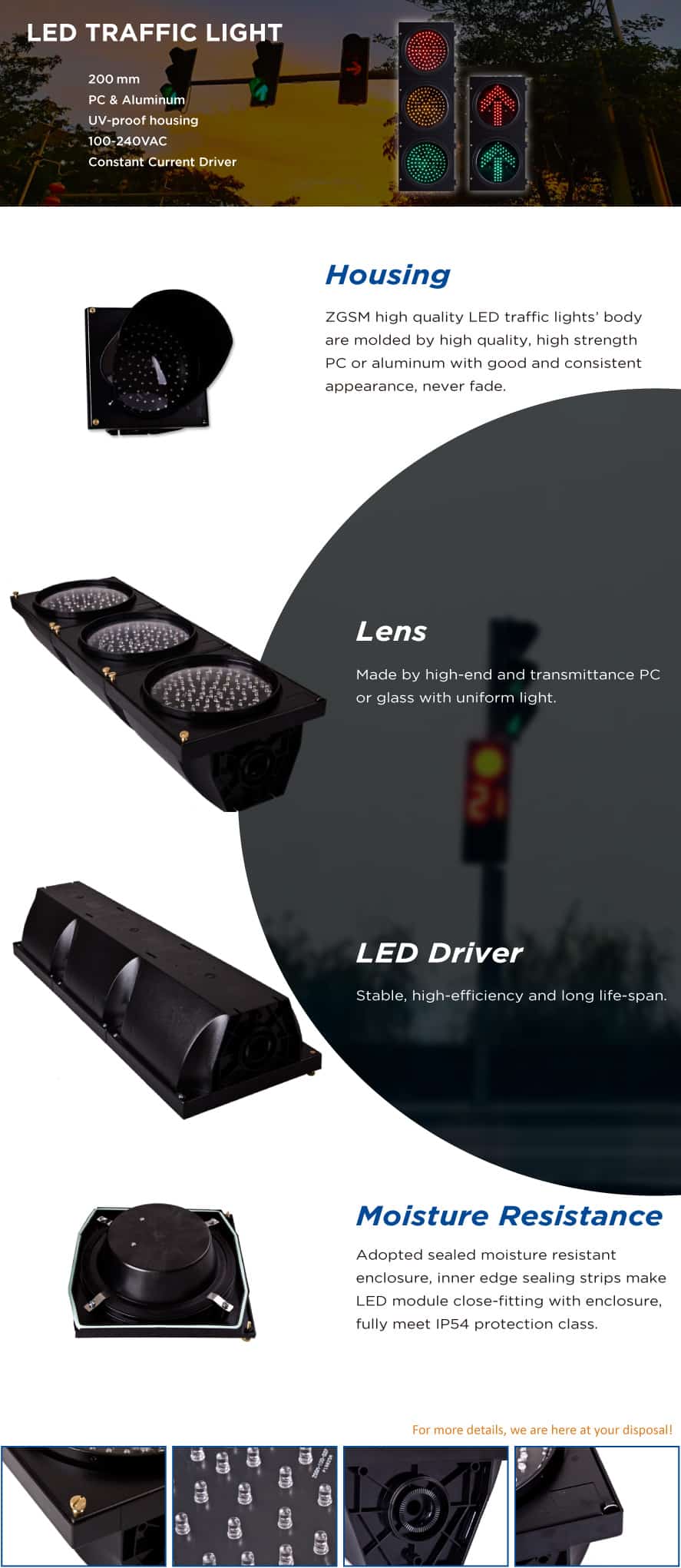

200mm (8’’) LED Traffic Light

200mm signal lights are mainly used on roads with low traffic volumes, such as branch roads and rural roads. ZGSM, as a manufacturer of LED signal lights, has 16 years of signal lamp manufacturing experience. The signal lights are driven by constant current sources, high-quality LED chips, and designed super Thin, novel structure, beautiful appearance, exported to more than 50 countries in 16 years, and received unanimous praise.

Product Features

Working humidity: ≤95%
Utilizing imported LED chip, long lifespan
Using constant current driver
Low power consumption
Multi-ply sealed water resistant, IP rating:>IP54
Visible distance: >500M
Long visible distance, symmetrical light distribution.
Novel structure and beautiful appearance, using inflaming retarding and UV-proof housing material.

ZGSM products are designed for the global market. Please contact our sales team for certification details.
Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.

Series No	Series 200mm(8'') Traffic Light
Products	LED Lane Traffic Light, Arrow Traffic Light, Driveway Traffic Light, Pedestrian Traffic Light, Countdown Traffic Light, Solar flashlight
Apply Diameter	Ф200 mm (Ф8 inches)
Wavelength	Red: 625±5nm; Green: 500±5nm; Yellow: 590±5nm
Light Intensity	5000~13000mcd
Input Voltage	100-240/277 VAC, 50 / 60 Hz
Power Factor	>0.90
Visual Angle	<30°
IP Rating	IP54
Standard(s)	GB14887-2006, EN50293:2000 & EN12368:2006
Visible Range	200m (656ft)
CRI	/
Operating Temperature	-40°C to + 75°C
Warranty	1 Year
Certification	CE, ROHS
Control	Smart control, remote control

Specification_TrafficLight

Installation Manual_TrafficLights

Video from Youtube, Practical Engineering

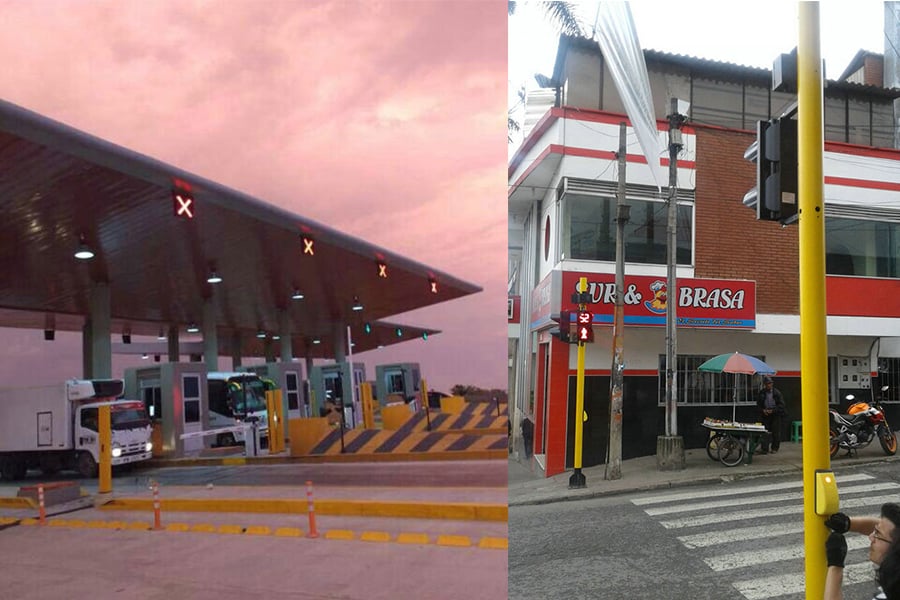

200mm Arrow traffic light in Colombia

Crossing light and road traffic light in Dominica

200mm LED Crossing Light in Colombia

200mm LED Traffic Lights in Botswana

300mm Traffic Signal Light in Peru

200mm Traffic Lights in Spain

Generally, 300/400mm diameter traffic lights LEDs are selected for urban arterial roads and highway toll stations, and 200mm diameter is selected for branch roads.

Instead of incandescent halogen bulbs, the new arrow traffic lights employ Light Emitting Diodes (LED). Individual traffic lights LEDs are little electrical lights made by applying electricity to a semiconductor chip and reflector inside a small colored lens or outer shell.

A single stack often has three lights: a green light at the bottom to indicate traffic may proceed, yellow light in the middle to warn motorists to slow down and prepare to stop, and a red light at the top to indicate traffic must stop.

The phasing of LED trafficlight is red, green, yellow, and red, regardless of whether they are at a junction or a pedestrian crossing. There is no such thing as red plus yellow, and red always means stop (there is no such thing as an automatic free turn in America).

At the intersections of roadways, traffic lights consist of sets of red, amber, and green lights. They direct traffic by indicating when vehicles must halt and when they may go. A traffic light is another name for a traffic light.

Related Products

Traffic Light Countdown Timer

Pedestrian Traffic Light

Lane Control Lights

300mm (12’’) Traffic Arrow Lights

200mm (8’’) Arrow Traffic Light

300mm (12’’) Traffic Signals Lights

Related Blogs

IP rating-important factor of LED lights

Something you should know about LEDs

How Long do Led Lights Last ?

How to choose the right LED driver for your LED light?

Best LED Traffic Lights Manufacturer & Factory & Supplier in China

ZGSM as the best commercial, industrial outdoor LED traffic light manufacturer, factory, supplier, and exporter in China since 2005, The factory is ISO9001, ISO14001, ISO45001, and ISO50001 certified. We have rich experience in manufacturing traffic signal lights with the following advantages and services:

OEM/ODM /SKD Order acceptable.
Rich experience in successful traffic signal projects.
Various sizes and types of signal lights are optional.
Lots of stable material suppliers, high quality and cost well.
Can be combined with solar energy systems.

aging test of traffic lights — Aging test of traffic lights

Why Choose us as your Traffic Signs Light Supplier in China？

OEM/ODM/SKD

Available to do OEM/ODM/SKD for all stop lights. No MOQ limits for signal lights retailers, wholesalers, and engineering companies.

FAST DELIVERY TIME

As a reliable led traffic light supplier, we have stocks of raw materials for traffic signs light, regular delivery time is 3 days for samples and 2 weeks for bulk.

BEST QUALITY&PRICE

We use top stable quality led driver and chips for all traffic lighting systems red, green, and yellow lights. Providing 1 Year warranty at the cheapest price.

CERTIFICATES

Our stop lights and pelican crossing lights are CE and RoHS approved, and our factory ISO9001, ISO14001, ISO45001, and ISO50001 certified.

R & D Team

Product Testing

test room of led lighting

In order to ensure the high quality of each product, we will conduct more than 30 different aspects of testing in our own laboratory before the product goes on the market. After all the tests are passed, the product can be approved for marketing. In mass production, for some basic safety and performance tests, we will conduct 100% testing to ensure that every product delivered to the customer is perfect.
