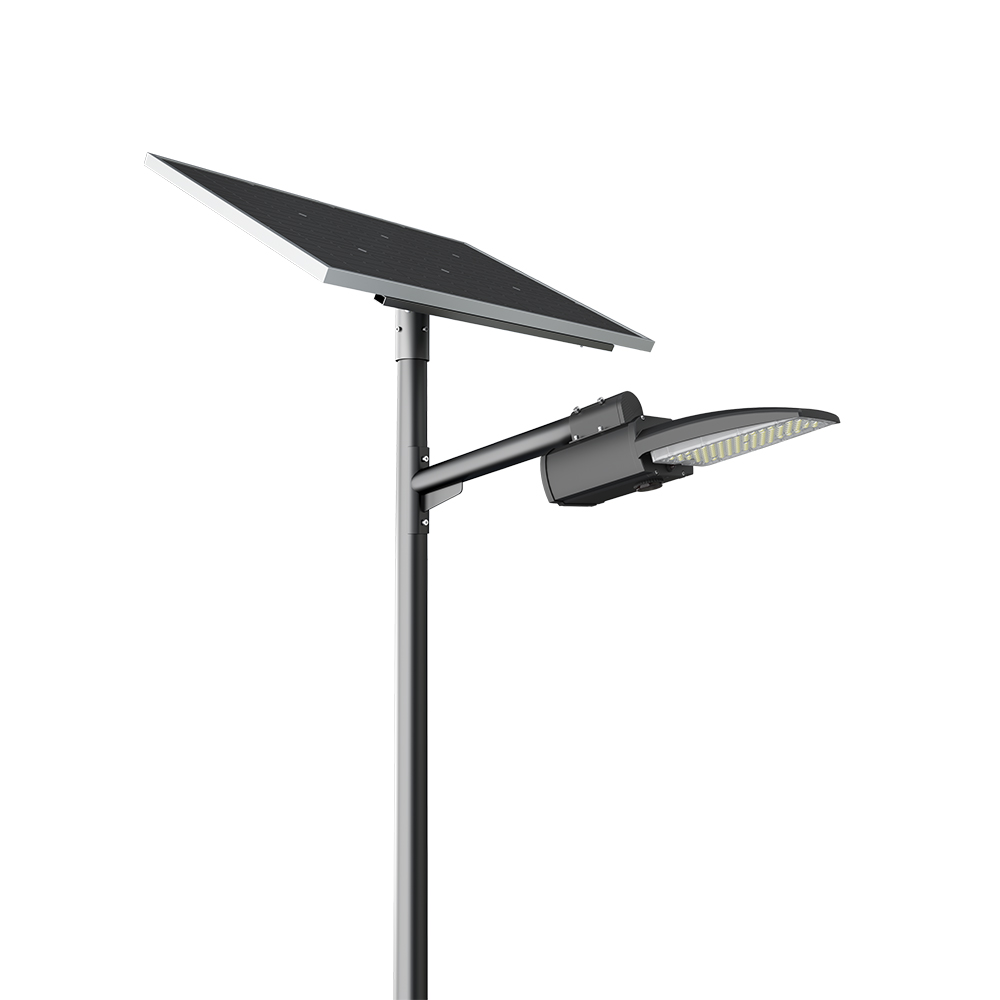

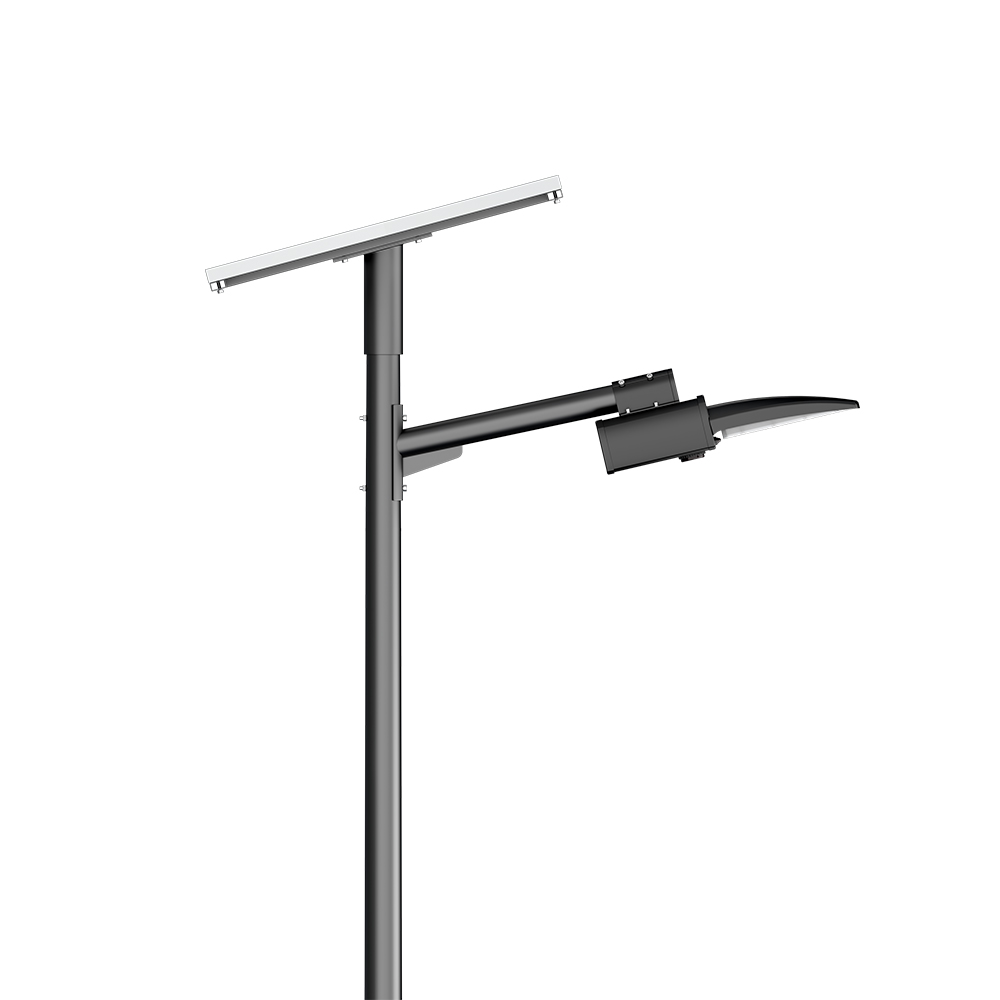

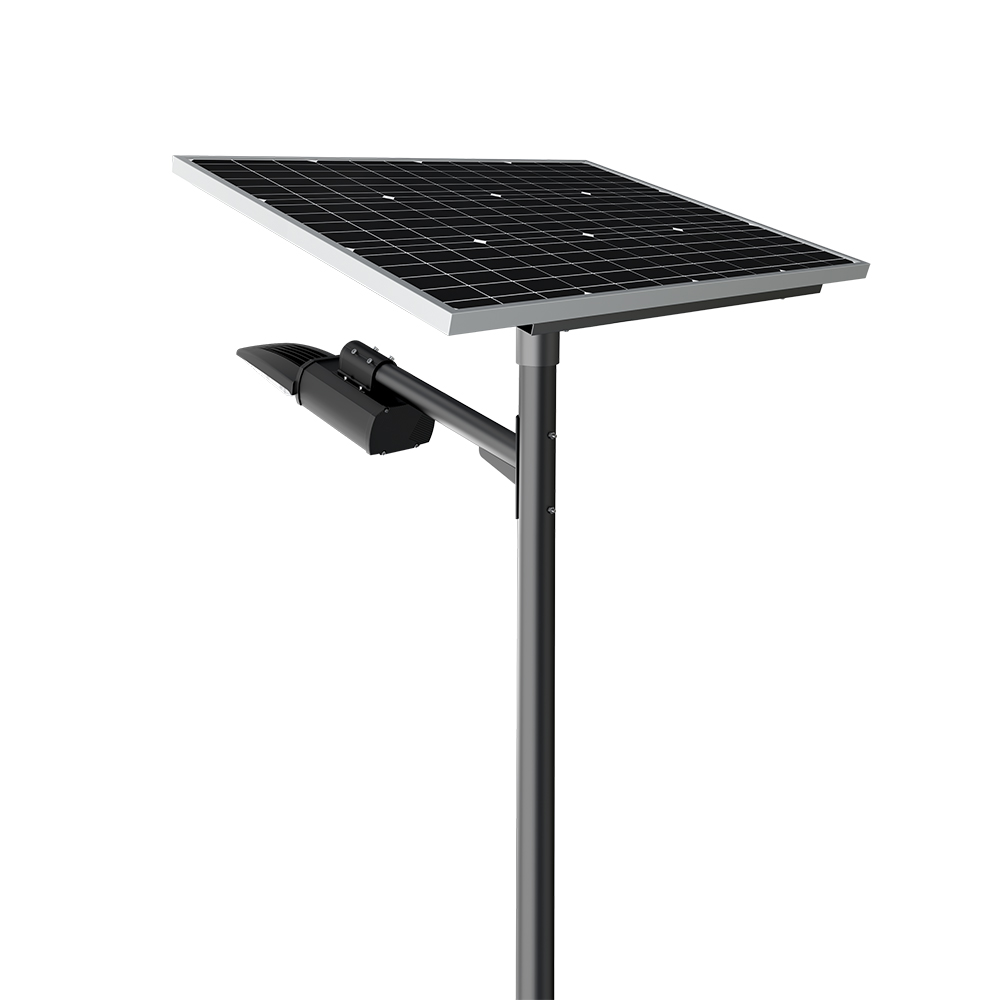

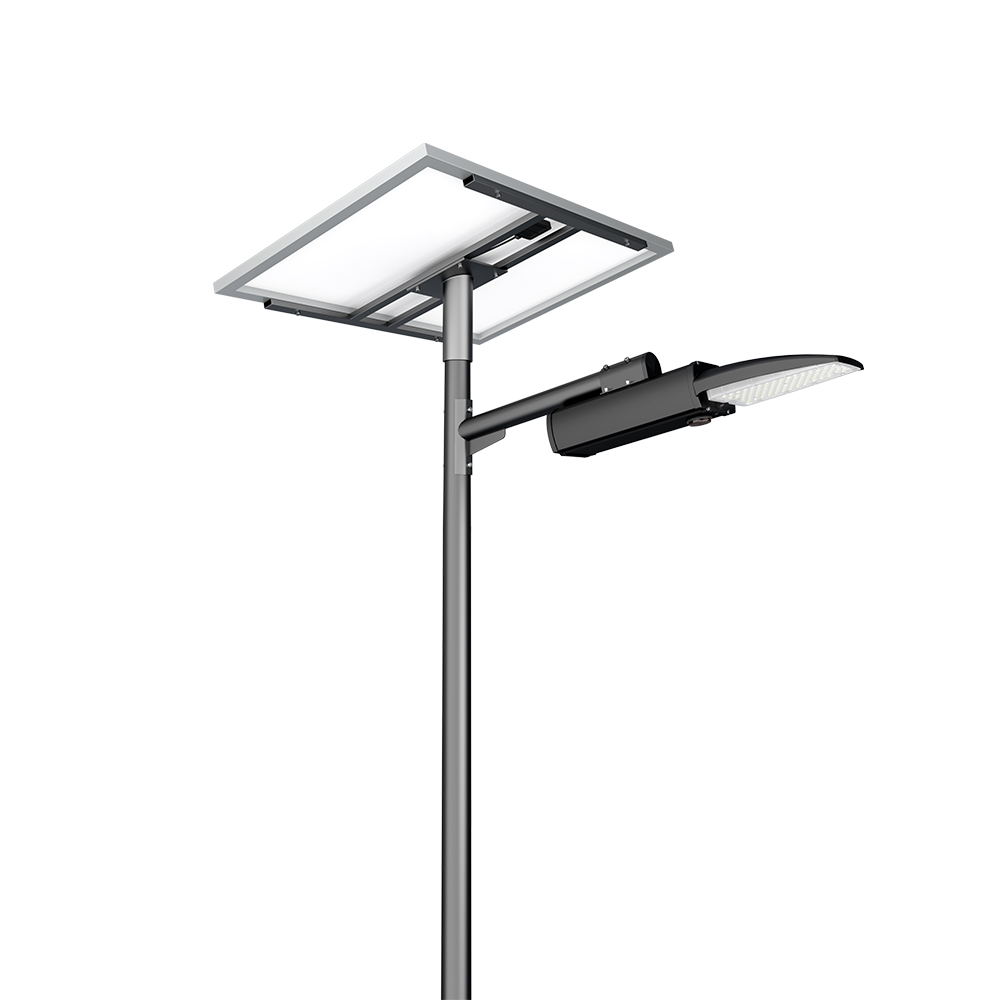

Series PV6 Smart All in Two Solar Street Lights

PV6 series smart all in two solar street light is equipped with external high efficiency monocrystalline solar panel whose orientation can be flexibly adjusted to track the sun accurately. LiFePO4 and MPPT controller are cleverly built into the LED street light body, which is made of die-cast aluminium housing and stretched aluminium, the former effectively promotes the heat dissipation performance of the luminaire, while the latter facilitates the customisation of the battery capacity according to the customer’s needs. The luminaire offers a professional optical light distribution with a brightness range of 6300 to 25200lm, a feature that allows it to be used in a wide variety of scenarios including, but not limited to, streets, parks, parking, pavements, industries, and shopping malls. The convenient plug-and-play connector design between the luminaire and the PV panels greatly simplifies the installation process, making it an ideal lighting solution for areas with problem in power grid.

  • Light efficiency up to 210lm/w
  • All in two design for flexible mounting
  • MPPT intelligent controller with up to 96% charging efficiency
  • Lithium-ion battery with a long lifetime
  • Customized solar street lighting solutions are available
  • 2.4G wireless communication which can realizes remote control
  • Smart Control: Motion/PIR sensor, or Timer dimming as per client’s request
Contact Us

  • ZGSM products are designed for the global market. Please contact our sales team for certification details.
  • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
PV6 all in two solar street lights - benefits
Series No Series PV6 Smart All in Two Solar Street Lights
Power 30W, 40W, 50W, 60W, 70W, 80W
Efficacy 210lm/W
Input Voltage DC 12/24V
Battery Spec 307WH-768WH
Solar Panel Spec Monocrystalline silicon 60W/80W/100W/120W/150W/160W
IP Rating IP66
IK Rating IK10
Light Distribution Type II
Mounting Option Side Entry
Warranty 3 Years
Certification CE, IEC, ROHS, LM79, IP66, IK10, LM80, TM-21, IEC62471
Control Motion sensor, PIR sensor, Timer dimming, Daylight sensor
Light distribution of PV6 all in two solar street lights
Specification_Series PV6 All in Two Solar Street Lights Installation Manual_PV6 All in Two Solar Street Lights

We know that integrated solar street light is highly integrated solar panel, battery, controller, etc. in LED street light body, easy to install and simple appearance, suitable for small road lighting. The two-in-one solar street light consists of two parts: the solar panel and the street light with light source, controller and battery. The battery capacity of all in two solar street light is relatively large and the battery panel can be adjusted to its relative position with the sunlight to improve the efficiency of light absorption. Therefore, all in two solar street light can achieve more flexible installation layout and is suitable for road lighting with higher lighting requirements.

Solar street lights can be broadly classified into the following categories according to their design and functional characteristics

Integrated(All in one) solar street light ( Click on the video to learn more about the all in one solar street lights ): This kind of street light integrates solar panel, battery, controller, LED light module and other components that may be needed (such as microwave sensor, etc.) in one LED street light. It is characterised by compact structure and simple and generous overall appearance, but the solar panel and battery capacity is limited.

Split solar street light: different from integrated solar street light, each component of split solar street light (such as solar panel, battery, controller, etc.) exists independently, and needs to be assembled according to the needs during installation. This kind of street light has a wider scope of application and can be flexibly configured according to different environments and lighting needs. For example, in areas with more rainy days, the solar panel and battery capacity can be increased to ensure sufficient power supply.

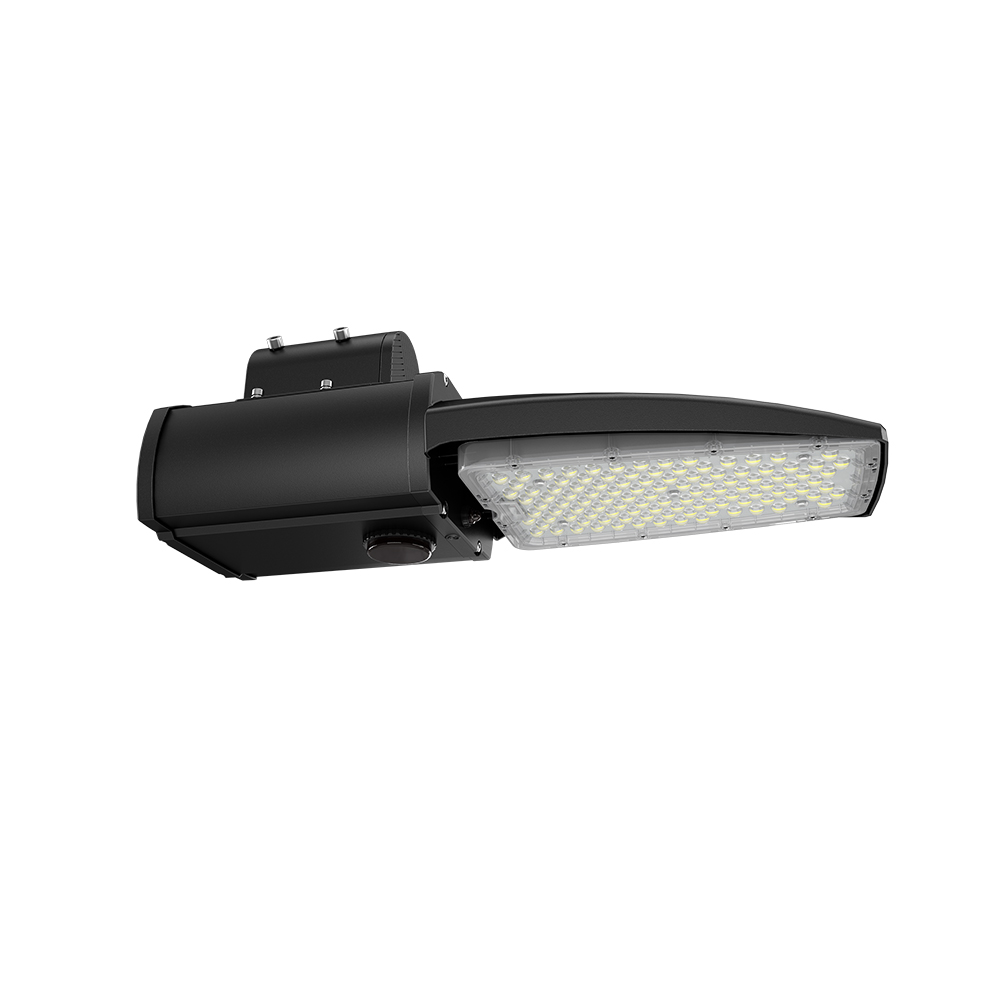

All in two solar street light: It consists of two parts: the solar and the street lamp head with integrated LED module, controller and battery. We can understand it as the intermediate of integrated solar street light and split solar street light. Although it is more flexible than the integrated solution, it is not as versatile as the split solar street light, but it is easier to install.

Solar LED flood lights and solar LED street lights can sometimes be used in the same areas, such as in car parks, corporate campuses and intersections. However, solar street lights have an asymmetrical batwing light distribution and are therefore more suitable for road lighting, such as main roads, community roads, parkways and rural roads. Solar floodlights have a symmetrical light distribution of 120°, 90° or 60°, which is suitable for illuminating wide areas such as plazas, billboards and small sport courts.

Things you need to know about Integrated Solar Street Lights

As a professional solar street light manufacturer, we can provide different types and functions of solar street lights. One of them is integrated solar street lights. All components of integrated solar street lights, including the solar panel, battery, LED light, and controller, are integrated into a single unit, making it sleek and space-efficient. But all in one solution has its limitation in application such as less flexibility in terms of component upgrades and installation. While all in two solar street light is the intermediate of integrated solar street light and split solar street light. It overcomes these shortcomings, which makes all in two solar street light can be widely used in road lighting, parking lots, parks and plazas, industries, pedestrians, school campus, etc.

All in solar street lights ZGSM

All in one solar street lights

All in one solar street lights also called “Integrated solar street lights”, is a combination of high-efficiency solar panels, lithium batteries, LED modules, smart controllers, PIR or motion sensors, etc. Easy to install and transport.

All in two solar street lights ZGSM

All in two solar street lights

All in two solar street lights consist of two parts: the solar panel and the lamp head, which integrates the LED module, controller, battery and sensor. It offers more flexibility than all in one integrated solar street lights. Although it's less versatile than split systems, but remains easier to install.

Power (W)Lumens (LM)Replacement (W)Install height (M)
30W6300LM100W HPS or MH5-6m
40W8400LM150W HPS or MH6-7m
50W10500LM150W HPS or MH7-8m
60W12600LM200W HPS or MH8-10m
70W14700LM250W HPS or MH9-11m
80W16800LM250W HPS or MH9-12m
100W21000LM400W HPS or MH10-12m
120W25200LM400W HPS or MH12-14m
Lead-acid Battery

Lead-acid Battery

Lead-acid batteries include electrolyte-type lead-acid batteries (VRLA) and colloidal lead-acid batteries (Gel). They are mainly used in split-type solar street lamp systems and are usually buried underground. They're bigger and cheaper, but they use fewer cycles than lithium-ion batteries.Most lead-acid batteries are 12V or 24V systems.

Battery with MPPT controller

Lithium Battery

Majority of lithium batteries used in solar street lighting systems are ternary lithium batteries and lithium iron phosphate batteries ( LiFePo4). Lithium batteries are more costly and have a longer lifespan than lead-acid batteries.
Ternary lithium batteries provide superior cold resistance compared to lithium iron phosphate batteries. The high-temperature resistance of lithium iron phosphate batteries is better than that of ternary lithium batteries. Consequently, solar street lighting systems in high-temperature regions often use lithium iron phosphate batteries.
Available Li battery voltages for the solar street light system include 3.7V, 3.2V, 6.4V, 11.1V, and 12.8V.

MONO SOLAR PANELS

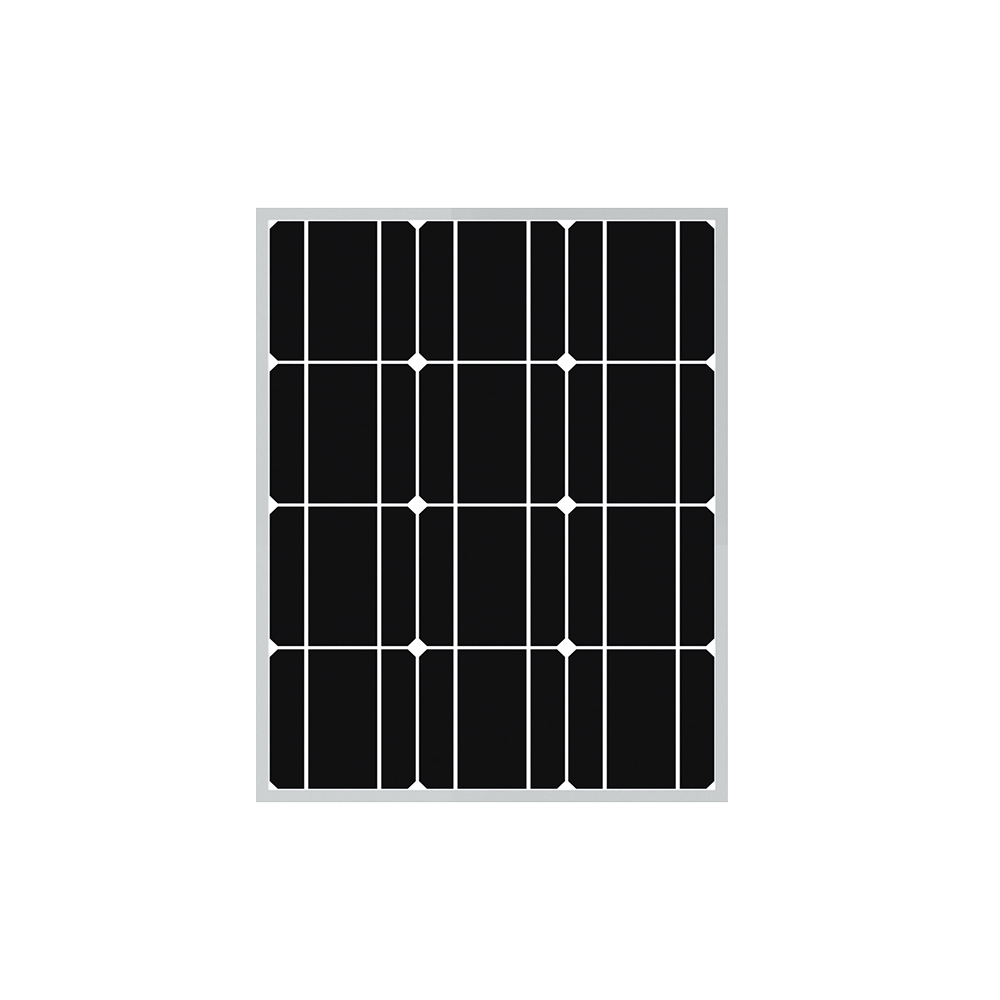

Monocrystalline Solar Panel

The photoelectric conversion efficiency of monocrystalline silicon solar panels is between 18 and 24 percent, with an average of 18 percent. This kind of solar cell has the greatest photoelectric conversion efficiency of all sorts and a lifespan of up to 25 years. However, manufacturing costs are more than for other types.

POLY SOLAR PANELS

Polycrystalline Solar Panel

The manufacturing method of polycrystalline silicon solar panels is same as monocrystalline silicon solar panels, however the photoelectric conversion efficiency of polycrystalline silicon solar panels is lower than monocrystalline silicon solar panels, it is around 16%. But it is cheaper than the monocrystalline silicon solar panels.

pwm solar controller

PWM Solar Controller

PWM solar controller is the second-generation technology, and the most on the market now. The working method is PWM control. Compared with ordinary solar controllers, it has improved a lot and can solve the problem of battery dissatisfaction. The charging conversion efficiency is 70%, But the solar panels are not fully utilized.

MPPT solar controller

MPPT Solar Controller

MPPT solar controller is a technology of the third generation. It relates to the feature "Maximum PowerPoint Tracking."It is an upgraded product of the PWM solar controller. The MPPT solar controller can detect and maintain track of the voltage and current of the solar panel in real time. Maximum power (P=U*I), ensuring that the battery is always charged with maximum power. The MPPT tracking efficiency is 99%, the system's overall power production efficiency is 97%, and the battery will have a good management.

Let's take PV4 series solar powered street light as a example

side entry

Side Entry Mounted

STEP 1: Loosen the four screws on the bracket, and put the hoop anchor on the top of the bracket, fix with screws but do not screw them all, as shown above.
STEP 2: Insert the lamp into the pole according to the arrow direction, as shown above.
STEP 3: Tighten the four screws of the bracket, The installation is completed.

post top mounted

Post Top Mounted

STEP 1: Loosen the four screws on the bracket, but do not unscrew them all, as shown above.
STEP 2: Insert the lamp into the pole according to the arrow direction, as shown above.
STEP 3: Tighten the four screws of the bracket, The installation is completed.

wall mounted

Wall Mounted

STEP 1: Loosen the four screws on the bracket, remove the hoop anchor.
STEP 2: Drill four M8 holes on the wall refer to mounted bracket holes.
STEP 3: Fix the lamp to the wall using fours M8*60 expansion screws, the installation is completed.

Application

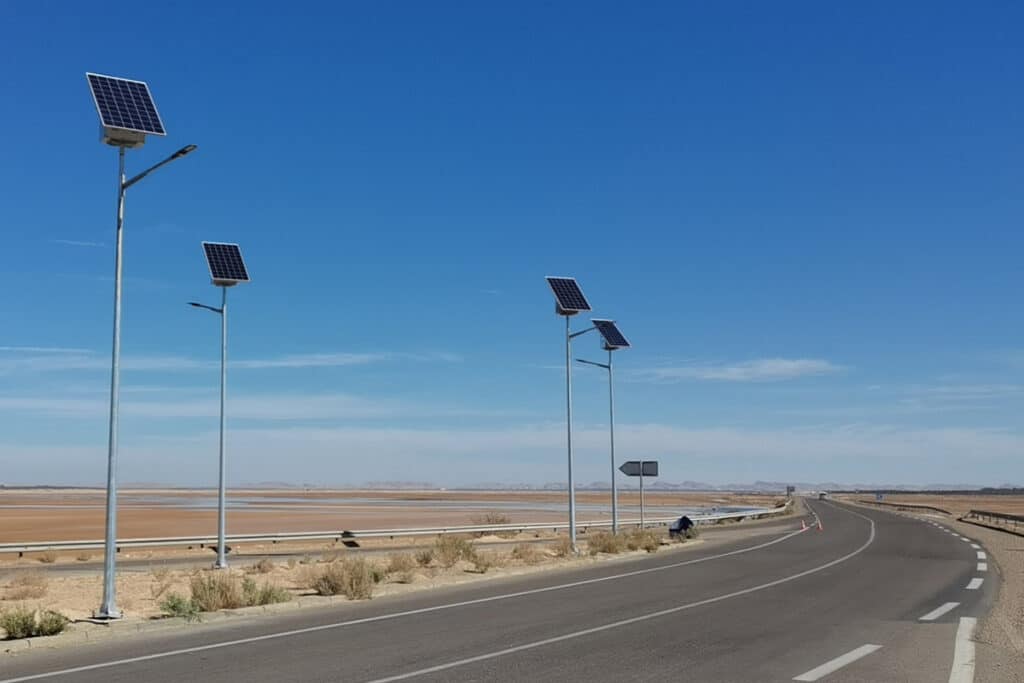

Roadway lighting
Paths way lighting
Garden lighting
Driveway lighting
Parking lots lighting

Do you want to customize a solar street light system? Use the form to reach out and we will be in touch with you as quickly as possible.

Structure of Integrated Solar Street Lights

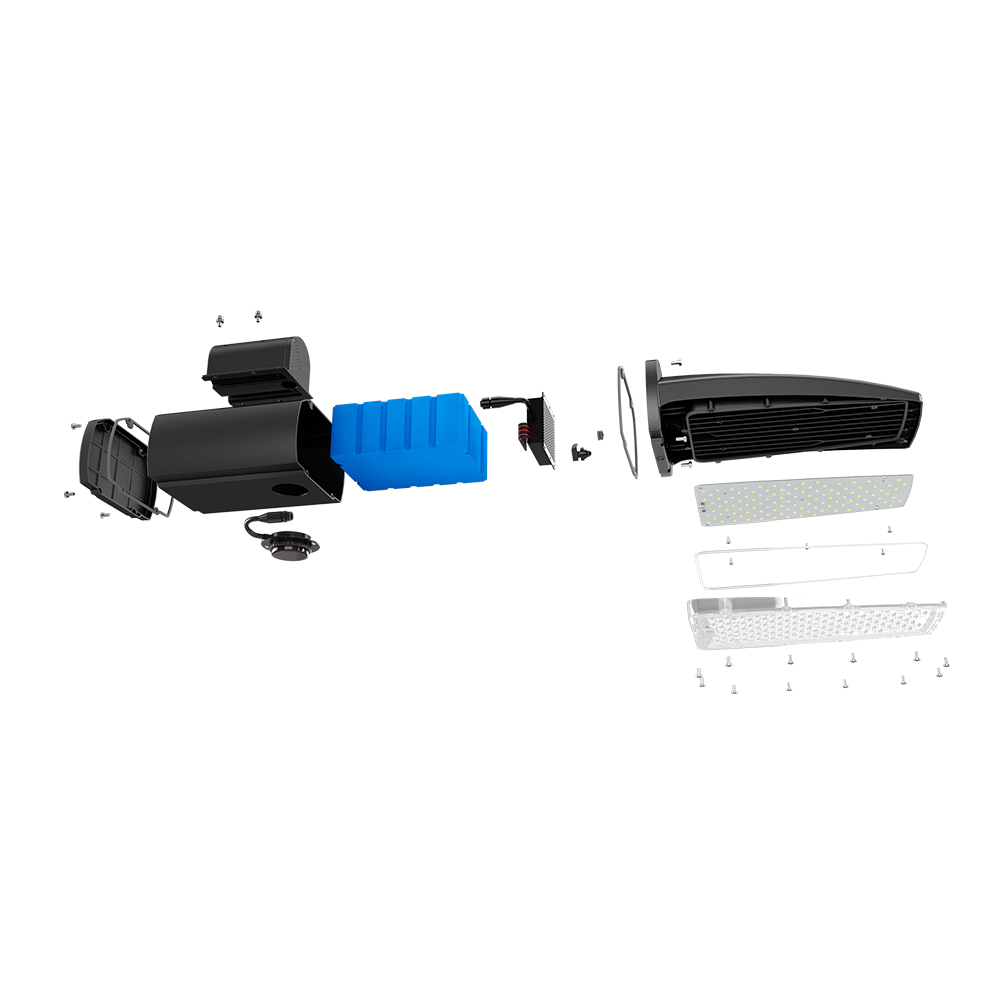

All in two solar street light components
All in two solar street light components

1. LED Module

Using high-efficiency Lumileds LED chips, the luminous efficiency is up to 205LM/W, the same luminous flux, and the power can be reduced by 50%, which greatly reduces the overall cost.

2. Lithium Battery

Integrated solar street light usually use lithium batteries as energy storage. Lithium battery is divided into ternary lithium batteries and lithium iron phosphate batteries (LiFePo4 batteries), Lithium battery is a key component in solar street lights, and the cost is also the highest.

3. Solar Controller

At present, most of the solar street lights on the market use PWM controllers, which are relatively cheap. With the continuous development of technology, more and more solar street lights use high-efficiency MPPT controllers, which are relatively expensive.

4. Sensor device

For integrated solar street lights, sensor devices generally include motion sensors, also known as microwave sensors, human body sensors, also known as infrared sensors, and radar sensors.

5. Solar Panels

Solar panels are divided into monocrystalline and polycrystalline solar panels. the conversion efficiency of monocrystalline is higher and the price is higher, polycrystalline solar panels are a little cheaper but with low efficiency, now most integrated solar street lights use mono solar panels.

Why Choose Solar Led Street Lights?

The solar street light is a new type of road lighting fixture. During the day, monocrystalline or polycrystalline silicon solar panels convert solar sun energy into electricity, which is stored in maintenance-free valve-sealed batteries or lithium batteries through the solar controller, and at night, the solar controller controls the discharge of the batteries for the LED lights to work. It will bring many benefits.

  • Energy saving

Convert solar energy into electricity to drive LED street lamps to work. Solar energy is inexhaustible.

  • Safety

Solar street lights are powered by 12-36V solar panels, which are within the safe voltage range and will not cause electric shock accidents to people, making them safer to use.

  • Flexible application

Off-grid solar street lights do not require a grid power supply and can operate autonomously as long as there is sunlight, which is very flexible, so they can use even in remote power-deficient areas.

  • Less investment

The solar street light system not need power supply equipment, can be completely automated operation, no need for personnel management, so low operation, and maintenance costs.

Related Products

Series PV5 All in One Solar Street Light

Series Rifle Solar Powered Street Lights With Sensor

Series Leaf High Efficacy Solar Powered Street Lamp

Series Falcon Outdoor Solar Powered Street Lights

Related Blogs

Certification Show

As a professional manufacturer of all in two solar street lights, our LED solar street lights have rich certification and test reports, such as CE, ROHS, IP, IK, LM80, and so on.

COMPONENT STANDARDS TEST REPORT CERTIFICATIONS
LED LM80 √
LUMINAIRES EN/IEC 60598-1 and 60598-2-3 √ √
EN/IEC 60529 √ √
EN/IEC 62262 √
EN/IEC 55015 √ √
EN/IEC 61000-3-2 √ √
EN 61547 √ √
EN/IEC 61000-3-3 √ √
EN 62493 √ √
IEC 62321 √ √
TM-21 √
LED MODULE EN/IEC 62031 √
FACTORY ISO9001,ISO14001,ISO50001,ISO45001   √
