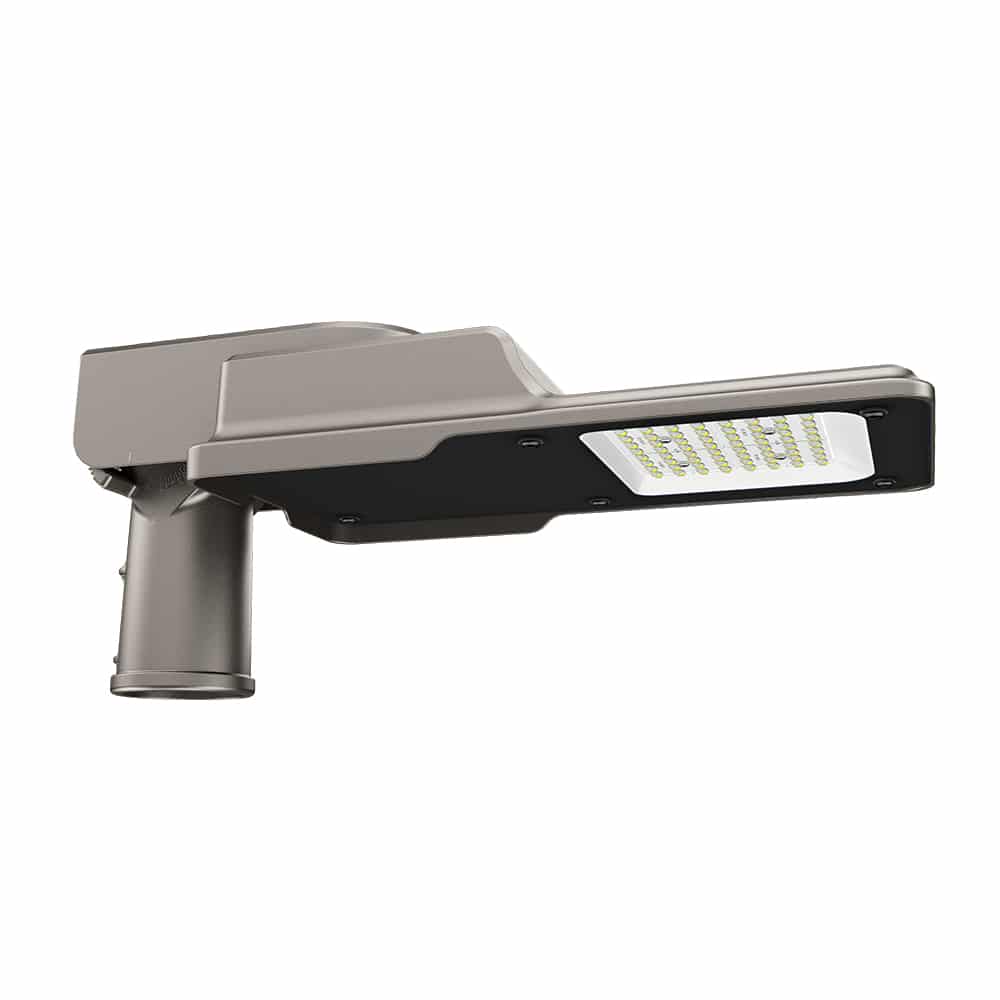

Series Lumio Modern Street Light with Flexible Mounting

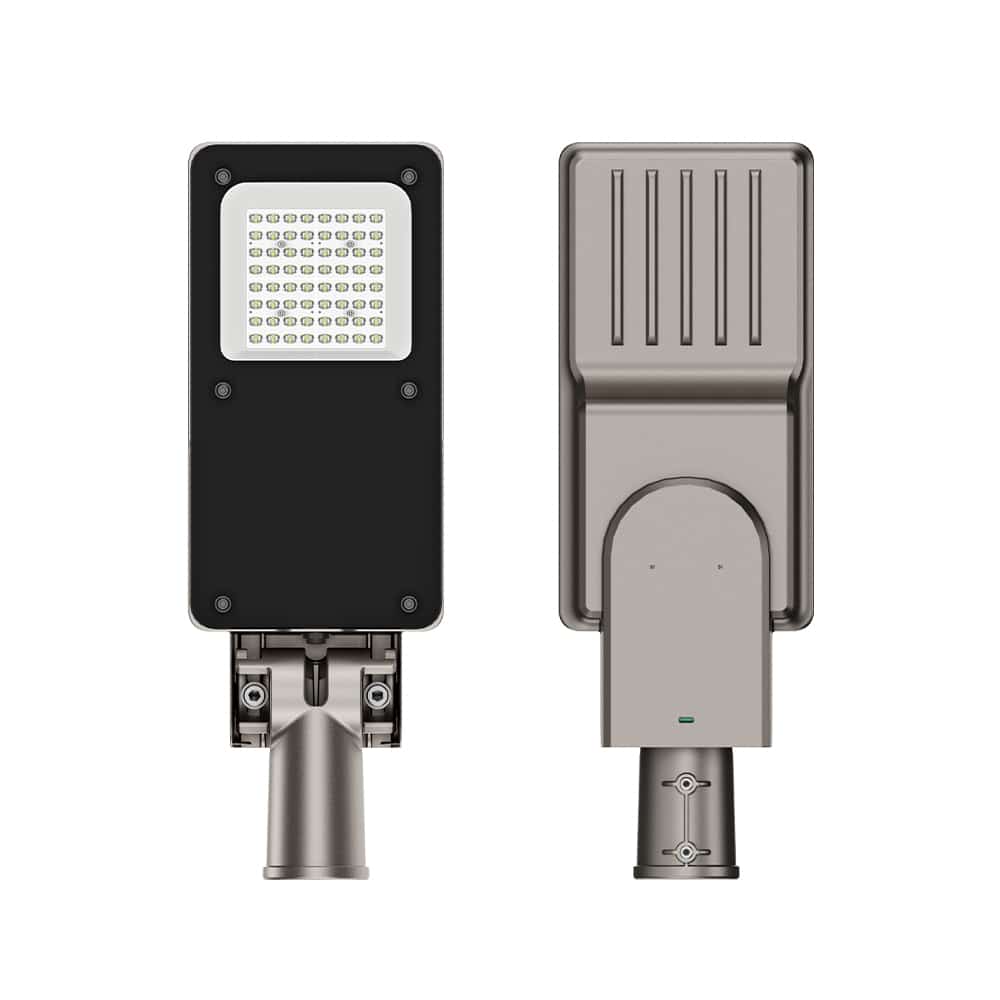

The Lumio Series modern street light is ZGSM’s next-generation intelligent roadway lighting solution for demanding outdoor environments. It offers up to 176 lm/W luminous efficacy, flexible optics, and up to 70% energy savings. Its ADC12 die-cast aluminum housing and tempered glass ensure durability and all-weather protection.

Our modern street light series incorporates high-efficiency LED chips, programmable drivers (Click here to learn about ZGSM’s selectable LED drivers), and standard 10 kV surge protection for long-term reliability and low maintenance. Featuring an innovative adjustable rotating sleeve with -20° to +110° tilt range, Lumio supports seamless horizontal and post-top installation without disassembly. Lumio is certified by ENEC, ENEC+, CB and Zhaga-D4i, and supports smart connectivity via NEMA and Zhaga interfaces. This makes it compatible with photocells, motion sensors, and LoRa, Zigbee, LTE, and PLC controllers—ideal for sustainable, future-proof, and eco-friendly urban lighting.

Product Features

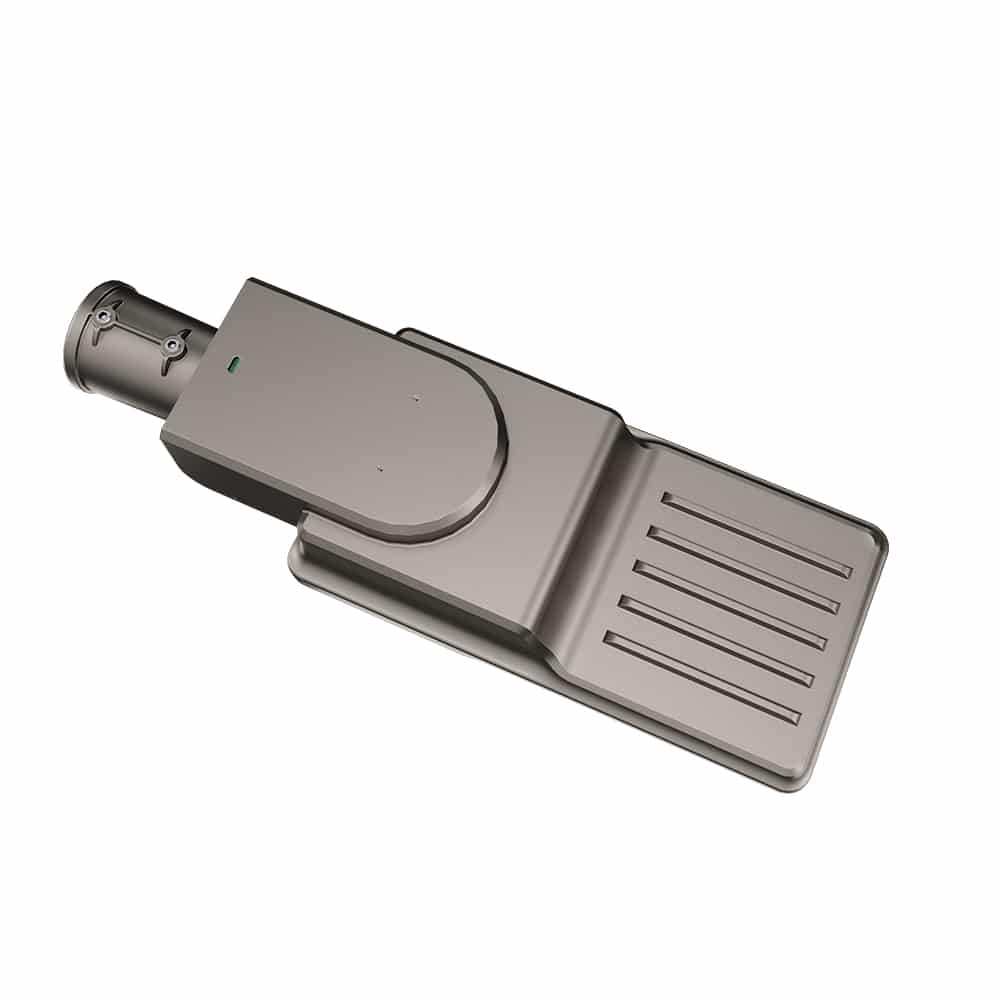

  • High luminous efficacy up to 176 lm/W
  • Flexible mounting with -20° to +110° tilt range for precise light aiming
  • 15+ photometric distributions suited for every road type
  • Robust ADC12 aluminum body with modern sleek design
  • Support NEMA (3/5/7pins) & top/bottom Zhaga sockets for smart control
  • Long lifespan L70 > 100,000 hours and standard 5 years warranty
  • Wide CCT range 1,800K–6,500K with CRI >70/80/90 options
  • Fully certified by CE, RoHS, ENEC, ENEC+, CB, and Zhaga-D4i
  • Photocell, motion sensor, NTC, OLC, or solar compatibility as per request
Contact Us

  • ZGSM products are designed for the global market. Please contact our sales team for certification details.
  • Products information is for reference only. Some options may not be available for each configuration. Please contact us for further details.
  • For an advanced solution with high luminous efficacy and easy maintenance design, see our LED Street Light catalog — including the ALCA Cobra Head series which offers up to 176 lm/W and smart-lighting ready features.
Lumio Modern Street Light
Series NoSeries LUMIO
Power20W, 30W, 40W, 50W, 60W, 80W, 100W, 120W, 150W, 180W, 200W
Efficacy140-176lm/W
Input Voltage100-240/277 VAC, 50 / 60 Hz
Power Factor>0.95
Surge Protection10KV (Default) / 20KV (available on request) with IEC61643-11
IP RatingIP66
IK RatingIK08/1K10
CCT1800K, 2200K, 2700K,3000K, 4000K, 5000K, 5700K, 6500K
CRIRa≥70
Operating Temperature-40°C ~ +50°C, 10%～90%RH
Beam Angleype II, Type III, Asymmetric for pedestrian crossings, or customized
Mounting OptionAdjustable sleeve design wit -20° to 110°
Warranty5 Years
CertificationCE, RoHS, ENEC, ENEC+, CB, LM79, LM80, TM-21, IEC62471, IEC60068-2-6, IEC61643-11, Zhaga-D4i
ControlNEMA socket (3/5/7pins), ZHAGA socket, Short cap, Photocell, NTC, OLC, Motion sensor, Solar compatible, Smart controller

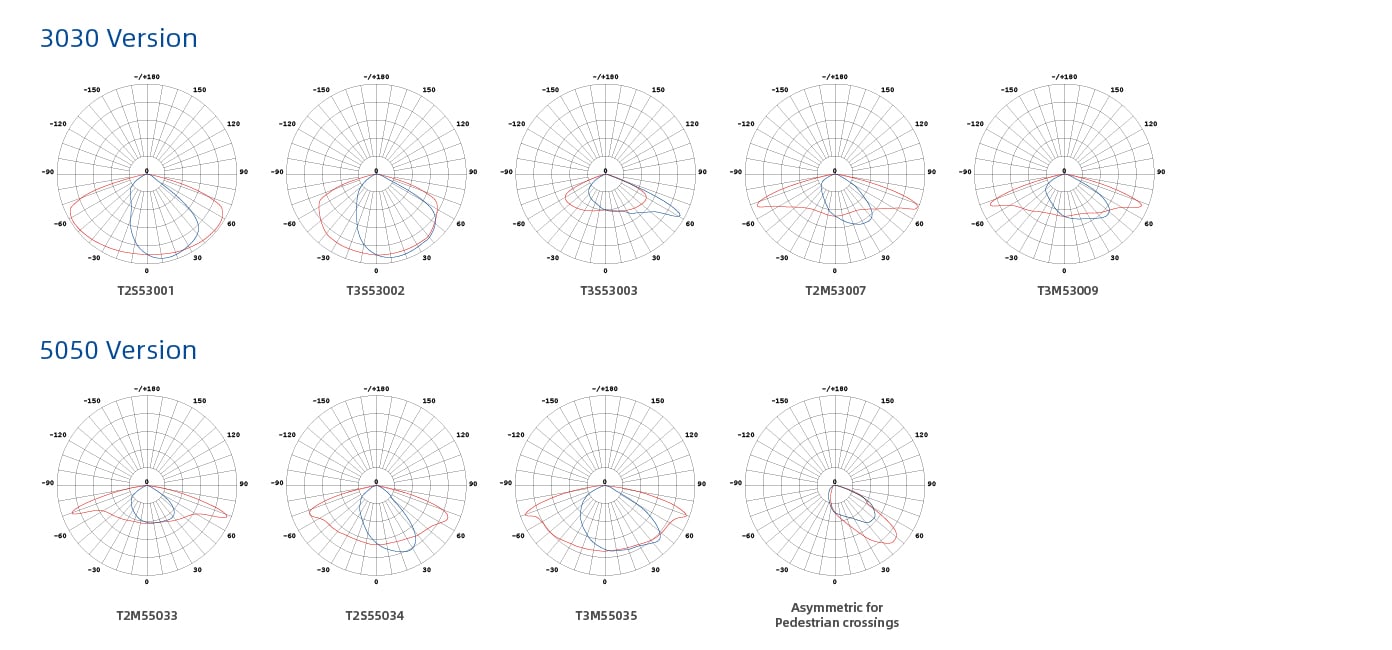

Lumio Modern Street Light Optics
DS_LUMIO_Modern Street Light Manual_Modern Street Light_LUMIO

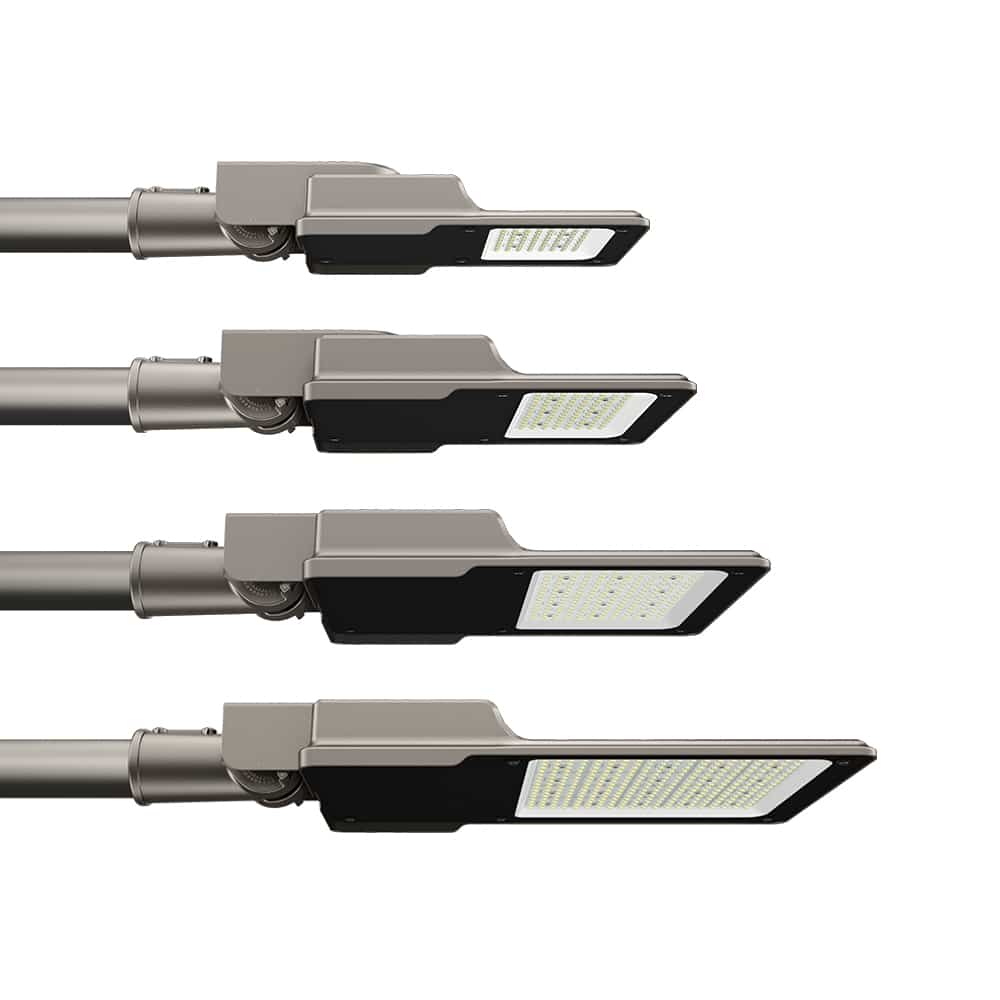

ZGSM's Lumio series supports advanced smart control ecosystem configurations, including top/bottom Zhaga sockets (D4i compatible) and 3/5/7-pin NEMA sockets. These allow effortless integration with photocells, motion sensors, and centralized wireless control systems using LoRa, Zigbee, LTE, or PLC protocols for remote monitoring and automated dimming.

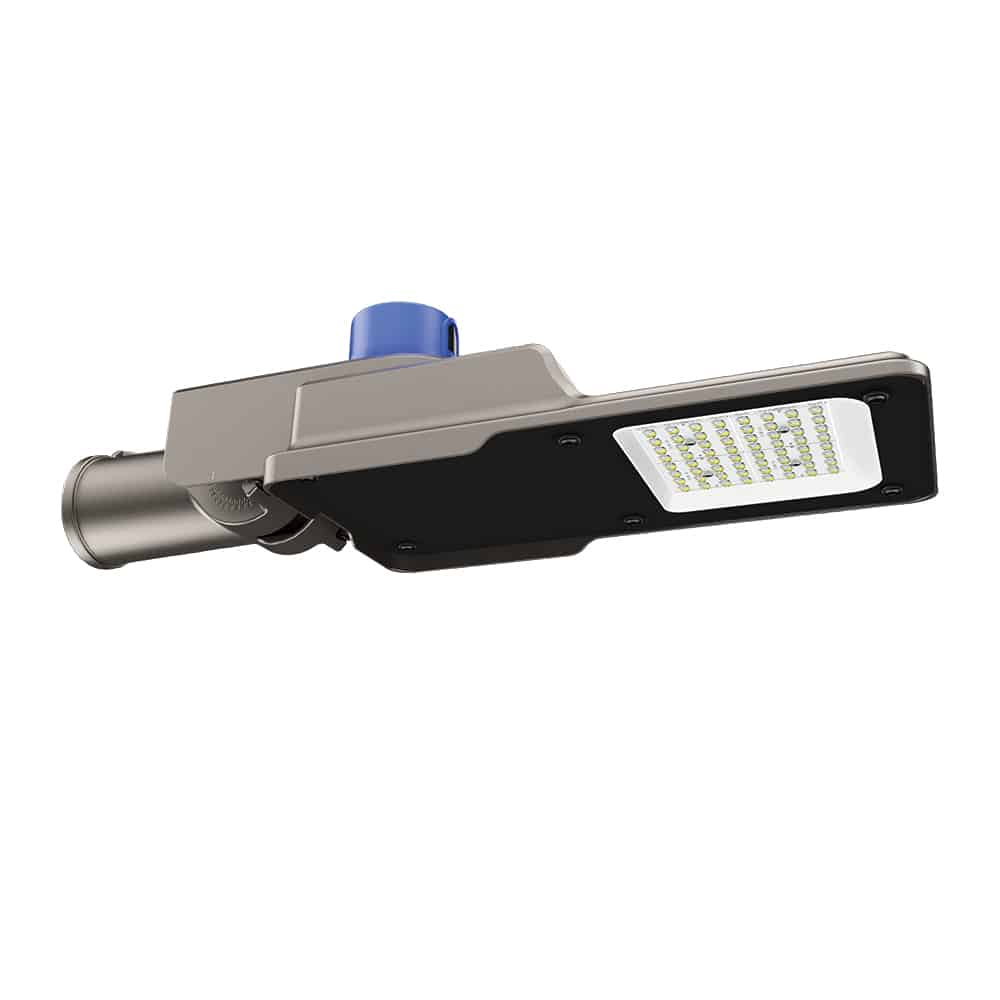

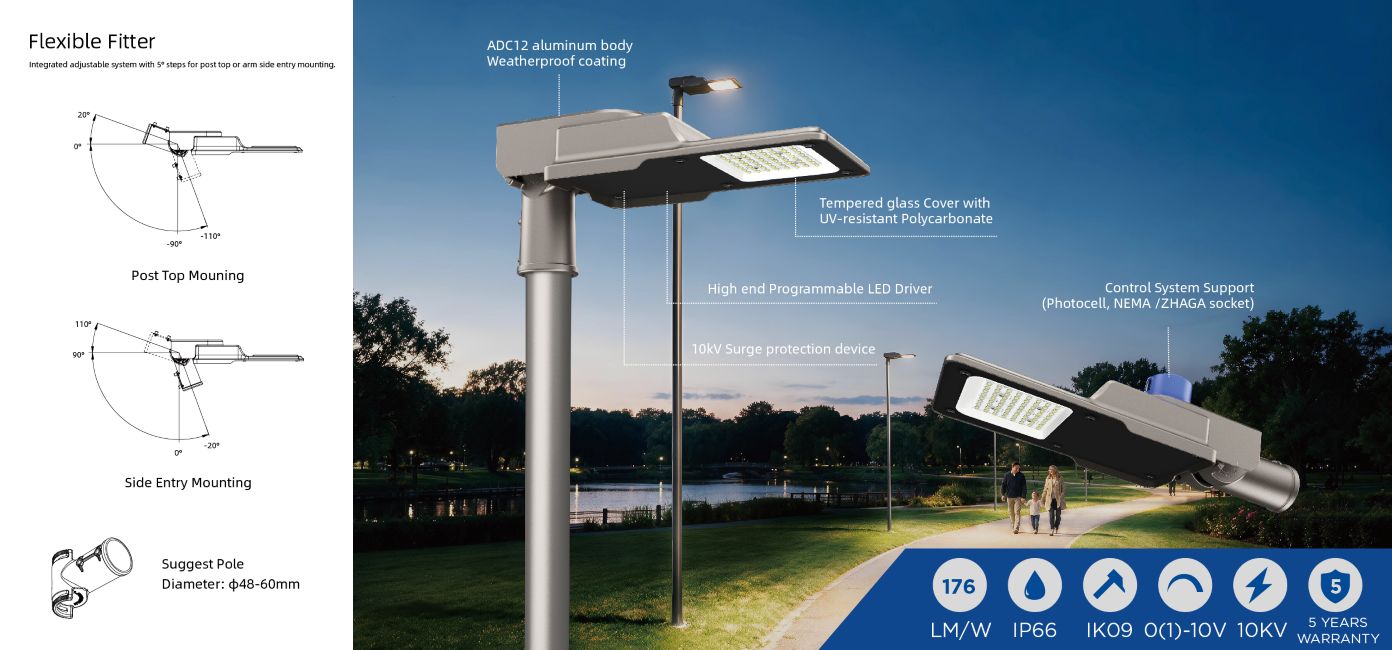

The Lumio luminaire features an integrated adjustable sleeve system suitable for both side-entry (horizontal) and post-top (vertical) pole mounting with pole diameters of Ø48-60mm. The mounting arm allows precise angle adjustments from -20° to +110° in 5° steps without taking the fixture apart, ensuring flexible and accurate light aiming for any roadway scenario.

Lumio series supports top-tier LED drivers including Inventronics, Philips, Tridonic, Mean Well, Sosen, and Done, all of which offer programmable timer dimming options (AstroDIM or AstroDIM+override). ZGSM highly recommends Inventronics drivers for optimal cost-performance, as they match Philips and Tridonic in quality and dimming flexibility while remaining cost-effective. For budget-sensitive projects, Done drivers are also a durable and reliable alternative.

Related Products

Series ALCA Cobra Head Street Light with Tool-Free Design

Series Falcon Smart Street Light with NEMA or ZHAGA

Series Rifle Class I/II Street Lamp

Series H Modular Design LED Street Light

Related Blogs

Correlated color temperature Kelvin / K value in LED lighting

How to fix flickering LED lights – causing analysis and solutions

Visible light wavelength and spectral power distribution of LED lights

How is the LED lifetime calculated, TM-21 vs TM-28

Certification Show

As a professional manufacturer of LED Street Light Luminaire, our Street Luminaire have rich certification and test reports, such as CE, RoHS, ENEC, CB, LM79, LM80, TM-21, IEC62471, IEC60068-2-6, IEC61643-11, and so on.

COMPONENTSTANDARDSTEST REPORTCERTIFICATIONS
LEDLM80√
LUMINAIRESEN/IEC 60598-1 y 60598-2-3√√
IEC 62471√
EN/IEC 60529√
EN/IEC 62262√
EN/IEC 60068-2-75√
EN/IEC 55015√√
EN/IEC 61000-3-2√√
EN 61547√√
EN 61000-3-3√√
LM79√
ISTMT√
TM-21√
LM82√
LM84√
ISO9007 /ASTM B117√
IEC 60068-2-6/ANSI C136.31√
LED MODULEEN/IEC 62031√
LED DRIVERIEC 62384,IEC 61347-1,IEC 61347-2-13√√
SPDEN/IEC 61643-11√√
FACTORYISO9001,ISO14001,ISO50001,ISO45001 √
