Introduction

As energy-saving standards for public lighting continue to tighten, long, continuous spaces—such as underground parking garages, tunnels, long corridors, and municipal roads—are placing higher demands on motion sensor based lighting systems. Traditional standalone motion sensor lights operate independently, which can easily lead to uneven lighting (What’s light uniformity?) and safety blind spots in certain areas, while frequent individual activations result in additional energy consumption. In response, master-slave motion sensor systems have emerged, relying on signal coordination between sensors to achieve synchronized on/off control and dimming of lights within a given area. The entire system uses microwave Doppler radar sensors as its sensing medium and establishes group logic via wired or wireless communication, enabling the entire area to respond uniformly to human and vehicle movement. Compared to centralized lighting control systems, the smart motion sensor (i.e., the master-slave solution) requires no gateway or cloud connection and operates through local, offline coordination, making it suitable for both new construction projects and retrofits of existing lighting fixtures. This article outlines the basic principles of motion sensors and the shortcomings of traditional motion sensor solutions. It focuses on analyzing the master-slave system architecture and classification types, compares the advantages and disadvantages of various smart motion sensor solutions, and provides a clear technical reference for selecting LED lighting systems for warehouses, gas stations, and parking garages.

What’s motion sensor?

Motion sensors (here we mainly discuss microwave sensors) are the most critical sensing hardware in smart lighting systems and are currently widely used in commercial parking garages, tunnels, hallways, and municipal streetlight applications. Common sensing methods on the market include infrared human motion detection and microwave radar detection. Among these, 5.8 GHz microwave radar sensors have become the mainstream solution in the lighting industry due to their superior stability. Compared to infrared detection, microwave detection is unaffected by changes in ambient temperature or airflow, and it can penetrate the plastic housing of lighting fixtures to enable concealed installation, making it compatible with integrated LED luminaire designs. The microwave sensor operates based on the Doppler effect: the sensor continuously emits high-frequency 5.8 GHz electromagnetic waves and receives reflected echo signals in real time. When objects such as people or vehicles move within the monitoring range, the frequency and waveform of the reflected echoes change accordingly. Upon detecting these signal fluctuations, the sensor immediately outputs a switching or dimming control signal, triggering the light fixture to turn on or adjust its brightness. In addition, microwave sensors typically incorporate a photosensitive detection module that continuously monitors ambient natural light levels. The system intelligently evaluates these levels against preset light thresholds: when daylight is sufficient, the sensor will not trigger the lights even if movement is detected, effectively preventing unnecessary lighting during the day and further enhancing the overall energy efficiency (What’s luminious efficacy of LED light?) of the lighting system.

Traditional motion sensor

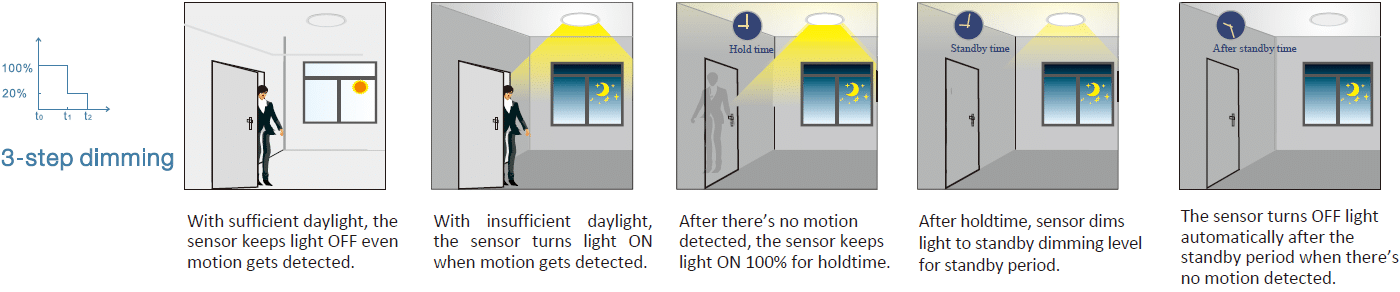

Traditional applications typically use a single-lamp, independent sensing solution, in which each luminaire is equipped with a built-in sensor to detect and control the luminaire independently. The simplest solution to install, as there is no need to wire or pair the luminaires together. However, the shortcomings of this method are more obvious in the long corridor scene. When pedestrians walk, only the current position light is on, and the front part is still in low brightness, which forms visual blind spots. Otherwise, if the luminaires are not switched on in advance, the sudden illumination can also cause uncomfortable glare (What’s glare?). None of these problems are in line with the principle of human centric lighting. However, this approach cannot realize the synchronized dimming of the whole area, which makes it difficult to implement a unified zone-based control strategy, and it is increasingly difficult to meet the energy-saving and safety requirements of continuous passageways such as long corridors and warehouses.

Smart motion sensor

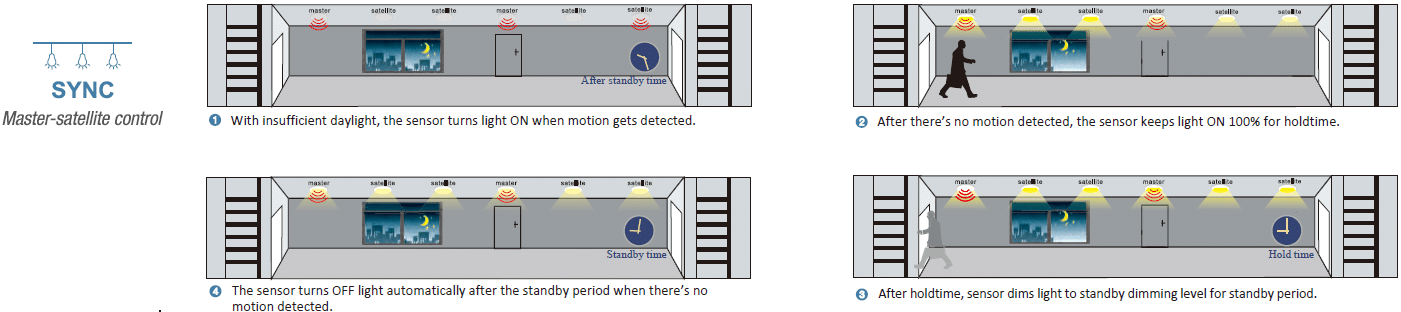

The smart motion sensor (master-slave solution) divides sensors within the same area into a master unit and a group of slave units. The master unit is responsible for detecting moving targets; once it detects a person or vehicle, it sends a trigger command to all slave units in the group. The slave units do not actively detect motion; they only receive commands and synchronously execute actions such as turning on lights, dimming (0-10V dimming and motion sensor), and delaying the lights’ shutdown. All lighting fixtures within the group operate in sync, eliminating bright and dark blind spots along the path. All units retain their sensing circuits, allowing for flexible configuration of master and slave roles during installation; some solutions support on-site grouping via remote control, with multiple groups isolated from one another to prevent cross-area false triggers. The entire logic runs locally without relying on a backend server, making it suitable for outdoor environments without network access. This is also the mainstream technical approach for energy-saving retrofits in warehouses, underground parking garages, and gas stations, effectively balancing lighting comfort, energy savings, and installation costs.

Advantages and disadvantages of smart motion sensor

Advantages of smart motion sensors: The greatest advantage of the smart motion sensor master-slave coordination system is that it enables synchronized lighting across an area, eliminating the visual gaps caused by independent sensors and significantly enhancing pedestrian safety. Since all lights in the same group respond uniformly to motion signals, it reduces scattered and frequent activations, thereby optimizing overall energy consumption. The system operates without relying on a gateway or online control, making it the preferred solution for small-scale projects such as warehouses, parking lots, and gas stations. Compared to centralized bus control systems, it eliminates the need for a large number of central control devices, resulting in lower costs.

Disadvantages of smart motion sensors: The classic unidirectional master-slave architecture presents a single point of failure; if the sole master unit fails, the entire group’s coordination ceases to function. Wireless master-slave solutions are susceptible to signal delays and crosstalk due to obstructions and distance limitations. Additionally, deploying LED lights (ZGSM LED lights) with smart motion sensors requires some training, and improper placement may result in the system not aligning with user habits. Furthermore, most systems only support local coordination; implementing cloud-based management would increase complexity and costs.

Different smart motion sensor solutions

Smart motion sensor group coordination is categorized into three architectures—wired master-slave, wireless master-slave, and wireless master-master—based on communication media and operational logic. These three solutions differ significantly in terms of hardware protocols, network topologies, and fault tolerance capabilities, making them suitable for different engineering scenarios.

Smart motion sensor wired master-slave

In a wired master-slave system, all lights are connected in parallel via a synchronization signal line. The hardware circuitry is simple, and the lights are synchronized using dry-contact synchronization signals. When a light’s motion sensor detects movement, the sensor converts the signal level into a 0–10V or DALI signal (What’s Dali?), which is then transmitted synchronously to the LED lights via the signal line to achieve dimming. The advantages of a wired master-slave system include the absence of wireless interference, stable signals, and extremely low response latency. Additionally, since microwave sensors do not require RF modules, material costs are lower. Of course, the biggest drawback of this design is the need to install additional synchronization control wires, making retrofitting existing lighting fixtures nearly impossible. New construction projects require pre-installed conduits and must account for voltage drops in long-distance cables, placing higher demands on installation and resulting in significantly higher labor costs. Currently, wired master-slave systems are primarily used in new construction projects, such as gas stations, underground parking garages, and factories, while projects like municipal streetlights and parking lots are gradually being replaced by wireless solutions due to the difficulty of retrofitting or the challenges of wiring.

Smart motion sensor wireless master-slave

In a wireless master-slave architecture, smart motion sensors are equipped with built-in RF modules that transmit control commands via wireless signals, eliminating the need for additional wiring. There is only one master device in a group, while the remaining devices act as slaves. When the master detects a moving object, it converts the voltage signal into a 0–10V dimming signal for the connected LED driver; simultaneously, it broadcasts a wireless command—typically via RF or Bluetooth—to all slave devices, which then perform the signal conversion to adjust their brightness. The wireless master-slave system supports on-site pairing via DIP switches or remote control, with different groups isolated from one another to prevent unintended triggering in adjacent areas. Unlike wired master-slave systems, this solution significantly reduces the labor required for wiring installation, making it the preferred choice for outdoor streetlight projects, parking lot projects (ZGSM parking lot lighting solution), and indoor lighting retrofits such as factory lighting. Of course, its shortcomings are also quite evident, namely the risk of a single point of failure. If the master unit loses power or malfunctions, the entire group’s synchronized operation ceases. Additionally, wireless RF signals are subject to varying degrees of obstruction by walls and metal structures, and communication range limitations result in stability that is inferior to wired solutions.

Smart motion sensor wireless master-master

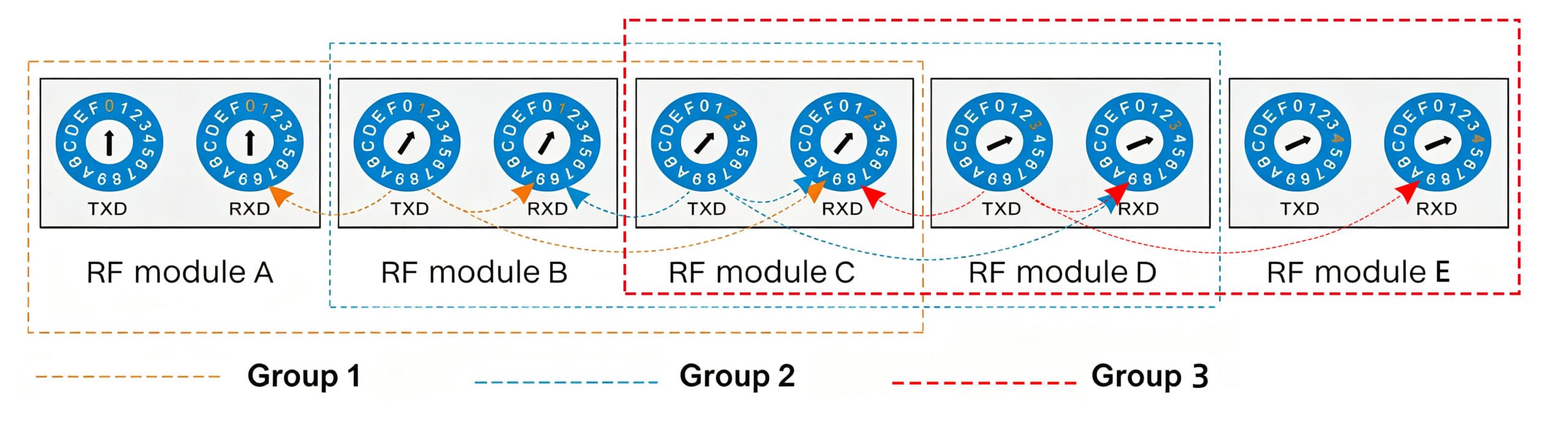

Wireless master-master mode, also known in the industry as peer-to-peer broadcast mode, ensures that all smart motion sensors within a group have equal status, with no distinction between fixed masters and slaves. In fact, it falls under the category of wireless master-slave systems, except that all master devices act as slaves when no motion is detected. As soon as any sensor detects a motion signal, it immediately broadcasts a trigger command to devices on the same channel, and the LED lights that receive the signal respond in unison. Compared to traditional wireless master-slave systems, the most significant innovation is the elimination of single points of failure: any node can serve as a trigger source, so the failure of a single sensor will not cause the entire group to malfunction, greatly enhancing the system’s fault tolerance. As we can see the below figure, it showed how the signals between master and master are transmitted. When Master and Master set under broadcast work mode, that means, all sensors set the same channel, Any Master sensor is triggered, it will transmit the RF signal to all the lamps in the group. When Master and Master set under hopping work mode, that means, when any master is triggered, it will send RF signal to 3 channels (the adjacent channel before and after the TX channel and the channel set by master itself. For example, when the master set the TX channel for “1”, it will launch “0” “1” “2” three different channel signal, if other different RX channel set with”0″ “1” “2”, at this time will receive the corresponding channel signals, this kind of work mode is mainly applied to corridor application.

ZGSM project reference – canopy lighting with smart motion sensor

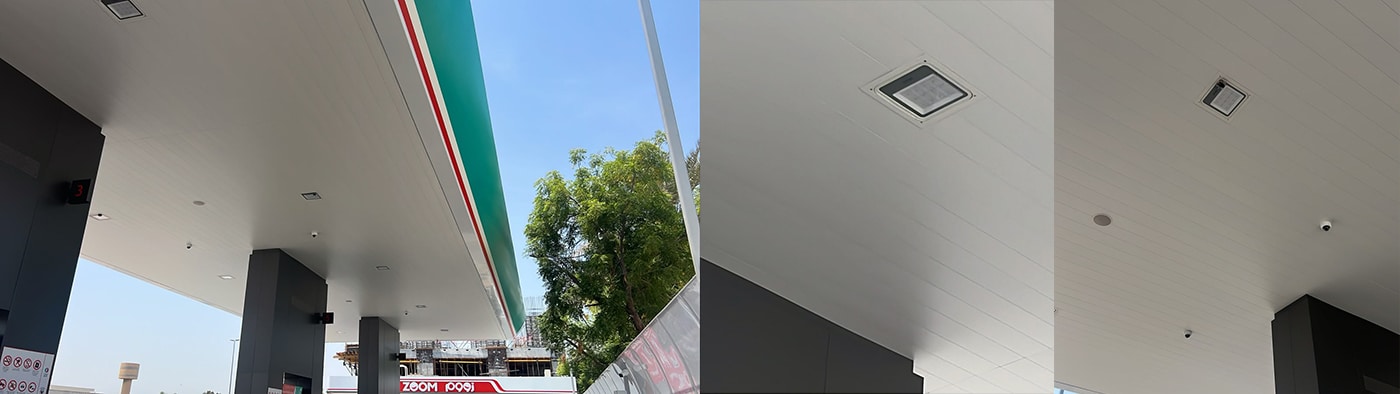

ZGSM LED lighting fixtureswith smart motion sensor offer a diverse range of sensor control solutions that can be flexibly configured to meet specific application needs. These solutions include traditional standalone motion sensor systems and an upgraded master-slave motion sensor system, enabling full adaptation to the energy-saving and smart control requirements of various lighting scenarios. This case study features a lighting retrofit project (What’s LED light retrofit?) at a gas station in the Middle East. As a major player in the energy industry, the region places great emphasis on upgrading to green, energy-efficient lighting and keeps pace with global trends in energy conservation and emissions reduction. The plan is to significantly reduce both energy consumption and operational and maintenance costs for round-the-clock lighting at the gas station by installing LED fixtures equipped with smart motion sensor systems.

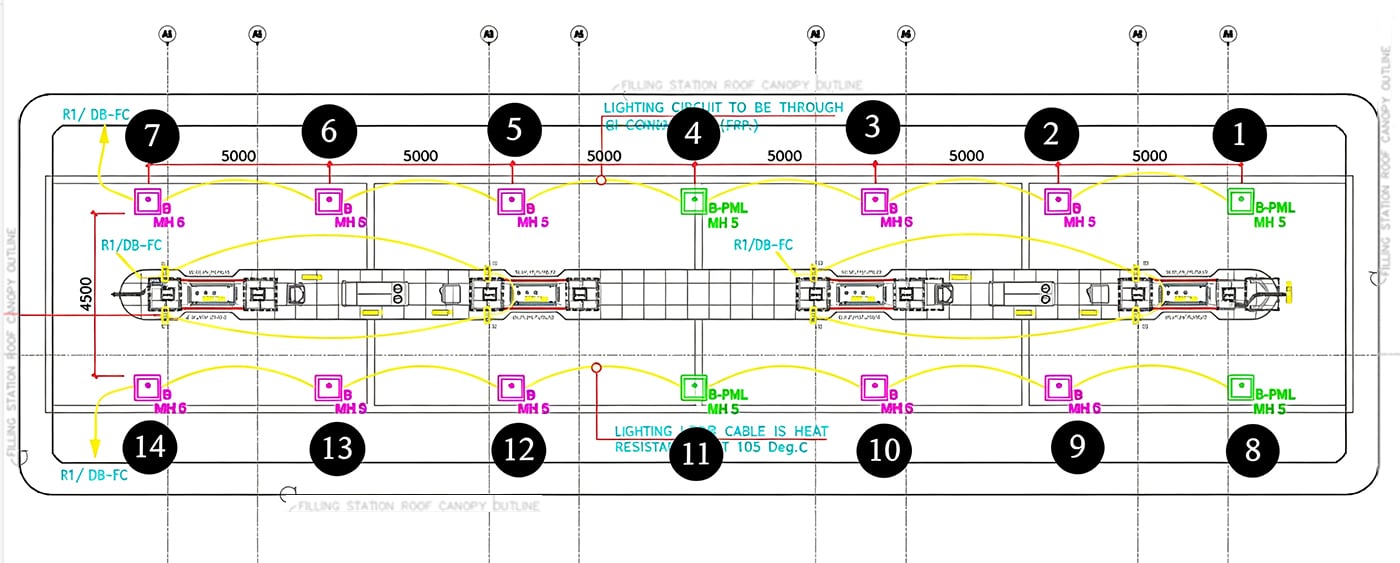

This single-pump gas station renovation project involved the installation of a total of 14 LED canopy lights. The project employs a wired master-slave control architecture with zone-based interlocking, which divides the system into four independent interlocking units: Light No. 1 serves as the master, controlling Lights No. 2 and No. 3; Light No. 8 serves as the master, controlling Lights No. 9 and No. 10; Light No. 4 serves as the master, controlling lights No. 5, 6, and 7; Light No. 11 serves as the master, controlling lights No. 12, 13, and 14 (as shown in the figure above). The project ultimately selected a wired master-slave system, which offers greater stability and is free from radio frequency interference, relying on signal cables to achieve synchronized group control. Additionally, Zhaga connectors (What’s Zhaga and Zhaga socket?) were adopted, ensuring relatively low replacement and maintenance costs even in the event of future malfunctions. When the master microwave sensors in each group detect the movement of vehicles or people, they immediately trigger dimming commands, causing all slave lights within the group to turn on simultaneously, thereby eliminating lighting delays and dark spots. Currently, this retrofit solution is performing well. The client has established an annual upgrade plan to complete the smart lighting retrofit at 13 gas stations each year, implementing the master-slave sensor-based lighting solution on a large scale to continuously achieve energy savings and improved efficiency in lighting.

ZGSM LED lights can be with smart motion sensor

Summary

This paper focuses on a case study of smart motion sensors for gas station canopy lighting. It begins by explaining the basic concepts of motion sensors and compares the operational logic of traditional standalone sensor solutions with that of emerging master-slave control solutions. The paper outlines the three mainstream architectures of smart motion sensors: wired master-slave, wireless master-slave, and wireless master-master. It systematically analyzes the advantages and limitations of the master-slave solution. Compared to the traditional independent single-light sensing mode, the master-slave architecture enables the coordinated activation of lights across an entire area, effectively eliminating the brightness fluctuations caused by the sporadic on/off cycles of individual lights. It is well-suited for large-area continuous lighting scenarios such as gas stations, warehouses, and parking lots, thereby optimizing the visual experience for people within the area. At the same time, the wired master-slave approach reduces the number of sensors required, thereby controlling project hardware costs, while the wireless master-slave solution is significantly less expensive than smart control systems (More about smart controlling system). However, issues such as wireless communication stability, signal obstruction, and clock synchronization delays can still affect actual operational performance. Based on engineering case studies, wireless networking offers convenient installation and is better suited for retrofitting existing lighting fixtures at gas stations, while wired solutions provide reliable communication and are more commonly used in new construction projects. By selecting the appropriate networking approach and optimizing sensing parameters and coordinated strategies, the full value of smart motion sensors can be realized, further achieving energy savings and reduced consumption while ensuring lighting safety at gas stations.
