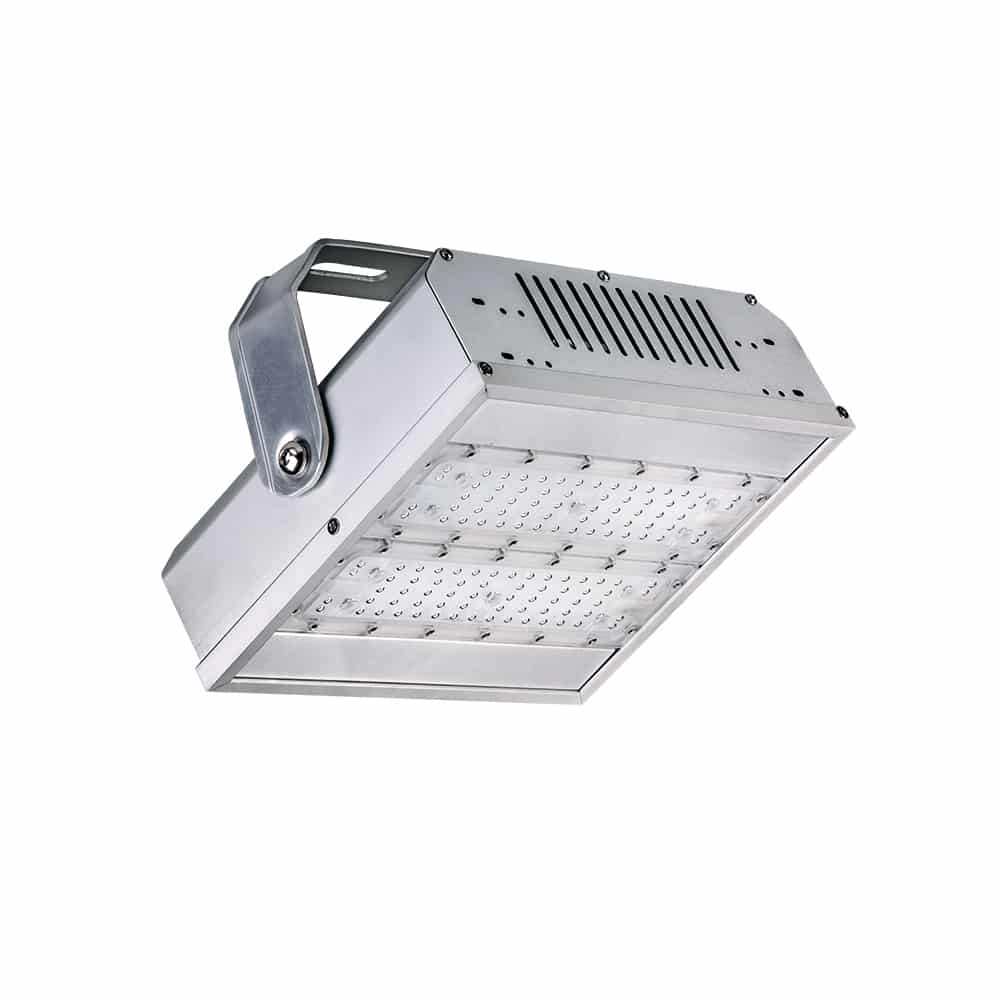

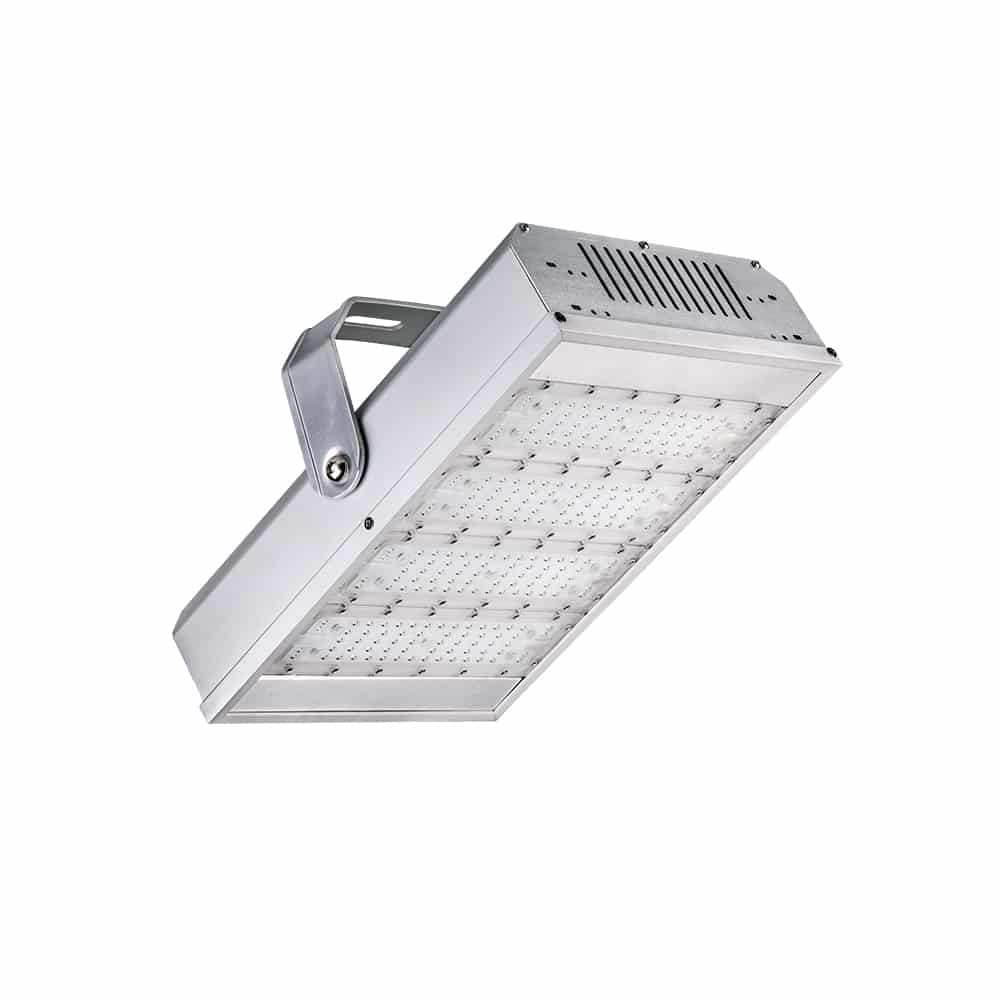

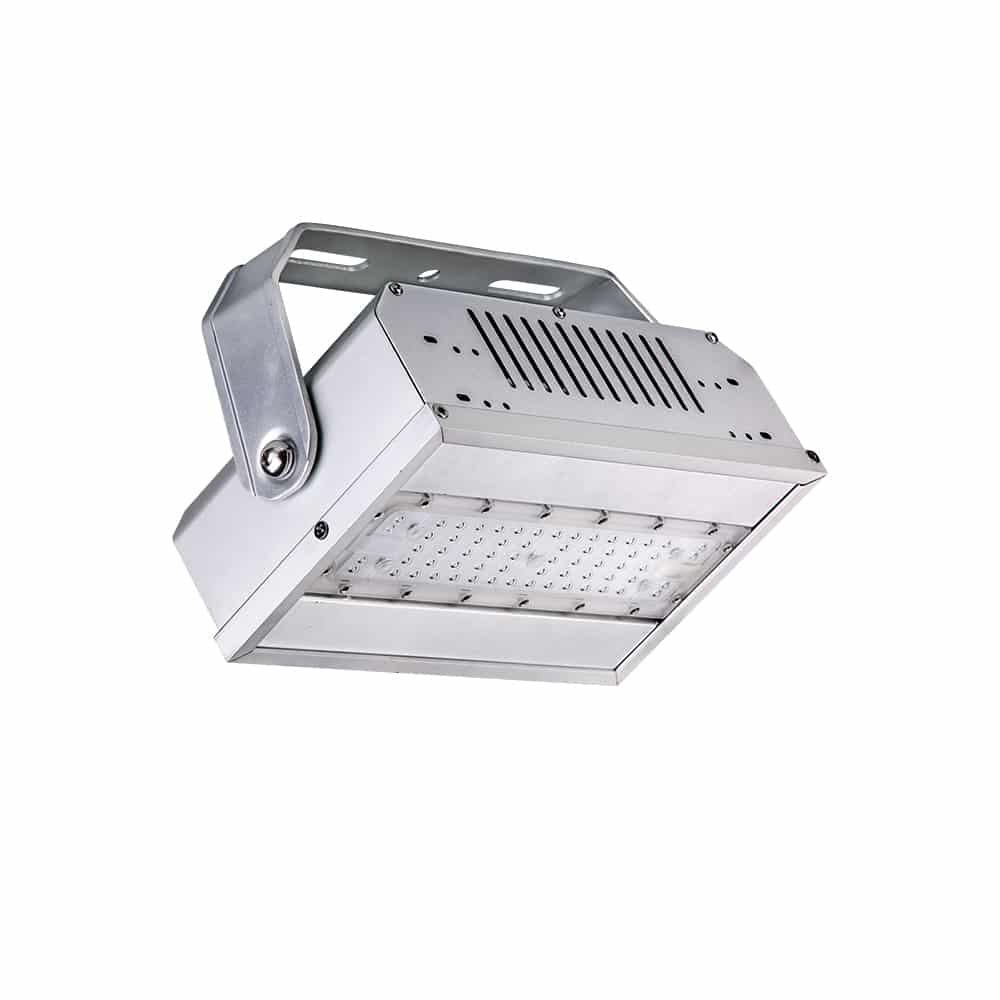

Series H Modular Design Led Tunnel Light
Series H modular design tunnel light is suitable for use in all tunnel and underpass areas for roadway and railroad applications. Design with IP66 rating, low copper aluminum housing, surface oxidation treatment process designed to meet a longtime salt fog rating. Tunnel of Light universal design can be applied to either wall or ceiling mount tunnel lighting applications with an optional adjustable feature for various tilt angles.
- Watts: 40-240w
- Light Efficiency up to 165lm/w
- Protection class I or II

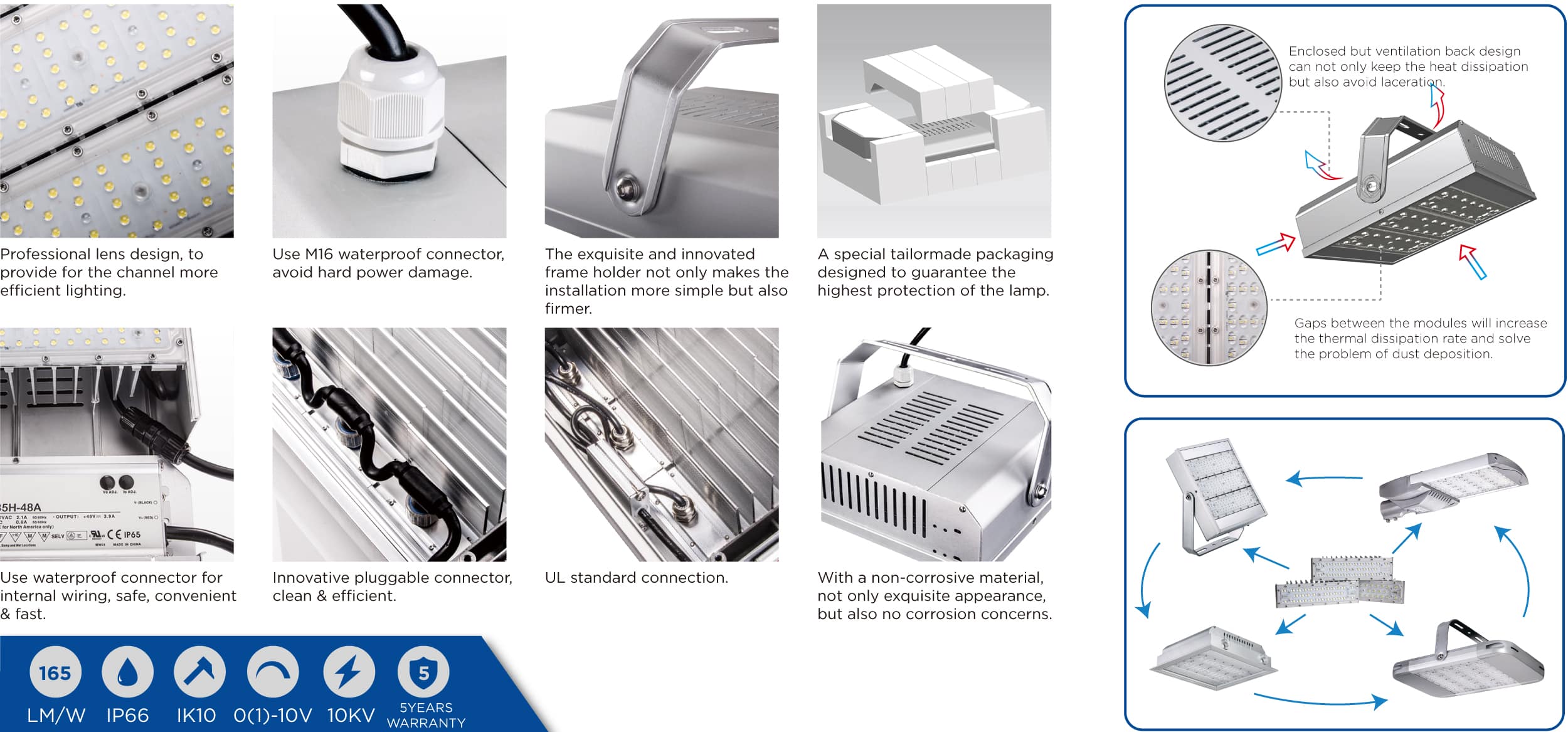

- Modular design, easy maintenance
- IP66&IK10
- Wide choice of optics to suit more applications
- CE, CB, ROHS certified.
- Smart Control: 1-10V dimming, DALI control, Photocell, Motion sensor, Zigbee or Lora Control
| Series No | Series H |
| Power | 40W,50W, 60W,80W,100W, 120W,150W,160W, 180W,200W,240W |
| Efficacy | 125-165lm/W |
| Input Voltage | 100-240/277 VAC, 50 / 60 Hz |
| Power Factor | >0.95 |
| Surge Protection | 10KV (Build-in Driver) /Extra 10KV SPD (Available on request) |
| IP Rating | IP66 |
| IK Rating | IK10 |
| CCT | 3000K, 4000K, 5000K, 5700K |
| CRI | Ra>70 (Default) / Ra>80 |
| Operating Temperature | -40°C to + 50°C |
| Beam Angle | TypeI, Medium;TypeII, Medium;TypeIII, Medium;TypeV, Short; |
| Mounting Option | Bracket mounted |
| Warranty | 5 Years |
| Certification | CE, CB, ROHS, LM80, TM-21, ISTMT, IEC62471/62788 |
| Control | Photocell, DALI Dimmable, Motion Sensor, Non-Dimmable, 1-10V Dimmable, Zigbee or Lora Control |
What are the 5 zones of tunnel lighting?
There are 5 key areas defined in CIE 88-2004 that need to be considered when designing tunnel lighting: entry zone, threshold zone, transition zone, interior zone and exit zone.
Why are tunnel lights necessary?
Tunnel lighting is necessary to solve the problem of sudden adaptation of the environment inside the tunnel. A balance of internal and external brightness is needed to adapt to the people entering and leaving the tunnel. The design is based on a certain critical length of the tunnel.
What is done with lighting in a tunnel during the day to allow driver’s eyesight to adapt?
When drivers make vision adjustments as they move through the tunnel, they can slowly reduce the brightness level to ensure that vision adaptation is not affected. Good tunnel lighting allows users to enter and exit the tunnel safely and comfortably.
