Series H street light in village for community road and parking

This project is located in S2 Heights Phase 3D, which has several roads including motor lanes, temporary parking spaces, and sidewalks. The road composition is quite complex. Due to the high daily traffic and pedestrian volume in the area, the community considered safety factors and decided to install street light in village to enhance the residents’ safety. After receiving this feedback from the client, our technical team divided the road lighting requirements. Conflict areas such as turns and intersections were assigned a lighting level of C, while other roads were assigned a lighting level of M. Based on the results of lighting simulations, we chose ZGSM’s 100W street lights to improve visibility on the roads. Currently, the project is running smoothly, and the community residents have continuously expressed their appreciation for this project.

Project details:

ProductModelCCT /OpticsQuantity
100W Street light in villageZGSM-LD100H5700K,3M62pcs
  • Customer Feedback
    Adequate lighting levels, ensuring clear visibility of road signs and markings.
    Rizwan
    Engineer of Company

.

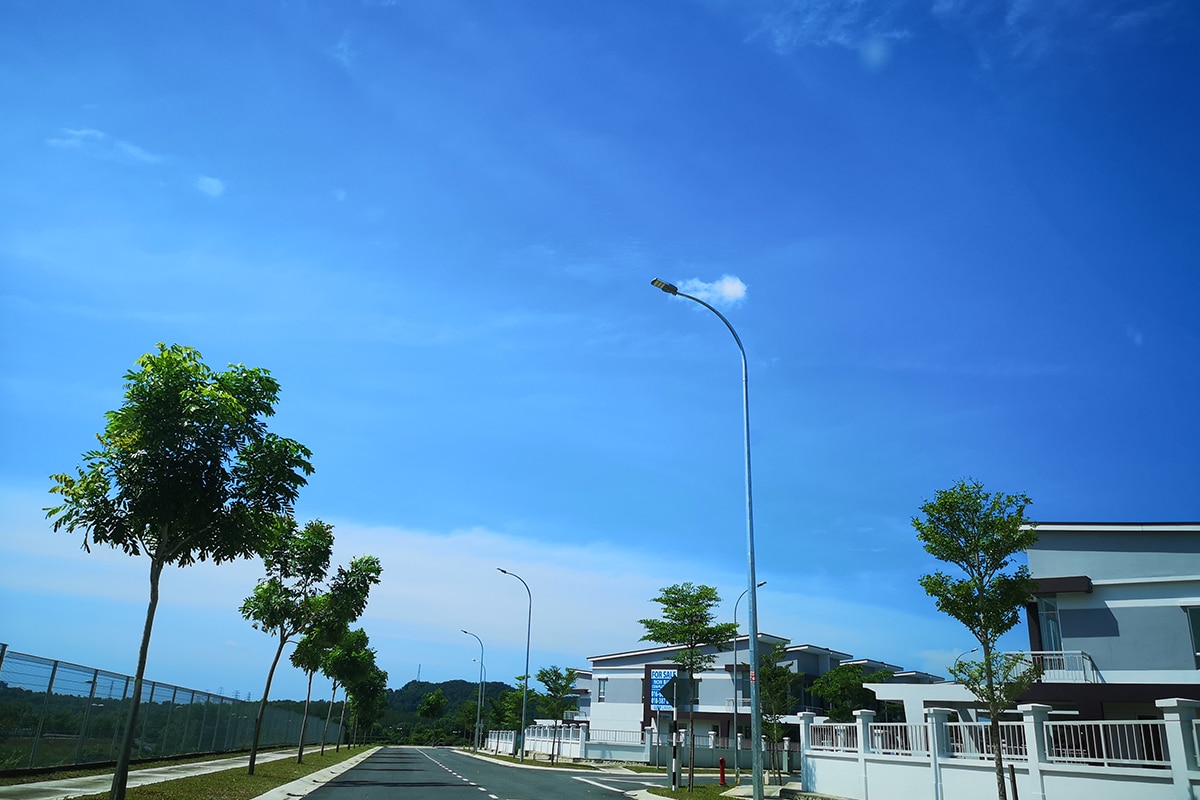

  • Street light in village 1

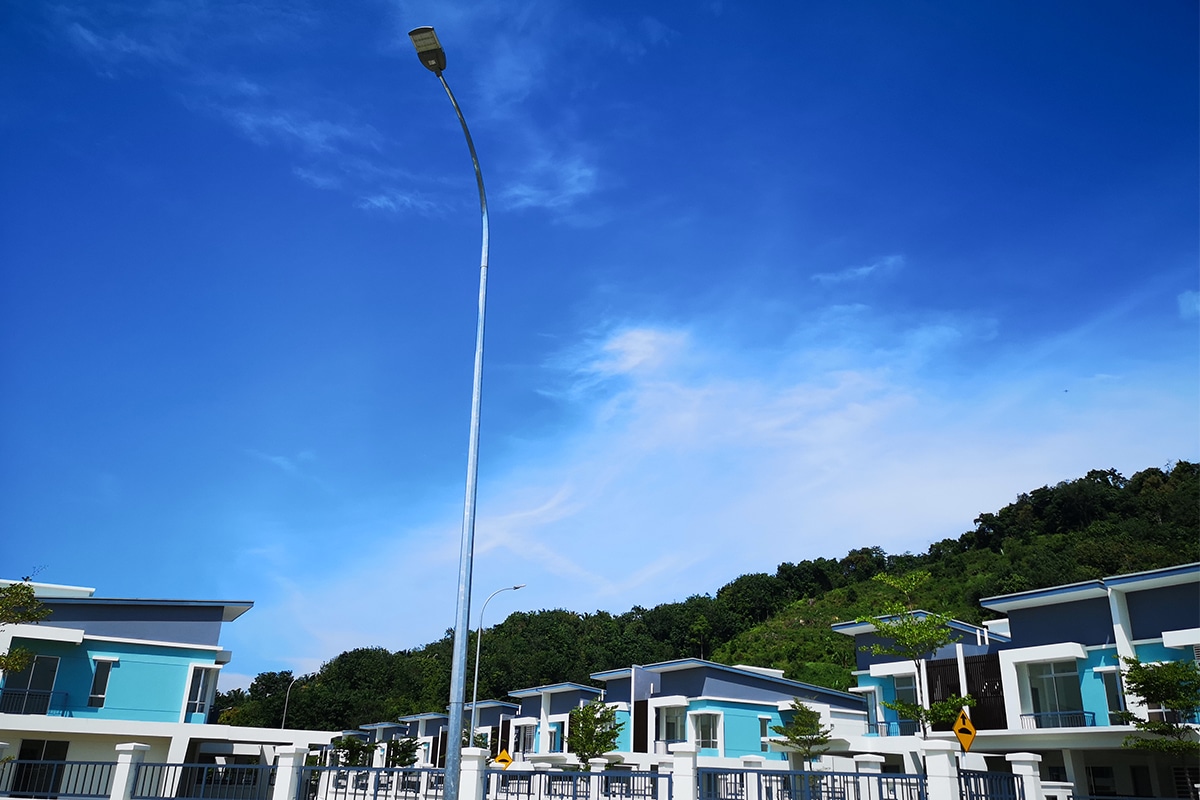

  • Street light in village 2

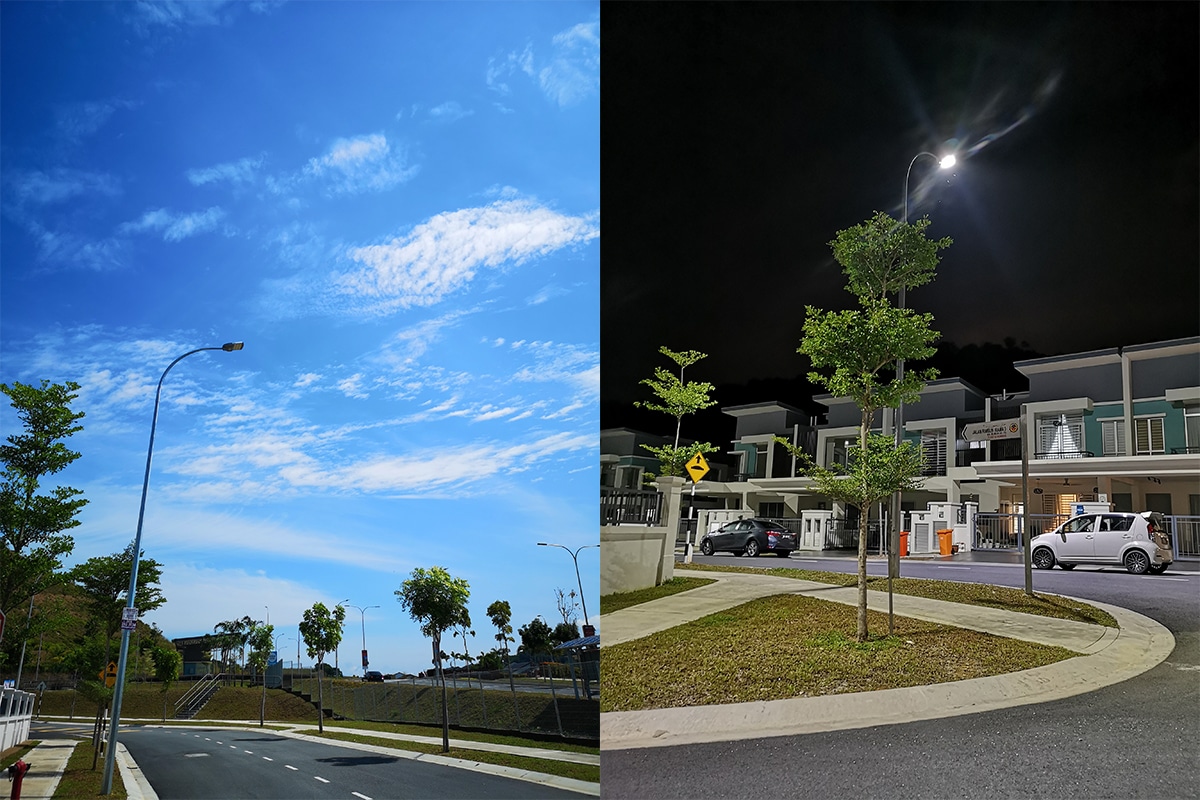

  • Street light in village

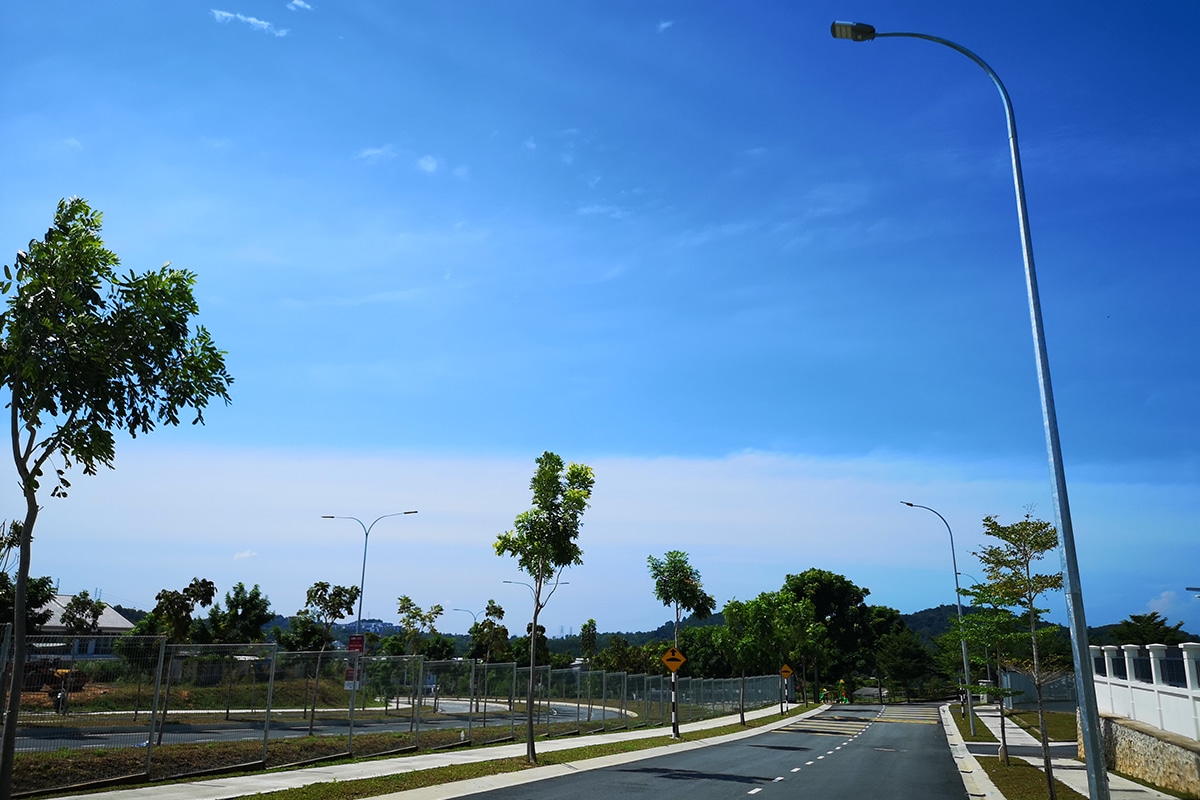

  • Street light in village 3
  • Street light in village 1
  • Street light in village 2
  • Street light in village
  • Street light in village 3
  • Download

    datasheet installation Manual

    Products Used

    led street light

    Series H Modular Design LED Street Light

    Video

    Related Products

    hanging street lights

    Series L Flexible Mounted Hanging Street Lights

    commercial street lights

    Series Kmini Smooth Body Street Light Led

    residential led street lights

    Series Kmini2 Eco But Quality Ensured Led Light Street

    led street light with enec+

    Series Rifle Class I/II Street Lamp

    smart street light

    Series Falcon Smart Street Light with NEMA or ZHAGA

    single arm post top light-06

    Series Halo Single Arm & Double Arm Post Top LED Lights

    Catenary Street Light-5

    Series Halo Catenary Street Light & Poleless Suspended Mounted

    led flood

    Series ZOOM Tool-less Led Flood Light

    Related Projects

    50w led street light

    Series Kmini 50w led street light in Residential road in Mexico

    streetlight LED on a new city road in Wenchuang of China1

    Series D streetlight LED on a new city road in Wenchuang of China

    commercial led street lights on urban roads in Italy

    Series K commercial led street lights on urban roads in Italy

    decorative street lighting fixtures

    Series K motion sensor led street light on a mountain road in Norway

    smart street light in a zoo park in Slovakia

    Series K smart street light in a zoo park in Slovakia

    Streetlight Led

    Series H Streetlight Led On The Seaside Urban Road In Qingdao of China

    Residential Led Street Lights

    Series H Residential Led Street Lights On Community Road In Malaysia

    Highway Lighting

    Series H Led Highway Lighting in JKR Bukit Nenas of Malaysia

    led lighting street light 50 watt price

    Series H Lighting Street In the main Street In Thailand

    Road Street Light On The Expressway In Ukraine

    Series K road street light on the expressway in Ukraine

    Related Blogs

    Understanding luminous efficacy and strategies for improvement

    Understanding luminous efficacy and strategies for improvement

    Energy preformance contract

    Energy performance contract of street lighting solution

    Safety and structural requirements of street lighting

    Safety and structural requirements of street lighting

    Performance requirements of LED luminaires

    Performance requirements of LED luminaires

    Light output degradation

    Light output of LED solution and its degradation – 62717 and LM80

    Maintenance factor

    Maintenance factor in illumination/lighting

    Constant current LED driver or constant voltage LED driver

    Constant current LED driver or constant voltage LED driver

    Photometric testing

    Photometric testing – symmetric or asymmetric lighting distribution

    parking lot light

    Guide to Choose Proper Outdoor LED Parking Lot Lights

    Floodlight or spotlight?

    How to Calculate Lighting Uniformity?

    How Long do Led Lights Last ?

    People also ask

    The maximum illuminance level required at intersections is 50 lux. Each lane near the intersection should have a lighting level of at least 20 lux, although this value is not fixed. Sidewalks also have requirements for illumination levels, but except for crossroads and sidewalks, road lighting mostly adopts brightness standards. For example, the luminance requirements of M1 to M6 are between 2.0 and 0.3.

    The CIE (International Commission on Illumination) standards classify roads into different lighting categories and recommend lighting standards for each category. The lighting level for motor vehicle lanes is classified under the M lighting class, and the classification is mainly based on eight parameters: actual speed, actual traffic volume (number of vehicles per day) and traffic composition, lane spacing and intersection density, parked vehicles, ambient brightness, and driving task difficulty.

    The selection of lighting levels for motor vehicle traffic, as well as pedestrian traffic road lighting, is based on various parameters. When choosing the lighting level for motor vehicle traffic (referred to as level M), the method outlined in Technical Report CIE 115:2010 is considered. This method takes into account eight parameters, including actual speed, actual traffic volume (number of vehicles per day), traffic composition, lane spacing and intersection density, parked vehicles, ambient brightness, and driver task difficulty. Additionally, when selecting lighting levels for conflict areas (level C), the parameter of junction density is also taken into consideration. As for the selection of lighting levels for pedestrians and low-speed areas (referred to as level P), generally five parameters are considered: pedestrian speed, usage intensity, traffic composition, parked vehicles, and ambient brightness. Furthermore, if necessary, facial recognition may also be taken into account.
